EasyThreed WATERCUBE Quick Start Manual

QUICK START GUIDE

QUICK START GUIDE

VERSION 1.1

WATERCUBE 3D PRINTER

Please read this User’s Manual carefully before use.

Please keep this User’s Manual properly for future reference.

Pictures are for reference only, subject to our available products.

QUICK START GUIDE

Table of Contents

1 SAFETY INSTRUCTIONS........................................................................................................... １

1.1 Machine placement .................................................................................................. １

1.2 Specification for use of power supply ........................................................................ １

1.3 Instructions during printing ....................................................................................... １

2 PRODUCT INTRODUCTION ..................................................................................................... １

2.1 Name of main components ....................................................................................... １

2.2 Basic Parameter ........................................................................................................ ２

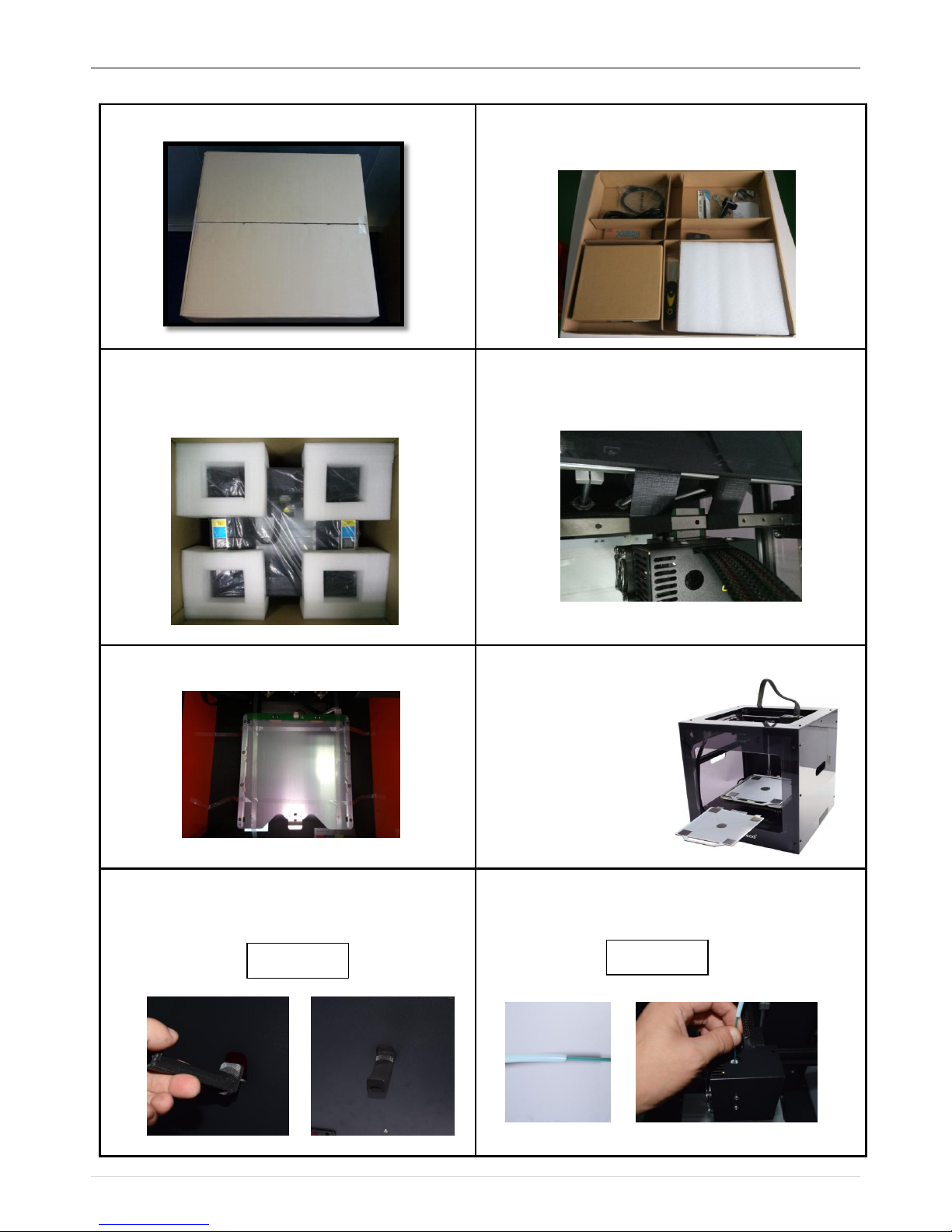

3 UNPACKING AND INSTALLATION............................................................................................. ３

4 INTRODUCTION OF STARTING UP THE PRINTER ...................................................................... ４

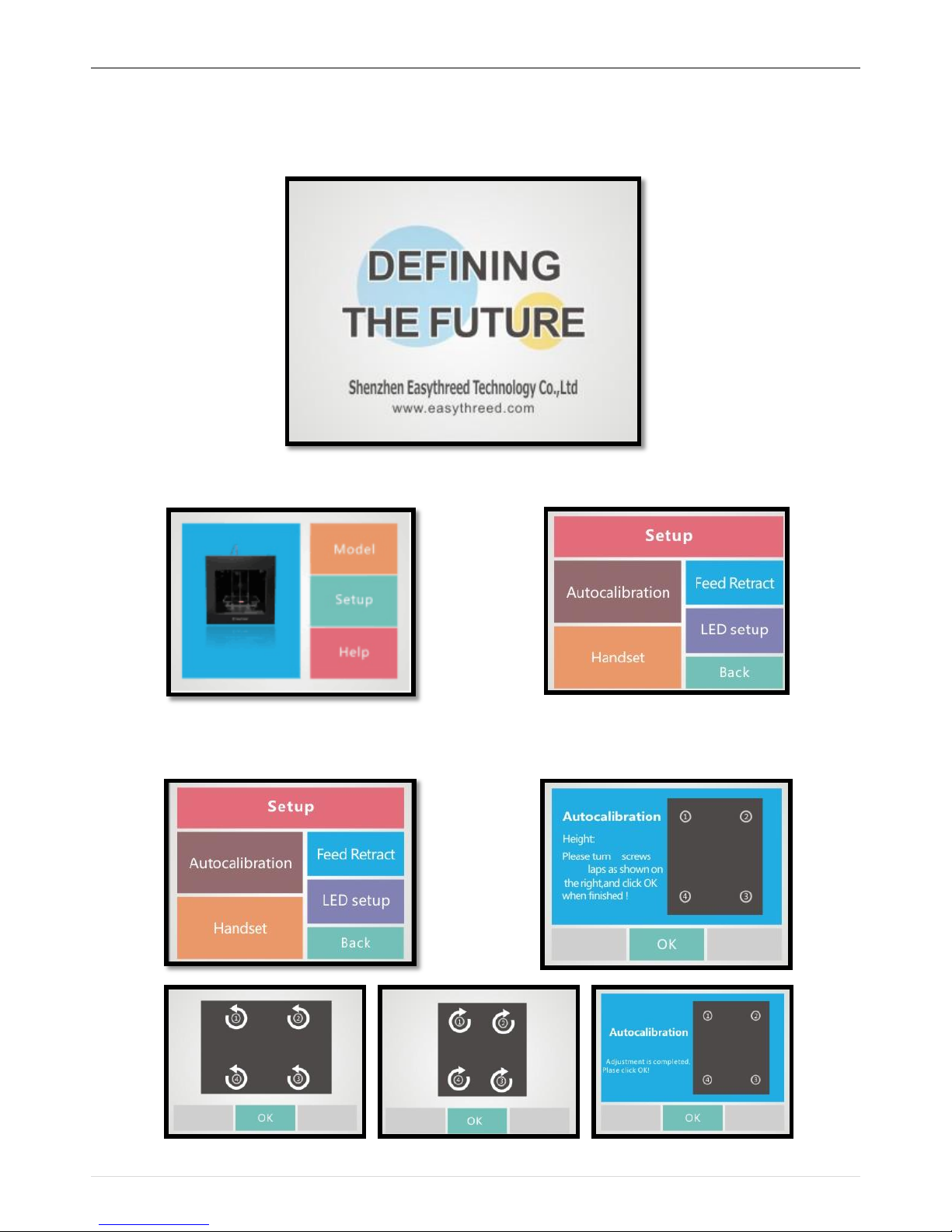

4.1 Power On ................................................................................................................. ４

5 PRINTING .............................................................................................................................. ６

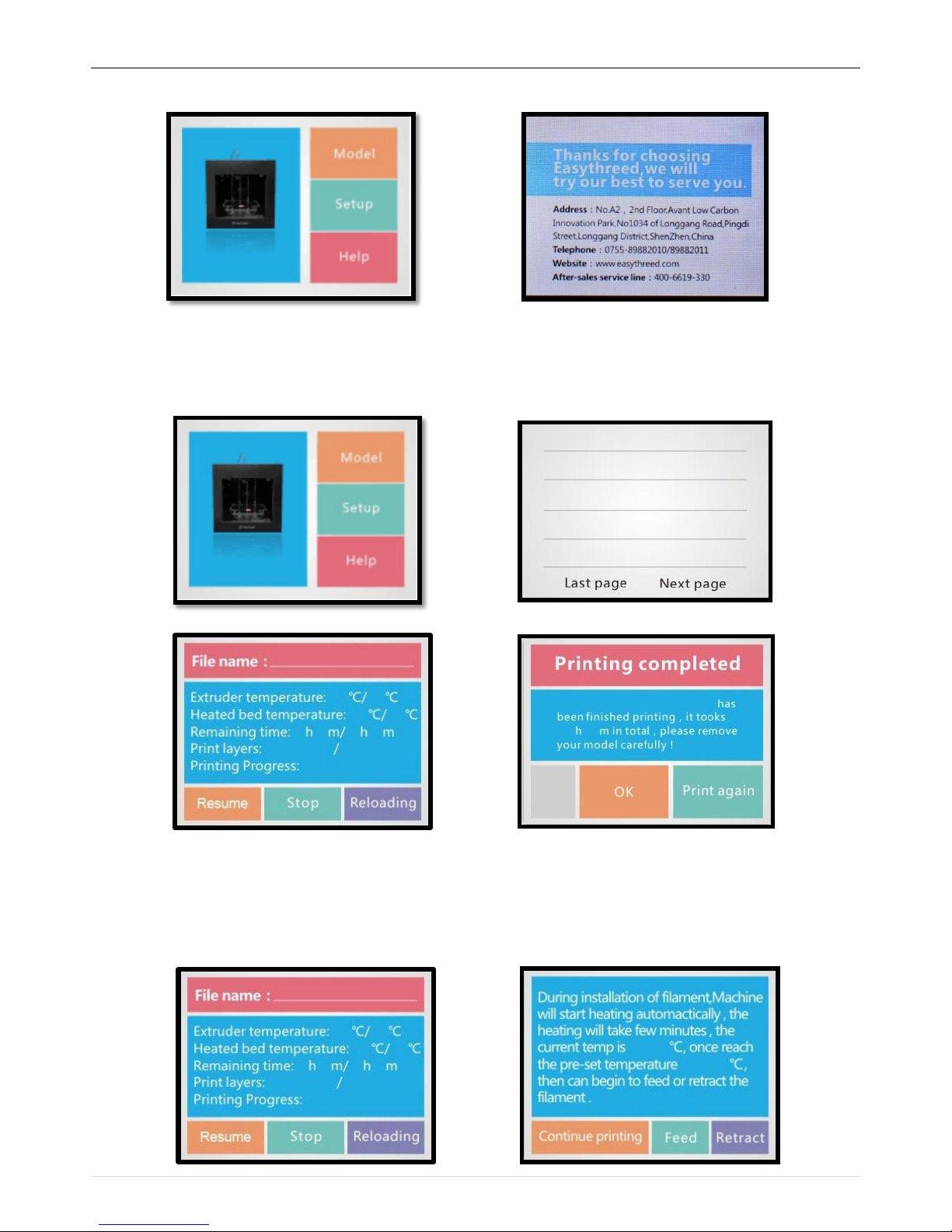

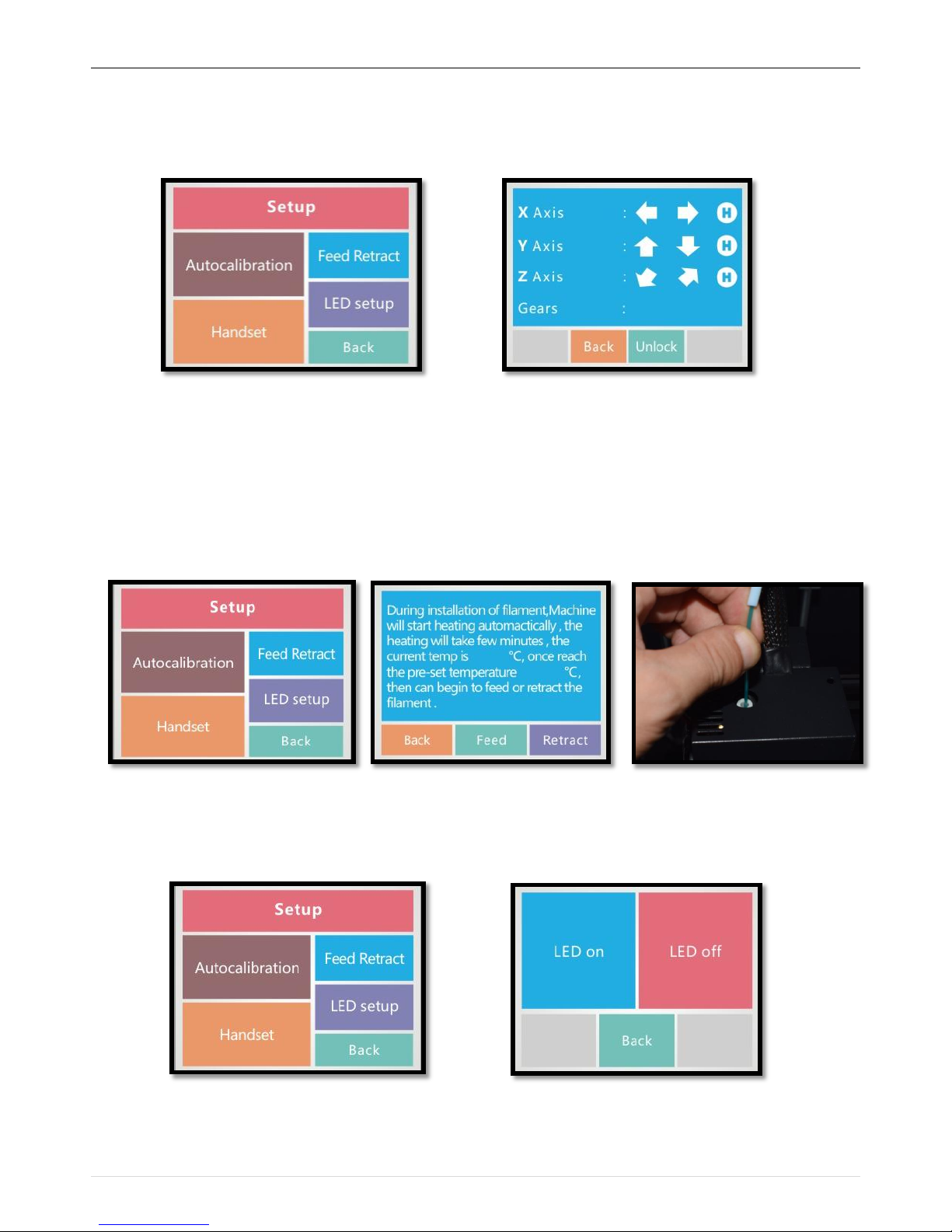

5.1 Instruction of LCD Display ......................................................................................... ７

6 MAINTANANCE ...................................................................................................................... ７

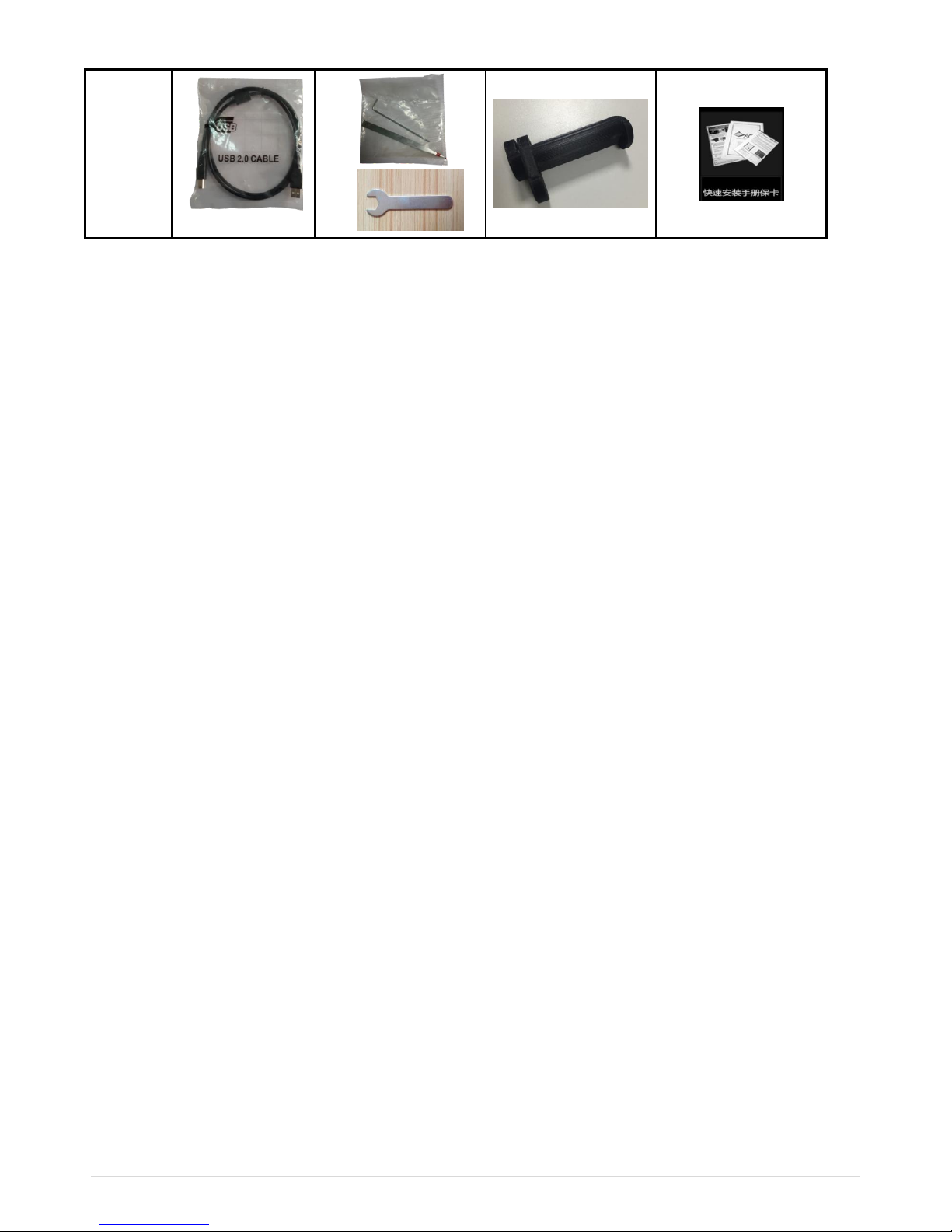

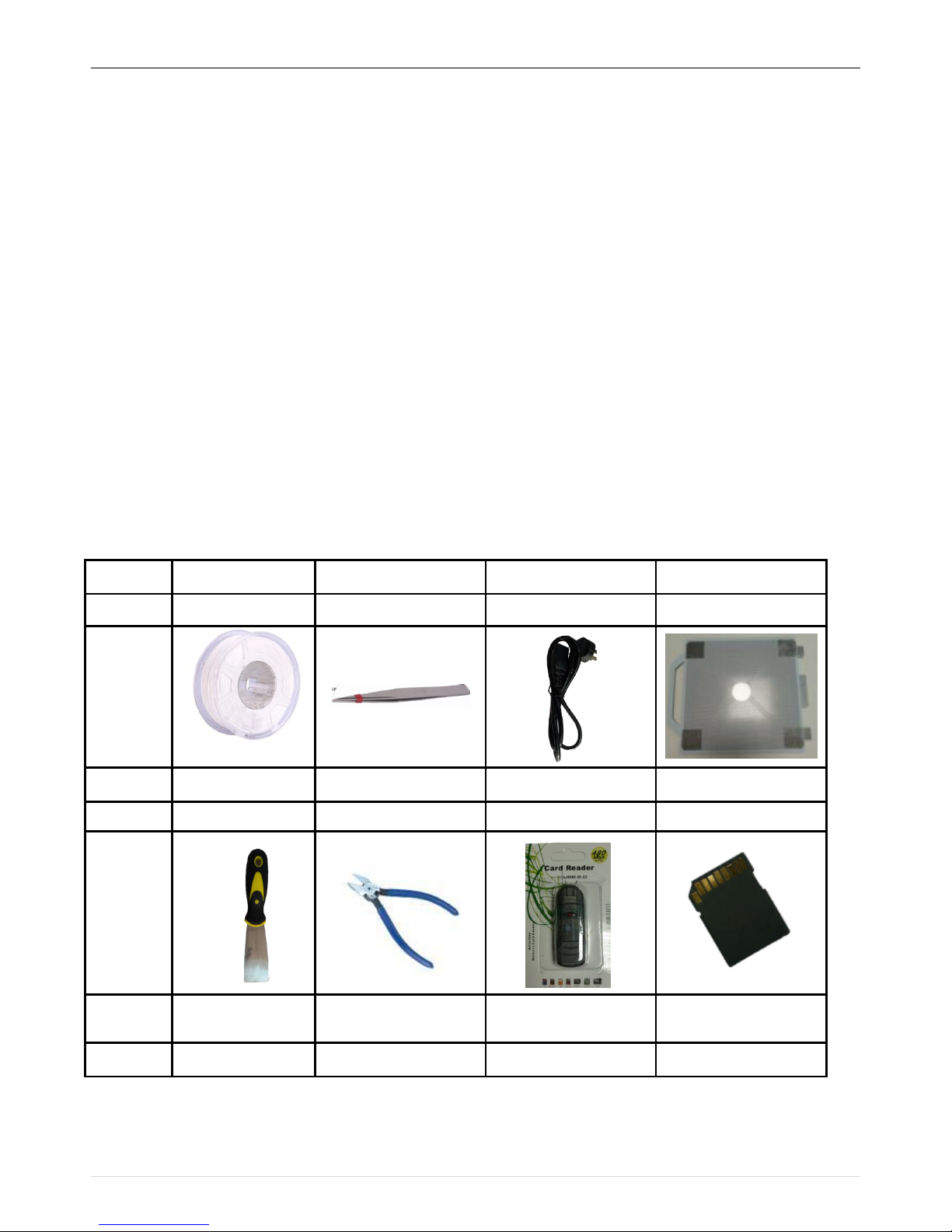

7 LIST OF ACCESSORIES ............................................................................................................. ７

8 FAQ ....................................................................................................................................... ８

QUICK START GUIDE

１ | P a g e

1 SAFETY INSTRUCTIONS

Before installing and using this machine, make sure to read the following contents. Please do not use this
machine with the methods not described in this User’s Manual.

1.1 Machine placement

 When moving the machine, pay attention to handle it gently to avoid touching the interior structure

of the printer.

 This machine is suitable for placed in a ventilated, cool, dry and dustless environment.
 When using the printer, pay attention to the heat dissipation of its surrounding environment and

avoid placing it on thick carpeting or close to wall.

 Please do not put the machine near explosives and high heat sources.
 Please do not put this machine in an unstable working environment or a working environment with

large vibration.

 Please do not pile weights on this machine.

1.2 Specification for use of power supply

 Please use the power cord supplied with this machine.
 This machine applies to 110 - 240V power supply.
 Please do not plug and unplug the power connector with wet hands.
 Please make sure to insert the plug completely into the socket.
 Please do not deliberately pull and excessively bend the wire supplied with this machine to avoid

open circuit or short circuit.

1.3 Instructions during printing

 Please do not operate this printer in the absence of personnel supervision.
 During the printing process and right after the printing process, please do not touch the interior

structure and accessories of the printer to avoid scalding.

 If the printer discharges smoke when printing, please turn off power switch immediately to stop

printing and contact the support service.

2 PRODUCT INTRODUCTION

2.1 Name of main components

Teflon Feeding
Tube

Print Head

LCD Display

Printing Platform

Warning label

QUICK START GUIDE

２ | P a g e

2.2 Basic Parameter

 Print parameters

Working environment - Working temperature: 5 °C - 35°C , Relative humidity: 30%-90%

 Electric parameters

Power input: 110-240V AC, 50/60Hz;
Power output: 24V/DC, 8A
Maximum power: 300W

Nozzle diameter

0.4mm

Print material

PLA/ABS

Extrusion temperature

180-240°C

Recommended print
head temperature

PLA: 190-210°C
ABS: 210-230°C

Bed temperature

0-120℃

Recommended bed
temperature

PLA:50-70°C
ABS:90-110°C

Print speed

10-60 mm/S

Layer thickness

0.05-0.2mm

Molding size

L190*D190*H180mm

Machine size

D420 x W416.5x H425.5mm

Compatible systems

Windows

Connection

SD Card USB connection for
printing

3D format supported

STL,OBJ

Slicing software

EASYWARE, CURA

Machine recognition
format

gcode

Net weight of the
product

20Kg

Power Switch

Power Socket

Filament spool

Cable Locker
