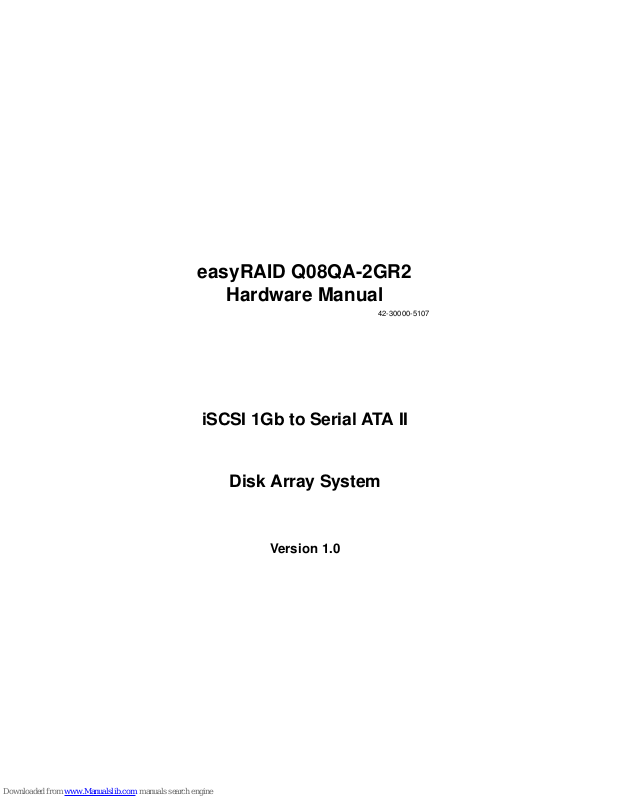

Page 1
easyRAID Q08QA-2GR2
Hardware Manual
42-30000-5107
iSCSI 1Gb to Serial ATA II
Disk Array System
Version 1.0
Page 2
Page 3
easyRAID Q08QA-2GR2
iSCSI 1Gb to Serial ATA
II
Disk Array System
Hardware User Manual
Page 4
Page 5
i
Table of Contents
Preface................................................................................................................... i
Chapter 1 System Requirements
Operating Environment .................................................................................... 1
VT100 Terminal Settings .................................................................................. 1
Chapter 2 Basic Configuration
Unpacking ............................................................................................................. 3
Components .......................................................................................................... 5
Closed Front Panel ........................................................................................... 5
Open Front Panel ............................................................................................. 6
Disk Tray .......................................................................................................... 7
Rear View ......................................................................................................... 8
Installing Disks ...................................................................................................... 9
Making Connections ........................................................................................... 11
Connecting the Host Interface ........................................................................ 11
Connecting the GUI management port ........................................................... 11
Connecting and Turning on the Power ........................................................... 12
Mounting in a Rack ............................................................................................. 13
Installing the Rail Extenders ........................................................................... 14
Chapter 3 Maintenance
Replacing a Disk ................................................................................................. 15
Replacing a Power Supply .................................................................................. 16
Upgrading Memory ............................................................................................. 18
Appendix
Hardware Specifications ..................................................................................... 21
Page 6
Page 7
i
Preface
About this Manual
This manual is designed to make the disk array system as easy to use as possible. Information
contained in this document has been checked for accuracy, but no guarantee is given that the contents are correct. Information and specifications are subject to change without notice.
Copyright Notice
© Copyright 2008
All rights reserved. This disk array system and related documentation are protected by copyright
and are distributed under licenses restricting their use, copying, and distribution. No part of this
documentation may be reproduced in any form by any means without prior written authorization
and its licensors, if any.
Conventions
Caution
This symbol is used to remind users to pay attention to important
descriptions regarding usage and maintenance (repair) or additional
important information related to this disk array system.
Note
This symbol is used to remind users of useful information that can make
procedures such as configuration easier to accomplish.
Page 8
ii
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
Preface
– Important Safety Instructions, Care and Handling
Important Safety Instructions, Care and Handling
Before starting, take a few minutes to read this manual.
Read all of these instructions and save this manual for
later reference.
Protect the disk array system from extremely high or low
temperatures. Let the disk array system warm (or cool)
to room temperature before using it.
Protect the disk array system from being bumped or
dropped. Do not place the disk array system on an
unstable cart, stand, or table. It may fall, causing serious
damage to the product.
Keep the disk array system away from magnetic forces.
Do not use the disk array system near water.
Keep the disk array system away from dust, sand, or dirt.
Gaps and openings in the cabinet are provided for ventilation. Never block or cover these openings, because
the disk array system may overheat and become unreliable. Don’t place the disk array system on a bed, sofa,
rug, or other similar surface.
Do not place the disk array system near or over a radiator or other heat source.
Refer to the rating plate for the correct voltage and
ensure that the appliance voltage corresponds to the
supply voltage.
V
Page 9
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
iii
Preface
– Important Safety Instructions, Care and Handling
The appliance must be grounded. The disk array system
is equipped with a 3-wire grounded type of power cord.
This power cord will only fit into a grounded type of
power outlet.
If an extension cord or a power center is used with the
disk array system, make sure that the total current consumption of all products plugged into the wall outlet
does not exceed the ampere rating.
Do not place the disk array system where the cord will
be walked on.
Never push any kind of object into the disk array system
through cabinet gaps and openings, since they may
touch dangerous voltage points and cause a risk of fire
or electric shock.
Unplug the power cord from the wall outlet before cleaning. Keep the disk array system dry. Do not use liquid
cleaners, aerosol cleaners, or a wet cloth. Use a damp
cloth for cleaning.
Except as specifically explained in this User Manual, do
not attempt to service the disk array system by yourself.
Opening or removing the covers may expose you to
dangerous voltages.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions.
• If the disk array system has been exposed to
water or any liquid.
• If the disk array system has been dropped or the
cabinet damaged.
Users should not remove the cover.
Disconnect all power supply cords before servicing.
Fan 1
Power 1
o
GGwGGY
Page 10
iv
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
Preface
– Important Safety Instructions, Care and Handling
Placement Notes
• The disk array system LCD panel can be damaged by exposure to
direct sunlight. Limit exposure to subdued or indirect sunlight only.
• The disk array system should be used only in clean environments
that are free from airborne contaminants such as dust, dirt, and
smoke. Excessive moisture or oil particles in the air can also hinder
disk array system performance.
• To reduce the possibility of data errors caused by electromagnetic
interference, locate the disk array system at least five feet away
from electrical appliances and equipment that generates magnetic
fields.
Power Supply Safety Notes
• To avoid electric shocks, do not use an extended power cord or an
outlet that does not match the disk array system plug or leaves the
plug exposed.
• The disk array system has a 3-wire grounded plug. The third pin
connects to ground; do not remove it.
• If the power cord or plug is damaged or worn, unplug it immediately
and contact a qualified service technician for maintenance.
• To avoid fire or electric shocks, do not overload electric power outlets.
CAUTION : MULTIPLE POWER SOURCES
Disconnect all AC power cords to completely power from the unit
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CAUTION
The thumbscrews on the rear surface shall be secured by the screwdriver, which cannot be loosened by bare hands to prevent the unintentional access to the hazardous parts inside the equipment.
Page 11
1
1 System Requirements
Ensure that the following requirements are met before installing the disk array system.
Operating Environment
• 15 cm (6-inches) of space around the disk array system for proper ventilation
• ambient temperature of 5°C to 40°C (40°F to 104°F)
• ambient non-condensing relative humidity of 20% to 80%
• dust, smoke, and oil free environment
• no large magnetic fields, such as those generated by a high voltage power cables and
motors, etc.
• no direct sunlight
• a flat, stable surface capable of supporting the disk array system
VT100 Terminal Settings
Refer to the following table for a summary of VT100 terminal settings required to communicate
with the disk array system. Refer to your system manual for instructions on setting up the VT100
terminal settings.
Item Required Setting
Connection Serial Port (COM1 or COM2)
Protocol RS232 (Asynchronous)
Cabling Null Modem cable
Baud Rate 115200
Data Bits 8
Stop Bit 1
Parity None
Page 12
Page 13
3
2 Basic Configuration
This chapter describes disk array system connections and disk installation.
Unpacking
Contact your supplier if any of the following items are missing or damaged.
Caution
The disk array system is heavy. Be careful when lifting and moving it.

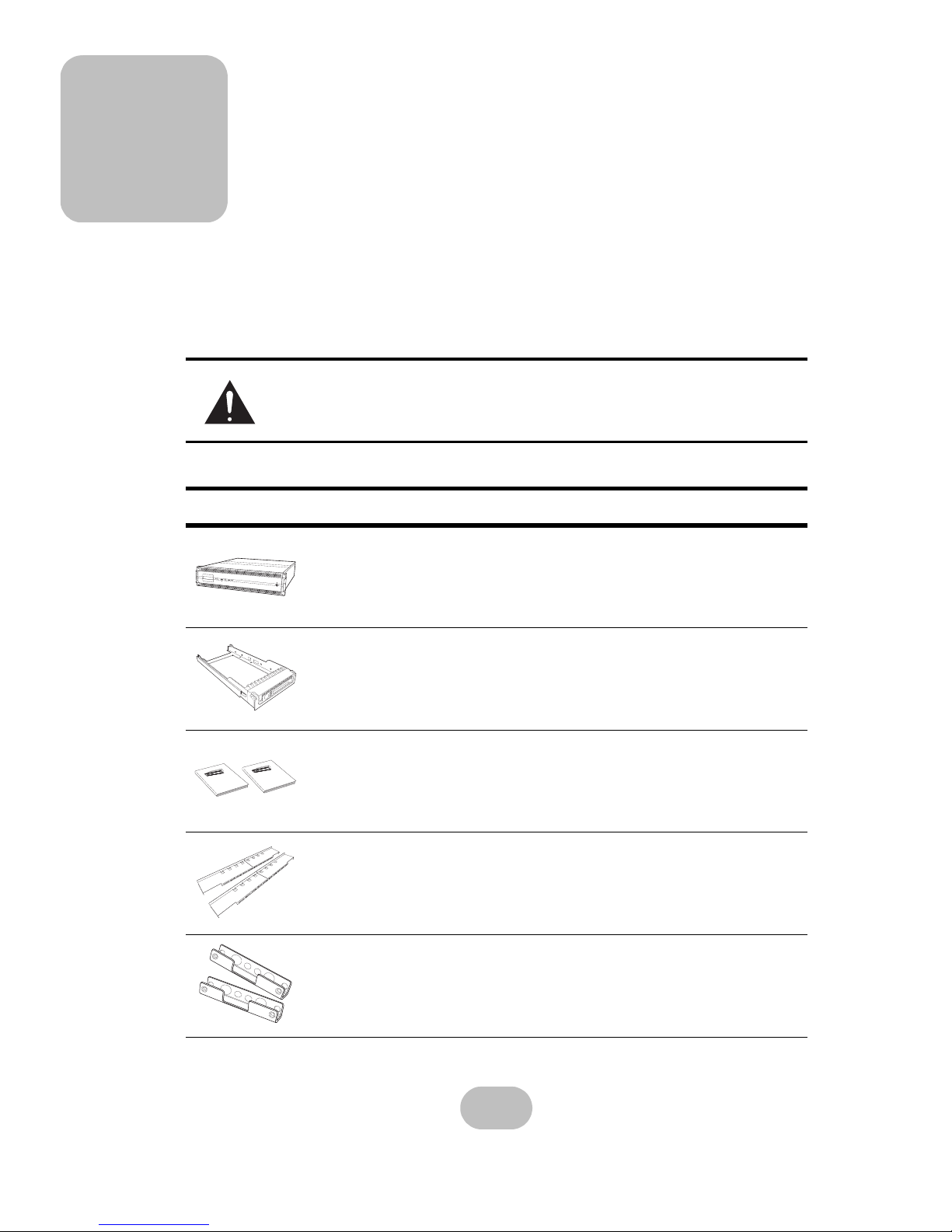

Item qty
Disk Array System 1 pcs
Hard Disk Tray 8 pcs
Hardware and Software User Manual 1 set
Rail 1 set
Rail Extender 1 set
Power P/S Fail Access
Enter ESC
Hardware User Manual
easyRAID Q08QA-2GR2
iSCSI to Serial ATA
Disk Array System
Power P/S Fail Access
Enter ESC Pri/Sec
Power P/S Fail Access
Enter ESC Pri/Sec
Software User Manual
easyRAID Q08QA-2GR2
iSCSI to Serial ATA
Disk Array System
Page 14
4
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Unpacking
Front Panel Key 2 pcs
RJ45 LAN Cable 1 pcs
Power Cable 2 pcs
RS-232 Cable 1 pcs
Screw pack 2 packs
Fix Screw pack M5 2 packs
Fix Screw pack M6 2 packs
Fix Screw pack UNC #10-32 2 packs
Item qty
Page 15
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
5
2
Basic Configuration – Components
Components

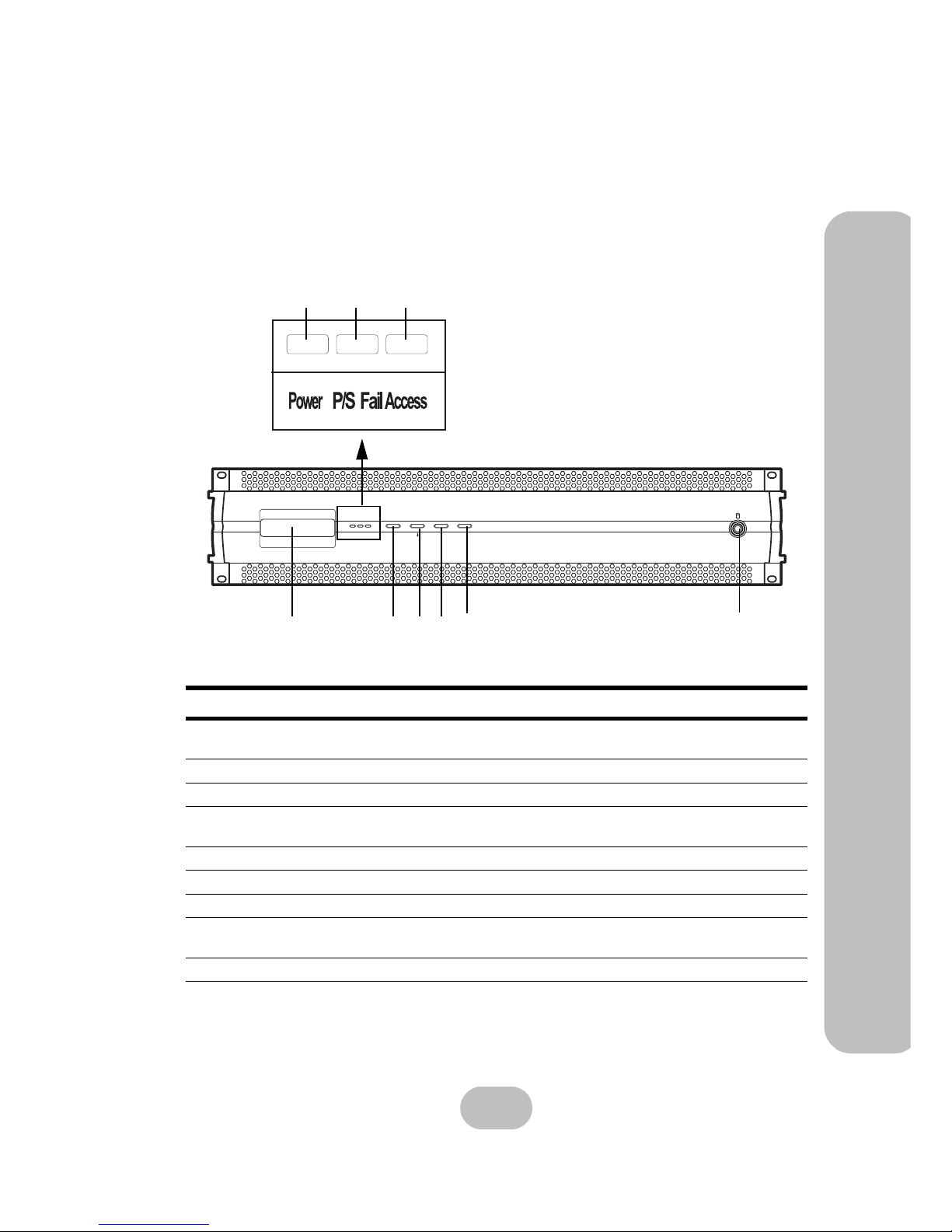

Closed Front Panel
No. Name Description
1 LCD panel
Display warning, operating, and configuration
information.
2 Power-on indicator Indicate the disk array system power is on.
3 Power supply fail indicator Indicate a failed power supply.
4 Host computer access indicator
Indicate data transfer between the disk array system and the host computer.
5 Up function button Move up in the LCD menus.
6 Down function button Move down in the LCD menus.
7 Enter function button Select a menu item or confirm a choice or entry.
8 Escape function button
Return to the previous LCD menu without making
changes.
9 Lock Lock front cover.
Power P/S Fail Access
Enter ESC
1
3 4
5 6
2
7
8 9
Page 16
6
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Components
Open Front Panel

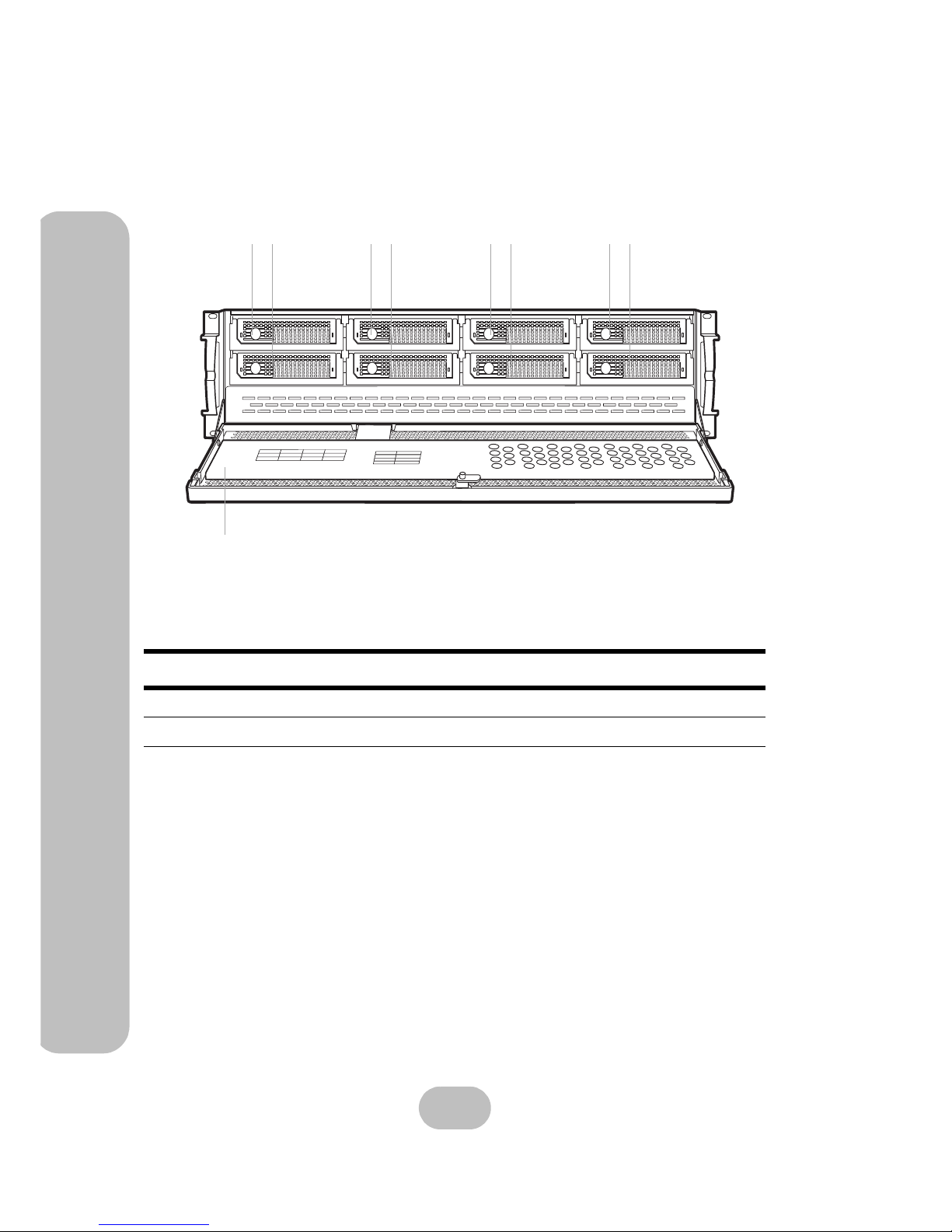

No Name Description
1-8 Disk trays 1-8 Removable hot swap disk trays
9 Front panel door Protect the disks and house the LCD panel
Disk1
Disk2
Disk3
Disk4
Disk5
Disk6
Disk7
Disk8
Disk Mapping
Color Status
Bule Access
Green Disk Online
Red No Disk
Tray LED Indication
1 2 3 4 5 6 7 8
9
Page 17
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
7
2
Basic Configuration – Components
Disk Tray

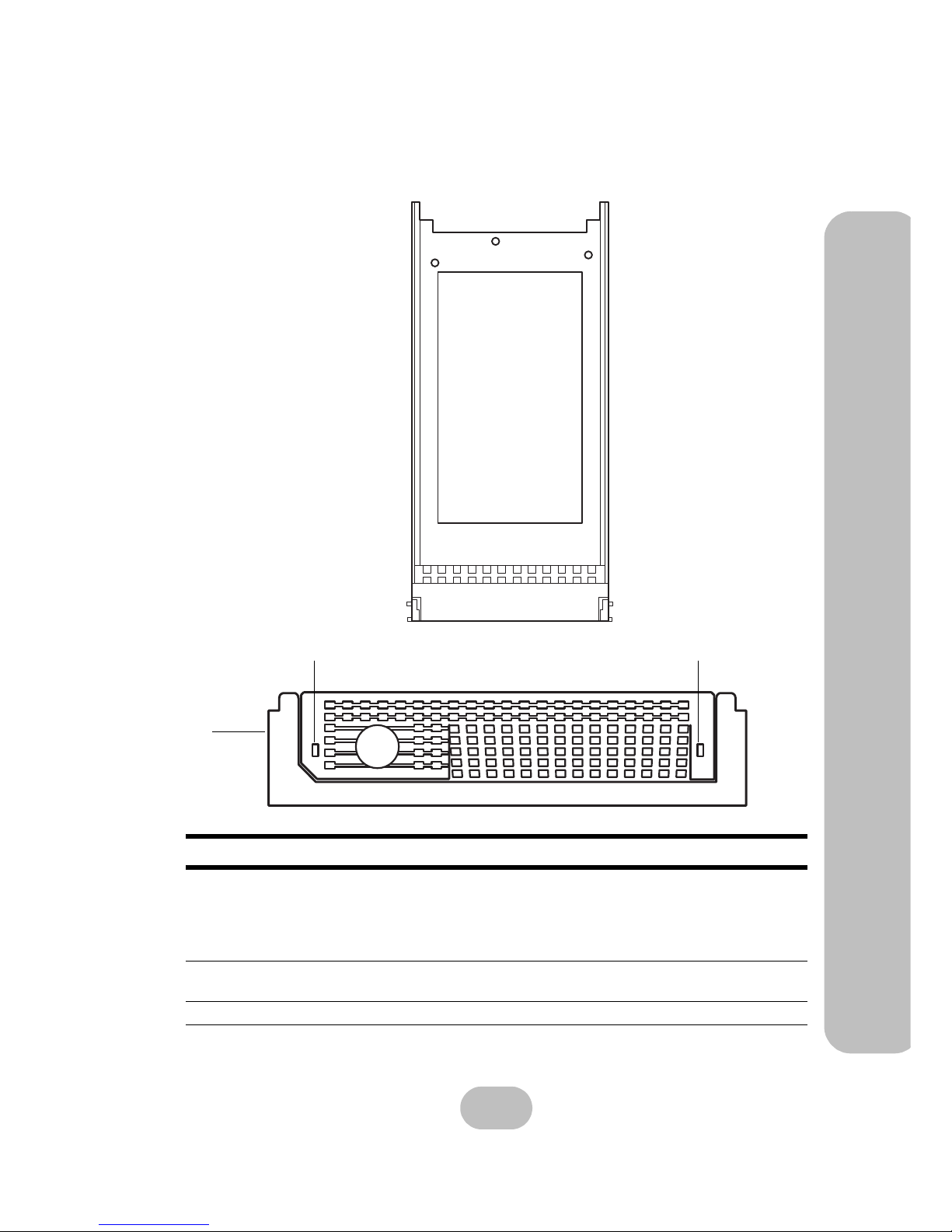

No. Name Description
1 Power/Error indicator LED
Different colors indicate different disk states:
• Green – Disk online
• Orange – Disk full
• Red – No disk
2 Access indicator LED
This blue LED indicates that the disk is being
accessed.
3 Tray handle Release the disk tray.
2
1
Front
3
Page 18
8
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Components

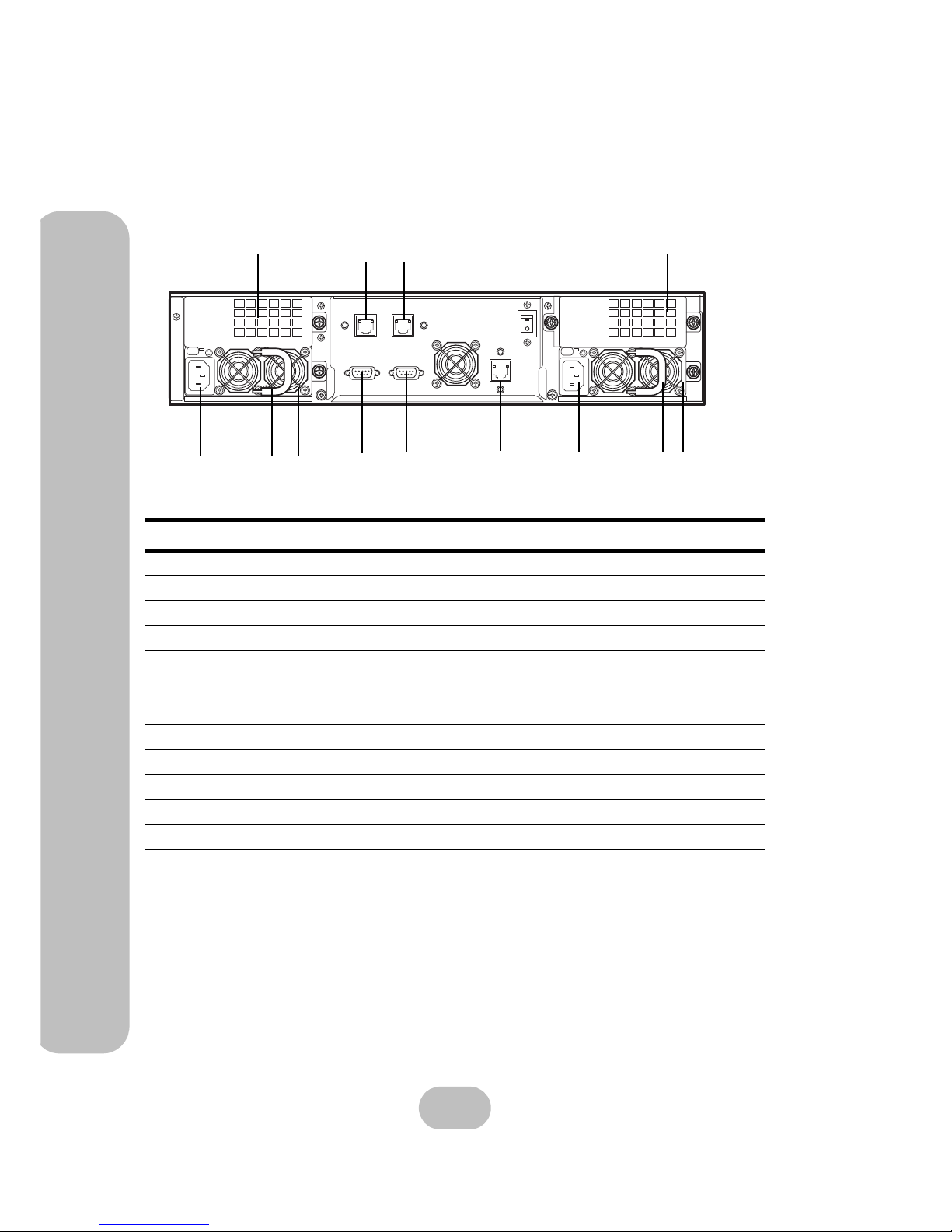

Rear View
Ter m
UPS
Host 1 Host 2
LAN
1
89
10
3
11
1213
2
7
14
4 5
6
No. Name Description
1
Cooling fan 1
System cooling fan.
2
iSCSI Host Port 1
Connect to the host server.
3
iSCSI Host Port 2
Connect to the host server.
4
RS-232 Port
Connect to a VT100 terminal or equivalent.
5
UPS port
Data port for uninterruptable power supply.
6
Cooling fan 2
System cooling fan.
7
Power Supply 2
Removable redundant power supply 2.
8
Power Supply Handle
For power supply removal.
9
Power Supply AC In
Connect to a 100-240 VAC power source.
10
Power Supply Switch
Switch the power on or off.
11
Ethernet Port
Use for browser-based configuration.
12
Power Supply 1
Removable redundant power supply 1.
13
Power Supply Handle
For power supply removal.
14
Power Supply AC In
Connect to a 100-240 VAC power source.
Page 19
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
9
2
Basic Configuration – Installing Disks
Installing Disks
This section describes how to install disks in the disk array system.

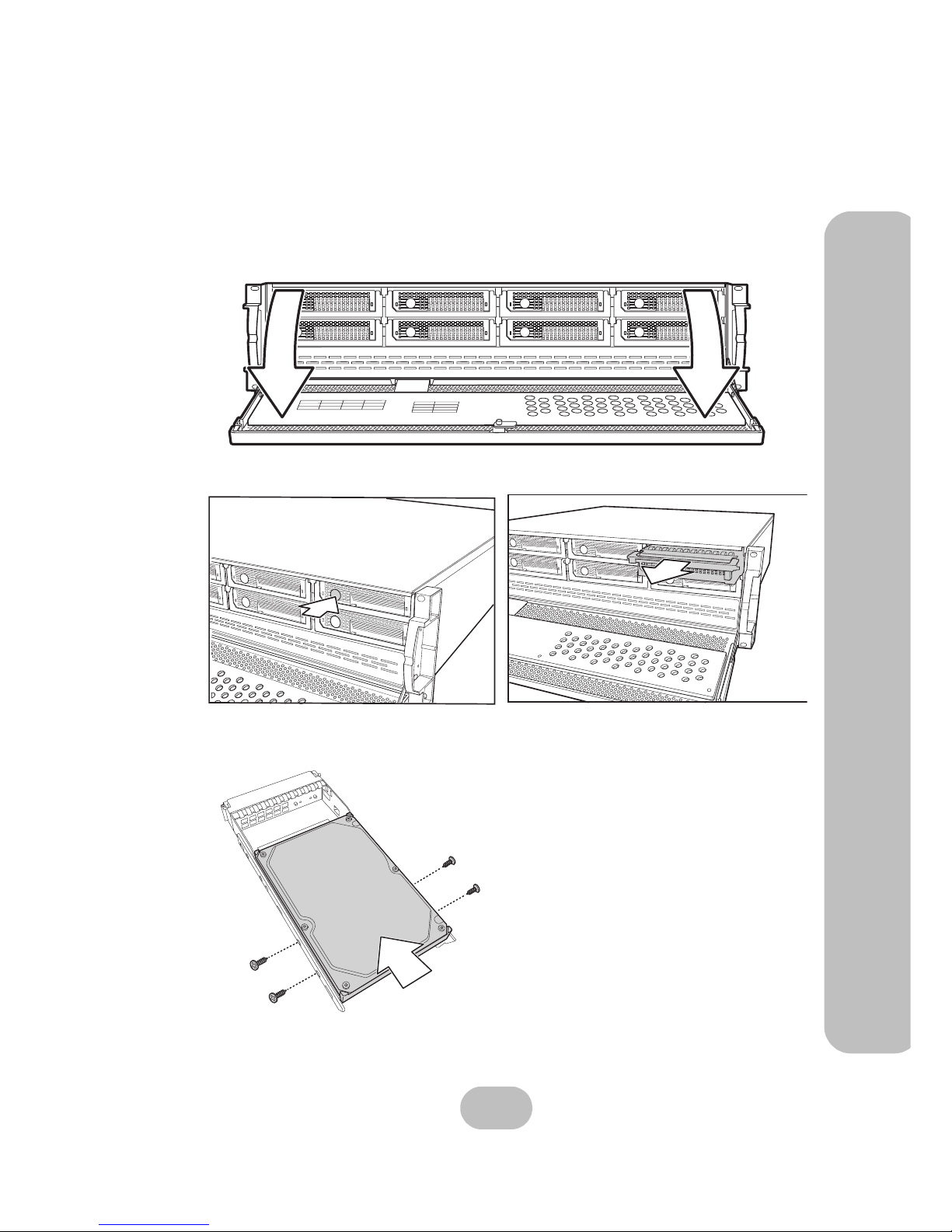

1 Unlock the front panel door, then pull it open.
2 Push the button (A) to release the disk tray handle. Pull the handle (B) to release the tray.
3 Align the rear of the disk with the rear of the disk tray.
4 Insert the disk into the disk tray and fix into place with screws supplied with the disk.
Disk1
Disk2
Disk3
Disk4
Disk5
Disk6
Disk7
Disk8
Disk Mapping
Color Status
Bule Access
Green Disk Online
Red No Disk
Tray LED Indication
A
B
Page 20
10
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Installing Disks
5 Slide the disk tray back into the empty slot (A), then slowly close the disk tray handle
(B).
6 Repeat steps 2 to 5 until all of the required disks have been installed.
7 Push the front panel door closed, and lock it.
A
B
Disk1
Disk2
Disk3
Disk4
Disk5
Disk6
Disk7
Disk8
Disk Mapping
Color Status
Bule Access
Green Disk Online
Red No Disk
Tray LED Indication
Page 21
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
11
2
Basic Configuration – Making Connections
Making Connections
After the required number of disks have been installed, external connections to the disk array
system must be made. This section describes how to make all of the necessary connections.
Connecting the Host Interface
The disk array system has two iSCSI 1Gb interfaces. Refer to the following sections to make host
interface connections.
Internet Small Computer Systems Interface
The easyRAID Q08QA-2GR2 has network cable interfaces. Follow these instructions to make
connections.

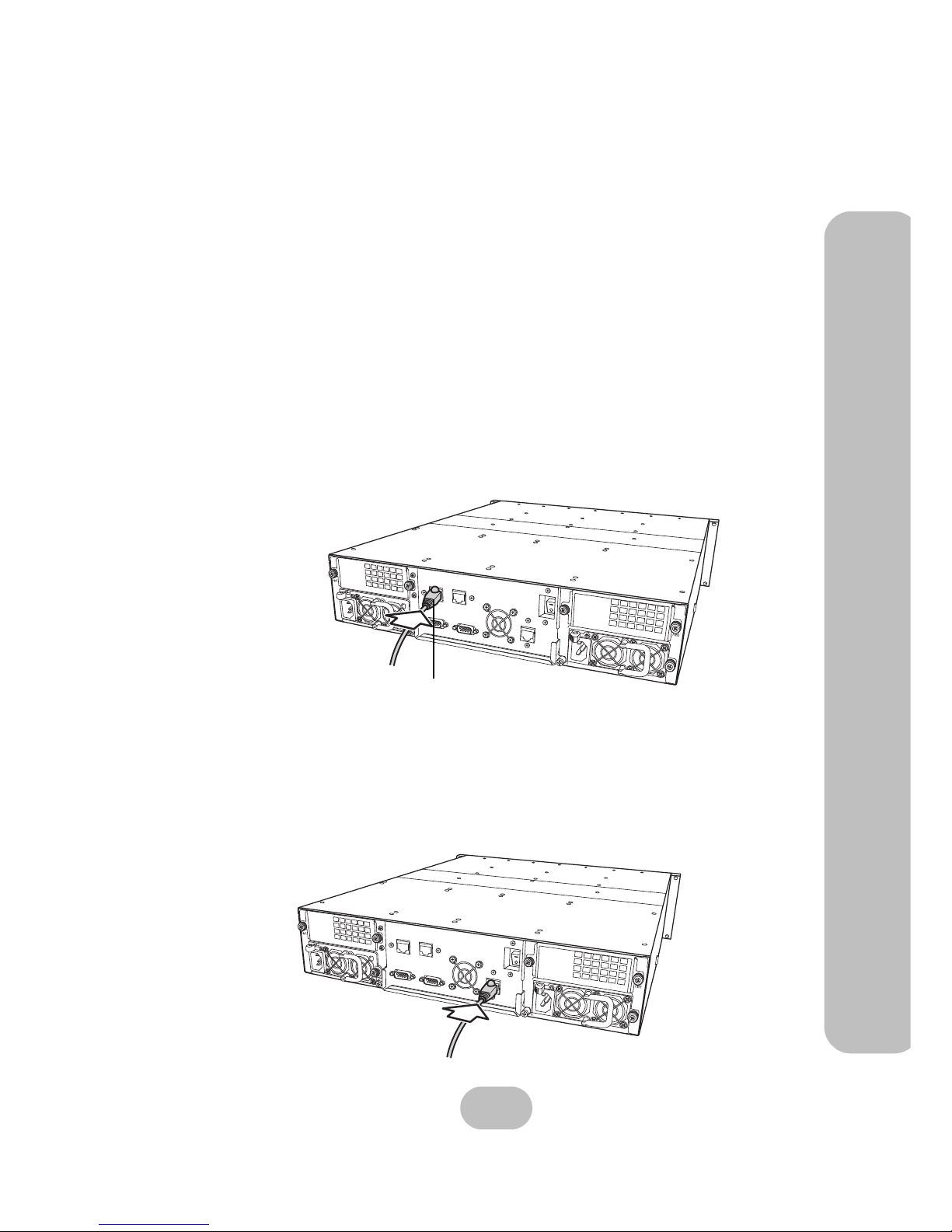

1 Connect the RJ45 cable (A) to the left of the easyRAID Q08QA-2GR2 host port 1 (pri-
mary iSCSI channel) at the rear of the disk array system.
Connecting the GUI management port
Connect the GUI management port by a network cable (standard RJ-45) to LAN environment,
and after open a web-browser with easyRAID Q08QA-2GR2 IP address (Default is DHCP
enabled) for easily monitoring / configure RAID system.
A
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
Page 22
12
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Making Connections
Connecting and Turning on the Power

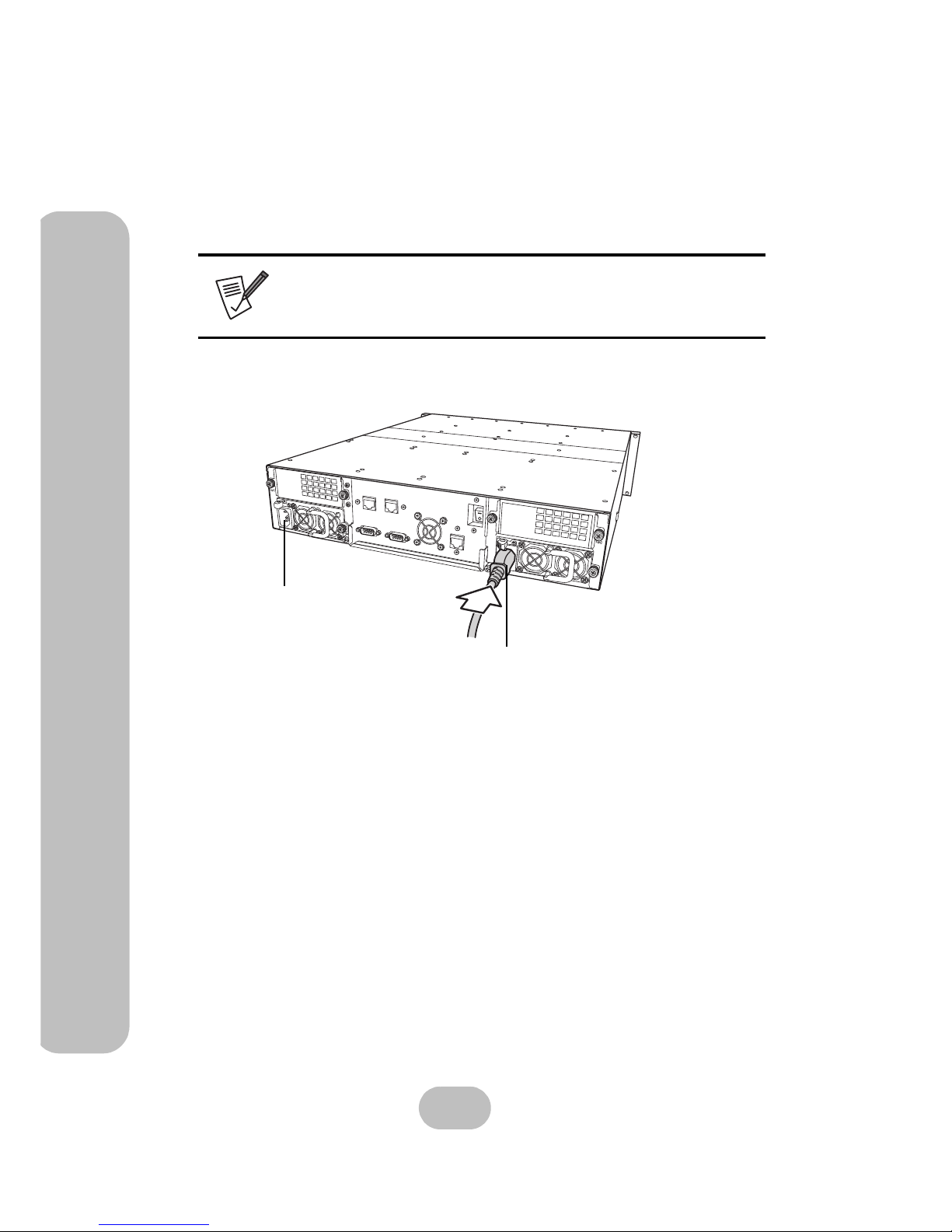

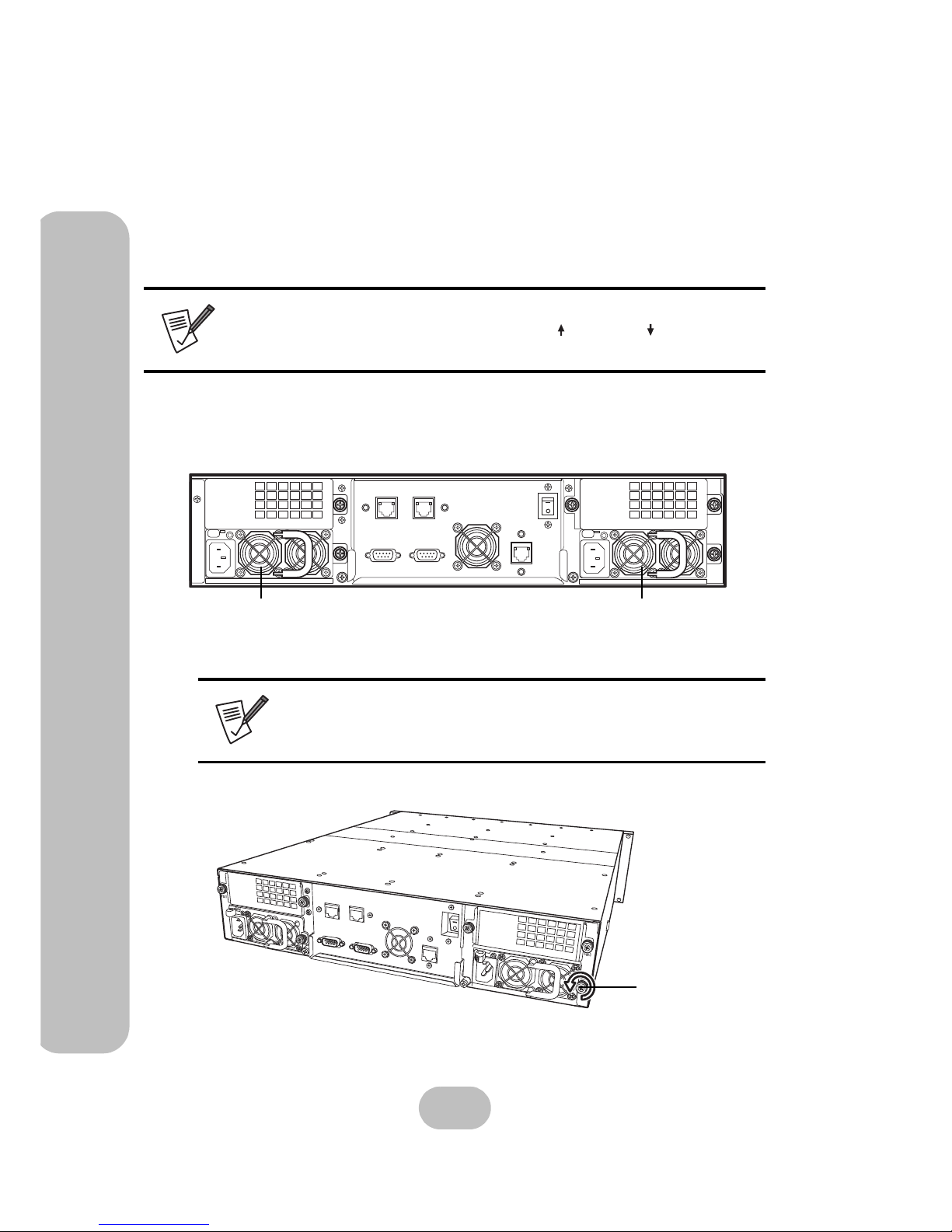

1 Plug a power cable (A) to a power connector at the rear of the unit, then plug the second
power supply cable into the second power connector (B).
2 Switch on both power supplies.
Note
The system is equipped with auto switching power supplies that
can run on 100 to 240 VAC.
LAN
Host 1
Host 2
UPS
Term
B
A
Page 23
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
13
2
Basic Configuration – Mounting in a Rack
Mounting in a Rack
When the disk array system is completely set up, it can be installed in a standard 19-inch rack.
Follow the instructions in this section to install the disk array system in a rack.

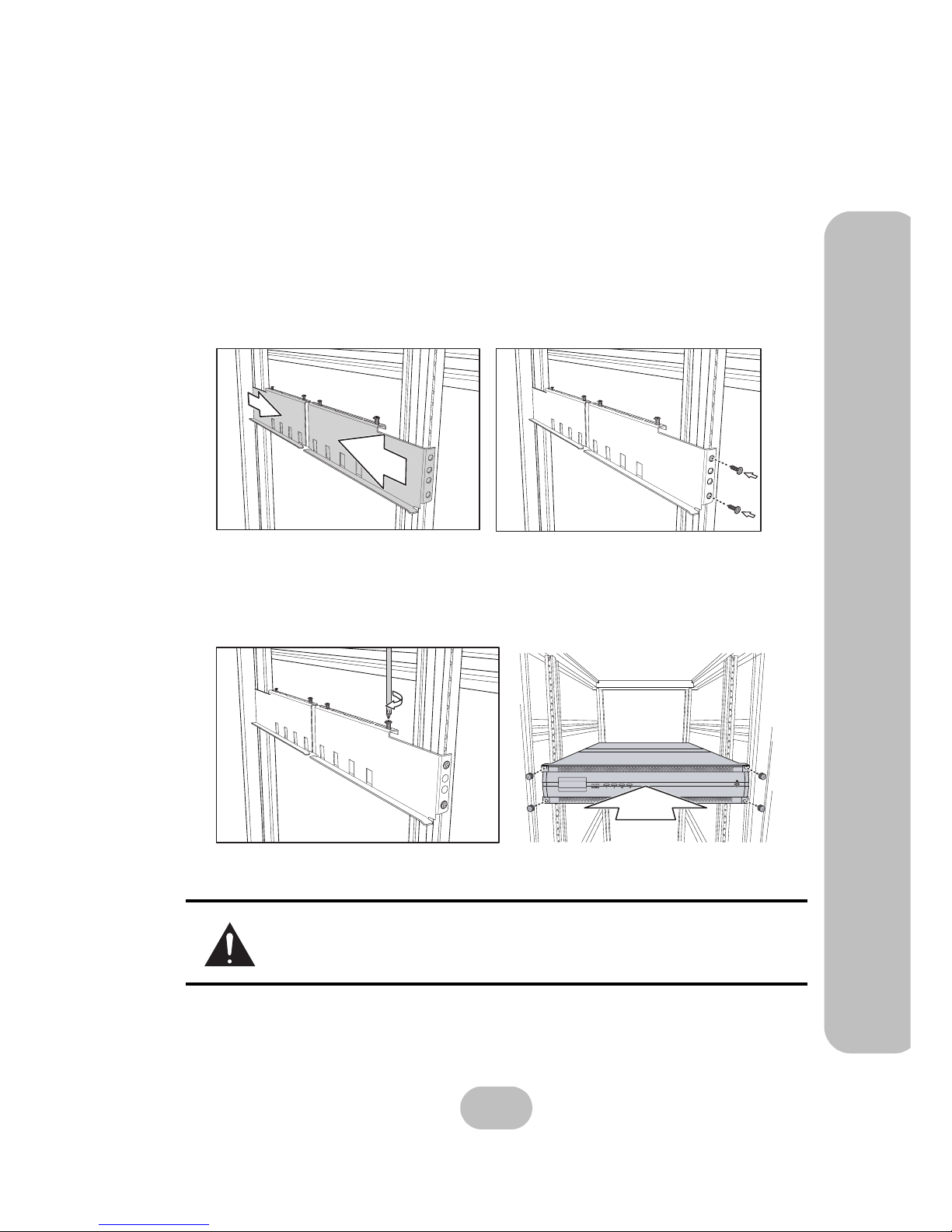

1 Clip eight rack nuts supplied with your rack, into the rack, taking care that they corre-
spond with the mounting points on the rails.
2 Extend both of the rails so that they are the right length to fit in your rack.
3 Bolt the rails into the rack using the rack bolts supplied with your rack.
You will need four nuts and bolts (not included) for each rail; two at the front and two
at the back.
4 Tighten the locking screws when they are the correct length.
5 Slide the disk array system into the rack and bolt it into place with the supplied fixing
screws.
Caution
This product is heavy. Attempt to install the disk array system in a rack by
yourself could result injury or damage in the product.
Page 24
14
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
2
Basic Configuration – Mounting in a Rack
Installing the Rail Extenders
Follow these instructions to fit the rail extenders if required.

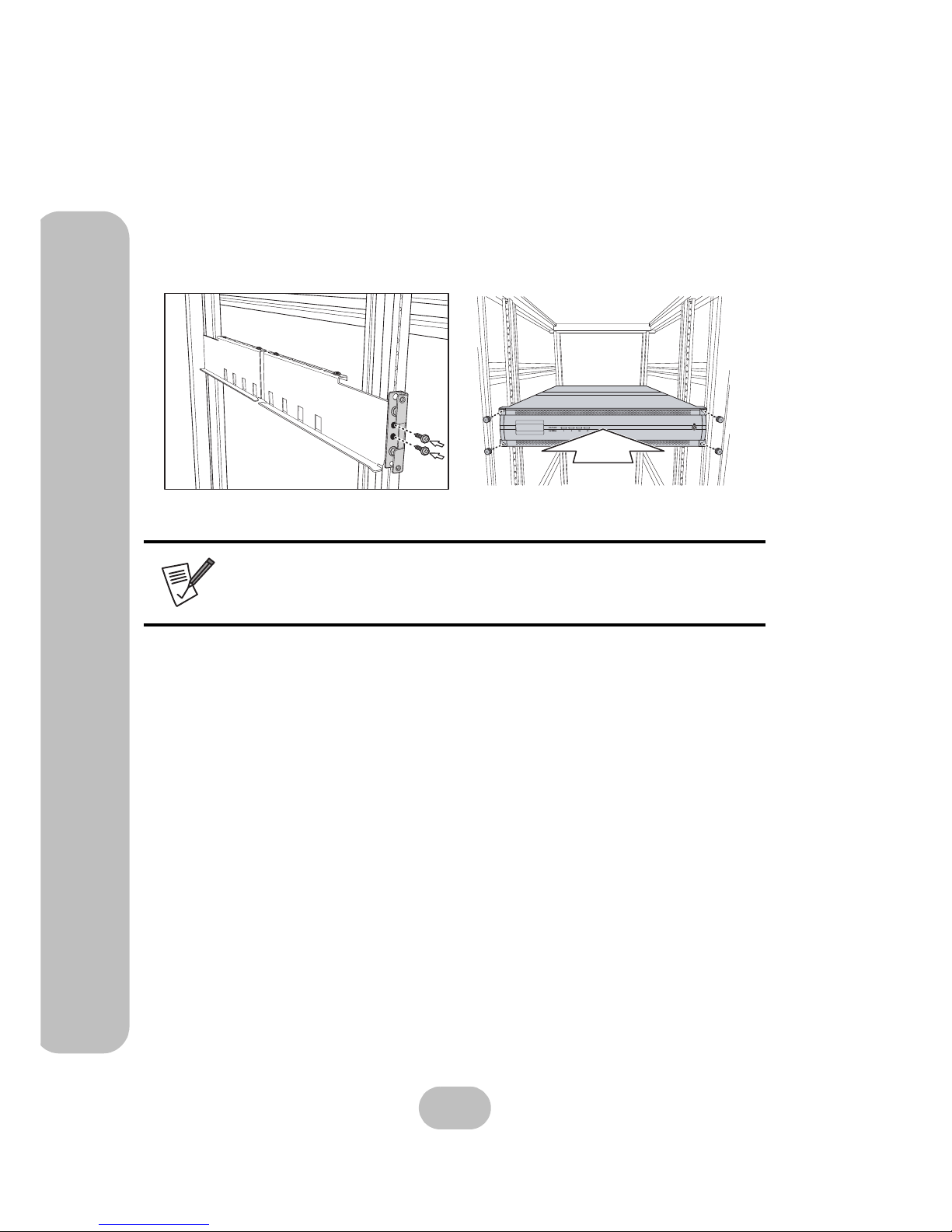

1 If required, bolt the rail extenders into place as shown using the small bolts provided.
2 Slide the disk array system into the rack and bolt it into place with the supplied fixing
screws.
Note
The rail extenders may be required to allow the disk array system room
for the front door to open correctly.
Page 25
15
3 Maintenance
Replacing a Disk
A disk failure is indicated when the Power/Error LED at the front of the drive tray turns red and
the audible alert sounds.
The LCD panel displays the failure with the symbol “R” or “W”. “R” indicates a disk failure or
error, and “W” indicates that there are too many bad sectors on the disk.
Disks are hot swappable, which means that they can be inserted and removed while the disk array
system is powered on and operating. Follow these instructions to replace a failed disk.

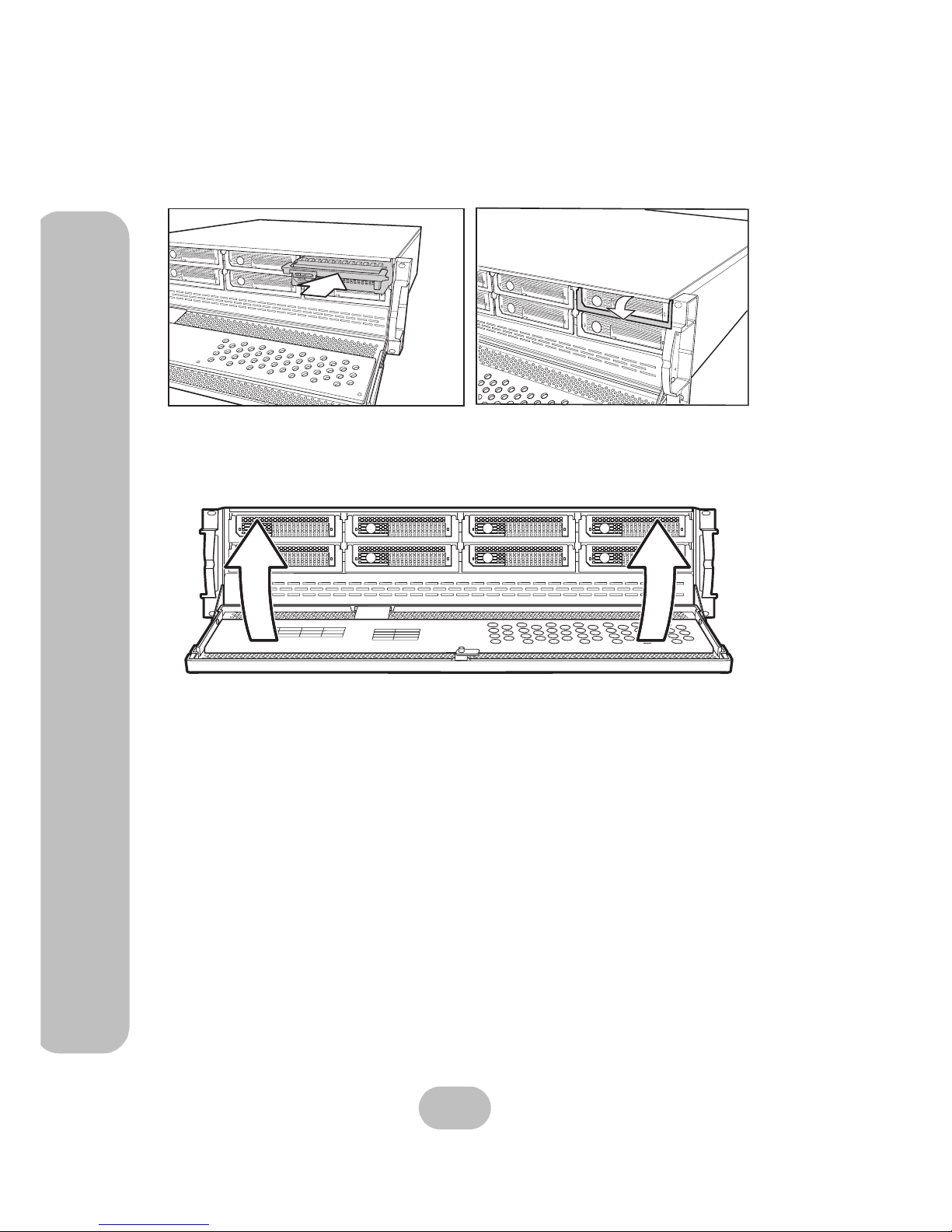

1 Unlock the front panel door, then pull it open.
2 Push the button to release the disk tray handle. Pull the handle to release the tray.
3 Remove the screws from the failed disk, then remove the disk from the disk tray.
4 Align the rear of the new disk with the rear of the disk tray.
5 Insert the new disk into the disk tray.
6 Attach the disk to the disk tray with the screws that came with the disk.
7 Slide the disk tray back into the empty slot, then close the disk tray handle.
8 Push the front panel door closed, and lock it.
Note
Turn off the audible alert by pressing the Up and Down function buttons on the front panel twice simultaneously.
Note
The new disk must have the same or a greater capacity than the
faulty disk that was removed. If the disk capacity is smaller, the
audible alert sounds and the auto-rebuild operation doesn’t start.
For best performance, it is recommended that the new disk be
identical to the failed disk.
1 1 1 2 2 2 WR
Example:
• Disks 1 to 3 are members of array group 1.
• Disks 4 to 6 are members of array group 2.
• Disk 7 has too many bad sectors.
• Disk 8 has an error or a fault.
Page 26
16
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
3
Maintenance – Replacing a Power Supply
Replacing a Power Supply
The disk array system is equipped with a Power Supply Fail Indicator LED at the front of the unit
that turns red when one of the power supplies fails. The message “Power x failure” also appears
on the LCD panel, where x refers to power supply 1, or 2, and an audible alert sounds.
Power supplies are hot swappable, which means that they can be inserted and removed while the
disk array is powered on and operating. Follow these instructions to replace a failed power supply.
1 Identify the power supply that has failed.
2 Remove the power cable from the power supply connector at the rear of the unit.
3 Loosen the power supply retaining screw.
Note
Turn off the audible alert by pressing the Up and Down function buttons on the front panel twice simultaneously.
Note
The system is equipped with auto switching power supplies that
can run on 100 to 240 VAC.
Ter m
UPS
Host 1 Host 2
LAN
Power Supply 1 Power Supply 2
LAN
Host 1
Host 2
UPS
Term
Power Supply
retaining screw
Page 27
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
17
3
Maintenance – Replacing a Power Supply

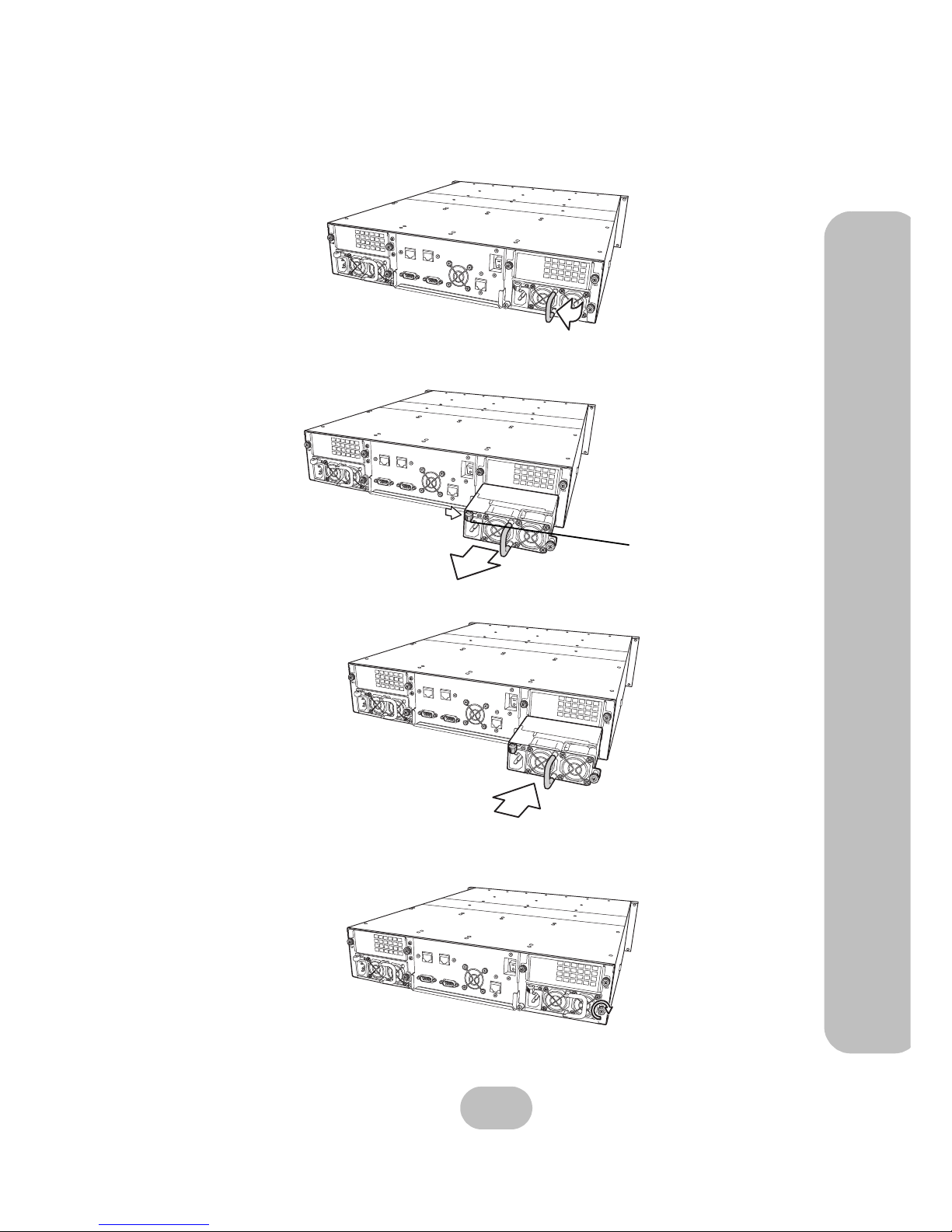

4 Pull the power supply handle out.
5 Remove the faulty power supply by pulling the power supply handle A and pressing the
release catch B at the same time.
6 Insert a new power supply.
7 Push the power supply handle into place.
8 Tighten the power supply thumbscrew.
9 Reconnect the power cable.
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
Release
catch
B
A
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
Page 28
18
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
3
Maintenance – Upgrading Memory
Upgrading Memory
The disk array system takes a single DDR2-533 240-pin memory with a maximum capacity of 2
GB. Follow these instructions to upgrade the memory.

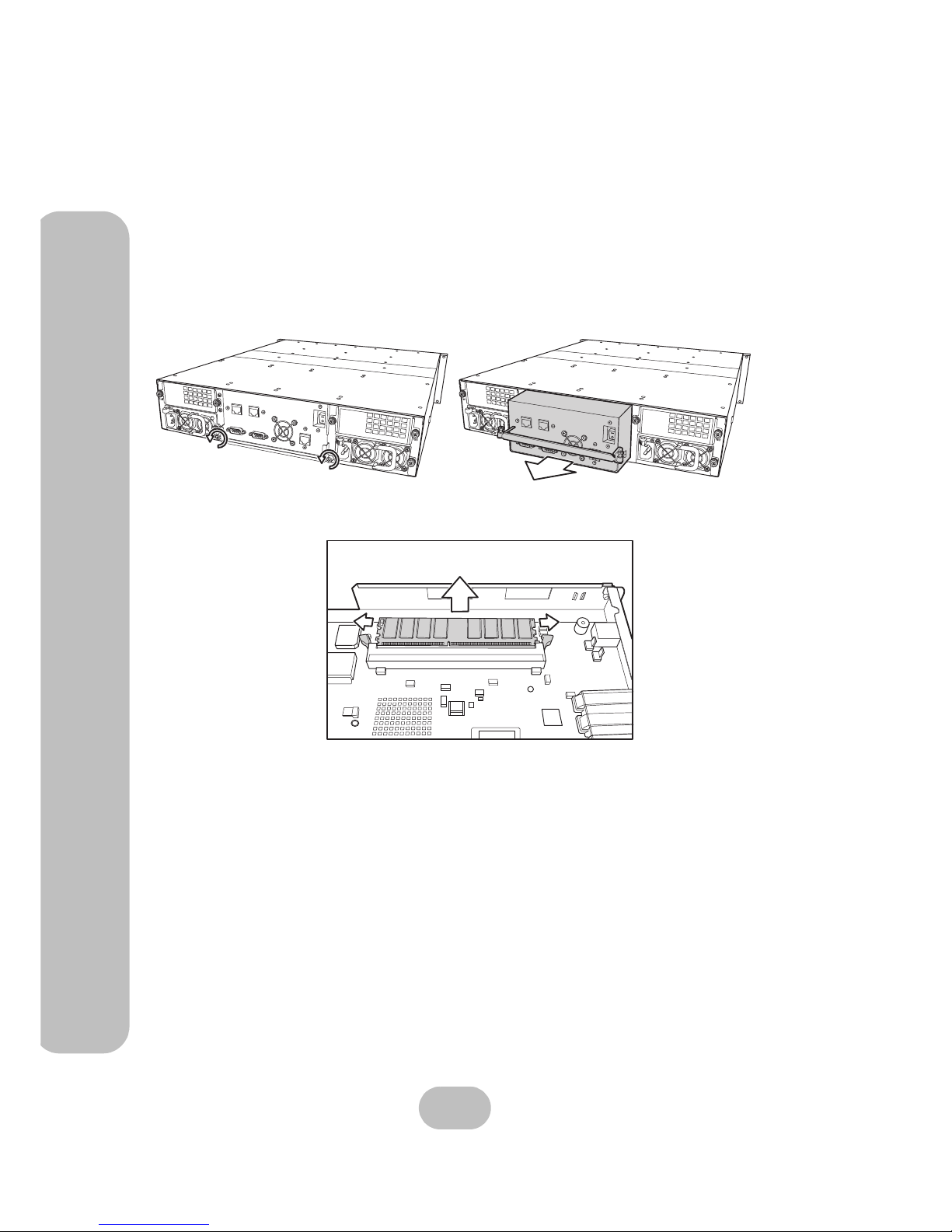

1 Loosen the screws holding the controller cage in place.
2 Slide the controller-cage out of the chassis.
3 Pull the memory retaining clips away from the memory; the memory springs out of the
socket. Remove the memory.
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
Page 29
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
19
3
Maintenance – Upgrading Memory

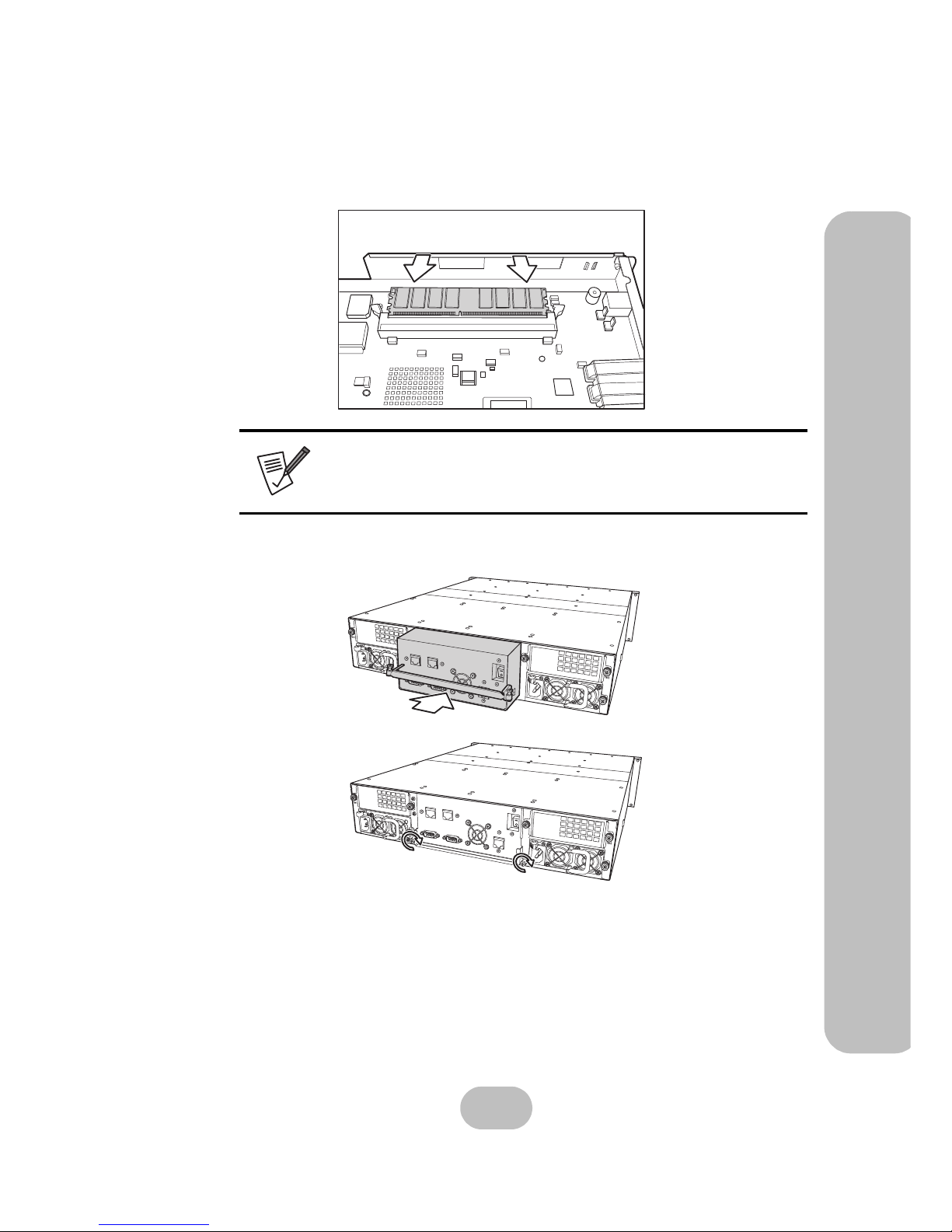

4 Gently push the new memory into the socket, then push the corners of the memory
down. The memory is secured by the memory retaining clips.
5 Push the controller cage back in, lower the handle, and tighten the retaining screws.
Note
The memory module will fit in only one direction. Do not force the
memory into place.
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
LAN
Host 1
Host 2
UPS
Term
Page 30
Page 31
21
Appendix
Hardware Specifications
Item Specification
Host Interface Dual channel(2) RJ45 Network Connectors
Disk Interface SATA II, 3.0 Gb/s
Dimensions 88 mm (H) x 485 mm (W) x 565 mm (D)
Weight 19 Kg without disks
RAID Functions • Raid levels: JBOD, 0, 1, 0+1, 3, 5, 10, 30, 50, 6, 60
• Hot spare support
• Disk hot swapping with automatic online rebuilding
• Multiple RAID (max. 8)
Disk Array Functions
• O/S independent and transparent
• 1GB ~ 2GB DDRII 533 memory supported
• LCD panel operation indicator
• Audible alarm/disable alarm
• LED indicator on disk failures
Management IO
Connectors
• 1 x RS-232 Serial port (115200, 8, N, 1)
• 1 x RJ-45 Ethernet port (10/100 Mbps)
Power Supply • Redundant 1 + 1, 350 Watt
• 100 - 240 VAC, 47-63 Hz, 8~4A +/- 10%
• Over voltage, current, power, and short circuit protection
• LED indicates power status
• Operating temperature: 5°C ~ 40°C
• Operating humidity: 20 ~ 80% (non condensing)
• Output: +5V, +3.3V, +12V
Warranty 3 year warranty
Safety UL, CE and FCC Class B
Page 32
22
easyRAID Q08QA-2GR2 Serial ATA II Disk Array System
Appendix
– Hardware Specifications
Controller
Backplane
Item Specification
CPU Intel Xscale IOP 341 800MHz
Disk Interface SATA II (3.0 Gb/s)
Disk Channels 8 channels
Memory Type DDRII 533 memory supported
Memory Sockets 1
Memory Size Up to 2 GB
LCD Interface One LCD panel, 2 lines by 16 characters
Button Interface Up, Down, Enter, and ESC
Backplane Interface
(connector)
Compact-PCI
Temperature Sensors 3
Disk Channel Support 8 channels
Disk Number Supported 8 disks
Disk Connector Type Serial ATA II
Temperature Sensors 7
Power Connector Type 2 x Slot-2
Fan Connector Type 2 x Slot-2
Loading...
