Eastman Kodak OL7620 User Manual

See the extended user guide – for more information about using your frame, visit

2

1

4

3

FPO

www.kodak.com/go/digitalframesupport. See the frame package for package contents.

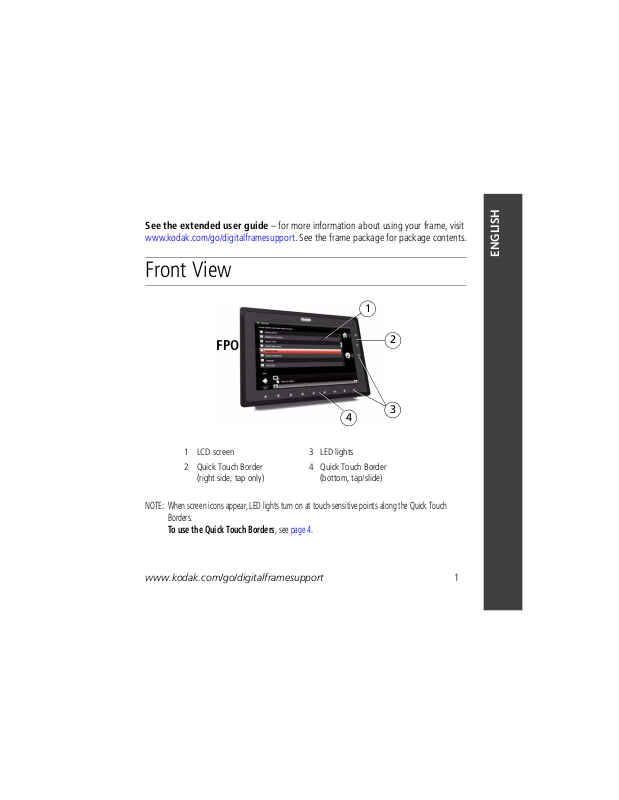

Front View

1 LCD screen 3 LED lights

2 Quick Touch Border

(right side, tap only)

4 Quick Touch Border

(bottom, tap/slide)

ENGLISH

NOTE: When screen icons appear, LED lights turn on at touch-sensitive points along the Quick Touch

www.kodak.com/go/digitalframesupport 1

Borders.

To use the Quick Touch Borders

, see page 4.

Back/Side View

5

6

7

9

4

1

2

3

8

FPO

1 Memory card slot - SD, MMC, MS, xD 6 Audio In

2 Volume button 7 Audio Out

3 Power button 8 DC-In (12V)

4 USB connector (to computer) 9 Speakers

5 USB connector (to camera/USB device)

2 www.kodak.com/go/easysharecenter

1 Getting started

Your power cable may look different from the one
pictured. Use the plug that accommodates your
type of power outlet.

FPO

Power button- press and hold for 2 seconds, then release.

FPO

Attaching the power cable

Turning on your frame

www.kodak.com/go/digitalframesupport 3

Getting started

** Tap below arrows to move the highlight

Done
Close

IMPORTANT: The screen is not touch-sensitive. Do not touch it.

Tap the light

closest to a button
to select it.

Touch tips

Home

Play slide show

*Quick Touch

Tap and slide on the Quick

Touch Borders* only.

Tap lights
below buttons

Slide on
bottom border
only

Slide to highlight
menus, pictures,
videos, options.**
Tap O K to sele c t
them.

Slide to scroll:

Scroll through images—Like turning the pages of a book, slide left ← to go forward, slide right → to go back. For
faster scrolling through larger numbers of pictures, touch and hold (3 seconds), then slide to the end of the border.

Scroll through menus—Slide right → to scroll down, slide left ← to scroll up.

Borders

Tap lights next to

buttons

Don’t hover,

borders can be
sensitive.

(No sliding here)

Tap a border to
display the icons.

Tap (Clos e) to
dismiss them.

OK

Only use your finger to touch the borders. Sharp or metal objects may damage
the border or screen.

one picture, menu, or item at a time.

Using your frame’s Quick Touch Borders

4 www.kodak.com/go/easysharecenter

Getting started

Slider arrows

Save

FPO

FPO

Setting your language

The language screen appears the first time you turn on your frame.

■ Slide (or tap below slider arrows) on the bottom

border to highlight your language, then tap Save.
NOTE: Slide left/right on the lights to move up or down the list.

To change the language at a later time:

■ Tap (Ho m e) → (Settings) → Language.

The language screen appears.

Slide to highlight your language, then tap Save.

Connecting to your wireless network

After you set your language, your frame scans for available wireless networks. See

Connecting to your wireless network, page 7.

Enjoying your pictures immediately!

■ To view your pictures or play a slide show,

insert a memory card, or connect a camera or other

USB device (see page 6). Your pictures play

www.kodak.com/go/digitalframesupport 5

automatically.

If your frame has preloaded sample pictures, they

start playing automatically.

Getting started

Secure Digital

MultiMedia Card

Memory Stick

xD

■

To insert a card, push the card firmly
into the slot until it stops.

■ To remove a card, push in the card to

release it.

Do not insert a micro or mini
memory card without an
adapter.

IMPORTANT:

FPO

USB cable included
with your USB device

USB devices: camera, flash drive, card
reader, etc. (sold separately)

FPO

Inserting a memory card

Connecting a digital camera or other USB device

6 www.kodak.com/go/easysharecenter

2 Setting up for wireless

FPO

operation

If you have problems with your wireless setup or connection, see

Troubleshooting starting on page 22. Or open EASYSHARE Digital Display Software on
your computer (see page 11) and click Tools
automated troubleshooting wizard.

Connecting to your wireless network

To allow your frame to access the contents of your computer wirelessly, connect your
frame to your wireless home network.

NOTE: If you are not sure you have a wireless network, ask the person who set up your computer.

1 First time—If this is the first time you turned on your frame, tap OK after you set

your language (page 5).

The Scanning for available wireless networks... screen appears.

→ Wireless Troubleshooter. Follow the

www.kodak.com/go/digitalframesupport 7

Setting up for wireless operation

NOTE:
If the scan finds multiple networks,
your home network (with the highest
% signal strength) is usually listed

first and highlighted.
Or, to select another network, slide or
tap below the arrows to highlight a
network, then tap OK.

FPO

Available wireless networks are listed.

Tap Back to dismiss the screen and connect later.

Later—To connect later, tap Home
wireless networks. Then follow the screen prompts and continue with step 2 below.

If your wireless network is not found, select Scan again. You may need to enter the
network SSID (sometimes called the network name) manually. The person who set
up your network can help you with this information. Or, tap Help me connect for
more information.

2 With your home network highlighted, tap OK to connect to your home network.

The Connecting... screen appears.

Or, select Exit without connecting and go to the Home screen (page 14).

Enter security key (if you have security enabled)

If you have wireless network security enabled, you are prompted to enter your
security key (WEP or WPA) on the on-screen keyboard. Slide along the bottom of the

8 www.kodak.com/go/easysharecenter

→ Settings → Network → Scan for

Setting up for wireless operation

Slider arrows

Backspace - erases text

Keep sliding (or tapping
arrows) left/right to go to the
previous or next row.

Select

Text box

Navigation tip:

FPO

touch border (or tap below slider arrows) to highlight a character then tap
(Select) to enter it in the text box. Tap Done when finished.

If you do not have security enabled, go to step 3.

NOTE: The screen identifies your security as either

A

WEP

security key can be either:

WEP

or

WPA

.

5 or 13 characters (0-9, A-Z, some special characters, case sensitive),
10 or 26 characters (0-9, A-F, not case-sensitive).
A

WPA

key is 8-63 characters, case sensitive.

The person who set up your network can provide you with this information.

Congratulations! You have successfully connected to your network. Return to this
screen later to make sure the wireless network and software are working properly.

3 If you haven’t done so already, install the KODAK EASYSHARE Digital Display

Software (see page 10) so your frame can display wireless content properly.

www.kodak.com/go/digitalframesupport 9
