Eastman Kodak M300 Users Manual

Monitor every moment. Record every memory.

The recordable KODAK Baby Video Monitor–from the moment you
press Record, you get up to 20 seconds of previous action. You’ll always
capture memories from the moment they start.

Attach gift card here

urg_01344.book Page 1 Wednesday, October 26, 2011 3:48 PM

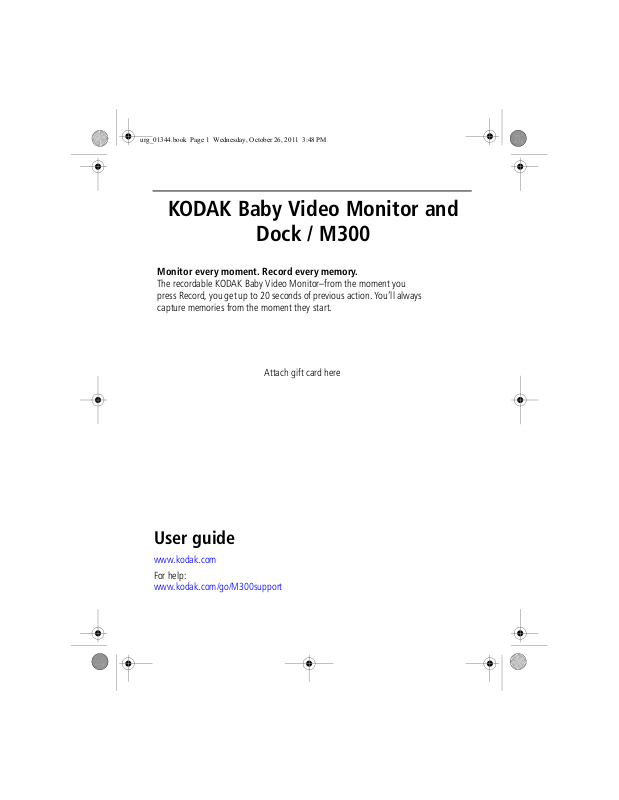

KODAK Baby Video Monitor and

Dock / M300

User guide

www.kodak.com

For help:

www.kodak.com/go/M300support

urg_01344.book Page 2 Wednesday, October 26, 2011 3:48 PM

Eastman Kodak Company
Rochester, New York 14650
© Kodak, 2011

All screen images are simulated.

Kodak is a trademark of Eastman Kodak Company.

4H8793_en

Speaker

OK/Menu

LCD

Review

Record

Navigation

C10 Camera

M300 Monitor and D30 Dock

Rechargeable battery pack
(2) AC adapters: A longer, 11.8 ft (3.6 m) cord for the camera, and a

shorter, 6 ft (1.8 m) cord for the monitor

USB cable

Wall mounting accessories

*Stand / Belt Clip–Use the stand to position the monitor on a flat surface. For portability, fasten the

monitor to your belt with the clip.

Volume (+ / -)

Antenna

On/Off

Monitor and Dock

(side view)

Antenna release

Stand / Belt Clip*

SD/SDHC
card slot

USB Port

IR LEDs

Lens

Microphone

On/Off

FPO

Antenna

FPO

Dock

DC Power

Also included:

urg_01344.book Page i Wednesday, October 26, 2011 3:48 PM

What’s in the box:

Product features

www.kodak.com/go/support

i

CAUTION:

urg_01344.book Page 1 Wednesday, October 26, 2011 3:48 PM

1 Product warning

Strangulation Hazard–do not place the camera in the crib or
within 3 ft (1 m) of the baby.

■ You must regularly monitor your baby’s activity. This product cannot replace

responsible, adult supervision. This product will not alert parents to a baby’s silent
activities.

■ Never use extension cords with AC adapters. Use the AC adapters provided.

■ When an AC adapter is plugged into an electrical outlet, do not touch the exposed

end.

■ Test the monitor before first use, periodically, and when changing the location of

the camera.

■ Do not use the monitor near water (bathtub, sink, etc). Keep the monitor away

from heat sources (stoves, radiators, etc).

■ This monitor may pick up signals from similar devices. Signals broadcast by this

device may be picked up by other receivers.

■ Small parts can be a choking hazard. Do not allow children to play with the

camera or monitor.

■ Use only the original, rechargeable battery pack provided.

■ Install batteries correctly.

■ Remove alkaline batteries from the camera if the camera is stored for long periods

of time or when batteries are exhausted; do not mix old and new batteries; do not
mix alkaline, standard, or rechargeable batteries.

■ Keep all batteries away from children. Dispose of exhausted batteries properly.

■ Do not attempt to recharge non-rechargeable camera batteries.

1 www.kodak.com/go/M300support

CAUTION:

urg_01344.book Page 2 Wednesday, October 26, 2011 3:48 PM

Quick Start Up

2 Quick Start Up

Camera

Operate the camera with the AC adapter or with 4 AA-size alkaline batteries (not
provided).

1 If you choose to use AA-size alkaline batteries:

a Remove the screw on the back of the camera with a straight-blade screwdriver,

then remove the battery door.

b Insert 4 batteries.

c Place the battery door back on the camera, then secure with the screw.

2 Select a location for the camera that will best capture the baby.

Strangulation Hazard–do not place the camera in the crib or
within 3 ft (1 m) of the baby.

3 Place the camera on a flat surface, such as a dresser or shelf. To mount the camera

on a wall, see page 4.

4 Connect the AC adapter with the longer cord to the back of the camera.

5 Plug the AC adapter into a standard electrical outlet, then secure the cord to the

wall using the mounting clips, if necessary.

6 Press the On/Off button for at least 2 seconds. The button glows when the camera

is turned on.

www.kodak.com/go/support

2

urg_01344.book Page 3 Wednesday, October 26, 2011 3:48 PM

Quick Start Up

Monitor

Your monitor and camera were linked during manufacture.

The monitor operates only when the rechargeable battery pack is installed. After
installing the battery pack, you can operate the monitor using the battery pack or
with the AC adapter.

NOTE: To maximize battery life, charge the battery pack for 3 hours before first use. You can operate the

monitor using the AC adapter during charging.

1 Select a convenient location for the monitor and dock that also provides optimal

viewing (a table near your chair or sofa, for instance).

2 Slide the battery compartment cover to remove it.

3 Insert the battery pack connector into the socket, then insert the battery pack.

4 Close the battery compartment cover.

5 Connect the AC adapter with the shorter cord to the back of the monitor or dock.

3 www.kodak.com/go/support

CAUTION:

urg_01344.book Page 4 Wednesday, October 26, 2011 3:48 PM

Quick Start Up

NOTE: If you prefer to use the monitor without the dock, connect the AC adapter with the shorter cord to

the side of the monitor. For increased mobility, you can also use the monitor for up to eight hours
with the rechargeable battery provided.

6 Seat the monitor in the dock. A red light on the dock glows when the monitor is

properly seated.

7 Plug the AC adapter into a standard electrical outlet.

8 Press the On/Off button on the monitor for more than 2 seconds. A light on the top

of the monitor glows when the monitor is turned on.

9 Turn on the camera.

10 Verify that an image appears on the monitor.

Mount the Camera on a Wall

NOTE: Test monitor reception before mounting the camera on a wall. View the image on the monitor while

someone else adjusts the camera position. Optimal camera-to-subject distance for night viewing is
3 – 6 ft (0.9 – 1.8 m).

Strangulation Hazard–do not place the camera in the crib or
within 3 ft (1 m) of the baby.

1 Select a wall location for the camera, then drill 2 holes in that location using a

13/64 in. (5.2 mm) drill bit. Use the template provided (see page 18).

2 Insert a wall anchor into each hole, then gently tap the anchors with a hammer

until they are seated (flush-mounted) in the wall.

3 Insert the screws into the anchors, then tighten the screws until

approximately 7/32 in. (5.6 mm) of each screw is exposed.

4 Slide the base of the camera over the screws until the camera locks into place.

5 Connect the AC adapter to the camera (or insert 4 AA-size alkaline batteries).

6 Secure the AC adapter cord to the wall with the mounting clips.

www.kodak.com/go/support

4
