EAST COAST tr 0301, Temperature differential controller Operating Instructions And Installation Manual
SOLARTHERMIE - SOLAR THERMAL - SOLAR TÉRMICO - SOLAIRE THERMIQUE
Operating instructions
Temperature differential controller
3 inputs, 1 output
709.752 | Z02 | 07.50 | Subject to change due to technical improvements!
EN
These operating instructions are part of the product.
Read these operating instructions carefully before use,
keep them over the entire lifetime of the product,
and pass them on to any future owner or user of this product.
2
709.752 | 07.50
EN
Contents
1 About this manual ....................... 3
1.1 Applicability .....................................
3
1.2 Users .................................................
3
1.3 Description of symbols ....................
4
2 Safety ............................................ 5
2.1 Proper usage ....................................
5
2.2 Improper usage ................................
5
2.3 Dangers during installation and
commissioning .................................
6
2.4 Detecting faults ................................
7
2.5 Exclusion of liability ..........................
7
3 Description ................................... 9
3.1 Controller in the solar circuit ...........
9
3.2 Casing overview .............................
11
4 Installation ..................................12
4.1 Opening/closing the casing ...........
12
4.2 Mounting .......................................
13
4.3 Electrical connection .....................
14
5 Display overview ........................
18
6 Commissioning
.......................... 19
7 Description of controller
functions ..................................... 20
7.1 Automatic storage tank charging ..
20
7.2 Maximum storage tank
temperature ...................................
21
7.3 Maximum collector temperature ...
21
7.4 Tube collector function ..................
21
7.5 Holiday function ............................
22
7.6 Anti-freeze function .......................
23
8 Operation .................................... 24
8.1 Reading temperature values ..........
24
8.2 Setting the controller .....................
24
9 Maintenance ............................... 29
9.1 Fault causes ....................................
29
9.2 Testing the temperature sensors ....
33
10 Dismantling and disposal ..........
35
11 Legal guarantee ........................
36
12 Technical data .............................
37
3
EN
709.752 | 07.50
1 About this manual
1.1 Applicability
This manual describes the installation, commissioning,
operation, maintenance and dismantling of the temperature differential controller for solar thermal energy
systems. When installing the remaining components,
e.g. solar collectors, pump assemblies, storage units,
pumps and switching valves, be sure to observe the
appropriate installation instructions provided by each
manufacturer.
1.2 Users
Installation, commissioning, maintenance and dismantling of the controller may only be performed by
trained professional personnel. Before commissioning,
the controller must be professionally assembled and
installed by professional personnel in accordance with
the applicable regional and transregional regulations
as well as the safety instructions and general instructions within these installation and operating instructions. The professional personnel must be familiar with
these operating instructions.
The controller is maintenance-free.
Use the controller only after first thoroughly reading
and understanding this instruction manual and the
safety instructions. Adhere to all safety instructions. In
the event of any ambiguities regarding the operation
4
EN
709.752 | 07.50
and alteration of parameters or functions, consult professional personnel.
1.3 Description of symbols
1.3.1 The structure of the warning notices
SIGNAL WORD
Type, source and consequences of the danger!
Measures for avoiding danger.
1.3.2 Danger levels in warning notices
Danger level Likelihoodof
occurrence
Consequences
resulting from noncompliance
DANGER
Imminent threat
of danger
Death, serious bodily
injury
WARNING
Possible threat of
danger
Death, serious bodily
injury
CAUTION
Possible threat of
danger
Minor bodily injury
CAUTION Possible threat of
danger
Property damage
1.3.3 Notes
NOTE
Note on easier and safer working habits.
Measures for easier and safer working habits.
5
EN
709.752 | 07.50
1.3.4 Other symbols and markings
Symbol Meaning
✓
Precondition for action
Call to action
Result of action
•
List
Emphasis on is
-
sue at hand
Emphasis on issue at hand
2 Safety
2.1 Proper usage
The temperature differential controller (called controller in the following) may only be used for controlling
solar thermal systems within the permissible ambient
conditions (see chapter 12).
2.2 Improper usage
The controller must not be operated in the following
environments:
outdoors
in damp rooms
in rooms where highly flammable gas mixtures can
occur
in rooms in which the operation of electrical and
electronic components may cause dangers to arise
•
•
•
•
6
EN
709.752 | 07.50
2.3 Dangers during installation and commissioning
The following dangers exist during installation / commissioning of the controller and during operation (in
case of installation errors):
Risk of death by electrocution
Risk of fire due to short-circuit
Damage to any of the constructional fire safety
measures present in the building due to incorrectly
installed cables
Damage to the controller and connected devices
due to improper ambient conditions, inappropriate
power supply and connecting prohibited devices or
faulty devices and incorrect assembly or installation
Therefore, all safety regulations apply when working
on the mains supply. Only electricians may perform
work that requires opening the controller (such as
electrical connection work).
When laying cables, ensure that no damage occurs
to any of the constructional fire safety measures
present in the building.
Make sure that the permissible ambient conditions at the installation site are not exceeded (see
chapter 12).
Be sure to comply with the specified protection
degree.
Factory labels and markings may not be altered,
removed or rendered unreadable.
•
•
•
•
7
EN
709.752 | 07.50
Before connecting the device, make sure that the
power supply matches the specifications on the
type plate.
Make sure that all devices which are connected to
the controller conform to the technical data of the
controller.
Secure the device against unintentional start-up.
All work on an open controller must be performed
with the mains supply disconnected.
Protect the controller against overloading and
short-circuiting.
2.4 Detecting faults
Check the display regularly.
In case of faults, isolate the cause (see chapter 9).
As soon as it becomes evident that safe operation
is no longer possible (e.g. visible damage), remove
the device from the mains supply immediately.
Have professional personnel remedy the fault.
2.5 Exclusion of liability
The manufacturer cannot monitor the compliance
with this manual or the conditions and methods during the installation, operation, usage and maintenance
of the controller. Improper installation of the system
may result in damage to property and, as a result, to
bodily injury.
Therefore, we assume no responsibility and liability
8
EN
709.752 | 07.50
for loss, damage or costs which result from or are
in any way related to incorrect installation, incorrect
execution of installation work, improper operation and
incorrect usage and maintenance.
Similarly, we assume no responsibility for patent right
or other right infringements of third parties caused by
usage of this controller.
The manufacturer reserves the right to make changes
to the product, technical data or installation and operating instructions without prior notice.
9
EN
709.752 | 07.50
3 Description
3.1 Controller in the solar circuit
3.1.1 The purpose of the controller
The controller controls the solar thermal system
3.1.2 The structure of the solar circuit
Temperature differential controller
Storage tank
Pump
Temperature sensor 1
(collector sensor)
Temperature sensor 2
(lower area of storage tank)
Collector
T1
T2
Solar circuit
T3
Temperature sensor 3
(upper area of storage
tank)
10
EN
709.752 | 07.50
3.1.3 The function of the solar circuit
The controller constantly compares the temperatures
between the collector (T1) and the lower area of the
storage tank (T2). Once the sun heats the collector and
there is a temperature difference of 8 K between the
collector and the storage tank, the pump is switched
on.
The pump extracts the heat transfer fluid from the
lower cooler area of the storage tank and pumps it to
the collector. The heat transfer fluid in the collector is
heated by the sun and flows back to the storage tank.
The heat transfer fluid heats the domestic water via a
heat exchanger located in the storage tank.
11
709.752 | 07.50
EN
3.2 Casing overview
Automatic
On
Off
Operating buttons
Arrow up
SET button
Arrow down
Display
graphic display, animated, for controller operation
and system settings
Operating switch
The following modes of
operation can be selected:-
On
for commissioning
and testing for function-
Automatic
for automatic operation
- Off
to switch-off the pumps
Connections
Pump, mains grid, temperature
sensor
Latches
Operating
buttons
Upper casing
Screw
Lower casing
12
EN
709.752 | 07.50
4 Installation
4.1 Opening/closing the casing
DANGER
Risk of death by electrocution!
Remove the controller from the power supply before
opening the casing.
Make sure that the power supply cannot be unintentionally switched on.
Do not damage the casing.
Only switch the power supply back on after the cas-
ing has been closed.
The upper casing is connected to the lower casing by
two latches, and fastened with a screw.
4.1.1 Opening the casing
Loosen the screw and remove the upper casing in
an upwards direction.
4.1.2 Closing the casing
Place the upper casing over the lower casing at an
angle. Insert the latches into the recesses of the
lower casing.
Pivot the upper casing down and feed the operating buttons through the matching holes.
Fasten the casing tightly with the screw.
105
1
137,2
3
2
116
134
13
EN
709.752 | 07.50
4.2 Mounting
WARNING
Risk of electrical shock and fire if mounted in a
damp environment!
Only assemble the controller in an area where the
degree of protection is sufficient.
4.2.1 Mounting the controller
CAUTION
Risk of injury and damage to the casing when drilling!
Do not use the casing as a drilling template.
Choose a suitable installation site.
Drill the upper fastening hole.
Screw in the screw.
Remove the upper casing.
Hang the casing in recess .
Mark the position of the lower fastening holes ,.
Remove the casing again.
Drill the lower fastening holes.
Hang the casing in recess .
Screw the casing firmly using the lower fastening
holes and .
Mount the upper casing.
14
EN
709.752 | 07.50
4.3 Electrical connection
WARNING
Risk of death by electrocution!
Remove the controller from the power supply before
opening the casing.
Observe all guidelines and regulations of the local
electricity supplier.
NOTE
The device is to be connected to the grid by means
of a plug with grounding contact, or in the case of a
fixed electrical installation via a disconnection device
for complete disconnection in accordance with the
installation guidelines
4.3.1 Preparing the cable feed
Depending on the type of installation, the cables may
enter the device through the rear of the casing or the
lower side of the casing.
SET
7
SET
6
Diagram 2: Cable feed from below
Diagram 1: Cable feed from the rear
15
EN
709.752 | 07.50
Feeding the cable through the rear of the casing (diagram 1):
WARNING
Risk of electrical shock and fire due to cables coming loose!
Install an external strain relief for the cables.
Remove the plastic flaps from the rear side of
the casing using an appropriate tool.
Feeding the cable through the lower side of
the casing (diagram 2):
WARNING
Risk of electrical shock and fire due to cables coming loose!
Fasten the flexible cabling to the casing using the
strain-relief clamps provided.
Cut the left and right plastic flaps using an appro-
priate tool and break them out of the casing.
4.3.2 Connecting the cables
If a protective conductor is provided or required
for the pump, connect it to the controller terminals. When connecting the protective conductor,
observe the following points:
16
EN
709.752 | 07.50
Make sure that the grounding contact is also
connected to the controller's mains supply side.
Each terminal may only be connected to a single
connecting wire (max 2.5 mm2).
The terminals are suitable for connection without sleeves; stranded wires are to be twisted (1
twist per 20 mm).
Only use the original temperature sensors (Pt1000)
that are approved for use with the controller.
Observe the following points:
The polarity of the sensor contacts is not important.
Do not lay sensor cables close to 230 volt or 400
volt cables (minimum separation: 100 mm.
If inductive effects are expected, e.g. from heavy
current cables, overhead train cables, transformer substations, radio and television devices,
amateur radio stations, microwave devices,
etc. then the sensor cables must be adequately
shielded.
Sensor cables may be extended to a maximum
length of 100 m.
When using extension cables, select the following
cable cross sections:
0.75 mm
2
up to 50 m long
1.5 mm2 up to 100 m long
Connect the cables in accordance with the terminal
plan.
-
-
-
-
-
-
-
-
-
17
EN
709.752 | 07.50
4.3.3 Terminal plan
L NN R1 T1 T2 T3
Protective
conductor
Temperature sensor 1
(collector)
Temperature sensor 2
(lower area of storage tank)
PE L1 NPE R1 N
Grid 230 V~
(optional 115 V~)
Pump 230 V~
(optional 115 V~)
Temperature sensor 3 – optional
(upper area of storage tank)
4.3.4 Actuating the connecting terminals
NOTE
The connecting terminal may only be actuated with
an appropriate tool. An unsuitable tool or too much
mechanical pressure can damage or even destroy the
connecting terminal.
18
EN
709.752 | 07.50
5 Display overview
1
Temperature sensor symbols
2
Display for temperature values
and fault symbols, e.g. short
circuit, interruption (see page
30) or SYS = system error (see
page 39)
3
Holiday function (see pages
22/23)
4
Anti-freeze function (see page
23)
5
Setting the temperature unit °C /
°F 6 tube collector function
7
Setting the maximum storage
tank temperature
8
Solar circuit symbols
9
Displays message "Maximum
storage tank temperature has
been reached"
10
Warning display if faults occur,
e.g. short circuit, interruption
(see page 30) or SYS = system
error (see page 31)
11
Displays message for evapora-
tion of the collector fluid
12
Displays message for "Sufficient
heat supply"
888
°
E
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
1
2
8
3
4
7 6 5
12
11
10
9
19
EN
709.752 | 07.50
6 Commissioning
6.1 Testing the pump
CAUTION
Damage to pump caused by dry operation!
Make sure that the solar circuit is filled with heat
transfer fluid.
The controller casing is closed
All connections are properly made.
The solar energy system is filled.
Connect the mains supply.
To switch on the pump, set the operating switch to
the upper position (on).
The display is backlit in red
onappears in the display. After approx. 3 sec-
onds on flashes in alternation with the display.
To switch off the pump, set the operating switch to
the lower position (oFF).
The display is backlit in red
oFFappears in the display. After approx. 3
seconds oFF flashes in alternation with the
display.
✓
✓
✓
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
20
EN
709.752 | 07.50
CAUTION
The incorrect operating mode may cause the system to shut down or impair proper functioning!
After testing the pump, always set the operating
switch to automatic operation.
To set the controller to automatic operation, move
the operating switch to the middle position (Auto).
"Aut" is shown on the display for approx. 3
seconds.
7 Description of controller functions
7.1 Automatic storage tank charging
The controller constantly compares the temperatures
between the collector (T1) and the lower area of the
storage tank (T2). As soon as the temperature in the
collector (T1) is 8 K (constant fixed value) higher than
the temperature in the storage tank (T2), the following
display appears:
The sun symbol is displayed
If no safety limits prohibit the pump from operating, the pump is switched on. The following display
appears:
The pump symbol rotates
If the temperature difference falls below 4 K (constant
fixed value), the pump is switched off. The sun symbol
is no longer shown on the display.
•
•
40
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
21
EN
709.752 | 07.50
7.2 Maximum storage tank temperature
If the lower area of the storage tank (T2) reaches
the set maximum storage tank temperature
(factory setting 60 °C), charging is stopped. A temperature of 3 K below the maximum storage tank
temperature must first be reached before charging
can be resumed. The following displays appear:The
pump symbol does not move
The sun symbol is displayed
The max indication flashes in the storage tank
symbol
7.3 Maximum collector temperature
During periods of high solar irradiance, the temperature (T1) of the heat transfer fluid can exceed 130°C.
The heat transfer fluid evaporates. In this case, the
pump is stopped for protection purposes until the
temperature drops below 127°C.
The following displays appear:
The pump symbol does not move
The sun symbol is displayed
The vapour symbol flashes
7.4 Tube collector function
For reasons of construction the collector temperature
(T1) can only be imprecisely recorded with vacuum
tube collectors (in many cases there are no immersion
sensors; the sensor is outside the collector pipe). In
•
•
•
•
•
•
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
60
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
22
EN
709.752 | 07.50
these cases, the solar circuit must be briefly activated
at regular intervals to transmit the actual heat from
the collector pipe to the sensor (T1). If the tube collector function is activated, the controller automatically switches the pump on every 30 minutes for 30
seconds.
The following display appears:
The lower temperature sensor, T1, is shown.
7.5 Holiday function
The holiday function is used to cool down a completely
heated storage tank again via the collector. The storage tank can heat up too much, e.g. if no hot water
is extracted from the storage tank over an extended
period of time (holiday) of intense solar irradiance.
A completely heated storage tank subjects the solar
energy system to a higher thermal load and the solar
fluid can evaporate.
If the holiday function is activated, the storage tank
is cooled as follows: If the temperature in the storage
tank rises to 10 K below the set storage tank maximum
temperature, the controller attempts to discharge
the lower section of the storage tank to 35°C (e.g. at
night). To do so, the pump is automatically switched
on once the collector is 8 K colder than the storage
tank. Once the temperature difference between the
collector and the storage tank is only 4 K, the pump is
switched off again.
•
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
23
EN
709.752 | 07.50
The following display appears:
The holiday symbol is displayed
7.6 Anti-freeze function
If the anti-freeze function is activated, the controller
switches the pump on as soon as the collector temperature T1 falls below +5 °C. The heat transfer fluid
is then pumped through the collector in an attempt
to prevented the system from freezing. If the collector
reaches a temperature of +7 °C, the pump is switched
off again.
CAUTION
The solar energy system can freeze despite the activated anti-freeze function!
During a power outage, the anti-freeze function does
not operate.
During long-term periods of frost (due to restricted
water tank heat storage).
If collectors are mounted in locations exposed to wind.
It is recommended to generally use heat transfer fluid
with anti-freeze for solar energy systems.
Standard anti-freeze heat transfer fluids for solar
energy systems also contain an additional corrosion
inhibitor.
The following display appears:
The anti-freeze symbol is displayed
•
•
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
24
EN
709.752 | 07.50
8 Operation
CAUTION
The incorrect operating mode may cause the system to shut down or impair proper functioning!
Make sure that the operating switch is set to automatic
operation.
8.1 Reading temperature values
NOTE
The temperature in the above storage tank is only displayed if the temperature sensor T3 (not included in
delivery) is also connected.
Use the buttons and to select temperature
sensor (T1, T2, T3).
The selected temperature sensor and the current
temperature reading appear in the display.
8.2 Setting the controller
8.2.1 Menu operation
To open the Settings menu, press the
SET
button
for approx. 2 seconds.
The current storage tank maximum temperature is
displayed.
Symbol for the T2 temperature sensor and max
flash.
To switch to the next setting, press the or
button.
48
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
25
EN
709.752 | 07.50
To exit the Settings menu, press the button again
until the menu is no longer displayed.
8.2.2 Setting the storage tank maximum temperature
CAUTION
Risk of scalding by excessive domestic water temperature!
Set the storage tank max. temperature no higher
than 60°C.
Install a thermostatic mixer in the hot water pipe
and set to max. 60°C.
The menu is open
Press the
SET
button for approx. 2 seconds until the
storage tank maximum temperature flashes.
Change the storage tank maximum temperature
using the or buttons.
To save the value, press the
SET
button.
8.2.3 Selecting the temperature unit
The menu is open
Press the
button again until °C / °F flashes.
Press the
SET
button for approx. 2 seconds until the
desired temperature unit – °C or °F – flashes.
✓
✓
60
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
26
EN
709.752 | 07.50
8.2.4 Activating the tube collector function
NOTE
Incorrectly setting the controller can compromise the
efficiency of the solar energy system. Therefore, only
activate the tube collector function if the construction
of the collector does not allow its temperature to be
recorded immediately and/or accurately (in some cases
there are no immersion sensors; the sensor is outside
the collector pipe).
The menu is open
Press the button again until the symbol for T1
flashes.
Press the
SET
button for approx. 2 seconds until
the symbol for T1 switches from the upper to the
lower position.
8.2.5 Activating/deactivating the holiday function
NOTE
Incorrectly setting the controller can compromise the
efficiency of the solar energy system.
Only activate the holiday function if you intend to be
absent for an extended period.
Deactivate it again upon your return.
✓
0Co
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
27
EN
709.752 | 07.50
The menu is open
Press the
button until the holiday symbol
flashes.
Press the
SET
button for approx. 2 seconds until the
small tick on the holiday symbol appears/goes out.
8.2.6 Activating/deactivating the anti-freeze
function
CAUTION
The solar energy system can freeze despite the activated anti-freeze function!
During a power outage, the anti-freeze function does not
operate.
During long-term periods of frost, the system can
freeze despite the anti-freeze function.
If frost is expected for a long period of time, only
operate the system with anti-freeze.
NOTE
Incorrectly setting the controller can compromise the
efficiency of the solar energy system.
Only activate the anti-freeze function for solar
energy systems that are not filled with anti-freeze.
✓
0Co
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
28
EN
709.752 | 07.50

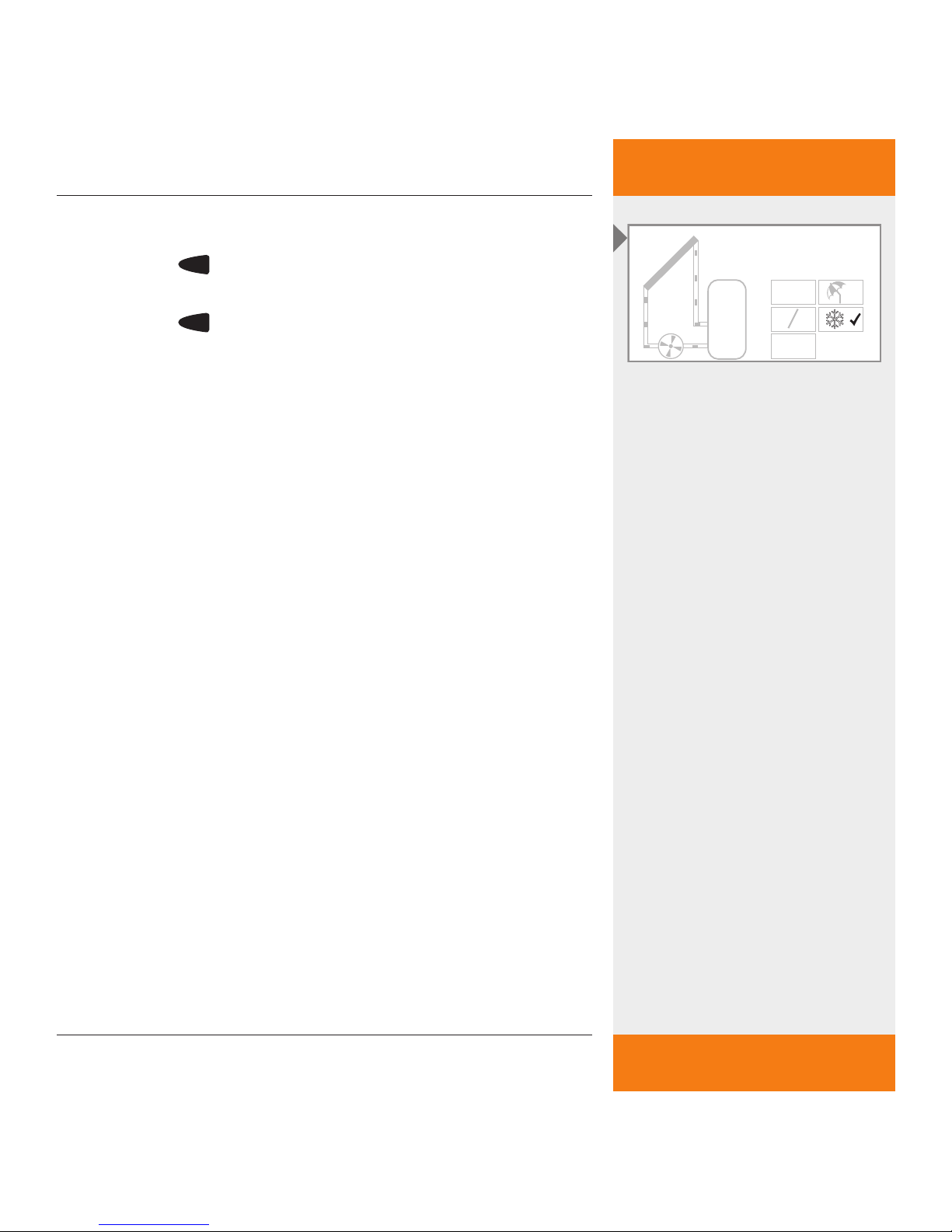

The menu is open
Press the button until the anti-freeze symbol
flashes.
Press the
SET
button for approx. 2 seconds until the
small tick on the anti-freeze symbol appears/goes
out.
✓
0Co
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
29
EN
709.752 | 07.50
9 Maintenance
The controller was conceived for years of continuous
trouble-free operation. Nevertheless, faults may occur.
Maintenance may only be performed by professional
personnel.
In most cases, however, the fault does not lie with the
controller, but rather with the peripheral components.
The following description covers the most common
problems encountered with the controller.
Only send in the controller, with a precise fault
description, if none of the following faults are
present.
9.1 Fault causes
WARNING
Risk of death by electrocution!
Remove the controller from the power supply before
opening the casing.
Controller does not appear to function at all.
Secondary symptoms Possible cause / remedy
The controller display is blank.
No power supply present
Have professional personnel check the fuse and the
supply cable.
30
EN
709.752 | 07.50
The pump, which is connected to the controller,
is not running, although its switch-on conditions
have been fulfilled.
Secondary symptoms
Possible cause / remedy
The pump symbol
rotates in the display.
The pump connecting cable
is not connected, interrupted
or the fuse in the controller is
burned out.
If necessary, have professional
personnel replace the fuse.
(Replacement fuse is located in
the casing).
The pump symbol does not
rotate
The display is
backlit in red
OFF flashes
•
•
•
Operating switch is set to manual
Set the operating switch to
automatic operation.
The pump symbol does not
rotate
The display is
backlit in yellow
Evaporation
symbol or max
are flashing
•
•
•
No fault.
The system has stopped because
maximum collector temperature
or maximum storage tank temperature have been reached.
31
EN
709.752 | 07.50
Short-circuit symbol and warning display appear.
Secondary symptoms Possible cause / remedy
The pump symbol
does not rotate
Display background
alternately flashes
red and yellow
•
•
Temperature sensor or its supply cable short-circuited
Have professional personnel check the supply
cables of the temperature sensors and that
they are correctly connected to the controller.
NOTE
In case of a T3 short-circuit the pump does not stop.
Interruption symbol and warning signal appear
Secondary symptoms Possible cause / remedy
The pump symbol
does not rotate
Display background alternately
flashes red and
yellow
•
•
Temperature sensor T1 or T2
or its supply cable is interrupted
Have professional personnel check the supply
cables of the temperature
sensors and that they are
correctly connected to the
controller.
NOTE
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
32
EN
709.752 | 07.50
If T3 is interrupted no message appears
SYS flashes in the controller display
Possible cause / remedy
SYS means there is a system error. This means that
despite the pump running, a temperature difference
exceeding 80 K between the collector and the storage tank was recorded.
The following causes are possible:
The pump is faulty or not correctly connected
The isolating valve in the solar circuit is still closed
Air is in the solar circuit
•
•
•
Since a standard circulation pump cannot eliminate
air bubbles inside the piping system, the heat transfer
medium circuit comes to a standstill.
Have professional personnel check the solar
energy system to prevent damage.
Once the fault has been remedied, press any button to acknowledge the fault message.
°
C
max
max
T1
D
T1
T1
T3
T2
°C
°F
!
33
EN
709.752 | 07.50
9.2 Testing the temperature sensors
9.2.1 Safety
Only professional personnel may test the temperature
sensors.
9.2.2 Testing the resistance values
DANGER
Risk of death by electrocution!
Remove the controller from the power supply before
opening the casing.
The temperature is recorded by resistance sensors.
These are PT1000 temperature sensors. Depending on
the temperature, the resistance value also changes. A
potentially defective sensor can be checked using an
ohmmeter.
Measuring resistance values
Disconnect the relevant temperature sensor from
the controller.
Measure the resistance value. The typical resistance
values, depending on the temperature, are listed in
the following table. Please note that small deviations are permissible.
34
EN
709.752 | 07.50
Temperature sensor resistance values
Temperature [°C] -30 -20 -10 0 10 20
Resistance [Ω] 882 922 961 1000 1039 1078
Temperature [°C] 30 40 50 60 70 80
Resistance [Ω] 1117 1155 1194 1232 1271 1309
Temperature [°C] 90 100 110 120 130 140
Resistance [Ω] 1347 1385 1423 1461 1498 1536
Temperature [°C] 150 160 170 180
Resistance [Ω] 1573 1611 1648 1685
35
EN
709.752 | 07.50
10 Dismantling and disposal
DANGER
Risk of death by electrocution!
Remove the controller from the power supply before
dismantling it.
To dismantle the controller, follow the assembly
instructions in the reverse order.
Dispose of the controller in accordance with the
regional regulations.
36
EN
709.752 | 07.50
11 Legal guarantee
In accordance with German statutory regulations,
there is a 2-year legal guarantee on this product for
the customer.
The seller will remove all manufacturing and material
faults that occur in the product during the guarantee period and affect the correct functioning of the
product. Natural wear and tear does not constitute a
malfunction. No legal guarantee can be offered if the
fault can be attributed to third parties, unprofessional
installation or commissioning, incorrect or negligent
handling, improper transport, excessive loading, use of
improper equipment, faulty construction work, unsuitable construction location or improper operation or
use. Legal guarantee claims shall only be accepted if
notification of the fault is provided immediately after
it is discovered. Guarantee claims are to be directed to
the seller.
The seller must be informed before guarantee
claims are processed. For processing a guarantee
claim an exact fault description and the invoice /
delivery note must be provided.
The seller can choose to fulfil the legal guarantee either
by repair or replacement. If the product can neither be
repaired nor replaced, or if this does not occur within a
suitable period in spite of the specification of an extension period in writing by the customer, the reduction in
value caused by the fault shall be replaced, or, if this is
37
EN
709.752 | 07.50
not sufficient taking the interests of the end customer
into consideration, the contract is cancelled.
Any further claims against the seller based on this
guarantee obligation, in particular claims for damages
due to lost profit, loss-of-use or indirect damages are
excluded, unless liability is obligatory by law.
12 Technical data
Temperature differential controller
Operational voltage 230 V~ (± 15 %), 50 Hz
[optional 115 V (± 15%), 60 Hz]
Controller's own consumption ≤ 1 W
Inputs 3
temperature recording (Pt1000)
Output 1
switched output, switching performance max. 800 W
[230 V~]
Display Animated LCD display, 2-colour background
Protection degree IP 20/DIN 40050
Permitted ambient temperature 0 to +45 °C
Mounting wall-mounted
Weight 250 g
Casing recyclable 3-piece plastic casing
Dimensions L x W x H [mm] 137 x 134 x 38
Temperature sensors 2 x Pt1000 1.5 m silicone cable (measuring range up to +180 °C)
709752
Loading...
