PCI 703 Series

PCI PnP Analog Board User’s Manual

PCI703-16/A, PCI703-32/A PCI703-64/A PCI703S-8/A, PCI703S-16/A

www.eagledaq.com

PCI 703 User Manual Eagle Technology - Data Acquisition

Analog Boards

Data Acquisition and Process Control

31-35 Hout Street • Cape Town • South Africa Phone +27 21 423 4943 • Fax +27 21 424 4637

Email eagle@eagle.co.za

PCI 703 User Manual Eagle Technology - Data Acquisition

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system , or transmitted, in any form or any means, electronic, mechanical, by photographing, recording, or otherwise without prior written permission.

Information furnished in this manual is believed to be accurate and reliable; however no responsibility is assumed for its use, or any infringements of patents or other rights of third parties, which may result from its use.

Trademarks and Logos in this manual are the property of their respective owners.

Product Warranty

Eagle Technology, South Africa, warrants its products from defect in material and workmanship from confirmed date of purchase for a period of one year if the conditions listed below are met. The product warranty will call the Eagle Technology Data Acquisition Device short as ETDAQD.

• The warranty does not apply to an ETDAQD that has been previously repaired, altered, extended by any other company or individual outside the premises of Eagle Technology.

• That a qualified person configure and install the ETDAQD, and damages caused to a device during installation shall make the warranty void and null.

• The warranty will not apply to conditions where the ETDAQD has been operated in a manner exceeding its specifications.

Eagle Technology, South Africa, does not take responsibility or liability of consequential damages, project delays, damaging of equipment or capital loss as a result of its products.

Eagle Technology, South Africa, holds the option and final decision to repair or replace any

ETDAQD. Proof of purchase must be supplied when requesting a repair.

PCI 703 User Manual Eagle Technology - Data Acquisition

TABLE OF CONTENTS

1. INTRODUCTION 1

Features 1 Applications 2 Key Specifications 2 Software Support 2 Contact Details 2

2. INSTALLATION 3

Package 3 Operating System Support 3 Hardware Installation 3 Software Installation 4

Windows 98/2000/ME 4 Post installation 7 Windows NT 9

Accessories 9

3. INTERCONNECTIONS 10

External Connectors 10

PCI703-16/A 10

Connector Pin Assignments 11

PCI703-16/A 11 PCI703-32/64/A 11 PCI703S-8/16/A 11

Cable Pin Assignments 12

Y–Cable 1 (PCI 703-16/A) Analog –DB37 F 12 Y-Cable 3 (PCI 703-64/A) Analog 13 Y–Cable 1, Y-Cable 3, Y-Cable 4 (PCI 703-16/64/S/A) Digital –DB37 F 13

Signal Definitions 14 Pin Descriptions 14

Analog Input (ACH0-63) 14 Analog Input Sensing (AISENSE) 14 Analog Input Ground (AIGND) 14 Analog Output Ground (AOGND) 14 Analog Outputs (DAC0-1) 14 Digital Input/Outputs (DIO0-7) 14 Multi Function Digital Input/Outputs (PIO0 -7) 14 TRIG1 14

PCI 703 User Manual Eagle Technology - Data Acquisition

Frequency Output (FREQ_OUT) 14 ADC Scan Clock (SCANCLK) 14 Counters (GPCTR0-1) 15 +5V Power Pin (+5V) 15 Digital Ground (DGND) 15

Analog Input Connections 15 Analog Input Connections - SAMPLE-AND-HOLD 15 Differential Input Pairing 15

4. PROGRAMMING GUIDE 17

EDR Enhanced API 17 Digital Inputs/Outputs 18

Reading the Digital Inputs 18 Writing to the Digital Outputs 18

Counters 19

Writing the initial counter value 19 Configuring a counter 19 Controlling the counter gate 20

Analog Output 21

Writing to a DAC channel 21 Generating a Waveform 21

Analog Input 23

Reading a single voltage from a channel 23 Configuring the ADC subsystem for scanning 23

Digital triggering 24

Analog triggering 24 Starting and Stopping the ADC process 26 Getting data from the driver buffer 26 Querying the ADC subsystem 27

Query Codes 28

How to use query codes 28

API Call 28

ActiveX Call 28 How to change the hardware FIFO depth 28 How to check for available data 29 How to get the driver buffer size 29 How to get the number of ADC channels 29 How to check the status of the driver buffer 29

5. CALIBRATION 30

Requirements 30

A. SPECIFICATIONS 31

Maximum Transfer Bandwidth – PCI703/S 31 Analog Input Characteristics – PCI703 31

Input Characteristics 31

PCI 703 User Manual Eagle Technology - Data Acquisition

Conversion Characteristics 31 Differential Input Amplifier Characteristics (AD620BR) 31

Analog Input Characteristics – PCI703S 32

Differential Input Amplifier Characteristics (AD620BR) 32 Sample and Hold Amplifier Characteristics (AD684) 32 Programmable Gain Amplifier Characteristics 32 Input Characteristics 32 Conversion Characteristics 32

Analog Output Characteristics 33

Output Characteristics 33 Conversion Characteristics (Calibrated) 33 Voltage Output Characteristics 33

Digital Input/Output Characteristics 33 Multifunction Input/Output Characteristics 33 Timing Input/Output Characteristics 34 Other 34

B. CONFIGURATION CONSTANTS 35

Query Codes 35 Error Codes 35 Digital I/O Codes 35 Analog Input Gain Codes – PCI703-16/32/64/A 35 Analog Input Gain Codes – PCI703S -8/16/A 35 Analog Input Range Codes – PCI703 -16/32/64/A 35

C. LAYOUT DIAGRAM 37

D. ORDERING INFORMATION 38

PCI 703 User Manual Eagle Technology - Data Acquisition

Table of Figures

Figure 3-A PCI 703 Interconnections............................................................................................................10

Figure 4-A EDR Enhanced Design................................................................................................................17

PCI 703 User Manual Eagle Technology - Data Acquisition

Table of Tables

Table 1-1 PCI703 16/32/64 Versions..............................................................................................................1

Table 1-2 PCI703S Versions ................................ .............................................................................................2

Table 2-1 Operating System Support................................ .............................................................................3

Table 3-1 Pinouts for PCI703 -16/A (External Connector – SCSI 68)................................................11

Table 3-2 Pinouts for PCI703 -32/64/A (External Connector – SCSI 100) .......................................11

Table 3-3 Pinouts for PCI703S-8/16/A (External Connector – SCSI 68) .........................................12

Table 3-4 Y-Cable 1 Analog Connector.......................................................................................................12

Table 3-5 Y-Cable 3 Analog Connector.......................................................................................................13

Table 3-6 Y-Cable 1,3,4 Digital Connector................................ .................................................................13

Table 3-7 Differential Channel Assignment ................................................................................................16

Table 4-1 Counter Assignment .......................................................................................................................19

Table 4-2 Counter Configuration....................................................................................................................20

Table 4-3 Gate Configuration..........................................................................................................................20

Table D-D-1 Ordering Information................................ .................................................................................38

PCI 703 User Manual Eagle Technology - Data Acquisition

1. Introduction

The PCI703 series are 32 -bit PCI bus architecture data acquisition boards. They are available in four models, the 16, 32 and 64 channels analog input board and the sample -and-hold version. The PCI703 contains digital input and output ports, onboard counters, a frequency generator, analog-in and analog-out sub -systems. The PCI703 is a multi-purpose analog board that can be used in many applications.

Features

The PCI703 does have some very unique features and are short listed below:

• 32-bit PCI bus Revision 2.2 compliant at 33MHz.

• PCI Bus 3.3V compatible.

• PCI Bus Master DMA.

• Fully individually programmable analog-in channels.

• Analog -out waveform generation support.

• Sample-and-hold option.

Number of analog input channels

Number of analog output channels A/D resolution @ 400 KHz 14 14 A/D FIFO depth 4096 4096 A/D channel list depth 4096 4096 D/A resolution @ 100 KHz - 14 D/A FIFO depth - 4096 D/A waveform generation capability Triggering capability Internal, External.

Counters 3 3 Frequency generation 1 1 Number of digital input/output lines Number of multi function digital I/O lines

Table 1-1 PCI703 16/32/64 Versions

Feature PCI703 -XX PCI703 -XXA

PCI703-16 PCI703-32 PCI703 -64

16 32 64

0 2

- YES

Analog & Digital.

Post & Pre-Trigger

8 8

10 10

PCI703-16A PCI703-32A PCI703 -64A

16 32 64

Internal, External.

Analog & Digital.

Post & Pre -Trigger

PCI 703 User Manual Eagle Technology - Data Acquisition

Number of analog input channels 8 16 16 16 Number of analog output channels 0 2 0 2 A/D resolution @ 400 KHz 14 14 14 A/D FIFO depth 4096 4096 4096 4096 A/D channel list depth 4096 4096 4096 4096 D/A resolution @ 100 KHz - 14 - 14 D/A FIFO depth - 4096 - 4096 D/A waveform generation capability - YES - YES Triggering capability Internal, External.

Counters 3 3 3 3 Frequency generation 1 2 1 1 Number of digital input/output lines 8 8 8 8 Number of multi function digital I/O lines 10 10 10 10

Table 1-2 PCI703S Versions

Feature PCI 703S -8 PCI 703S-8A PCI 703S -16 PCI 703S-16A

Analog & Digital.

Post & Pre-Trigger

Internal, External.

Analog & Digital.

Post & Pre-Trigger

Internal, External.

Analog & Digital.

Post & Pre-Trigger

Internal, External.

Analog & Digital.

Post & Pre-Trigger

Applications

The PCI703 can be used in the following applications:

• Vibration monitoring.

• Transducer monitoring.

• Automation and test equipment.

• Signal generation.

• Laboratory training.

• Medical applications.

Key Specifications

• 14-bit analog input @ 400 KHz.

• Fully programmable sample-and-hold analog input system with triggering.

• 14-bit analog output @ 400 KHz.

• Independent waveform generation capability.

Software Support

The PCI703 is supported by EDR Enhanced and comes with an extensive range of examples. The software will help you to get your hardware going very quickly. It also makes it easy to develop complicated control applications quickly. All operating system drivers, utility and test software are supplied on the Eagle Technology CD-Rom. The latest drivers can also be downloaded from the Eagle Technology website. For further support information see the Contact Details section.

Contact Details

Below are the contact details of Eagle Technology.

Eagle Technology

PO Box 4376 Cape Town 8000 South Africa Telephone +27 (021) 423 4943 Fax +27 (021) 424 4637 E-Mail eagle@eagle.co.za Website http://www.eagleda q.com

PCI 703 User Manual Eagle Technology - Data Acquisition

2. Installation

This chapter describes how to install and configure the PCI703 for the first time. Minimal configuration is necessary; almost all settings are done through software. The PCI BIOS or operating system will take care of all resource assignments.

Package

PCI703 package will contain the following:

• PCI703 PCI board

• Software CD -Rom

Operating System Support

PCI703 support the following operating systems

Board Type Revision Operating Systems Driver Type

PCI703-16/A Revision 1 Windows NT/2000 NT Sys PCI703-16/A Revision 2 Windows NT/2000/98/ME NT Sys, WDM PnP PCI703-64/A Revision 2 Windows NT/2000/98/ME NT Sys, WDM PnP

PCI703S-8/16/A Revision 1 Windows NT/2000/98/ME NT Sys, WDM PnP

Table 2-1 Operating System Support

Hardware Installation

This section will describe how to install your PCI board into your computer.

• Switch off the computer and disconnect from power socket.

Failure to disconnect all power cables can result in hazardous conditions, as there may be dangerous voltage levels present in externally connected

• Remove the cover of the PC.

• Choose any open PCI slot and insert PCI board

• Insert bracket screw and ensure that the board sits firmly in the PCI socket.

• Replace the cover of the PC.

• Reconnect all power cables and switch the power on.

• The hardware installation is now completed.

cables.

PCI 703 User Manual Eagle Technology - Data Acquisition

Software Installation

Windows 98/2000/ME

Installing the Windows 98/2000 device driver is a very straightforward task. Because it is plug and play Windows will auto detect the PCI board as soon as it is installed. No setup is necessary. You simply have to supply Windows with a device driver.

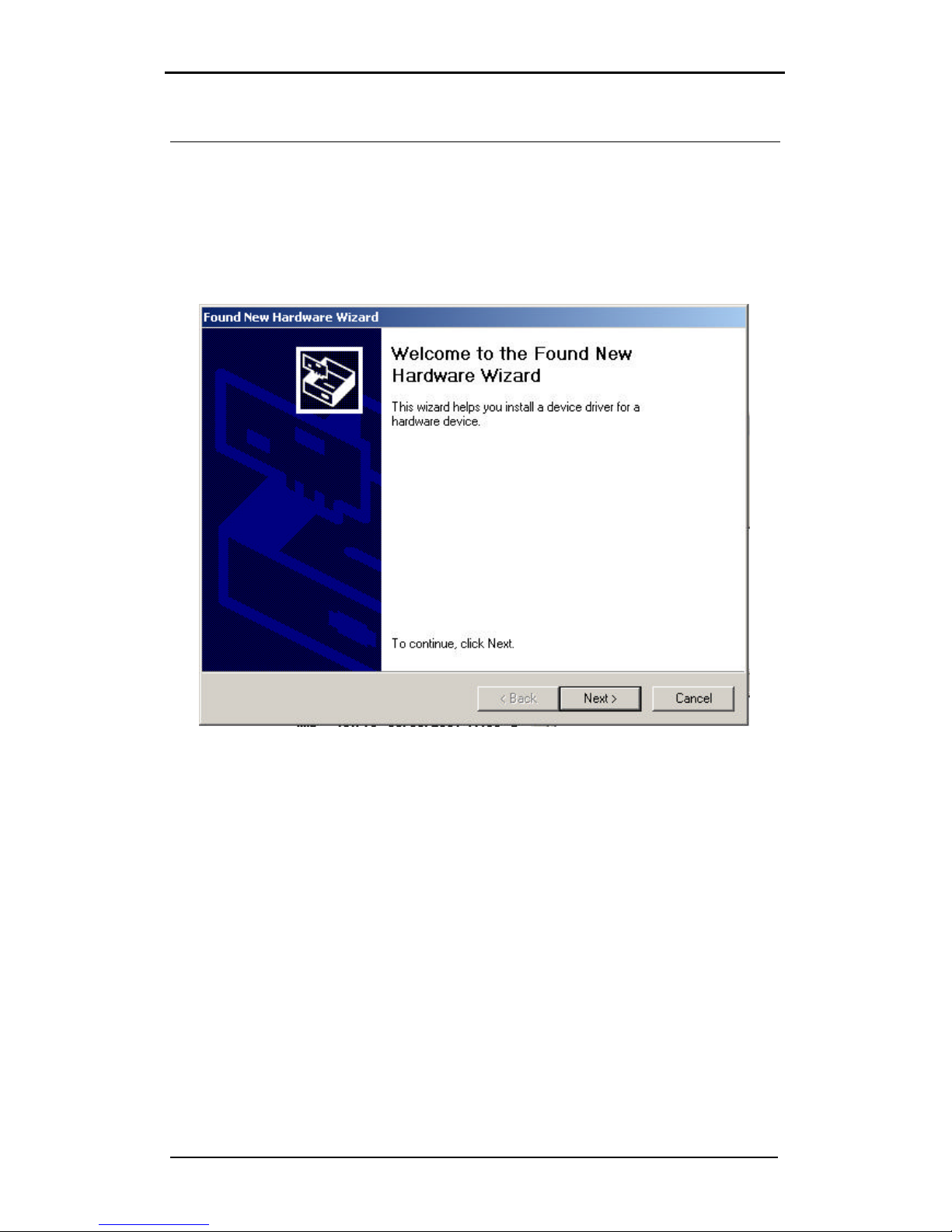

Wait until Windows detects the new hardware

Select Next

PCI 703 User Manual Eagle Technology - Data Acquisition

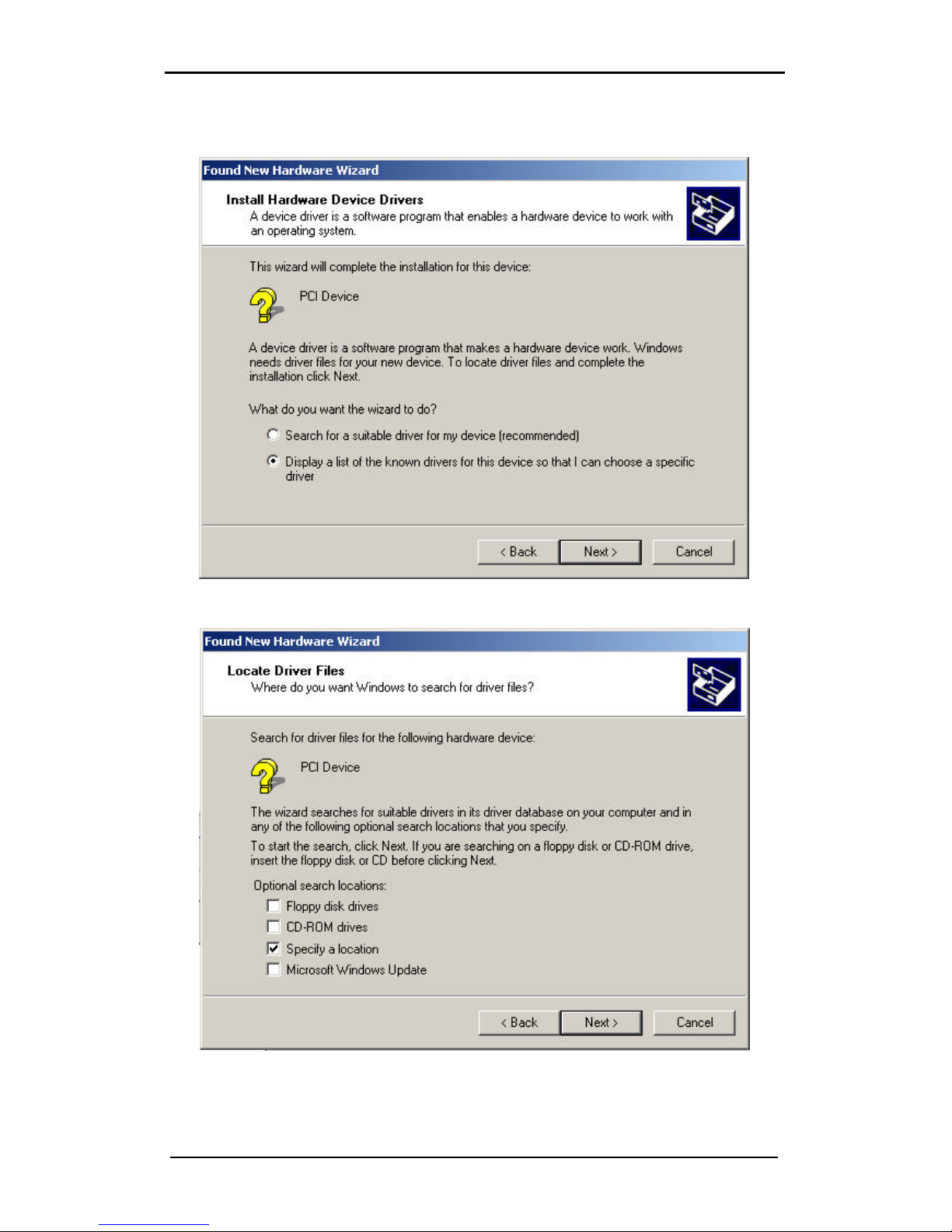

Select “Search for a suitable driver for my device…” and select next

Make sure only “Specify a location” is selected and select next

PCI 703 User Manual Eagle Technology - Data Acquisition

Select the browse button and search for the PCI703.inf file on the Eagle CD-Rom.

The driver is normally located in the <CDROM>: \EDRE\DRIVERS\WDM\PCI703 directory.

The PCI703/16/64 use the same driver. However the PCI703S has a different

driver. Please sure that you use the appropriate driver for your board.

PCI 703 User Manual Eagle Technology - Data Acquisition

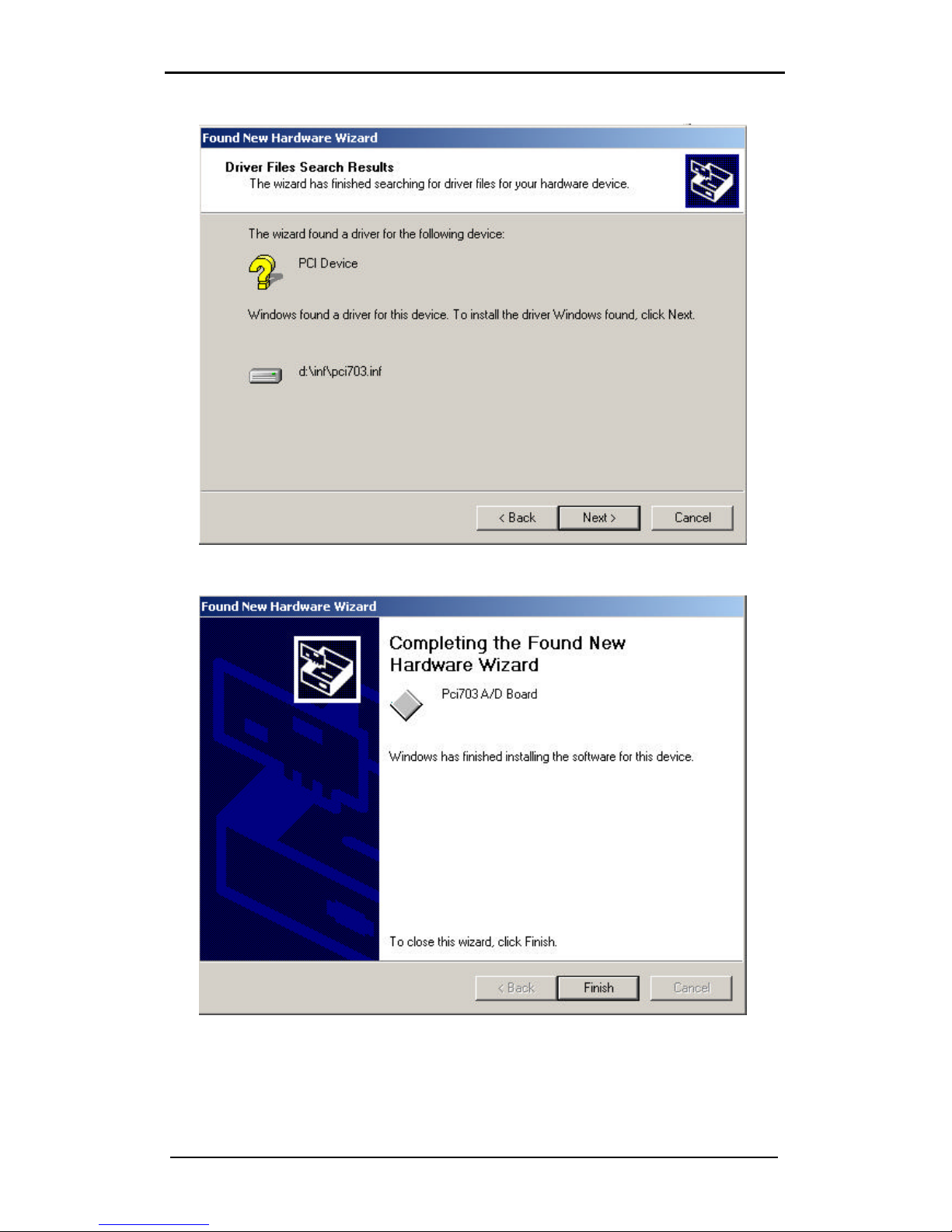

Select next when found.

Select next again.

When done you might have to restart yo ur computer.

Post installation

When done with the driver installation the device manager can be open to make sure the installation was a success.

PCI 703 User Manual Eagle Technology - Data Acquisition

• First make sure that the driver is working properly by opening the Device Manager.

• Check under the Eagle Dat a Acquisition list if your board is listed and working

properly. See picture below.

• Clearly you can see that the PCI device is listed and working properly.

• Further open the control panel and then the EagleDAQ folder. This dialog should list

all installed hardware. Verify your board’s properties on this dialog. See picture below

PCI 703 User Manual Eagle Technology - Data Acquisition

Now the first part of your installation has been completed and ready to install the EDR Enhanced Software Development Kit.

• Run edreapi.exe found on the Eagle CD -Rom and follow the on screen instructions

Windows NT

Windows NT does not require any special setup procedure. The Windows NT driver does not support plug and play. If Windows 2000 detects a new device simply install a default driver, or so called placeholder. This will disable the device in the plug and play manager.

To install the Windows NT drivers simply run edrewinnt.exe on the Eagle CD-Rom. This will automatically install the device drivers. Restart your computer when done. Open the EagleDAQ folder in the control panel to check if your installation was successful.

Accessories

The PCI703 has got a wide variety of accessories that it can be connected too. See the Eagle Technology catalog for more information.

PCI 703 User Manual Eagle Technology - Data Acquisition

3. Interconnections

The PCI703 has got one external connector that includes connections for analog-in, analogout, digital I/O, counters and power. All connections are made through this connector situated on the card’s bracket.

A wide variety of genuine accessories available from Eagle Technology also ma ke interfacing to the PCI703 very easy. Accessories are available in the form of cables, screw terminals and application modules.

External Connectors

PCI703 -16/A

The PCI703-16/A has a SCSI male centronics 68-way connector. Two types of cables are available, 68-way SCSI-II D-Sub (F) to (M) screened cable connecting to an adaptor ADPT6868 and a Y-Cable 68-way SCSI-II D -Sub (F) to 2 x DB37 (F) connection to application modules and adaptors. Application modules include the PC43A4 and PC52A1. Adaptors would be the ADPT3740. See diagram below.

Figure 3-A PCI 703 Interconnections

PCI 703 User Manual Eagle Technology - Data Acquisition

Connector Pin Assignments

PCI703 -16/A

Pin Name Pin Name Pin Name Pin Name

1 FREQ_OUT 18 DGND 35 DGND 52 DIO0 2 GPCTR0 19 DIO4 36 DGND 53 DGND 3 PFI9 20 RESERVED 37 PFI8/ CPCTR1 54 AOGND 4 DGND 21 DAC1 38 PFI7 55 AOGND 5 PFI6 22 DAC0 39 DGND 56 AIGND 6 PFI5 23 ACH15 40 GPCTR1 57 ACH7 7 DGND 24 AIGND 41 PFI4 58 ACH14 8 +5V 25 ACH6 42 PFI3/CPCTR0 59 AIGND 9 DGND 26 ACH13 43 PFI2/CONVERT 60 ACH5 10 PFI1 27 AIGND 44 DGND 61 ACH12 11 PFI0/TRIG1 28 ACH4 45 RESERVED 62 AISENSE 12 DGND 29 AIGND 46 SCANCLK 63 ACH11 13 DGND 30 ACH3 47 DIO3 64 AIGND 14 +5V 31 ACH10 48 DIO7 65 ACH2 15 DGND 32 AIGND 49 DIO2 66 ACH9 16 DIO6 33 AC H1 50 DGND 67 AIGND 17 DIO1 34 ACH8 51 DIO5 68 ACH0

Table 3-1 Pinouts for PCI703-16/A (External Connector – SCSI 68)

The following cables can be used with this connector.

• Y -Cable 1

• SCSI D-Sub 68 M/F

PCI703 -32/64/A

Pin Name Pin Name Pin Name Pin Name

1 AIGND 26 DIO4 51 ACH16 76 AIGND 2 AIGND 27 DIO1 52 ACH24 77 ACH36 3 ACH0 28 DIO5 53 ACH17 78 ACH44 4 ACH8 29 DIO2 54 ACH25 79 ACH37 5 ACH1 30 DIO6 55 ACH18 80 ACH45 6 ACH9 31 DIO3 56 ACH26 81 ACH38 7 ACH2 32 DIO7 57 ACH19 82 ACH46 8 ACH10 33 DGND 58 ACH27 83 ACH39 9 ACH3 34 +5V 59 ACH20 84 ACH47 10 ACH11 35 +5V 60 ACH28 85 ACH48 11 ACH4 36 SCANCLK 61 ACH21 86 ACH56 12 ACH12 37 EXTSTROBE 62 ACH29 87 ACH49 13 ACH5 38 PFI0/TRIG1 63 ACH22 88 ACH57 14 ACH13 39 PFI1 64 ACH30 89 ACH50 15 ACH6 40 PFI2/CONVERT 65 ACH23 90 ACH58 16 ACH14 41 PFI3/ CPCTR0 66 ACH31 91 ACH51 17 ACH7 42 PFI4 67 ACH32 92 ACH59 18 ACH15 43 GPCTR1 68 ACH40 93 ACH52 19 AISENSE 44 PFI5/UPDATE 69 ACH33 94 ACH60 20 DAC0OUT 45 PFI6/WFTRIG 70 ACH41 95 ACH53 21 DAC1OUT 46 PFI7/STARTSCAN 71 ACH34 96 ACH61 22 EXTREF 47 PFI8/ CPCTR1 72 ACH42 97 ACH54 23 AOGND 48 PFI9 73 ACH35 98 ACH62 24 DGND 49 GPCTR0 74 ACH43 99 ACH55 25 DIO0 50 FREQ_OUT 75 AISENSE 100 ACH63

Table 3-2 Pinouts for PCI703-32/64/A (External Connector – SCSI 100)

The following cable can be used with this connector

• Y -Cable 3

• SCSI D-Sub 100 M/M

PCI703S-8/16/A

Pin Name Pin Name Pin Name Pin Name

1 AIGND 18 ACH0+ 35 AIGND 52 ACH1+ 2 ACH14- 19 DAC0 36 ACH15- 53 DAC1 3 ACH14+ 20 AOGND 37 ACH15+ 54 AOGND 4 ACH12- 21 DGND 38 ACH13- 55 DGND

PCI 703 User Manual Eagle Technology - Data Acquisition

5 ACH12+ 22 FREQ_OUT 39 ACH13+ 56 NC 6 ACH10- 23 GPCTR0 40 ACH11- 57 GPCTR1 7 ACH10+ 24 PFI8/ CPCTR1 41 ACH11+ 58 PFI9 8 ACH8- 25 PFI6 42 ACH9- 59 PFI7/STARTSCAN 9 ACH8+ 26 PFI4 43 ACH9+ 60 PFI5 10 AIGND 27 PFI2/CONVERT 44 AIGND 61 PFI3/ CPCTR0 11 ACH6- 28 PFI0/TRIG1 45 ACH7- 62 PFI1 12 ACH6+ 29 +5V 46 ACH7+ 63 +5V 13 ACH4- 30 DGND 47 ACH5- 64 DGND 14 ACH4+ 31 DIO6 48 ACH5+ 65 DIO7 15 ACH2- 32 DIO4 49 ACH3- 66 DIO5 16 ACH2+ 33 DIO2 50 ACH3+ 67 DIO3 17 ACH0- 34 DIO0 51 ACH1- 68 DIO1

Table 3-3 Pinouts for PCI703S -8/16/A (External Connector – SCSI 68)

The following cable can be used with this connector.

• SCSI D-Sub M/F -S

• Y -Cable 4

Cable Pin Assignments

Y– Cable 1 (PCI 703-16/A) Analog –DB37 F

Pin Name Pin Name

1 AIGND 20 ACH0 2 ACH1 21 AIGND 3 ACH2 22 ACH3 4 AIGND 23 ACH4 5 ACH5 24 AIGND 6 ACH6 25 ACH7 7 AIGND 26 ACH8 8 ACH9 27 AIG ND 9 ACH10 28 ACH11 10 AIGND 29 ACH12 11 ACH13 30 AIGND 12 ACH14 31 ACH15 13 AIGND 32 AISENSE 14 AIGND 33 NC 15 NC 34 NC 16 AOGND 35 EXTREF 17 AOGND 36 DAC0 18 AOGND 37 DAC1 19 AOGND

Table 3-4 Y- Cable 1 Analog Connector

PCI 703 User Manual Eagle Technology - Data Acquisition

Y-Cable 3 (PCI 703-64/A) Analog

Pin Name Pin Name Pin Name Pin Name

1 AIGND 21 ACH32 41 AIGND 61 ACH40 2 ACH0 22 ACH33 42 ACH8 62 ACH41 3 ACH1 23 ACH34 43 ACH9 63 ACH42

4 ACH2 24 ACH35 44 ACH10 64 ACH43 5 ACH3 25 ACH36 45 ACH11 65 ACH44 6 ACH4 26 ACH37 46 ACH12 66 ACH45 7 ACH5 27 ACH38 47 ACH13 67 ACH46

8 ACH6 28 ACH39 48 ACH14 68 ACH47 9 ACH7 29 AIGND 49 ACH15 69 AIGND 10 ANALOG I/P SENSE 30 ACH48 50 AAIGND 70 ACH56 11 AIGND 31 ACH49 51 ANALOG I/P SENSE 71 ACH57

12 ACH16 32 ACH50 52 ACH24 72 ACH58 13 ACH17 33 ACH51 53 ACH25 73 ACH59 14 ACH18 34 ACH52 54 ACH26 74 ACH60 15 ACH19 35 ACH53 55 ACH27 75 ACH61 16 ACH20 36 ACH54 56 ACH28 76 ACH62 17 ACH21 37 ACH55 57 ACH29 77 ACH63 18 ACH22 38 AOGND 58 ACH30 78 AOGND 19 ACH23 39 DAC0 59 ACH31 79 DAC1 20 AIGND 40 AOGND 60 AIGND 80 EXTREF

Table 3-5 Y- Cable 3 Analog Connector

Y– Cable 1, Y-Cable 3, Y-Cable 4 (PCI 703-16/64/S/A) Digital –DB37 F

Pin Name Pin Name

1 DGND 20 DIO0 2 DIO1 21 DGND 3 DIO2 22 DIO3 4 DGND 23 DIO4 5 DIO5 24 DGND 6 DIO6 25 DIO7 7 DGND 26 +5V 8 DGND 27 SCANCLK 9 EXTSTROBE 28 PFI0/TRIG1 10 DGND 29 +5V 11 DGND 30 PFI1 12 PFI2/CONVERT 31 PFI3 13 DGND 32 PFI4 14 PFI5 33 PFI6 15 DGND 34 GPCTR1 16 PFI7 35 PFI8 17 DGND 36 PFI9 18 GPCTR0 37 FREQ_OUT 19 GND

Table 3-6 Y- Cable 1,3,4 Digital Connector

PCI 703 User Manual Eagle Technology - Data Acquisition

Signal Definitions

This sections deal with all the signals abbreviations.

Signal Description

ACH0-63 Analog inputs AIGND Analog input ground AOGND Analog output ground AISENSE Analog input sensing DAC0-1 Analog outputs DIO0-7 Digital inputs/outputs PFI0-9 Programmable multi function digital inputs/outputs TRIG1 Digital trigger pin FREQ_OUT Frequency generator SCANCLK A/D external convert GPCTR0-1 Counter Outputs CPCTR0-1 Counter Inputs +5V Power output DGND Digital ground

Table 3-2 Signal definitions

Pin Descriptions

Analog Input (ACH0-63)

This is the analog input-channels. Depending on the version there are either 16/64 single ended input channels or 8/32 differential input channels.

Analog Input Sensing (AISENSE)

This input is used as a reference analog input ground. This is normally used where the measurement point is v ery far from the PCI703 connector.

Analog Input Ground (AIGND)

This is the analog reference used by single ended analog inputs.

Analog Output Ground (AOGND)

This is the analog reference used by analog outputs.

Analog Outputs (DAC0-1)

The A version of the PCI703 has two analog outputs, DAC0 and DAC1.

Digital Input/Outputs (DIO0-7)

The DIO0-7 pins are the pins for the digital I/O system.

Multi Function Digital Input/Outputs (PIO0-7)

These pins are digital I/O, but can also be used for some other functions. They represent the same function as the digital I/O pins.

TRIG1

This pin is used for digital triggering.

Frequency Output (FREQ_OUT)

This is the output pin of the frequency generator system.

ADC Scan Clock (SCANCLK)

This input is used to externally clock the ADC system.

PCI 703 User Manual Eagle Technology - Data Acquisition

Counters Output (GPCTR0-1)

These are the outputs of the two user counters.

Counters External Clock (CPCTR0 -1)

These are the external clock inputs of the two user counters.

+5V Power Pin (+5V)

This is a +5 volt fused power pin.

Digital Ground (DGND)

All digital ground signals should be connected to this pin.

Analog Input Connections

WARNING!!

All unused analog inputs must be connected to analog ground. The analog input system of the PCI703 can be damaged or become unstable when scanning cha nnels that is left floating.

Analog Input Connections - SAMPLE-AND-HOLD

WARNING!!

Don’t feed any voltage into the PCI703S while the computer is switched off. This will damage the analog input cicuitry. The sample -andhold devices will be damaged parmanently and result in multfunctioning of the board.

Differential Input Pairing

The table below shows the differential channel pairing. This is for the PCI703-16/32/64 boards. Please note that if any channel is assigned as a differential input, the paired channel will automatically become unavailable. The positive channel is the channel that needs to be configured.

Channel Number

Positive Channel

0 0 8 16 32 40 1 1 9 17 33 41 2 2 10 18 34 42 3 3 11 19 35 43 4 4 12 20 36 44 5 5 13 21 37 45 6 6 14 22 38 46 7 7 15 23 39 47 8 16 24 24 48 56 9 17 25 25 49 57

Negative Channel

Channel Number

Positive Channel

Negative Channel

PCI 703 User Manual Eagle Technology - Data Acquisition

10 18 26 26 50 58 11 19 27 27 51 59 12 20 28 28 52 60 13 21 29 29 53 61 14 22 30 30 54 62 15 23 31 31 55 63

Table 3-7 Differential Channel Assignment

PCI 703 User Manual Eagle Technology - Data Acquisition

4. Programming Guide

The PCI703 is supplied with a complete software development kit. EDR Enhanced (EDRE SDK) comes with drivers for many operating systems and a common application program interface (API). The API also serves as a hardware abstraction layer (HAL) between the control application and the hardware. The EDRE API makes it possible to write an application that can be used on all hardware with common sub -systems.

The PCI703 can also be programmed at register level, but it is not recommended. A detailed knowledge of the PCI703 is needed and some knowledge about programming Plug and Play PCI devices. We recommend that you only make use of the software provided by Eagle Technology.

EDR Enhanced API

The EDR Enhanced SDK comes with both ActiveX controls and a Windows DLL API. Examples are provided in many different languages and serve as tutorials. EDRE is also supplied with a software manual and user’s guide.

The EDRE API hides the complexity of the hardware and makes it really easy to program the PCI703. It has got functions for each basic sub-system and is real easy to learn.

Figure 4- A EDR Enhanced Design

PCI 703 User Manual Eagle Technology - Data Acquisition

Digital Inputs/Outputs

The PCI703 has got 8 digital I/O lines and 10 multi I/O lines that can all be used for digital control purposes. The EDRE API supports auto direction configuration. By writing to or reading from a port, it is automatically configured as an output or input. A port is defined as a collection of simultaneous configurable entities. Thus in the case of the PCI703 each port is only 1-bit wide. In total the PCI703 has got 18 digital ports that can be configured in any direction. Some of which has got more than one function when configured as an input.

Reading the Digital Inputs

A single call is necessary to read a digital I/O port.

API-CALL

Long EDRE_DioRead(ulng Sn, ulng Port, ulng *Value)

The serial number, port, and a pointer to variable to hold the result must be passed by the calling function. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDREDioX.Read(long Port)

Only the port-number needs to be passed and the returned value will either hold an error or the value read. If the value is negative an error did occur.

Writing to the Digital Outputs

A single call is necessary to write to a digital I/O port.

API-CALL

Long EDRE_DioWrite(ulng Sn, ulng Port, ulng Value)

The serial number, port, and a value must be passed by the cal ling function. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDREDioX.Write(long Por, ulng Value)

The port number and value to be written needs to be passed and the returned value holds an error or the value read. If the value is negative an error did occur.

PCI 703 User Manual Eagle Technology - Data Acquisition

Counters

The counter sub -system is supported by functions to Write, Configure and controlling the gate. There are 3 counters and 1 frequency generator. Only the first two counters and the frequency generator are available for the user. See the table below that shows the relation of the counters and their assigned numbers.

Counter Assigned Number Description

0 0 Counter 0 1 1 Counter 1 2 <Not Used> A/D Timing 3 2 Frequency Out Counter

Table 4-1 Counter Assignment

Writing the initial counter value

A single call is necessary to write a counter’s initial load value.

API-CALL

Long EDRE_CTWrite(ulng Sn, ulng Ct, ulng Value)

The serial number, counter-number, and a value must be passed by the calling function. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDRECTX.Write(long Port, ulng Value)

The port number and value to be written needs to be passed and the returned value holds an error or the value read. If the value is negative an error did occur.

Configuring a counter

A single call is necessary to configure a counter.

API-CALL

Long EDRE_CTConfig(ulng Sn, ulng Ct, ulng Mode, ulng Type, ulng ClkSrc, ulng GateSrc)

The serial number, counter-number, mode , type, clock source and gate source is needed to specify a counter’s configuration. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDRECTX.Configure(long ct, long mode, long type, ulng source, ulng gate)

The counter-number, mode, type, clock source and gate source is needed to specify a counter’s configuration. A return code will indicate if any errors occurred.

Only the counter mode, clock source and type parameters are used by the PCI703. The table below shows the options for each parameter.

Parameter Description

Sn Serial Number

Ct Counter Number:

Mode 0 : PULSE

Type Interrupt on TC:

Source 0 : 20MHz internal clock

0 : Counter 0 1 : Counter 1 2 : Frequency Out Counter

1 : TOGGLE Invalid parameter for counter 2

0 : Disabled 1 : Enabled This bit will only generate a interrupt at the interrupt sub-system. The interrupt sub-system must also be setup to generate a PCI Bus interrupt.

1 : 100KHz internal clock 2 : External clock on CPCTRx pin<invalid for counter 2>

PCI 703 User Manual Eagle Technology - Data Acquisition

Gate <not use>

Table 4-2 Counter Configuration

Controlling the counter gate

A single call is necessary to setup/control a counter’s gate. This function call is invalid for the frequency generator (counter 2). Counter 2 does not have a gate.

API-CALL

Long EDRE_CTSoftGate(ulng Sn, ulng Ct, ulng Gate)

The serial number, counter-number and gate are needed to control a counter’s gate. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDRECTX.SoftGate(ulng Sn, ulng Ct, ulng Gate)

The counter-number and mode is needed to control a counter’s gate. A return code will indicate if any errors occurred.

These values are acceptable as a gate source.

Value Description

0 Gate disabled 1 Gate enabled

Table 4-3 Gate Configuration

PCI 703 User Manual Eagle Technology - Data Acquisition

Analog Output

The PCI703-X/A version has got 2 DAC channels that support single write and waveform generation. The DAC subsystem uses the onboard counters for timing and a FIFO for data transfer. The two DAC channels are controlled independently from each other. The DAC subsystem is control via 3 functions: SingleWrite, Control and Configure.

Writing to a DAC channel

A single call is necessary to set a voltage on a DAC channel.

API-CALL

Long EDRE_DAWrite (ulng Sn, ulng Channel, long uVoltage)

The serial number, DAC channel and micro-voltage is needed to set a DAC channel’s voltage. A return code will indicate if any errors occurred.

ACTIVEX CALL

Long EDREDAX.Write (ulng Channel, long uVo ltage)

The DAC channel and micro -voltage is needed to set a DAC channel’s voltage. A return code will indicate if any errors occurred.

Generating a Waveform

Generating a waveform is basically a two-step process. First configure a channel then start and stop it. Two modes are available, FIFO non-loop mode and pattern mode. FIFO non-loop the FIFO data only gets outputted once. The DAC output voltage will be the same as the last value in the FIFO. In pattern mode the FIFO data is outputted continuously. Please note that the frequency is not the total frequency of the waveform, but the update rate of the DAC channel. This is the value written directly to the counter.

Update frequency = (Internal clock frequency) / (counter value +1) API-CALL

Long EDRE_DAConfig (ulng Sn, ulng Channel, ulng Frequency, ulng ClkSrc, ulng GateSrc, ulng Continuous, ulng Length, long *uVoltage)

Parameter Type Description

Sn Unsigned long Board’s serial number

Channel Unsigned long Channel

Frequency Unsigned long Actual value written to counter

ClkSrc Unsigned long Clock source

GateSrc Unsigned long Gate Source – Ignored

Continuous Unsigned long Mode

Length Unsigned long Buffer length

uVoltage Pointer to a long buffer Buffer filled with micro voltages

Return Long Error Code

ACTIVEX CALL

Long EDRDAX.Configure (long Channel, long Frequency, long ClkSrc, long GateSrc, long Continuous, long Length, long *uVoltage)

Parameter Type Description

0: DAC Channel 0 1: DAC Channel 1

0: Internal 20 MHz 1: Internal 100 KHz 2: External Clock

0: NON LOOP MODE 1: LOOP MODE

PCI 703 User Manual Eagle Technology - Data Acquisition

Channel Long Channel

Frequency Long Actual value written to counter

ClkSrc Long Clock source

GateSrc Long Gate Source – Igno red

Continuous Long Mode

Length Long Number of samples in buffer

uVoltage Pointer to a long buffer Buffer filled with micro voltages

Return Long Error Code

0: DAC Channel 0 1: DAC Channel 1

0: Internal 20 MHz 1: Internal 100 KHz 2: External Clock

API-CALL

Long EDRE_DAControl (ulng Sn, ulng Channel, ulng Command)

Parameter Type Description

Sn Unsigned long Board’s serial number

Channel Unsigned long Channel

Command Unsigned long Command Code

Return Long Error Code

0: DAC Channel 0 1: DAC Channel 1

0: NULL 1: Start process 2: Stop process 3: Pause process 4: Continue process

ACTIVEX CALL

Long EDREDAX.Control (long Channel, long Command)

Parameter Type Description

Channel Long

Command Long

Return Long Error Code

Channel 0: DAC Channel 0 1: DAC Channel 1 Command Code 0: NULL 1: Start process 2: Stop process 3: Pause process 4: Continue process

PCI 703 User Manual Eagle Technology - Data Acquisition

Trigger Source (T0

T3)

2: External

–

PIN TRIG1

Analog Input

The PCI703 has got a very unique A/D subsystem and is fully configurable. Configuration includes dynamic range, gain, reference and differential or single ended. Each of these settings can be applied to an individual c hannel while scanning.

Please not that although the PCI703 and PCI703S is similar in operation and uses the same functions, not all parameters apply to the PCI703S. This is because the PCI703S only supports bipolar -differential mode. The frequency is also implemented differently. Where the frequency is the timer tic for the ADC on the PCI703, it is the total frequency on the PCI703S.

Reading a single voltage from a channel

To read a single ADC channel you need to know the voltage range and gain.

API-CALL

Long EDRE_ADSingle (ulng Sn, ulng Channel, ulng Gain, ulng Range, plong uVoltage)

Parameter Type Description

Sn Unsigned long Board’s serial number

Channel Unsigned long ADC Channel

Gain Unsigned long Gain code. See appendix for details

Range Unsigned long Range code. See appendix for details

uVoltage Pointer to a long Voltage read from channel

Return Long Error Code

ACTIVEX CALL

Long EDREADX.SingleRead (long Channel)

Parameter Type Description

Channel Long ADC Channel

Return Long Voltage re turned from channel.

Make sure to set the Gain and Range properties of the ADC ActiveX control. This will in turn set the range and gain when reading the ADC channel.

Configuring the ADC subsystem for scanning

This is the most complicated part of config uring the PCI703 for auto scanning. Make sure that you use the correct format when applying the channel list configuration. There are many loopholes and care should be taken when implementing code to configure the PCI703.

API-CALL

Long EDRE_ADConfig (ulng Sn, pulng Freq, ulng ClkSrc, ulng Burst, ulng Range,

pulng ChanList, pulng GainList, ulng ListSize)

The following parameters must be specified when configuring the ADC sub-system.

Parameter Type Description

Sn Unsigned long Board’s serial number. Freq Pointer to an

unsigned long

ClkSrc Unsigned long This parameter is used to configure the clocking system of the ADC.

Sampling frequency. The actual sampling frequency will be returned with this parameter.

Format

Offset (bits) Description

0 Clock Source (C0-C7)

0: Undefined 1: Internal

2: External – PIN PFI2/CONVERT

0: Internal 1: Reference – DAC CHAN 1 (NOT SUPPORTED BY PCI 703S)

PCI 703 User Manual Eagle Technology - Data Acquisition

Specifies the analog reference.

0: analog in sense pin.

12 Trigger Mode – Only applies to the reference trigger source. (M0-M3)

Example Layout:

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

M3 M2 M1 M0 T3 T2 T1 T0 C7 C6 C5 C4 C3 C2 C1 C

Burst Unsigned long Not used Range Unsigned long Not used ChanList Pointer to an

unsigned long

GainList Pointer to an

unsigned long

ListSize Unsigned long This parameter determines the length the two previous arrays. This is also the depth of the channel list

This is an array of unsigned longs which contains the channels to be sampled when scanning the ADC sub-system. The max size of the channel list is half the FIFO depth. The gain list contains an array of unsigned longs which specifies the setup for each channel according to the previous list. The table below shows the format for each channel.

Offset (bits) Description

0 Specifies the gain of the channel. See 8 Specifies the range of the channel. See

12 Specifies the analog reference.

Example Layout:

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

F3 F2 F1 F0 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G

that is programmed to the board.

0: Positive 1: Negative 2: Rising 3: Falling

table on ADC gain codes. (G) table on ADC range codes. (R) 0: analog in sense pin.

1: analog ground. (F)

Digital triggering

If digital triggering is used, pin TRIG1 is used. This pin is active high and will start the ADC process when it is high. The process will continue until it is stopped via software.

Analog triggering

If analog triggering is used, the voltage on analog output channel 1 is used as reference voltage. This voltage can be changed at set and the PCI703 will compar e the current input voltage to the ADC system, this can be from any channel included in the channel list, with the voltage of DAC channel 1. The trigger event can be any of the four settings.

ACTIVEX CALL

Long EDREADX.Configure (plong Channels, plong Gains, long ListSize)

Parameter Type Description

Channels Pointer to a

long

Gains Pointer to a

long

This is an array of longs that contains the channels to be sampled when scanning the ADC sub-system. The max size of the channel list is half the FIFO depth. The gain list contains an array of longs that specifies the setup for each channel according to the previous list. The table below shows the format for each channel.

Offset (bits) Description

0 Specifies the gain of the channel. See

table on ADC gain cod es. (G)

8 Specifies the range of the channel. See

table on ADC range codes. (R)

Example Layout:

PCI 703 User Manual Eagle Technology - Data Acquisition

F3 F2 F1 F0 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G

ListSize Unsigned long This parameter determines the length the two previous arrays. This is also the depth of the channel list

that is programmed to the board.

The range code does not apply to the S models, for the are always differential and bipolar. The Frequency and ClockSource ADC ActiveX control must be setup before calling the configure function.

EDREADX.Frequency

Frequency The ADC sampling frequency

WARNING!!

î On the PCI703 the frequency is the

update rate of the A/D convert er. This means that the board will convert the channels at a period of equal to the frequency and the channels in the sequence of the channel list. The end result is that the time between samples is equal to 1/Frequency.

î The PCI703S-frequency relates to the

total sampling frequency. The effective sampling frequency is the frequency divided by the channel list length. The channel-list holds all the channels that need to be simultaneous-sampled-andholded. Thus the all channel in a set are sampled at the same time but the space between a set is the total sampling frequency divided by the channel list length. Also note that the sample -andhold counts as one channel. This reduces the maximum frequency by one count plus the channel list length. For example the ma x for one channel is 200KHz.

Frequency Example:

Frequency = 200 000 Hz Channel List Length = 10 Time = 5 uS Time between channels = 5 uS

PCI703 PCI703S

Frequency = 200 000 Hz Channel List Length = 10 Effective Frequency = 20 000 Hz Time = 50 uS Time between channels = 0 uS Time between sets = 50 uS

PCI 703 User Manual Eagle Technology - Data Acquisition

EDREADX.ClockSource

ClockSource This parameter is used to configure the clocking system of the ADC.

Format

Offset (bits) Description

0 Clock Source (C0 -C7)

0: Undefined 1: Internal 2: External

8 Trigger Source (T0-T3)

0: Internal 1: Reference (NOT SUPPORTED BY PCI 703S) 2: External

12 Trigger Mode – Only applies to the reference trigger source. (M0-M3)

0: Positive 1: Negative 2: Rising 3: Falling

Example Layout:

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

M3 M2 M1 M0 T3 T2 T1 T0 C7 C6 C5 C4 C3 C2 C1 C

Starting and Stopping the ADC process

A single call is necessary to start or stop the ADC process

API-CALL

Long EDRE_ADStart (ulng Sn)

Parameter Type Description

Sn Unsigned long Board’s serial number

Return Long Error Code

ACTIVEX CALL

Long EDREADX.Start ()

Parameter Type Description

Return Long Error Code

API-CALL

Long EDRE_ADStop (ulng Sn)

Parameter Type Description

Sn Unsigned long Board’s serial number

Return Long Error Code

ACTIVEX CALL

Long EDREADX.Stop ()

Parameter Type Description

Return Long Error Code

Getting data from the driver buffer

A single call is necessary copy data from the driver buffer to the user buffer.

API-CALL

Long EDRE_ADGetData (ulng Sn, plong Buf, pulng BufSize)

PCI 703 User Manual Eagle Technology - Data Acquisition

Parameter Type Description

Sn Unsigned long Board’s serial number

Buf Pointer to a long buffer. Buffer to copy micro voltages too.

BufSize Pointer to an unsigned

long

Return Long Error Code

Size of buffer must be passed or number of samples requested. The returned value will indicate the number of actual samples copied to the buffer.

ACTIVEX CALL

Long EDREADX.GetData (plong Buffer, plong Size)

Parameter Type Description

Buf Pointer to a long buffer. Buffer to copy micro voltages too.

BufSize Pointer to a long Size of buffer must be passed or number of samples

Return Long Error Code

requested. The returned value will indicate the number of actual samples copied to the buffer.

Querying the ADC subsystem

The driver can be queried to check the status of the ADC subsystem. The number of unread samples is one example.

API-CALL

Long EDRE_Query (ulng Sn, ulng QueryCode, ulng Param)

Parameter Type Description

Sn Unsigned long Board’s serial number

QueryCode Unsigned long Query code. See appendix

Param Unsigned long Extra parameter.

Return Long Returned query code

ACTIVEX CALL

Long EDREADX.GetUnread ()

Parameter Type Description

Return Long Number of samples available in the driver.

This function automatically queries the ADC driver buffer for the number of available samples.

Example: ADUNREAD: This will tell you the number of available samples. ADBUSY: Is the ADC subsystem busy?

PCI 703 User Manual Eagle Technology - Data Acquisition

Query Codes

This chapter explains query codes and their functions relating to the PCI703 series. It will show examples of typical query codes that can make custom application allot easier to develop and tailor made for the PCI703 boards. Please note that all examples or pseudo code will show the API call and not the ActiveX call. Use the section below to translate between the two different implementations.

How to use query codes

The appendix shows a list of query code that can be used. The function prototypes below show how to implement a query code for both the EDR Enhanced API and Utility ActiveX contr ol.

API Call

Long EDRE_Query (ulng Sn, ulng QueryCode, ulng Param)

Parameter Type Description

Sn Unsigned long Board’s serial number

QueryCode Unsigned long Query code. See appendix

Param Unsigned long Extra parameter.

Return Long Returned query code

Example: ADUNREAD: This will tell you the number of available samples. ADBUSY: Is the ADC subsystem busy?

ActiveX Call

Long EDREUTLX.Query (long Code, long Param)

Parameter Type Description

Code Unsigned long Query code. See appendix

Param Unsigned long Extra parameter.

Return Long Returned query code

The above functions are used to execute query codes that can do a variety of functions. The returned value will have the result of the query code. The query function can also execute functions or changes settings of the driver system.

How to change the hardware FIFO depth

The hardware FIFO depth can be set with a single query call. This also relates to the interrupt depth and data update rate. If sampling at maximum speed set this depth to max an d for slower speeds, under a 1000 Hz to a lower level.

PSEUDO BEGIN UI32 Sn=1000000001 /*32-bit unsigned integer - Serial Number*/

UI32 Depth=1000 /*32 -bit unsigned integer - FIFO Depth, Max is 4095*/ I32 Status /*32-bit integer*/

Status=EDRE_Query(Sn, ADIRQLEVEL /*Code 142*/,Depth) If Status < 0 Then Error

PSEUDO END

PCI 703 User Manual Eagle Technology - Data Acquisition

How to check for available data

To check for the number of samples available in the driver buffer use the query functions as below.

PSEUDO BEGIN UI32 Sn=1000000001 /*32-bit unsigned integer - Serial Number*/

I32 Status /*32-bit integer*/ Status=EDRE_Query(Sn, ADUNREAD /*Code 109*/,0)

If Status < 0 Then Error Print “Samples available = “ + Status

PSEUDO END

How to get the driver buffer size

To get the driver buffer size, use the query below.

PSEUDO BEGIN UI32 Sn=1000000001 /*32-bit unsigned integer - Serial Number*/

I32 Status /*32-bit integer*/ Status=EDRE_Query(Sn, ADBUFFSIZE/*Code 106*/,0)

If Status < 0 Then Error Print “Driver buffer size = “ + Status

PSEUDO END

How to get the number of ADC channels

To check for the number of ADC channels

PSEUDO BEGIN UI32 Sn=1000000001 /*32-bit unsigned integer - Serial Number*/

I32 Status /*32-bit integer*/ Status=EDRE_Query(Sn, ADNUMCHAN /*Code 100*/,0)

If Status < 0 Then Error Print “Channels available = “ + Status

PSEUDO END

How to check the status of the driver buffer

The driver buffer can be queried to check if a overrun condition occured.

PSEUDO BEGIN UI32 Sn=1000000001 /*32-bit unsigned integer - Serial Number*/

I32 Status /*32-bit integer*/ Status=EDRE_Query(Sn, ADBUFFOVER/*Code 107*/,0)

If Status = 0 Then Print “Buffer OK” Else Print ”Buffer Error”

PSEUDO END

PCI 703 User Manual Eagle Technology - Data Acquisition

5. Calibration

Calibrating the PCI703 is simple task. EDR Enhanced must be installed and the calibration software. Both can be found on the Eagle Technology Software CD -Rom (<EAGLECD>\EDRE\APPS \PCI700CAL\PCI700CALIBRATIONSOFTWARE.EXE). The latest version will also be available on http://www.eagle.co.za.

Requirements

1. 1 x PCI703 with cable and adaptor.

2. Installed software

3. High accuracy calibration source,

4. High accuracy digital voltmeter.

PCI 703 User Manual Eagle Technology - Data Acquisition

A.Specifications

Maximum Transfer Bandwidth – PCI703/S

The ADC and DAC subsystems share a common data path to the FIFO module. This limits the maximum data transfer between the FIFO’s, the appropriate device and across PCI. The maximum bandwidth is 450 000 cycles per second.

Analog Input Characteristics – PCI703

Input Characteristics

Input Signal Ranges

Input Coupling Maximum Working Voltage ± 11V relative to analog ground Over Voltage Protection ± 25V when power is on, relative to analog ground

FIFO Buffer Size Channel List Buffer Size Data Transfer

Conversion Characteristics

Maximum Sampling Rate Resolution 14 bits Relative Accuracy ± 1 LSB max Offset Error (Gain = 1) ± 0.4 mV max Offset Error (Gain = 10) ± 0.6 mV max Offset Error (Gain = 50) ± 0.1 mV max Gain Error ± 0.02% of max reading

± 35V when power is off, relative to analog ground 4096 Maximum 2048 Programmed I/O, Interrupts, BM DMA

Channel

Gain

0.25 0-10V

0.50 0-10V

1.00 0-5V

2.50 0-2V

5.00 0-1V

10.00 0-500mV ±

25.00 0-200mV

50.00 0-100mV

100.00 0-50mV

400 000 samples per second (S/s)

Unipolar

Range

Bipolar

Range

±10V

± 5V

± 2.5V

± 1V

± 500 mV

250 mV

±100 mV

± 50 mV ± 25 mV

Differential Input Amplifier Characteristics (AD620BR)

Input Impedance 10 GΩ , in parallel with 100 pF maximum Bandwidth Settling Time

System Noise

600 KHz 5 uS to 2 LSB 15 uS to 1 LSB Gains < 5, 0.6 LSB (rms)

PCI 703 User Manual Eagle Technology - Data Acquisition

Maximum Safe Input Range ± 15V Maximum Operating Input Range ± 5V

Gains > 5, 0.8 LSB (rms)

Analog Input Characteristics – PCI703S

Differential Input Amplifier Characteristics (AD620BR)

Input Coupling Input Impedance >1 GΩ , in parallel with 50 pF maximum Bandwidth 120 KHz at ± 5V input voltage swing Offset Voltage ± 500 uV Gain Error ± 0.002% (Gain=1)

Maximum Safe Input Range ± 15V Maximum Operating Input Range ± 5V

Sample and Hold Amplifier Characteristics (AD684)

Bandwidth 1 MHz at ± 5V input voltage swing Hold Mode Offset Voltage ± 3 mV Gain Error ± 0.05%

Programmable Gain Amplifier Characteristics

Bandwidth 600 KHz at ± 5V input voltage swing Offset Voltage ± 200 uV Gain Error ± 0.008%

Input Characteristics

Input Signal Ranges

Input Coupling Maximum Working Voltage ± 10V relative to analog ground Over Voltage Protection ± 25V when power is on, relative to analog ground

FIFO Buffer Size Channel List Buffer Size Data Transfer

± 35V when power is off, relative to analog ground 4096 Maximum 2048 Programmed I/O, Interrupts, BM DMA

Channel Gain Bipolar Range

0.50

1.00 ±

2.50

5.00

10.00

25.00

50.00 ± 50 mV

100.00

± 5V

2.5V

± 1V ± 500 mV ± 250 mV

±100 mV

± 25 mV

Conversion Characteristics

Maximum Sampling Rate Resolution Relative Accuracy ± 1 LSB max Offset Error (Gain = 1) ± 0.4 mV max

Offset Error (Gain = 10) ± 0.6 mV max Offset Error (Gain = 50) ± 0.1 mV max Gain Error ± 0.02% of max reading

400 000 samples per second (S/s) 14 bits

PCI 703 User Manual Eagle Technology - Data Acquisition

Analog Output Characteristics

Output Characteristics

Resolution Maximum Update Rate FIFO Buffer Size 4096 Data Transfer

14 bits 400 KHz to 0.02% full scale

Programmed I/O, Interrupts, BM DMA

Conversion Characteristics (Calibrated)

Resolution Relative Accuracy ± 1.0 LSB max

Full Scale Error ± 0.9 LSB Zero Scale Error ± 0.9 LSB

14 bits

Voltage Output Characteristics

Range ± 10 Volt Output Settling Time Output Impedance 0.2 Ω Output Drive ± 5 mA Power- on State

2.5 us to 0.02% full scale

Digital Input/Output Characteristics

Number of Channels Compatibility I/O Characteristics

8 independent programmable TTL

Level Min Max

Input Low Voltage 0V 0.8V

Input High Voltage 2.0V 5.25V

Low Level Input

Current

High Level Input

Current

Output High

Voltage

Output Low

Voltage

Low Level Output

Current

High Level Output

Current

- 100 uA 100 uA

2.4V

0.6V

-24 mA 4 mA

Multifunction Input/Output Characteristics

Number of Channels Compatibility I/O Characteristics

10 independent programmable TTL

Level Min Max

Input Low Voltage 0V 0.8V

Input High Voltage 2.0V 5.25V

Low Level Input

Current

High Level Input

Current

Output High

Voltage

Output Low

Voltage

Low Level Output

Current

High Level Output

Current

- 100 uA 100 uA

2.4V

0.6V

-24 mA 4 mA

PCI 703 User Manual Eagle Technology - Data Acquisition

Timing Input/Output Characteristics

Number of Channels Resolution Clock Source 20 MHz, 100 KHz, External I/O Characteristics

2 24 bits

Level Min Max

Input Low Voltage 0V 0.8V

Input High Voltage 2.0V 5.25V

Low Level Input

Current

High Level Input

Current

Output High

Voltage

Output Low

Voltage

Low Level Output

Current

High Level Output

Current

- 100 uA 100 uA

2.4V

0.6V

-24 mA 4 mA

Other

Bus Interface PCI 2.2 Compatible

Power Requirements +5V (±5%) @ 1.3 A

Master & Slave

3.3V or 5V

PCI 703 User Manual Eagle Technology - Data Acquisition

B.Configuration Constants

Query Codes

Please see the file <EAGLECD>\ EDRE\INCLUDE\QUERY.H for the latest query codes.

Error Codes

Please see the file <EAGLECD>\ EDRE\INCLUDE\ERRORS.H for the latest error codes.

Digital I/O Codes

DIOOUT 0 Port is an output. DIOIN 1 Port is an input. DIOINOROUT 2 Port can be configured as in or out. DIOINANDOUT 3 Port is an input and an output.

Name Value Description

Analog Input Gain Codes – PCI703-16/32/64/A

GAIN 0.25 0 GAIN 0.50 1 GAIN 1.00 2 GAIN 2.50 3 GAIN 5.00 4 GAIN 10.0 5 GAIN 25.0 6 GAIN 50.0 7

Name Value Description

Gain of ¼ (±10V, NU) Gain of ½ (±5V, 0-10V) Gain of 1 (±2.5V, 0-5V) Gain of 2.5 (±1V, 0-2V) Gain 0f 5 (±500mV, 0-1V) Gain of 10 (±250mV, 0-500mV) Gain of 25 (±100mV, 0-200mV) Gain of 50 (±50mV, 0-100mV)

Analog Input Gain Codes – PCI703S -8/16/A

GAIN 0.50 0 GAIN 1.00 1 GAIN 2.50 2 GAIN 5.00 3 GAIN 10.0 4 GAIN 25.0 5 GAIN 50.0 6 GAIN 100.0 7

Name Value Description

Gain of ½ (±5V) Gain of 1 (±2.5V) Gain of 2.5 (±1V)

Gain 0f 5 (±500mV)

Gain of 10 (±250mV)

Gain of 25 (±100mV,)

Gain of 50 (±50mV)

Gain of 100 (±25mV,)

Analog Input Range Codes – PCI703-16/32/64/A

*The range code does no apply to the S-models for they are always in differential bipolar mode.

PCI 703 User Manual Eagle Technology - Data Acquisition

UNIPOLAR, SINGLE ENDED 0 Channel is single ended unipolar input. BIPOLAR, SINGLE ENDED 1 Channel is single ended bipolar input. UNIPOLAR, DIFFERENTIAL 2 Channel is differential unipolar input. BIPOLAR, DIFFERENTIAL 3 Channel is differential bipolar input.

Name Value Description

PCI 703 User Manual Eagle Technology - Data Acquisition

C.Layout Diagram

PCI 703 User Manual Eagle Technology - Data Acquisition

D.Ordering Information

For ordering information please contact Eagle Technology directly or visit our website

www.eagle.co.za. They can also be emailed at eagle@eagle.co.za.

PCI 703-16 16 Channel analog input board PCI 703-16A 16 Channel analog input and 2 channel analog output board PCI 703-32 32 Channel analog input board PCI 703-32A 32 Channel analog input and 2 channel analog output board PCI 703-64 64 Channel analog input board PCI 703-64A 64 Channel analog input and 2 channel analog output board PCI 703S-8 16 Channel sample-and-hold analog input board PCI 703S-8A 16 Channel sample-and-hold analog input board and 2 channel analog

PCI 703S-16 16 Channel sample-and-hold analog input board PCI 703S-16A 16 Channel sample-and-hold analog input board and 2 channel analog

Board Description

output board

Table D-D -1 Ordering Information

Please visit our website to have a look at our wide variety of data acquisition products and accessories.

Eagle Technology PCI703-16/A, PCI 703 Series, PCI703-32/A, PCI703-64/A, PCI703S-8/A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
