Eagle Signal TM Catalog Page
EAGLE SIGNAL brand
Electric Timers
TM TIME/MODULE
®
/ MP MULTIPULSE
®
TM TIME/MODULE
REPEAT CYCLE TIMER
6
E
L
T
E
I
C
M
T
E
R
R
I
S
C
TM 6 A6 05 01
NUMBER OF
CIRCUITS
®
VOLTAGE &
FREQUENCY
TIME
RANGE
FEATURES
Extremely flexible
cam timer... modular
construction allows
custom configuration
to solve almost any
repeating time control
problem
The TM series TIME/MODULE® consists of a series of modules,
each interlocking with the other and keyed so they can be assembled only one way. Choosing the correct combination of
modules will solve virtually all repeating time control problems.
Standard units are available with one through ten switches.
There are six modules available, each distinctive in its separate
function. They include a motor module with clutch, dial and knob
module, a 10-1 reduction module, and three different switch
modules as follows: one rise and drop tab with latch actuator
(standard), two rise tabs with cam follower, and two 50-50 cam
segments with cam follower.
FOR FULL SPECIFICATIONS, REQUEST BULLETIN NUMBER 345
MP MULTIPULSE
®
REPEAT CYCLE TIMER
MP 6 A6 05 03
NUMBER OF
CIRCUITS
VOLTAGE &
FREQUENCY
TIME
RANGE
FEATURES
Cam timing for up to
12 circuits... more
than 250 time cycles
available

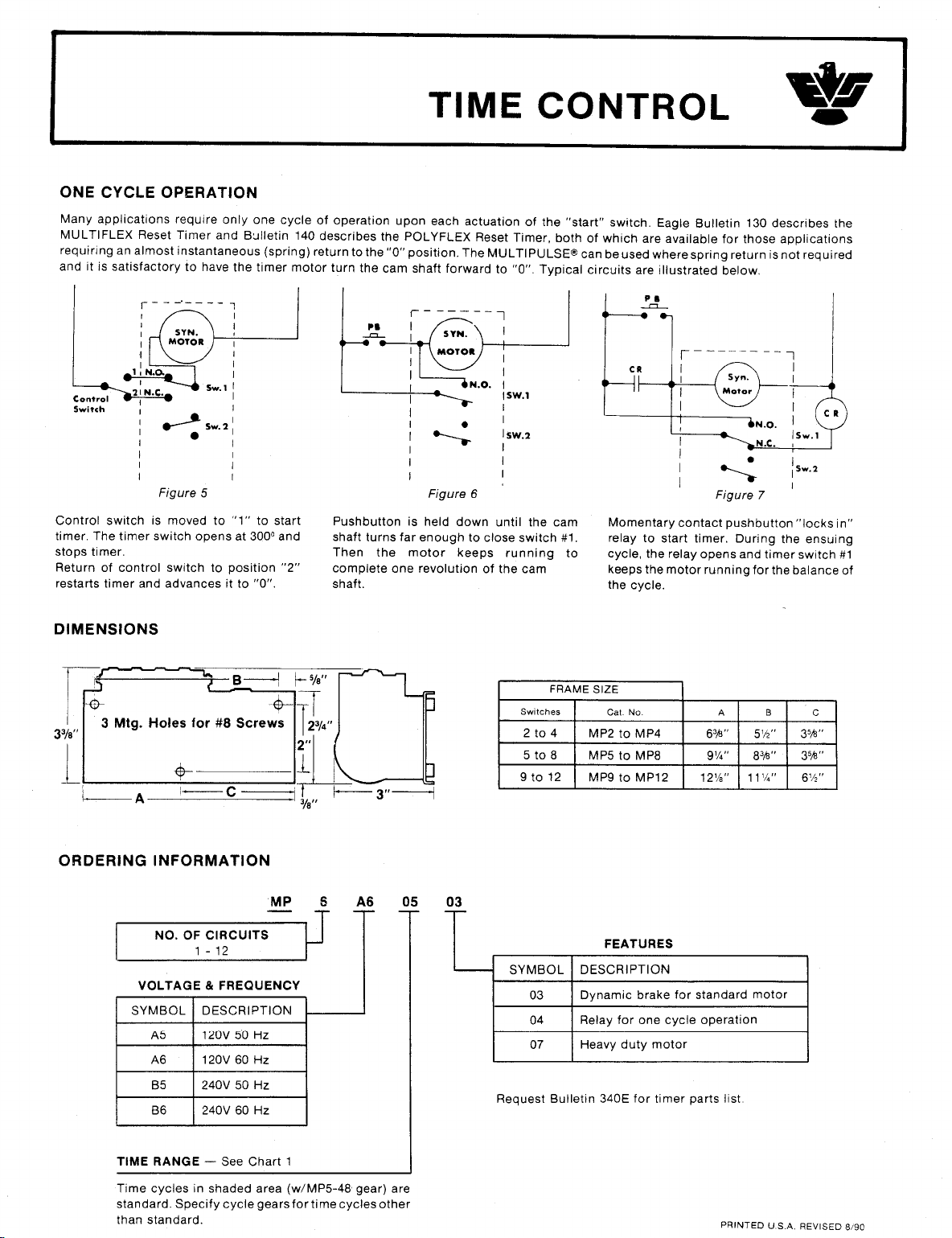

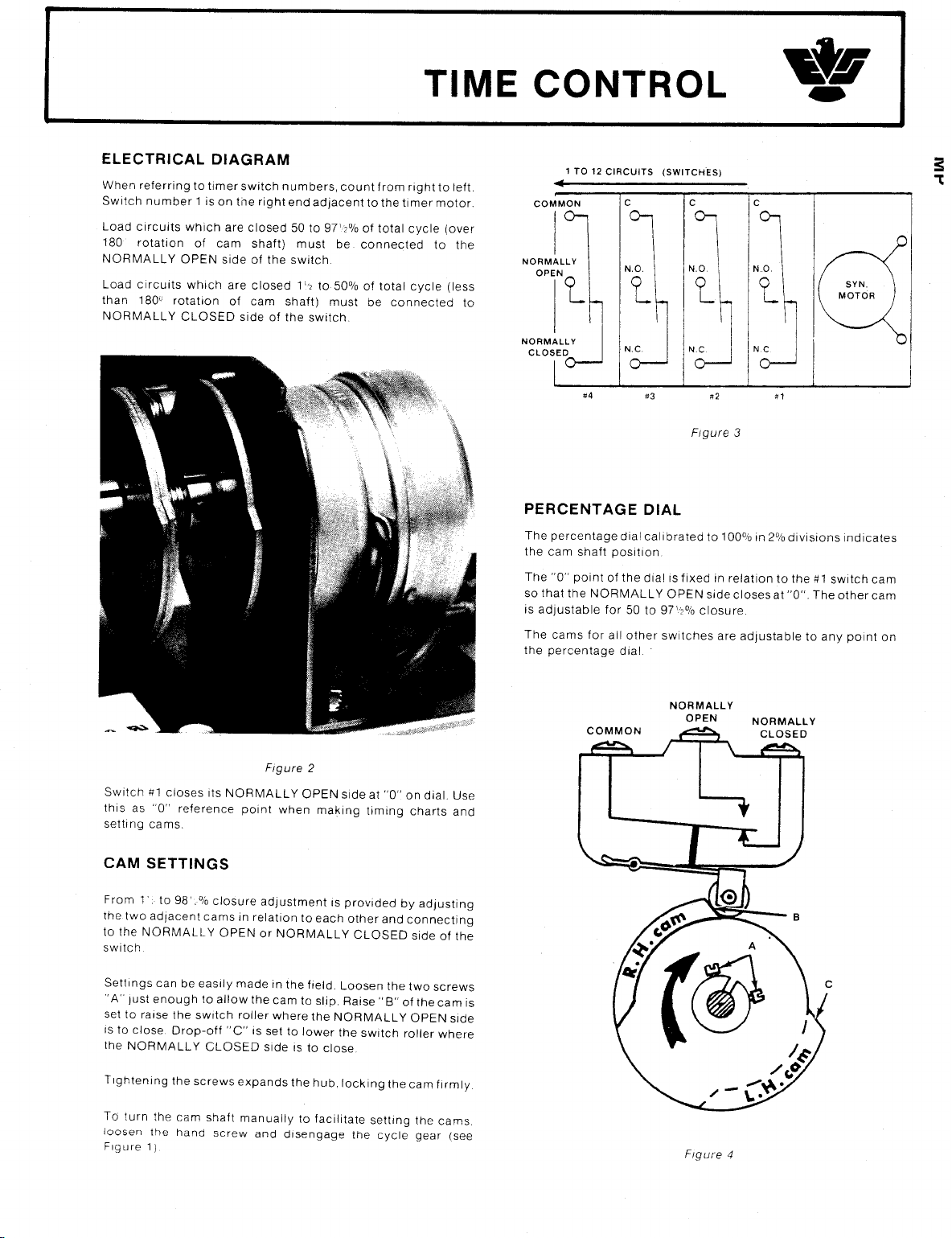

The MULTIPULSE® Repeat Cycle timer consists of a synchronous
motor driving a cam shaft through a gear train. The cam shaft
rotates continuously as long as the motor is energized. Adjustable
cams determine the point of closing and opening a switch during
each cam shaft revolution.
®
The MULTIPULSE
tions occur in a predetermined sequence as in operating a series of
dampers in a dust collecting system for periodic cleaning.
is ideally suited to applications where opera-
FOR FULL SPECIFICATIONS, REQUEST BULLETIN NUMBER 340
6.22 DANAHER INDUSTRIAL CONTROLS
