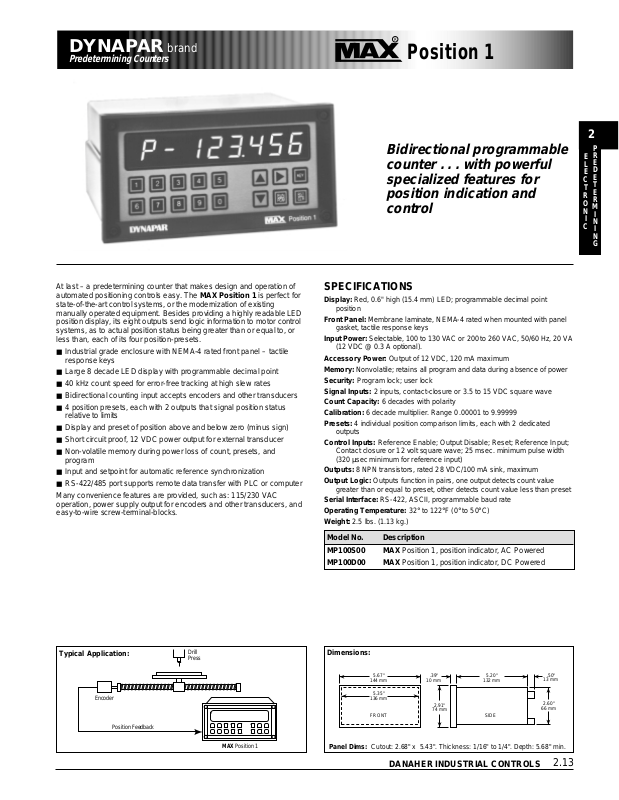

Eagle Signal MP100 Catalog Page

VEEDER-ROOT brand

5.67"

144 mm

FRONT SIDE

.39"

10 mm

5.20"

132 mm

2.91"

74 mm

.50"

13 mm

2.60"

66 mm

5.35"

136 mm

VEEDER-ROOT brand

DYNAPAR brand

Electronic Predetermining Counters

Predetermining Counters

Electronic Predetermining Counters

Position 1

Bidirectional programmable counter . . . with powerful specialized features for position indication and control

N G

At last – a predetermining counter that makes design and operation of automated positioning controls easy. The MAX Position 1 is perfect for state-of-the-art control systems, or the modernization of existing manually operated equipment. Besides providing a highly readable LED position display, its eight outputs send logic information to motor control systems, as to actual position status being greater than or equal to, or less than, each of its four position-presets.

■ Industrial grade enclosure with NEMA-4 rated front panel – tactile

response keys

■ Large 8 decade LED display with programmable decimal point

■ 40 kHz count speed for error-free tracking at high slew rates

■ Bidirectional counting input accepts encoders and other transducers

■ 4 position presets, each with 2 outputs that signal position status

relative to limits

■ Display and preset of position above and below zero (minus sign)

■ Short circuit proof, 12 VDC power output for external transducer

■ Non-volatile memory during power loss of count, presets, and

program

■ Input and setpoint for automatic reference synchronization

■ RS-422/485 port supports remote data transfer with PLC or computer

Many convenience features are provided, such as: 115/230 VAC operation, power supply output for encoders and other transducers, and easy-to-wire screw-terminal-blocks.

SPECIFICATIONS

Display: Red, 0.6" high (15.4 mm) LED; programmable decimal point

position

Front Panel: Membrane laminate, NEMA-4 rated when mounted with panel

gasket, tactile response keys

Input Power: Selectable, 100 to 130 VAC or 200 to 260 VAC, 50/60 Hz, 20 VA

(12 VDC @ 0.3 A optional).

Accessory Power: Output of 12 VDC, 120 mA maximum Memory: Nonvolatile; retains all program and data during absence of power Security: Program lock; user lock Signal Inputs: 2 inputs, contact-closure or 3.5 to 15 VDC square wave Count Capacity: 6 decades with polarity Calibration: 6 decade multiplier. Range 0.00001 to 9.99999 Presets: 4 individual position comparison limits, each with 2 dedicated

outputs

Control Inputs: Reference Enable; Output Disable; Reset; Reference Input;

Contact closure or 12 volt square wave; 25 msec. minimum pulse width (320 µsec minimum for reference input)

Outputs: 8 NPN transistors, rated 28 VDC/100 mA sink, maximum Output Logic: Outputs function in pairs, one output detects count value

greater than or equal to preset, other detects count value less than preset

Serial Interface: RS-422, ASCII, programmable baud rate Operating Temperature: 32° to 122°F (0° to 50°C) Weight: 2.5 lbs. (1.13 kg.)

Model No. Description MP100S00 MAX Position 1, position indicator, AC Powered

MP100D00 MAX Position 1, position indicator, DC Powered

Typical Application:

Encoder

Position Feedback

Drill Press

MAX Position 1

Dimensions:

Panel Dims: Cutout: 2.68" x 5.43". Thickness: 1/16" to 1/4". Depth: 5.68" min.

DANAHER INDUSTRIAL CONTROLS

2.13
