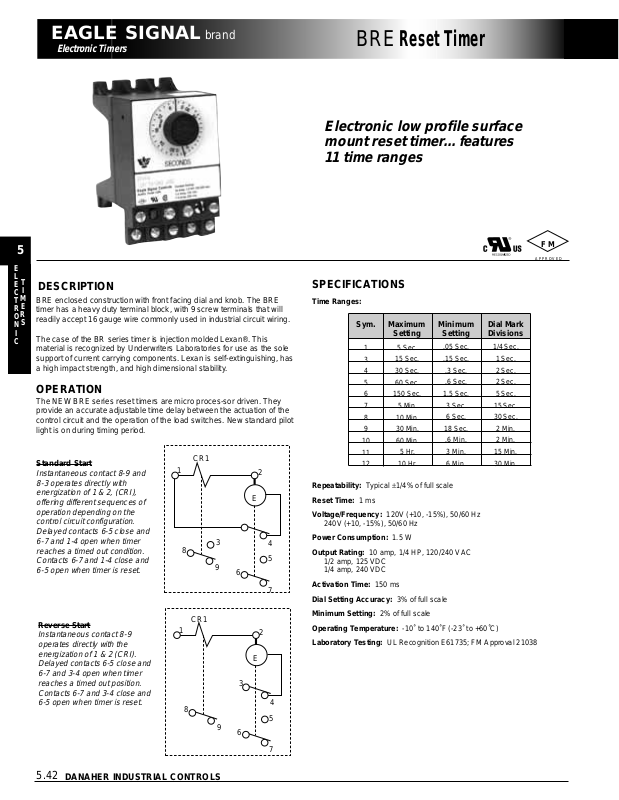

Eagle Signal BRE Catalog Page
EAGLE SIGNAL brand
Electronic Timers
BRE Reset Timer
Electronic low profile surface
mount reset timer... features
11 time ranges
5
E
L
T
E
DESCRIPTION
I
C
M
BRE enclosed construction with front facing dial and knob. The BRE
T
E
R
timer has a heavy duty terminal block, with 9 screw terminals that will
R
O
readily accept 16 gauge wire commonly used in industrial circuit wiring.
S
T
N
I
I
The case of the BR series timer is injection molded Lexan®. This
M
C
E
material is recognized by Underwriters Laboratories for use as the sole
R
support of current carrying components. Lexan is self-extinguishing, has
S
a high impact strength, and high dimensional stability.
OPERATION
The NEW BRE series reset timers are micro proces-sor driven. They
provide an accurate adjustable time delay between the actuation of the
control circuit and the operation of the load switches. New standard pilot
light is on during timing period.
Standard Start
Instantaneous contact 8-9 and
8-3 operates directly with
energization of 1 & 2, (CRI),
offering different sequences of
operation depending on the
control circuit configuration.
Delayed contacts 6-5 close and
6-7 and 1-4 open when timer
reaches a timed out condition.
Contacts 6-7 and 1-4 close and
6-5 open when timer is reset.
Reverse Start
Instantaneous contact 8-9
operates directly with the
energization of 1 & 2 (CRI).
Delayed contacts 6-5 close and
6-7 and 3-4 open when timer
reaches a timed out position.
Contacts 6-7 and 3-4 close and
6-5 open when timer is reset.
CR1
1
CR1
3
9
6
3
9
6
8
1
8
FM
APPROVED
SPECIFICATIONS
Time Ranges:
Sym.
2
Repeatability: Typical ±1/4% of full scale
E
4
5
7
2
E
4
5
Reset Time: 1 ms
Voltage/Frequency: 120V (+10, -15%), 50/60 Hz
240V (+10, -15%), 50/60 Hz
Power Consumption: 1.5 W
Output Rating: 10 amp, 1/4 HP, 120/240 VAC
1/2 amp, 125 VDC
1/4 amp, 240 VDC
Activation Time: 150 ms
Dial Setting Accuracy: 3% of full scale
Minimum Setting: 2% of full scale
Operating Temperature: -10˚ to 140˚F (-23˚ to +60˚C)
Laboratory Testing: UL Recognition E61735; FM Approval 21038
1
3
4
5
6
7
8
9
10
11
12
Maximum
Setting
5 Sec.
15 Sec.
30 Sec.
60 Sec.
150 Sec.
5 Min.
10 Min.
30 Min.
60 Min.
5 Hr.
10 Hr.
Minimum
Setting
.05 Sec.
.15 Sec.
.3 Sec.
.6 Sec.
1.5 Sec.
3 Sec.
6 Sec.
18 Sec.
.6 Min.
3 Min.
6 Min.
Dial Mark
Divisions
1/4 Sec.
1 Sec.
2 Sec.
2 Sec.
5 Sec.
15 Sec.
30 Sec.
2 Min.
2 Min.
15 Min.
30 Min.
5.42
DANAHER INDUSTRIAL CONTROLS
7
DIMENSIONS
Inches (mm)
9/16
(14.3)
3/4
(19)
2 5/8
(66.7)
3/4
9/16
.170 TYP.
(4.3)
1 1/4
(31.8)
3/16
(4.8)
3 21/32
(92)
3 9/32
(84.1)
SECONDS
2
339
1
1
4
4
5
566
2
9
7
788
39/64
(15.8)
1 3/8
(34.9)
3 3/4
(95.3)
1 49/64
(44.8)
1/8
(3.2)
4 1/4
(108)
5
T
E
L
O
T
E
T
I
C
A
M
T
L
E
R
R
I
O
S
N
Z
I
I
C
N
G
ORDERING INFORMATION
Sym. Description
Surface mounted with dial knob
E
and 9 point screw type terminal block
TIME RANGE
Sym. Description
1
3
4
5
6
7
5 Sec.*
15 Sec.
30 Sec.
60 Sec.
150 Sec.
5 Min.
*Not available in B6 version
Sym. Description
8
9
10
11
12
BR E 5 A6 01
10 Min.
30 Min.
60 Min.
5 Hr.
10 Hr.
VOLTAGE &
FREQUENCY
Sym. Description
A6
120V, 50/60 Hz
B6
240V, 50/60 Hz
FEATURES
Sym.
Blank
01
Description
Standard Timer
Reverse Start
DANAHER INDUSTRIAL CONTROLS
5.43
