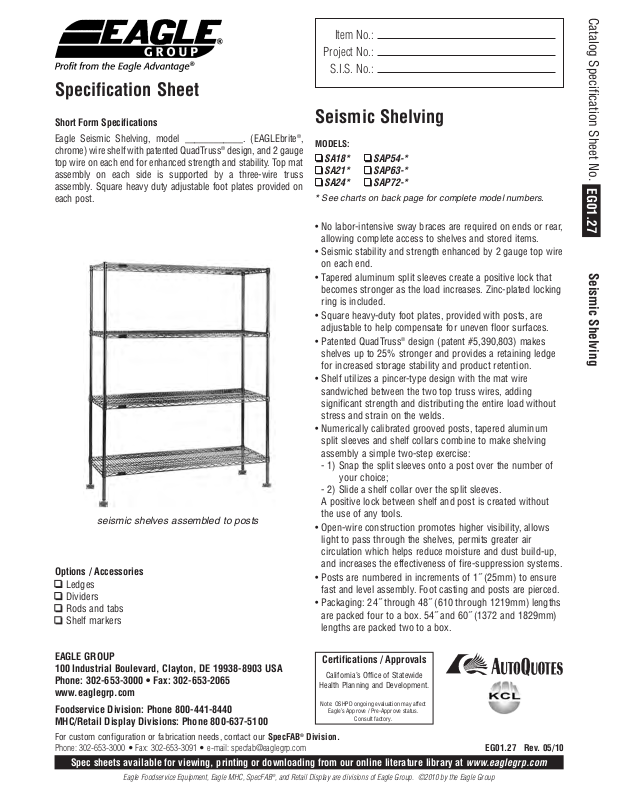

Short Form Specifications

Eagle Seismic Shelving, model ____________. (EAGLEbrite®,

®

chrome) wire shelf with patented QuadTruss

design, and 2 gauge
top wire on each end for enhanced strength and stability. Top mat
assembly on each side is supported by a three-wire truss
assembly. Square heavy duty adjustable foot plates provided on
each post.

seismic shelves assembled to posts

Options / Accessories

Ledges
Dividers
Rods and tabs
Shelf markers

Seismic Shelving

MODELS:

SA18*
SA21*
SA24*

* See charts on back page for complete model numbers.

• No labor-intensive sway braces are required on ends or rear,
allowing complete access to shelves and stored items.

• Seismic stability and strength enhanced by 2 gauge top wire
on each end.

• Tapered aluminum split sleeves create a positive lock that
becomes stronger as the load increases. Zinc-plated locking
ring is included.

• Square heavy-duty foot plates, provided with posts, are
adjustable to help compensate for uneven floor surfaces.

• Patented QuadTruss
shelves up to 25% stronger and provides a retaining ledge
for increased storage stability and product retention.

• Shelf utilizes a pincer-type design with the mat wire
sandwiched between the two top truss wires, adding
significant strength and distributing the entire load without
stress and strain on the welds.

• Numerically calibrated grooved posts, tapered aluminum
split sleeves and shelf collars combine to make shelving
assembly a simple two-step exercise:

- 1) Snap the split sleeves onto a post over the number of

your choice;

- 2) Slide a shelf collar over the split sleeves.
A positive lock between shelf and post is created without
the use of any tools.

• Open-wire construction promotes higher visibility, allows
light to pass through the shelves, permits greater air
circulation which helps reduce moisture and dust build-up,
and increases the effectiveness of fire-suppression systems.

• Posts are numbered in increments of 1˝ (25mm) to ensure
fast and level assembly. Foot casting and posts are pierced.

• Packaging: 24˝ through 48˝ (610 through 1219mm) lengths
are packed four to a box. 54˝ and 60˝ (1372 and 1829mm)
lengths are packed two to a box.

SAP54-*
SAP63-*
SAP72-*

®

design (patent #5,390,803) makes

EG01.27

Seismic Shelving

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Certifications / Approvals

California’s Office of Statewide

Health Planning and Development.

Note: OSHPD ongoing evaluation may affect

Eagle’s Approve / Pre-Approve status.

Consult factor y.

EG01.27 Rev. 05/10

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2010 by the Eagle Group

EG01.27

Seismic Shelving

Design and Construction Features

• Wire shelf shall be constructed of carbon steel or type 304

stainless steel wire and to consist of a top mat assembly using
10 gauge (0.135” diameter) mat wires spaced on
centers and welded to full length 6 gauge (0.187˝ diameter) inside
support wires and serpentine trusses. Quantities of each are based
on shelf size. At front and rear of shelf, mat wires are welded to a
four-wire truss assembly consisting of the following:

- one 2 gauge (.250˝ diameter) bottom wire

Catalog Specification Sheet No.

- one 6 gauge (.187˝ diameter) serpentine truss wire, which
creates a bridge-like reinforcement providing increased strength.

- two 6 gauge (.187˝ diameter) top wires — one directly below
mat wires and one directly above, providing a pincer hold on
mat wires.

7

⁄8˝ (22mm)

Item No.:

Project No.:

S.I.S. No.:

• Top mat assembly is supported on each end by a

three-wire truss assembly consisting of the following:

- one 2 gauge (0.250˝ diameter) bottom wire

- one 6 gauge (0.187˝ diameter) serpentine truss

- one 2 gauge (0.250˝ diameter) top wire.

• Entire wire mat and truss assembly is notched at outside corners

to accept a 12 gauge conical shaped collar, 1
which is welded in place. Conical-shaped collar is designed to
accept a tapered aluminum split sleeve, which clips over 16
gauge, 1˝ (25mm)-diameter steel post with grooved posts.

• Wire shelf as specified shall be

QuadTruss®design as

manufactured by Eagle Group, Clayton, DE.

5

⁄8˝ (41mm) in height

Seismic Shelving

Shelves for Seismic Shelving

EAGLEbrite®chrome width length weight

model # model # in. mm in. mm lb. kg

SA1824Z SA1824C 18˝ 457 24˝ 610 7 3.2
SA1830Z SA1830C 18˝ 457 30˝ 762 8 3.6
SA1836Z SA1836C 18˝ 457 36˝ 914 10 4.5
SA1842Z SA1842C 18˝ 457 42˝ 1067 12 5.5
SA1848Z SA1848C 18˝ 457 48˝ 1219 13 5.9
SA1854Z SA1854C 18˝ 457 54˝ 1372 14 6.4
SA1860Z SA1860C 18˝ 457 60˝ 1524 18 8.2

SA2124Z SA2124C 21˝ 533 24˝ 610 8 3.6
SA2130Z SA2130C 21˝ 533 30˝ 762 10 4.5
SA2136Z SA2136C 21˝ 533 36˝ 914 12 5.5
SA2142Z SA2142C 21˝ 533 42˝ 1067 13 5.9
SA2148Z SA2148C 21˝ 533 48˝ 1219 15 6.8
SA2154Z SA2154C 21˝ 533 54˝ 1372 17 7.7
SA2160Z SA2160C 21˝ 533 60˝ 1524 19 8.6

SA2424Z SA2424C 24˝ 610 24˝ 610 9 4.1
SA2430Z SA2430C 24˝ 610 30˝ 762 12 5.5
SA2436Z SA2436C 24˝ 610 36˝ 914 14 6.4
SA2442Z SA2442C 24˝ 610 42˝ 1067 16 7.3
SA2448Z SA2448C 24˝ 610 48˝ 1219 17 7.7
SA2454Z SA2454C 24˝ 610 54˝ 1372 18 8.2
SA2460Z SA2460C 24˝ 610 60˝ 1524 22 10.0

Posts

Four required for eachunit. Includes square heavy
duty foot plate.

®

EAGLEbrite

model # model # in. mm lb. kg

SAP54-Z SAP54-C 54˝ 1372 3.0 1.4
SAP63-Z SAP63-C 63˝ 1600 3.5 1.6
SAP72-Z SAP72-C 72˝ 1829 4.0 1.8

chrome height weight

post

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]

©2010 by Eagle Group

MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

Printed in U.S.A.
