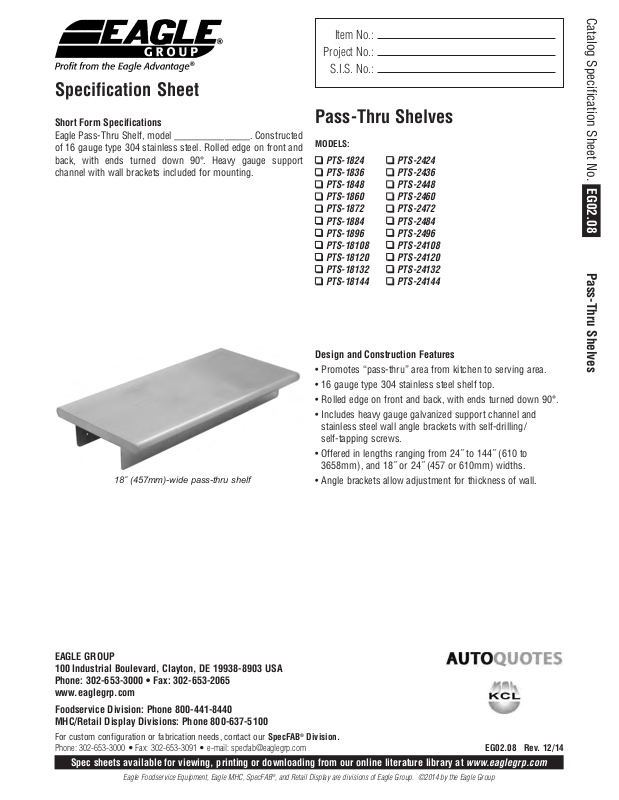

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Pass-Thru Shelf, model _______________. Constructed
of 16 gauge type 304 stainless steel. Rolled edge on front and
back, with ends turned down 90°. Heavy gauge support
channel with wall brackets included for mounting.
18˝ (457mm)-wide pass-thru shelf
Pass-Thru Shelves
MODELS:
PTS-1824
PTS-1836
PTS-1848
PTS-1860
PTS-1872
PTS-1884
PTS-1896
PTS-18108
PTS-18120
PTS-18132
PTS-18144
Design and Construction Features
• Promotes “pass-thru” area from kitchen to serving area.
• 16 gauge type 304 stainless steel shelf top.
• Rolled edge on front and back, with ends turned down 90°.
• Includes heavy gauge galvanized support channel and
stainless steel wall angle brackets with self-drilling/
self-tapping screws.
• Offered in lengths ranging from 24˝ to 144˝ (610 to
3658mm), and 18˝ or 24˝ (457 or 610mm) widths.
• Angle brackets allow adjustment for thickness of wall.
PTS-2424
PTS-2436
PTS-2448
PTS-2460
PTS-2472
PTS-2484
PTS-2496
PTS-24108
PTS-24120
PTS-24132
PTS-24144
EG02.08
Pass-Thru Shelves
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2014 by the Eagle Group
EG02.08 Rev. 12/14
EG02.08
Pass-Thru Shelves
Catalog Specification Sheet No.
TOP VIEW
FRONT VIEW SIDE VIEW
Pass-Thru Shelves
Item No.:
Project No.:
S.I.S. No.:
maximum
wall
width x length weight thickness
model # in. mm lbs. kg in. mm
PTS-1824 18˝ x 24˝ 457 x 610 24 10.9 10˝ 254
PTS-1836 18˝ x 36˝ 457 x 914 34 15.4 10˝ 254
PTS-1848 18˝ x 48˝ 457 x 1219 44 20.0 10˝ 254
PTS-1860 18˝ x 60˝ 457 x 1524 56 25.4 10˝ 254
PTS-1872 18˝ x 72˝ 457 x 1829 61 30.8 10˝ 254
PTS-1884 18˝ x 84˝ 457 x 2134 93 36.7 10˝ 254
PTS-1896 18˝ x 96˝ 457 x 2438 105 42.2 10˝ 254
PTS-18108 18˝ x 108˝ 457 x 2743 117 47.6 10˝ 254
PTS-18120 18˝ x 120˝ 457 x 3048 129 53.1 10˝ 254
PTS-18132 18˝ x 132˝ 457 x 3353 141 58.5 10˝ 254
PTS-18144 18˝ x 144˝ 457 x 3658 141 64.0 10˝ 254
PTS-2424 24˝ x 24˝ 610 x 610 32 14.5 12˝ 305
PTS-2436 24˝ x 36˝ 610 x 914 42 19.1 12˝ 305
PTS-2448 24˝ x 48˝ 610 x 1219 53 23.6 12˝ 305
PTS-2460 24˝ x 60˝ 610 x 1524 64 29.0 12˝ 305
PTS-2472 24˝ x 72˝ 610 x 1829 76 34.5 12˝ 305
PTS-2484 24˝ x 84˝ 610 x 2134 89 40.4 12˝ 305
PTS-2496 24˝ x 96˝ 610 x 2438 101 45.8 12˝ 305
PTS-24108 24˝ x 108˝ 610 x 2743 113 51.3 12˝ 305
PTS-24120 24˝ x 120˝ 610 x 3048 126 57.2 12˝ 305
PTS-24132 24˝ x 132˝ 610 x 3353 137 62.1 12˝ 305
PTS-24144 24˝ x 144˝ 610 x 3658 149 67.5 12˝ 305
18˝ (457mm)-wide shelves 24˝ (610mm)-wide shelves
shelf top
with support channel
underneath
wall angle brackets*
*Quantity varies per shelf length
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
©2014 by Eagle Group
Printed in U.S.A.
Rev. 12/14
