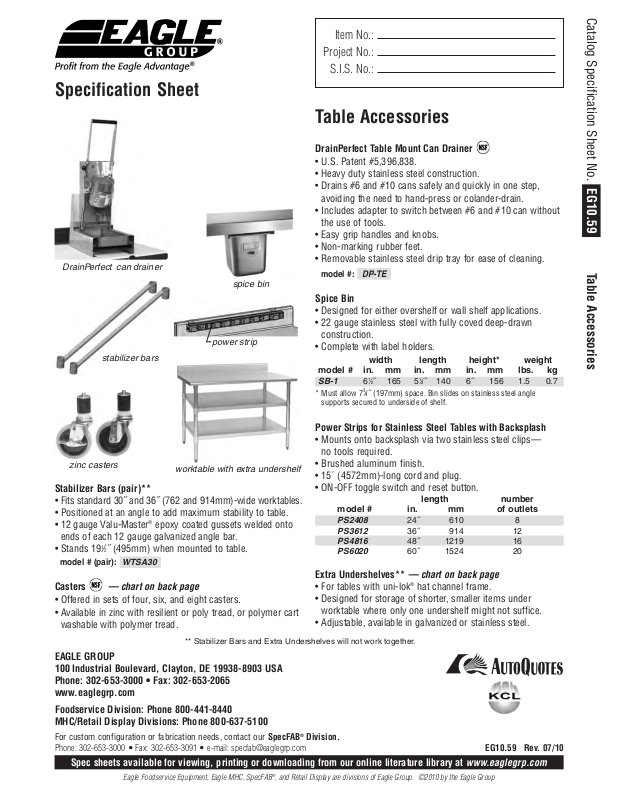

Specification Sheet

DrainPerfect can drainer

stabilizer bars

spice bin

power strip

Item No.:

Project No.:

S.I.S. No.:

Table Accessories

DrainPerfect Table Mount Can Drainer

• U.S. Patent #5,396,838.

• Heavy duty stainless steel construction.

• Drains #6 and #10 cans safely and quickly in one step, avoiding the need to hand-press or colander-drain.

• Includes adapter to switch between #6 and #10 can without the use of tools.

• Easy grip handles and knobs.

• Non-marking rubber feet.

• Removable stainless steel drip tray for ease of cleaning.

model #: DP-TE

Spice Bin

• Designed for either overshelf or wall shelf applications.

• 22 gauge stainless steel with fully coved deep-drawn construction.

• Complete with label holders.

width length height* weight

model # in. mm in. mm in. mm lbs. kg

SB-1 61⁄2˝ 165 51⁄2˝ 140 6˝ 156 1.5 0.7

* Must allow 73⁄4˝ (197mm) space. Bin slides on stainless steel angle

supports secured to underside of shelf.

Catalog Specification Sheet No.

EG10.59

Table Accessories

Power Strips for Stainless Steel Tables with Backsplash

• Mounts onto backsplash via two stainless steel clips— no tools required.

zinc casters

worktable with extra undershelf

Stabilizer Bars (pair)**

• Fits standard 30˝ and 36˝ (762 and 914mm)-wide worktables.

• Positioned at an angle to add maximum stability to table.

• 12 gauge Valu-Master

epoxy coated gussets welded onto

ends of each 12 gauge galvanized angle bar.

• Stands 191⁄2˝ (495mm) when mounted to table.

model # (pair):

WTSA30

• Brushed aluminum finish.

• 15´ (4572mm)-long cord and plug.

• ON-OFF toggle switch and reset button.

length number

model # in. mm of outlets

PS2408 24˝ 610 8 PS3612 36˝ 914 12 PS4816 48˝ 1219 16 PS6020 60˝ 1524 20

Extra Undershelves** — chart on back page

Casters — chart on back page

• Offered in sets of four, six, and eight casters.

• Available in zinc with resilient or poly tread, or polymer cart washable with polymer tread.

** Stabilizer Bars and Extra Undershelves will not work together.

• For tables with uni-lok®hat channel frame.

• Designed for storage of shorter, smaller items under worktable where only one undershelf might not suffice.

• Adjustable, available in galvanized or stainless steel.

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com

EG10.59 Rev. 07/10

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

EG10.59

Table Accessories

Item No.:

Project No.:

S.I.S. No.:

Casters

set of in. mm model # lbs. kg model # lbs. kg model # lbs. kg

4 swivel (2 with brake) 4˝ 102 CA4-SB 115 52.2 n/a n/a

Catalog Specification Sheet No.

6 swivel (3 with brake) 4˝ 102 CA6-SB 115 52.2 n/a n/a 8 swivel (4 with brake) 4˝ 102 CA8-SB 115 52.2 n/a n/a

4 swivel (2 with brake) 5˝ 127 CAH4-SB 200 90.7 CAHP4-SB 250 113.4 CAHW4-SB 250 113.4 6 swivel (3 with brake) 5˝ 127 CAH6-SB 200 90.7 CAHP6-SB 250 113.4 CAHW6-SB 250 113.4 8 swivel (4 with brake) 5˝ 127 CAH8-SB 200 90.7 CAHP8-SB 250 113.4 CAHW8-SB 250 113.4

Extra Undershelves

Note: When ordering an extra or replacement undershelf, please order per the size of your tabletop. Please note the “for table size” column in chart below.

GALVANIZED STAINLESS STEEL for table size *

Table Accessories

model # model # model # in. mm in. mm lbs. kg

2424GADJUS 2424SADJUS-18/4 2424SADJUS-18/3 24˝ 610 24˝ 610 15 6.6 2430GADJUS 2430SADJUS-18/4 2430SADJUS-18/3 24˝ 610 30˝ 762 18 8.2 2436GADJUS 2436SADJUS-18/4 2436SADJUS-18/3 24˝ 610 36˝ 914 21 9.6 2448GADJUS 2448SADJUS-18/4 2448SADJUS-18/3 24˝ 610 48˝ 1219 27 12.2 2460GADJUS 2460SADJUS-18/4 2460SADJUS-18/3 24˝ 610 60˝ 1524 33 15.0 2472GADJUS 2472SADJUS-18/4 2472SADJUS-18/3 24˝ 610 72˝ 1829 39 17.6 2484GADJUS 2484SADJUS-18/4 2484SADJUS-18/3 24˝ 610 84˝ 2134 45 20.4 2496GADJUS 2496SADJUS-18/4 2496SADJUS-18/3 24˝ 610 96˝ 2438 51 23.1 24108GADJUS 24108SADJUS-18/4 24108SADJUS-18/3 24˝ 610 108˝ 2743 57 25.9 24120GADJUS 24120SADJUS-18/4 24120SADJUS-18/3 24˝ 610 120˝ 3048 63 28.6 24132GADJUS 24132SADJUS-18/4 24132SADJUS-18/3 24˝ 610 132˝ 3353 69 31.3 24144GADJUS 24144SADJUS-18/4 24144SADJUS-18/3 24˝ 610 144˝ 3658 75 34.0

3024GADJUS 3024SADJUS-18/4 3024SADJUS-18/3 30˝ 762 24˝ 610 17 7.5 3030GADJUS 3030SADJUS-18/4 3030SADJUS-18/3 30˝ 762 30˝ 762 21 9.5 3036GADJUS 3036SADJUS-18/4 3036SADJUS-18/3 30˝ 762 36˝ 914 24 10.7 3048GADJUS 3048SADJUS-18/4 3048SADJUS-18/3 30˝ 762 48˝ 1219 30 13.6 3060GADJUS 3060SADJUS-18/4 3060SADJUS-18/3 30˝ 762 60˝ 1524 36 16.3 3072GADJUS 3072SADJUS-18/4 3072SADJUS-18/3 30˝ 762 72˝ 1829 42 19.1 3084GADJUS 3084SADJUS-18/4 3084SADJUS-18/3 30˝ 762 84˝ 2134 48 21.8 3096GADJUS 3096SADJUS-18/4 3096SADJUS-18/3 30˝ 762 96˝ 2438 54 24.5 30108GADJUS 30108SADJUS-18/4 30108SADJUS-18/3 30˝ 762 108˝ 2743 60 27.2 30120GADJUS 30120SADJUS-18/4 30120SADJUS-18/3 30˝ 762 120˝ 3048 66 29.9 30132GADJUS 30132SADJUS-18/4 30132SADJUS-18/3 30˝ 762 132˝ 3353 72 32.7 30144GADJUS 30144SADJUS-18/4 30144SADJUS-18/3 30˝ 762 144˝ 3658 78 35.4

* Undershelves for 30˝ (762mm)-wide tables listed above also fit 36˝ (915mm)-wide tables.

ZINC WITH

RESILIENT TREAD

caster wt. cap. wt. cap. wt. cap.

diameter per caster per caster per caster

ZINC WITH

POLY TREAD

width length weight

POLY CART WASHABLE

WITH POLY TREAD

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440

MHC/Retail Display Divisions: Phone 800-637-5100

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

Printed in U.S.A.
