Eagle OURR-1818-3-A User Manual

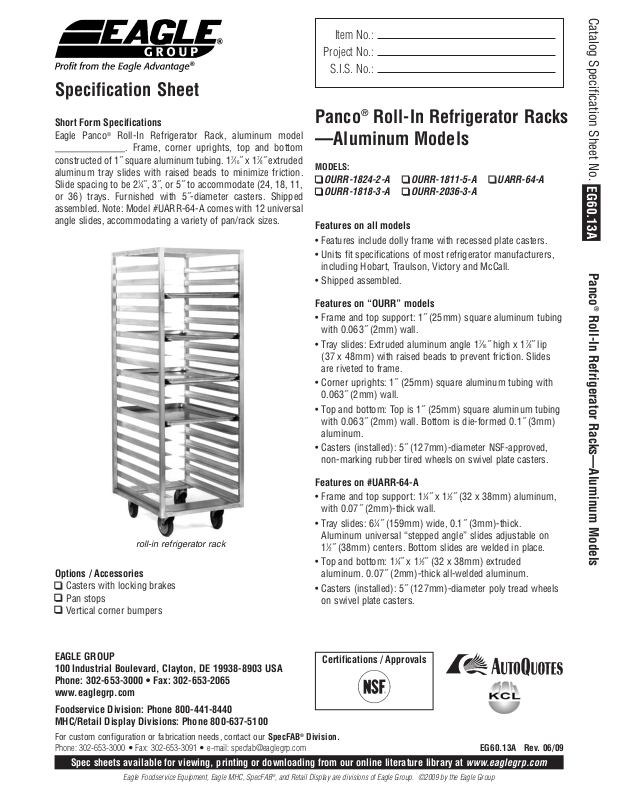

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Panco®Roll-In Refrigerator Rack, aluminum model
______________. Frame, corner uprights, top and bottom
constructed of 1˝ square aluminum tubing. 1
aluminum tray slides with raised beads to minimize friction.
Slide spacing to be 2
or 36) trays. Furnished with 5˝-diameter casters. Shipped
assembled. Note: Model #UARR-64-A comes with 12 universal
angle slides, accommodating a variety of pan/rack sizes.

1

⁄4˝, 3˝, or 5˝ to accommodate (24, 18, 11,

7

⁄16˝ x 17⁄8˝ extruded

Panco®Roll-In Refrigerator Racks
—Aluminum Models

MODELS:

OURR-1824-2-A
OURR-1818-3-A

Features on all models

• Features include dolly frame with recessed plate casters.

• Units fit specifications of most refrigerator manufacturers,
including Hobart, Traulson, Victory and McCall.

• Shipped assembled.

Features on “OURR” models

• Frame and top support: 1˝ (25mm) square aluminum tubing
with 0.063˝ (2mm) wall.

• Tray slides: Extruded aluminum angle 17⁄16˝ high x 17⁄8˝ lip
(37 x 48mm) with raised beads to prevent friction. Slides
are riveted to frame.

• Corner uprights: 1˝ (25mm) square aluminum tubing with

0.063˝ (2mm) wall.

• Top and bottom: Top is 1˝ (25mm) square aluminum tubing
with 0.063˝ (2mm) wall. Bottom is die-formed 0.1˝ (3mm)
aluminum.

• Casters (installed): 5˝ (127mm)-diameter NSF-approved,
non-marking rubber tired wheels on swivel plate casters.

OURR-1811-5-A
OURR-2036-3-A

UARR-64-A

EG60.13A

Panco

®

Roll-In Refrigerator Racks—Aluminum Models

Features on #UARR-64-A

1

• Frame and top support: 1
with 0.07˝ (2mm)-thick wall.

• Tray slides: 61⁄4˝ (159mm) wide, 0.1˝ (3mm)-thick.

roll-in refrigerator rack

Options / Accessories

Casters with locking brakes
Pan stops
Vertical corner bumpers

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group

Aluminum universal “stepped angle” slides adjustable on
11⁄2˝ (38mm) centers. Bottom slides are welded in place.

• Top and bottom: 1
aluminum. 0.07˝ (2mm)-thick all-welded aluminum.

• Casters (installed): 5˝ (127mm)-diameter poly tread wheels
on swivel plate casters.

Certifications / Approvals

1

⁄4˝ x 11⁄2˝ (32 x 38mm) aluminum,

⁄4˝ x 11⁄2˝ (32 x 38mm) extruded

EG60.13A Rev. 06/09

Item No.:

Project No.:

EG60.13A

S.I.S. No.:

Panco®Roll-In Refrigerator Racks—Aluminum Models

Catalog Specification Sheet No.

Roll-In Refrigerator Racks—Aluminum Models

®

Panco

TOP VIEW

FRONT VIEW SIDE VIEW

(model# OURR-1824-2-A shown)

overall dimensions sliding

width depth height weight space tray tray

model # in. mm in. mm in. mm lbs. kg in. mm size capacity

OURR-1824-2-A 20
OURR-1818-3-A 20
OURR-1811-5-A 201⁄2˝ 521 26˝ 660 64˝ 1626 42 19.1 5˝ 127 18˝ x 26˝ 11
OURR-2036-3-A 23˝ 584 26˝ 660 64˝ 1626 62 28.1 3˝ 76 12˝ x 20˝ * 36 *

UARR-64-A 241⁄2˝ 622 26˝ 660 64˝ 1626 86 40.4 11⁄2˝ 38 UAS**

* Two 12˝ x 20˝ (305 x 508mm) trays per set of tray slides.

** Model #UARR-64-A comes with 12 U

plus one 15˝ x 20˝ (381 x 508mm) tray or one 20˝ x 20˝ (305 x 305mm) rack.

1

⁄2˝ 521 26˝ 660 64˝ 1626 62 28.1 21⁄4˝ 57 18˝ x 26˝ 24

1

⁄2˝ 521 26˝ 660 64˝ 1626 52 23.6 3˝ 76 18˝ x 26˝ 18

niversal Angle Slides. Each set holds two 12˝ x 20˝ (305 x 508mm) pans, one 18˝ x 26˝ (457 x 660mm) tray,

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]

©2009 by Eagle Group

MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

Printed in U.S.A.
