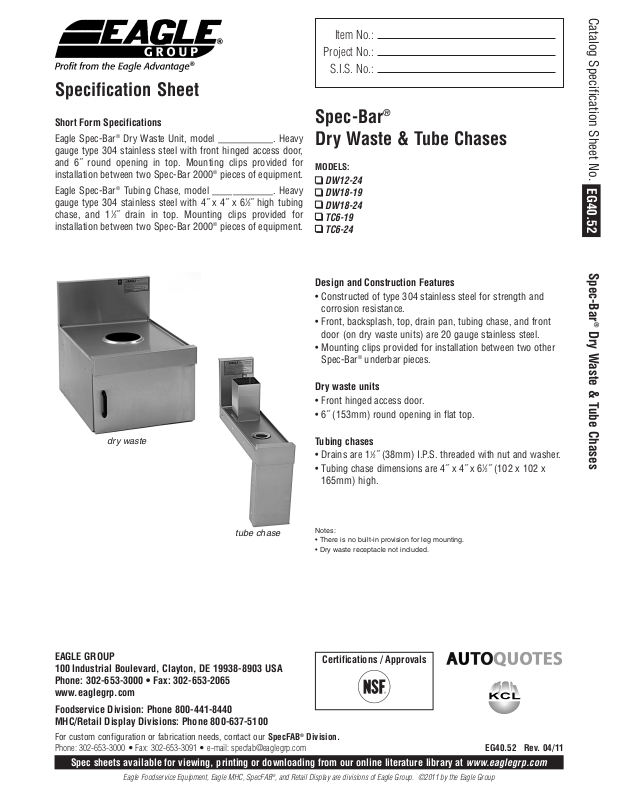

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Spec-Bar
gauge type 304 stainless steel with front hinged access door,
and 6˝ round opening in top. Mounting clips provided for
installation between two Spec-Bar 2000®pieces of equipment.
Eagle Spec-Bar®Tubing Chase, model ____________. Heavy
gauge type 304 stainless steel with 4˝ x 4˝ x 61⁄2˝ high tubing
chase, and 11⁄2˝ drain in top. Mounting clips provided for
installation between two Spec-Bar 2000®pieces of equipment.
®
Dry Waste Unit, model ___________. Heavy
Spec-Bar
®
Dry Waste & Tube Chases
ODELS:
M
DW12-24
DW18-19
DW18-24
TC6-19
TC6-24
Design and Construction Features
• Constructed of type 304 stainless steel for strength and
corrosion resistance.
• Front, backsplash, top, drain pan, tubing chase, and front
door (on dry waste units) are 20 gauge stainless steel.
• Mounting clips provided for installation between two other
Spec-Bar®underbar pieces.
Dry waste units
• Front hinged access door.
• 6˝ (153mm) round opening in flat top.
EG40.52
Spec-Bar
®
Dry Waste & Tube Chases
dry waste
tube chase
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2011 by the Eagle Group
Tubing chases
• Drains are 11⁄2˝ (38mm) I.P.S. threaded with nut and washer.
• Tubing chase dimensions are 4˝ x 4˝ x 61⁄2˝ (102 x 102 x
165mm) high.
Notes:
• There is no built-in provision for leg mounting.
• Dry waste receptacle not included.
Certifications / Approvals
EG40.52 Rev. 04/11
EG40.52
Spec-Bar®Dry Waste & Tube Chases
Dry Waste Units
#DW18-19 #DW12-24 #DW18-24
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
TOP VIEW
SIDE VIEW
TOP VIEW
SIDE VIEW
TOP VIEW
SIDE VIEW
Tube Chases
Dry Waste & Tube Chases
®
Spec-Bar
#TC6-19 #TC6-24
TOP VIEW
TOP VIEW
SIDE VIEW
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
SIDE VIEW
©2011 by Eagle Group
Printed in U.S.A.
Rev. 04/11
