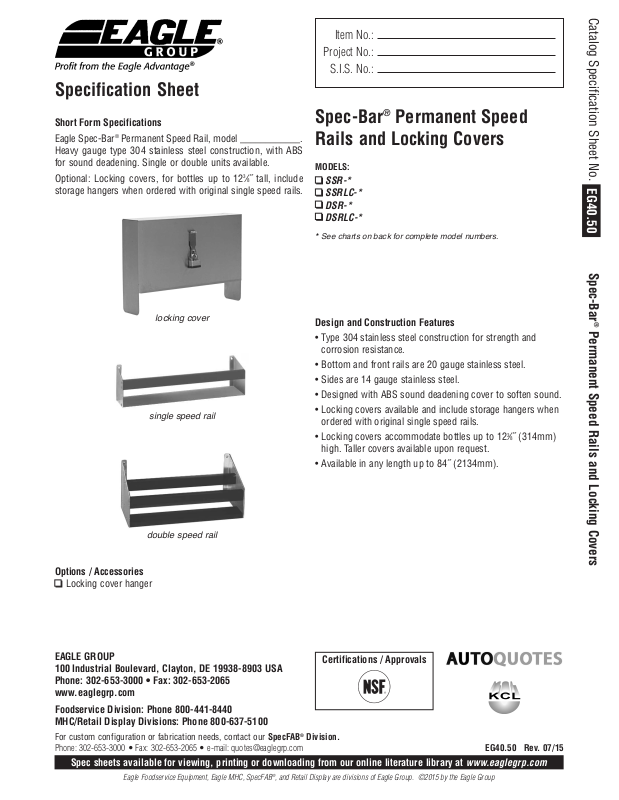

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Spec-Bar
Heavy gauge type 304 stainless steel construction, with ABS
for sound deadening. Single or double units available.
Optional: Locking covers, for bottles up to 123⁄8˝ tall, include
storage hangers when ordered with original single speed rails.
®
Permanent Speed Rail, model ____________.
locking cover
single speed rail
Spec-Bar®Permanent Speed
Rails and Locking Covers
ODELS:
M
SSR-*
SSRLC-*
DSR-*
DSRLC-*
* See charts on back for complete model numbers.
Design and Construction Features
• Type 304 stainless steel construction for strength and
corrosion resistance.
• Bottom and front rails are 20 gauge stainless steel.
• Sides are 14 gauge stainless steel.
• Designed with ABS sound deadening cover to soften sound.
• Locking covers available and include storage hangers when
ordered with original single speed rails.
• Locking covers accommodate bottles up to 123⁄8˝ (314mm)
high. Taller covers available upon request.
• Available in any length up to 84˝ (2134mm).
EG40.50
Spec-Bar
®
Permanent Speed Rails and Locking Covers
double speed rail
Options / Accessories
Locking cover hanger
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2015 by the Eagle Group
Certifications / Approvals
EG40.50 Rev. 07/15
Item No.:
Project No.:
EG40.50
S.I.S. No.:
Spec-Bar®Permanent Speed Rails and Locking Covers
Single Speed Rails
Double Speed Rails
Catalog Specification Sheet No.
TOP VIEW TOP VIEW
FRONT VIEW SIDE VIEW FRONT VIEW SIDE VIEW
DSR- * Double Speed RailsSSR- * Single Speed Rails
model # in. mm lbs. kg
SSR-12 to 17 12˝ to 17˝ 305 to 432 4 1.8
SSR-18 to 23 18˝ to 23˝ 457 to 584 6 2.7
SSR-24 to 29 24˝ to 29˝ 610 to 737 7 3.2
SSR-30 to 35 30˝ to 35˝ 762 to 889 10 4.5
SSR-36 to 41 36˝ to 41˝ 914 to 1041 12 5.4
SSR-42 to 47 42˝ to 47˝ 1067 to 1194 18 8.2
SSR-48 to 53 48˝ to 53˝ 1219 to 1346 22 10.0
SSR-54 to 59 54˝ to 59˝ 1372 to 1499 25 11.3
Permanent Speed Rails and Locking Covers
®
SSR-60 to 65 60˝ to 65˝ 1524 to 1651 28 12.7
SSR-66 to 71 66˝ to 71˝ 1676 to 1803 32 14.5
SSR-72 to 77 72˝ to 77˝ 1829 to 1956 35 15.9
SSR-78 to 83 78˝ to 83˝ 1981 to 2108 38 17.2
SSR-84 84˝ 2134 42 19.1
length weight
model # in. mm lbs. kg
DSR-12 to 17 12˝ to 17˝ 305 to 432 8 3.6
DSR-18 to 23 18˝ to 23˝ 457 to 584 12 5.4
DSR-24 to 29 24˝ to 29˝ 610 to 737 14 6.4
DSR-30 to 35 30˝ to 35˝ 762 to 889 20 9.1
DSR-36 to 41 36˝ to 41˝ 914 to 1041 24 10.9
DSR-42 to 47 42˝ to 47˝ 1067 to 1194 36 16.3
DSR-48 to 53 48˝ to 53˝ 1219 to 1346 44 20.0
DSR-54 to 59 54˝ to 59˝ 1372 to 1499 50 22.7
DSR-60 to 65 60˝ to 65˝ 1524 to 1651 56 25.4
DSR-66 to 71 66˝ to 71˝ 1676 to 1803 64 29.0
DSR-72 to 77 72˝ to 77˝ 1829 to 1956 70 31.8
DSR-78 to 83 78˝ to 83˝ 1981 to 2108 76 34.5
DSR-84 84˝ 2134 84 38.1
length weight
SSRLC- * Locking Covers for Single Speed Rails DSRLC- * Locking Covers for Double Speed Rails
Spec-Bar
model # in. mm lbs. kg
SSRLC-12 to 17 12˝ to 17˝ 305 to 432 15 6.8
SSRLC-18 to 23 18˝ to 23˝ 457 to 584 22 10.0
SSRLC-24 to 29 24˝ to 29˝ 610 to 737 28 12.7
SSRLC-30 to 35 30˝ to 35˝ 762 to 889 30 13.6
SSRLC-36 to 41 36˝ to 41˝ 914 to 1041 32 14.5
SSRLC-42 42˝ 1067 35 15.9
length weight
model # in. mm lbs. kg
DSRLC-12 to 17 12˝ to 17˝ 305 to 432 30 13.6
DSRLC-18 to 23 18˝ to 23˝ 457 to 584 44 20.0
DSRLC-24 to 29 24˝ to 29˝ 610 to 737 56 25.4
DSRLC-30 to 35 30˝ to 35˝ 762 to 889 60 27.2
DSRLC-36 to 41 36˝ to 41˝ 914 to 1041 64 29.0
DSRLC-42 42˝ 1067 70 31.8
* Indicates desired speed rail length from 12˝ (305mm) to 84˝ (2134mm).
length weight
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
©2015 by Eagle Group
Rev. 07/15
