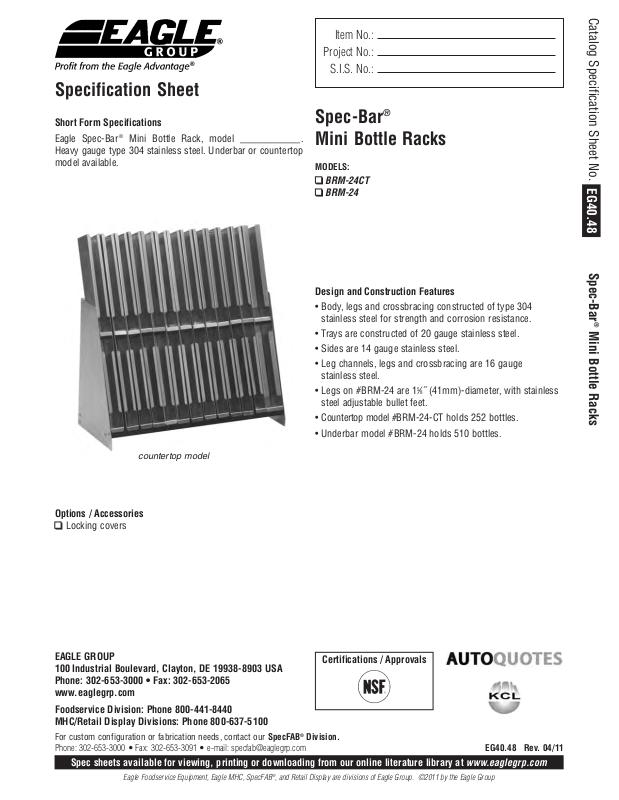

Eagle BRM-24CT User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
®
Eagle Spec-Bar
Heavy gauge type 304 stainless steel. Underbar or countertop
model available.
Mini Bottle Rack, model ____________.
Spec-Bar
®
Mini Bottle Racks
MODELS:
BRM-24CT
BRM-24
Design and Construction Features
• Body, legs and crossbracing constructed of type 304
stainless steel for strength and corrosion resistance.
• Trays are constructed of 20 gauge stainless steel.
• Sides are 14 gauge stainless steel.
• Leg channels, legs and crossbracing are 16 gauge
stainless steel.
5
• Legs on #BRM-24 are 1
steel adjustable bullet feet.
• Countertop model #BRM-24-CT holds 252 bottles.
• Underbar model #BRM-24 holds 510 bottles.
⁄8˝ (41mm)-diameter, with stainless
EG40.48
Spec-Bar
®
Mini Bottle Racks
countertop model
Options / Accessories
Locking covers
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2011 by the Eagle Group
Certifications / Approvals
EG40.48 Rev. 04/11
EG40.48
Spec-Bar®Mini Bottle Racks
Countertop Model—12˝ (305mm) wide
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Mini Bottle Racks
®
Spec-Bar
model # in. mm in. mm lbs. kg
width length weight
BRM-24CT 12˝ 305 24˝ 610 35 15.9
Underbar Model—24˝ (610mm) wide
width length weight
model # in. mm in. mm lbs. kg
BRM-24 24˝ 610 24˝ 610 95 43.1
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
©2011 by Eagle Group
Printed in U.S.A.
Rev. 04/11
