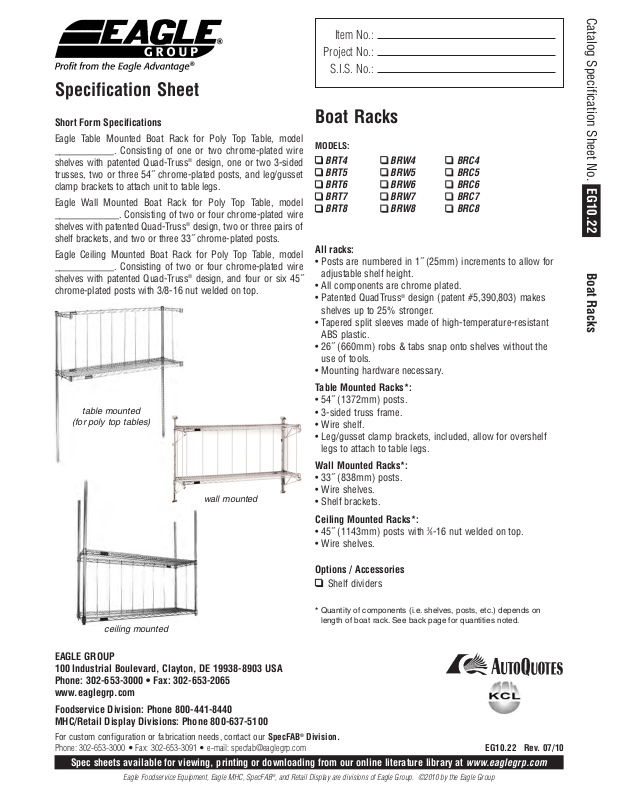

Eagle BRC4 User Manual

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Table Mounted Boat Rack for Poly Top Table, model ____________. Consisting of one or two chrome-plated wire

shelves with patented Quad-Truss

design, one or two 3-sided trusses, two or three 54˝ chrome-plated posts, and leg/gusset clamp brackets to attach unit to table legs.

Eagle Wall Mounted Boat Rack for Poly Top Table, model _____________. Consisting of two or four chrome-plated wire

shelves with patented Quad-Truss

design, two or three pairs of

shelf brackets, and two or three 33˝ chrome-plated posts.

Eagle Ceiling Mounted Boat Rack for Poly Top Table, model ____________. Consisting of two or four chrome-plated wire

shelves with patented Quad-Truss

design, and four or six 45˝ chrome-plated posts with 3/8-16 nut welded on top.

table mounted

(for poly top tables)

Boat Racks

MODELS:

BRT4 BRT5 BRT6 BRT7 BRT8

All racks:

• Posts are numbered in 1˝ (25mm) increments to allow for adjustable shelf height.

• All components are chrome plated.

• Patented QuadTruss shelves up to 25% stronger.

• Tapered split sleeves made of high-temperature-resistant ABS plastic.

• 26˝ (660mm) robs & tabs snap onto shelves without the use of tools.

• Mounting hardware necessary.

Table Mounted Racks*:

• 54˝ (1372mm) posts.

• 3-sided truss frame.

• Wire shelf.

• Leg/gusset clamp brackets, included, allow for overshelf legs to attach to table legs.

BRW4 BRW5 BRW6 BRW7 BRW8

design (patent #5,390,803) makes

BRC4 BRC5 BRC6 BRC7 BRC8

EG10.22

Boat Racks

Wall Mounted Racks*:

• 33˝ (838mm) posts.

• Wire shelves.

wall mounted

• Shelf brackets.

Ceiling Mounted Racks*:

• 45˝ (1143mm) posts with

⁄8-16 nut welded on top.

• Wire shelves.

Options / Accessories

Shelf dividers

* Quantity of components (i.e. shelves, posts, etc.) depends on

ceiling mounted

length of boat rack. See back page for quantities noted.

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com

EG10.22 Rev. 07/10

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

EG10.22

Boats Racks

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Table Mounted

weight width length

model # lbs. kg in. mm in. mm

BRT4 * 45 20.4 14˝ 356 48˝ 1219 BRT5 * 55 24.9 14˝ 356 60˝ 1524 BRT6 * 65 29.5 14˝ 356 72˝ 1829 BRT7 ** 75 34.0 14˝ 356 84˝ 2134 BRT8 ** 85 38.6 14˝ 356 96˝ 2438

* 48˝-72˝ (1219-1829mm) lengths include two posts, one 3-sided truss

frame, and one wire shelf.

** 84˝-96˝ (2134-2438mm) lengths include three posts, two 3-sided truss

frames, and two wire shelves with S-hooks.

FRONT VIEW SIDE VIEW

Boat Racks

Wall Mounted

FRONT VIEW SIDE VIEW

Ceiling Mounted

weight width length

model # lbs. kg in. mm in. mm

BRW4 * 40 18.1 14˝ 356 48˝ 1219 BRW5 * 50 22.7 14˝ 356 60˝ 1524 BRW6 * 60 27.2 14˝ 356 72˝ 1829 BRW7 ** 78 35.4 14˝ 356 84˝ 2134 BRW8 ** 80 36.3 14˝ 356 96˝ 2438

* 48˝-72˝ (1219-1829mm) lengths include two posts, four shelf brackets,

and two wire shelves.

** 84˝-96˝ (2134-2438mm) lengths include three posts, six shelf brackets,

and four wire shelves with S-hooks.

weight width length

model # lbs. kg in. mm in. mm

BRC4 * 40 18.1 14˝ 356 48˝ 1219 BRC5 * 50 22.7 14˝ 356 60˝ 1524 BRC6 * 60 27.2 14˝ 356 72˝ 1829 BRC7 ** 78 35.4 14˝ 356 84˝ 2134 BRC8 ** 80 36.3 14˝ 356 96˝ 2438

* 48˝-72˝ (1219-1829mm) lengths include four posts and two wire shelves.

** 84˝-96˝ (2134-2438mm) lengths include six posts and four wire shelves

with S-hooks.

FRONT VIEW SIDE VIEW
