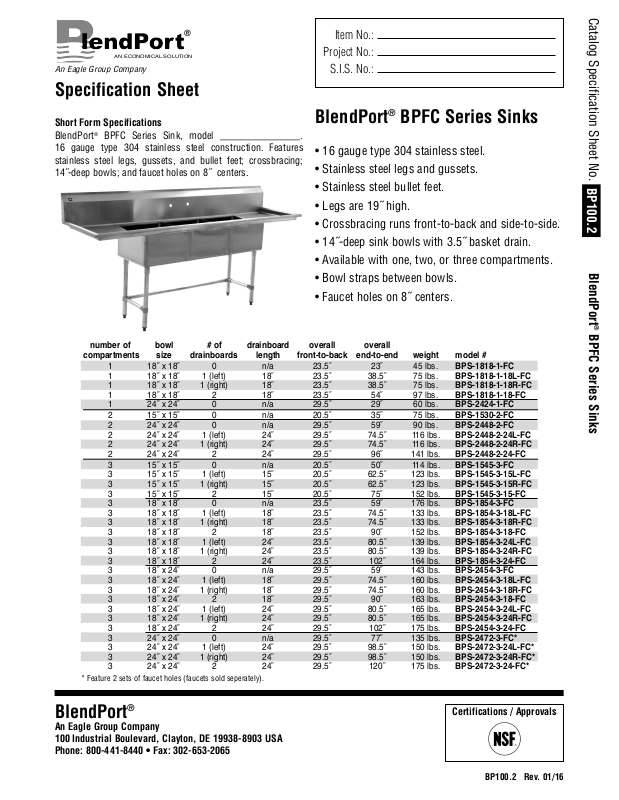

Eagle BPS-1545-3-15-FC User Manual
Catalog Specification Sheet No.
®
AN ECONOMICAL SOLUTION
An Eagle Group Company
Item No.:
Project No.:
S.I.S. No.:
Specification Sheet
Short Form Specifications
BlendPort®BPFC Series Sink, model ________________.
6 gauge type 304 stainless steel construction. Features
1
stainless steel legs, gussets, and bullet feet; crossbracing;
14˝-deep bowls; and faucet holes on 8˝ centers.
number of bowl # of drainboard overall overall
compartments size drainboards length front-to-back end-to-end weight model #
1 18˝ x 18˝ 0 n/a 23.5˝ 23˝ 45 lbs. BPS-1818-1-FC
1 18˝ x 18˝ 1 (left) 18˝ 23.5˝ 38.5˝ 75 lbs. BPS-1818-1-18L-FC
1 18˝ x 18˝ 1 (right) 18˝ 23.5˝ 38.5˝ 75 lbs. BPS-1818-1-18R-FC
1 18˝ x 18˝ 2 18˝ 23.5˝ 54˝ 97 lbs. BPS-1818-1-18-FC
1 24˝ x 24˝ 0 n/a 29.5˝ 29˝ 60 lbs. BPS-2424-1-FC
2 15˝ x 15˝ 0 n/a 20.5˝ 35˝ 75 lbs. BPS-1530-2-FC
2 24˝ x 24˝ 0 n/a 29.5˝ 59˝ 90 lbs. BPS-2448-2-FC
2 24˝ x 24˝ 1 (left) 24˝ 29.5˝ 74.5˝ 116 lbs. BPS-2448-2-24L-FC
2 24˝ x 24˝ 1 (right) 24˝ 29.5˝ 74.5˝ 116 lbs. BPS-2448-2-24R-FC
2 24˝ x 24˝ 2 24˝ 29.5˝ 96˝ 141 lbs. BPS-2448-2-24-FC
3 15˝ x 15˝ 0 n/a 20.5˝ 50˝ 114 lbs. BPS-1545-3-FC
3 15˝ x 15˝ 1 (left) 15˝ 20.5˝ 62.5˝ 123 lbs. BPS-1545-3-15L-FC
3 15˝ x 15˝ 1 (right) 15˝ 20.5˝ 62.5˝ 123 lbs. BPS-1545-3-15R-FC
3 15˝ x 15˝ 2 15˝ 20.5˝ 75˝ 152 lbs. BPS-1545-3-15-FC
3 18˝ x 18˝ 0 n/a 23.5˝ 59˝ 176 lbs. BPS-1854-3-FC
3 18˝ x 18˝ 1 (left) 18˝ 23.5˝ 74.5˝ 133 lbs. BPS-1854-3-18L-FC
3 18˝ x 18˝ 1 (right) 18˝ 23.5˝ 74.5˝ 133 lbs. BPS-1854-3-18R-FC
3 18˝ x 18˝ 2 18˝ 23.5˝ 90˝ 152 lbs. BPS-1854-3-18-FC
3 18˝ x 18˝ 1 (left) 24˝ 23.5˝ 80.5˝ 139 lbs. BPS-1854-3-24L-FC
3 18˝ x 18˝ 1 (right) 24˝ 23.5˝ 80.5˝ 139 lbs. BPS-1854-3-24R-FC
3 18˝ x 18˝ 2 24˝ 23.5˝ 102˝ 164 lbs. BPS-1854-3-24-FC
3 18˝ x 24˝ 0 n/a 29.5˝ 59˝ 143 lbs. BPS-2454-3-FC
3 18˝ x 24˝ 1 (left) 18˝ 29.5˝ 74.5˝ 160 lbs. BPS-2454-3-18L-FC
3 18˝ x 24˝ 1 (right) 18˝ 29.5˝ 74.5˝ 160 lbs. BPS-2454-3-18R-FC
3 18˝ x 24˝ 2 18˝ 29.5˝ 90˝ 163 lbs. BPS-2454-3-18-FC
3 18˝ x 24˝ 1 (left) 24˝ 29.5˝ 80.5˝ 165 lbs. BPS-2454-3-24L-FC
3 18˝ x 24˝ 1 (right) 24˝ 29.5˝ 80.5˝ 165 lbs. BPS-2454-3-24R-FC
3 18˝ x 24˝ 2 24˝ 29.5˝ 102˝ 175 lbs. BPS-2454-3-24-FC
3 24˝ x 24˝ 0 n/a 29.5˝ 77˝ 135 lbs. BPS-2472-3-FC*
3 24˝ x 24˝ 1 (left) 24˝ 29.5˝ 98.5˝ 150 lbs. BPS-2472-3-24L-FC*
3 24˝ x 24˝ 1 (right) 24˝ 29.5˝ 98.5˝ 150 lbs. BPS-2472-3-24R-FC*
3 24˝ x 24˝ 2 24˝ 29.5˝ 120˝ 175 lbs. BPS-2472-3-24-FC*
* Feature 2 sets of faucet holes (faucets sold seperately).
BlendPort®BPFC Series Sinks
• 16 gauge type 304 stainless steel.
• Stainless steel legs and gussets.
• Stainless steel bullet feet.
• Legs are 19˝ high.
• Crossbracing runs front-to-back and side-to-side.
• 14˝-deep sink bowls with 3.5˝ basket drain.
• Available with one, two, or three compartments.
• Bowl straps between bowls.
• Faucet holes on 8˝ centers.
BP100.2
BlendPort
®
BPFC Series Sinks
BlendPort
An Eagle Group Company
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 800-441-8440 • Fax: 302-653-2065
®
Certifications / Approvals
BP100.2 Rev. 01/16
®
Item No.:
BP100.2
An Eagle Group Company
AN ECONOMICAL SOLUTION
BlendPort®BPFC Series Sinks
Catalog Specification Sheet No.
TOP VIEW
Project No.:
S.I.S. No.:
BPFC Series Sinks
®
BlendPort
FRONT VIEW SIDE VIEW
(Note: #BPS-1854-3-18-FC shown)
BlendPort
An Eagle Group Company
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 800-441-8440 • Fax: 302-653-2065
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
®
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
Printed in U.S.A.
©2016 by Eagle Group
Rev. 01/16
