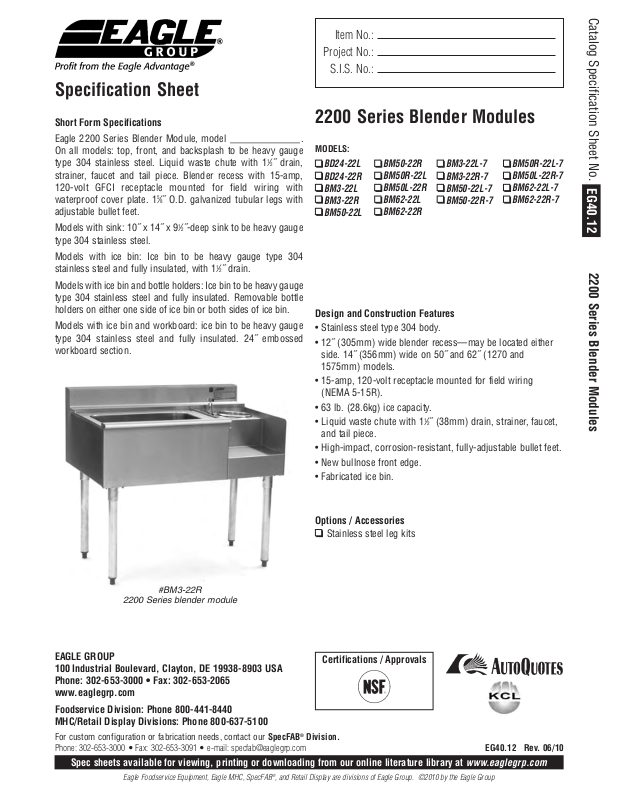

Eagle BD24-22L User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle 2200 Series Blender Module, model ______________.
On all models: top, front, and backsplash to be heavy gauge
type 304 stainless steel. Liquid waste chute with 1
strainer, faucet and tail piece. Blender recess with 15-amp,
120-volt GFCI receptacle mounted for field wiring with
waterproof cover plate. 1
adjustable bullet feet.
Models with sink: 10˝ x 14˝ x 91⁄2˝-deep sink to be heavy gauge
type 304 stainless steel.
Models with ice bin: Ice bin to be heavy gauge type 304
stainless steel and fully insulated, with 1
Models with ice bin and bottle holders: Ice bin to be heavy gauge
type 304 stainless steel and fully insulated. Removable bottle
holders on either one side of ice bin or both sides of ice bin.
Models with ice bin and workboard: ice bin to be heavy gauge
type 304 stainless steel and fully insulated. 24˝ embossed
workboard section.
5
⁄8˝ O.D. galvanized tubular legs with
1
⁄2˝ drain.
1
⁄2˝ drain,
2200 Series Blender Modules
MODELS:
BD24-22L
BD24-22R
BM3-22L
BM3-22R
BM50-22L
Design and Construction Features
• Stainless steel type 304 body.
• 12˝ (305mm) wide blender recess—may be located either
side. 14˝ (356mm) wide on 50˝ and 62˝ (1270 and
1575mm) models.
• 15-amp, 120-volt receptacle mounted for field wiring
(NEMA 5-15R).
• 63 lb. (28.6kg) ice capacity.
• Liquid waste chute with 1
and tail piece.
• High-impact, corrosion-resistant, fully-adjustable bullet feet.
• New bullnose front edge.
• Fabricated ice bin.
BM50-22R
BM50R-22L
BM50L-22R
BM62-22L
BM62-22R
BM3-22L-7
BM3-22R-7
BM50-22L-7
BM50-22R-7
1
⁄2˝ (38mm) drain, strainer, faucet,
BM50R-22L-7
BM50L-22R-7
BM62-22L-7
BM62-22R-7
EG40.12
2200 Series Blender Modules
Options / Accessories
Stainless steel leg kits
#BM3-22R
2200 Series blender module
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2010 by the Eagle Group
Certifications / Approvals
EG40.12 Rev. 06/10
EG40.12
2200 Series Blender Modules
24˝ (610mm) Models
with Sink
Includes 10˝ x 14˝ x 91⁄2˝ (254 x 356 x 241mm)
sink with splash mounted faucet - (no ice chest).
BD24-22L
Item No.:
Project No.:
S.I.S. No.:
BD24-22R
model # in. mm in. mm lbs. kg
width length weight
BD24-22L 24˝ 610 24˝ 610 44 20.0
BD24-22R 24˝ 610 24˝ 610 44 20.0
No cold plate option available.
36˝ (914mm) Models
Catalog Specification Sheet No.
with Ice Chest
Includes 151⁄2˝ x 193⁄4˝ x 8˝ (394 x 502 x 203mm)
ice chest.
50˝ (1270mm) Models
with Ice Chest
Includes 151⁄2˝ x 193⁄4˝ x 8˝ (394 x 502 x 203mm)
ice chest centered between bottle holders.
50˝ (1270mm) Models
with Ice Chest
2200 Series Blender Modules
Includes 151⁄2˝ x 193⁄4˝ x 8˝ (394 x 502 x 203mm)
ice chest centered between bottle holders and
blander recess.
62˝ (1575mm) Models
with Ice Chest
Includes 151⁄2˝ x 193⁄4˝ x 8˝ (394 x 502 x 203mm)
ice chest.
BM3-22L
BM50-22R
BM50L-22R
BM62-22R
model # in. mm in. mm lbs. kg
BM3-22L 24˝ 610 36˝ 914 69 31.3
BM3-22R 24˝ 610 36˝ 914 69 31.3
UNITS WITH COLD PLATE
BM3-22L-7
BM3-22R-7
model # in. mm in. mm lbs. kg
BM50-22L 24˝ 610 50˝ 1270 96 43.6
BM50-22R 24˝ 610 50˝ 1270 96 43.6
UNITS WITH COLD PLATE
BM50-22L-7
BM50-22R-7
model # in. mm in. mm lbs. kg
BM50R-22L 24˝ 610 50˝ 1270 96 43.6
BM50L-22R 24˝ 610 50˝ 1270 96 43.6
UNITS WITH COLD PLATE
BM50R-22L-7
BM50L-22R-7
model # in. mm in. mm lbs. kg
BM62-22L 24˝ 610 62˝ 1575 110 49.9
BM62-22R 24˝ 610 62˝ 1575 110 49.9
UNITS WITH COLD PLATE
BM62-22L-7
BM62-22R-7
width length weight
24˝ 610
24˝ 610
width length weight
24˝ 610
24˝ 610
width length weight
24˝ 610
24˝ 610
36˝ 914 99 44.9
36˝ 914 99 44.9
50˝ 1270 126 57.2
50˝ 1270 126 57.2
width length weight
24˝ 610
24˝ 610
50˝ 1270 126 57.2
50˝ 1270 126 57.2
62˝ 1575 146 66.2
62˝ 1575 146 66.2
Optional Stainless Steel Leg Kits
add suffix # description
-SL stainless steel leg assemblies
-SLF stainless steel leg assemblies & stainless steel feet
-SLG stainless steel leg assemblies & stainless steel gussets
-SLGF stainless steel leg assemblies, stainless steel feet & gussets
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
©2010 by Eagle Group
Printed in U.S.A.
Rev. 06/10
