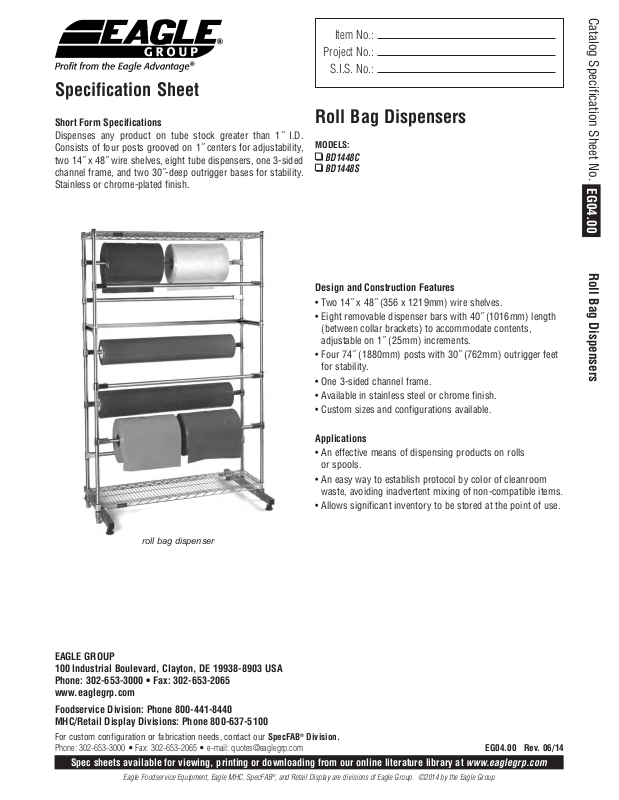

Eagle BD1448S User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Dispenses any product on tube stock greater than 1˝ I.D.
Consists of four posts grooved on 1˝ centers for adjustability,
two 14˝ x 48˝ wire shelves, eight tube dispensers, one 3-sided
channel frame, and two 30˝-deep outrigger bases for stability.
Stainless or chrome-plated finish.
Roll Bag Dispensers
MODELS:
BD1448C
BD1448S
EG04.00
Roll Bag Dispensers
Design and Construction Features
• Two 14˝ x 48˝ (356 x 1219mm) wire shelves.
• Eight removable dispenser bars with 40˝ (1016mm) length
(between collar brackets) to accommodate contents,
adjustable on 1˝ (25mm) increments.
• Four 74˝ (1880mm) posts with 30˝ (762mm) outrigger feet
for stability.
• One 3-sided channel frame.
• Available in stainless steel or chrome finish.
• Custom sizes and configurations available.
Applications
• An effective means of dispensing products on rolls
or spools.
• An easy way to establish protocol by color of cleanroom
waste, avoiding inadvertent mixing of non-compatible items.
• Allows significant inventory to be stored at the point of use.
roll bag dispenser
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2014 by the Eagle Group
EG04.00 Rev. 06/14
EG04.00
Roll Bag Dispensers
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
TOP VIEW
Roll Bag Dispensers
FRONT VIEW
shelf shelf overall overall
CHROME STAINLESS width length width length weight
model # model # in. mm in. mm in. mm in. mm lbs. kg
BD1448C BD1448S 14˝ 356 48˝ 1219 30˝ 762 48˝ 1219 79 35.8
Call factory for information about additional sizes.
SIDE VIEW
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
©2014 by Eagle Group
Printed in U.S.A.
Rev. 06/14
