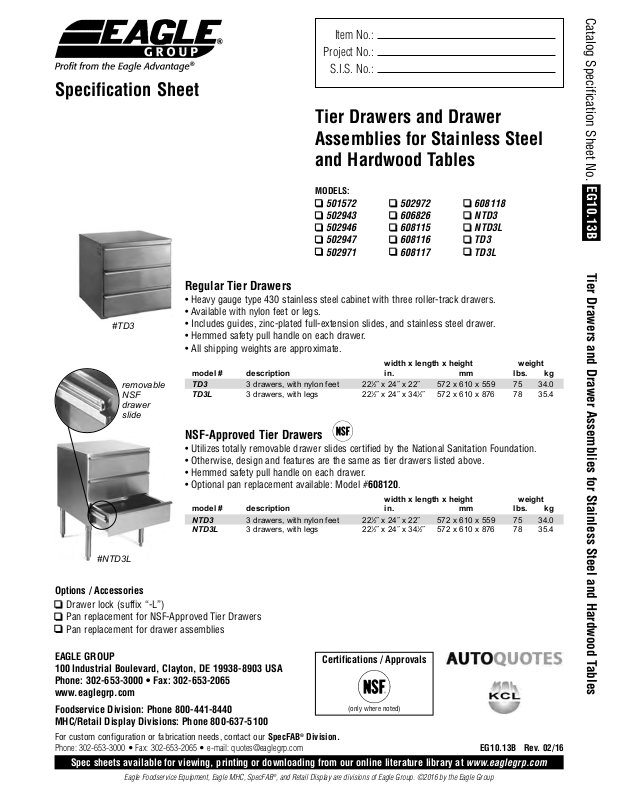

Eagle 501572 User Manual

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Tier Drawers and Drawer Assemblies for Stainless Steel and Hardwood Tables

#TD3

removable NSF drawer slide

MODELS:

501572 502943 502946 502947 502971

502972 606826 608115 608116 608117

608118 NTD3 NTD3L TD3 TD3L

Regular Tier Drawers

• Heavy gauge type 430 stain less steel cab i net with three roller-track drawers.

• Available with nylon feet or legs.

• Includes guides, zinc-plated full-extension slides, and stainless steel drawer.

• Hemmed safety pull handle on each drawer.

• All shipping weights are approximate.

model # description in. mm lbs. kg

TD3 3 drawers, with nylon feet 221⁄2˝ x 24˝ x 22˝ 572 x 610 x 559 75 34.0 TD3L 3 drawers, with legs 22

width x length x height weight

⁄2˝ x 24˝ x 341⁄2˝ 572 x 610 x 876 78 35.4

NSF-Approved Tier Drawers

• Utilizes totally removable drawer slides certified by the National Sanitation Foundation.

• Otherwise, design and features are the same as tier drawers listed above.

• Hemmed safety pull handle on each drawer.

• Optional pan replacement available: Model #608120.

model # description in. mm lbs. kg

NTD3 3 drawers, with nylon feet 22 NTD3L 3 drawers, with legs 221⁄2˝ x 24˝ x 341⁄2˝ 572 x 610 x 876 78 35.4

width x length x height weight

⁄2˝ x 24˝ x 22˝ 572 x 610 x 559 75 34.0

EG10.13B

Tier Drawers and Drawer Assemblies for Stainless Steel and Hardwood Tables

#NTD3L

Options / Accessories

Drawer lock (suffix “-L”) Pan replacement for NSF-Approved Tier Drawers Pan replacement for drawer assemblies

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Certifications / Approvals

(only where noted)

EG10.13B Rev. 02/16

EG10.13B

Tier Drawers and Drawer Assemblies

Item No.:

Project No.:

S.I.S. No.:

Drawer Capacity Per Table

Drawers can be centered, left or right.

table length 15˝ x 20˝ (381 x 508mm) 20˝ x 20˝ (508 x 508mm) * in. mm drawer capacity per table drawer capacity per table

24˝ 610 00 30˝ 762 1 centered 0 36˝ 914 1 centered 1 centered 48˝ 1219 1 centered; or 1 left & 1 right 1 centered 60˝ 1524 1 centered; or 1 left & 1 right 1 centered; or 1 left & 1 right

Catalog Specification Sheet No.

72˝ 1829 3 (1 centered, 1 left, 1 right) 1 centered; or 1 left & 1 right 84˝ 2134 4 1 centered; or 1 left & 1 right 96˝ 2438 4 (2 left, 2 right) 2 (1 left, 1 right) 108˝ 2743 4 (2 left, 2 right) 4 (2 left, 2 right) 120˝ 3048 4 (2 left, 2 right) 4 (2 left, 2 right) 132˝ 3353 6 (3 left, 3 right) 4 (2 left, 2 right) 144˝ 3658 6 (3 left, 3 right) 4 (2 left, 2 right)

* Holes are predrilled for 20˝ x 20˝ drawers only.

enclosed drawer assembly

Enclosed Drawer Assemblies

• Removable drawer pan.

• Type 430 stainless steel assemblies.

• Hemmed safety pull handle on each drawer.

model # in. mm lbs. kg model #

502943 * 20˝ x 15˝ x 5˝ 508 x 381 x 127 35 15.9 608115 501572 20˝ x 20˝ x 5˝ 508 x 508 x 127 35 15.9 608118 **

* Tables must be field drilled for mounting.

** #608118 does NOT fit drawer assembly #501572 with optional lock (#501572-L).

Drawer assembly #501572-L accepts only pan replacement #608119.

Enclosed SPEC-MASTER

width x length x height weight

Optional Pan Replacement

Heavy Duty Drawer Assemblies

• Removable drawer pan.

• Type 304 stainless steel assemblies.

• Insulated front.

• Self-closing drawer slides that fully extend from housing.

• These drawer assemblies are stackable.

Optional Pan

model # in. mm lbs. kg model #

width x length x height weight

502972 * 20˝ x 15˝ x 5˝ 508 x 381 x 127 40 18.1 608117 502971 20˝ x 20˝ x 5˝ 508 x 508 x 127 40 18.1 606826

* Tables must be field drilled for mounting.

Replacement

SPEC-MASTER

drawer assembly

removable NSF

drawer slide

drawer assembly with

NSF-approved slides

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA

Tier Drawers and Drawer Assemblies for Stainless Steel and Hardwood Tables

Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

heavy duty

Drawer Assemblies with NSF-Approved Slides

• Removable drawer slides, making it easy to clean for complete sanitation.

• Type 430 stainless steel.

• Requires no tool.

• All-stainless steel housing and frame.

• Drawer consists of full-length front pull flange and removable drawer pan with large radius corners.

• Hemmed safety pull handle on each drawer.

width x length x height weight

model # in. mm lbs. kg model #

502947 * 20˝ x 15˝ x 5˝ 508 x 381 x 127 35 15.9 608115 502946 20˝ x 20˝ x 5˝ 508 x 508 x 127 35 15.9 608116 **

* Tables must be field drilled for mounting.

** #608116 does NOT fit drawer assembly #502946 with optional lock (#502946-L).

Drawer assembly #502946-L accepts only pan replacement #608119.

Optional Pan Replacement
