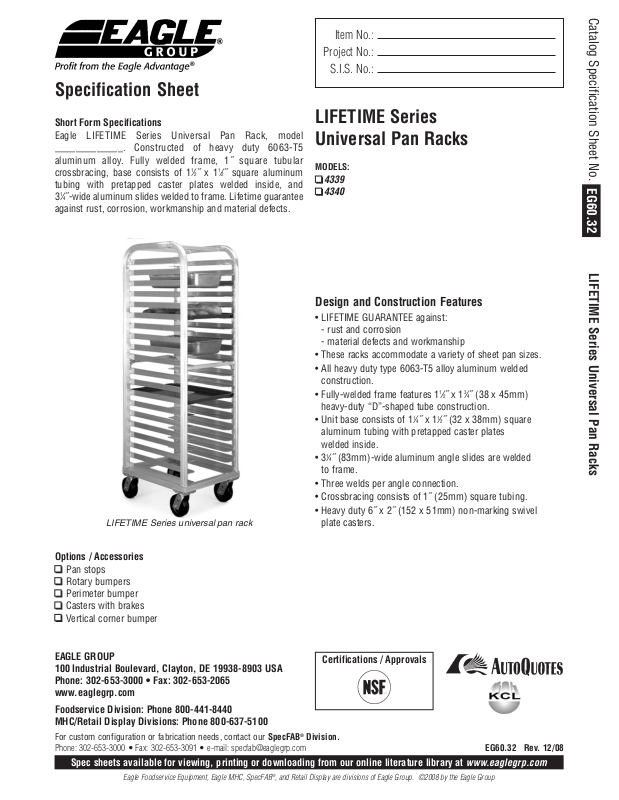

Eagle 4339 User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle LIFETIME Series Universal Pan Rack, model
_____________. Constructed of heavy duty 6063-T5
aluminum alloy. Fully welded frame, 1˝ square tubular
crossbracing, base consists of 1
tubing with pretapped caster plates welded inside, and
1
⁄4˝-wide aluminum slides welded to frame. Lifetime guarantee
3
against rust, corrosion, workmanship and material defects.
LIFETIME Series universal pan rack
1
⁄2˝ x 11⁄2˝ square aluminum
LIFETIME Series
Universal Pan Racks
MODELS:
4339
4340
Design and Construction Features
• LIFETIME GUARANTEE against:
- rust and corrosion
- material defects and workmanship
• These racks accommodate a variety of sheet pan sizes.
• All heavy duty type 6063-T5 alloy aluminum welded
construction.
• Fully-welded frame features 1
heavy-duty “D”-shaped tube construction.
• Unit base consists of 1
aluminum tubing with pretapped caster plates
welded inside.
1
⁄4˝ (83mm)-wide aluminum angle slides are welded
• 3
to frame.
• Three welds per angle connection.
• Crossbracing consists of 1˝ (25mm) square tubing.
• Heavy duty 6˝ x 2˝ (152 x 51mm) non-marking swivel
plate casters.
1
⁄2˝ x 13⁄4˝ (38 x 45mm)
1
⁄4˝ x 11⁄2˝ (32 x 38mm) square
EG60.32
LIFETIME Series Universal Pan Racks
Options / Accessories
Pan stops
Rotary bumpers
Perimeter bumper
Casters with brakes
Vertical corner bumper
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group
Certifications / Approvals
EG60.32 Rev. 12/08
EG60.32
LIFETIME Series Universal Pan Racks
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
TOP VIEW
LIFETIME Series Universal Pan Racks
–––––––overall dimensions––––––– sliding –––––––––––pan/tray capacity––––––––––––
width depth height weight space 12˝ x 20˝ 18˝ x 26˝ 13˝ x 18˝ 14˝ x 18˝
model # in. mm in. mm in. mm lbs. kg in. mm pan pan pan tray
4339 21
4340 21
1
⁄2˝ 546 26˝ 660 73˝ 1854 92 41.7 3˝ 76 19 20 40 40
1
⁄2˝ 546 26˝ 660 73˝ 1854 74 33.6 5˝ 127 11 12 24 24
FRONT VIEW
SIDE VIEW
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
©2008 by Eagle Group
Rev. 12/08
