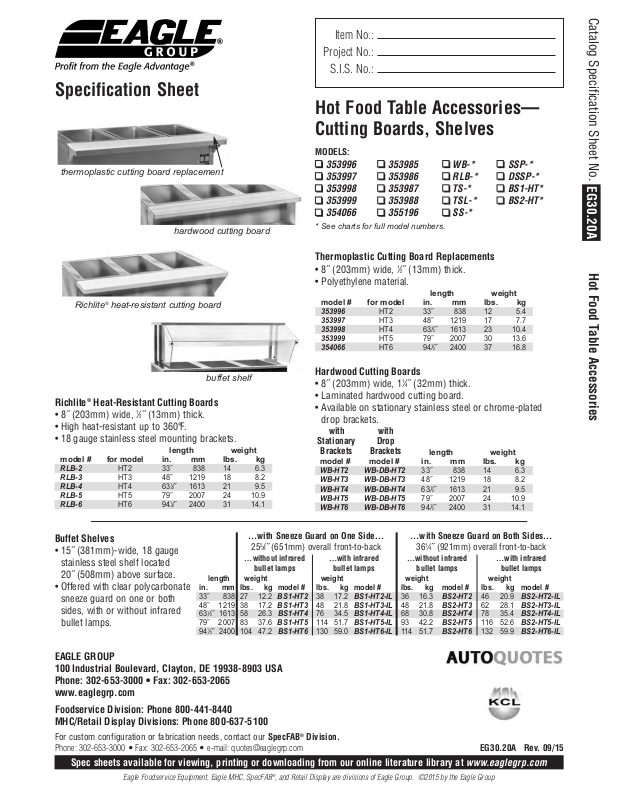

Specification Sheet
thermoplastic cutting board replacement
hardwood cutting board
Richlite®heat-resistant cutting board
Item No.:
Project No.:
S.I.S. No.:
Hot Food Table Accessories—
Cutting Boards, Shelves
MODELS:
353996
353997
353998
353999
354066
* See charts for full model numbers.
353985
353986
353987
353988
355196
Thermoplastic Cutting Board Replacements
• 8˝ (203mm) wide, 1⁄2˝ (13mm) thick.
• Polyethylene material.
model # for model in. mm lbs. kg
353996 HT2 33˝ 838 12 5.4
353997 HT3 48˝ 1219 17 7.7
353998 HT4 631⁄2˝ 1613 23 10.4
353999 HT5 79˝ 2007 30 13.6
354066 HT6 941⁄2˝ 2400 37 16.8
WB-*
RLB-*
TS-*
TSL-*
SSP-*
DSSP-*
BS1-HT*
BS2-HT*
SS-*
length weight
Catalog Specification Sheet No.
EG30.20A
Hot Food Table Accessories
buffet shelf
®
Richlite
Heat-Resistant Cutting Boards
• 8˝ (203mm) wide, 1⁄2˝ (13mm) thick.
• High heat-resistant up to 360°F.
• 18 gauge stainless steel mounting brack ets.
model # for model in. mm lbs. kg
RLB-2 HT2 33˝ 838 14 6.3
RLB-3 HT3 48˝ 1219 18 8.2
RLB-4 HT4 631⁄2˝ 1613 21 9.5
RLB-5 HT5 79˝ 2007 24 10.9
RLB-6 HT6 941⁄2˝ 2400 31 14.1
length weight
Buffet Shelves
• 15˝ (381mm)-wide, 18 gauge
stainless steel shelf located
20˝ (508mm) above surface.
• Offered with clear polycarbonate
sneeze guard on one or both
sides, with or without infrared
bullet lamps.
length weight weight weight weight
in. mm lbs. kg model # lbs. kg model # lbs. kg model # lbs. kg model #
33˝ 838 27 12.2 BS1-HT2 38 17.2 BS1-HT2-IL 36 16.3 BS2-HT2 46 20.9 BS2-HT2-IL
48˝ 1219 38 17.2 BS1-HT3 48 21.8 BS1-HT3-IL 48 21.8 BS2-HT3 62 28.1 BS2-HT3-IL
1
63
⁄2˝ 1613 58 26.3 BS1-HT4 76 34.5 BS1-HT4-IL 68 30.8 BS2-HT4 78 35.4 BS2-HT4-IL
79˝ 2007 83 37.6 BS1-HT5 114 51.7 BS1-HT5-IL 93 42.2 BS2-HT5 116 52.6 BS2-HT5-IL
1
94
⁄2˝ 2400 104 47.2 BS1-HT6 130 59.0 BS1-HT6-IL 114 51.7 BS2-HT6 132 59.9 BS2-HT6-IL
…without infrared
…with Sneeze Guard on One Side…
255⁄8˝ (651mm) overall front-to-back
bullet lamps
Hardwood Cutting Boards
• 8˝ (203mm) wide, 11⁄4˝ (32mm) thick.
• Laminated hardwood cutting board.
• Available on stationary stainless steel or chrome-plated
drop brackets.
with
Stationary
Brackets
model # model # in. mm lbs. kg
WB-HT2 WB-DB-HT2 33˝ 838 14 6.3
WB-HT3 WB-DB-HT3 48˝ 1219 18 8.2
WB-HT4 WB-DB-HT4 631⁄2˝ 1613 21 9.5
WB-HT5 WB-DB-HT5 79˝ 2007 24 10.9
WB-HT6 WB-DB-HT6 941⁄2˝ 2400 31 14.1
…with infrared
bullet lamps
with
Drop
Brackets
length weight
…with Sneeze Guard on Both Sides…
361⁄4˝ (921mm) overall front-to-back
…without infrared
bullet lamps
…with infrared
bullet lamps
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com
EG30.20A Rev. 09/15
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2015 by the Eagle Group
EG30.20A
Hot Food Table Accessories
serving shelf
Catalog Specification Sheet No.
deluxe serving shelf
Item No.:
Project No.:
S.I.S. No.:
Serving Shelves
• 18 gauge stainless steel serving shelf.
• Serving height is 131⁄2˝ (343mm).
1
⁄4˝ (6mm) clear Acrylite®front panel or open front available.
•
…with
Open Front
10˝ (254mm) wide
model # model # in. mm lbs. kg
SS-HT2 SSP-HT2 33˝ 838 20 9.0
SS-HT3 SSP-HT3 48˝ 1219 25 11.3
SS-HT4 SSP-HT4 631⁄2˝ 1613 35 15.9
SS-HT5 SSP-HT5 79˝ 2007 40 18.1
SS-HT6 SSP-HT6 941⁄2˝ 2400 55 24.9
…with Acrylite
Front Panel
18˝ (457mm) wide
Deluxe Serving Shelves
• 141⁄2˝ (368mm)-wide, 18 gauge stainless steel serving shelf.
• Front sloped back to allow better view of product.
• Stainless steel end panel assemblies.
1
⁄4˝ (6mm) clear Acrylite®at front and ends.
•
model # for model in. mm lbs. kg
DSSP-HT2 HT2 33˝ 838 27 12.2
DSSP-HT3 HT3 48˝ 1219 37 16.8
DSSP-HT4 HT4 631⁄2˝ 1613 47 21.3
DSSP-HT5 HT5 79˝ 2007 55 24.9
DSSP-HT6 HT6 941⁄2˝ 2400 69 31.3
®
length weight
length weight
Hot Food Table Accessories
dish shelf
tubular tray slide with
stationary brackets
tray shelf with
drop brackets
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065 • www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Tray Slides / Shelves
• Stainless steel stationary brackets or chrome-plated drop brackets.
• Suitable for field mounting.
in. mm lbs. kg model # model # model # model #
33˝ 838 14 6.3 TSL-HT2 TSL-DB-HT2 TS-HT2 TS-DB-HT2
48˝ 1219 18 8.2 TSL-HT3 TSL-DB-HT3 TS-HT3 TS-DB-HT3
63
79˝ 2007 24 10.9 TSL-HT5 TSL-DB-HT5 TS-HT5 TS-DB-HT5
94
Dish Shelves
• 8˝ (203mm)-wide, 11⁄4˝ (32mm)-thick shelf.
• 18 gauge stainless steel construction.
• Removable without the use of tools.
model # for model in. mm lbs. kg
353985 HT2 33˝ 838 6 2.7
353986 HT3 48˝ 1219 7 3.2
353987 HT4 631⁄2˝ 1613 11 5.0
353988 HT5 79˝ 2007 14 6.4
355196 HT6 941⁄2˝ 2400 20 9.0
Tubular Tray Slides
101⁄2˝ (267mm)-wide, three
tube-type stainless steel
w/Stationary
length weight
1
⁄2˝ 1613 21 9.5 TSL-HT4 TSL-DB-HT4 TS-HT4 TS-DB-HT4
1
⁄2˝ 2400 31 14.1 TSL-HT6 TSL-DB-HT6 TS-HT6 TS-DB-HT6
Brackets
length weight
w/Drop
w/Stationary
Brackets
Solid Tray Shelves
10˝ (254mm)-wide,
stainless steel shelf.
Brackets
w/Drop
Brackets
Printed in U.S.A.
©2015 by Eagle Group
Rev. 09/15
