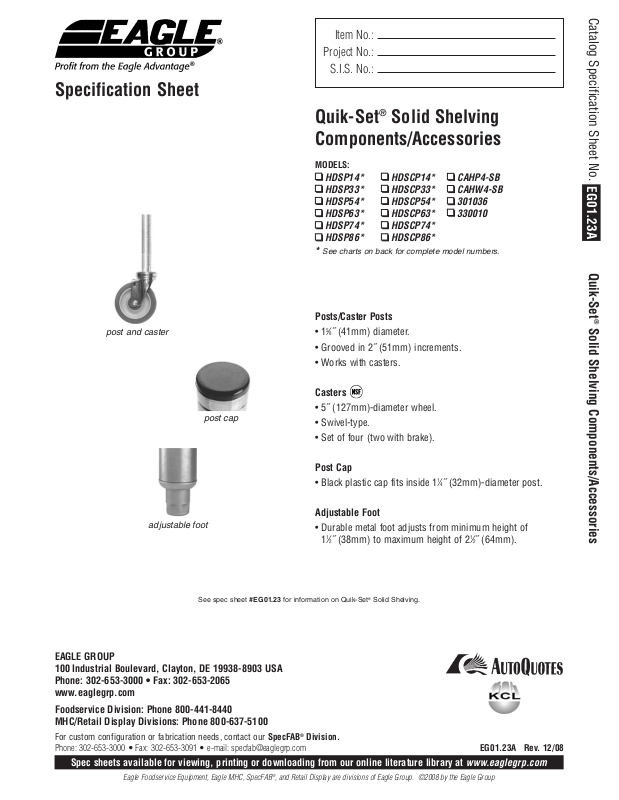

Eagle 330010, HDSCP14 User Manual
Specification Sheet
Item No.:
Project No.:
S.I.S. No.:
Quik-Set®Solid Shelving
Components/Accessories
MODELS:
HDSP14*
HDSP33*
HDSP54*
HDSP63*
HDSP74*
HDSP86*
* See charts on back for complete model numbers.
HDSCP14*
HDSCP33*
HDSCP54*
HDSCP63*
HDSCP74*
HDSCP86*
CAHP4-SB
CAHW4-SB
301036
330010
Catalog Specification Sheet No.
EG01.23A
Quik-Set
post and caster
adjustable foot
Posts/Caster Posts
• 15⁄8˝ (41mm) diameter.
• Grooved in 2˝ (51mm) increments.
• Works with casters.
Casters
• 5˝ (127mm)-diameter wheel.
post cap
See spec sheet #EG01.23 for information on Quik-Set®Solid Shelving.
• Swivel-type.
• Set of four (two with brake).
Post Cap
• Black plastic cap fits inside 1
Adjustable Foot
• Durable metal foot adjusts from minimum height of
1
⁄2˝ (38mm) to maximum height of 21⁄2˝ (64mm).
1
1
⁄4˝ (32mm)-diameter post.
®
Solid Shelving Components/Accessories
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group
EG01.23A Rev. 12/08
Item No.:
Project No.:
EG01.23A
S.I.S. No.:
Quik-Set®Solid Shelving Components/Accessories
Posts
Catalog Specification Sheet No.
15⁄8˝ (41mm) diameter. Grooved in 2˝ (51mm) increments.
Valu-Master
model # model # model # in. mm lb. kg
HDSP14-V HDSP14-VG HDSP14-S 14˝ 356 1.0 0.5
HDSP33-V HDSP33-VG HDSP33-S 33˝ 838 2.0 0.9
HDSP54-V HDSP54-VG HDSP54-S 54˝ 1372 3.0 1.4
HDSP63-V HDSP63-VG HDSP63-S 63˝ 1600 3.5 1.8
HDSP74-V HDSP74-VG HDSP74-S 74˝ 1880 4.0 1.8
HDSP86-V HDSP86-VG HDSP86-S 86˝ 2184 6.0 2.7
Caster Posts
15⁄8˝ (41mm) diameter. Grooved in 2˝ (51mm) increments.
Valu-Master
model # model # model # in. mm lb. kg
HDSCP14-V HDSCP14-VG HDSCP14-S 14˝ 356 1.0 0.5
HDSCP33-V HDSCP33-VG HDSCP33-S 33˝ 838 2.0 0.9
HDSCP54-V HDSCP54-VG HDSCP54-S 54˝ 1372 3.0 1.4
HDSCP63-V HDSCP63-VG HDSCP63-S 63˝ 1600 3.5 1.8
HDSCP74-V HDSCP74-VG HDSCP74-S 74˝ 1880 4.0 1.8
HDSCP86-V HDSCP86-VG HDSCP86-S 86˝ 2184 6.0 2.7
®
®
Valu-Gard
Valu-Gard
®
stainless steel height weight
®
stainless steel height weight
post and caster
Casters
5˝ (127mm)-diameter.
Set of four (two swivel, two with brake).
model # description lb. kg
CAHP4-SB zinc with rubber tread 250 113.4
CAHW4-SB polymer cart washable with polymer tread 250 113.4
Solid Shelving Components/Accessories
®
Adjustable Foot
Quik-Set
model # lb. kg
301036 0.25 0.1
Post Cap
model # lb. kg
330010 0.25 0.1
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
weight
weight
weight
capacity
per caster
cart washable casters
adjustable foot
post cap
Printed in U.S.A.
©2008 by Eagle Group
Rev. 12/08
