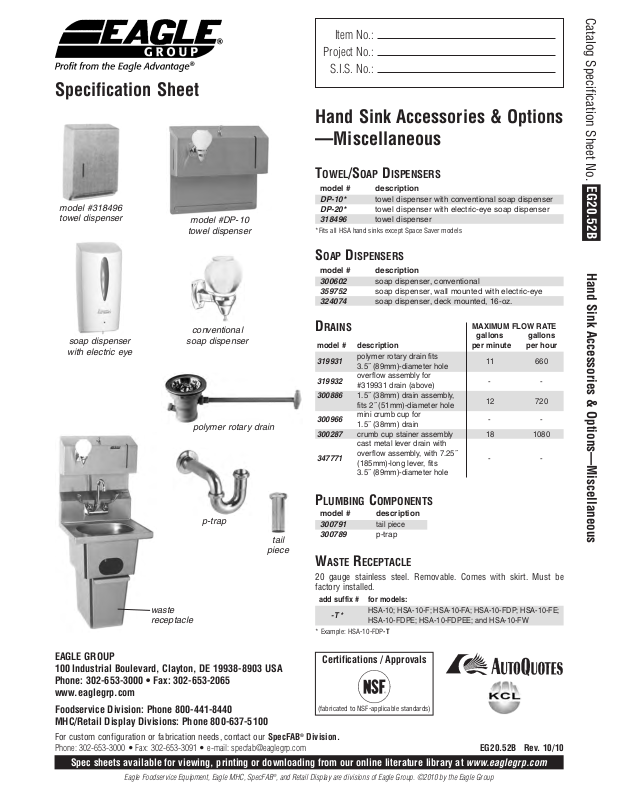

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Hand Sink Accessories & Options
—Miscellaneous

model #318496
towel dispenser

soap dispenser

with electric eye

model #DP-10

towel dispenser

conventional

soap dispenser

polymer rotary drain

TOWEL/SOAP DISPENSERS

model # description

DP-10* towel dispenser with conventional soap dispenser
DP-20* towel dispenser with electric-eye soap dispenser
318496 towel dispenser

*Fits all HSA hand sinks except Space Saver models

SOAP DISPENSERS

model # description

300602 soap dispenser, conventional
359752 soap dispenser, wall mounted with electric-eye
324074 soap dispenser, deck mounted, 16-oz.

DRAINS

model # description per minute per hour

319931

319932

300886 1.5˝ (38mm) drain assembly,

300966

300287 crumb cup stainer assembly 18 1080

347771

polymer rotary drain fits

3.5˝ (89mm)-diameter hole
overflow assembly for
#319931 drain (above)

fits 2˝ (51mm)-diameter hole
mini crumb cup for

1.5˝ (38mm) drain

cast metal lever drain with
overflow assembly, with 7.25˝
(185mm)-long lever, fits

3.5˝ (89mm)-diameter hole

MAXIMUM FLOW RATE

gallons gallons

11 660

--

12 720

--

--

EG20.52B

Hand Sink Accessories & Options—Miscellaneous

PLUMBING COMPONENTS

p-trap

tail

piece

model # description

300791
300789 p-trap

tail piece

WASTE RECEPTACLE

20 gauge stainless steel. Removable. Comes with skirt. Must be
factory installed.

add suffix # for models:

waste
receptacle

EAGLE GROUP

-T *

* Example: HSA-10-FDP-T

Certifications / Approvals

100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]

(fabricated to NSF-applicable standards)

MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2010 by the Eagle Group

HSA-10; HSA-10-F; HSA-10-FA; HSA-10-FDP; HSA-10-FE;
HSA-10-FDPE; HSA-10-FDPEE; and HSA-10-FW

EG20.52B Rev. 10/10

Item No.:

Project No.:

EG20.52B

S.I.S. No.:

Hand Sink Accessories & Options—Miscellaneous

Catalog Specification Sheet No.

NEW

DESIGN

hand sink with

hot water heater

NEW

TANKLESS

WATER
HEATER

hand sink with

optional end splashes

pair of end splashes

for field installation

HOT WATER HEATER

For Eagle hand sinks with 10˝ x 14˝ x 6˝ (254 x 356 x 152mm)
rounded sink bowl. Energy-efficient self-contained tankless hot water
heater by Eemax™. 0.5 gallon per minute, with 48° temperature rise.
Flow switch activates heater only on demand—no stand-by heat loss.
3/8˝ compression fittings. Includes type 304 stainless steel pedestal
base, which features notch for water heater electrical wiring and front
access panel.

add suffix # applicable models

-WH *

*Example: HSA-10-FDPEE-WH

HSA-10; HSA-10-F; HSA-10-FA; HSA-10-FDP; HSA-10-FE;
HSA-10-FDPE; HSA-10-FDPEE; HSA-10-FW; and HSAD-10-F

END SPLASHES

Type 304 stainless steel. Note: Will not work with Space Saver Hand
Sinks that have faucets with wrist handles.

Note: MICROGARD

FACTORY-INSTALLED

add suffix # description

-LS * left end splash only

-RS * right end splash only

-LRS * left and right end splash

* Example: HSA-10-F-LRS

FOR FIELD INSTALLATION

model # description

HSA-SSK

®

cannot be put on hand sinks with end splashes.

one self-adhesive side splash, can be
used for right or left application

wall

bracket

Hand Sink Accessories & Options—Miscellaneous

skirt assembly

nail brush

nail brush

holder

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

WALL BRACKETS

model # description

606396 side mounting, one pair, does not fit Space Saver models

SKIRT ASSEMBLIES

model # fits models

606215

607560

HSA-10; HSA-10-F; HSA-10-FA; HSA-10-FDP; HSA-10-FE;
HSA-10-FDPE; HSA-10-FDPEE; and HSA-10-FW
HSAN-10-F; HSAND-10-F

NAIL BRUSH AND NAIL BRUSH HOLDER

add suffix # * description

-NB *

* Example: HSA-10-F-NB

Infectious-control nail brush made of FDO-approved
material, with stainless steel splash mount holder

Printed in U.S.A.

©2010 by Eagle Group

Rev. 10/10
