Eagle 250C User Manual

User manual

250w moving head wash

Professional Stage Lighting

CONTENT

STRUCTURE……………………………………………………………………...1
SPECIFICATIONS…………………………………………………………….…..1
DMX CHANNELS………………………………………………………………..1

STROBE OPAN/CLOSE…………………………………………….………1
DIMMER. ……………………………………………………2
COLOR. ……………………………………………………2
FOCUS. ……………………………………………………2
PAN 450 DEGREE. ……………………………………………………2

TILT 270 DEGREE…………………………………………………………....2

PAN FINE ADJUSTMENT 3.6 DEGREE………………………………….…2
TILT FINE ADJUSTMENT 3.6 DEGREE……………………………………2
PAN / TILT SPEED ADJUSTMENT………………………………………….2
C ……………………………………………………………………………….2
M ……………………………………………………………………………….3
Y ………………..……………………………………………………….3
C/M/Y speed ……………………………………………………………………3
VECTOR MODE. ……………………………………………………3

SIGNAL INPUT…………………………………………………………………...3

CONNECT TO DMX512 SIGNAL………………………………………….3

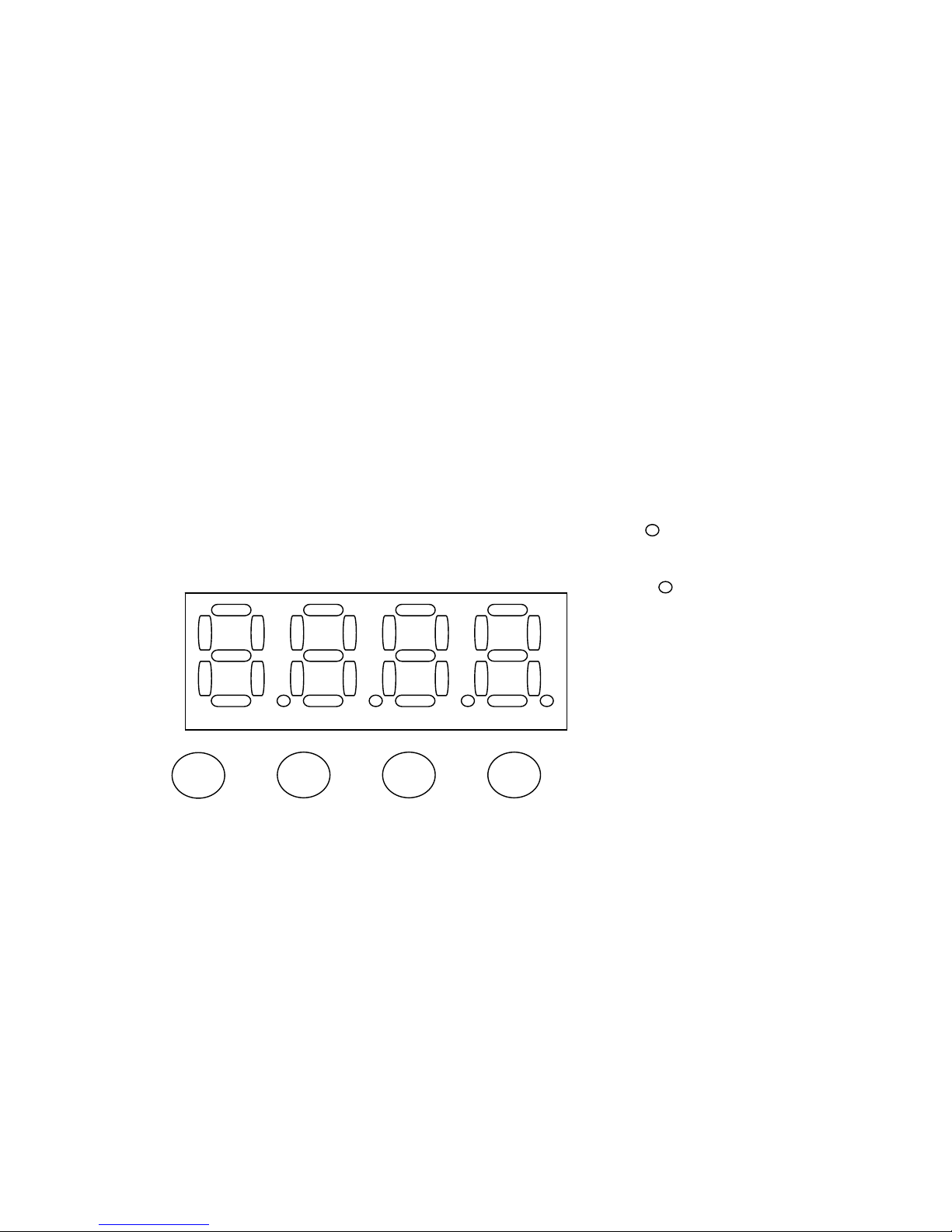

Digital display function & address setting explain ……………………….4

CLAMP & SAFETY ROPE…………………………………………………….....5

CLEAN & MAINTENANCE……………………………………………………..5

INSTALL OR REPLACE A LAMP………………………………………….6

CLEAN THE BEAM PATH………………………………………………….6
SAFETY INSTRUCTIONS……………………………………………………….6
SHOOTING CHART……………………………………………………………...7

THIS EQUIPMENT IS A POWERFUL MOVING HEAD WASHER LIGHT FIXTURE. AFTER LONG TIME USING
IN LARGE QUANTITY IN MANY DIFFERENT PLACES, IT IS RECOMMENDED BY MANY PROFESSIONAL
LIGHT DESIGNERS FOR ITS STABLE AND DURABLE OPERATION. NOW IT HAS BECOME ONE OF THE MOST
SUCCESSFUL INTELLIGENT LIGHT FIXTURES YOU CAN FIND IN THE MARKET. IT CAN SUPPLY BRIGHT
COLOR WASHING EFFECT. IT COMPLIES WITH CE STANDARDS.

SPECIFICATIONS

COLOR: 4COLORS + OPEN + COLOR TEMPERATURE
(RED, GREEN, ORANGE, PURPLE, OPEN)
SUTTER / STROBE: 0 – 10 F.P.S., SPEED ADJUSTABLE
PAN: 450 DEGREE, 8 / 16 BIT SELECTABLE, ELECTRONIC RESETTING WITH DISPOSITION CORRECTION
TITL: 270 DEGREE, 8 / 16 BIT SELECTABLE, ELECTRONIC RESETTING WITH DISPOSITION CORRECTION
CONTROL: DMX 512
POWER SUPPLY: 220V 50-60HZ (OTHERS CAN ORDER)
LAMP: MSD 250W DISCHARGE LAMP
LAMP LIFE: APPROX. 500 HOURS (FOR REFERENCE ONLY)
MOTOR: 8 HIGH SPEED AND SUPER ACCURATE STEP MOTORS, CONTROLLED BY HIGH SPEED CHIPS
HOUSING: FIRE-RESISTANT FIRST CLASS ABS MATERIAL, WITH HIGH TEMPERATURE PAINTING, SUITABLE
FOR CEILING, WALL AND FLOOR INSTALLATION, EASY INSTALLATION AND REMOVING
BEAM PATH: HIGH DENSITY QUARTZ LENS SET
VENTILATION: HIGH SPEED FAN COOLING
PROTECTION: AUTOMATIC OVER HEAT PROTECTION, ANTI-DISTURBANCE ELECTRIC CIRCUIT
DIMENSION: L400 x W450 x H570 (mm)
WEIGHT: 24kg

DMX CHANNELS
TOTAL 14 CHANNELS

CHANNEL 1: STROBE OPEN/CLOSE
CHANNEL 2: DIMMER
CHANNEL 3: COLOR 4 COLORS + OPEN + COLOR TEMPERATURE FILTER
CHANNEL 4: FOCUS
CHANNEL 5 PAN
CHANNEL 6 TILTS
CHANNEL 7: PAN FINE ADJUSTMENT, 3.6 DEGREE
CHANNEL 8: TILT FINE ADJUSTMENT, 3.6 DEGREE
CHANNEL 9: PAN / TILT SPEED ADJUSTMENT
CHANNEL 10：

CYAN

CHANNEL 11：

MAGENTA

CHANNEL 12：

YELLOW

CHANNEL 13：C/M/Y speed
CHANNEL 14 VECTOR MODES
