Eagle 1000A, 1000B Operation Manual

- 1 -

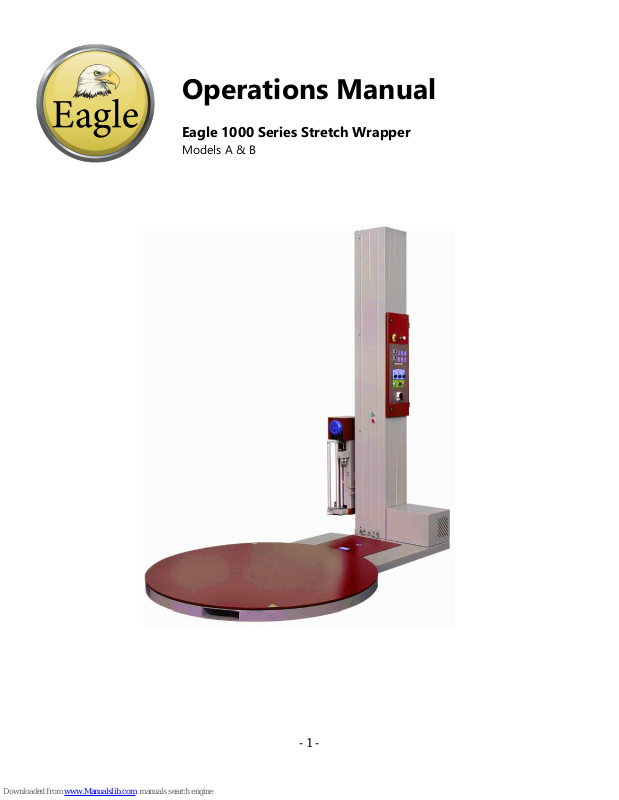

Operations Manual
Eagle 1000 Series Stretch Wrapper
Models A & B
- 2 -
READ ALL INSTRUCTIONS CONTAINED IN THIS
MANUAL PRIOR TO MACHINE INSTALLATION!
- 3 -
Contents
page
1. Machine Safety Information
1.1 Safety & Warnings 3
1.2 Specifications 5
1.3 Outline & Applications 7
1.4 Position of Operation 7
1.5 Safety Precautions Prior to Operation 7
2. Machine Installation
2.1 Machine Structure & Main Components 8
2.2 Transportation 9
2.3 Installation 10
2.4 Operational Environment 13
3. Operation
3.1 Operational Steps & Film Loading 14
3.2 Basic Machine Operation 16
4. Maintenance & Troubleshooting
4.1 Carriage Load Safety Switch 18
4.2 Turntable Home Switch 19
4.3 Turntable & Carriage Adjustment 21
4.4 Replacement Parts 22
5. Illustrations & Parts List
5.1 Base (Turntable) 23
5.2 Roller Wheel Assembly (1) 25
5.3 Roller Wheel Assembly (2) 26
5.4 Mast 27
5.5 Pre-Stretch Carriage 29
5.6 Non Pre-Stretch Carriage 31
6. Electrical Schematics 33
- 4 -
1.1 Safety & Warnings
Before servicing, always power down and unplug the machine from the power source. Ensure that the correct voltage is being supplied from the power source. Do not touch the turn table while machine is in operation. Place all items to be wrapped in the center of the turntable. Keep the machine and surrounding area clean, clear and free of debris to ensure safe operation.
Warning Labels
DO NOT MODIFY OR REMOVE WARNING LABELS
Turntable Edge (x2)
Platform
Platform
Use Caution When Stepping or
Walking
Table Rotation Direction
Do Not Step
- 5 -
1.1 Safety & Warnings
DO NOT MODIFY OR REMOVE WARNING LABELS
Film Carriage
Do Not Open While Running
Control Panel (Bottom)
Electrical Hazard
Do not service machine while powered up and
connected to power source!
(Turntable may move)
- 6 -
1.2 Specifications - Eagle 1000A
Power Supply
110VAC, 60Hz
Turntable Speed
0-10 RPM
Turntable Diameter
59”
Turntable Diagonal
80”
Turntable Height
3.125”
Pre-Stretch Motor
n/a
Pre-Stretch Gear Ratio
n/a
Pre-Stretch Chain
n/a
Film Stretch
Manually Adjustable on Carriage
Max Film Height
87”
Mast Height
94”
Max Turntable Weight Capacity
3,300 lbs
Max Package Height (2” Overlap)
76.75”
Machine Dimensions
80.7” x 65” x 96.85”
(L x W x H)
Shipping Weight
1,433 lbs
Attachment
Ramp or Custom Heavy Duty3
Noise
75db
Environment
Humidity ≤98% Temperature 32-104°F
1
Note: Black product requires custom photo-eye installation.
2
Factory ramp is for use with hand pallet jacks only. Maximum combined weight of jack and product must not
exceed 1,300lbs. Custom heavy-duty ramps are available for use with loads exceeding 1,300lbs.
3
Turntable maximum RPM can be increased to 20 RPM upon request.
- 7 -
1.2 Specifications - Eagle 1000B
Power Supply
110VAC, 60Hz
Turntable Speed
0-10 RPM
Turntable Diameter
59”
Turntable Diagonal
80”
Turntable Height
3.125”
Pre-Stretch Motor
1/3 HP 1390 RPM 220V 1:20 Gearbox
Pre-Stretch Gear Ratio
1:12
Pre-Stretch Chain
06B-1 ISO
Film Stretch
250% pre-stretch with adjustable load force
Film Lift
Photo-eye controlled to match pkg height2
Film Width
20” (standard) or 30” (option)
Max Film Height
87”
Mast Height
94”
Max Turntable Weight Capacity
4,400 lbs
Max Package Height (2” Overlap)
76.75”
Machine Dimensions
80.7” x 65” x 96.85”
(L x W x H)
Shipping Weight
1,433 lbs
Attachment
Ramp or Custom Heavy Duty3
Noise
75db
Environment
Humidity ≤98% Temperature 32-104°F
1
Note: Black product requires custom photo-eye installation.
2
Factory ramp is for use with hand pallet jacks only. Maximum combined weight of jack and product must not
exceed 1,300lbs. Custom heavy-duty ramps are available for use with loads exceeding 1,300lbs.
3
Turntable maximum RPM can be increased to 20 RPM upon request.
- 8 -
1.3 Outline and Application Field
This machine features a PLC controller. The electric subassembly uses world famous products such as OMRON, LG and TE components. This provides a reasonable, high reliability and convenient use for the machine. It can advance production efficiency and prevent goods from being damaged during transportation. This machine has a wide range of applications and is used in the following industries: chemical, fiber, tobacco, pharmaceutical, publishing, refrigeration, etc.
1.4 Position of Operation
The operator must stand in front of the operating screen, away from the turntable and carriage. The operator must insure that no other individual or devices such as the forklift are at risk during operation. (See Fig. 1-1)
Fig. 1-1
1.5 Safety Precautions Prior to Operating Machine
This machine uses 110V, 60Hz, single phase power. Do not plug into an extension cord. Do not step on the machine when it is running. Do not install this machine on soft ground. Install on a level surface. Do not put the object to be wrapped on the edge of the turntable. Turn off the power after done using the machine. In an emergency, press the emergency stop button. This will cease movement of the machine. Clean the machine once a day. Only a Qualified Technician should change or test the wiring and/or electrical components.
Operator Standing
Position
- 9 -
DO NOT push, drag, or slide machine! Doing so will cause severe damage!
- 10 -
2.1 Machine Structure & Components Illustration
Fig. 2-1
Film Carriage
Control Panel
Turntable
Mast
- 11 -
2.2 Transportation
You must have at least 4ft fork tubes or tube extensions fully inserted into the machine and a forklift rated for 3,000lbs to transport the machine safely. Do not raise the load more than 6” off of the ground. (See Fig. 2-2)
ALWAYS USE OSHA HANDLING PROCEDURES FOR HANDLING THE
STRETCH WRAPPER AND REMEMBER TO NEVER PUSH, DRAG, OR
SLIDE THE MACHINE!
Do not transport machine from turntable when mast is lowered!
When transporting the machine in this configuration;
1. Inspection cover must be removed before raising or
lowering the mast.
2. Carriage must be raised 8 inches
Carriage must be raised 6~8 inches before attempting to lift machine from this end.
It is acceptable to transport machine by turntable when mast has been raised.
Fig. 2-2
- 12 -
2.3 Installation
Step 1 - Place the machine in the desired location using a tow motor or crane capable of handling a load of 3,000lbs. (See Fig. 2-3)
Fig. 2-3
Fig. 2-4a
Fig. 2-4b
Step 2 While lifting the mast, use caution to ensure that wires and connectors are not pinched.
(See Fig. 2-4a)
Once the machine is fully upright, one individual can stabilize the mast while a second individual fastens the M8 screws to secure the mast to the base. (See Fig. 2-4b)
- 13 -
2.3 Installation
Step 3 - If installing a ramp, place the ramp by locating the ramp shoulder bolt and placing it into the slot in the ramp. It is highly recommended to anchor the ramp to the floor. (See Fig. 2-5)
Step 4a (Eagle 1000B) - Affix the carriage onto the corresponding position on the mast and fasten with four M8 bolts. Insert the connector plugs on the front of the carriage into the receptacles. Do not force the connectors together.
(See Fig. 2-6)
Fig. 2-6
Fig. 2-5
