Eaget M7 User Manual

1080P High Definition

3.5” HDD Network Multimedia Player

M7

User Manual

www.eaget.com.cn

1. Introduction of Product

1.1 Preface

The M7 is an innovative digital media player which supports 1080P movie. You can now enjoy
various multimedia files such as high definition movies, digital photos and music by different kinds
of output sources from the player.

The player supports high definition movie, up to 1080P. HDMI, YPbPr, SPDIF and composite
audio/video output ports which provide you with the most useful connections to TV, projector,
audio system, etc. Unlimited extensibility by portable devices, memory cards, flash drives, etc.

User friendly UI and easy to operate. All functions/settings are accessible by remote controller.
File filter function enables player to sort photos, music and movies into different folders for easy
playing.

M7 is all metal enclosure, solid protection and more stable performance in high-temperature
environment. It supports built-in 3.5” SATA hard drive up to 2TB capacity. Beautiful and simple
industrial design, a perfect match of home theater!

The main functions of this product include:

It supports 1080P (full HD), hi-fi output and AVI (MPEG-4 ASP:

Movie Playback

Music Playback

Picture Playback It supports JPEG, HD JPEG / BMP / GIF / TIF / PNG formats
Data Duplication

Network function (wireless functions are available by the optional USB wireless

Download function It supports BT Downloadin g;

XviD), MPG (MPEG-2/1), RM/RMVB, VOB (DVD), IFO (DVD), DAT
(VCD) ,MPEG-2 TS and MKV（H.264）formats
It supports MP3 / MP2 / WMA / AAC / FLAC / WAV / OGG Vorbis /
PCM / LPCM / MS-ADPCM / LC-AAC / HE-AAC / COOK / RA­Lossless formats

It supports duplication of data among the movable hard disk,
memory card, USB flash drive and so on.
It supports wired and wireless Internet, supports UPnP media server.

adapter)

Hard Disk Sto rage

HDMI Output It supports HDMI output up to 1080p(Full HD);

SPDIF DTS Track It supports DTS hi-fi player with surrounding and 5.1 stereo sound

Supports built-in 3.5” SATA hard drive(up to 2TB capacity)

It supports optical / coaxial digital audio output;
effect.

Remarks:

The company has the right to modify the machine specifications and designs without any
notification
upgrade package from time to time.

and all the upgrade(s) can be done through internet assessment from the company

1.2 Packing List

TTEM Quantity

EAGET M7 Player 1 Piece
Power Adapter 1 Piece
Remote Control 1 Piece
AA Battery 2 Pieces
AV Cable 1 Piece
USB Data Cable(A to Mini B) 1 Piece
HDMI Cable 1 Piece (optional)
User Manual 1 Piece

Note: The actual contents in the package might be different from the packing list in this manual, if
any difference, please check with the vendor.

1.3 Precautions of Use

We have well considered the personal safety issues upon designing and manufacturing and
please read the following information carefully before start using it due to the safety and
effective use of this product.

1.3.1 Precautions

Users can not make any changes to this product. If it is using for the commercial hard disk,

please use this player at the temperature range within -5

0

C to +400C.

1.3.2 Use of Power Supply

* Operating voltage of this product: 12V

* Connect the power adapter or power cable to the corresponding main socket on this

product before use.

* Make sure the power cable is located safely and free from any possibility of damage or

pressure to prolong the service life of the adaptor or the power cable.

* In order to minimize the danger of electric shock, please unplug the power supply from

the socket before cleaning it.

* Never use the power adapter or power cable to connect with this product in moisture

and dusty conditions.

* Never change the power cable and plugs for the power adapter or for the power supply.

1.3.3 Radio Interference

If not properly shielded, almost all electronic devices will get radio interference. Under

some conditions, your player might get interference.
The design of this player has followed the FCC/CE standard, and has followed the following
rules:

(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may

cause undesired operation.

1.3.4 Maintenance

In case of any faults with this product, please go to the appointed maintenance points for
maintenance services by our trained technicians. Never disassemble this product by yourself
to prevent from further damaging of the product or lead to self endanger.

1.3.5 Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may

regulate disposal of electrical device, please consult with your local authority.

1.3.6 Hard Disk Cautions

The player uses an internal hard disk for data storage.
Physical impact may create bad sector in the hard disk, you can use CHKDSK to fix the

problem.

All data stored in the player may be lost due to physical impact, electrical shock, power

lost, HDD format etc. Please backup your data.

It is suggested to do defrayment after a long period of usage.

Regularly backup the data in the hard disk so that it can be recovered in the event of
data corruption or loss. Our company takes no responsibility for loss of data stored on the
hard disk.

1.3.7 Others

1. During the use of this product, avoid contacting this product with water or other
chemical reagents. In case of engaging for carelessness, please absorb the liquid with dry
cloth immediately.

2. All electronics device are very sensitive and may be brittle, never vibrate or impact this
product violently during use, nor apply too much force on pressing the keys on this product.

 Do not let the player contacting with water or other liquid.
 Never disassemble, repair or refit this player by yourself. Any damage done will not be

included in the repair range.

 Do not press the buttons with too much force.
 Avoid hitting the player with hard object, avoid shaking, and keep away from magnetic

fields.

 During in static and the strong electromagnetic magnetic field, the product will be fail to

function, then unplug the power cable and then plug the power cable again, the product
will return to normal performance.

2．Connection Instruction

2.1 Connecting the Power Supply

(1) Follow the picture and connect the AC adaptor to the player’s DC IN jack;

(2) Follow the picture and plug in the AC adaptor to the power outlet.

2.2 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player’s HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV’s HDMI jack.

2.3 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player’s A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV’ s A/V IN jack.

2.4 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player’s Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV’ s Y/Pb/Pr jack.

Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;
Second method: use the audio output from the S/PDIF Coaxial or Optical fiber jack.

2.5 Connecting to an Digital Amplifier

(1) Follow the picture and plug one end of coaxial/ Optical fiber cable to the coaxial/ Optical

output port of this product.

fiber

Follow the picture and plug the other end of coaxial/ Optical fiber cable to the coaxial/

(2)

Optical fiber
Note: Optical fiber and coaxial cable are not supplied.

input port of corresponding power amplifier.

(coaxial)

(Optical fiber)

2.6 Connecting to a LAN

To connect to a LAN (Local Area Network) you require a router or switch (not supplied).
(1) Connect one of the crystal plugs on the cable to the player’s LAN socket;
(2) Connect the other crystal plug on the cable to LAN port on your router, switch, or hub devices.

2.7 Connecting to a WLAN

(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the
player.

Helpful tips: The Wi-Fi Dongle is an optional accessory sold separately and not all wireless Network
cards sold on the market can be used for this player. Please consult with the sales when you wish to
make the best use of this product.

2.8 Connecting a USB Device

(Include: U-Disk, removable HDD, USB DVD ROM ect.)
(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.

2.9 Connecting SATA HDD

(1) Follow the picture and plug on end of the SATA cable to the player’s SATA jack;
(2) Follow the picture and plug another end to the SATA HDD.
Then you can through Brower-HDD to browse.

2.10 Connecting to a PC

(1) Make sure the player is powered on;
(2) Plug in the squares connector of the USB cable to this player’s USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.

Help tips:

1. Open “My Computer” and a new disk symbol will appear and In this way, you can manage the
content on the built-in HDD of the player on your local PC.

2. Please refer to the computer instructions to format the hard disk. (It’s not recommended the user
to use other software to partition the hard disk of this player).

3. About the Player

3.1 Remote Control

1.Remote
Indicator

2.Stand by

3.TV System 4.Home

5.Confirm 6.Select

7.Subtitle 8.Audio

9.Music 10.Movie

11.A-B 12.Zoom

13.Mute 14.Eject

15.Edit 16.Repeat

17.Photo 18.File

19.Step 20.Play/Pause

21.FR/FF 22.Stop

23.Setup 24.Previous/Next

25.Slow 26.Return

27.OK 28.Navigation keys

29.Vol+/- 30.Numeral Keys

31.Goto 32.Info

Remote Control Description:

NO. Item FUNCTION

Remote Indicator 1 Remote indicator.

Stand by 2 Press to enter standby mode or wake up.

TV System 3 Switch the output mode into video signals.

Home 4 Return to the Main Interface.

Confirm 5 Press to confirm and add the selects to the play list.

Select 6

Press it in copy menu to select the file to be copied and in
browse menu to select the file to be added into the Play List

Subtitle 7 Press to set subtitle options.

Audio Press to select an audio track. 8
Music 9 Press it to rapidly enter into music applications.
Movie Press it to rapidly enter into movie applications. 10

A-B 11

Press to select a starting point, repress to select an end point,
and playback the selection continuously.

Zoom 12 Zoom in the image.

Mute Turn on/off the sound. 13
Eject 14 Control the ejection of DVD floppy.

Press to enter into file edit menu.you can do rename and delete

Edit 15

the files operations.
When under the My Shortcuts interface,press to adjust the
network edit menu.

Repeat 16 Press to set the repeat mode.

Photo Press it to rapidly enter into photo applications. 17

File Press it to rapidly enter into file copy applications. 18

Step 19 Press to goes forward or backward by certain time.

Play/pause 20 Pause/resart to play the file.

FR/FF 21

Press it in media play mode for FR/FF. Press Play to resume to
the normal mode.

Stop 22 Press it to stop the media file being played at present.

Setup 23 Press it to rapidly enter into Setting Applications.

Press it during media file play for forward or backward for a file;

Previous/ Next 24

Press

to select the Previous/Next Chapter when playing the file

has the chapters.

Slow 25

Press it to slow down the play state.Press Play key to return to
normal play state.

Return 26 Return to the superior diretory and exit from play state.
OK key 27 Press to confirm current operation.

Press the navigation keys to operate the menus on this
interface.
Press to adjust the sizes and vertical positions of plug in text

Navigation keys 28

subtitles;
press to during picture play to move the viewing position after
zooming in and out.
Press left/right key to

rotate the picture.

Vol+/- 29 Press to add or decrease the volume.

Number keys 30

Goto 31

Press to enter numeric input when changing settings.
Select the chapter when playing the file has the chapters.
Press it during video play to select a time period to be played
back.

Info 32 Press to hide or display the information bar during playback.

3.2 Front View

1. IR Receiver Window 2. Stand by Switch(indicator) 3. VFD Screen

Description:

No. Item Description

1 IR Receiver Receive the signal from remote control.
2 VFD Screen

Stand by Switch&

3

work indicator

3.3 Back View

1. USB Device 2.LAN 3. HDMI 4. Coaxial/Optical Fiber

5.AV OUT 6. YPbPr Out 7.DC-IN 8.Power Switch 9. Cooling Fan

Interface Description:

Display the playback status and progress and

information for the operation.

other
Press the bottom to enter into standby mode;
The LED indicator shows green when turned on,
and shows red when standby.

No. Interface Operation instruction

1 USB Device Connect to computer by this jack.

2 LAN LAN: Connect to wire network by LAN jack
3 HDMI

4

Optical Fiber
5 AV Out
6 YPbPr Out

7 DC-IN Power input: DC 12V.
8 Switch Switch on/off the power.
9 Cooling Fan Exhausting the heat from internal.

3.4 Side View

Coaxial/

Connecting to the video device and output HDMI audio
and video signals by this jack.
SPDIF Coaxial/Optical fiber output digital audio. (The
SPDIF coaxial/optical cables are not including in
attachment).
Connect to audio and video device by this jack, and
output CVBS signals.
Connect to audio and video device by this jack, and
output PR/PB/Y video signals.

1.Extenal SATA Interface 2.USB Host ×2

Interface Description:

No. Interface Operation instruction

1 External SATA Interface Connect the external SATA HDD.
2 USB HOST × 2

Connecting external USB device by
this jack.

3.5 Install HDD

3.5.1 Loosen the screws and open the top cover.

3.5.2. Install the HDD (Put the 3.5” HDD into the bottom cover and tight it by the screws).

3.5.3

Connect the player’s data cable and power cable to the HDD.

3.5.4 Install the bottom cover as following picture:

3.5.5

Lock the screws on the bottom of player.

Then HDD installation is completed, as shown below:

4. Power On/Off

4.1 Power On

Connecting the power cable and Video cable and switches on, then press the stand by
key on the remote controller or press the power key on the front panel of the player, power
on the TV and select the input signal by the connecting way, the player will soon enter into
the home menu.

4.2 Power Off

Press the power button on the front panel or press the standby key on the remote
controller, the player will soon enter standby mode, and the power indicator will turn red.
Then switch off to cut off the power supply then you can unplug the power cable.

5. Browse Function

5.1 Browsing Movie

Press the Left/Right keys on the remote controller to select MOVIE from the main menu
above the screen;

Browsing Movie Instructions of Operations

Press the Up/Down keys to select the
device to be previewed and press the OK
key to access;
Press Up/Dow n keys to select the folder
or movie to be browsed and press the Ok
key to the full screen plan state.

The following buttons can be used to control video playback:

Play/Pause Pause or restart to playback the file.

FR: 1.5X, 2X, 4X, 8X, 16X, 32X.

FF/FR FF: 1X, 1.5X, 2X, 4X, 8X, 16X, 32X.

Press repeatedly to select the speed.

Step

Previous/Next Press it during media file play for forward

Press to goes forward or backward by
certain time.

or backward for a file; Press it during IFO
file play to select Previous /Next Chapter.

Number keys

Goto

SLOW

Zoom

Select the chapter when playing the file
has the chapters.
Press it during video play to select a time
period to be played back.

Play video in slow motion.（slow ratio: 1X,
3/4X, 1/2X, 1/4X, 1/8X, 1/16X）Press
repeatedly to select the speed.

Zoom in the image.
(Zoom ratio:1X, 2X, 3X,4X, 8X,)

Subtitle Select and set the subtitle options.

Audio Press to select an audio track.

Repeat

Set repeat options: Repeat title, Repeat
all, repeat off.
Press to select a starting point, repress to

A-B

select an end point, and playback the
selection continuously.

Info View the information of the file.

Mute Turn on/off the sound.

Volume+/- Add or decrease the volume.

Stop Stop playbac k the file.

Helpful tips:

1.In case of messy codes displayed during playing some subtitle files, press Subtitle key to call
out the Subtitle menu and modify the corresponding character set codes and it will display
normally;

2. In case of no audio output during playing some movies, switch the AUDIO to other channels
and if it still fails, please try to decode by power amplification; (Please refer to 2.5 connecting to a
Digital Amplifier; and refer to 8. 1 Change the Voice Settings)

3. All supported movie files will be displayed in this application.

5.2 Browsing Music

Press the Left/Right keys on the remote controller to select MUSIC from the main menu
above the screen.

Browsing Music Instructions of Operations

Press the Left/Right keys on the remote
controller to select MUSIC interface.
Press Up/Down keys to select the
device to be previewed and press Ok key
to access;
Press Up/Down keys to select the folder
or music you want to preview and press
Ok key to play state.

The following buttons can be used to control music playback.

Play/Pause Pause or restart to playback the file.

Repeat

FR/FF FF (1x,1.5x,2X,4X,8X,16X,32X)

Step

Previous/Next Find music files by page.

Up/down key

Mute Turn on/off the sound.

Volume+/- Add or decrease the volume.

Stop Stop playbac k the file.

Helpful tips: In this applica tion, the player will display all supported music files.

Set the repeat mode when playing music
file.(1,ALL,repeat off）

FR (1.5x,2X,4X,8X,16X,32X)

Press repeatedly to select the speed.

Press to goes forward or backward by
certain time.

Select the Previous/Next file on the
preview interface.

5.3 Browsing Photos

Press the Left/Right keys on the remote controller to select photo from the main menu
above the screen;

Browsing Photos Instructions of Operations

Press the Left/Right keys on the remote
controller to select photo interface.
Press Up/Down keys to select the
device to be previewed and press Ok key
to access;
Press Up/Down keys to select the folder

or music you want to preview and press

Ok key to full screen plan state.

The following buttons can be used to control video playback.

PREV/NEXT View the previous or next picture.

Zoom

Navigation key

Info

Pause Pause playback.

Stop Stop playbac k.

Helpful tips:

1. It will automatically start the slide mode when the picture is displayed in full screen;

2. You can also preview pictures when listening to your favorite music;

3. All supported picture files will be displayed in this application.

Zoom in the image.
（Zoom ratio:2X,4X,8X,16X,fit）
Press the Left/ Right keys to revolving the
previous pictures
When enlarged the image, you can move
around by navigation key.
Hide or display the information bar during
playback.

5.4 Browsing All

In this mode, all supported files and folders (only support for music, photos, and movies files)
will be displayed.

5.5 Browse Files via Network

There are three ways to locate media files shared on your local network in the Network
menu. One is to browse through My_Shortcuts; the other is to browse through

My_Neighbors. And the third is browse through workgroup.

5.5.1 Browsing through My_Shortcuts

My Shortcuts: enter by inputting IP address, users’ name and the password directly.

1. Share a file on computer and set access permissions for this folder, it needs read
permissions at least.

2. Close the windows firewall.

My_Shortcuts Instructions of Operations

Press the Up/Down keys on the remote
controller to select My_Shortcuts from the
network menu and press OK key to access.

Press the EDIT button and select Add option
access.

After the add item is selected, you will enter
IP setting window. Press OK key to set the

Net User ID, Net Password, and Specific
File Server IP. click Simple/ Detail to switch

between simple and advanced menu.
And you can also input the IP adress in

Specific File Server IP first,then input Net
User ID, Net Password, and press confirm
or comfirm and save to myshortcuts to
access.

Press OK key to select the dialog box, it will
pop up a visual key board.Use the navigation
key to input the characters for setting Net
User ID, Net Password.

If there is no Net User ID, Net Password for
the shared pc, please input the IP adress in
Specific File Server IP directly.

Select detail to setting Label, Net User ID,

Net Password, Domain, Host Name, and
Specific File Server IP. Click Simple/Detail

to switch between simple and advanced
options.
Then you can select and play the shared
media files on the destination computer.

You can also select “modify” to modify initial setting. Select “delete” for deletion and select return
key to exit.

5.5.2 Browsing Through My_Neighbors

The system will automatically search the computer that has been installed with Transcode. If

the computer is found, the player will display the computer name in the list for users’ choice.

Transcode Server in PC

Transcode server is medial transition software. It need install in PC. And it is a communicate

bridge to connect Net Media Player and PC.

Install transcode Server：

Double click the Transcode Server and finish the installation.

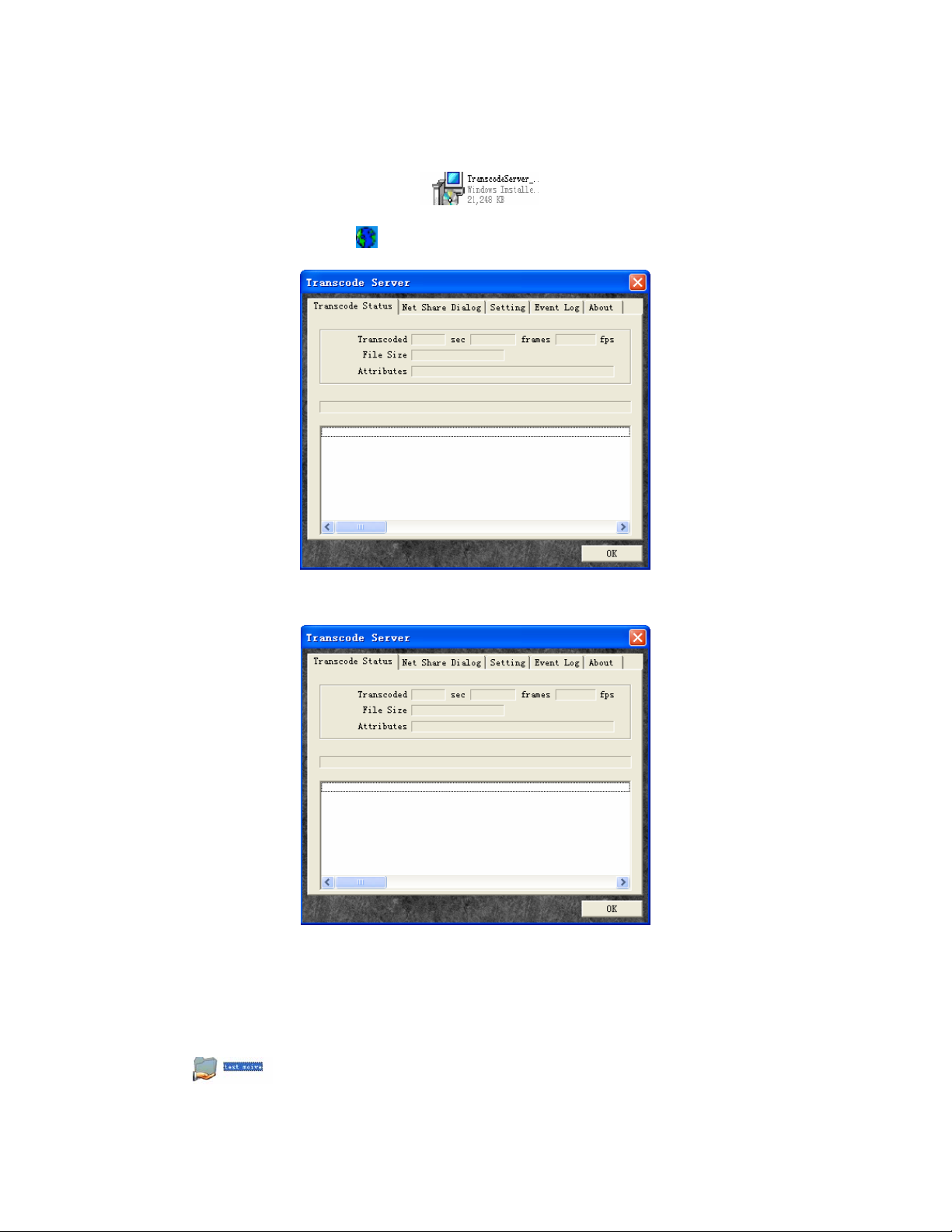

Please execute the Transcode server as installation completed. And the icon will appear on right
of the status bar. Click the icon

Transcode server interface.

or tap Start-Program-Transcode Server to enter the

1） Transcode Status:

The Transcode status interface is used to display the status of Transcode Server.

2）Net share dialog:

Click Net share dialog and select the shared folder on the local PC. Press "Add" to add the

shared folder, press the "delete" to delete the selected folder.

The shared contents of the folder you can be browsed under the My_Neighbors.
Such as you add a folder named test movie on the local computer, you will browse the test

movie folder under the My_Neighbors of the player's. And the shared folder will appear a shared
symbol

on local computer.

3）Setting:

In the setting interface, select the Auto Run on system startup option, click Apply to

confirm, the software will running automatically when the computer boots up.

4）Event log:

In the Event log interface to display PC and Media player communication information.

5）About:

In the about interface view the software’s version information.

5.5.3 Browsing through WORKGROUP

The system will automatically search the network computer. If the computer is found, the

player will display the computer name in the list for users’ choice.

WORKGROUP Instructions of Operations

Press Up/Down keys on the remote
controller to select the workgroup and press
OK key to access.

Press Up/Down keys to select the computer
you want to access and select the media file
to be played from the computer directory and
press OK key to play.

Helpful tips:

The working group or computer will not be displayed in the list subject to the different network
states sometimes. Then it’s recommended that you can preview by My_Shortcut s.

5.6 Browsing from DVD

When you connect an external DVD ROM, the system will be finding the device

automatically, then you can select DVD item in browser and find the file to play.

Set the Setup-System-R/RW auto-play as on, and then when the system detects the DVD-ROM,
it will be playing backs the disc

automatically.

5.7 Browsing UPNP files

Universal Plug and Play is a kind of system structure which is used for PC and equity

common equity network connection of intellectual device (or instrument), and it is especially
used in households.

UPNP that is installed in computer enables us to easily browse the files that are shared
on the internet. When using UPNP for entrance, the situation that your computer has used
UPNP service shall be confirmed. For a computer that is installed with Window xp system,
what you have to do is to update the Window Media Play to the 11
computer will get the UPNP agreement automatically.

After Window Media Play 11 has bee n installed, the steps of starting UPNP can be
found in the following:

1).Start Window Media Play 11 and select library-> media sharing.

th

version, and then the

2). Select settings on this interface and Select Allow new devices and computer
automatically (not recommended) item. The system will found the UPNP device on the
network automatically.

Select allow to making the device (the HD player) is customized.

3). Select library->add to library.

4).On Add to library-Add to add the share files.

Then the UPNP server configures on computer is completed.

Note: you need to close the windows firewall, or you will not achieve the function of
the media file sharing.

Then you can enter the system and select UPNP in Browser access.

5.8 Play list

With Play List function, you can add your favorite media files into the list to play.

5.8.1 Add Music to the Play List：

Instructions of Operations Add Music to the Play List

Select HDD in browser column for entrance.
Then select music interface.
Press the Left/ Right keys to select the file
types of browser on the screen;
Press Up/ Down keys to select
the files to be added into the Play List;
Press SELECT key to mark the files;
Press CONFIRM key to add the marked files
into the Play List.

After select background mu sic in Setup-MISC-background music as playlist, when you are
browsing the photo, it will play the background music as in playlist automatically; if you save the
music and the photos in the same folder, and set the background music as the folder, when you
browsing it will play the music in folder.

5.8.2 Delete file from the playlist：
If you wish to delete a file from the playlist, press the Select key to select, and then press the
Confirm key to confirm.

When you selected the files in playlist, then press Return, it will be prompt as “do you want to
leave without save to playlist” and select Confirm or Cancel to set it.

Helpful tips:

1. To use the Play List, you must format you internal HDD in “setup” mode first.

2. Only add the media files on internal HDD, the files in USB and other external device are
not allowed to add. If you need to add the files on external device, you should copy it in internal
HDD.

3. Cannot add the folders.

6. Renaming/Deleting Files

When navigating in the browser menu, you can press the Eidt key to activate a popup

menu where you can rename and delete files or folders.

Rename the files Instructions of Operations

Press the UP/DOWN keys to select the files
which you want to rename.
Press the Edit key and select Rename item.

Use the navigation key to input, press OK to
confirm.

Helpful tips:

The files in Play list will not be supported to rename. Because it is only as a link exists in

internal HDD.

Delete the files Instructions of Operations

Press the UP/DOWN keys to select the files
which you want to delete.
Press the Edit keys to select delete item.

7. File Copy Menu

Select the File Copy item on the main menu or press the file key on the remote controller to
enter into the File Copy menu, which allows you to copy files between Removable Devices (Card,
USB), HDD, and Network ect.

Steps：

Step 1: Select the source and destination
device

Step 2: Select the source files

Instructions of Operations

Press Up/Down keys to select the
source and targeted device from Source
File and destination File.
Press the Right key to execute the next
step.

Step 3: Select the destination folder

In the source device, select the files
which you want to copy.
Press select key on the remote controller
to select files.
Press the Left key to cancel and press
the Right key to execute the next step.

Select the folder you want to save the
copied file in the targeted device.

And you can also create a new folder to

saved the copied files (select “New
directory”, it will pop-up Virtual
keyboard which you can use it to named
the folder).

Press Up/ Down keys to select the
folder, press the Right key to execute
the next step.

Step 4: Select Copy or Move to proceed

Press Up/Down keys on the remote
controller to select the corresponding
operational functions and press OK key
to confirm and start to copy file.

8. Setup Menu

The Setup menu allows you to personalize and configure the preferences for your player.

Select the Setup icon on the main menu or press the Setup key on the remote control to

enter into the setup menu.
There are five Setup options, including Audio, Video, Network, System, and MISC.

8.1 Changing Audio Settings

Use this menu to configure audio settings.

Night Mode:

Choose between Off /On/Comfort. If the option is turned on, the audio output volume will

be decreased to make you more comfortable.

HDMI Output:

Choose among RAW/LPCM DUAL CH/ LPCM MULTI CH

SPDIF Output:

Choose between RAW/LPCM DUAL CH. In raw mode, Dolby Digital, DTS, or MPEG

sound can be bypassed to the HDMI TV or Digital amplifier.

8.2 Changing Video Settings

Use this menu to configure video settings.

Video Settings Instructions of Operations

Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the

redundant portions. Select when a standard 4:3 TV is connected.

Letter Box 4:3: Display a wide picture with two black borders on the top and

Aspect Ratio

bottom of 4:3 screens. Select when a standard 4:3 TV is connected.
16:9: Compress the image to convert the whole image. Select when a 16:9

TV is connected.
16:10: Compress the image to convert the whole image. Select when a 16:10

TV is connected.

Zoom Out

Brightness

Contrast

Hue

Saturation

Digital Noise

reduction

Video system

1080P 24HZ

Turn on this function can reduce the image display size.
Adjust the level of brightness.
Adjust the level of contrast.

Set the contrast of screen.
Set the contrast of screen.

Select auto to reduce the noise on the display and enhance view quality.
Select to adjust video output resolution: HDMI Auto, NTSC, PAL, 480P, 576P,

720P 50HZ, 720P 60HZ,1080I 50HZ, 1080I 60HZ, 1080P 50HZ and 1080P
60HZ

Turn on this function, Playback the film files as 1080P-24HZ format will be
more smoothly.

8.3 Changing Network Settings

Use this menu to configure Ethernet, LAN (Wireless Local Area Network) and PPPoE

settings.

8.3.1 Wire LAN Setup
Wire LAN Setup
a.DHCP

Select to obtain IP address automatically.

b. FIX IP (MANUAL)

Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS
Server IP Address. In case of any questions about the settings, please go to the network
administrator for help.

Use the Navigation and Number keys on the remote controller to input the IP address.

Press Ok key to confirm.

8.3.2 Wireless Setup

Wireless Setup

1). Selecting a connection profile

This player can store up to three wireless network connections. Press ENTER to go to

next step, press RETURN to cancel, and press PLAY to connect.

2). Get Connection Mode

Choose among Infrastructure (AP) and Peer to Peer (Ad Hoc). Press ENTER to go to
next step, and press RETURN to cancel.

The following detailed description of these three kinds of connection settings.

8.3.2.1 Infrastructure (AP)

Infrastructure mode is used to connect computers with wireless network adapters, also
known as wireless clients, to an existing wired network with the help from wireless router or
access point.

Step1: Get SSID Name

After connection way of AP is selected, press the enter key to enter and get SSID setting
page.

The system will automatically search the surrounding available network resources. After
a while, the system will list the found SSID in table for users’ choice. Through this table,
users can select the wireless base station they want.

If the wireless base station has encryption, the password shall be input in relevant dialog
box. NONE means it is an open system network.
As a different way in WPA and WEP encryption, the Virtual keyboard for enter the
password will show as different.

After set up ok, the system will display the set result in Test OK and Show Net info
interface. The information of wireless base station is recorded here, such as SSID, safety
mode, IP address, subnet mask and preinstall gateway. Press the enter key to complete the
setting.

If obtained the IP address failed, please return and try it again.

8.3.2.2 Ad-Hoc Setup

Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is
used to connect wireless clients directly together, without the need for a wireless router or
access point.

Connect wireless network card with the system and carry out the following operations.

Step 1: Ad-Hoc Setup

After AD HOC way is selected, press the enter key to enter Ad-Hoc setting page.
Directly press Play key and the system will automatically carry out Ad-Hoc setting based

on the default setting.

Related settings:

a. Wireless SSID (name of wireless)

Use the Virtual keyboard to input.

b. Wireless Security (select whether it is Open System or whether use WEP password to

enter)

Use the Virtual keyboard to input.

c. Host IP

After the setting is finished, press Play key to enter system setting.

Step 2:

If the setting is successfully finished, the system will display the set result in Test OK and
Show Net info interface. The information of Ad-Hoc is recorded here, such as SSID, safety
mode, IP address, subnet mask and preinstall gateway. Press the enter key to complete the
setting.
If obtained the IP address failed, please return and try it again.

8.3.2.3 WPS（AP）

Connect wireless network card with the system and carry out the following operations.
After WPS (AP) way is selected, press the enter key to enter setting page.
There are two connection ways: button setting (PBC) or individual information code (PIN

code).

a. PBC (Push Button)
After PBC mode is selected, press the enter key for confirmation and the system will
automatically get the IP.

If the setting is successfully finished, the system will display the set result in Test OK and
Show Net info interface.
If obtained the IP address failed, please return and try it again.

b. PIN code

After PIN method is selected, press the enter key for confirmation and the system will
automatically get the IP.

After the setting is successfully finished, return to network setting interface. The
connection mode, IP address and signal intention will be displayed on the right side of the
screen. (Note: AP means AP mode has correctly run; AD HOC means AD HOC mode has
correctly run.)

Helpful tips:

The Wireless Network Card for USB is an optional and not all wireless Network cards
sold on the market can be used for this player. It only support the model as Realtek
RTL8187B and Realtek RTL8191SU, Please consult with the sales when you wish to make
the best use of this product.

8.3.3 PPPoE Setup

Dial connection

Input the user ID and password in corresponding dialog box, then select the Wired
interface or Wireless interface for dial-up connection.

Helpful tips:

When the wire/wireless/ PPPoE network are connected at the same time, and obtained the

different IP address, on the front of the valid network there is a mark as＊.

8.4 Change the System Settings

Use this menu to configure system settings.

Menu

Language

Text Encoding

Select to choose the OSD (On-Screen Display) language.
Include:English,TraditionalChinese,Espanol,Francais,Deutsch,Italiano,
Dutch,Pyccknn, Simplified Chinese, Polski, Cesky, Magyar,Portugues.
Press the Up/ Down keys to select the desired language.

Select to set the text encoding option (subtitle display),
Include: Unicode (UTF8), Simplified Chinese (GBK), Traditional
Chinese (BIG5), Western, Turkish, Central European. Greek, Cyrillic,
Hebrew, SE European,
Wrong selection may cause the messy codes of subtitle displayed.

Login Control

BT and
SAMBA

Select to turn on/off the password protect for BT and SAMBA.
Default user ID:admin Default password:123
If you select off login control, you can go to the BT and SAMBA
without input a password.

Select to turn on/off the BT and SAMBA.

System Update

Time

Parental

Control

R/RW Auto-

Play

Angle Mark

More detail update method please see the Chapter 11.
And the system information is also displayed in this interface.

System time setting.
Use the navigation key and number keys to set.
Select whether to classify the grade of the movie or the setting of the
grade.
Default password: 0000

Automatic play of DVD.
Press up/down key to select and press the enter key for confirmation.

During play back DVD files, you can select the different visual angles
to watch DVD. Press the Up/ Down keys to set the switches.

Select to format the built-in HDD.

HDD Format

After formatted the hard disk, the data saved on the hard disk will be
lost; so please operate carefully.
More detail please see the Chapter 8.4.1.

Restore

default

Select to restore factory defaults.

8.4.1 Format HDD

For users who wish to install a new SATA HDD into the player, please refer to the
following procedures to format the hard disk on the player before usage.

Access into Setup->System->HDD Format menu

Step 1: Select OK on the Warning page, press ok to confirm

.

Step 2: Select Format, press ok, and then hard disk format will start.
The formatting procedure will be finished within a few minutes. And then you can use the hard

disk properly on the player.

After success format the HDD, then you can use you player normally.
Note: HDD format will remove all data stored on the hard disk drive. Please take care and backup

your data in advance!

8.5 MISC

Use this menu to configure s MISC settings.

Resume play

Slide show

timing

Transition

effect

Ken Burns

Seamless

playback

Background

music

Screen saver

Movie

preview

Play

Whether or not to continue to play from the point interrupted last time.
Time to switch over to the next slide when the pictures are played in slide
form (off, 2S, 5S, 10S, 30S, 1MIN, 2MIN）
Transitional ef fect for picture switch when the pictures are played in slide
form(include: off, cross fade, left to right, top to bottom, waterfall, snake,
dissolve, strip left down,all effect shuf fle）.
Animation effect for picture switch when the pictures are played in slide
form.
No middle pause when turn on this function during playback the Multi­segment DVD.
Set to play the music in the Play List or music file in the present folder as the
background music.

Activate the screens saver function.
Select whether or not to preview the movies before playing it.

Select the class of the files you wish to auto play.
More detail sees the chapter 8.5.1

Auto play the media files function.

8.5.1 Auto play the media files function.

Only support for used in an external USB storage device.

1. Create three new folders as photo, music, video under the root of the external USB
device, and
Copy the files which you wish to

2. Through setup-MISC-play, select the class you wish to auto play.

3.
system will come into the directory automatically to playback the media files.

create a photo.txt, music.txt and video.txt file in the corresponding file folder,

automatically playback into the corresponding folder.

After setting, connect the external USB to the player, and restart the player. Then the

9. IMS

This is the third-party service and may be close off because of the policy issues.

Press left/right key to selected, press ok key to access into IMS interface.

In IMS interface, you can go online to browse; there are Youku, search video, weather,
Voole, and RSS News five items to browse.

10．BT and Samba

10.1 Web management and BT Download

To use this function, you need to format the Internal HD in Settings-> System-> Format

menu;

10.1.1 Login on Web Management Page

Please make sure player is connected to the network, and get the IP address of the player

under SETUP->NETWORK menu.

Tap the IP address (e.g.192.168.0.195) in the address bar of Internet Explore on your PC.
Then you can access the Web server on your PC.

Note: if the settings -> System -> Login control is set to on, the password to take effect.

The default user name is' admin ', default password is '123'.

If the login control is off, it will not need to enter a password and come into the main
interface directly, the main interface showing as follows:

10.1.2 Account Management

At Home page, select “Account Management” into Account Management page.

If click “Account Management” is not into this page, please ok Login control is set to ON.

Login password can be modified at here. Please setting password according your favorite.
Please input password twice and click “Enter” to confirm.

10.1.3 Visit Neighbor

Click Visit Neighbor on the home page of Neighbor Web.
All the devices are display here and you can click to visit.

10.1.4 BT Download

The BitTorrent client btpd is running in daemon (a process running in the background)

mode and you can manipulate the process via the Web server.

Click BitTorrent Download on the home page of Neighbor Web, then you will enter the

BitTorrent Download page.

10.1.5 Add new torrent

Click Add new torrent on the BitTorrent Download page.

Click Browse to upload a torrent file, and click Yes to confirm.

10.1.6 Managing the downloads

The BitTorrent Download page also allows you to start, stop, delete torrents, and set

priorities for torrents, as well as view the status of current torrents.

Click Start to begin download.

Click Stop to stop download.

Click Delete to delete the selected torrent.

Click Refresh to refresh the current status.

Click Down arrow to decrease the priority for the selected torrent.

Click Up arrow to increase the priority for the selected torrent.

10.1.7 Settings

Click Setting on the BitTorrent Download page to enter the BitTorrent Setting page.

In the BitTorrent Setting page, you can configure the following settings:

Set the maximum download rate.

Set the maximum upload rate.

Set the idle hours to start the next download automatically.

Set the seeding hours.

Set to delete the finished torrent files automatically or not.

Set the maximum number of simultaneous download tasks.

10.2 Network Attached Storage

This product may serve as the network storage device (NAS, Network-Attached
Storage). Put it into your family network to make it convenient for you to store and manage
the data on LAN.

Before using this function, please make sure the network (Ethernet or wireless network)
has been connected correctly. Input the \\IP address in the address column of START UP->
RUNNING or on the browser of Windows operating system and then press Enter key on the
keypad to access the built-in hard disk on the player from the computer on LAN. E.g., input
\\192.168.0.195 if the player’s IP address is192.168.0.195.)

With this method, you can access into any partitions on the hard disk of the player, you
can manage, copy or store the data in the player on LAN.

You can also access the player's Internal HD (samba) by the ch apter 10.1.3 Visit Neighbor.

11. Upgrading Firmware

Firmware refers to the operating system (OS) on this product. Regularly upgrade the
firmware to the updated functions.

11.1 Upgrading firmware in setup menu

Please download the firmware programs with updated versions from the official websites.
And update firmware version as per the following steps:

Step 1: Prepare the external storage devices (such as SD card/removable HDD/U-

disk ect. but only support FAT32 and FAT16 formats)

Please extract the downloaded firmware programs with the updated version to the root
directory of external storage.

Step 2: Connect the external storage devices
Connect the prepared external storage devices onto the USB HOST port of the
player.

Step 3: Enter into Software Upgrade menu

Enter into Setup-> System -> System Upgrade menu.

Upgrade method when the player unable enter into the main menu

11.2

Step1: Please extract the downloaded firmware programs with the updated version to the

root directory of external storage devices. (Such as SD card/removable HDD/U-disk ect. but
only support FAT32 and FAT16 formats)

Step 2: Connect the external storage devices onto the USB HOST port of the player.

Step 3: Unplug the power cable, hold down the standby button.

Step 4: Plug the power cable and approximately 5s loosen you hand which was pressed

the stand by buttom.

After the operation has been confirmed, the system will be restarted and the System

Upgrade interface will be displayed on the screen.

The whole installation will last for approximately 2 minutes; please wait for it patiently.
The player will be restarted after installation. Then you can use all functions of this player
normally and experience the unequalled multimedia enjoyment.

Remarks:

If installed error, unplug the power and re-installed;

Never disconnect the power supply during installation;

Never unplug the external storage devices during installation.

Different Model of player cannot use the same firmware, please upgrading it with serious

cautious.

Please contact your dealer or choose to visit our website for the latest firmware.

Note:

View the current software version; please enter into the Setup-> System -> System

Upgrade menu.

12. Others

12.1 Specifications

List of Supported ports:

 USB 2.0 HOST port x 2
 USB 2. 0 Slave port
 Composite (CVBS) A/V jack
 Component Y/Pb/Pr jack
 HDMI V1.3 interface
 Digital audio optical/ coaxial port
 3-in-1 card reader
 12V DC-IN

Multimedia formats supported:

i) AVI/MKV/TS/M2TS/MPG/MOV/VOB/ISO/IFO/DAT/WMV/RM/RMVB,surport for

720p/1080i/1080p
ii) MP3/OGG/WMA/WAV/AAC/FLAC
iii) HD JPEG/BMP, with unlimited resolution

Video codes supported:

iv) MPEG-1
v) HD MPEG-2
vi) HD MPEG-4 SP/ASP/AVC(H.264)
vii) WMV9(VC-1)
viii) Real Networks (RM/RMVB) 8/9/10, support for720p

Audio codes supported:

ix) MP2/3, OGG Vorbi s, FLAC, WMA Standard (DRM, and Advanced Profile not

supported), PCM, LPCM, AAC,RA

Subtitle formats supported:

x) SRT, SMI, SSA,SUB, IDX+SUB

Network

Ethernet/
Wireless
network

Note: The Company has the right to changes the specifications of his products or designs without
further notification.

10/100Mbps Auto-Negotiation Ethernet
IEEE 802.11b/g/n WLAN, at maximum 300Mbps (supported by
optional WLAN USB Adapter)

12.2 FAQ

Question 1:

My computer can not find the product.

Answer:

(1) Make sure the unit is in on status.

(2) make sure that the unit is connected with the computer

(3) Connected the product to the back of computer USB jack.

Question 2:

When I try to disconnect the USB device, I keep on getting “The device ‘Generic
volume’ cannot be stopped right now. Try stopping the device again later.” message, what
should I do?

Answer:

Close any program that might be accessing data on the player, including Windows® Explorer.
If it does not work, close all programs and wait for another 20 seconds, then try the green arrow
icon again. If it still does not work, you should shut down the player and disconnect the USB
cable.

Question 3:

I find new file names and folder names that I never created before or they have strange

gibberish names.

Answer:

Most likely, the player’s file allocation table (FAT) has been corrupted. This might be due to
the player shutting down (due to low battery power) while reading or writing to your computer by
the USB connection. Windows and Macintosh often write extra files to the hard disk such as
finder.def or System volume info. These are normal and will not do any harm to the player.

Question 4:

I used my player to transfer files back and forth between different computers. Will
defragmenting the player hard disk do any harm to it?

Answer:

Defraygmenting the player hard disk may be useful after having transferred many files to and
from the player. It is never harmful to use the defrayment on the player. Make sure no other
programs are running while using the Windows® defrayment utility. Make sure you have
connected the player with the external power adapter during this procedure.

Question 5:

My files have disappeared from the player.

Answer:

Make sure that you browse your files via the correct browser mode which means correct
filtered views such as Photos, Music, or Movies.

Question 6:

Why do some support's form picture can't display in picture browser?

Answer:

E.g., the JPEG format include many different models, and our product does not support the
gradual mode images, so you need for modify it to display it.

(1) Open the picture with Photoshop.
(2) Select "File" -> "Save As", select the image format is JPEG, input file name as following

picture, then click "Save."

(3) when click "Save" it will pop-up dialog box as shown below; select "Baseline ('standard')"

or "baseline optimized".

(4) Click "OK."

Question 7:

During power on, why does the TV will have a short flashing, blue screen or
screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can
output the correct video signal to the TV, during the initializing time, the TV will receive incorrect
signals or the signals will not be stable and will cause the TV screen to flash, some TV’s will treat
this as no signal, and will display a blue screen or screensaver.

Question 8:

Why when I switch to Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p, does the TV screen

display an unwatchable picture?

Answer:

Please check if your TV supports Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p output, if
your TV does not support, please use the A/V signal display instead, press the TV SYSYEM
button on the remote control, then switch the TV’s video input to NTSC or PAL.

Question 9:

Why is there no sound on movie or music playback when using Y/Pb/Pr component

output?

Answer:

Y/Pb/Pr output is a video output only, and does not include sound signals. When using

Y/Pb/Pr output, please plug the A/V OUT or the S/PDIF jack to output sound.

Question 10:

Why does my player can not recognize HDD?

Answer:

First make sure it is installed correctly, and do not delete any partitions on computer.

If there is a bad area of you HDD, you need to back up the data first and re-install the driver for

the system.

Question 11:

Why the subtitles my added can not come out?

Answer:

First make sure the file name of the film and the subtitles are in same (Distinguish Capital

/small letters), and saved in the same folder.

12.3 Copyrights and Trademarks

Copyrights

The Company reserves all patent, trademarks, copyright and other intellectual property rights,
and the content of User manual can not be reprinted without permission. The software, music or
movies owns the copyright are protected by the relevant laws, Users who use this player to copy
of such content need to bear the related legal responsibility.

Trademarks

Manufactured under license under U.S. Patent #’s:5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued &
pending. DTS and DTS 2.0 + Digital Out are registered tra demarks and the DTS
logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights
Reserved.

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

Declaration:

The copyright of this product is owned for the corresponding factory owner, and protect by

the "Copyright Law”, we sell the product are not means transfer or grant to the user any
rights of the copyright.
