AGE 14+
E011C
DRONE X BRICK 2 IN 1
*Please read this manual carefully before operation
and keep it properly for future reference.
1
4
3
2
1
7
6
5
1
2
3
4
5
6
7

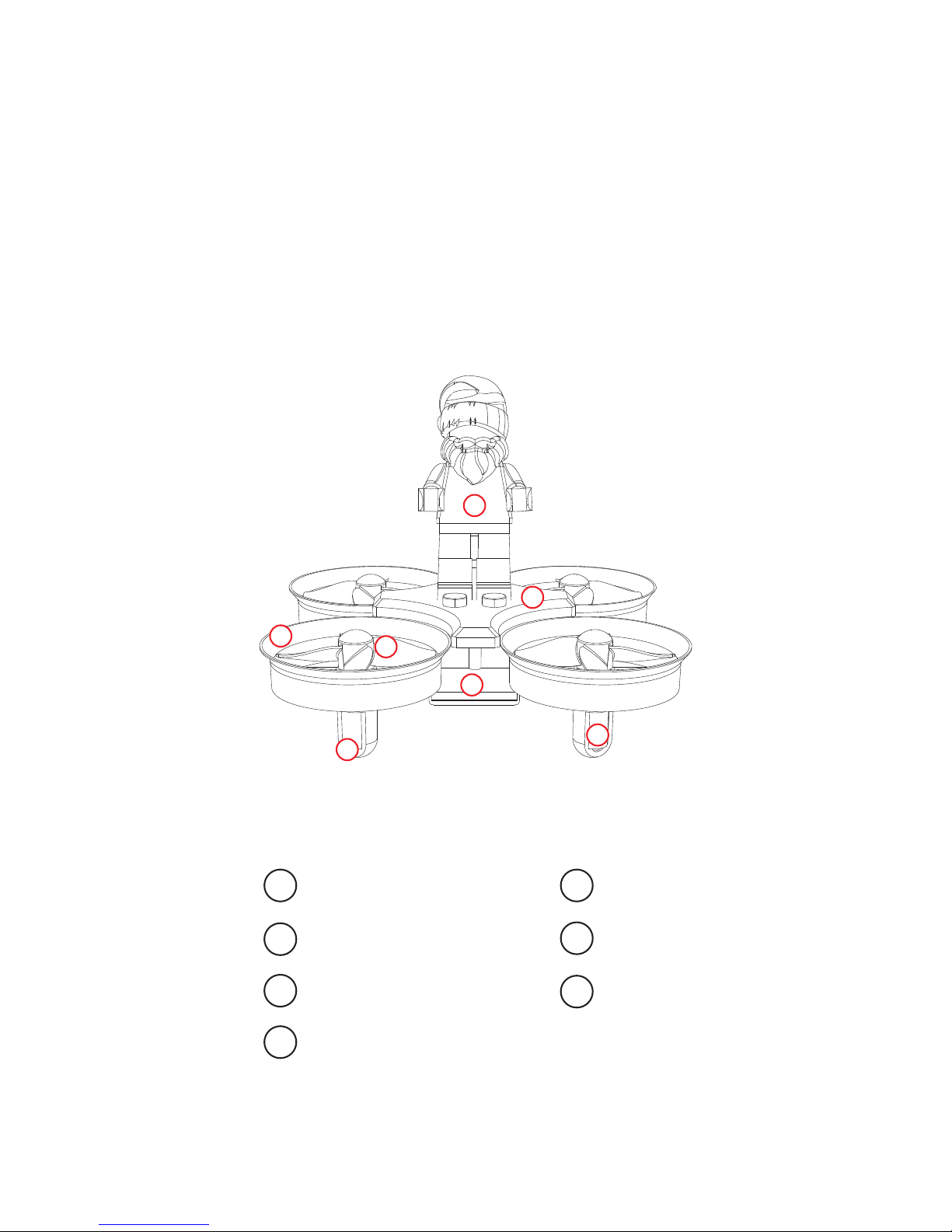

KNOW YOUR
E011C
Block-man
Protective Guard
Propeller
Motor Holder
Battery
Casing
Motor
E011C Drone applies building blocks into the drone
construction and uses 2.4GHz to enable multiple
players compete without any risk of interference. It is
easy to operate via remote control to control functions
such as flying, 3D flips and rolls, return to home,
headless mode and other features.
2
AGE 14+
E011C
DRONE X BRICK 2 IN 1
*Please read this manual carefully before operation
and keep it properly for future reference.
ACCESSORIES
E011C
x1
(Battery Included)
Remote Control x1
Backup Propeller x4 USB Charging Cable x1
User Manual x1
Notes:
Please check the number of accessories carefully
(as shown above). Please provide proof of purchase
and contact the store for replacement if any missing
parts.
Flat Screwdriver x1
3
PRE-FLIGHT PREPARATION

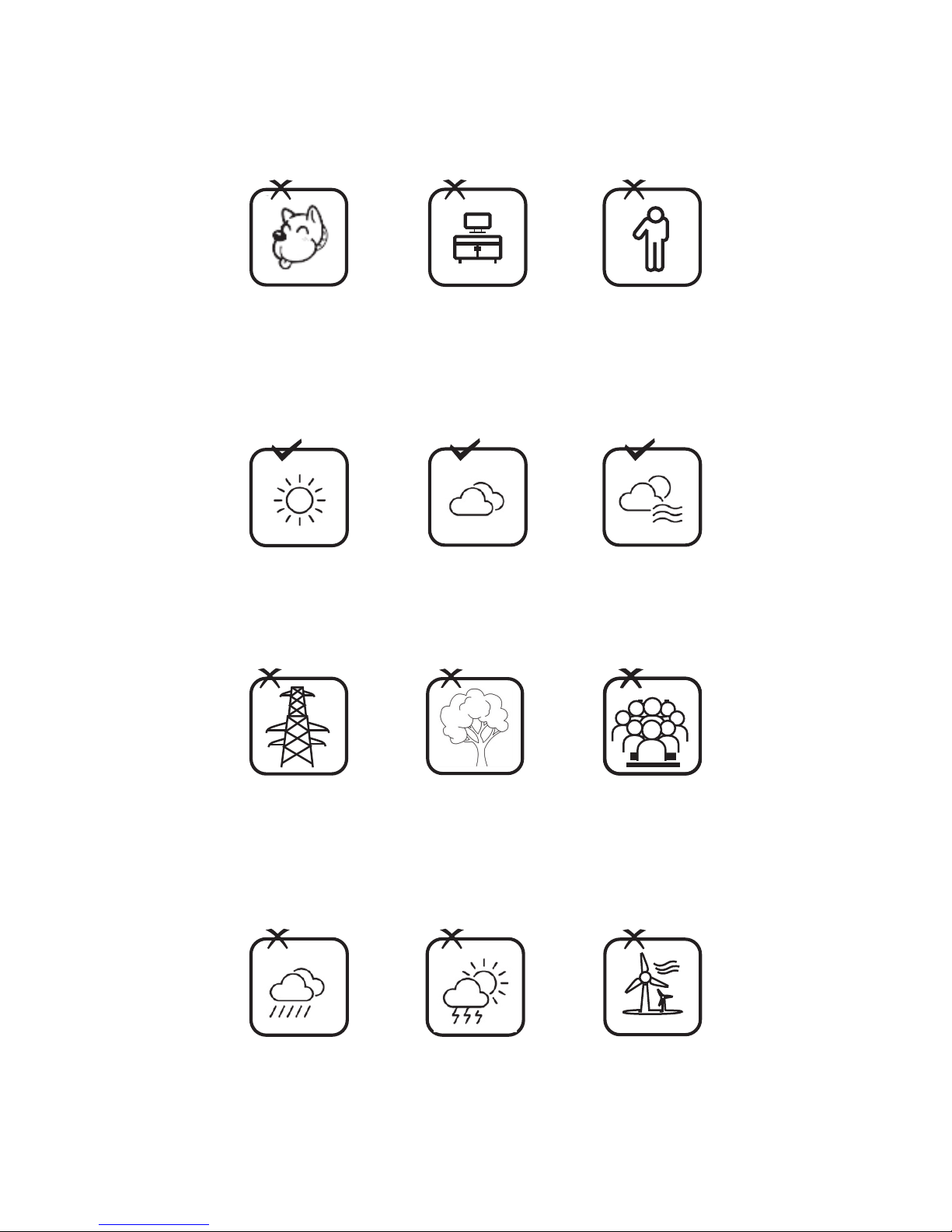

1.Flight Environment
Please keep the drone in sight during the flight and
keep it away from barriers, high-tension cables,
trees and people.
Do not fly in extreme environment, such as hotness,
coldness, strong wind or heavy rain.
Indoor: Spacious spaces away from barriers, crowds
or pets are preferred.
Outdoor: Sunny, windless and breezy weathers are
preferred.
4
A
AB
B
A corresponds to A
B corresponds to B
①Fix Block-man onto
the drone.
②Block-man stands
still above the drone.
Hold onto the hat of the
blades, align the hat to
the motor shaft and
press until fixed.
FRONT

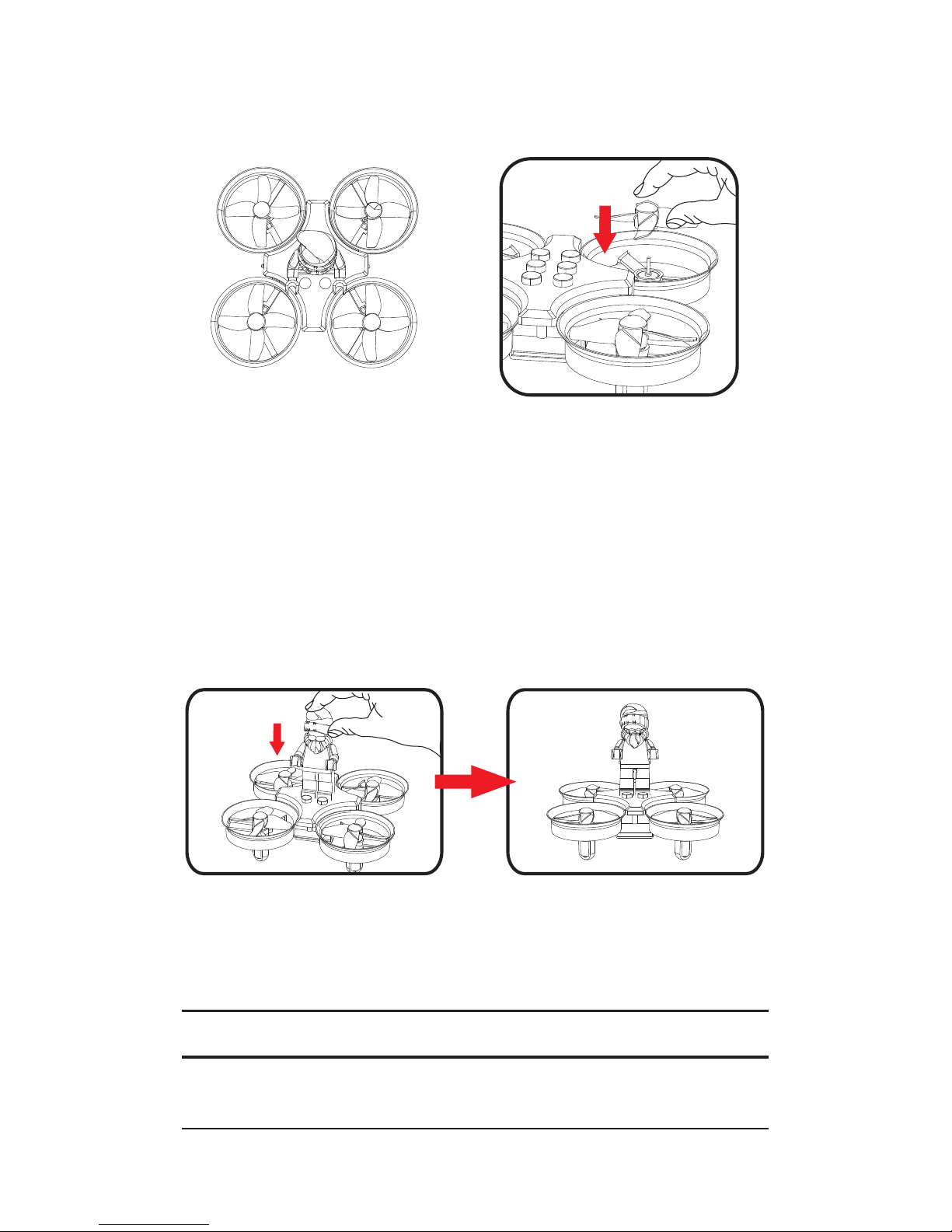

3.Block-man Installation
Notes:
When installing or dismantling the propeller, please
do not exert force on the propeller to avoid distortion.
2.Propellers Installation
5
4.Battery Charging for Drone
Notes:
LED lights on when charging, LED lights off when finish
charging. Charging time is about 30-50 minutes.
A.Remove the battery from drone bottom.
B.Connect USB charging cable with lithium
battery and the USB charging interface to
charge up.
Battery lnstructions
!
There is a certain risk when using lithium battery.
It may cause fire, body injury or property loss.
Users must be aware of the risks and take full
responsibility of using battery improperly.
If battery leakage occurs, please avoid contacting
your eyes or skin with electrolyte. Once it
happens, please wash your eyes with clean water
and seek medical care immediately.
Please remove the plug immediately if you sense
any peculiar smell, noise or smog.
Battery Charging
Please use the charger from original factory to
ensure your safe usage.
Do not charge dilatant or outworn battery.
Do not over charge battery. Please unplug the
charger once fully charged.
Do not charge the battery next to inflammables,
such as carpet, timber floor or wood furniture or
on the surface of electro-conductive objects.
Please always keep an eye on the battery when
charging.
Do not charge battery which not cool down yet.
The charging temperature should be between
0℃to 40℃.
Battery Recycling
Do not dispose the battery as daily rubbish. Please
familiarize yourself with the local garbage disposal
method and dispose it according to the
special requirement.
6
7
KNOW YOUR REMOTE CONTROL

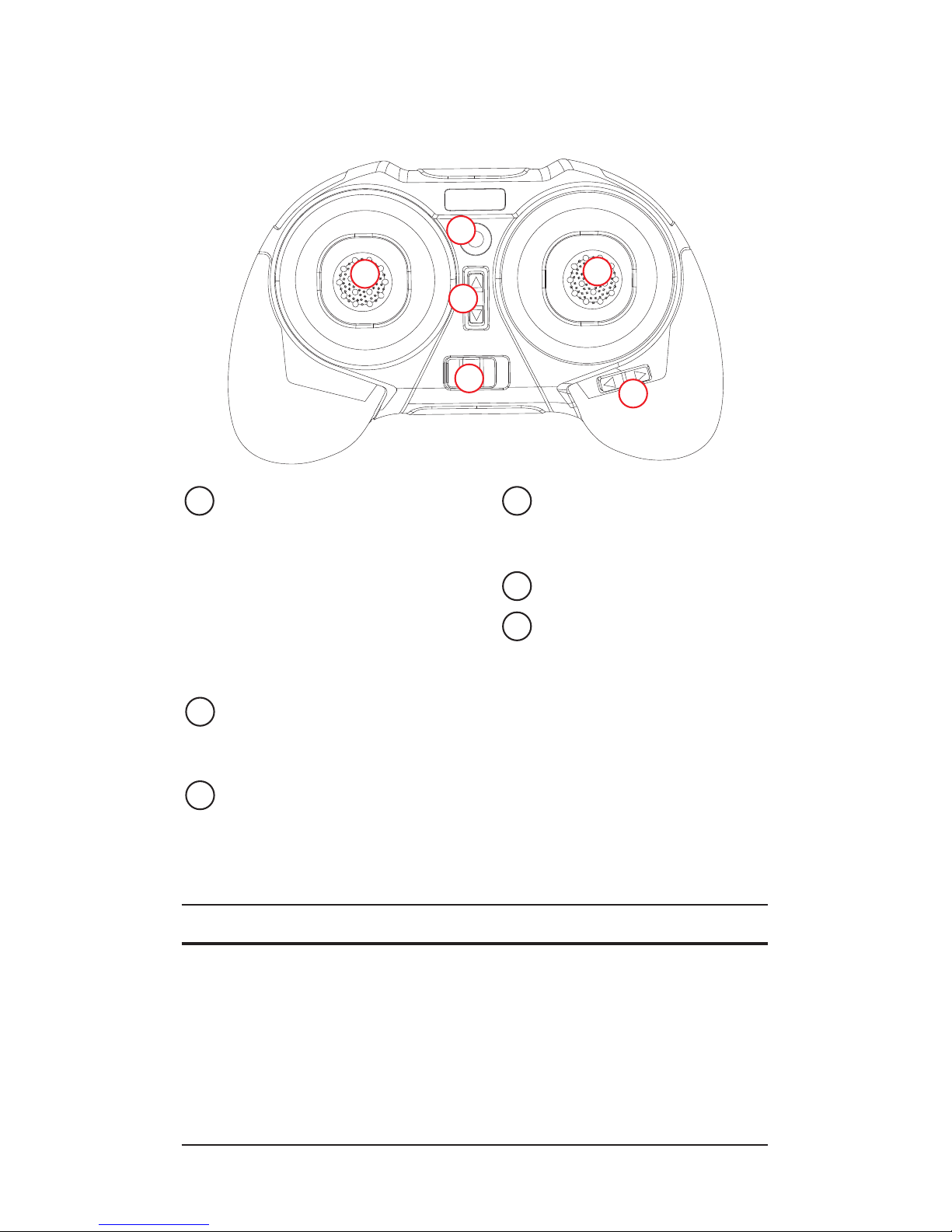

Operation Board of Remote Control
Throttle Joystick/
Press for Return to
Home/Push the Rubber
Joystick to Enter Headless
Mode During Return
Forward/Backward
Fine-Tuning
Power Switch
Left/Right Turn
Fine-tuning
Indicator Light
Rubber Joystick/Short
Press for Flips&Rolls/
Long Press for Three
Seconds to Enter
Flight Mode
(Brick Block Mode/
Power Save Mode)
Notes:
Brick Block Mode is set as the default mode during flights.
However, it consumes a large amount of power to flip
and roll, resulting in shorter flight time. Therefore, it is
suggestive to disassemble the block-man and press the
mode button for three seconds to switch to another mode
for longer flight time.
1
1
2
3
4
5
6
4
5
6
2
3
8
+
-
1.5V“AAA”
+
-
1.5V“AAA”
+
-
1.5V“AAA”
+
-
1.5V“AAA”
+
-
1.5V“AAA”
+
-
1.5V“AAA”

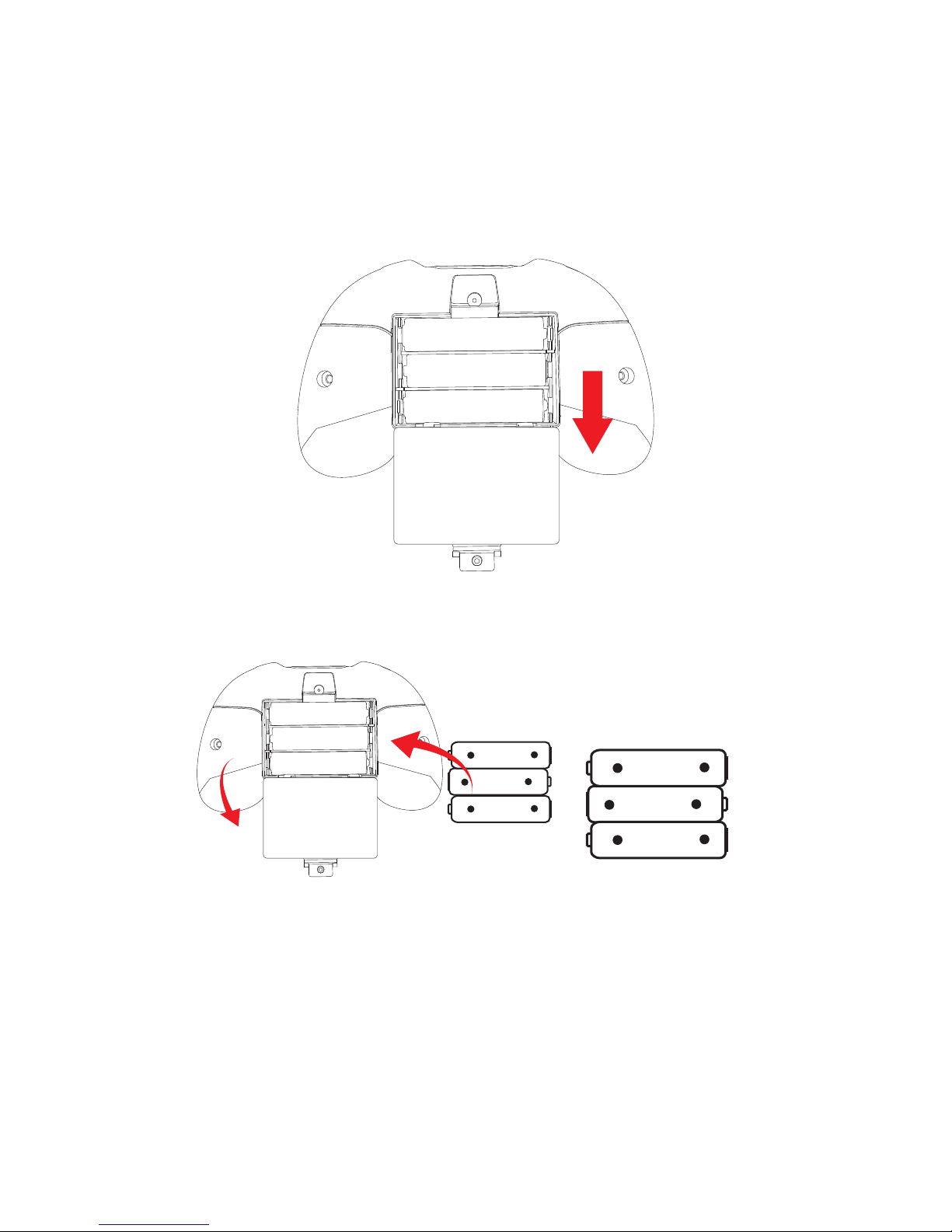

1.Battery Assembling for Remote Control
①Open the Remote Control Battery Cover
Open the battery cover by sliding the cover downward
(as shown in figure).
②Battery Assembling for Remote Control
AAA batteries *3
Open the cover of battery compartment, insert three
AAA batteries (not included).
9
1
2

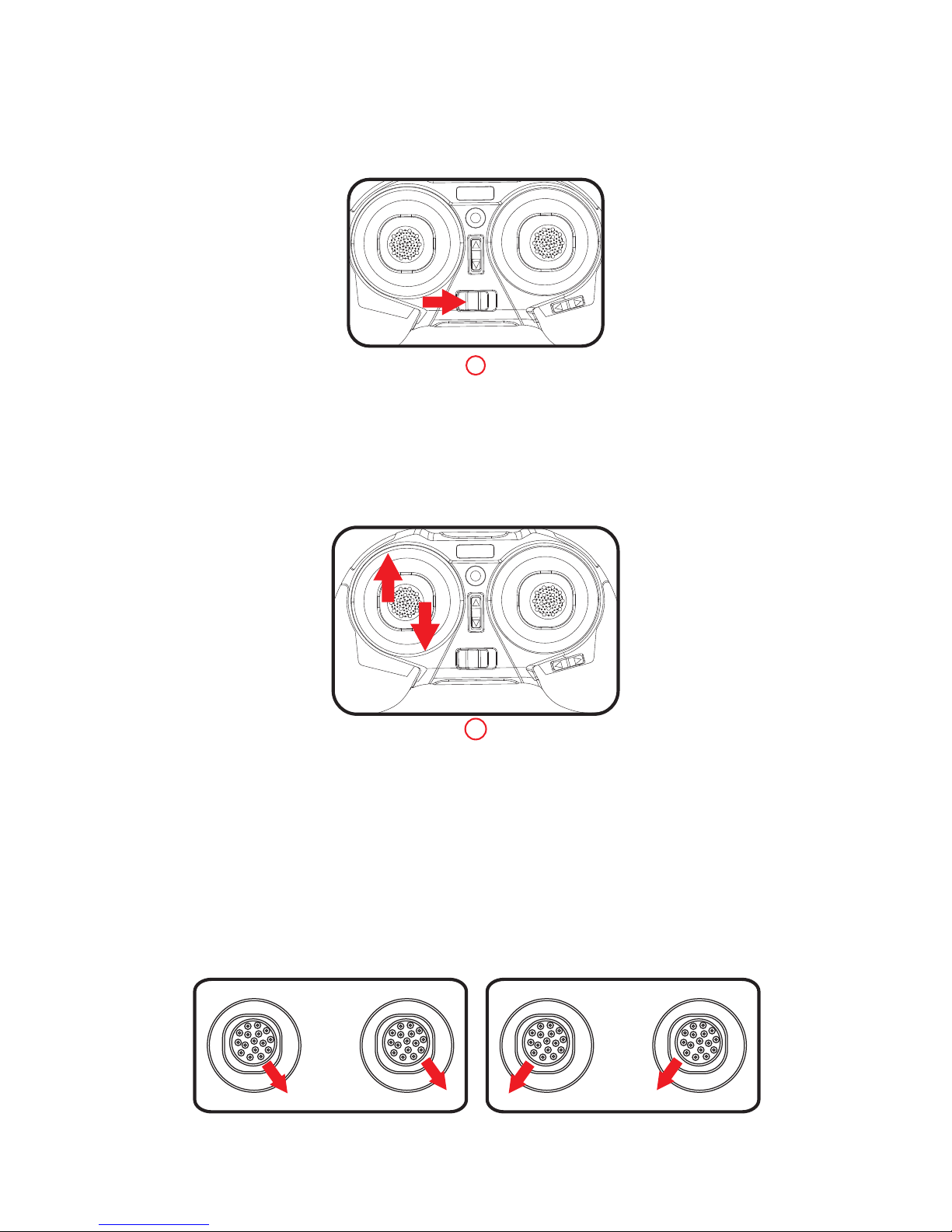

2.Pairing Remote Control with Drone
①Turn on the power of the drone; put the drone on
plain ground; check whether the indicator lights
of remote control and LED lights of drone flash.
②Push the accelerator joystick to the top and then
pull back to the bottom. On hearing a clear sound,
the indicator light of remote control and LED lights
of drone will turn from flashing lights to constant
lights, which means the pairing completes.
3.Calibration
①Calibration ②Reset the course
Calibrate the drone when it cannot vertically ascend.
Press “Calibration” button and the indicator light of
drone would start flashing,then trun to constant light.
Thus the calibration completes. Ensure the whole
process of calibration is operated under horizontal
and steady circumstances.
10
FLY WITH REMOTE CONTROL

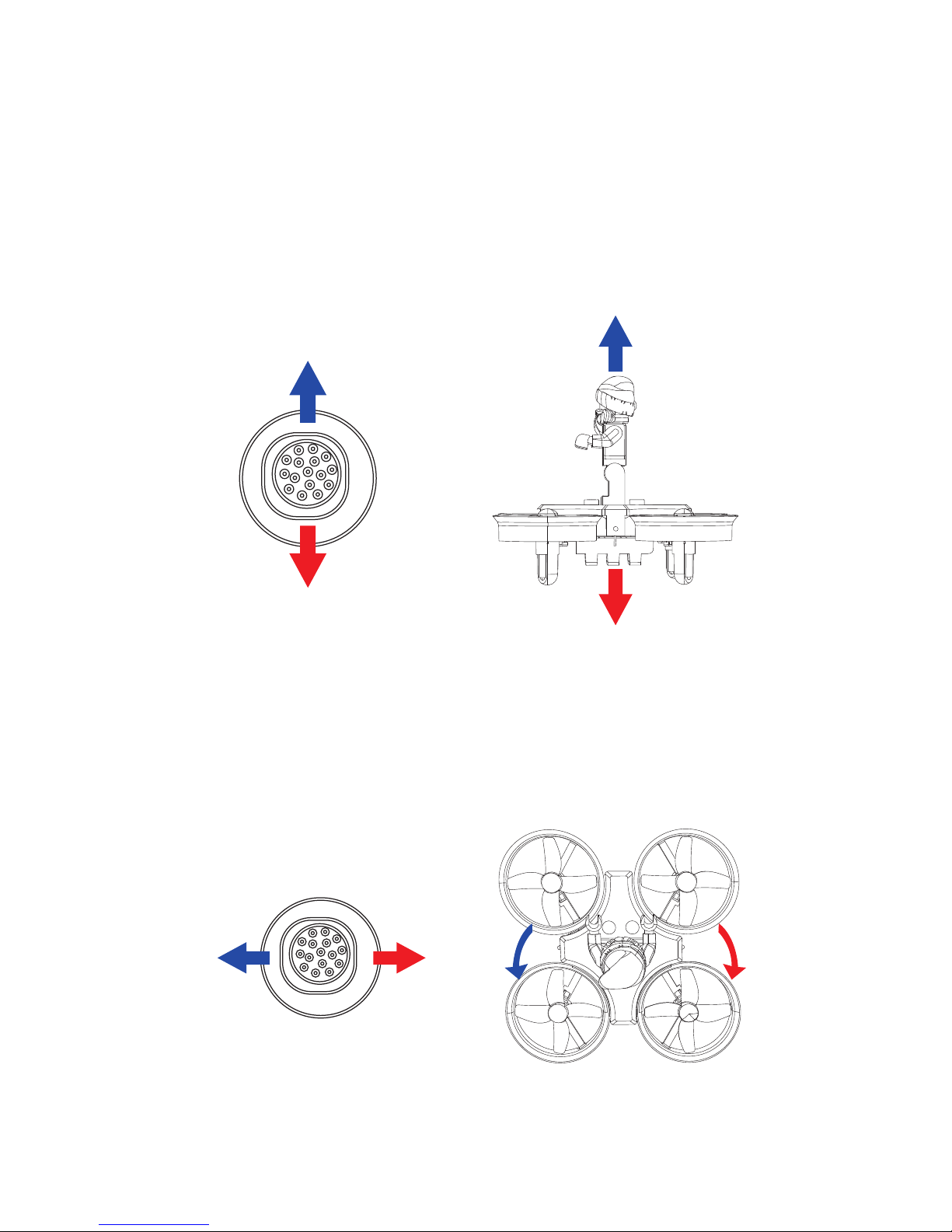

1.Flying
The left joystick is used to control flying height and
left and right turning, while the right joystick is used
to control forward, backward and sideward flights.
Left Joystick
Ascend
Descend
Turn Left
Turn Right
11
Right Joystick
Forward
Backward
Left
Sideward
Right
Sideward
12

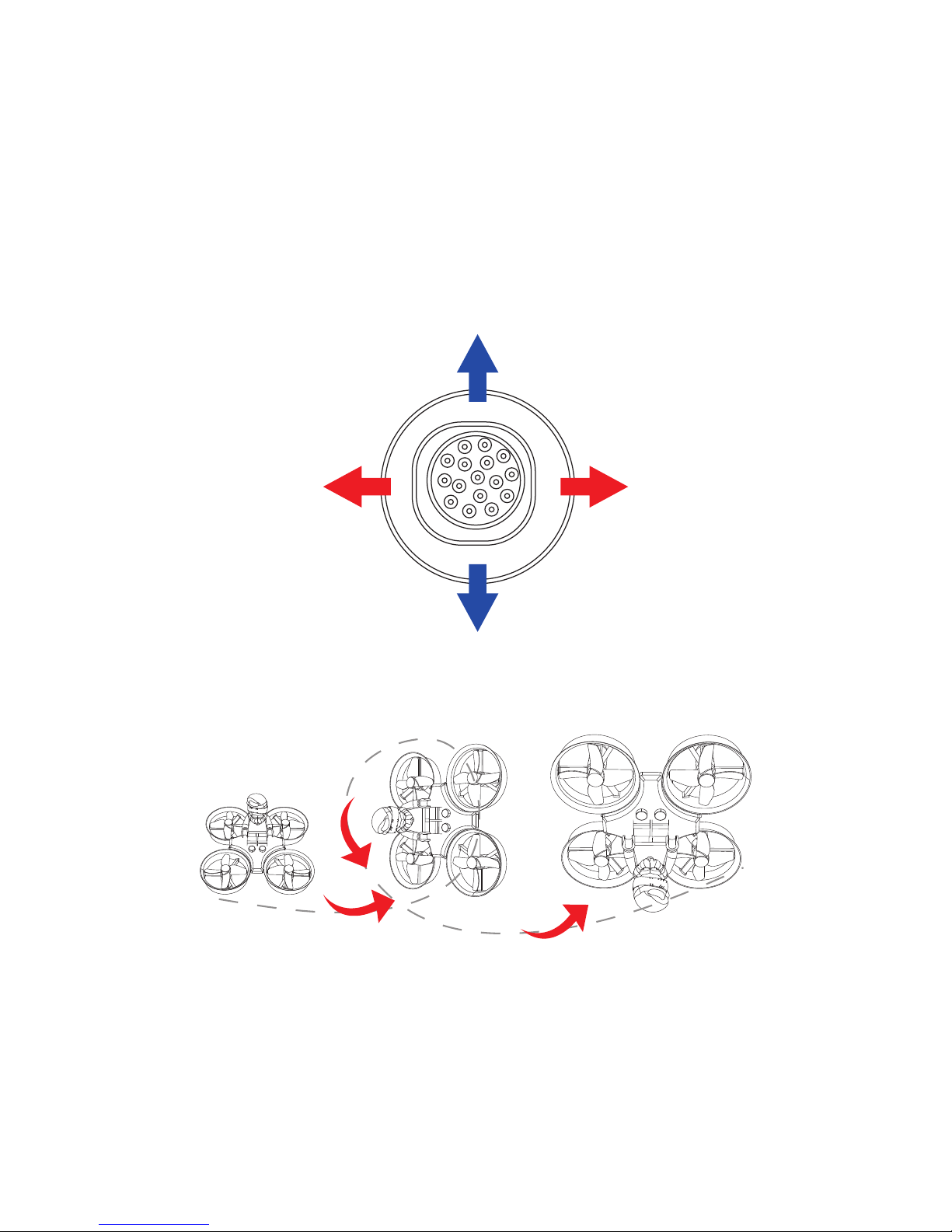

Flips and Rolls
Till the drone flies over 3 meters, press the button of
flips and rolls and move the right joystick to certain
direction to finalize flips and rolls.
(Please disassemble the block-man)
Right Joystick
Front Flips
and Rolls
Right Flips
and Rolls
Left Flips
and Rolls
Back Flips
and Rolls
13
①
②
③ ④
3
4
1
2
2.Fine-Tuning
Touch the accelerator joystick to let the drone take off
and fly in the air. Calibrate the orientation when the
drone yaws or spins.
①Forward Fine-tuning
②Backward Fine-tuning
③Left Sideward Fine-tuning
④Right Sideward Fine-tuning
Notes:
When the drone is within 30cm from the ground, it
will be affected by the blade vortex made by itself
and become unstable. This is "ground effect". The
lighter the drone is, the greater the effect will be.
14
3.Headless Mode/Return to Home
Press “Return to Home” and the drone would return
automatically along the original route. When the
drone flies far away and beyond your vision, press
“Return to Home” and push the joystick to enter
“Headless Mode” , and the drone would return home
without worrying about the orientation.
15
FAQ
PROBLEMS CAUSES SOLUTIONS
Control
failure
Not connect with
the drone battery.
Connect the drone
battery in right way.
Too strong wind
force.
Do not fly in windy
days. The
performance and the
control of the drone
will be affected by
the strong winds.
Fail to
ascend
The rotation
speed of main
blades is too slow.
Push up the throttle
joystick.
The battery of the
drone is not fully
charged.
Please full charge
the drone.
Landing
too soon
Out of
control
The throttle joystick is
pulled down too fast.
Pull down the
throttle joystick
slowly to perform
a smooth landing.
Beyond the effective
controlling distance.
Ensure that the
flying distance is
within 30 meters.
