Model Number DOC NO
7600B6 PS7600B6
Sensitivity
• VARIABLE CAPACITANCE ACCELERO METER
7600B1 ±5 0-600 100
2000
• DIFFERENTIAL MODE
• HERMETICALLY SEALED
• DC RESPONSE 7600B4 ±50 0-2000 10 2000
Connector
±200 g ±1962
[4] Bias voltage equal to (+ v - (-v)) / 2
Frequency Response (±3dB)
0-3000 Hz 0-3000 Hz [5] Mating cable 6895A
-40 to +80
Hermetic Hermetic
PERFORMANCE SPECIFICATION
VARIABLE CAPACITANCE ACCELEROMETER
ENGLISH
SI
21592 Marilla Street, Chatsworth, Californi a 91311 Phone: 818.700.7818 Fax:818.700.7880 w w w .dy tran.com
This family also includes:
• POWER SUPPLY IDENTICAL TO STRAIN GAGE SE NS O RS Model Input Range (g)
7600B2 ±10 0-1000 50 2000
7600B3 ±25 0-1500 20 2000
7600B5 ±100 0-2500 5 2000
Please, refer to the performance specifications of the products in this family for detailed description
Frequency
response (Hz)
Differential, ±15%
(mV/g)
Max.Shock (0.1ms)
REV C, ECN 7424, 03/25/11
Noise Differential
(μg/√Hz)
9
10
25
50
100
PHYSICAL
Weight, Max 0.1 oz 3.6 grams 1) Accredited calibration certificate (ISO 17025)
Size Length x Width x Height .80 x .56 x .23 Inches 20.3 x 14.2 x 5.8 mm 2) Two mounting screws model # 6746
Type
Mounting 4-40 X 7/16 LG SHCS 4-40 X 7/16 LG SHCS
Material Ti-6AI-4V Ti-6AI-4V [1] Single ended sensitivity is half of values shown
PERFORMANCE [3] Over the rated temperature range
Input Range
Sensitivity Differential, ±5% [1]
Output Noise, Differential ,Typ 200
Non-Linearity, Max [2]
Sensitivity Change with Excitation Voltage (6-22 Volts)
Cross Axis Sensitivity
ENVIRONMENTAL
Maximum Mechanical Shock (0.1 ms) 2000 gpk ±19620
Bias Temperature Shift ,Max [3] 111
Sensitivity Temperature Shift 277 ppm/°F 500 ppm/°C
Operating Temperature Range -40 to +176
Seal
ELECTRICAL
Output Common Mode Voltage ± V DC
Output Impedence,Nom 1225 Ω 1225 Ω
Operating Voltage
Operating Current, Max 13 mA Dc 13 mA Dc
Change in Operating Current to Excitation Voltage 0.25 mA/V 0.25 mA/V
4-PIN, M4.5 x 0.35 THD
2.5 mV/g 0.3
1.5
0.3
< 3 % < 3 %
[4] [4]
±3 to ±11 VDC ±3 to ±11 VDC
μ g rms/√ Hz
% F.S 1.5 % F.S
% 0.3 %
(ppm of span)/°F
°F
4-PIN, M4.5 x 0.35 THD 3) Two mounting washers model # 6743
1,962
200
2
m/s
mV/m/s
2
/√ Hz
μ m/s
2
m/s
peak
(ppm of span)/°C
°C
Supplied Accessories:
Notes:
[2] -90% to +90% of Full Scale
2
[6] In the interest of constant product improvement, we reserve the right to change specifications without notice.

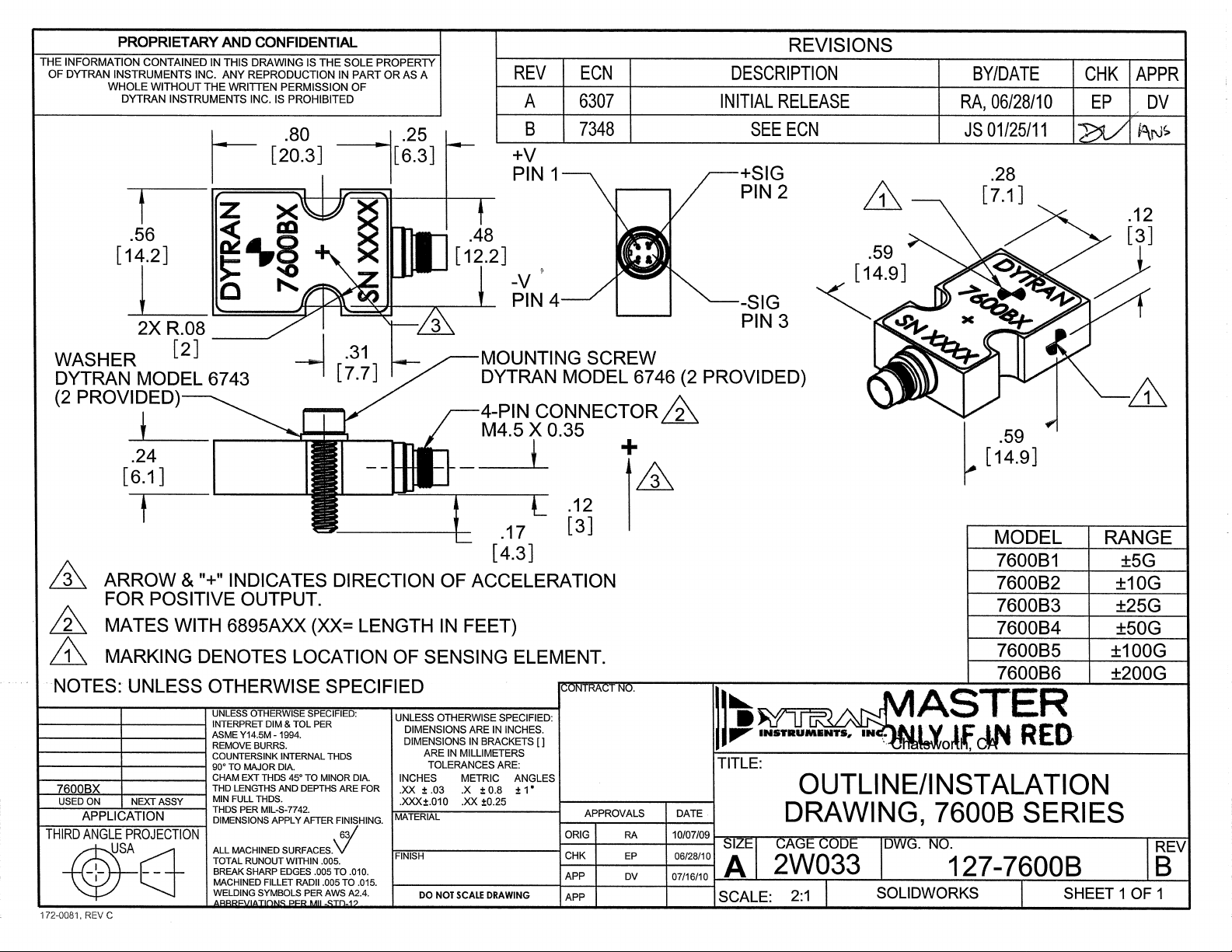

Units on the line drawing are in inches. Refer to 127-7600B for more inform ation.
