In the box
Getting started
Charging your machine
Caring for your floors
Emptying your bin
Cleaning your bin
Washing your filter
Washing your brush bar
Cleaning your tools
Clearing blockages
Looking after your machine

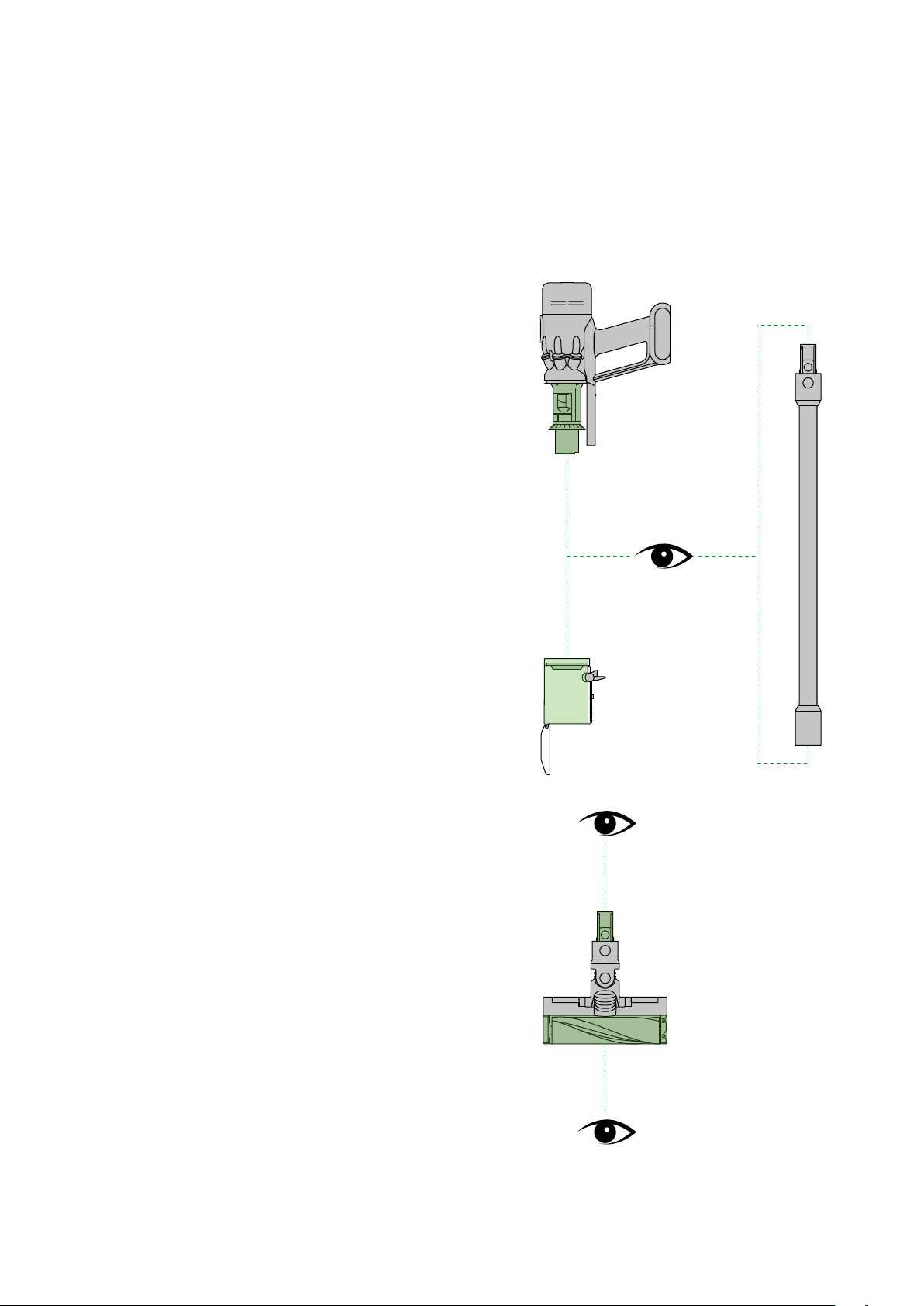

In the box
Vacuum cleaner
The narrow connector end at the top, this connects
to the bin and the wider end at the bottom that
connects to the cleaner head or tool.
Main body
showing the
handle and
bin attached.
A soft fluffy brush bar
housed within the cleaner
head. There is an electrical
connecter end that can
attach to the end of the
wand or directly to the
machine.
Micro Fluffy™cleaner head
Soft woven nylon and anti-static carbon
fibre filaments remove dust from hard
floors. Smaller than a standard Fluffy™
cleaner head - with a low profile to
reach under furniture.
The charger is a one piece
unit with the plug, connector
end and cable.
Wand
Some tools may not be included.
You can buy additional tools at www.dyson.com.
This tool has a combination
of brush head and crevice
tool together in one unit.
Thebrush head slides
down the crevice tool
whenneeded.
Combi-crevice tool
Two tools in one – narrow nozzle and
brush, for quick switching between
cleaning and dusting tasks.
Light pipe crevice tool
Crevice tool with LED lights lets you
reach into dark, narrow spaces and
see where you’re cleaning.
A long tool with
an angled end.
Charger
Charges your vacuum with
or without a dock.
A small cleaner head
with a body housing the
motor and an electrical
connector to attach to
the wand or directly to
the machine.
Mini motorised tool
Motorised brush bar, concentrated
in a smaller head to remove
stubborn dirt from mattresses,
upholstery and stairs.
This tool is angled and
has a nozzle end.
Worktop tool
Engineered for cleaning kitchen
worktops, tables and hard surfaces.
A plastic clip that attaches
to the wand
Wand clip
Clips to your vacuum's
wand to hold tools.
Getting started
The main body with the
power button and mode
button at the base of the
handle and bin with the
bin base closed.

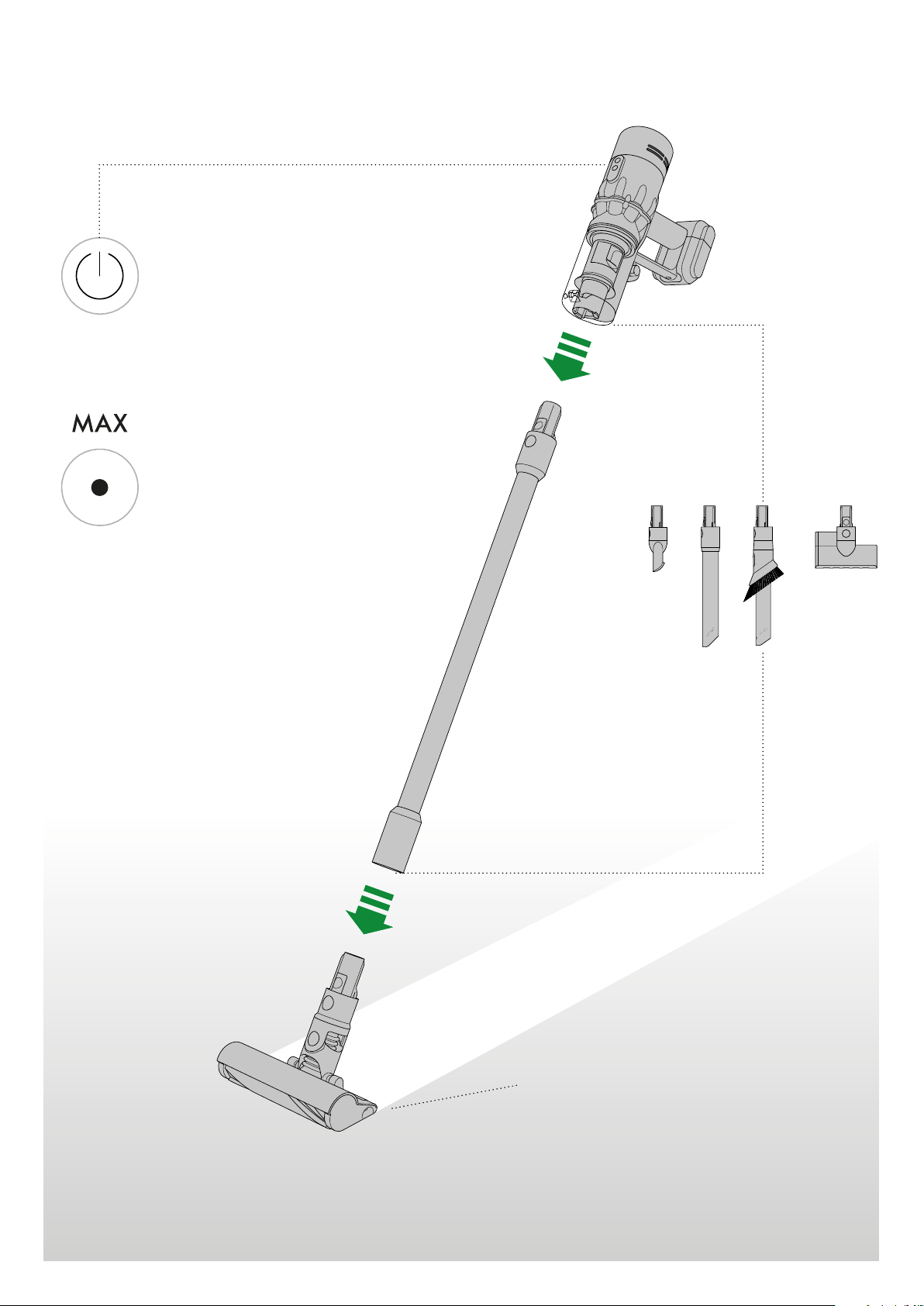

Power button
Press the Power button
once for comfortable,
continuous cleaning.
Power modes
Press the button to change
power modes.
Max mode
Delivers maximum power.
For intensive cleaning of
ground-in dirt.
Eco mode
The optimum balance of
power and run time
Location of the power
button on the base
of the handle of the
machine.
The connection of the
wand onto the main body,
with the the wand release
button aligned with the
buttons on the handle of
the main body.
The main body of
the Dyson vacuum
connects to the Dyson
Micro Fluf fy™cleaner
head fluffy floor tool.
Pointers to demonstrate
that the tools can be
connected directly to the
main body or to the end of
the wand.
The Dyson Micro
Fluff y™ c lea ner h ead
showing the release
button at the flexible
neck, connected to
the main body of the
cleaner head.
Micro Fluffy™ cleaner head
Soft woven nylon and anti-static carbon
fibre filaments remove dust from hard
floors. Smaller than a standard Fluffy™
cleaner head - with a low profile to
reach under furniture.
Charging your machine
For the best experience, we recommend fully charging your machine, and
any additional batteries, as soon as you open the box and af ter every clean.
The LED light on the end of the handle will flash when the power is running
low and you need to put your battery on to charge.

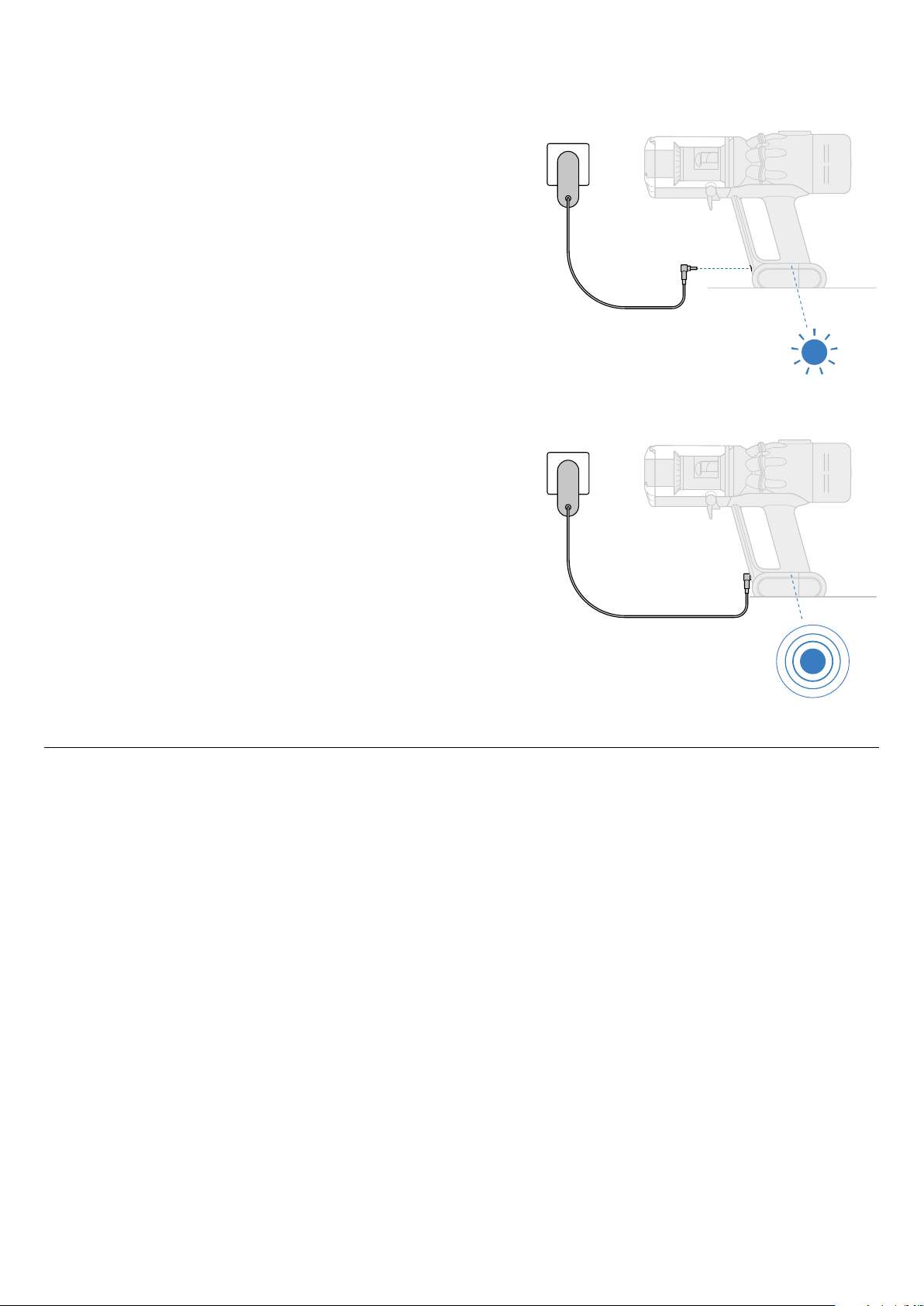

Connect the charger directly to the charging point on the base of the
handle of your machine. You can also connect to your dock as shown in the
installation instructions supplied with your dock.
The LED light on the end of the handle will pulse with a blue LED light when
charging, and the light will go out when fully charged.
It can take up to four hours to fully charge your batter y. Your battery has
been designed to be left on charge.
Your machine won’t operate or charge if the ambient temperature is below
5°C (41°F). This is designed to protect both the motor and batter y.
You can help prolong the battery life by leaving your machine to cool down
before recharging.
The charger connected from
the power supply directly into
the front of the battery.
Caring for your floors
Check that the underside of the cleaner head or tool is clean and free from
any objects that may cause damage.
Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s
recommended cleaning instructions.
This machine is designed for use on hard floors. The brush bar on your
machine can damage certain flooring. Some rug materials may fuzz if a
rotating brush bar is used when vacuuming. If this happens, we recommend
vacuuming without the motorised floor tool and consulting with your flooring
manufacturer.
Emptying your bin
1
1
Empty your bin as soon as the dirt reaches the MAX mark.
Youmayneedtocleanthe filter more often if you use your machine with a full bin.
Remove your wand
Press the red wand release button, on the top of the wand, and pull the wand
away from the bin.
Release the dirt
Hold your vacuum over a bin.
Push the red bin release button, taking care not to press the power button.
The bottom of the bin will open and the shroud will slide down inside the bin,
wiping away any dirt.
If the bin doesn’t open, check the bin release button is pushed down fully.
The MAX mark on the bin of
the machine, showing that
the dirt should not be filled
over the Max mark when the
machine is at the angle of
normal use.
Illustration of the bin being
emptied into a bag with
images demonstrating to take
care not to press the trigger
when emptying the bin.
2
Illustration of
the bin being
emptied into
a bag.
To remove the bin for emptying:
If the bin doesn't empty fully, remove the bin and empty the dir t.
Press the red button located on the bin runner to release the bin and slide
your bin off the runner.
Minimise dust contact
Cover your bin tightly in a dust proof bag while you empty. Remove the bin
carefully, seal the bag tightly and dispose.
Reassemble your machine
If you have removed your bin, slide it back on to the runner. Make sure that
the bin and lid are both securely in position.
Push the bin base upwards until the bin and lid both click into place.
Reconnect the wand.
Cleaning your bin
Don’t put any par t of your machine in a dishwasher or use detergents,
polishes or air fresheners.
Clean your bin
If it is necessary to clean your bin, empt y it as shown in the ‘Emptying your
bin’ section.
The bin lid
closing with an
audible click and
the bin being
pushed upwards
with another
click once it is
fully in place.
Two images of the bin with arrows
showing the bin lid closing and
a click symbol and the bin being
pushed upwards with another
click symbol.
The bin being
removed and the
location of the bin
release lever on the
underside of the
bin runner.
clik
clik
2
1
Press the red button located on the bin runner to release the bin and slide
your bin off the runner.
Only clean your bin with a damp cloth.
Make sure that the bin and seals are completely dry before replacing.
Replace your bin
Insert the spine on to the bin runner.
Close your bin by pushing the bin base upwards until the bin and bin base
click into place.
The bin being pushed
back into position on
the bin runner.
2
Washing your filter
Wash your filter at least once a month to maintain the best per formance.
Make sure the filter is completely dry before refitting.

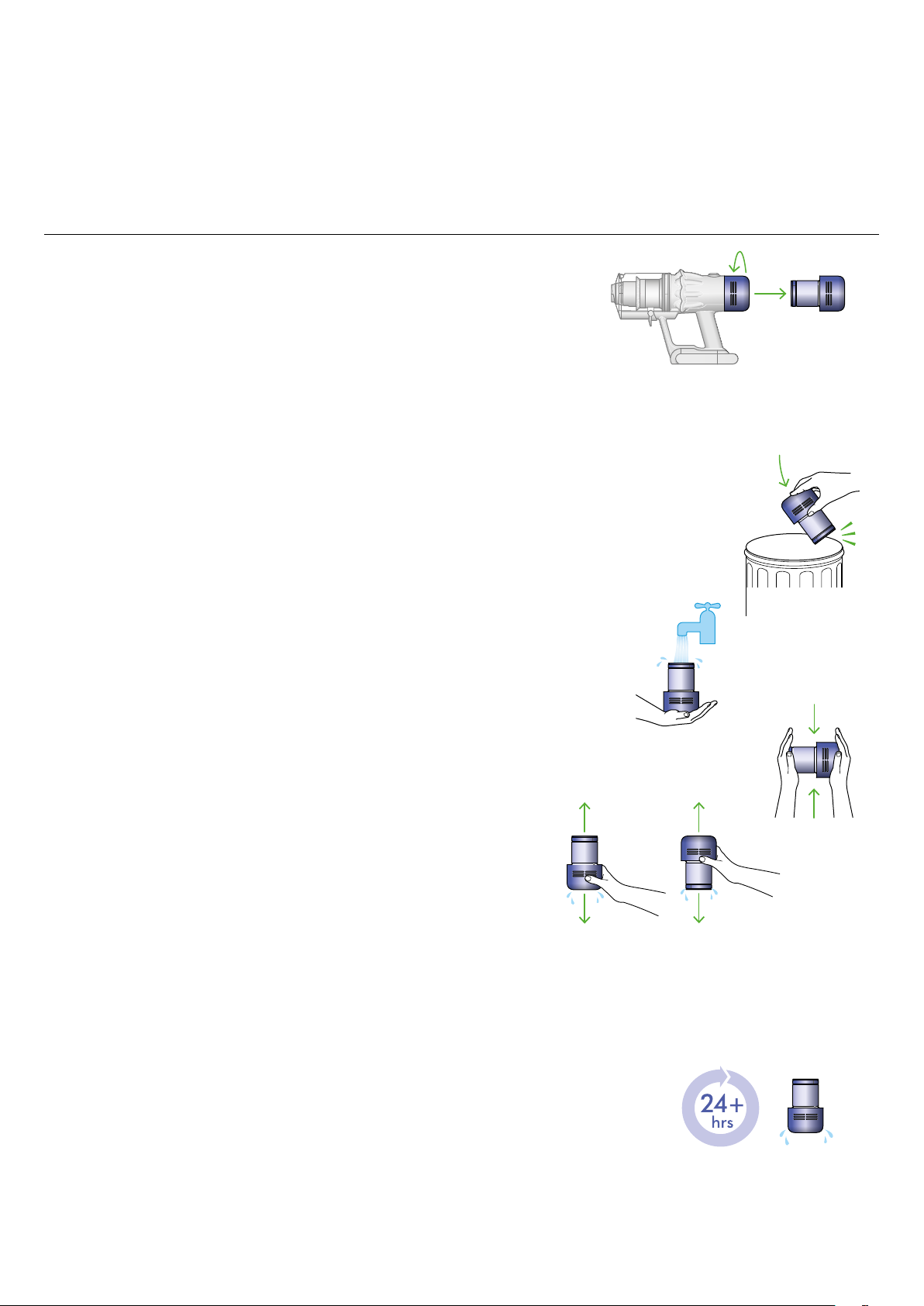

Twist off your filter
Don’t put any par t of your machine in a dishwasher or use detergents,
polishes or air fresheners.
Turn your filter anti-clockwise and pull it away from your machine.
Before washing your filter, tap it gently over a bin to remove any loose dust
and debris.
Wash your filter
Wash the outside of the filter, rubbing with your fingers to remove the dir t.
Carefully rinse the inside filter, without allowing water to fill the filter.
Repeat these steps until the water runs clear.
Shake and dry
Empty the filter and shake firmly to remove excess water.
Keep shaking until there’s no water coming from the filter.
Place your filter end up, as shown.
Leave your filter to dry for at least 24 hours in a well-ventilated, warm place.
Don’t dry your filter in a tumble dryer, microwave or near a naked flame.
Important: your filter must be completely dry before you put it back into the
machine. Your machine could be damaged if used with a damp filter.
Holding the filter
by the hard, plastic
end, tap the other
end over the bin.
Filter held in upright
position, with the wider
end in the palm of a
hand. Water running
from a tap into the
narrower end.
A hand holding the filter with the
narrow end pointing downwards with
droplets of water being shaken from the
filter and again, with the end pointing
downwards shaking water out.
The filter is located at the
rear of your machine.
Filter with hand over
the open end with
arrows showing a
shaking motion.
Refit your filter
To refit your filter, slide it onto the handle and turn it clockwise until it clicks
into place.
Your filter may need more frequent washing if you vacuum fine dust,
useMaxmode frequently or use with the bin full.
The filter is left to dry
with the pleated filter
end facing upwards.
Washing your brush bar
To maintain optimum performance, check and wash the brush bar regularly.
Remove brush bar
Don’t put any par t of your machine in a dishwasher or use detergents,
polishes or air fresheners.
Press the cleaner head release button to remove it from the wand.
Pull the brush bar off the end cap and put the end cap to one side, don’t
wash it.
Wash and dry brush bar
Hold your brush bar under cold tap water and gently rub to remove any lint
or dirt. Keep washing until the water runs clear.
Stand the brush bar upright and leave for at least 24 hours to dry.
The lock located on the
side of the cleaner head,
is rotated 90 °to release
the end cap and the brush
bar can be removed.
The end cap is located
at the side of the
cleaner head. Push
this upwards to unlock
the brush bar. Don't
wash the end cap.
The brush bar has an open
end and a closed end. Stand
upright, with the closed end
facing upwards, to dry.
2
1
Replace your brush bars
Make sure your brush bar is completely dry before refitting.
Reattach the end cap to the brush bar and slide it back into the cleaner head.
Rotate the end cap until it clips securely back into position.
The cleaner head housing is not washable and should only be wiped over
with a damp lint-free cloth.
The brush bar
reinserted into the
cleaner head and the
end cap rotated to
the locked position.
The end cap should be
attached to the cleaner
head at an angle less
than 90°, any angle
greater than this will
not allow the end cap
to close.
3
2
1
Cleaning your tools
Don’t put any par t of your machine in a dishwasher or use detergents,
polishes or air fresheners.
Wipe with a damp, lint-free cloth, without touching the connector end.
Make sure your tools are completely dry before using.
Light pipe crevice tool
Combi-crevice tool
Worktop tool
Mini motorised tool
Clearing blockages
If your machine detects a blockage, the motor will pulse six times. You won’t
be able to use your machine until the blockage has been cleared.
If you try to use your machine when the motor is pulsing, it will automatically
cut out.
Leave your machine to cool down before looking for blockages and, for your
safety, take care not to touch the power button.
With the bin removed,
check for blockages,
paying particular
attention to the air
inlet, located at on the
right–hand side of the
machine just below the
point where the bin joins
the main body of the
machine.
Check for blockages in
the filter end and bin
ends of the machine.
Disconnect your machine from the charger before looking for blockages.
Becareful not to touch the trigger and be aware of sharp objects.
Leave your machine to cool down before looking for blockages.
Don't use your machine when looking for blockages as this could cause injury.
The bin being removed
and the location of the
bin release lever on the
underside of the bin
runner.
With the wand removed
from the machine,
check for blockages at
both ends of the wand.
Turn the cleaner head over to
check for obstructions on the
brush bar and air inlet.
Remove any obstructions
from the brush bar.
Looking after your machine
To always get the best performance from your machine, it’s impor tant to
clean it regularly and check for blockages.
Look after your machine
If your machine is dust y, wipe with a damp lint-free cloth.
Check for blockages in the cleaner head, tools and main body of your machine.
Wash your filter regularly and leave to dry completely.
Don’t use detergents or polishes to clean your machine.
Look after your battery
To get the best performance and life from your batter y, use Eco mode.
Your machine won’t operate or charge if the ambient temperature is below
5°C(41°F). This is designed to protect both the motor and batter y.
Your serial numbers
You can register your machine using the serial number found on the bottom
of your machine.
You can find your serial numbers on your machine, battery and charger.
Useyour serial number to register.
Loading...
