ENTER 40

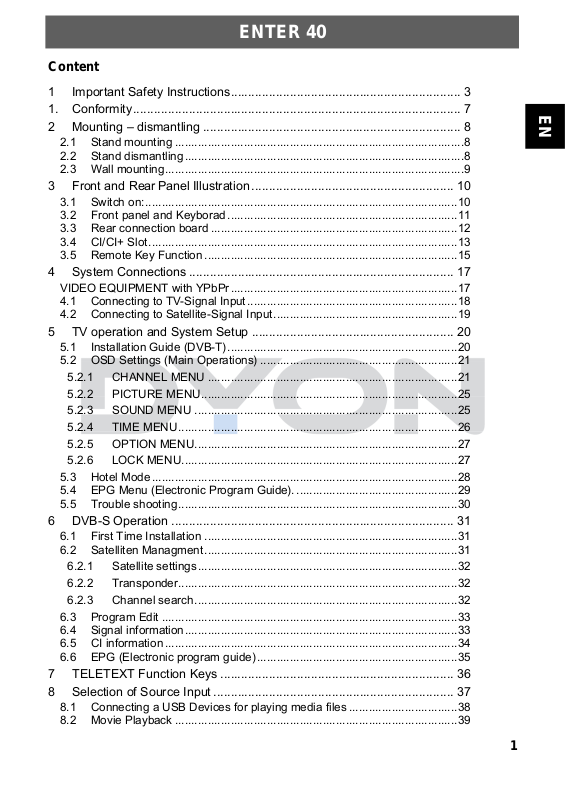

Content

1 Important Safety Instructions .................................................................. 3

1. Conformity .............................................................................................. 7

2 Mounting – dismantling .......................................................................... 8

2.1 Stand mounting ........................................................................................ 8

2.2 Stand dismantling ..................................................................................... 8

2.3 Wall mounting ........................................................................................... 9

3 Front and Rear Panel Illustration .......................................................... 10

3.1 Switch on: ............................................................................................... 10

3.2 Front panel and Keyborad ...................................................................... 11

3.3 Rear connection board ........................................................................... 12

3.4 CI/CI+ Slot .............................................................................................. 13

3.5 Remote Key Function ............................................................................. 15

4 System Connections ............................................................................ 17

VIDEO EQUIPMENT with YPbPr ..................................................................... 17

4.1 Connecting to TV-Signal Input ................................................................ 18

4.2 Connecting to Satellite-Signal Input ........................................................ 19

5 TV operation and System Setup .......................................................... 20

5.1 Installation Guide (DVB-T) ...................................................................... 20

5.2 OSD Settings (Main Operations) ............................................................ 21

5.2.1 CHANNEL MENU ............................................................................ 21

5.2.2 PICTURE MENU .............................................................................. 25

5.2.3 SOUND MENU ................................................................................ 25

5.2.4 TIME MENU ..................................................................................... 26

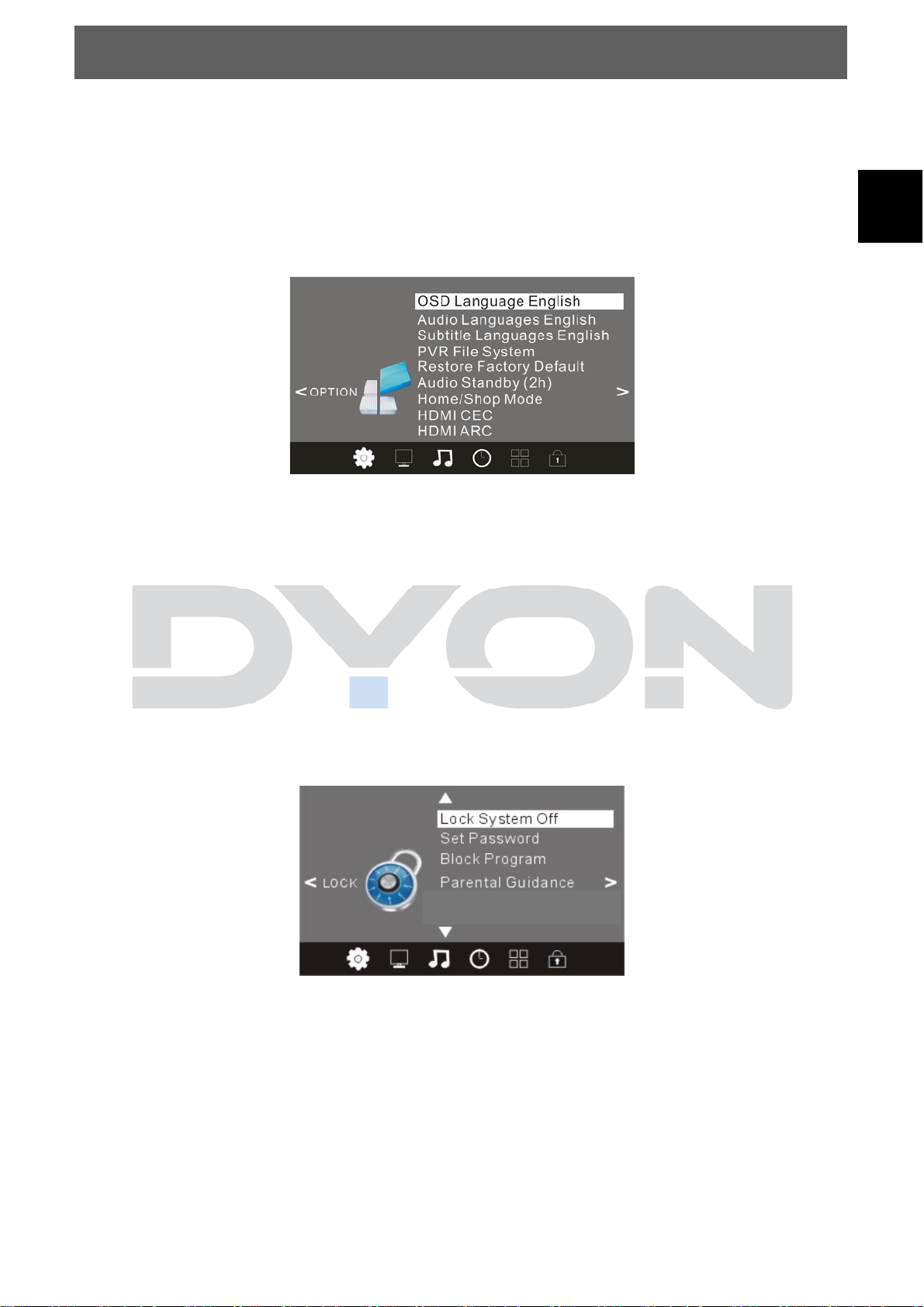

5.2.5 OPTION MENU ................................................................................ 27

5.2.6 LOCK MENU .................................................................................... 27

5.3 Hotel Mode ............................................................................................. 28

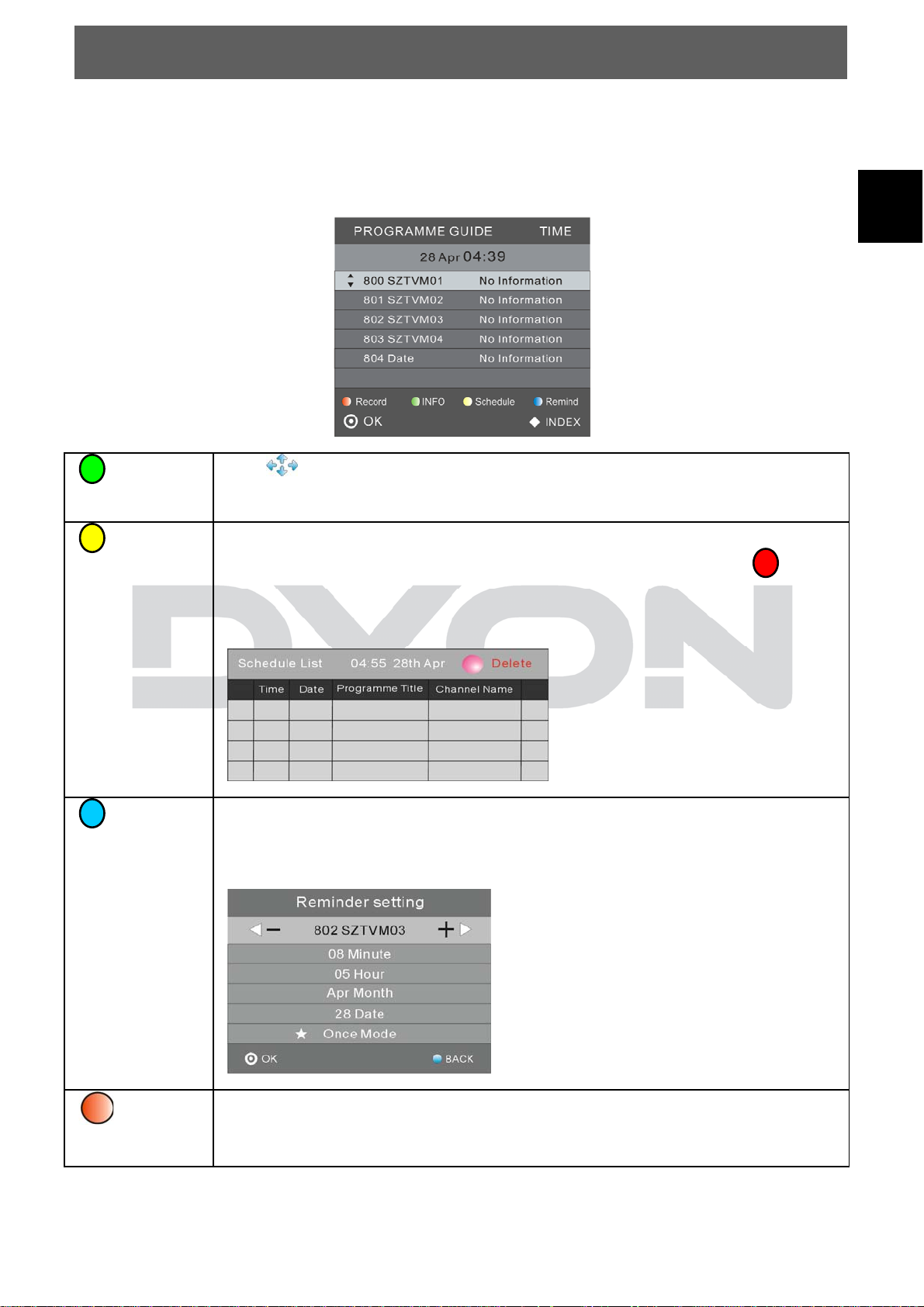

5.4 EPG Menu (Electronic Program Guide). ................................................. 29

5.5 Trouble shooting ..................................................................................... 30

6 DVB-S Operation ................................................................................. 31

6.1 First Time Installation ............................................................................. 31

6.2 Satelliten Managment ............................................................................. 31

6.2.1 Satellite settings ............................................................................... 32

6.2.2 Transponder ..................................................................................... 32

6.2.3 Channel search ................................................................................ 32

6.3 Program Edit .......................................................................................... 33

6.4 Signal information ................................................................................... 33

6.5 CI information ......................................................................................... 34

6.6 EPG (Electronic program guide) ............................................................. 35

7 TELETEXT Function Keys ................................................................... 36

8 Selection of Source Input ..................................................................... 37

8.1 Connecting a USB Devices for playing media files ................................. 38

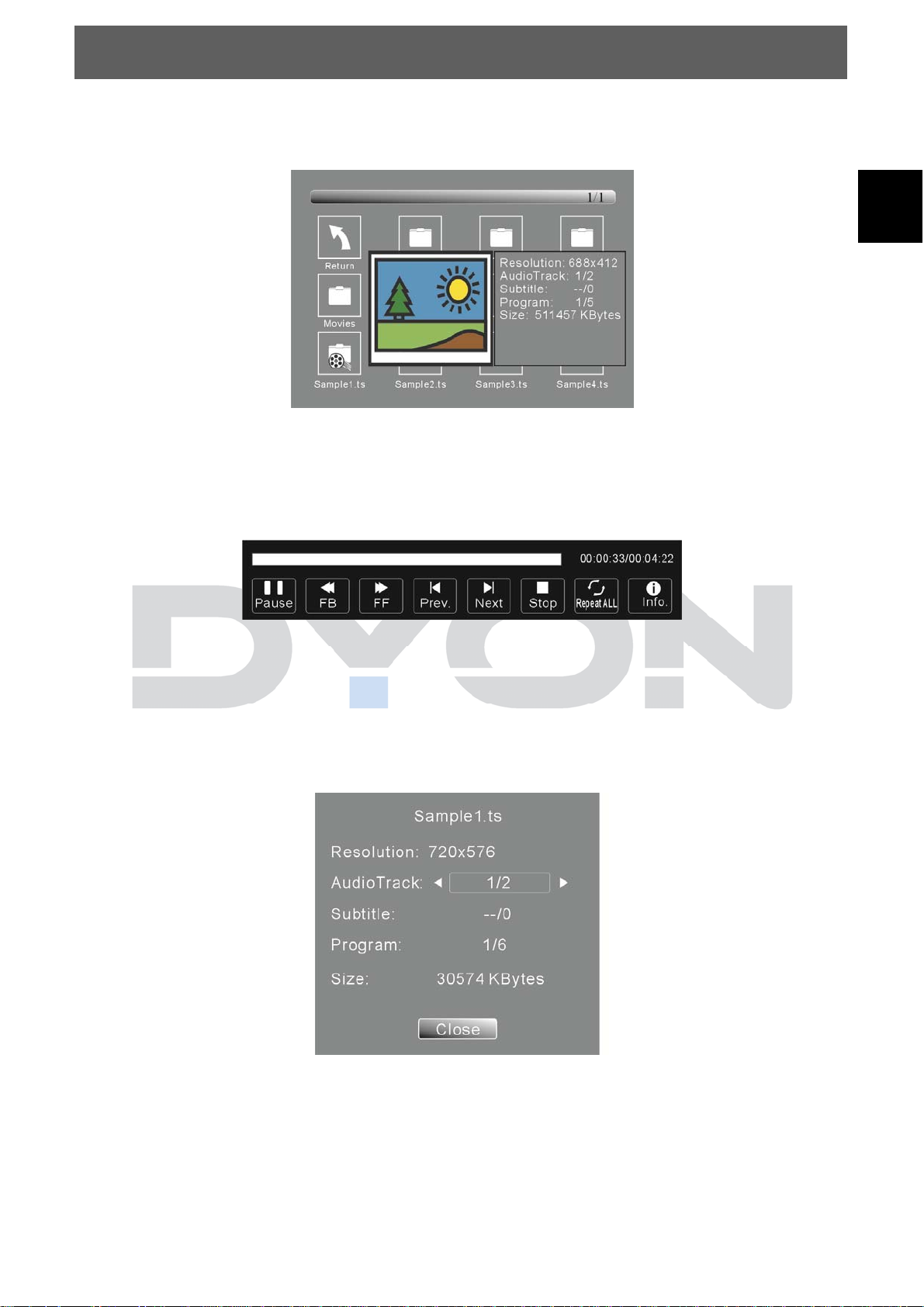

8.2 Movie Playback ...................................................................................... 39

ENTER 40

9 Connecting to PC ................................................................................. 40

10 Troubleshooting ................................................................................... 41

11 Specifications ....................................................................................... 42

12 Warranty condition ............................................................................. 444

ENTER 40

1 Important Safety Instructions

1) 1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this apparatus during lighting storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the apparatus.

17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

ENTER 40

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

The symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture

not drop or push objects into the television cabinet slots or

Do openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

ENTER 40

Caution

Do not trap the power supply cord under the television receiver.

Do not place your television on an unstable cart, stand, shelf or

When the television receiver is not

Never stand. You should pay special attention to children. Serious injury may result if it should fall.

table. Serious injury to an individual , and damage to the television, may result if it should fall.

used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

stand on, lean on, or suddenly push the television or its

ENTER 40

Tips regarding environmental protection

At the end of its operating life, this product may not be disposed of by

way of your normal household waste. Instead it must be delivered to a collection point for recycling electrical and electronic equipment. The icon on the product, in the operating instructions or on the packaging, indicates this.

The materials used in manufacturing this product are recyclable, depending on their identifying markings. By recycling this equipment, by recycling its components, or through other procedures of re-using outdated equipment, you are making an important contribution to protection our environment. Please ask you local municipal administration for the location of the corresponding recycling point.

Battery Recycling

In order to ensure the environmentally friendly disposal of batteries,

please do NOT dispose of used batteries through normal household

waste. Please take the batteries to your local retail or community

collection point for recycling.

The following may be an indication of a discharged battery: The device cannot be switched on. The device switches off automatically and "Battery Empty" is shown in the display. The device and or battery do not function properly.

Support

URL: http://www.dyon.eu

See our website for the latest information on this engine, on other products by our company and on our company itself. If you have questions or problems, please read the FAQs on our website or contact our customer support service

support@dyon.eu

Manufacturer

Axdia International GmbH Formerweg 9 D-47877 Willich (Germany)

Tel: +49(0) 2154 / 8826-0 Fax: +49(0) 2154 / 8826-100

Support-Hotline: +49 (0)2154 / 8826-101 Web: www.dyon.eu E-Mail: info@axdia.de

Appropriate use

The device is designed for receiving and watching encrypted and unencrypted DVB-S, DVB-T and DVB-C Cable TV channels for private use. It is exclusively meant for this purpose and must only be used for the same. This also includes paying attention to all information contained in this operating manual, especially in the safety instructions. Any other usage is considered to be improper and may lead to material damages and even personal injuries. Moreover, it will result in the immediate loss of guarantee. The manufacturer does not bear any liability for damages caused due to improper use.

1. Conformity

We, Axdia International GmbH, hereby declare that this device corresponds to the basic requirements and relevant regulations outlined in guidelines 2004/108/EC, 2006/95/EC and 2009/125/EC.

ENTER 40

The CE declaration of conformity for this product may be found on the following link:

www.dyon.eu

– Service – Downloads

ENTER 40

2 Mounting – dismantling

2.1

1. Mount the engine on the provided stand.

2. Use the extended screw to fix the stand

Stand mounting

2.2

Unmount the 4 screws they are fix the stand with the engine. Now you can take it off.

Stand dismantling

2.3 Wall mounting

ENTER 40

Use the four thread on the back to connect the tv with your wall retainer.

200x100 mm

ENTER 40

3 Front and Rear Panel Illustration

3.1 Switch on:

To switch ON or OFF the TV, please use the ON-/ OFF Button which you will

find at the bottom of the TV (as illustrated).

ON-/ OFF Button

Note The ON-/ OFF button you will next to the middle of stand at the lower side.

3.2 Front panel and Keyborad

ENTER 40

1: Remote control sensor.

2: Indicator LED:

No lights = POWER ON RED = STAND-BY.

1 SOURCE Display the input source menu. 2 MENU Display main MENU. 3 VOL+/VOL Adjust sound level. In MENU, adjust the item that you selected. 4 CH+/CH In TV mode press CH+ or CH to change the channel up and down. In MENU, press CH+ or CH- to select items .In standby mode, it can Turn on the TV. 5 STANDBY

ENTER 40

3.3

Rear conn ection board



1. Video/ Y Connection

2. pb

3. Pr

4. Audio In Left

5. Audio In right

6. SPDIF

7. LNB In

8. Scart

1. USB

2. HDMI 2

3. HDMI 1

4. Headphone In

6 7

5. Common Interface (CI)

6. PC Audio IN

7. VGA

8. Antenna (75 Ohm)

ENTER 40

3.4

This device is equipped with a CI+ slot for use with cam modules and smart cards which allow for the viewing of encrypted Pay-TV channels. The corresponding modules may be purchased from the Pay-TV provider or specialized dealer.

Installation

1. Disconnect the TV set from power.

2. Before inserting the module into the device, insure that the smart card has

been properly installed into the module (). Pay close attention to the direction when inserting. The printing on the module and the chip of the smart card must be on top.

3. Insert the Module with inserted smart card with the printing of the module

facing backwards (). Insert the module carefully into the slot of the device until a little resistance is felt. Using a little pressure, carefully press the module into the slot until it sits firmly.

CI/CI+ Slot

4. Reconnect the power source.

Remove the module

2. Disconnect the TV set from power.

3. To take the module out carefully.





ENTER 40

Notice

Module and smart card are not including in the packaging.

Install the CI+ module after the channel scan has been accomplished and all other settings have been set.

The activation of the card may take several minutes for the first time it is used. When necessary, the device will check the module every time the device is switched on. Pay close attention to the manual of the CI+ module and smart card.

Notice to CI+

Please note that the recording and time shift function may be limited on some channels. Recorded files of channels, which are encrypted by the CI+ card are only workable on this device.

These limitations are determined by the broadcaster. The manufacturer takes no responsibility.

ENTER 40

3.5 Remote Key Function

1. POWER: to switch the set device to on or standby.

2. NUMBER KEYS: used to select channel numbers or

input numbers in menus.

3. TV MENU: open the menu of the current title.

4. ARROW KEYS: Move within the menus.

5. DVB-S2: Switch to DVB-S Mode

6. VOL+/-: Adjust the volume level.

7. PIC: To switch picture mode.

8. SLEEP: Set timer to turn off the TV.

9. REC: Start Record in DTV / DVB-S mode.

10. EPG: To display information about the program being

viewed and what’s on next in DTV and DVB-S mode.

11. FAV: Used to access your favorite channels.

12. : Fast rewind for USB file playback

13.  forward for USB file playback

14. PLAY: Play the media player in USB mode.

15. PAUSE: Pause the media player in USB mode.

16.-19. REVEAL HOLD SUBPAG:SIZE

20. MUTE: To disable or enable the sound output.

21. TV/AUDIO: to switch the soundtrack

22. RECALL: to show the last view channel

23. SOURCE: select input source.

24. OK: Used to confirm a selection within a menu.

25. EXIT: Used to return to the previous screen or menu.

26. SOUND: To switch sound mode.

27. CH+/-: Used to changing the channels in normal play.

28. ASPECT: to switch the apsect ration

29. TEXT: to open teletext OSD display if teletext available in

the broadcasted stream.

30. TV/RADIO: It is used to switch between digital TV

channels and radio stations.

31. INFO: Used to display information about the channel

being viewed or further information about the program

when in DTV / DVB-S mode.

32. : go to the next file in USB mode

33. : got to the last file in USB mode

34. SUBTITLE: Used to switch among different subtitles that

35. STOP: Stop the media player in USB mode.

37./38. Open the programm list / freeze the picture.

are broadcasted in DTV and DVB-S mode.

36./39.

INDEX MIX, and open PVR list of DTV / DVB-S mode.

Colour keys (RED/GREEN/YELLOW/BLUE): Teletext functions

ENTER 40

Notes on batteries

If the remote control is not used for a long period of time, please remove the battery from the compartment.

Do not heat batteries or dispose of them in fires.

Do not dismantle, deform or modify batteries.

ENTER 40

4 System Connections

Do not connect the power cord until all other connections have been made.

VIDEO EQUIPMENT with YPbPr

IDEO EQUIPMIENT

TO AUDIO OUTPUTS

TO VIDEO OUTPUTS

ENTER 40

4.1

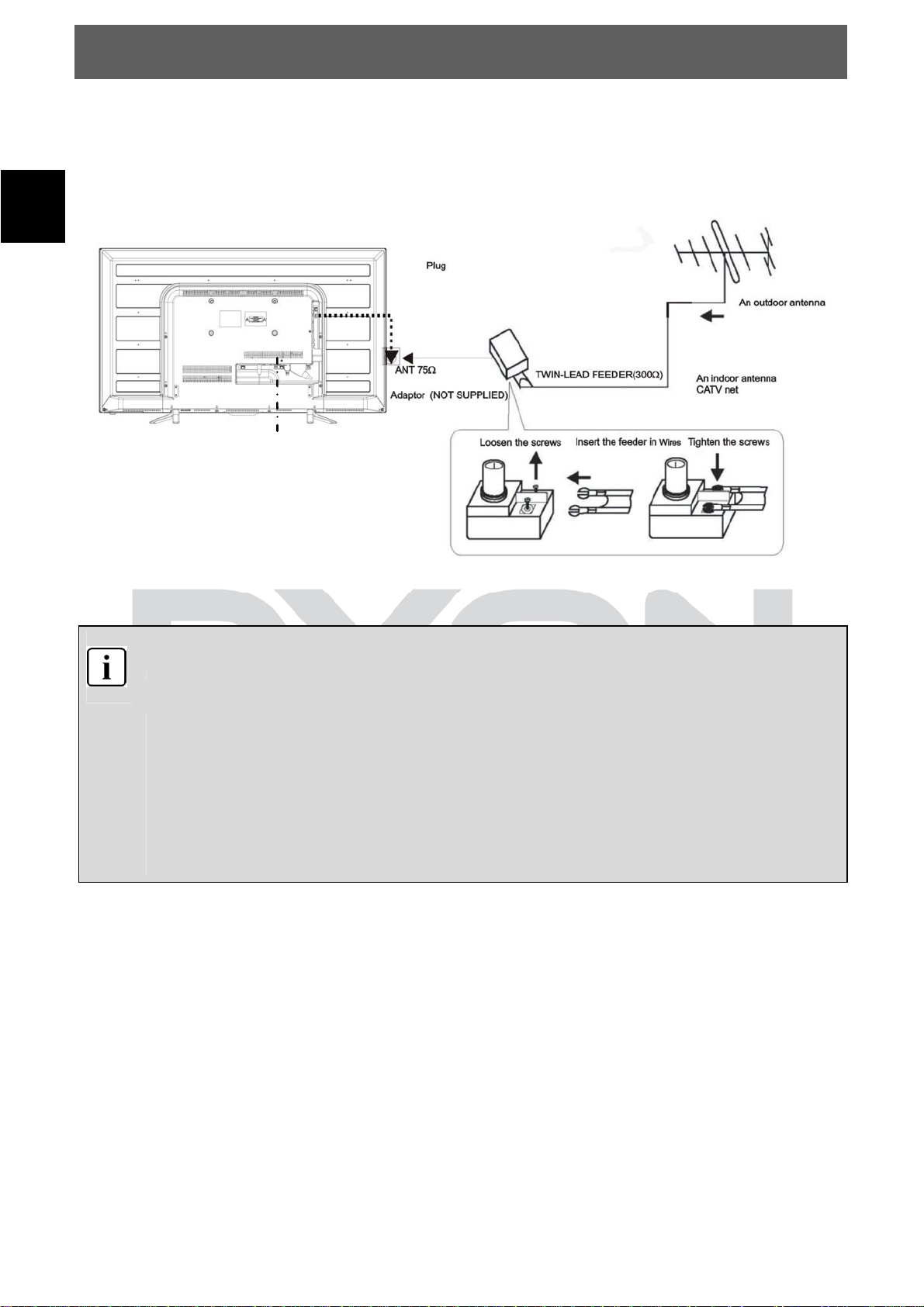

Connecting to TV-Signal Input

Connect the TV signal cable (the antenna cable, for example) to the Antenna Input Jack on the back of the unit so that you can receive television

programmes.

After connection, turn on the power of the unit. Then press the SOURCE button to select TV or DTV mode and conduct program selection.

Note

Whether and how many DVB-T channels can be received by this device, is strongly depending on the operational place, and the DVB-T signal strength in this Area. DVB-T radio in particular is very limited and not available in most locations Please note that for using of DVB-T after each larger local changes, a new channel search should be accomplished. Since the frequency of the Channels may Vary from region to region.

4.2 Connecting to Satellite-Signal Input

Connect the satellite cable with the LNB In Port on the back. After that, you can turn on the engine. Press „Source“ to switch into the DVB-S2 mode and start the channel search.

LNB In

ENTER 40

5 TV operation and System Setup

5.1

This screen only appears when the TV first time turns on or reset to factory etc.

Installation Guide (DVB-T)

You can select language and country, auto turning programs. And after turning the screen will skip to the first DTV program.

(1): Select the OSD menu language and press OK to confirm. (2): Select your desire mode, press ◄► ▲▼and OK button.

(3): Press▲▼ to select an antenna source.

(4a): Select the country for DVB-C / DVB-T reception and press OK to confirm.

The channel search starts now with DTV. Press “Exit” or “Menu” to exit the channel search. Press -key to exit or -key to proceed searching.

(4b): Press EXIT to use the preinstalled ASTRA 19.2E channel list or use the

blue key to set up your desired satellite settings.

ENTER 40

5.2

Press / to select the page. Press / to select the setting.

The first item of the MENU is channel menu ( for DTV source only).

OSD Settin gs (M ain Ope ratio ns)

5.2.1 CHANNEL MENU

CHANNEL

Auto Tuning

DTV Manual Tuning

Programme Edit

Signal Information

CI Informationen

LCN Switch off

Software Update (USB)

You can search channels and edit programs here.

Auto tuning:

1).DVB-T

Search all the channels automatically (you can select DTV)

Dish Setup

ENTER 40

Please press ◄► ▲▼ to select country at first , then press OK button to start

auto tuning .

NOTE:

All the channels including, DTV and DTV Radio can be tuned by one time. All the stored channels will be deleted and overwritten after auto tuning. After auto tuning, the channel will skip to the first DTV channel.

DTV Manual tuning:

You can select a DTV channel then find the programs in this channel.

Please press ◄► to select the channel, and then press OK to search the

programs.

NOTE：Bad - Normal - Good means signal intensity.

Program edit: You can delete, move, skip or FAV any programs.

ENTER 40

Delete

Move

Skip

FAV Favourite

4) Signal Information

Select item signal information in the menu with the “◄►” keys. To obtain signal information confirm with OK button. With the menu button you can go back to the previous menu. With EXIT button you can leave the menu.

Press teletext red button, the program in cursor will be deleted.

Move the cursor to the program, press yellow button then use ▲▼ to move the program. Press the yellow key again to save. Press ▲▼ to choose the program, press teletext blue button to skip this program. The program. Choose the skipped program, press blue button again, you can cancel the skip, The Press ▲▼to choose the program, press FAV button, it will show

on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV disappear.

will disappear .

will be shown on the right side of the

will

ENTER 40

5) CI Information

Select with the item CI information in the menu with the “◄►” keys. To obtain signal information confirm with OK button. With the menu button you can go back to the previous menu. With EXIT button you can leave the menu.

You can just see CI Information if CI Module is inserted.

6) Software Update (USB)

Press ▼ or ▲ to select the item „Software Update“, confirm with OK. Press OK button to update the software (with the help of an USB Medium). Follow the upgrade instructions of the delivered software.

5.2.2 PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press ▲▼ to select the setting, press OK to adjust, press ◄► to change the setting.

Press TV MENU to step back to the previous menu.

ENTER 40

NOTE:

1).Tint is available in NTSC system only.

2).There are four colours temperature modes can be selected medium, warm, cool, user

3).Screen is available in PC mode only which, can adjust Horizontal position, vertical position, size and phase.

5.2.3 SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc. Press ▲▼ to select the setting, press OK to adjust, press ◄► to change the setting.

Press TV MENU to step back to the previous menu.

SPDIF Mode

ENTER 40

5.2.4 TIME MENU

The forth item of the menu is the TIME MENU You can adjust the clock, power

on/off time, sleep time etc Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◄► to change the setting. Press TV MENU to step back to the previous menu.

NOTE: Within 15 minutes there is no signal, the TV will auto sleep

5.2.5 OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc. Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◄► to change the setting.

Press TV MENU to step back to the previous menu.

NOTE: Restore factory default will clear all the programs and password.

ENTER 40

5.2.6 LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search

the channels or change any programs.

Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◄► to change the setting.

Press TV MENU to step back to the previous menu.

Hotel Mode

NOTE: The default pass word is 0000.Block program: Press ▲▼ to choose the

program, press teletext green button to block the program. If you want unblock the program, please enter the main menu, input the password, and then press green button again. Parental guidance: Press ◄► to choose level. This Option is available in DVB-T, and DVB-S Mode.

5.3 Hotel Mode

Note operating in hotel mode:

ENTER 40

For using the hotel mode, please select menu „Lock“ and select „Lock System“. Then confirm with OK and put in default pass word (0000). Now this option is activated and you can select the “Hotel Mode”, confirm with OK. The list mentioned below will be displayed. For selecting the single options, please choose with the arrow keys (up /down) the desired option and confirm with the arrow key (right). To return to the hotel menu, press the TV Menu button on the remote control. To leave this menu, press the Exit button.

Key Function Hotel Mode

Arrow keys (up / down) Selection of Menu Options

Arrow key (right) Confirmation of Menu Options

TV Menu button Return to Menu Options

Exit button Exit Menu

Hotel Menu

Hotel Lock OFF

Activate or deactivate Hotel Mode

Channel Lock OFF

Picture Lock OFF

Option Lock OFF Time Lock OFF Key Lock OFF Set Source OFF Set Source ((DTV, Scart, HDMI, etc.) Channel Num - - Set of channel boot when TV source is

Max Volume 100 Default Volume 40 Source Lock

Clear Lock

Lock for Setting Menu in Channel Mode Lock for Setting Menu in Picture Mode für Menüpunkt Bild Lock for Setting Menu in Option Mode

Lock for Setting Menu in Time Mode Keyboard Lock (at TV)

set.

Maximal Volume which can be set Volume Setting while booting Lock single sources (DTV, Sart, HDMI,

etc.) Reset Hotel Mode to default settings.

RED

“Ok”

5.4 EPG Menu (Electronic Program G uide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG button, the following menu will be displayed:

ENTER 40

INFO

Schedule

Remind

Use display the highlight program's information.

Press the teletext yellow key, It can list all the reminder

schedule, press ▲▼ to choose the list, press red key to delete the schedule list, Press yellow key to return to EPG menu.

Press the blue key to select one program and set up one reminder time, the TV screen will skip to the selected program in the reminder time automatically.

to choose the programs, Press INFO key, you can

Record

se acknowledge the edit settings. The made settings will be stored in your schedule list.

button to open the record setting.Press

ENTER 40

5.5

Trouble phenomenon Symptom Inspection Check

Picture Audio

Trouble shooting

Snow

Ghost

Interfer ence

Noise

Normal audio

Noise

antenna position, direction

or connection

antenna position, direction

or connection

electronic equipment,car/

motorcycle,fluorescent light


Normal Picture

No colour

Mute

Normal audio

Volume(check if mute is

activated or if the audio

system connections are

not correct)

Power cord is not inserted

Power switch is not opened

Contrast and

brightness/volume

setup

Colour control

LNB T

NB T

LNB P

LNB p

22K

ith

Enabl

DiSEqC1.0

Select

ight port up to 4 f

ight LNB

DiSEqC1.1

Sel

ight p

ight LNB

LEFT/RIGHT

DiSEqC1.2

SEqC1.3

DiSEqC1.2

ight positi

DiSEqC1.3

llit

Mot

tting

DiSEqC

OK t

)

LEFT/RIGHT t

t/East. It will b

LEFT/RIGHT t

t/East. It will k

p[1]

LEFT/RIGHT t

LEFT/RIGHT

Got

Rest all th

iti

Goto X

iti

llit

6 DVB-S Operation

ENTER 40

6.1

Press “Source Key” on your remote control to open source menu. With / keys select DVB-S2 Mode and confirm with OK. A program list of Astra 19.2 is preinstalled.

6.2

Configure the settings of satellites and confirm with OK.

Satellites' list: Press / to select a satellite, whose settings will be shown at

right side.

oneburst:

otor:

First Time Installation

Satelliten Managme nt

ype

ower

: :

or Se

ove Auto:

ove

Continue:

ove

Ste

tore

Position:

oto

Position:

Reference:

s: (Select

: goto the pos

ress /

shown as frequencies of local oscillator. You also can enter

uency by User Single, User Dual at bottom of the list.

fre

ress /to set the ress /to switch on or off the

auto when LNB T

ect the r

ress

Then Press OK to show the menu to set

ove the motor to a r ove the motor according to the local and sate

ositions.

ress

sto

ress

movin

ress

tore current position of motor.

ress

ositions.

to show the list of

owe

e is dual local oscillator.

e or Disable the toneburst switcher.

the r

ort up to 16 for the r

to select

and press

o start to move Wes

ed automatically when the signal is locked.

o start to move Wes

until you stop it.

o move just a step.

to goto the position stored.

e pos

ons.

on calculated from the local and sate

or the r

on to lock the signal.

o open

ypes which is

,which is set w

osition.

eep

6.2.1 Satellite settings Add satellites:

ENTER 40

Press RED to add a new satellite, in which you must input an unique longitude,

and edit the satellite's name with soft keyboard.

Edit satellites: Press GREEN to edit the focused satellite. Delete satellite:

Press YELLOW to delete the focused satellite. Press OK to confirm.

6.2.2 Transponder

Press EPG to switch the list to show transponders of the focused satellite. Also you can press EPG to switch back to satellites' list.

Add transponder:

Press RED to add a new transponder. It can't save an existing TP under the

same satellite.

Edit transponder:

Press GREEN to edit the focused transponder. It can't save an existing TP

under the same satellite.

Delete transponder: Press YELLOW to delete the focused transponder. Press OK to confirm.

Single Transponder Sca n:

Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.

Multi-Transponder Scan:

Press OK to select transponders with the mark"",then press BLUE to pop the menu of scanning setting. After Configuring the settings, press OK to start

multi-transponder scanning.

6.2.3 Channel search Single Satellite Scan:

Press BLUE to pop the menu of scanning settings. Scan Mode:

Press / to select default, which scans the default transponders built in

and NetWork, which scan with NIT on.

Crytped: Press /to select All Channels or FTA Channels;

Service Type: Press / Press OK to start scanning with the above settings.

Multi-Satellites Scan: Press OK to select satellites with the mark "  “, then press BLUE to pop the 32

to select ALL, DTV or Radio.

menu of scanning setting. After Configuring like single satellite scan, press OK

to start multi-satellites scan.

6.3

To edit your program preferences (rename, skip, favourite, move or delete), you will need to enter the Program Edit Menu.

Delete a TV or Radio Pro gram Select the program and then press the RED button to delete the channel. Rename a TV or Radio Program

Select the program and press GREEN button to rename the channel. You can type it on screen keyboard.

Move a TV or Radio Progra m

Program Edit

ENTER 40

Select the preferred program then press the YELLOW button. Press / to move the program. Press YELLOW again to confirm.

Skip TV or Radio Program

Select the program you would like to skip and press the BLUE button. A skip

symbol is displayed. The program is marked as a skip.

Set Favourite Program

Select the preferred program, then press the FAV button. A list with possible

favoritelist will be open. Select one and press “Ok”. A heart-shaped symbol will appear and the program is marked as a favourite.

6.4

It shows the signal quality and signal strange by selectet channel.

Signal information

ENTER 40

6.5

The TV set contains a Common Interface CI+ Slot.

Different CAM cards with smart card reader can be found at local dealers for different Pay-TV provider.

• Set in: Turn off the TV. Now insert the module.

• Remove: Turn off the TV. Now just unplug the module.

If a Module is set in some more options are available at the CI Information page of the OSD.

1. Press the menu key to open the system settings.

2. Us the arrow keys to select CI Information and press OK to open the

settings. Wait until the sub menu is leaded..

3. Use the arrow keys to select an option and press OK to change or open the selected function.

4. Press EXIT to store the changes and exit the menu.

CI information

ertain menu options and settings aredepend upon the

corresponding CA module. The CA module (not included) is necessary when using a smart

card (not included) to receive encrypted stations. Please insure that the CA module and smart card are compatible with each other. This device may use CI+ compatible modules. Which free to air stations and contents are available depends on the used CA Module and Smart Card. Please note that not all service contractors offer the essential CA M module required or may offer various other modules which may not be compatible. Please refer to you local dealer or contact the Hotli n e for more information concerning compatibility.

ENTER 40

6.6

EPG (Electronic program guide)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the EPG button on the Remote Control to access guide. It will show a list with the current run programs.

Select “Program Guide” and press / to switch between Time / Channel. You can use the / key to select the preferred program.

Time: An overview will be shown about the broadcast to the selectet date to

current time from the programms.

- Select the “Date / Timer” display and press / to edit the date.

Channel: An overview will be shown about the broadcast course of the selectet

channel on day you edit befor.

- Select the programm display and press / to switch the channel

Remind: Use BLUE button to open the reminder setting. Press “Ok” to

acknowledge the edit settings. The made settings will be stored in your schedule list.

Record: Use RED button to open the record setting. Press “Ok” to

acknowledge the edit settings. The made settings will be stored in your schedule list.

Info: Use Green button to open the information about the selected

broadcast.

Schedule: Use YELLOW button to open the schedule list from your

records and remind settings.

Selected items can be delete with “RED” button.

ENTER 40

7 TELETEXT Function Keys

Teletext is an information system broadcast by certain channels which can be

consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain:

TTX

SELECTING A Enter the number of the page required using the 0 to 9

DIRECT ACCESS TO THE ITEMS

INDEX This returns to the contents page (usually page 100). SUB PAGE Certain pages contain sub-pages which are automatically

HOLD To freeze the page. REVEAL To display or hide the concealed information (games

LIST The user can set four favorite pages to be directly linked to the

This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).

up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number. Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.

displayed successively. This key is used to stop or resume sub- page acquisition. The indication appears top left.

solutions).

four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the colorkeys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

ENTER 40

8 Selection of Source Input

This device contains different Video modes which can be selected on the TV itself or with the help of the remote control.

Press SOURCE you will get the following:

Input Source

DVB-S2

DTV

ATV

Scart

YPbPr

HDMI 1

HDMI 2

USB

Use the

▲▼ direction buttons and OK button

On the input menu, press the ▲▼ direction button to select the desired video mode,

press the OK button to enter the selected mode.

Use the SOURCE button and OK button

On the input menu, press the SOURCE button to select the desired video mode,

and press the OK button to enter the selected mode.

ENTER 40

8.1

Connecting a USB Devices for playing media files

The Dyon Action 40B has an USB Port to upgrade the software and playing media files.

If possible, please connect USB devices directly to the Devices USB interface. If this is not possible, use only USB extension cables not exceeding 25 cm.

Press SOURCE then direction buttons to select Media Player mode, then press the OK button to confirm.

Please make sure that the USB device has plugged into the slot. There are three type media item can be selected, such as photo, music and Movie. Select the type media item by pressing ◄►, press OK button to enter the disk selection menu.

Press the◄► to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

ENTER 40

8.2

Select the media file by pressing ◄► or ▲▼, and then the preview frame will pop up. Press the button ►(play) to play the media file in full screen. When the media file (photo, music, Movie) is playing, press the OK or Info button can display the control bar.

Movie Playback

Press ◄► to select the function icon, press OK button to confirm the function. Press ▼or EXIT button to exit the control bar.

NOTE: You can adjust the audio track, or program in the Info menu while

playing the video file. Choose the Info icon and press OK can display the Info MENU.

9 Connecting to PC

ENTER 40

The unit can be connected to PC (personal computer) via the VGA cable. Follow the figure below to connect:

1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and connect the other end to the PC.

2. Connect one end of the audio cable to the PC audio input jack on the rear panel of the unit and connect the other end to the PC audio output jack.

3. Power on the TV set and switch to PC mode (VGA) using the SOURCE key.

4. Power on the PC.

5. Set the PC video resolution to match that of the television.

NOTE: It is very important to follow these steps exactly!

RESOLUCION V.Frec.(Hz) H.Frec.(KHz)

1 800*600 60 37.88 2 640*480 60 31.47 3 1024*768 60 48.36 4 1280*1024 60 63.98 5 1366*768 60 67.5 6 1920*1080 60 66.64

Probl

Potential R

What to d

Switch

Not

DVB

Switch

Onl

TV/RADIO

The batt

Adj

The i

ENTER 40

10 Troubleshooting

o picture

creen shows

No Signal

o sound from

Speaker

easons

owerisn't

connected

e power switch is

not on

connect

cable

ncorrect setting

o or incorrect

connection

with audio cable

ute the soun

ncorrect sound trac

-S2

onnect the power

on the power

ug in the

cable

et up correct

parameter

onnect the audio

cable

correctly

on the correct

volume control

ry another sound

track

y sound,

no image on the

screen

emote control

unit is not workable

mage stop

suddenly or mosaic

o or incorrect

connection

with AV cable

e program is a

radio

program

ery is

exhausted

emote control unit

is not

in the right opposite of the

front panel or too far from it

e signal is too

weak

onnect the audio

cable

correctly

ress <

key to

shift into TV mode

ange new battery

ust the way of

holding

remote control unit and

near from the panel

rengthen the

signal

11 Specifications

ENTER 40

Item

/DTV Tune Frequency Range VHF: 174MHz to 230 MHz UHF:

DVB-T Demodulation Demodulator COFDM

DVB-S2 Tuner

DVB-S2

Connections

Demodulation Demodulation

Specification

OFDM Modulation 2K,8K FFT, Packet Carries 2K/8K Guard Interval 1/4,1/8,1/16, Frequency Range

Input Impedance Signal Input Level Symbol Rate

FEC 1/2,2/3,3/4,5/6,7/8, 8/9, 9/10

RF IN IEC 169-2 female connector RF Loopthough TV SCART

QPSK / 8PSK

470MHz to 862 MHz

950MHz to 2150MHz 75 Ohms unbalanced

-65 ~ -25DBM 2-45Mbps

IEC 165-2 male connector Composite Video, Audio L/R

SFN and MFN

1/32

Power

Display

Decoding

Others

* Specifications are subject to change without further notice.

and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

This symbol on the product or in the instructions means that your electrical

Input Consumption

Aspect Rate

Audio Compliance

Sound Mode

Decoder Module PAL, NTSC

Video

100-240V ~ 50/60Hz

78 W.

4:3 (Letterbox, Pan & Scan),16:9

MPEG2 Transport MP@ML MPEG2 Audio Layer ETSIEN 300 744 DVB-T

ComplianceETSIEN DVB-S2 Compliance

Right, Left, Stereo

300 421

DiSEqC Digital Satellite Equipment Control Digital system, with which

the receiver can control different components of the external unit. It is especially used for selecting from multiple satellite

positions (for example Astra and Eutelsat). EPG Electronic Programme Guide RF connector FTA Free to air services Free of charge services that can be

LNB Low Noise Block Amplifier / Converter A device at the centre

Mute Key of the remote control for turning off sound OSD On screen display Menu control displayed on the screen. PID Identification number of a received data stream. The PIDs

Receiver Receiver unit, which converts signals from the antenna into

SCART A21 pole connector for connecting the TV set to the receiver. Transpond er HDMI High Definition Multimedia Interface. A connector for

Y/PB/PR A connector for connecting the TV set to the receiver and

RGB Separated colour information transmission (Red-Green-Blue) DVB-S Digital Video Broadcasting by Satellite DVB-S2 Digital Video Broadcasting by Satellite with the ability to

HD High Definition TV

Manufacturer

Coaxial connector for LNB antenna cable.

received without a special decoder.

of the antenna, which converts high frequency incoming

signals from satellites into a low frequency range and amplifies

them simultaneously.

ensure that a channel is received completely.

video and audio signals.

Satellite frequency. Several digital channels can be

broadcasted simultaneously on a transponder.

connecting the TV set to the receiver and transmit picture and

sound in HD quality.

transmit picture in high quality

provide HD quality

ENTER 40

Axdia International GmbH Formerweg 9 D-47877 Willich (Germany) Tel: +49(0) 2154 / 8826-0 Fax: +49(0) 2154 / 8826-100 Web: www.dyon.eu

S u p p o r t h o tl i n e : +49 (0)2154 / 8826-101 E-Mail: info@axdia.de

ENTER 40

12 Warranty cond ition

The following conditions comprise the requirements and scope of our warranty conditions and do not

affect our legal and contractual warranty obligations.

We offer a warranty on our products in accordance with the following conditions:

1. DYON products are covered by a 24 month warranty. We will resolve damages or defects on DYON products free of charge within 12 months of the purchase date under the following warranty conditions. For any damage or defect determined later than 12 months after the purchase date, proof of a manufacturing fault must be submitted for repair under warranty.

The warranty does not cover batteries and other parts, which are considered consumables, parts that break easily such as glass or plastic or defects based on normal wear and tear. There is no warranty obligation in the event of marginal differences compared to the target appearance and workmanship provided these have a negligible effect on the product's fitness for use, in the event of damage caused by chemical or electrochemical effects, by water or generally from abnormal conditions.

2. The warranty will be performed in such a way that we shall decide whether to repair the defective parts or to replace them with working parts free of charge. AXDIA reserves the right to exchange the product for a replacement product of equal value if the product that is sent in cannot be repaired within a reasonable time or at reasonable cost. The product can also be exchanged for a different model of the same value. Requests cannot be made for repairs to be carried out on site. Parts that have been replaced or exchanged become our property.

3. The warranty claim does not apply if repairs or other work is carried out by unauthorized persons or if our products are equipped with additional parts or accessories that are not approved for our products.

4. Warranties that have been activated do not cause the warranty period to be extended, nor do they trigger a new warranty period. The warranty period for any replacement parts installed ends with the warranty period for the entire product.

5. Any other or further claims are excluded, especially those for replacement due to damage caused outside of the product, provided there is no obligatory legal liability. We therefore accept no liability for accidental, indirect or other consequential damage of any kind, which leads to usage restrictions, data loss, loss of earnings or interruption to business.

Asserting a warranty claim

1. To make use of the warranty service, you must contact the AXDIA Service Center by e-mail, fax or phone (see below for contact details). You can also use the service form on our website or on the back of the warranty conditions.

2. AXDIA Service Center will try to diagnose and solve your problem. If it is determined that a warranty claim exists, you will be given an RMA number (Return Material Authorization) and you will be asked to send the product to AXDIA.

ENTER 40

IMPORTANT: AXDIA will only accept parcels that

have an RMA number.

Please observe the following when sending the product:

1. Send the product suitably packaged with carriage and insurance paid. Do not enclose any accessories with the products (no cables, CD's, memory cards, manuals, etc.), unless the AXDIA Service Centre specifies otherwise.

2. Mark the RMA number on the outside of the package in such a way that it is visible and clearly legible.

3. You must enclose a copy of the sales slip as proof of purchase.

4. Once AXDIA has received the product, it will meet its warranty obligations in accordance with the warranty conditions and will return the product to the sender with carriage and insurance paid.

Service outside of warranty

AXDIA can refuse any service claim made that is not covered by the warranty. If AXDIA agrees to provide a service outside the warranty, the customer will be invoiced for all repair and transport costs. AXDIA will not accept any packages that have not first been approved by AXDIA by means of an RMA (Return Material Authorization).

Dyon ENTER 40 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
