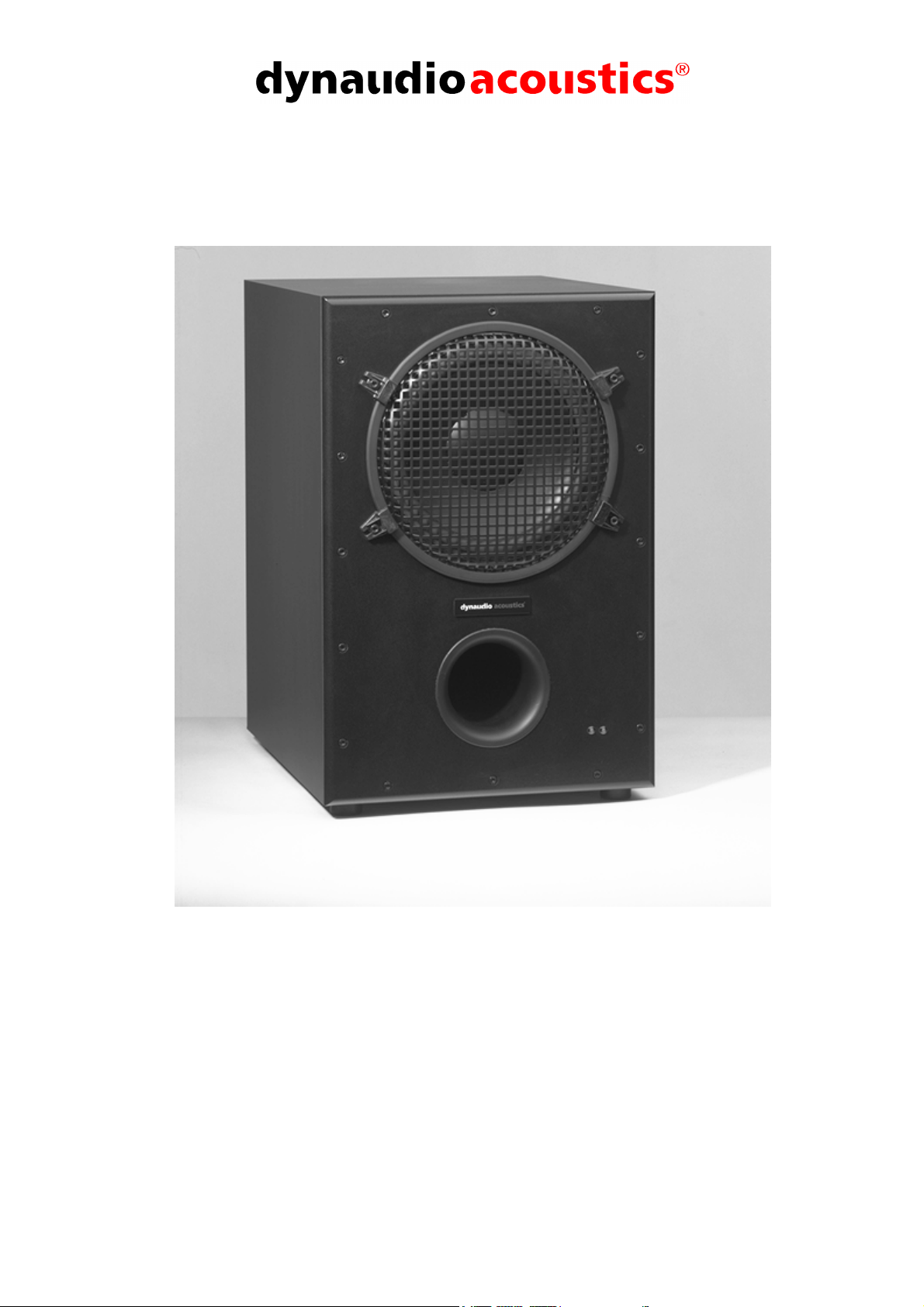

Dynaudio BX30 User Manual

BX30 subwoofer
Owner’s Manual
- and Safety Instructions
Preliminary Version 990209
455 490 A
EXPLANATION OF GRAPHIC SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
This product conforms to the following Product Specifications:
EN 60065 EN 55103-1 EN 55103-2
EN 60065 (LVD)
Safety requirements for mains operated electronic and related apparatus for household and similar general use.
Use only in environments where humidity is between 30 and 70%
EN 55103-1 (Emission)
Electromagnetic compatibility – Product family standard for audio, video, audio-visual and entertainment lightning control apparatus for professional use
EN 55103-2 (Immunity)
Electromagnetic compatibility – Product family standard for audio, video, audio-visual and entertainment lightning control apparatus for professional use
and temperature between 5° and 40° C
rh
Copyright 1999 by DYNAUDIO ACOUSTICS A/S. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise whatsoever, without the prior written permission of DYNAUDIO ACOUSTICS A/S.
The information contained in this document is subject to change without notice.
Safety
Installation
Important Safety Instructions
Read these instructions before any connection to the apparatus.
Please keep these instructions in a convenient place.
CAUTION
To avoid electric shock, do not open the subwoofer.
There are no user-serviceable parts inside.
If the BX30 have been stored for a longer period in an environment, where temperature was low or humidity high, we recommend that the BX30 is disconnected for at least three hours before use.
Do not operate this apparatus near water.
Do not install near any heat sources such as radiators, heat registers, fireplaces, stoves, or other items that produce heat.
Do not cover the apparatus. Keep it ventilated, minimum 3 cm all around the cabinet.
Power connection
Do not defeat the safety purpose of the grounding-type plug. A grounding-type plug has two blades and a third grounding prong. The third prong is provided for your safety. If the provided plug does not fit into the wall outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being stepped on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Unplug this apparatus during lightning storms or when unused for long periods of time.
Attachments
Only use attachments/accessories specified by the manufacturer.
Servicing
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, has been dropped, or does not operate normally.
Maintenance
To prevent fire or shock hazard, clean only with a damp cloth. Never use cleansers or chemicals.
Sound pressure level
Please note that excessive listening at high sound pressure levels may cause permanent hearing damage.
Please follow all instructions and heed all warnings
Warning
This equipment can produce
sound pressure levels in excess of
90 dB(A)
CONTENTS
AFETY
S
................................................................................................................................................ 3
Installation .................................................................................................................................................. 3
Power connection........................................................................................................................................ 3
Attachments ................................................................................................................................................ 3
Servicing..................................................................................................................................................... 3
Maintenance................................................................................................................................................ 3
Sound pressure level................................................................................................................................... 3
BX30 O
NTRO
I
NLET SECTION
I
O
BX30 P
C
M
5.1 S
S
BX30 T
F
WNER’S MANUAL
Unpacking................................................................................................................................................... 5
................................................................................................................... 5
.................................................................................................................................................. 5
.................................................................................................................................... 6
PERATING PANELS
LACEMENT
OOLING
OUNTING
OUND CALCULATOR
LOW DIAGRAMS
............................................................................................................................................. 9
.......................................................................................................................................... 9
YSTEMS
ECHNICAL DESCRIPTION
System topology........................................................................................................................................ 13
............................................................................................................................. 7
.............................................................................................................................. 9
..................................................................................................................................... 11
........................................................................................................................ 12
........................................................................................................ 13
............................................................................................................................... 14
OX DATA
B
......................................................................................................................................... 15
BX30 Owner’s Manual
BX30 Owner’s Manual
Unpacking
Every loudspeaker leaving DYNAUDIO ACOUSTICS A/S has been carefully and thoroughly inspected and tested.
When unpacking the subwoofer, be sure to check if any physical damage has occurred to the subwoofer due to shipping. In case of damage, please contact the selling dealer immediately.
When unpacking the subwoofer, verify that the voltage switch is positioned according to area voltage requirements.
Intro
BX30
The recording and postproduction facilities.
As a stand-alone unit it can be used to provide the sub bass channel of a 5.1 multi speaker system.
It can be used as the bass-extension-section of a small full range monitor, in single mono, dual stereo or multiple applications, where a large amount of low frequency energy is required.
The giving an advantage of up to 18 dB over conventional bass reflex designs.
is a sophisticated and versatile low frequency monitor speaker, which satisfies all the demands of the
BX30
features an innovative electro-acoustic system which optimises bass output power for the music spectrum,

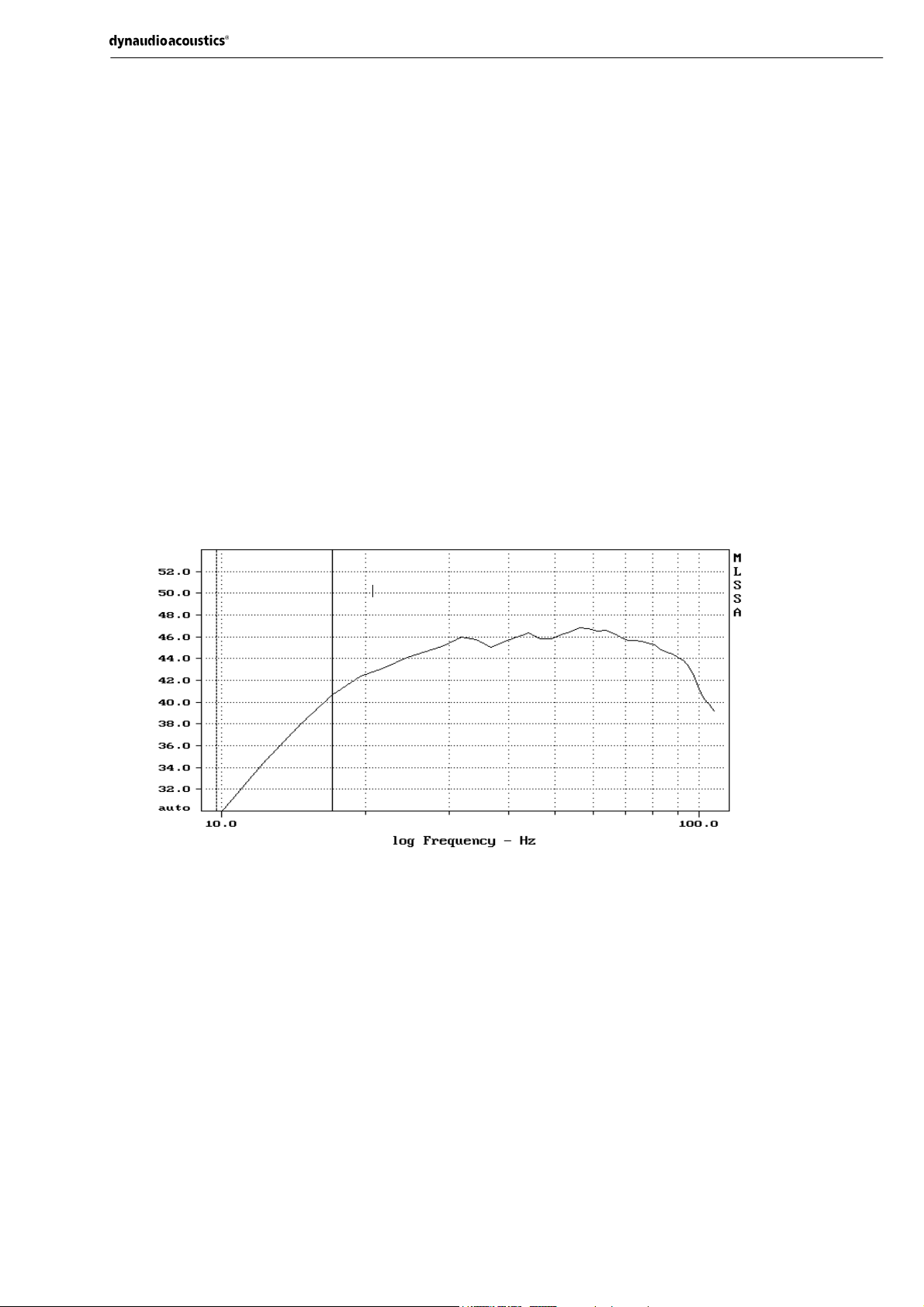

Figure 1.
An electronic filter limits the response to 22 Hz in order to prevent large excursion by sub sonic signals and rumble. This filter can be removed when the must be ordered through an authorised agent. A single or M1. The integrated 95 Hz high-pass crossover combined with the variable level and phase adjustment allows perfect matching in any position, giving complete freedom of movement and placement of the spaces! Two systems; the
BX30
is a perfect match to any of the smaller
BX30
s will be more than a match for the BM15A and BM15, while four will rival the output of very large monitor
BX30
can, thanks to its flexibility, grow with your requirements and give a lifetime of service.
The BX30 driver has a –6 dB point at 17 Hz, which results
in superb reproduction of the most demanding material.
BX30
is used for reference listening purposes. This is a factory modification, which
dynaudio acoustics

monitors, such as the BM5, BM6, BM6A
BX30
; very useful in confined
5
Inlet section
BX30 Owner’s Manual
AC inlet
Power switch
Voltage switch
Fuse-drawer
Figure 2.
This is a grounding-type plug. Do not connect to a convenient AC outlet on a sound system or non-grounding AC outlet.
0: 1: There is voltage on the amplifier.
Protection
The
115/230: The amplifier’s power supply can be used with various voltages, 115/230 V ~, and
frequencies, 50/60 Hz. The voltage selector switch on the back panel of the subwoofer shall be positioned according to the required voltage in your area. The manufacturer fixes the setting prior to shipping.
Caution
Replace
Do not try to alter the voltage setting, as doing so will result in a blown fuse. Wrong settings may result in damaged electronics.
The main fuse for the subwoofer is located in the Fuse-drawer. For continued protection against risk of fire, replace only with same type of fuse.
115 V: 230 V:
LED lights up, red.
8 A / 125 V Slow-blow 4 A / 250 V Slow-blow
AC inlet
6
Operating panels
BX30 Owner’s Manual
LED
LEVEL
PHASE
Figure 3.
Limiter: Lights up when the limiter circuits start protecting the woofer. The limiter does not
affect the signals on the XLR OUT.
Detect: When the input signal is above – 20 dB it lights green. If the line signal increases to
0 dB it turns red. The protection circuit also measures signal levels inside the subwoofer amplifier. If the level calibration is turned clockwise and the signal in one of the measuring point surpass –20 dB.
Protection: Switch on the subwoofer, and the LED turns red, and for the next 5 seconds the
protection circuit checks the amplifier. When everything is all right, the protection circuits switch the signal- and speaker relays on.
Calibration: Adjustment of the subwoofer level.
Sensitivity: Level attenuation of input signal.
–10 dBm +4 dBm Mute
Calibration: Changes the phase alignment IN versus subwoofer.
Polarity: Invert the IN proportion subwoofer phase.
pro level signal
for muting the subwoofer. The signal on XLR
Subwoofer control panel
consumer level signal
OUT
remains.
CROSSOVER
Low Pass: Changes the crossover frequency subwoofer itself. To fit the
speakers.
BX30
to your main
7
BX30 Owner’s Manual
CROSSOVER
IN
OUT
Figure 4.
High Pass: Changes round the
Direct 95 Hz
send to the XLR
L and R : Balanced line signal input.
Pin 1 : Ground Pin 2 : Non inverted (hot) Pin 3 : Inverted (cold)
L and R: Balanced line signal output.
Pin 1 : Ground Pin 2 : Non inverted (hot) Pin 3 : Inverted (cold)
CROSSOVER High Pass
If in the amplifier will change and thereby the
Output control and connectors
OUT
: The signal on XLR IN connectors is directed to the XLR
: The signal on XLR IN runs through a 95 Hz high pass filter, before it is
OUT
line signals between :
.
is set on 95 Hz and the
BX30
is turned off, the relays
OUT
signal will disappear.
OUT
.
8
BX30 Owner’s Manual
BX30 Placement
Single Unit (Stereo) The correct location and phase alignment of the system. The best results are usually achieved with the position as the main speakers. The unit should be placed at the centre point of a line between the main speakers if used as part of a stereo system. The polarity and phase can be adjusted so that there is the maximum cut in bass at 95 Hz when the unit is switched ‘out of phase’. This should ensure the optimum coupling with the main speakers when ‘in phase’.
Double Units (Stereo) The optimum stereo performance will be achieved with one correct panning and image location of signals when mixing. If performance is affected by the presence of a solid console or equipment furniture, it may be necessary to place the which case suitable, mechanically adequate stands should be employed. In any event the placed equidistant to the mixing position in order to avoid phase cancellations.
Single Low Frequency Effects Channel (.1) In this mode the positioning is usually asymmetrical to the room. This is done to avoid direct coupling to standing waves which results in better frequency response. The internal filter should be set to 120 Hz for film mixing or as required by the medium being used. Several
BX30
will reproduce only the low frequency content of a discrete multi channel format and the
BX30
units may be daisy chained using the input and output XLR connectors.
BX30
is essential to achieve accurate performance with any given
BX30
floor standing and at the same distance from the listening
BX30
directly beneath each main speaker. This will ensure
BX30
units at the same level as the main speakers in
BX30
s should always be
Large Active Systems
BX30
The allows combination with any mid range device and the integrated signal and power management makes the suitable for club and sound system installations. It is also suitable for mobile use but it should not be used outdoors or anywhere prone to damp or moisture, for electrical safety reasons. The cabinet is designed for free standing or stand mounting; flying or rigging will require a suitable cradle or full supporting bracket. No fixing should be made directly to the MDF panels or rear electronics panel.
can be used as part of a large sound system to handle bass frequencies up to 120 Hz. The phase adjustment
BX30
Cooling
BX30
The 60 degrees Celsius. Always allow sufficient air flow, around the rear panel, especially if the unit is mounted in a front wall baffle or similar enclosure. Under normal circumstances the convection cooling.
has full logic thermal control, which will shut the amplifier down in the event of the inner heat sink reaching
BX30
should not be mounted with the heat sink fins horizontal, as this will impede
Mounting
Under some conditions it may be desirable to place the a floor or shelf unit. Special damping units may be ordered from your this without compromising bass performance. Placing the unit on soft foam or carpet may reduce audible buzzing or vibration. The design of the amplifier lead to the possibility of rotating the amplifier to horizontal or vertical. Disconnect the
BX30
, then remove the eight fixing screws. Lift the amplifier carefully out of the mounting hole. Then rotate it in the
direction which suits you. Place it again and mount the eight fixing screws.
BX30
on anti vibration mounts so as avoid direct transmission to
dynaudio acoustics

agent who will facilitate
9
BX30 Owner’s Manual

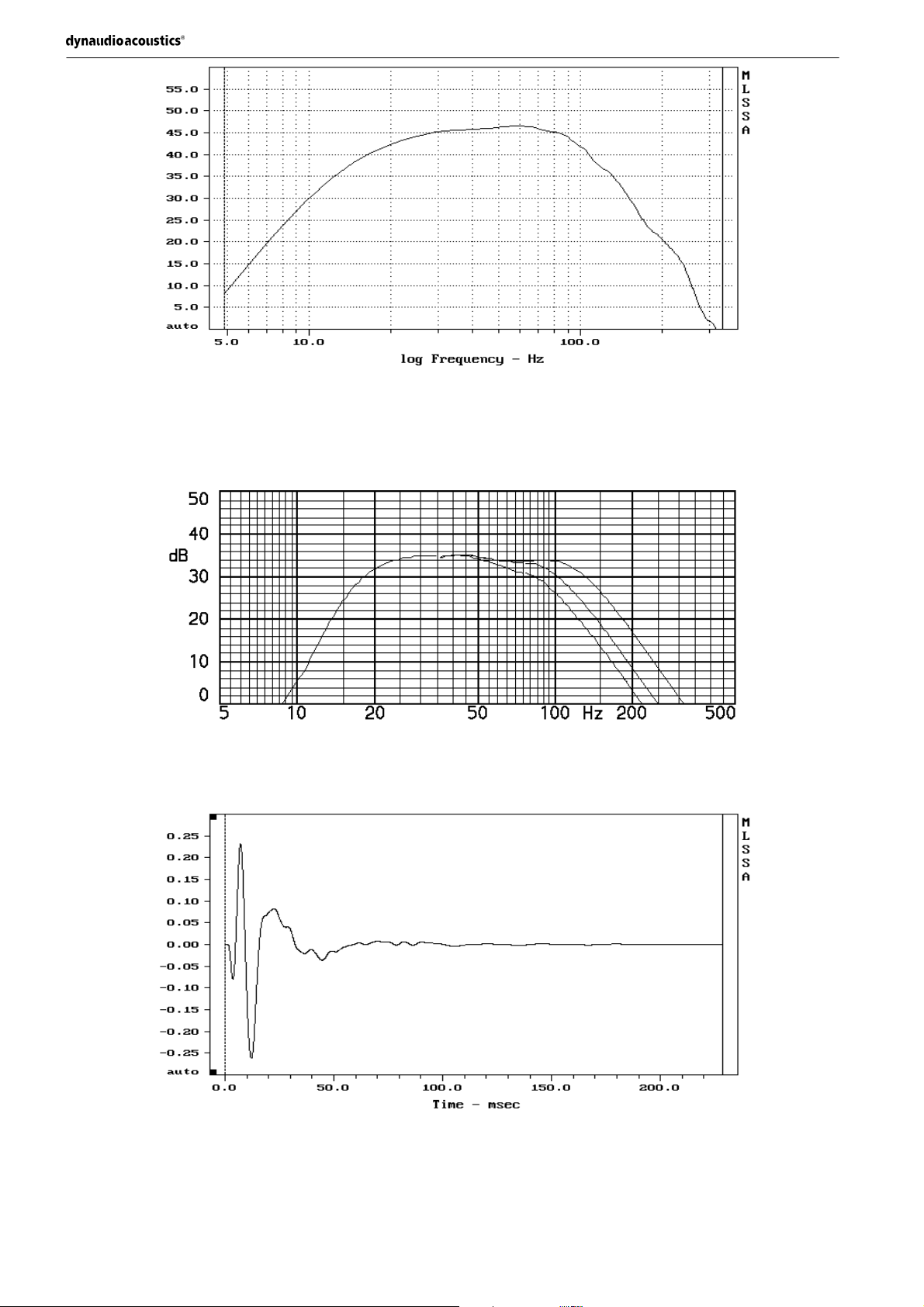

Figure 5.
Shows the standard
1
/3 octave response in active bass
extension mode with the crossover pre set to 95 Hz.
The response offers a seamless match to any high quality monitor system but it is particularly well suited to smaller models with limited bass output capability.
Figure 6.
The flexibility of switching low pass and match high pass x-overs means
the BX30 can be matched to any system with ease and accuracy.
Figure 7.
The impulse response of the BX30 is almost perfect
for a two octave, 100 Hz band pass filter.
The impulse response Figure 7 shows the superior transient response of direct radiating systems compared to narrow resonant cavities and chambers.
10
BX30 Owner’s Manual
5.1 Systems
Dolby AC3 format. The specification for each channel is strictly defined and the The agreed sound level capability for the sub bass channel in film theatres is 115 dB in any one-octave band, in any seat. The multiple (modular) formats in much larger spaces. Our design chart gives SPL predictions for different rooms. Please note these are narrow band or single frequency predictions, not broad band levels which are much higher. For example a single while eight units can satisfy the requirement for THX theatres of 1000 cubic metres at a distance of 10 metres. By comparison the Dolby requirement for calibrated 5.1 systems is only 105 dB and so the deal with the future demands of digital multi channel audio, especially in the professional dubbing theatre.
BX30
can deliver this output with clean, undistorted power, which is equally suited to small rooms, or in
BX30
will produce 112 dB at 63 Hz at one metre, enough to match nearly all near-field monitors,
BX30
conforms carefully and accurately to that standard.
BX30
is well equipped to
11
BX30 Owner’s Manual
Sound Calculator
ONE BX30 AT VARYING DISTANCE D FOR 100W RMS POWER
Freq. L W H Lw(1W) Lw(Rqd) EPR Q D S V a T60 Lp calc Dc
63 20 10 5 100 120 100 2 1,0 700 1000 0,4 0,50 112 3,21 63 20 10 5 100 120 100 2 2,0 700 1000 0,4 0,50 107 3,21 63 20 10 5 100 120 100 2 3,0 700 1000 0,4 0,50 104 3,21 63 20 10 5 100 120 100 2 4,0 700 1000 0,4 0,50 103 3,21 63 20 10 5 100 120 100 2 8,0 700 1000 0,4 0,50 101 3,21 63 20 10 5 100 120 100 2 12,0 700 1000 0,4 0,50 100 3,21 63 20 10 5 100 120 100 2 16,0 700 1000 0,4 0,50 100 3,21
1 TO 8 BX30 UNITS W I TH 1, 10 AND 100W AMP POW ER EACH
L W H BX30 Lw EPR Q D S V a T60 Lp calc Dc
20 10 5 1 100 1 2 10,0 700 1000 0,4 0,50 81 3,21 20 10 5 1 110 10 2 10,0 700 1000 0,4 0,50 91 3,21 20 10 5 1 120 100 2 10,0 700 1000 0,4 0,50 101 3,21 20 10 5 2 103 1 4 10,0 700 1000 0,4 0,50 84 4,54 20 10 5 2 113 10 4 10,0 700 1000 0,4 0,50 94 4,54 20 10 5 2 123 100 4 10,0 700 1000 0,4 0,50 104 4,54 20 10 5 4 106 1 8 10,0 700 1000 0,4 0,50 88 6,42 20 10 5 4 116 10 8 10,0 700 1000 0,4 0,50 98 6,42 20 10 5 4 126 100 8 10,0 700 1000 0,4 0,50 108 6,42 20 10 5 8 109 1 16 10,0 700 1000 0,4 0,50 93 9,08 20 10 5 8 119 10 16 10,0 700 1000 0,4 0,50 103 9,08 20 10 5 8 129 100 16 10,0 700 1000 0,4 0,50 113 9,08
L length S room s urface area W width V room volume H height a average absorption Lw sound power of source speak er Sa total absorption Q directivity index T60 reverb decay time D distance to point of measurement Lp sound pressure at D EPR electronic power required (amplifier) Dc critical distanc e Ld=Lr
BX30 Sound Calculator
120
100
80
60
40
power and Spl
20
0
111222444888
No. o f BX 30
EPR
Lp calc
12
BX30 Owner’s Manual
BX30 Technical description
System topology
The BX30 is fully active with a sophisticated signal management system. The following features are provided as standard. Dual inputs and outputs fully balanced with automatic bypass in the event of power loss. The outputs are buffered and filtered with a 24 dB/ octave high pass network which forms a perfect 24 BX30 is set at 95 Hz Low Pass mode. A direct through switch is also provided for multiple BX30 linking.
All inputs and outputs are relay switched for full protection of system. There is a voltage protection limiter on each
input to protect the balanced line level amplifiers.
A full logic management and protection system controls all switching functions with LED indication of fault
conditions.
Switchable –10 dB, +4 dB or mute gain with level control.
Three precision low pass networks, calibrated to meet international standards;
80 Hz for critical listening applications using high quality small monitors.
95 Hz for most subwoofer applications in stereo or part of a multi channel system.
120 Hz for full 5.1 systems requiring a separate low frequency effects channel. This mode is designed to meet
Dolby, DTS and THX criteria for theatres.
th
order crossover (Linkwitz-Riley) when the
Additionally there is an internal spectrum equaliser and subsonic filter (17 Hz) to ensure optimum sensitivity and
maximum output from 20 Hz to the cut off frequency.
Full 360 degrees of phase adjustment allows room positioning and alignment for optimum summing with a main or
satellite speaker. This promotes mutual coupling of multi speaker systems for perfectly solid imaging.
VCA controlled power limiting ensures overload conditions cannot occur. Driver protection is achieved without
compression and misleading changes in the sound spectrum. A relay offers instant protection of the driver in a condition of fault or overload.
We believe the BX30 is the most advanced low frequency speaker system available. It can work alone or as part of a larger modular system. The 140 W power module is an extremely efficient unit with virtually no quiescent current. The unit can be operated indefinitely in standby mode. Distortion is negligible under normal operating conditions.
13
Flow diagrams
BX30 Owner’s Manual
IN XLR OUT XLR
L+
Left
L-
Passiv limiterInput relay
Line receiver
Left
High pass 95 Hz
24 dB/oct
b
Right
R-
R+
Right
24 dB/oct
b
Buffer
Left
Temperature
sensor
60°
h
d
e
Right
= also adjustable with a tool
Equalizer
a
Subsonic
24 dB/oct
10 Hz
Phase 0°-180°
Phase +180°
Fix level
+4 dBm
-10 dBm Mute
Limiter
Line driver
Left
Right
Level
c
Output relay
Output switch
L+
L-
b
R+
R-
b
Low pass
24 dB/oct
80 Hz
24 dB/oct
95 Hz
24 dB/oct
120 Hz
Power Amplifier Speaker relay
Left
Right
a
f
Speaker
VCA
b
g
Figure 8.
Flowchart preamplifier
= also adjustable with a tool
V++ ±10%
V-- ±10%
VCC ±5%
VEE ±5%
DC at amplifier
Temperature > 60°
Input level right
Input level left
Bass level
Limiter active
g
h
Startup
d
e
f
c
Comparator
0 = fault
0 = fault
0 = fault
0 = fault
0 = fault
OR
0 = fault
0 = fault
Comparator
Buffer
Comparator
AND
Comparator
1 = no fault
Red; input overload
Green; input
Red; limiting
Reset
Timer
3 seconds
Red
Green
Front of cabinet
Protection
indicator
OR
b
Timer
attack 3s hold 10s
VU
indicator
Front of cabinet
Limiter
indicator
14
Figure 9.
Flowchart protection circuit
Box data
BX30 Owner’s Manual
Power Amplifier : collector coupled quasi
complementary BJT
Phase Shift : 20-150 Hz, variable 0-180
Frequency Response : +/- 3 dB 17-80/95/120 Hz
Internal cabinet volume : inner 76 litres
Bass Principle : reflex
Weight : net 29,9 kg
Dimensions :
Crossover : Linkwitz-Riley
input crossover frequencies 80, 95, 120 Hz
w × h × d 41 × 619 × 547
crossover slope 12 dB/Oct
140 W
°
Mm
output crossover frequencies 95 Hz
crossover slope 12 dB/Oct
Connections : input XLR female 3 pole
output XLR male 3 pole
Impedance : input 20
output 50
Woofer : 30 cm polypropylene cone
100 mm pure aluminium wire voice coil
Cabinet : front baffle 22 mm MDF
cabinet 22 mm chip board
internal bracing structure
k
15
Loading...
