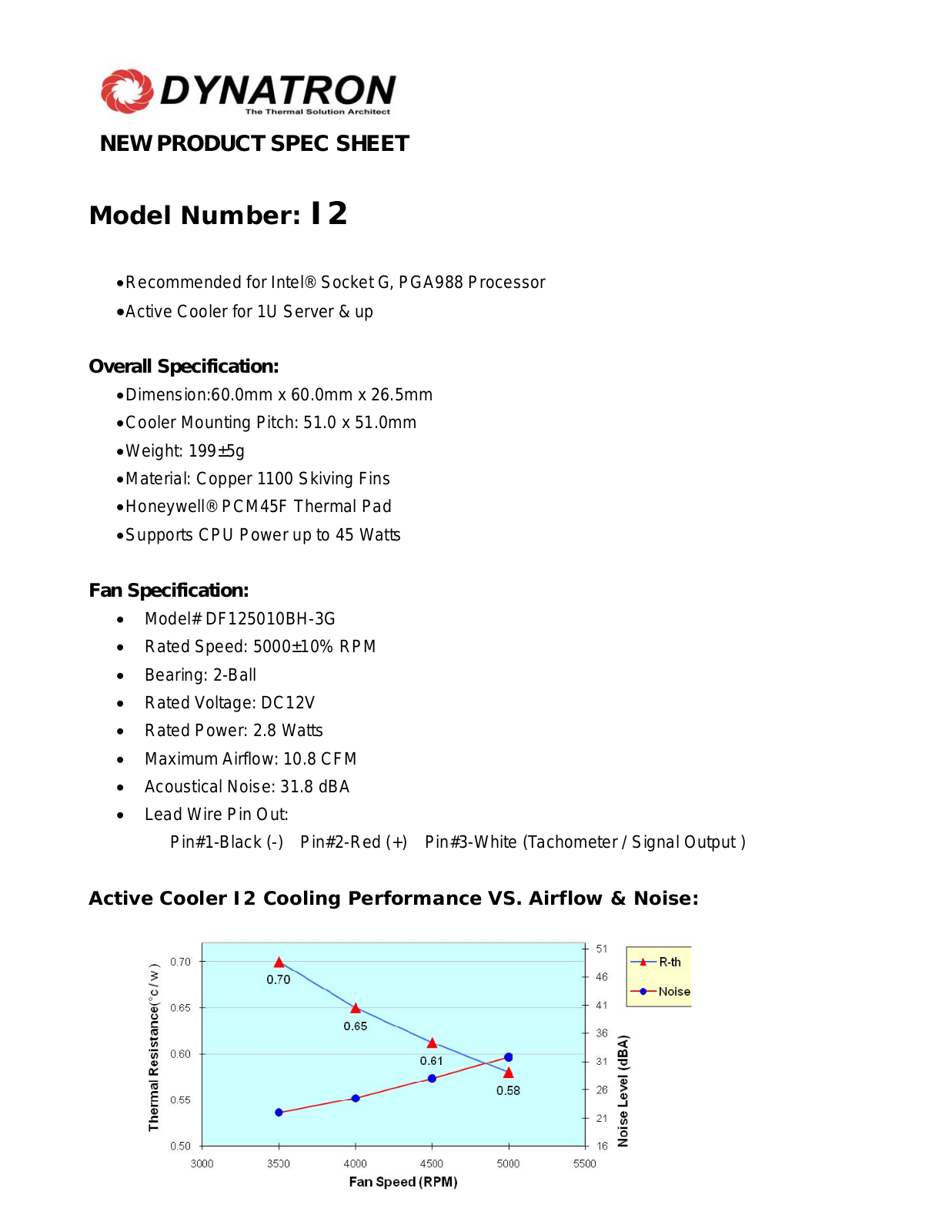

Dynatron I2 User Manual

NEW PRODUCT SPEC SHEET
Model Number: I2
Recommended for Intel® Socket G, PGA988 Processor
Active Cooler for 1U Server & up

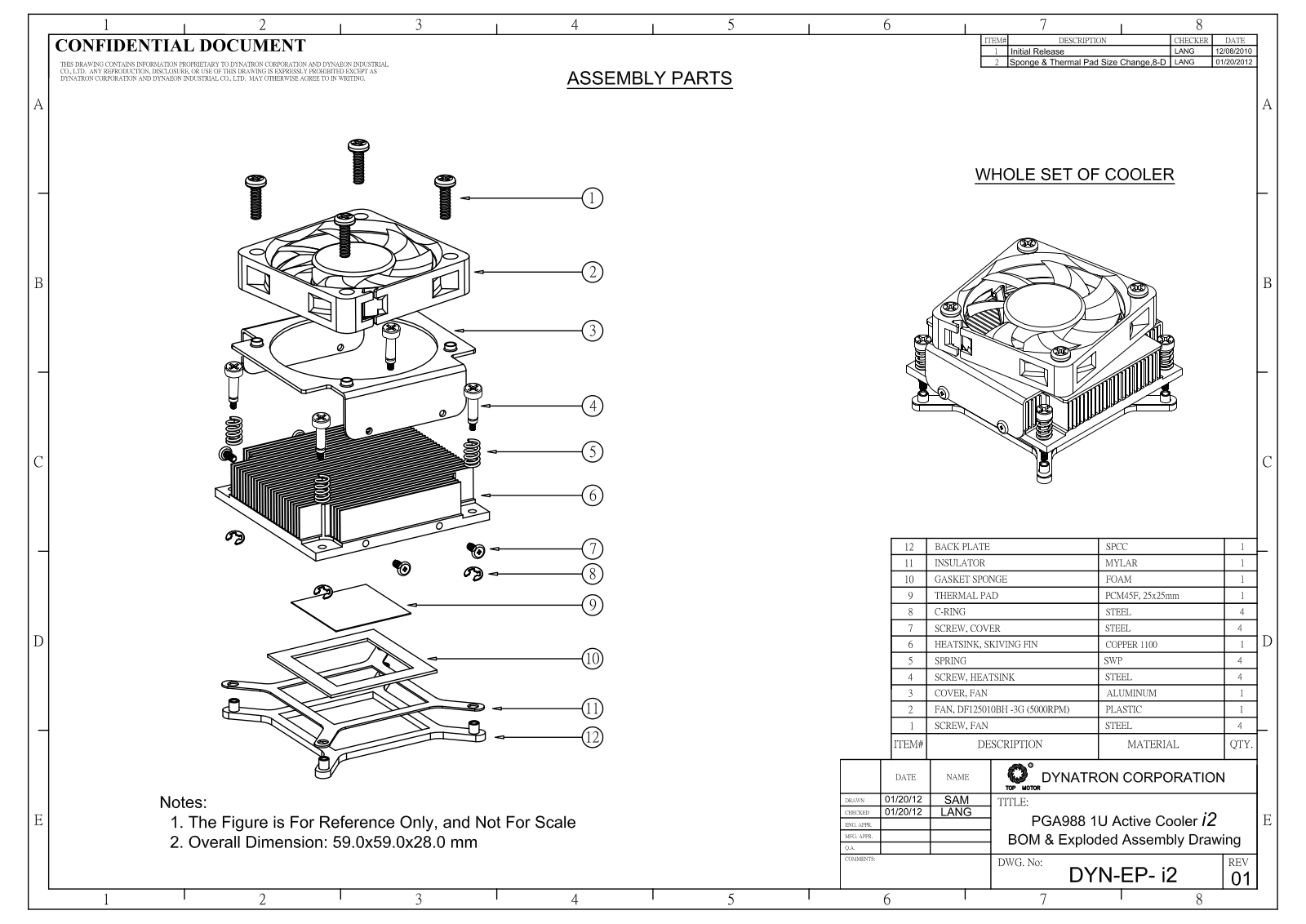

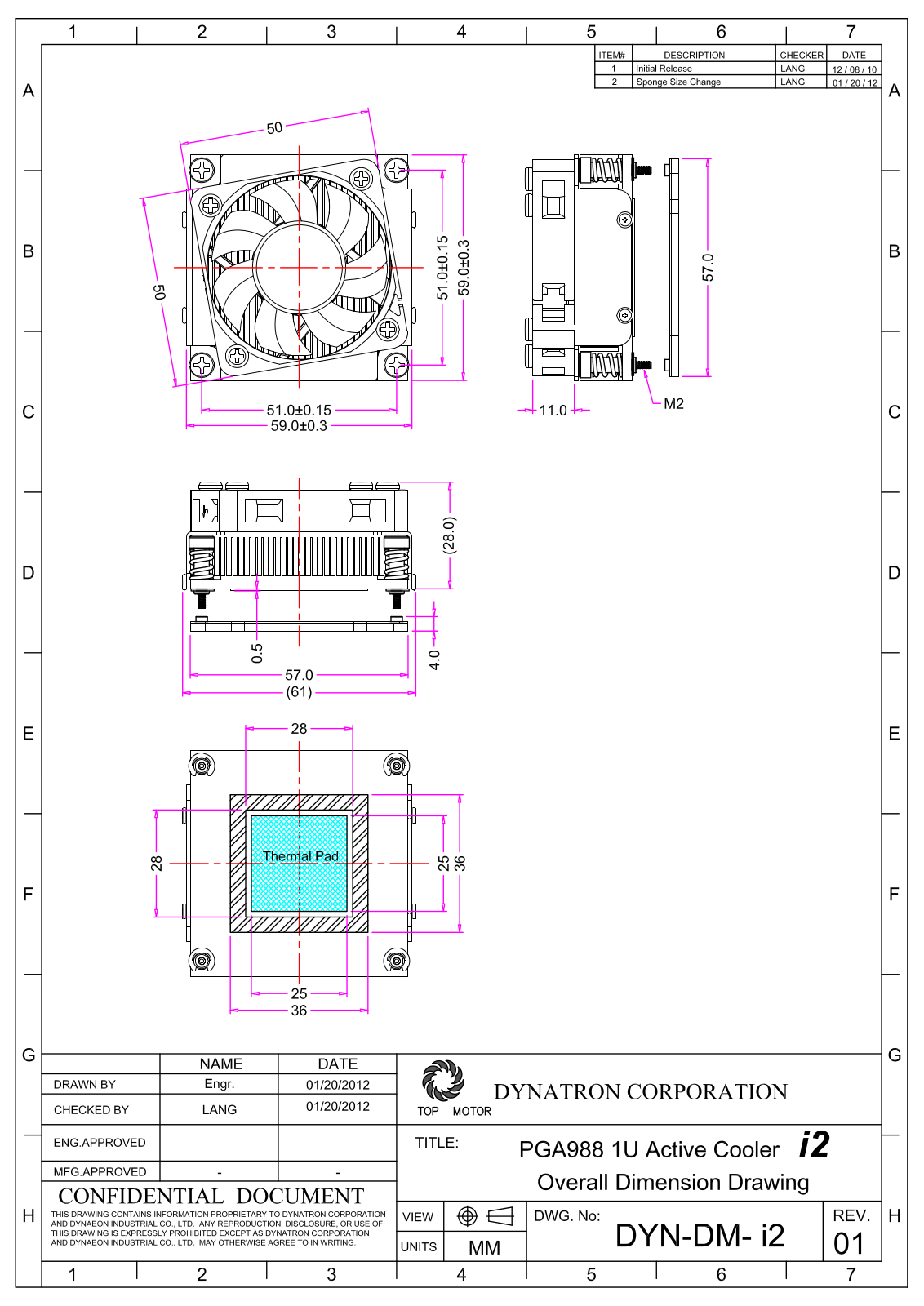

Dimension:60.0mm x 60.0mm x 26.5mm
Cooler Mounting Pitch: 51.0 x 51.0mm
Weight: 199±5g
Material: Copper 1100 Skiving Fins
Honeywell® PCM45F Thermal Pad
Supports CPU Power up to 45 Watts
Fan Specification:
Model# DF125010BH-3G
Rated Speed: 5000±10% RPM
Bearing: 2-Ball
• Rated Voltage: DC12V
Rated Power: 2.8 Watts
Maximum Airflow: 10.8 CFM
Acoustical Noise: 31.8 dBA
Lead Wire Pin Out:
Pin#1-Black (-) Pin#2-Red (+) Pin#3-White (Tachometer / Signal Output )
Active Cooler I2 Cooling Performance VS. Airflow & Noise:
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

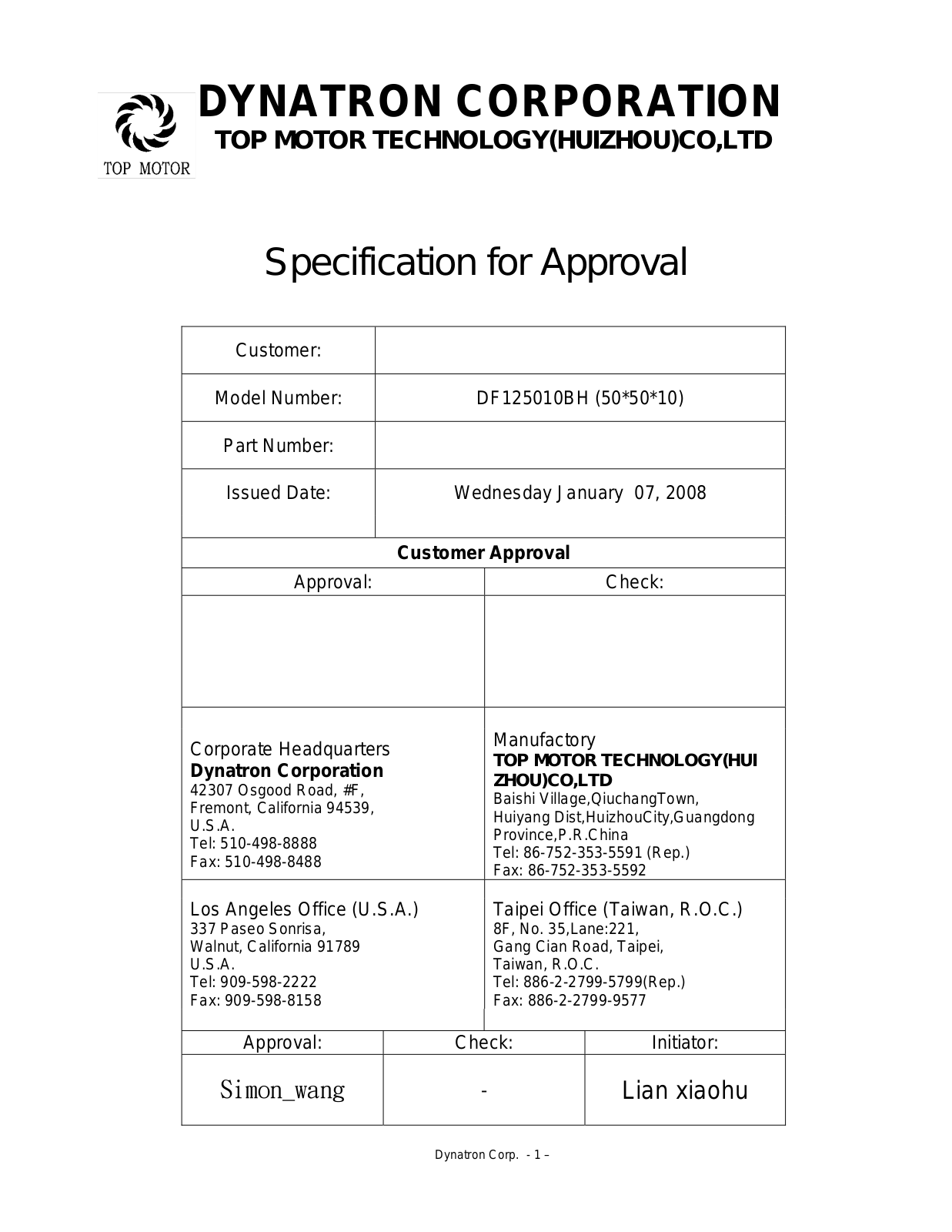

Specification for Approval
Customer:
Model Number: DF125010BH (50*50*10)
Part Number:
Issued Date: Wednesday January 07, 2008
Customer Approval
Approval: Check:
Corporate Headquarters
Dynatron Corporation
42307 Osgood Road, #F, Fremont, California 94539, U.S.A. Tel: 510-498-8888 Fax: 510-498-8488
Los Angeles Office (U.S.A.)
337 Paseo Sonrisa, Walnut, California 91789 U.S.A. Tel: 909-598-2222 Fax: 909-598-8158
Approval: Check: Initiator:
Manufactory
TOP MOTOR TECHNOLOGY(HUI ZHOU)CO,LTD
Baishi Village,QiuchangTown, Huiyang Dist,HuizhouCity,Guangdong Province,P.R.China Tel: 86-752-353-5591 (Rep.) Fax: 86-752-353-5592
Taipei Office (Taiwan, R.O.C.)
8F, No. 35,Lane:221, Gang Cian Road, Taipei, Taiwan, R.O.C. Tel: 886-2-2799-5799(Rep.) Fax: 886-2-2799-9577
Simon_wang
-
Dynatron Corp. - 1 –
Lian xiaohu
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

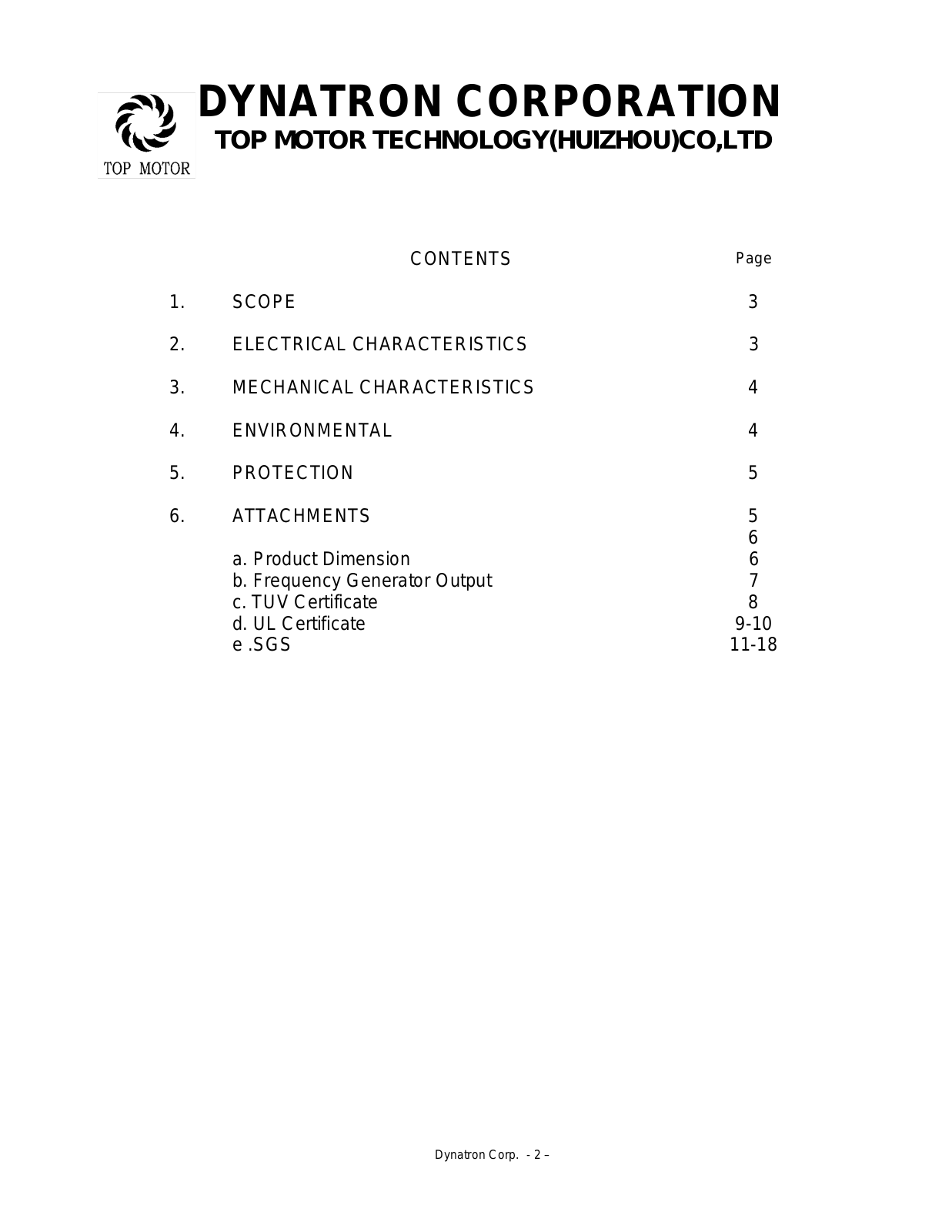

CONTENTS
1. SCOPE 3
2. ELECTRICAL CHARACTERISTICS 3
3. MECHANICAL CHARACTERISTICS 4
4. ENVIRONMENTAL 4
5. PROTECTION 5
6. ATTACHMENTS 5 6 a. Product Dimension 6
b. Frequency Generator Output 7
c. TUV Certificate 8 d. UL Certificate 9-10 e .SGS 11-18
Page
Dynatron Corp. - 2 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

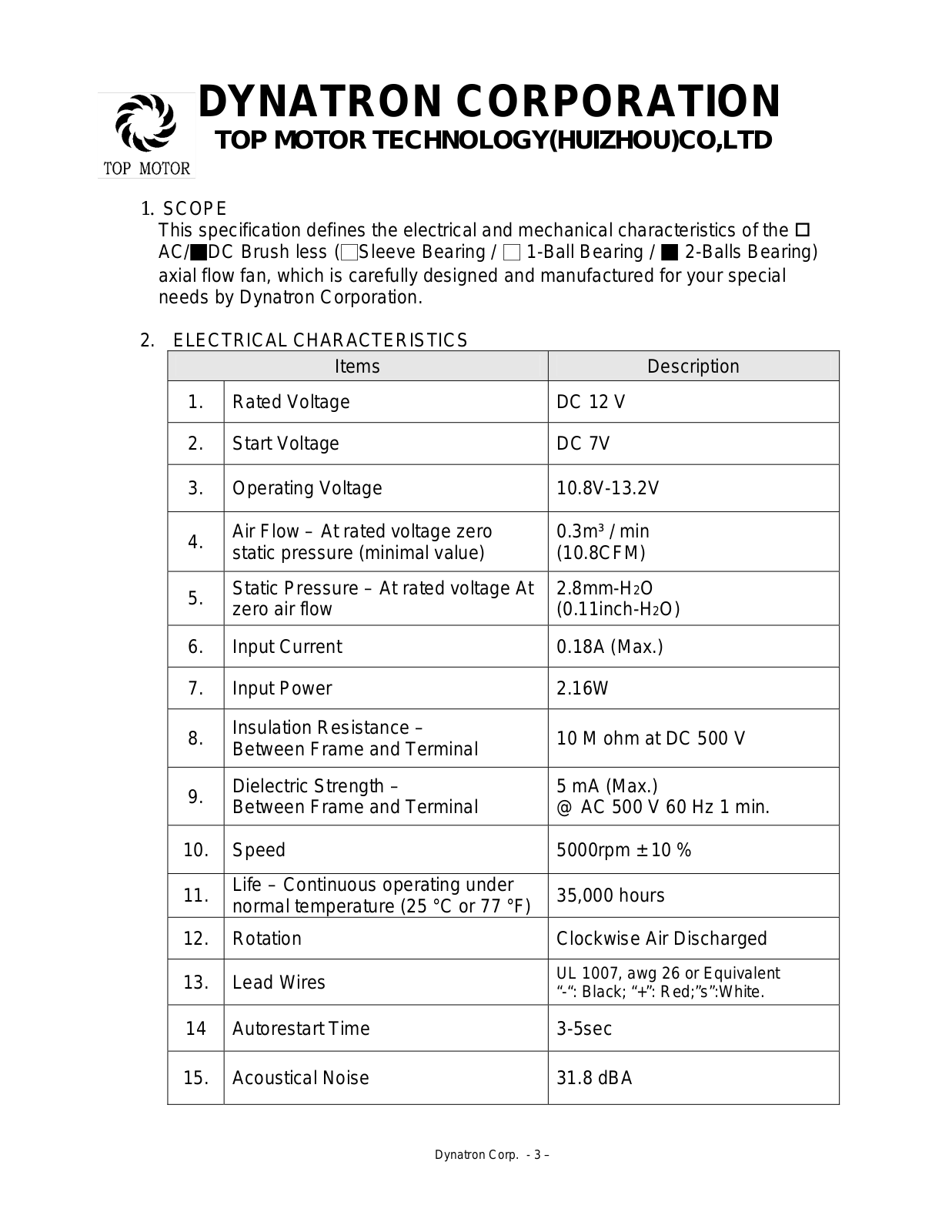

1. SCOPE This specification defines the electrical and mechanical characteristics of the AC/DC Brush less (Sleeve Bearing / 1-Ball Bearing / 2-Balls Bearing)
axial flow fan, which is carefully designed and manufactured for your special needs by Dynatron Corporation.
2. ELECTRICAL CHARACTERISTICS
Items Description
1. Rated Voltage DC 12 V
2. Start Voltage DC 7V
3. Operating Voltage 10.8V-13.2V Air Flow – At rated voltage zero
4.
static pressure (minimal value) Static Pressure – At rated voltage At
5.
zero air flow
6. Input Current 0.18A (Max.)
7. Input Power 2.16W Insulation Resistance –
8.
Between Frame and Terminal Dielectric Strength –
9.
Between Frame and Terminal
10. Speed 5000rpm ± 10 %
11.
12. Rotation Clockwise Air Discharged
13. Lead Wires
Life – Continuous operating under normal temperature (25 °C or 77 °F)
0.3m³ / min (10.8CFM)
2.8mm-H2O (0.11inch-H2O)
10 M ohm at DC 500 V
5 mA (Max.) @ AC 500 V 60 Hz 1 min.
35,000 hours
UL 1007, awg 26 or Equivalent “-“: Black; “+”: Red;”s”:White.
14 Autorestart Time 3-5sec
15. Acoustical Noise 31.8 dBA
Dynatron Corp. - 3 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

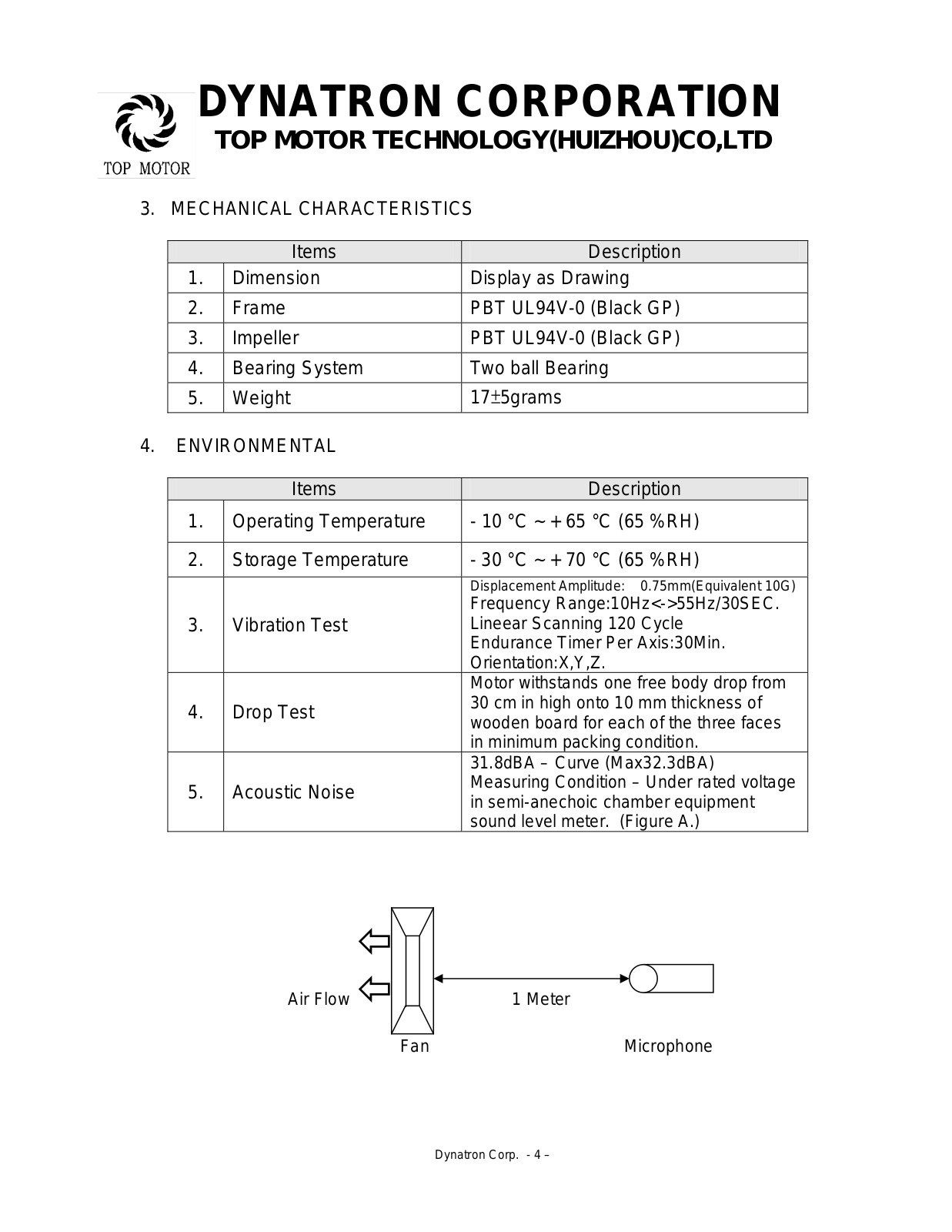

3. MECHANICAL CHARACTERISTICS Items Description
1. Dimension Display as Drawing
2. Frame PBT UL94V-0 (Black GP)
3. Impeller PBT UL94V-0 (Black GP)
4. Bearing System Two ball Bearing
5. Weight
4. ENVIRONMENTAL Items Description
1. Operating Temperature - 10 °C ~ + 65 °C (65 %RH)
2. Storage Temperature - 30 °C ~ + 70 °C (65 %RH)
3. Vibration Test
4. Drop Test
5. Acoustic Noise
17±5grams
Displacement Amplitude: 0.75mm(Equivalent 10G)
Frequency Range:10Hz<->55Hz/30SEC. Lineear Scanning 120 Cycle Endurance Timer Per Axis:30Min. Orientation:X,Y,Z. Motor withstands one free body drop from 30 cm in high onto 10 mm thickness of wooden board for each of the three faces in minimum packing condition.
31.8dBA – Curve (Max32.3dBA) Measuring Condition – Under rated voltage in semi-anechoic chamber equipment sound level meter. (Figure A.)
Air Flow Õ 1 Meter
Fan Microphone
Õ
Dynatron Corp. - 4 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

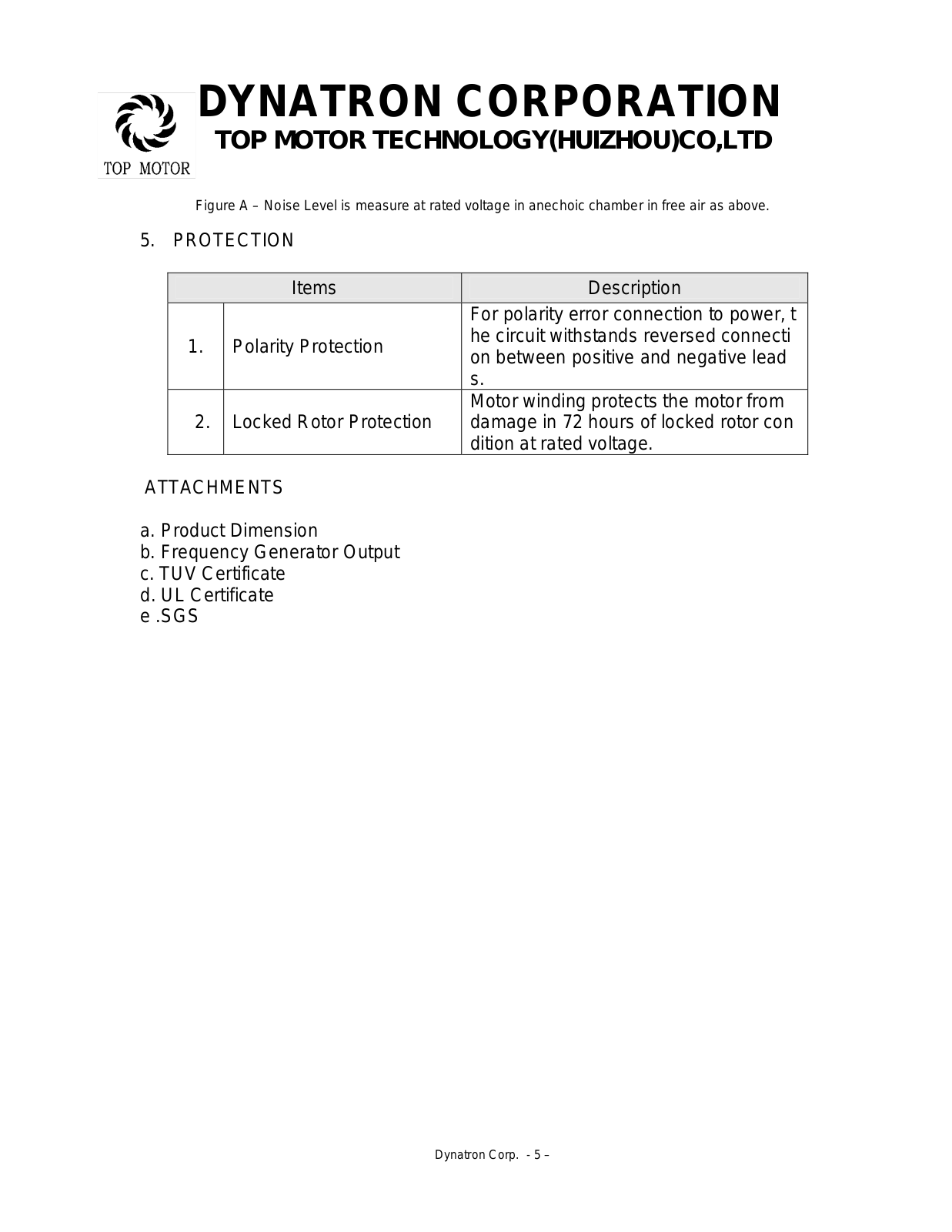

Figure A – Noise Level is measure at rated voltage in anechoic chamber in free air as above.
5. PROTECTION
Items Description
For polarity error connection to power, t
1. Polarity Protection
2. Locked Rotor Protection
ATTACHMENTS a. Product Dimension
b. Frequency Generator Output c. TUV Certificate
d. UL Certificate
e .SGS
he circuit withstands reversed connecti on between positive and negative lead s. Motor winding protects the motor from damage in 72 hours of locked rotor con dition at rated voltage.
Dynatron Corp. - 5 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

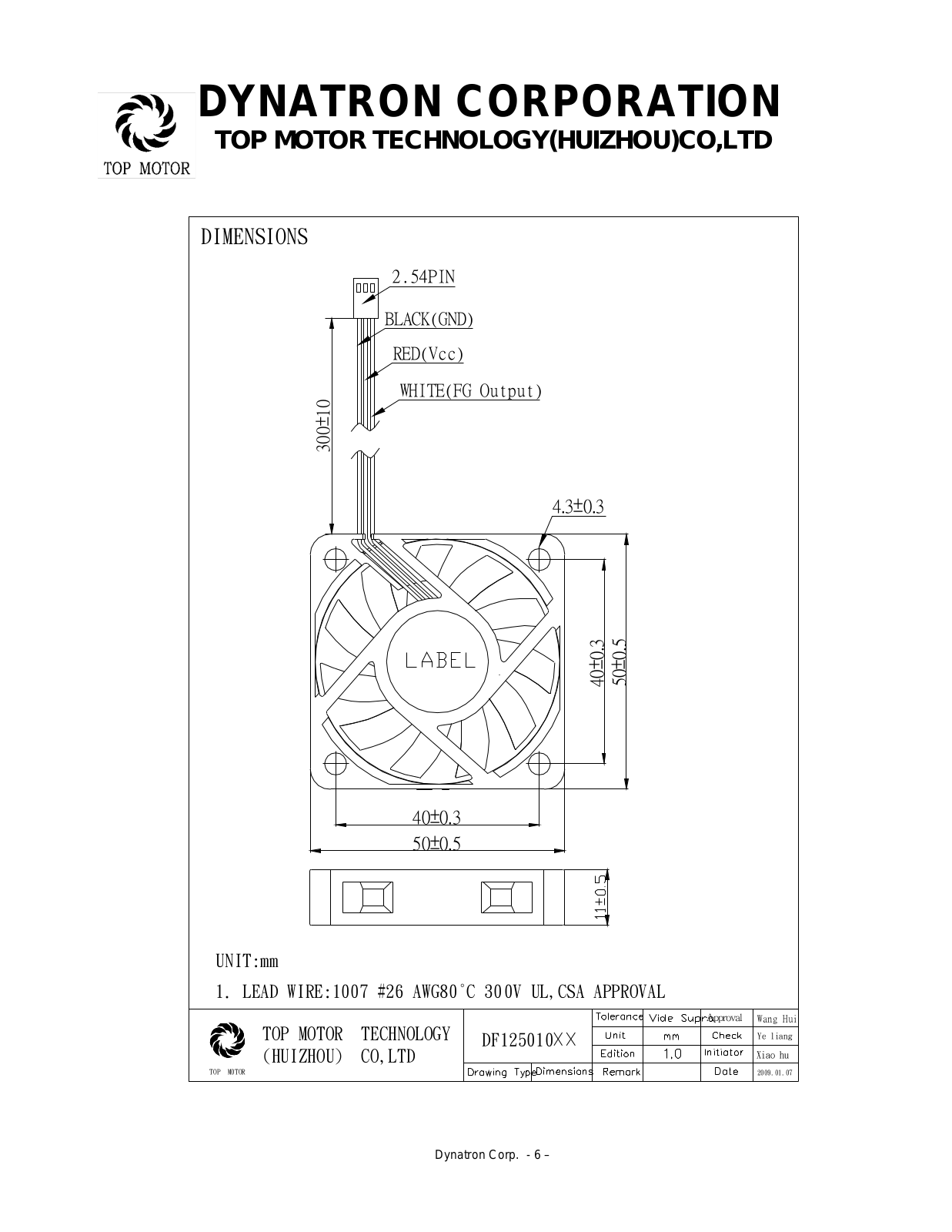

DIMENSIONS
2.54PIN
BLACK(GND)
RED(Vcc)
WHITE(FG Output)
300±10
4.3±0.3
50±0.5
40±0.3
40±0.3 50±0.5
UNIT:mm
1. LEAD WIRE:1007 #26 AWG80°C 300V UL,CSA APPROVAL
TOP M0TOR
TOP MOTOR TECHNOLOGY (HUIZHOU) CO,LTD
Approval
DF125010
Wang Hui
Ye liang
Xiao hu
2009.01.07
Dynatron Corp. - 6 –

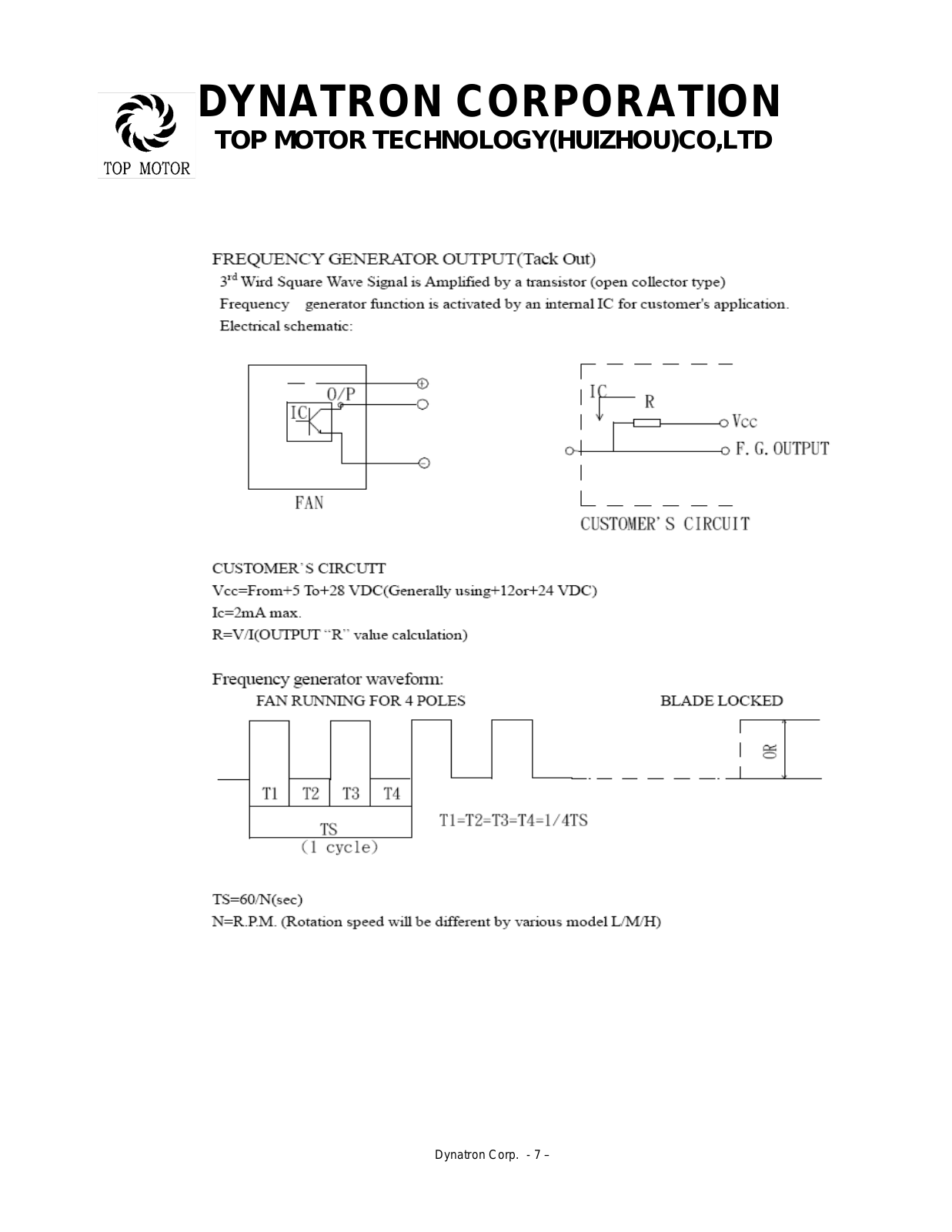

DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 7 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

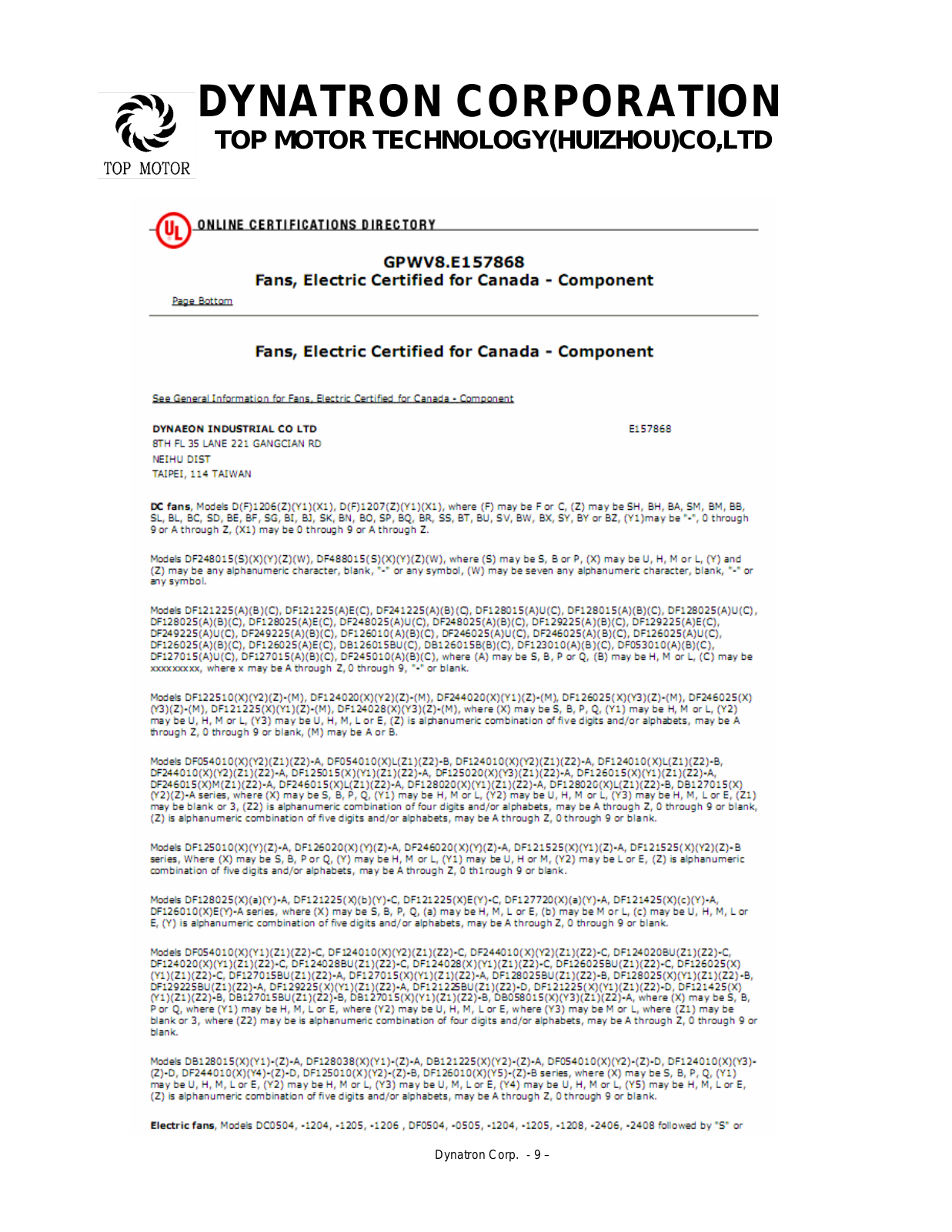

Dynatron Corp. - 8 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 9 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 10 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

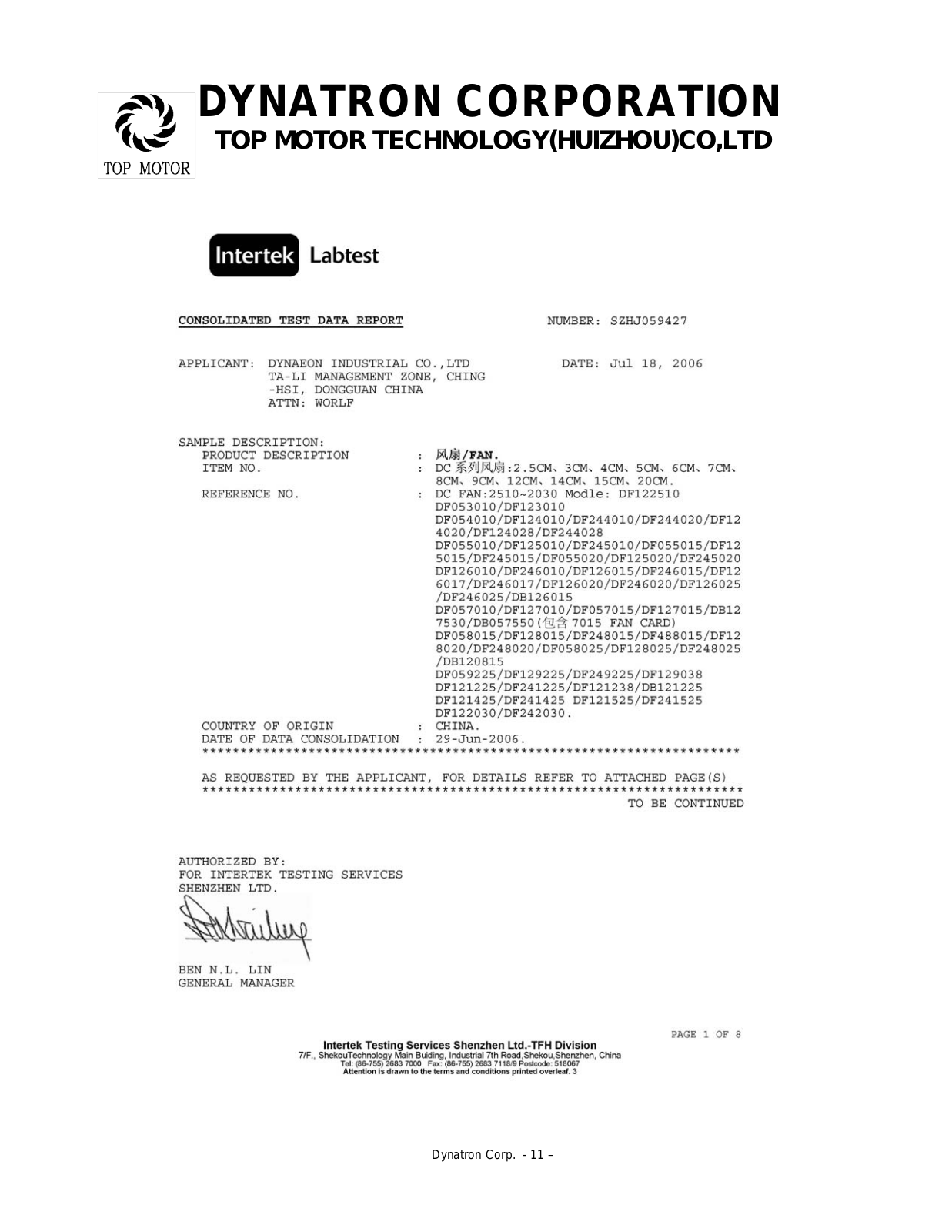

Dynatron Corp. - 11 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

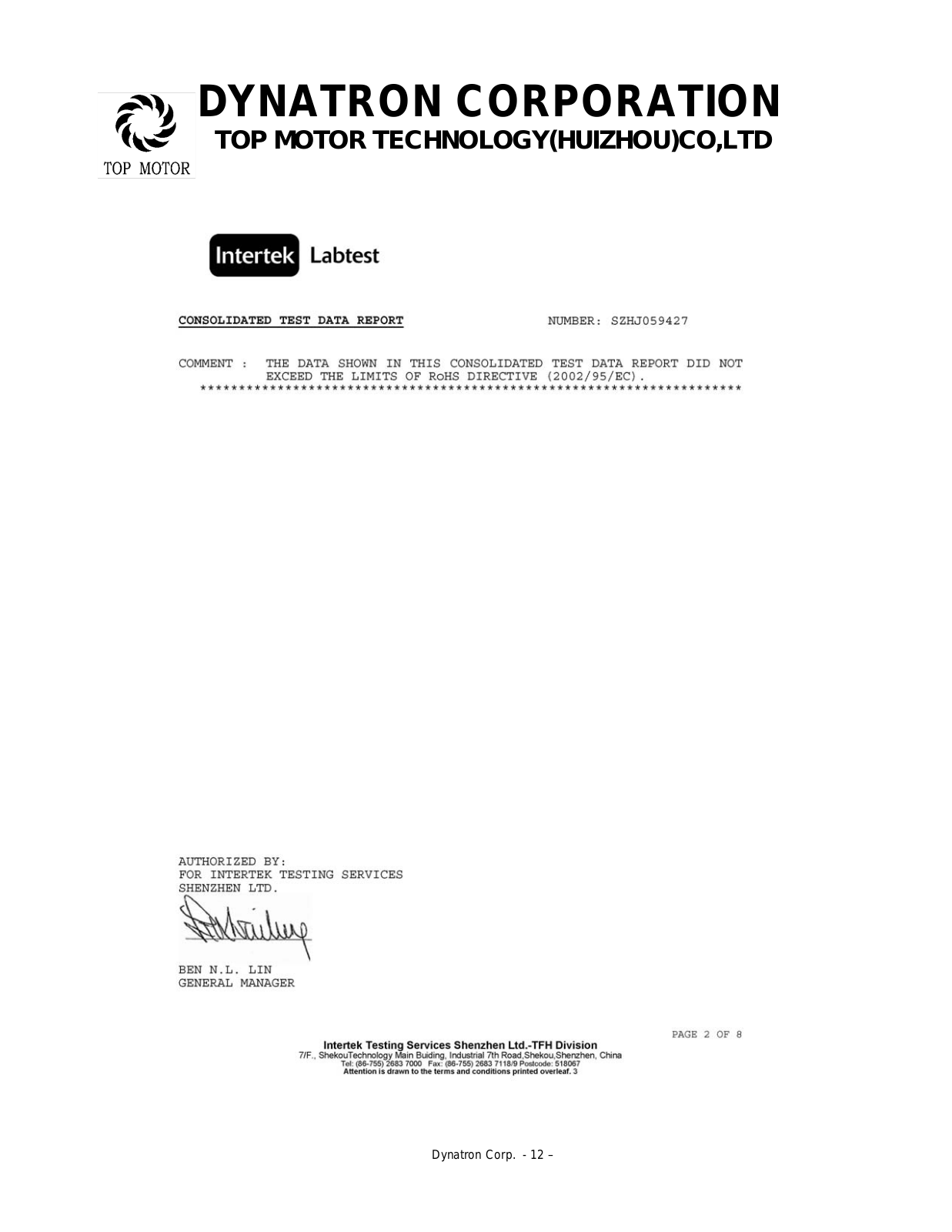

Dynatron Corp. - 12 –

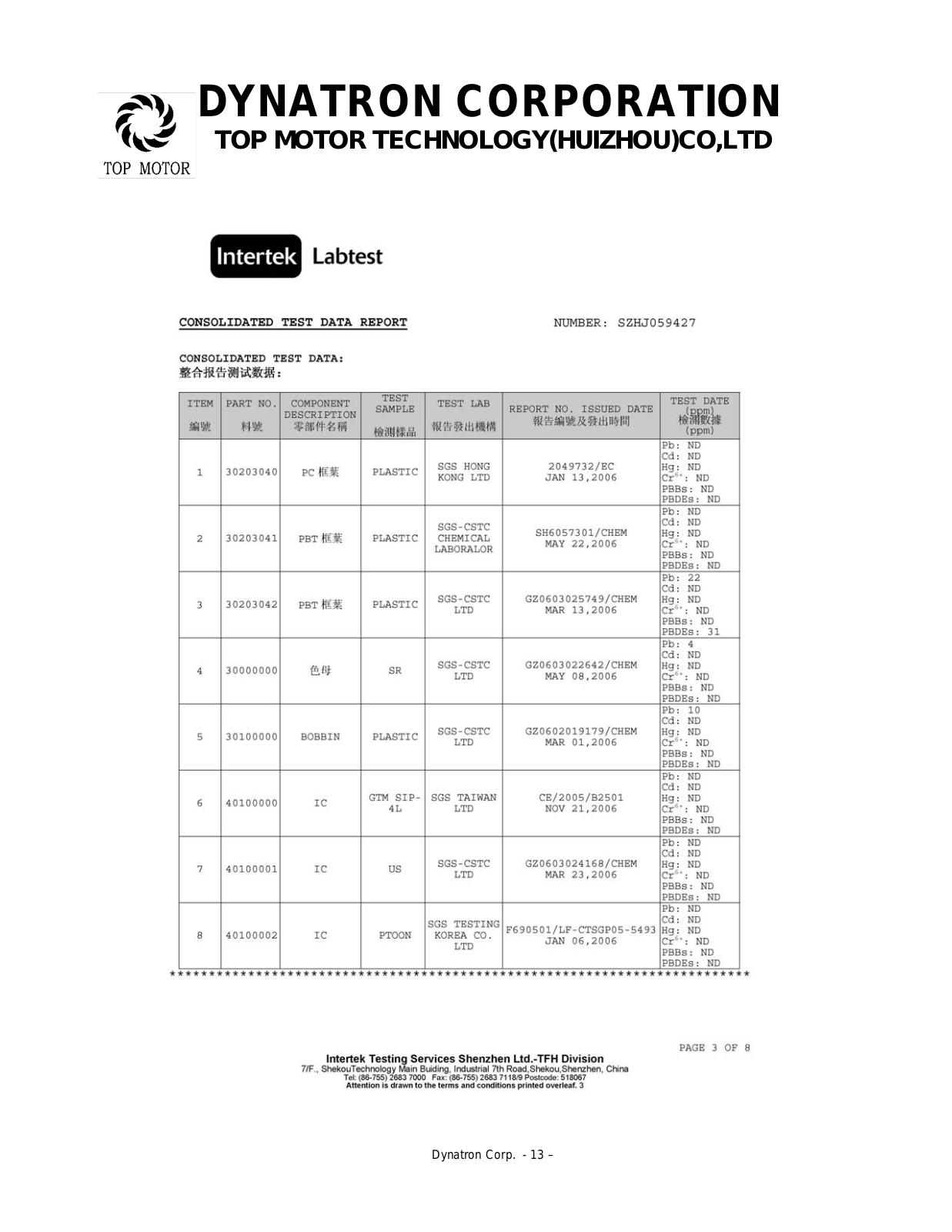

DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 13 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 14 –

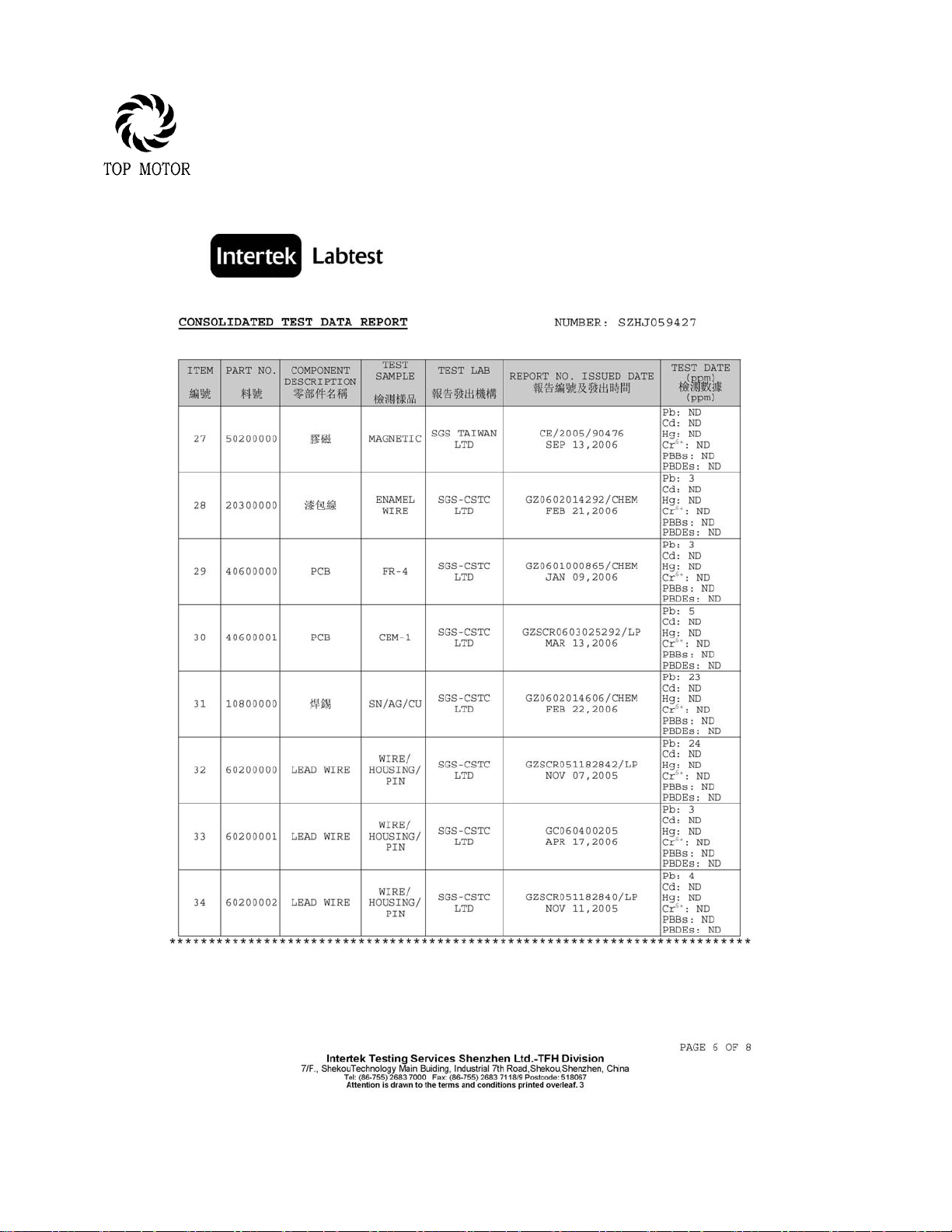

DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

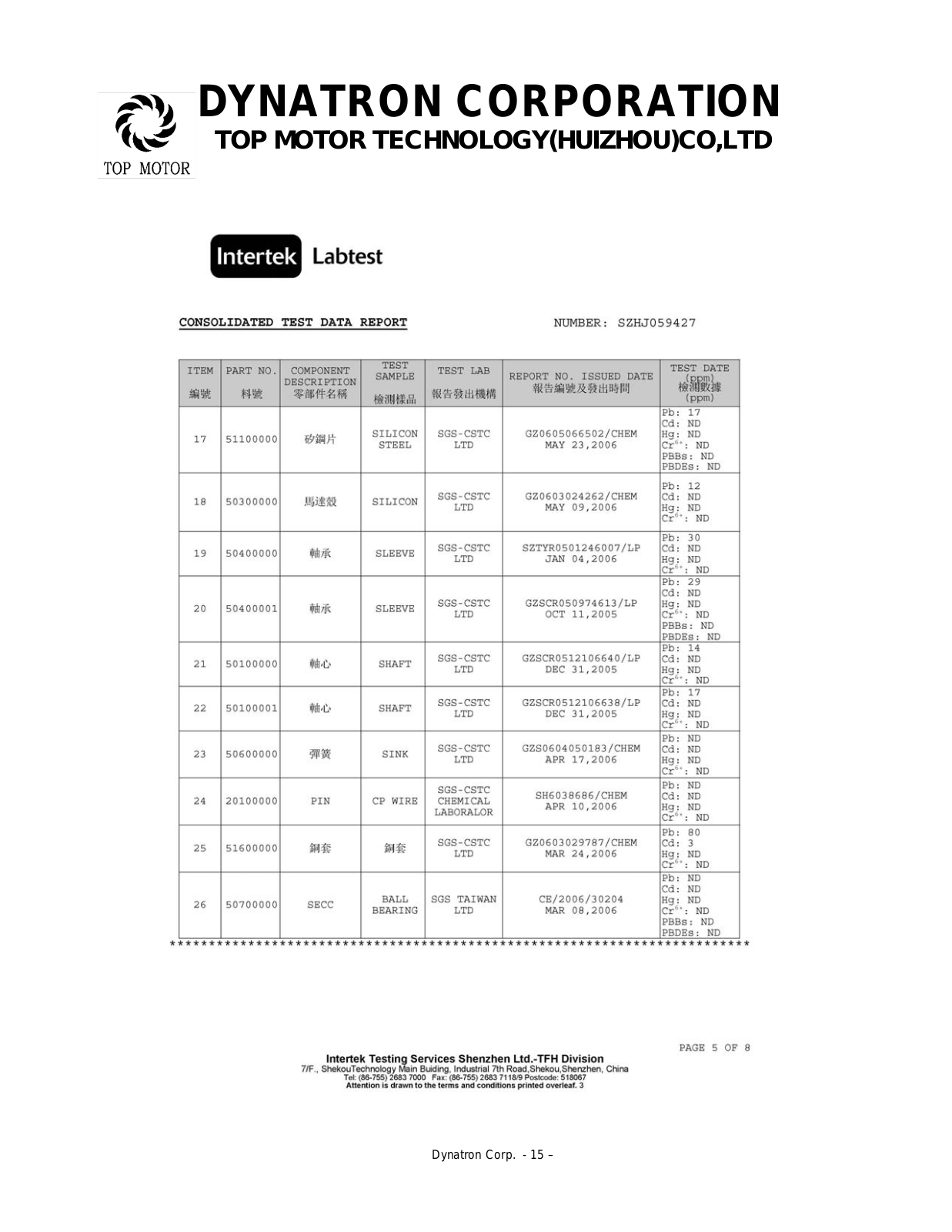

Dynatron Corp. - 15 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD

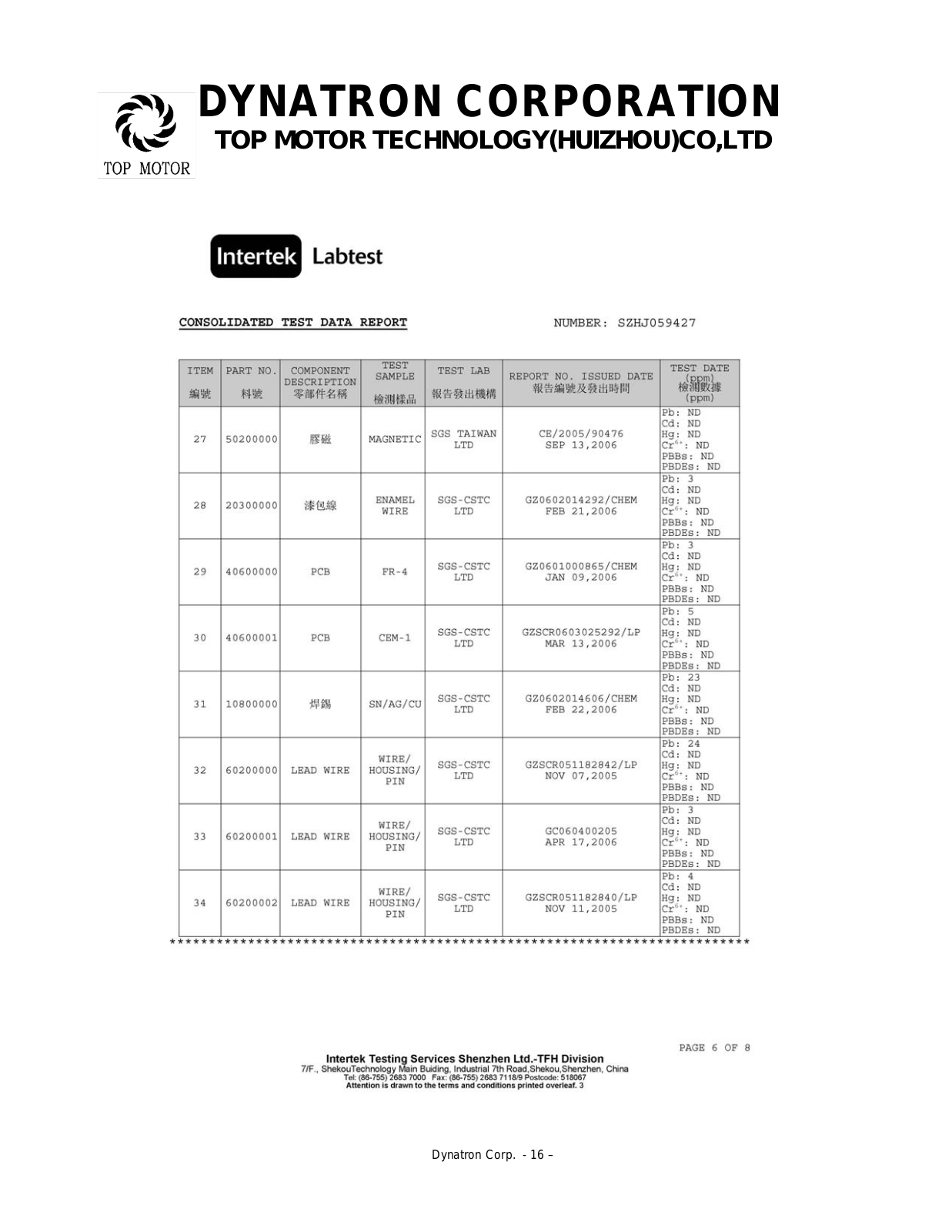

Dynatron Corp. - 16 –

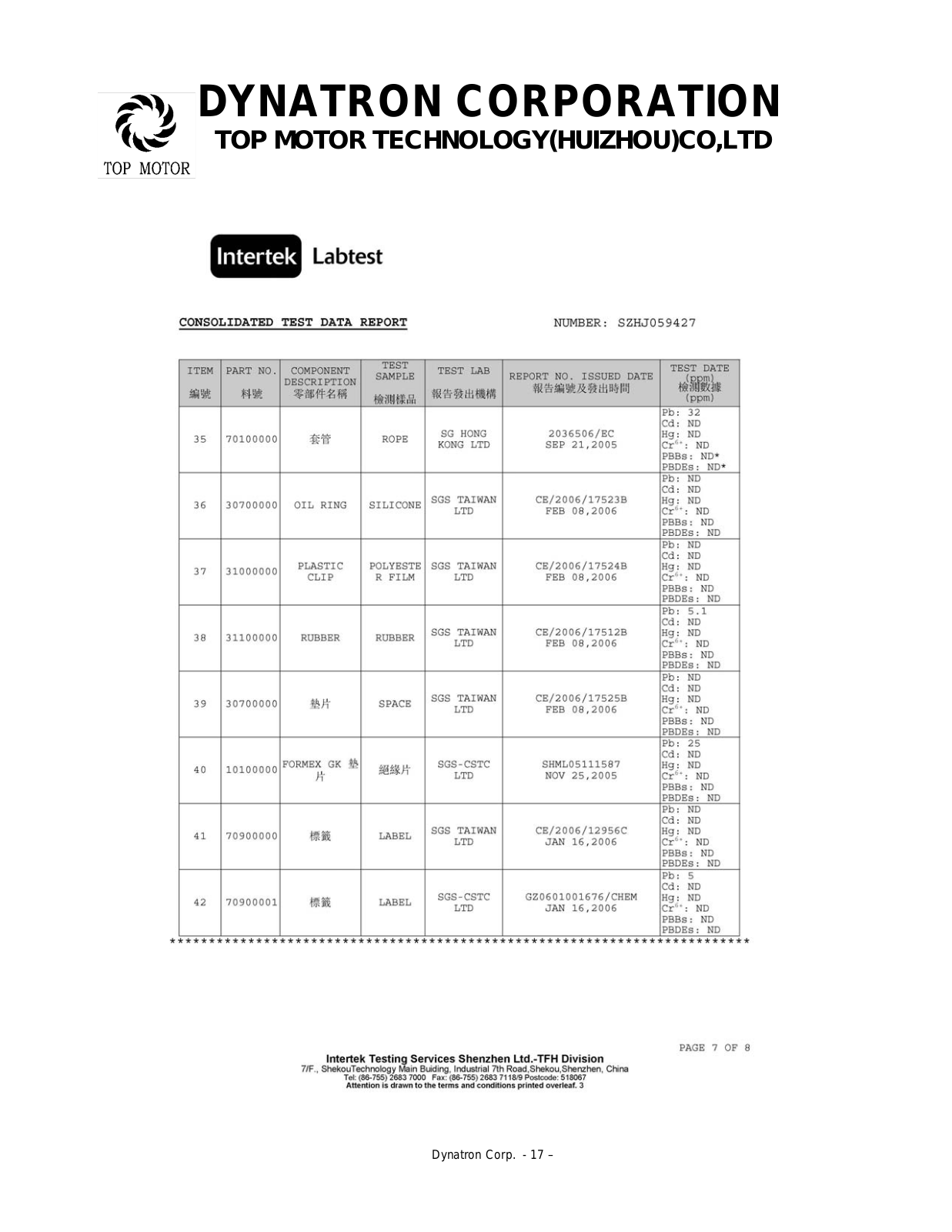

DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 17 –
DYNATRON CORPORATION
TOP MOTOR TECHNOLOGY(HUIZHOU)CO,LTD
Dynatron Corp. - 18 –
