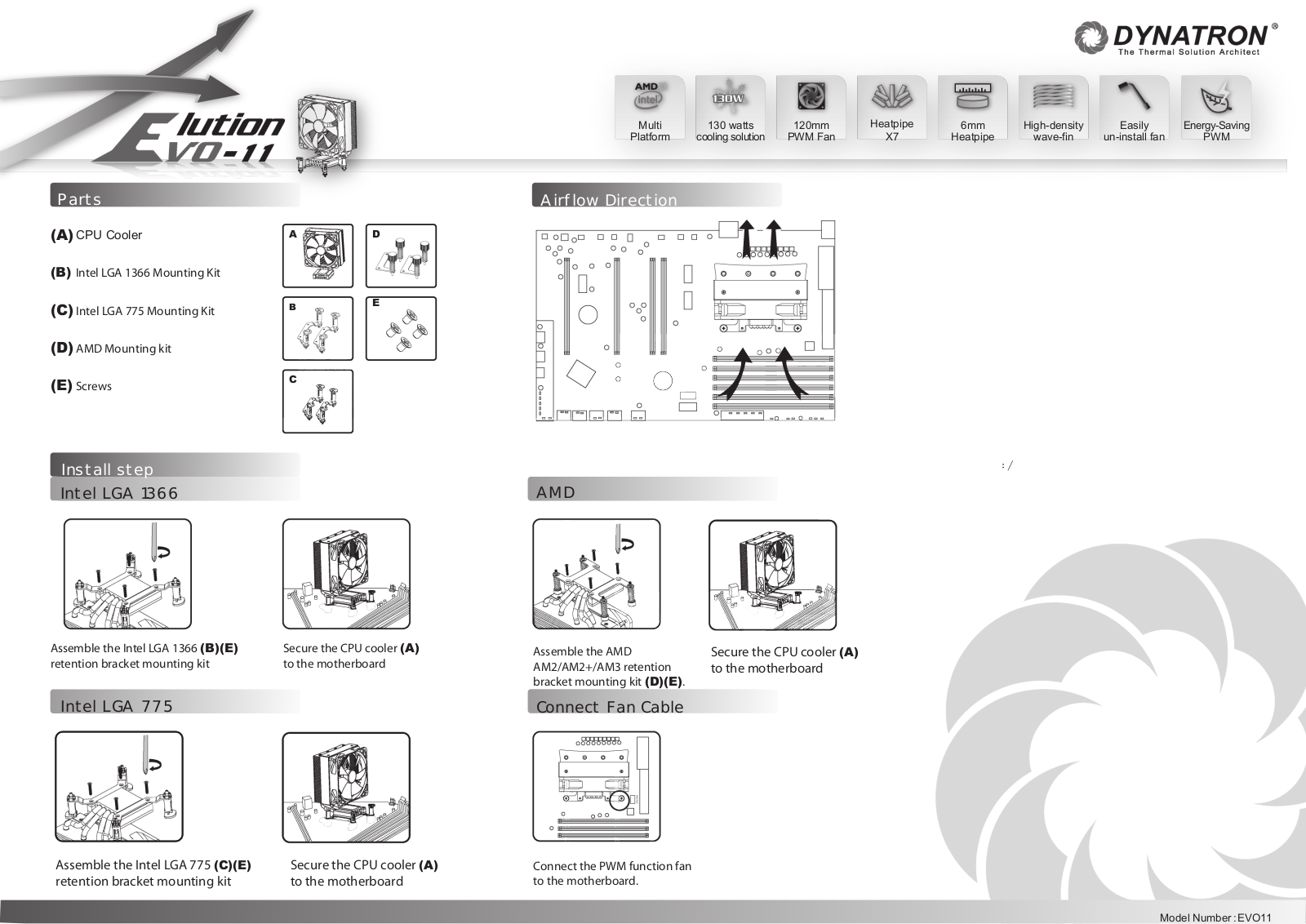

Dynatron EVO11 User guide

Multi

Platform

130 watts

cooling solution

120mm

PWM Fan

Heatpipe

X7

6mm

Heatpipe

High-density

wave-fin

Easily

un-install fan

Energy-Saving

PWM

Parts

CPU Cooler

(A)

Intel LGA 1366 Mounting Kit

(B)

Intel LGA 775 Mounting Kit

(C)

AMD Mounting kit

(D)

Screws

(E)

Install step

Intel LGA 1366

Assemble the Intel LGA 1366 (B)(E)
retention bracket mounting kit

Intel LGA 775

A

B

C

Secure the CPU cooler
to the motherboard

D

E

(A)

Airflow Direction

AMD

Assemble the AMD
AM2/AM2+/AM3 retention
bracket mounting kit

(D)(E).

Connect Fan Cable

Contact

Secure the CPU cooler (A)
to the motherboard

Assemble the Intel LGA 775 (C)(E)
retention bracket mounting kit

Secure the CPU cooler
to the motherboard

(A)

Connect the PWM function fan
to the motherboard.

Model Numbe r : EVO11
