Product Spec Sheet
A34
A34 AMD SP3
T

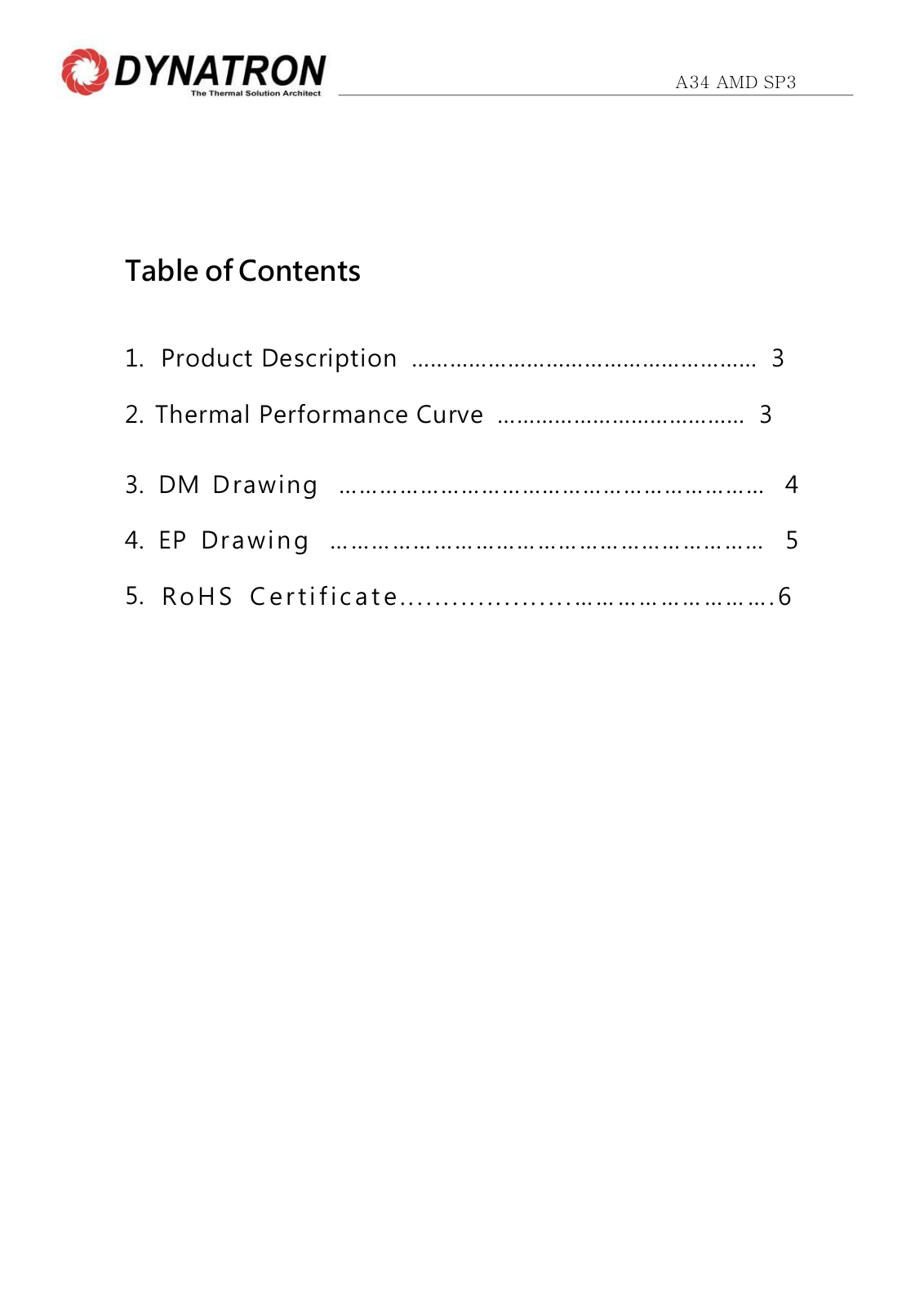

able of Contents
1. Product Description ……………………………………………… 3
2. Thermal Performance Curve ………………………………… 3

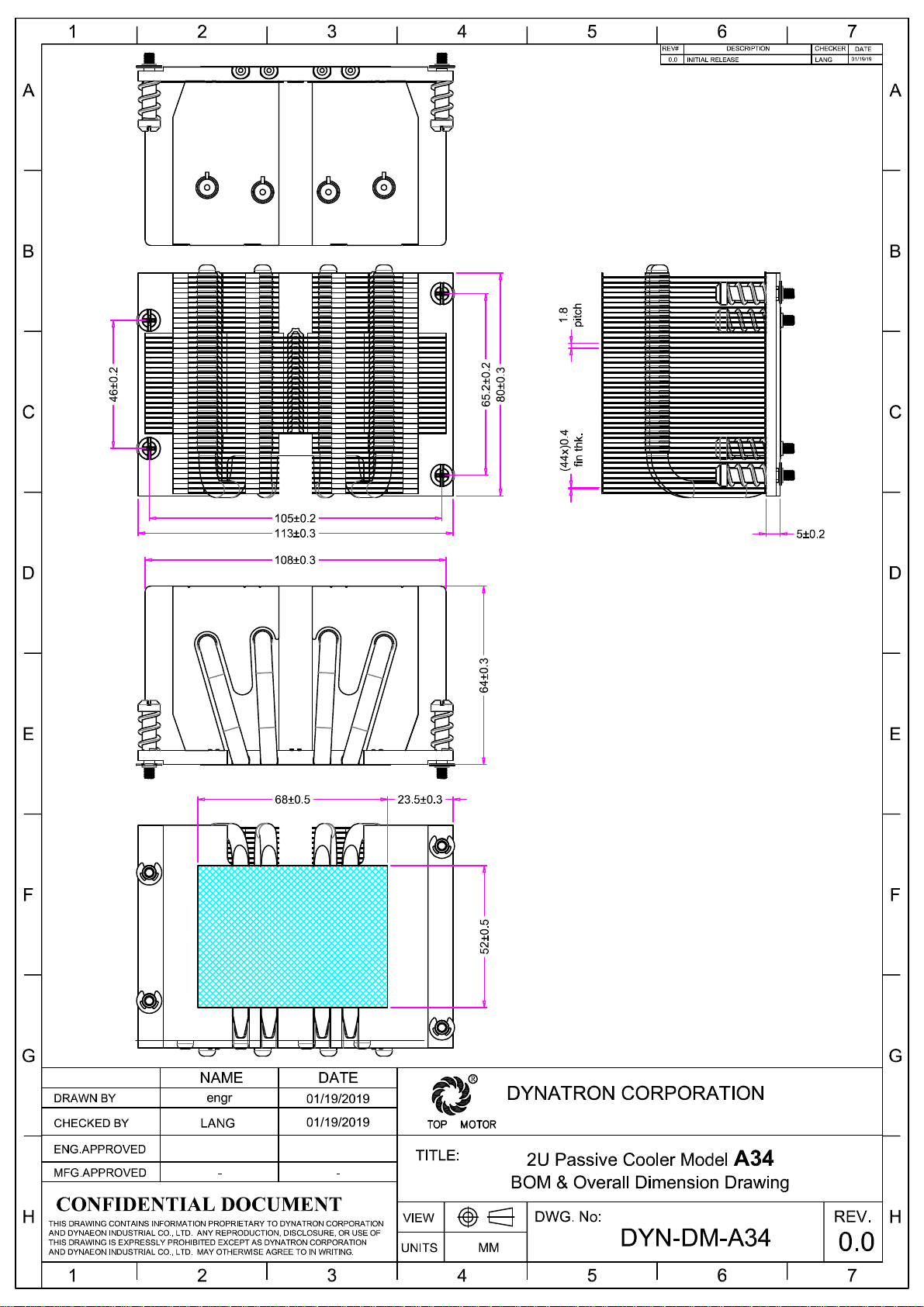

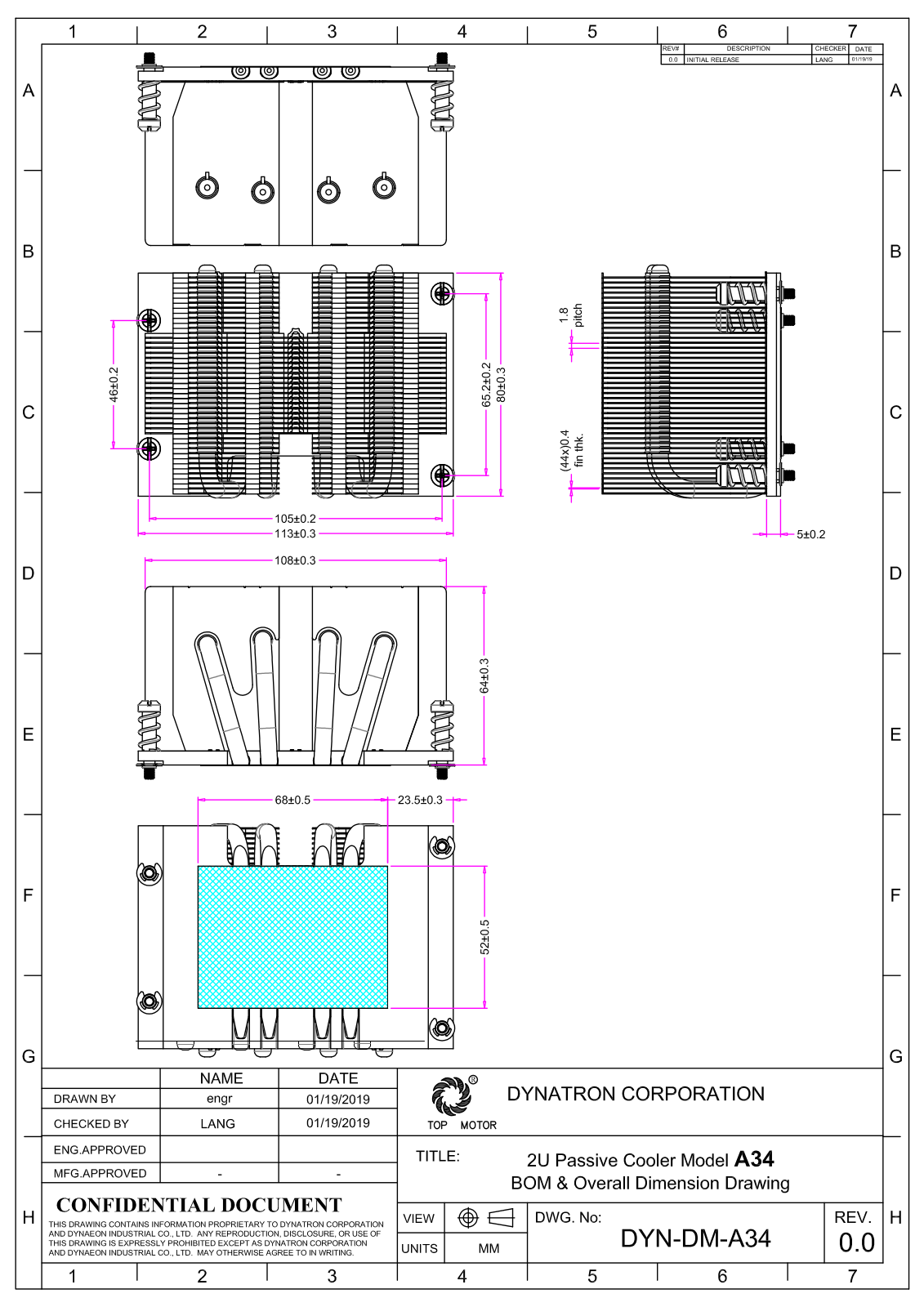

3. DM Drawin g …… ………… ………… ………… ………… ……… 4

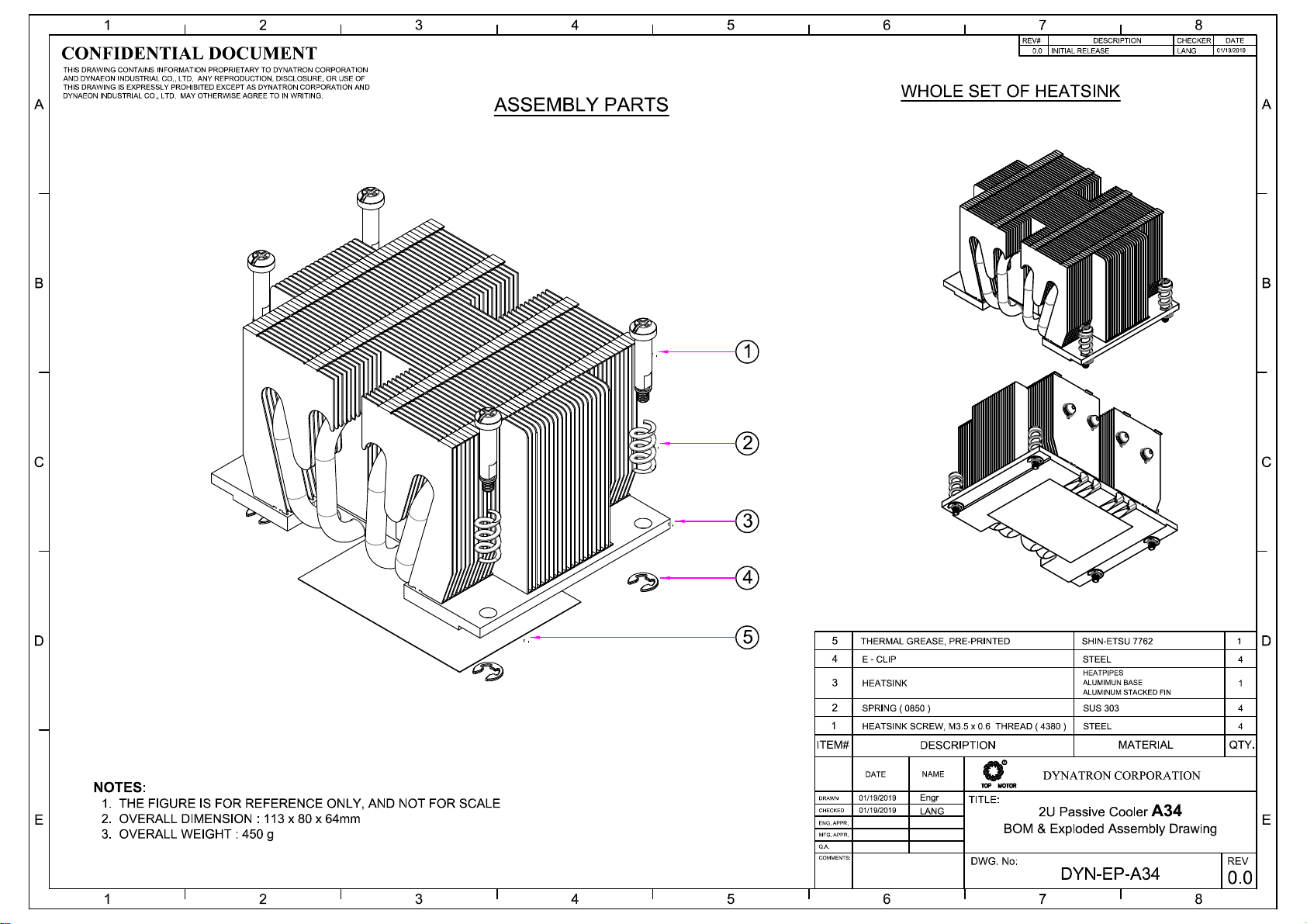

4. EP Dr aw in g ………………… …………………………………… 5
5.
R oHS C e r t i f i c a t e . . . . . . . . . . . . . . . . . . . . … … … … … … … … … . 6

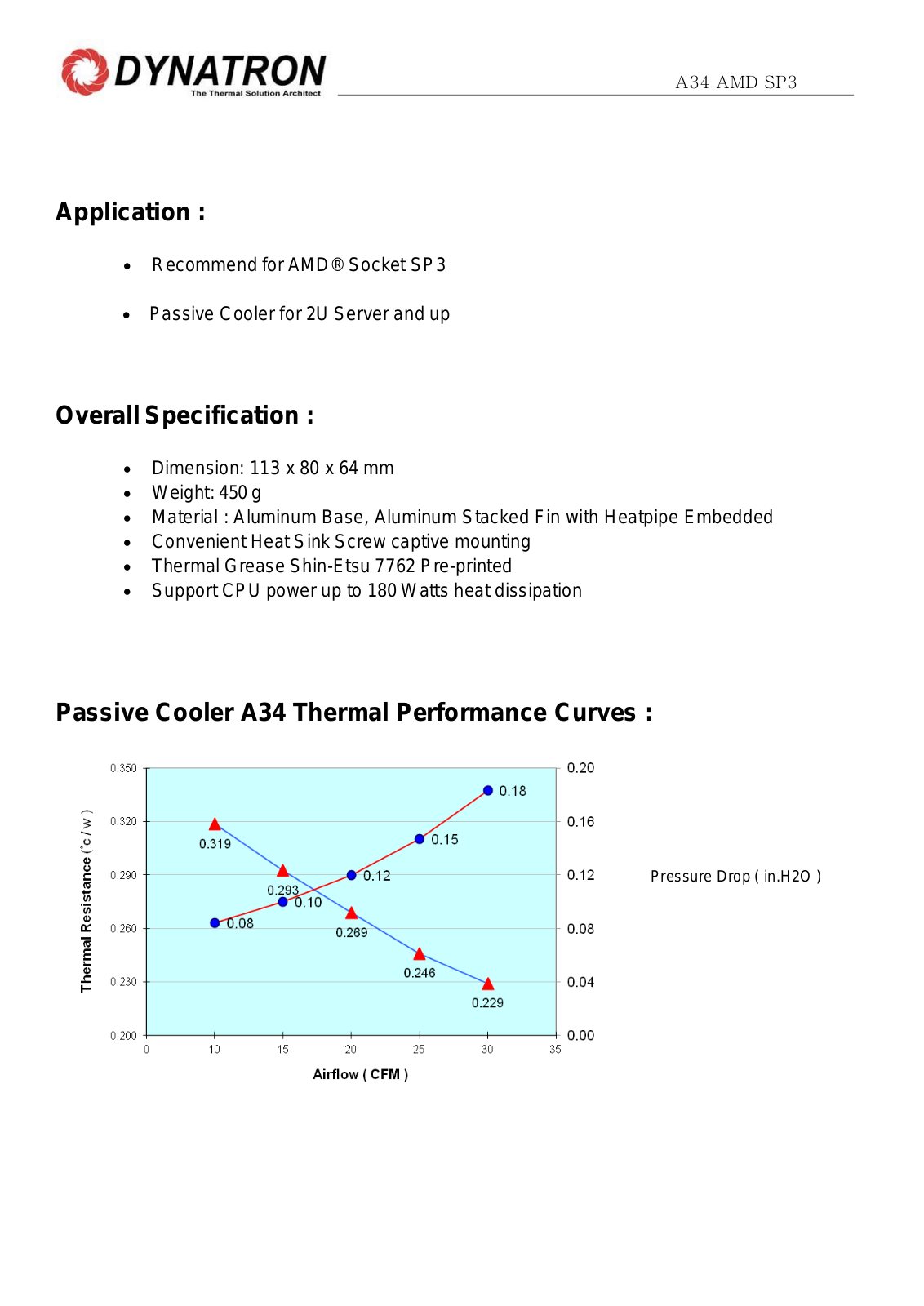

Application :
Pressure Drop ( in.H2O )
Recommend for AMD® Socket SP3
Passive Cooler for 2U Server and up
Overall Specification :
Dimension: 113 x 80 x 64 mm
Weight: 450 g
Material : Aluminum Base, Aluminum Stacked Fin with Heatpipe Embedded
Convenient Heat Sink Screw captive mounting
Thermal Grease Shin-Etsu 7762 Pre-printed
Support CPU power up to 180 Watts heat dissipation
A34 AMD SP3
Passive Cooler A34 Thermal Performance Curves :
A34 AMD SP3

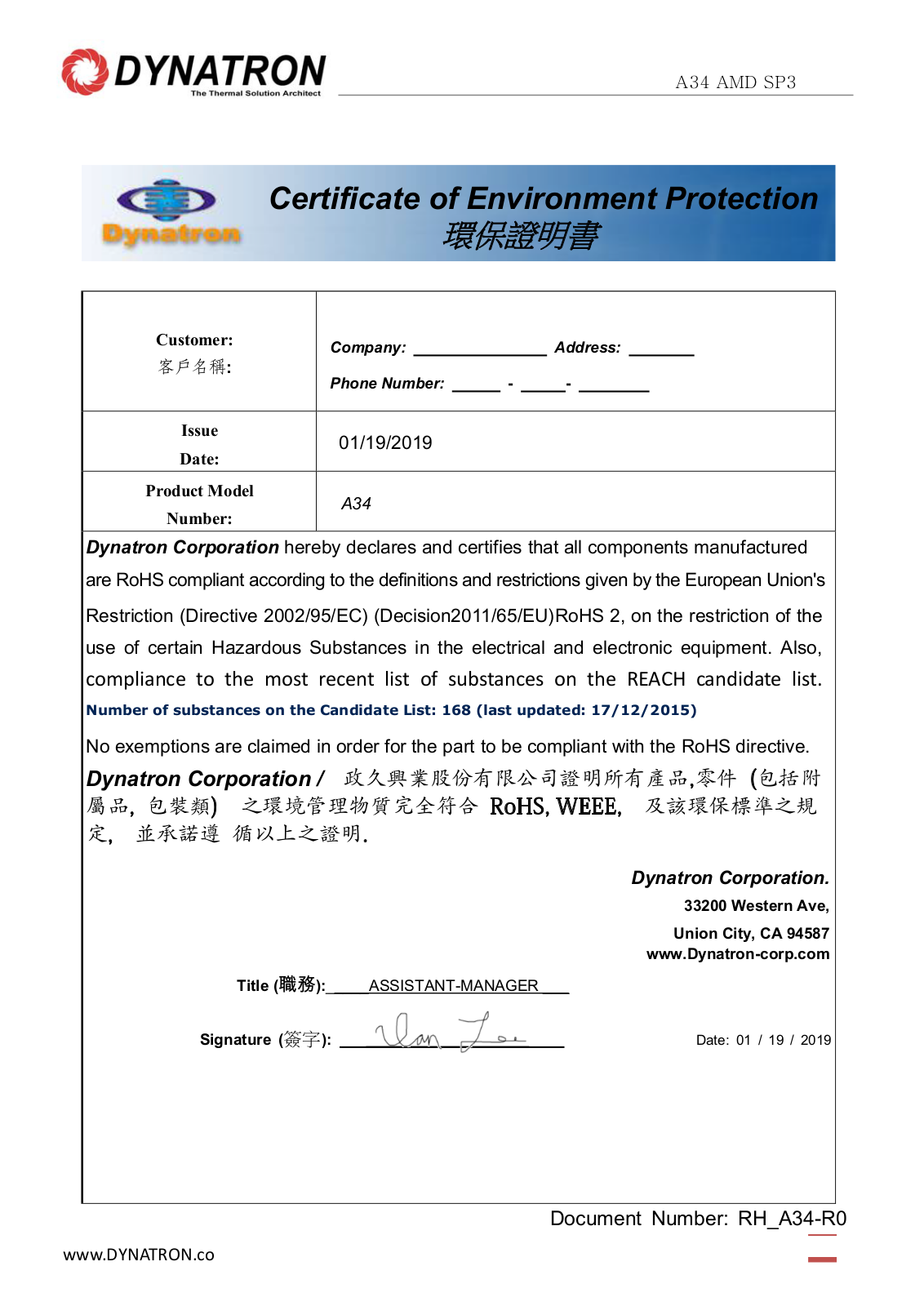

Certificate of Environment Protection
環保證明書
Customer:
客戶名稱:
Issue
Date:
Product Model
Number:
Dynatron Corporation hereby declares and certifies that all components manufactured
are RoHS compliant according to the definitions and restrictions given by the European Union's
Restriction (Directive 2002/95/EC) (Decision2011/65/EU)RoHS 2, on the restriction of the
use of certain Hazardous Substances in the electrical and electronic equipment. Also,
Company:
Phone Number: - -
01/19/2019
A34
Address:
compliance to the most recent list of substances on the REACH candidate list.
Number of substances on the Candidate List: 168 (last updated: 17/12/2015)
No exemptions are claimed in order for the part to be compliant with the RoHS directive.
Dynatron Corporation / 政久興業股份有限公司證明所有產品,零件 (包括附
屬品,
定,
包裝類) 之環境管理物質完全符合 RoHS, WEEE, 及該環保標準之規
並承諾遵 循以上之證明.
Dynatron Corporation.
33200 Western Ave,
Union City, CA 94587
www.Dynatron-corp.com
Title (
職務
):_____ASSISTANT-MANAGER ___
Signature (
簽字
):
Date: 01 / 19 / 2019
www .DYNATRON.co
Document Number: RH_A34-R0
