Dynasonics TFXM Operating Manual

Series TFXM

Ultrasonic Multi-Channel Flow Meter

Operations & Maintenance

Manual

REV 8/02

TABLE OF CONTENTS

Pages Quick-Start Operating Instructions 1.3-1.4

Part 1 Introduction

Part 1 Connections

Part 1 - Inputs and Outputs

Introduction General 1.5 Applications 1.5 Model Matrix 1.6

Product Specifications 1.7

Transmitter Connections Transmitter Limits and Installation 1.8-1.9 Power and Transducer Connections 1.9-1.12

Input/Output Connections and Options 4-20 mA Output 1.13 Dual Control Relay 1.14 Rate Pulse Output RS232C RS485 1.14 RTD-BTU Datalogger

Transducer Mounting

Part 2 Transducer Installation

Mounting Location 2.1-2.2 Transducer Mounting Method 2.3-2.5 Transducer Spacing - Keypad Entry 2.6-2.14 Transducer Spacing - UltraLink 2.15-2.16 Pipe Preparation 2.17 Transducer Mounting 2.17-2.23

Rev. 8/02 -1.1- TFXM

TABLE OF CONTENTS

Pages

Part 3 Programming

Part 4 - Software

Startup and Configuration 3.1 General Programming Information 3.2-3.4 BASIC MENU 3.5-3.14 OUTPUT MENU 3.15-3.18 AUX COMM MENU 3.18-3.22 SENSOR MENU 3.23 SECURITY MENU 3.23 SERVICE MENU 3.24 Liquid Sound Speed 3.25 Signal Strength 3.25-3.26 Setting ZERO Flow 3.27 Correction Factor Entry 3.27-3.28 DISPLAY MENU 3.29

Software Utility Operation UltraLink 4.1-4.12

Part 5 - MultiChannel

Appendix

DataLink 4.13-4.15

Multi-Channel Operation 5.1-5.5

Appendix Keypad Interface Map Fluid Characteristic Table TFX Error Codes Modbus Protocol Pipe Dimension Chart: Cast Iron Pipe Dimension Chart: ST, SS, PVC Velocity to Volumetric Conversion RTD-BTU Option Statement of Warranty Customer Service

Rev. 8/02 -1.2- TFXM

QUICK-START OPERATING INSTRUCTIONS

Transducer Location

This manual contains detailed operating instructions for all aspects of the TFXM instrument. The following condensed instructions are provided to assist the operator in getting the instrument started up and running as quickly as possible. This pertains to basic operation only. If specific instrument features are to be used or if the installer is unfamiliar with this type of instrument, refer to the appropriate section in the manual for complete details.

1. TRANSDUCER LOCATION

A. In general, select a mounting location on the piping system

with a minimum of 10 pipe diameters (10 X the pipe inside diameter) of straight pipe upstream and 5 straight diameters downsteam. The installation location should also be positioned so that the pipe remains full when the liquid is flowing through it. On horizontal pipes the transducers should be located on the sides of the pipe. See Figure 1.2. See Table 2.1 for additional configurations.

B. Select a mounting method, Figure 1.1, for the transducers

from Table 2.2, based on pipe size and liquid characteristics. In General, select W-Mount for plastic and steel pipes flowing clean, non-aerated liquids in the 1-6 inch [25-150 mm] internal diameter range. Select V-Mount for pipes of all materials and most liquids in pipe sizes from 3-10 inches [75-400 mm]. Select Z-Mount for pipes larger than 10 inches [400 mm].

C. For each measuring channel integrated into the TFXM, en-

ter the parameters listed in Table 1.1 via the TFXM keypad or UltraLink software utility.

D. Record the value calculated and displayed as Transducer

Spacing/XDCR SPC.

W-Mount V-Mount Z-Mount

Figure 1.1

Rev. 8/02 -1.3- TFXM

QUICK-START OPERATING INSTRUCTIONS

Figure 1.2

Transducer

Orientation

TABLE 1.1

1. Transducer mounting method

2. Pipe O.D. (Outside Diameter)

3. Pipe wall thickness

4. Pipe material

5. Pipe sound speed*

6. Pipe relative roughness* * Nominal values for these parameters are included within the TFXM

operating system. The nominal values may be used as they appear or may be modified if exact system values are known.

7. Pipe liner thickness

8. Pipe liner material

9. Fluid type

10. Fluid sound speed*

11. Fluid viscosity*

12. Fluid specific gravity*

2. PIPE PREPARATION AND TRANSDUCER MOUNTING

A. The piping surface where the transducers are to be

mounted needs to be clean and dry. Remove loose scale, rust and paint to ensure satisfactory acoustical bonds.

B. Apply a 3/8” [8 mm] wide bead of couplant lengthwise onto

the transducer faces. Place each transducer onto the pipe ensuring proper linear and radial placement.

Connections

Startup

C. Tighten the transducer mounting straps sufficiently to

squeeze the couplant out along the flat surface of the transducer, filling the void between the transducer and the pipe wall.

3. TRANSDUCER/POWER CONNECTIONS

A. If additional cable is to be added to the transducers, utilize

RG59 (75 Ohm) cable splices and ensure that both cables are of equal length.

B. Refer to the TFXM Field Wiring Diagram, Figure 1.4, and

the terminal block labels for proper power and transducer connections. Verify that the voltage level listed on the product identification label—located on the side of the instrument enclosure– matches the power source where connection is being made.

4. INITIAL SETTINGS AND POWER UP

A. Apply power to the instrument. B. Verify that SIG STR is greater than 2% on all channels. C. Verify that measured liquid SSPD is within 0.5% of the

configuration value on all channels.

D. Input proper units of measure and I/O data.

Rev. 8/02 -1.4- TFXM

PART 1 - INTRODUCTION

General

The TFXM ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of nonfouling operation and ease of installation.

TFXM transit time flowmeters utilize two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other . The transducers can be mounted in V-mode where the sound transverses the pipe two times, W-mode where the sound transverses the pipe four times, or in Z-mode where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection is based on pipe and liquid characteristics. The flowmeter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers (contrapropogation) and measuring the time interval that it takes for sound to travel between the two transducers. The difference in the time interval measured is directly related to the velocity of the liquid in the pipe.

Application Versatility

The TFXM flow meter can be successfully applied on a wide range of metering applications. The simple to program transmitter allows the standard product to be used on pipe sizes ranging from 2 - 100 inch [ 50 - 2540 mm ] pipe. A variety of liquid applications can be accommodated: ultrapure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc. Because the transducers are noncontacting and have no moving parts, the flow meter is not affected by system pressure, fouling or wear. Standard DTTN transducers are rated to 300?F [150?C]. Temperatures to 450?F

[230?C] can be accommodated with Series DTTH transducers. Please consult the Dynasonics factory for assistance.

Rev. 8/02 -1.5- TFXM

PART 1 - INTRODUCTION

User Safety

Data Integrity

Product Identification

Product Matrix

D T F X M

Channels

1) One internal Channel

2) Two internal Channels

Power Supply A) 115 VAC

B) 230 VAC C) 100 VAC E) 9-28 VDC

Channel 1 Input/Output (RS485 is Standard on all Models)

1) 4-20mA and Dual-Relay

2) Dual -Relay and One Option

3) 4-20mA and One Option

Channel 1 Option Input/Output N) None (If “1” is selected above)

1) 4-20mA (secondary)

2) Dual-Relay (secondary)

3) Rate Pulse

4) RS232

6) Data Logger

7) Heat Flow

Channel 2 Input/Output [DTFXM2] N) none—[DTFXM1]

1) 4-20mA and Dual-Relay

2) Dual-Relay and One Option

3) 4-20mA and One Option

Channel 2 Input/Output [DTFXM2] N) none—[DTFXM1 or if “1” is selected above]

1) 4-20mA (secondary)

2) Dual-Relay (secondary)

3) Rate Pulse

4) RS232

6) Data Logger

7) Heat Flow

The TFXM employs modular construction and provides electrical safety for the operator. The display face and keypad contains voltages no greater than 10 Vdc. The wiring access panel provides users access to wiring terminals without risking damage to flow meter circuits. Disconnect electrical power before opening the instrument enclosure.

Non-volatile flash memory retains all user-entered configuration values in memory indefinitely, even if power is lost or turned off. Password protection is provided as part of the Security menu and prevents inadvertent configuration changes or totalizer resets.

The serial number and complete model number of your TFXM is located on the side of the instrument enclosure. Should technical assistance be required, please provide the Dynasonics Customer Service Department with this information.

D T T

Approvals N) Ordinary Area X) Class 1 DIV1

(pending)

Options N) None

Construction

N) Standard H) High Temp

Cable Length

020) 20 feet [6.1 m]

050) 50 feet [15 m]

100) 100 feet [30 m]

Maximum length: 990 feet [306 m] in 10 foot [3 m] increments

Conduit Type A) Flexible armored

N) none

Conduit Length (Standard construction: Conduit length = Cable length)

000) none

020) 20 feet [6.1 m]

050) 50 feet [15 m]

100) 100 feet [30 m]

Maximum length: 990 feet [ 306 m] in 10 foot [3 m] increments

Options N) standard

X) Intrinsically Safe

Rev. 8/02 -1.6- TFXM

PART 1 - SPECIFICATIONS

Rev. 8/02 -1.7- TFXM

PART 1 - TRANSMITTER INSTALLATION

Transmitter Installation

After unpacking, it is recommended to save the shipping carton and packing materials in case the instrument is stored or reshipped. Inspect the equipment and carton for damage. If there is evidence of shipping damage, notify the carrier immediately.

The enclosure should be mounted in an area that is convenient for servicing, calibration or for observation of the LCD readout.

1. Locate the transmitter within the length of transducer cable

that was supplied with the TFXM system. If this is not possible and additional cable is to be added to the transducers, utilize RG59 (75 Ohm) cable and splices. Ensure that both cables are of equal length . If additional cable cannot be added in the field, contact the Dynasonics factory to coordinate an exchange for the proper cable length. Transducer cables that are up to 990 feet [300 meters] are available.

2. Mount the TFXM transmitter in a location that is:

? ? Where little vibration exists. ? ? Protected from falling corrosive fluids. ? ? Within ambient temperature limits -40 to 185°F [-40 to 85°C] ? ? Out of direct sunlight. Direct sunlight may increase

temperatures within the transmitter to above the maximum limit.

3. Mounting: Refer to Figure 1.3 for enclosure and mounting

dimension details. Ensure that enough room is available to allow for maintenance and conduit entrances. Secure the enclosure to a flat surface with four appropriate fasteners.

4. Conduit holes. Conduit hubs should be used where cables

enter the enclosure. Holes not used for cable entry should be sealed with plugs.

NOTE: Use NEMA 4 [ IP65 ] rated fittings/plugs to maintain the water tight integrity of the enclosure. Generally, the left conduit hole (viewed from front) is used for line power; the center conduit holes for transducer connections and the right hole s are utilized for I/O wiring.

Rev. 8/02 -1.8- TFXM

PART 1 - TRANSMITTER INSTALLATION

6

7

8

9

2

3

4

5

.

0

1

+/-

Figure 1.3 - TFX Transmitter Installation Dimensions

Transducer Connections

10.55

(268.0)

11.34

(288.0)

10.44

(265.1)

.20 (5.1) DIA

4 MOUNTING

HOLES

11.00

(279.4)

To access terminal strips for electronic connections, loosen the six screws in the wiring access panel located on the bottom of the enclosure.

1. Guide the transducer cables through the transmitter conduit holes located in the bottom of the enclosure. Secure the transducer’s flexible conduit with the supplied conduit nut (if flexible conduit was ordered with the transducer) or tighten the cord grip on the coaxial cable.

2. The terminals within TFXM are a screw terminal type. Connect the appropriate wires to the corresponding screw terminals in the transmitter. Observe UP/DOWN and CH1 or CH2 orientation. CH1 and CH2 correspond to the measuring channels contained within the TFXM flow meter. DTFXM1 flow me-

4.18

(106.2)

Rev. 8/02 -1.9- TFXM

PART 1 - TRANSMITTER INSTALLATION

Figure 1.4

TFXM Wiring Diagram

Rev. 8/02 -1.10- TFXM

PART 1 - TRANSMITTER INSTALLATION

Transmitter Power Connections

DC Power Supply

ters only have one measuring channel, so transducers will only be connected to the CH1 terminals. DTFXM2 flow meters have two measuring channels, so transducers will be connected to both the CH1 and CH2 terminals. See Figure 1.4. Secure wires by tightening to between 0.5 and 0.6 Nm of torque.

NOTE: The transducer cable s carry low level signals. It is typically not recommended to add additional cable to the factory supplied coaxial cables. If an exchange is not possible and additional cable is to be added to the transducers, utilize RG59 (75 Ohm) cable and splices. Ensure that both cables are of equal length. If additional cable cannot be added in the field, contact the Dynasonics factory to coordinate an exchange for the proper cable length. Cables to 990 feet [ 300 meters ] are available.

Connect line power to the two screw terminals marked AC IN and the one marked GROUND in the transmitter. See Figure 1.4. Utilize the conduit hole on the left side of the enclosure for this purpose. Use wiring practices that conform to local codes (National Electric Code Hand book in the USA). Use only the standard three wire connection. The ground terminal grounds the instrument, which is mandatory for safe operation.

CAUTION: Any other wiring method may be unsafe or cause improper operation of the instrument.

It is recommended not to run line power with other signal wires within the same wiring tray or conduit.

NOTE: This instrument requires clean electrical line power. Do not operate this unit on circuits with noisy components (i.e. Fluorescent lights, relays, compressors, variable frequency drives, etc.).

The TFXM can be operated from a 10-28 Vdc source, as long as it is capable of supplying at least 8 Watts. DC power is connected to the screw terminals labeled +DC IN and –DC IN on the terminal block located on the left side of the enclosure. Observe proper polarity in making these connections . It is recommended that a 1 A fuse be installed in DC connections to protect the TFXM and

Rev. 8/02 -1.11- TFXM

PART 1 - TRANSMITTER INSTALLATION

Uninterruptible Power Configuration

the battery source from damage should a fault occur. See the Wiring Diagram located at Figure 1.4.

Both AC and a 12 VDC battery power can be connected to the TFXM to facilitate an uninterruptible power source to the flow meter. The flow meter will operate on the AC power source until AC power is interrupted—at that point the flow meter will continue to operate on the battery until AC power is restored. In this configuration the battery will not be trickle-charged by the TFXM. Batteries are rated in Amp Hour capacity. Select a battery that can maintain operation of the flow meter for the length of anticipated AC power outages.

Example: The TFXM draws approximately 700 mA of current at 12 VDC. A 7 Amp Hour 12 Volt battery will be able to operate the TFXM for approximately 7 Amp Hours / 0.7 Amps = 10 Hours.

As an alternate uninterruptible configuration, connect a battery to the TFXM as the primary source of power and permanently connect a trickle-charger to the battery. Ensure that the tricklecharger is rated to output a minimum of 10 Watts.

Rev. 8/02 -1.12- TFXM

PART 1 - INPUT/OUTPUT CONFIGURATION

General

DIP-Switch Configuration

4-20 mA Output Configuration

Series TFXM contains integrated RS485 communications, one 420 mA output per measurement channel and two SPDT relays per measurement channel. Other auxiliary input/output options are available. All outputs are 2,500 V optically isolated from TFXM power and Earth grounds -- eliminating the potential for ground loops and reducing the chance of severe damage in the event of an electrical surge.

Auxiliary options that are available include: secondary 4-20 mA, secondary dual-relay, rate pulse, RS232C, a 200,000-event datalogger and BTU-Pro heat-delivered option. In order for an Auxiliary output option to be operational, either the 4-20mA or the dual-relays must be disabled for that measurement channel. All outputs are field configurable by utilizing the keyboard or ULTRALINK interface. Field wiring connections to the outputs are made to the terminal blocks located within the wiring access panel.

The two, three-position DIP-switches located within the wiring access panel configure the TFXM for input/output options. The flow meter is shipped from the Dynasonics factory with the options ordered configured and installed. Typically no adjustments to these switches are necessary. The switch lever to the left in each DIP switch block is utilized to configure the 4-20 mA output as either internally or externally powered. The other two switches in each DIP-switch block are used to disable either the 4-20 mA or dualrelay output should an Auxiliary output be installed within the TFXM enclosure.

The 4-20 mA Output interfaces with virtually all recording and logging systems by transmitting an analog current signal that is proportional to system flow rate. The output can be configured to be either internally or externally powered by setting the left DIP switch at SW1 for Channel 1 and SW2 for Channel 2. Refer to the Field Wiring Diagram at Figure 1.4 for terminal block and DIPswitch locations.

When powered from internal power, the 4-20 mA output can provide loop current for a maximum of 800 ohms of total loop resistance. When powered externally, the maximum load varies with the level of the voltage source. The insertion loss of the 4-20 mA circuit is 5Vdc, so the maximum loop load that can be powered is calculated by the equation:

Rev. 8/02 -1.13- TFXM

PART 1 - INPUT/OUTPUT CONFIGURATION

Max Loop Load = (External Supply Voltage - 5)

0.02

Cable used to transmit 4-20 mA signals should be routed in wiring trays or conduits that carry instrumentation signals. It should not be run with AC power or other potential sources of noise. Very long cables can be accommodated, but the resistance of the wire must be added to the total loop load to ensure that adequate power is available to power the load. Shielding of the wires carrying 4-20mA signals are typically not necessary, but is recommended when wires must be run past or in proximity of electrically noisy circuits.

Control Relays Configuration

RS485 Configuration

Two independent SPDT (single-pole, double-throw, Form C) relays are integrated into the TFXM for each measuring channel installed within the flow meter enclosure. The relay operations are user configured via software to act in a flow rate alarm, signal strength alarm or totalizer/batching mode. See Figure 1.4 for ter- minal block locations. The relays are rated for 200 Vac max. and have a current rating of 0.5 A resistive load [175 Vdc @ 0.25 A resistive]. It is highly recommended that a slave relay be utilized whenever the control relays are used to control inductive loads such as solenoids and motors.

An RS485 driver and Modbus protocol is utilized by the TFXM to communicate between the two channels located within the TFXM flow meter enclosure (if so equipped), communicate with satellite TFX flow meters and to interface with a personal computer system. The TFXM can be used as the Primary meter (Master) to program other Secondary (Slave) meters located on the RS485 network. The TFXM contains a feature that permits up to 8 flow measurement channels to be mathematically manipulated. Software configuration is covered in Section 4 of this manual.

RS485 interconnections are made at the terminal block located within the TFXM Field Wiring Access Panel. See Figure 1.4. Utilize two conductor plus shield wiring cable for this purpose. Avoid running these cables in wiring trays or conduits carrying AC power or other electrically noisy devices.

Rev. 8/02 -1.14- TFXM

PART 2 - TRANSDUCER POSITIONING

General

The transducers that are utilized by the Series TFXM contain piezoelectric crystals for transmitting and receiving ultrasound signals through walls of liquid piping systems. DTTN and DTTH transducers are relatively simple and straight-forward to install, but spacing and alignment of the transducers is critical to the system's accuracy and performance. Extra care should be taken to ensure that these instructions are carefully executed.

Mounting of the DTTN and DTTH clamp-on ultrasonic transit time transducers is comprised of four steps. In general, these steps consist of:

1. Selection of the optimum location on a piping system.

2. Entering the pipe and liquid parameters into either the optional software utility (UltraLink) or keying in the parameters into the TFXM keypad. The software embedded in UltraLink and TFXM will calculate proper transducer spacing based on these entries.

3. Pipe preparation and transducer mounting.

1. Mounting Location

The first step in the installation process is the selection of an optimum location for the flow measurement to be made. For this to be done effectively, a basic knowledge of the piping system and its plumbing are required.

An optimum location would be defined as a piping system that is completely full of liquid when measurements are being taken and has lengths of straight pipe such as those described in TABLE 2.1. The optimum straight pipe diameter recommendations apply to pipes in both horizontal and vertical orientation.

TFXM transit time flowmeters utilize two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-mode where the sound traverses the pipe two times, W-mode where the sound traverses the pipe four times, or in Z-mode where the transducers are mounted on opposite

Rev. 8/02 - 2. 1 - TFXM

PART 2 - TRANSDUCER POSITIONING

sides of the pipe and the sound crosses the pipe once. See Figures 2.1 -2.3. This selection is based on pipe and liquid

characteristics. The flowmeter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the time interval that it takes for sound to travel between the two

Table 2.1

1

The TFXM system will provide repeatable measurements on piping systems that do not meet these

requirements, but the accuracy of these readings may be influenced to various degrees.

Rev. 8/02 - 2. 2 - TFXM

PART 2 - TRANSDUCER POSITIONING

V-Mount Configuration

transducers.

Figure 2.1 - Transducer V-Mount

W-Mount Configuration

Figure 2.2 - Transducer W-Mount

Rev. 8/02 - 2. 3 - TFXM

PART 2 - TRANSDUCER POSITIONING

Z-Mount Configuration

Figure 2.3 Z-Mount. Direct type — transducers mounted on

opposite sides of the pipe. See Table 2.2 for a list of Initial Transducer Mounting Modes.

Figure 2.3 - Transducer Z-Mount

Rev. 8/02 - 2. 4 - TFXM

PART 2 - TRANSDUCER POSITIONING

Transducer Mount

Initial Transducer Mounting Modes

Pipe Material Pipe Size Liquid Composition*

Table 2.2

Mode

W-mode (Weakest signal, longest time of flight)

Plastic (all types) Carbon Steel Stainless Steel Copper Ductile Iron Cast Iron

V-mode Plastic (all types)

Carbon Steel Stainless Steel Copper Ductile Iron Cast Iron

Z-mode (Strongest signal, shortest time of flight)

Plastic (all types) Carbon Steel Stainless Steel Copper Ductile Iron Cast Iron

2-6 in. (50-150 mm) 2-4 in. (50-100 mm) 2-6 in. (50-150 mm) 2-6 in. (50-150 mm) Not recommended Not recommended

6-30 in. (150-750 mm) 4-24 in. (100-600 mm) 6-30 in. (150-750 mm) 6-30 in. (150-750 mm) 3-12 in. (75-300 mm) 3-6 in. (75-150 mm)

>30 in. (>750 mm) >24 in. (>600 mm) >30 in. (>750 mm) >30 in. (>750 mm) >12 in. (>300 mm) >6 in. (>150 mm)

Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated

Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated Low TSS, non-aerated

*If the liquid to be measured is high in TSS (total suspended solids) or aerated, more than likely the installation will require configuration and setup in the next category lower than the recommendations in this chart. For example, if the pipe is 10-inch (250 mm) carbon steel and the liquid contains concentrations of suspended solids, a Z -mode will probably yield the best performance results, not the V-mode suggested in the chart.

Rev. 8/02 - 2. 5 - TFXM

PART 2 - TRANSDUCER POSITIONING

2. Transducer Spacing

The TFXM system calculates proper transducer spacing by utilizing piping and liquid information entered by the user. This information can be entered via the keypad on TFXM or via the UltraLink Windows software utility.

IMPORTANT: Since the time interval being measured is influenced by the transducer spacing, it is critical that the transducer spacing be measured on the pipe accurately to assure optimum performance from the TFXM system.

The following information will be required before programming the instrument:

1. Transducer mounting configuration

2. Pipe O.D. (Outside Diameter)

3. Pipe wall thickness

4. Pipe material

5. Pipe sound speed1

6. Pipe relative roughness1

7. Pipe liner thickness

8. Pipe liner material

9. Fluid type

10. Fluid sound speed1

11. Fluid viscosity1

12. Fluid specific gravity1

1

Nominal values for these parameters are included within the TFXM operating system. The nominal values may be used as they appear or may be modified if exact system values are known.

Rev. 8/02 - 2. 6 - TFXM

Keypad

PART 2 - TRANSDUCER POSITIONING

The TFXM can be configured through the keypad interface or by using the UltraLink Windows® software utility. Of the two methods of configuration, the UltraLink software utility provides

more advanced features and offers the abililty to store and transfer meter configurations between TFXM meters.

SOFT KEYS

ARROW KEYS

INFRARED WINDOW

MEASUREMENT CHANNEL SELECTION

Figure 2.4

Keypad Description

The following “Soft Key” menu items will be displayed immediately above the two keys located in the lower corners of the Graphics Display. See Figure 2.4.

?? The (soft)MENU key is pressed from RUN mode to enter

PROGRAM mode. The (soft)EXIT key is pressed in PROGRAM mode to exit configuration parameters and menus. If changes to any configuration parameters have been made, the user will be prompted with a SAVE? (soft) YES or (soft)NO when returning to RUN mode. If no changes have been made, the user will not be prompted to SAVE.

Rev. 8/02 - 2. 7 - TFXM

PART 2 - TRANSDUCER POSITIONING

1. The UP/DOWN ARROW keys are used to scroll through menus and configuration parameters. The ARROW keys can also be used to adjust parameter numerical values. In RUN mode the UP/DOWN ARROW keys are used to adjust the display contrast level.

2. The Numerical Keypad is used for entering numerical values.

3. The (soft)ACCEPT key is used to

?? accept configuration parameter changes.

5. The (soft)CHAN key is used to

?? Configure the engineering units on the graphics display—

Press the (soft)SELECT key from RUN mode to highlight the engineering unit presently being displayed on the graphics display (pressing the SELECT key multiple times will toggle the highlighted unit from line to line). Use the UP/DOWN ARROW keys to select display units of

?? RATE ?? TOTALizer ?? VELocity ?? SIGNAL STRength ?? Sound Speed ?? TEMP1 ?? TEMP2 ?? TEMP Diff

6. When the (soft)MENU key is pressed, the user is prompted for the measurement channel that is to be configured. Use the UP/DOWN arrow keys to display the measurement channel that requires configuration. Press (soft)ACCEPT when the required channel is visible in the center of the display.

Rev. 8/02 - 2. 8 - TFXM

PART 2 - TRANSDUCER POSITIONING

The BASIC menu contains all of the configuration parameters necessary to make the transducer spacing calculation.

UNITS Entry

IMPORTANT!

UNITS ENGLSH

METRIC

Installs a global measurement standard into the operation of the instrument. The choices are either English or Metric measurements.

?? Select ENGLSH if all configurations (pipe sizes, etc.) are to

be made in inches. Select METRIC if the meter is to be configured in millimeters.

?? The ENGLSH/METRIC selection will also configure the

TFXM to display sound speeds in pipe materials and liquids as either feet per second or meters per second respectively.

NOTE: If the UNITS entry has been changed from ENGLSH to METRIC or from METRIC to ENGLSH, the entry must be saved and the instrument reset (power cycled or System Reset entered) in order for the TFXM to initiate the change in operating units. Failure to save and reset the instrument will lead to improper transducer spacing calculations and an instrument that may not measure properly.

Transducer

XDCR MNT -- Transducer Mounting Method

Mount Configuration

V

W Z

Selects the mounting orientation for the transducers. The selection of an appropriate mounting orientation is based on pipe and liquid characteristics. Refer to Figures 2.1 -2.3 and Table 2.2 in this manual.

Rev. 8/02 - 2. 9 - TFXM

PART 2 - TRANSDUCER POSITIONING

Pipe O.D. Entry

Pipe Wall Entry

Pipe Material Entry

Pipe Sound Speed Entry

PIPE OD -- Pipe Outside Diameter Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe outside diameter in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

PIPE WT -- Pipe Wall Thickness Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe wall thickness in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

PIPE MAT -- Pipe Material Selection CARBON S - Carbon Steel

STAINLES - Stainless Steel CAST IRO - Cast Iron DUCTILE - Ductile Iron COPPER - Copper PVC - Polyvinylchloride PVDF LOW - Low Density Polyvinylidene Flouride PVDF HI - High Density Polyvinylidene Flouride ALUMINUM - Aluminum ASBESTOS - Asbestos Cement FIBERGLA - Fiberglass OTHER

This list is provided as an example. Additional materials are being added continuously. Select the appropriate pipe material from the list or select OTHER if the material is not listed.

PIPE SS -- Speed of Sound in the Pipe Material ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the pipe wall. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS

Rev. 8/02 - 2. 10 - TFXM

PART 2 - TRANSDUCER POSITIONING

(meters per second). If a pipe material was chosen from the PIPE MAT list, a nominal

value for speed of sound in that material will be automatically loaded. If the actual sound speed rate is known for the application piping system and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as PIPE MAT, a PIPE SS will need to be entered.

Pipe Roughness Entry

Liner Thickness Entry

PIPE R -- Pipe Material Relative Roughness UNITLESS VALUE

The DTFXM provides Reynolds Number compensation in its flow measurement calculation. The ratio of average surface imperfection as it relates to the pipe internal diameter is used in this compensation.

Linear RMS measurement of the pipe PIPE R = internal wall surface Internal Diameter of the pipe

If a pipe material was chosen from the PIPE MAT list, a nominal value relative roughness in that material will be automatically loaded. If the actual roughness is known for the application piping system and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as PIPE MAT, a PIPE R may need to be entered.

LINER T -- Pipe Liner Thickness Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe liner thickness. Enter this value in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

Rev. 8/02 - 2. 11 - TFXM

PART 2 - TRANSDUCER POSITIONING

Liner Material Entry

Liner Sound Speed Entry

Fluid Type Entry

[If a LINER Thickness was selected] LINER MAT - Liner Material

TAR EPOXY RUBBER MORTAR POLYPROPYLENE POLYSTYROL POLYSTYRENE POLYESTER POLYETHYLENE EBONITE TEFLON Other

This list is provided as an example. Additional materials are being added continuously. Select the appropriate material from the list or select OTHER if the liner material is not listed.

LINER SS -- Speed of Sound in the Liner ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the liner. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS (meters per second).

If a liner was chosen from the LINER MAT list, a nominal value for speed of sound in that media will be automatically loaded. If the actual sound speed rate is known for the pipe liner and that value varies from the automatically loaded value, the value can be revised.

FL TYPE - Fluid/Media Type

TAP WATER SEWAGE SEA WATE KEROSENE GASOLINE FUEL OIL CRUDE OI PROPANE

Rev. 8/02 - 2. 12 - TFXM

PART 2 - TRANSDUCER POSITIONING

Fluid Sound Speed Entry

BUTANE OTHER

This list is provided as an example. Additional liquids are being added continuously. Select the appropriate liquid from the list or select OTHER if the liquid is not listed.

FLUID SS -- Speed of Sound in the Fluid ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the liquid. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS (meters per second).

If a fluid was chosen from the FL TYPE list, a nominal value for speed of sound in that media will be automatically loaded. If the actual sound speed rate is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

Fluid Viscosity Entry

If OTHER was chosen as FL TYPE, a FLUID SS will need to be entered. A list of alternate fluids and their associated sound speeds are located in the Appendix at the back of this manual.

FLUID VI -- Absolute Viscosity the Fluid cps

Allows adjustments to be made to the absolute viscosity of the liquid.

If a fluid was chosen from the FL TYPE list, a nominal value for viscosity in that media will be automatically loaded. If the actual viscosity is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as FL TYPE, a FLUID VI will need to be entered. A list of alternate fluids and their associated viscosities are located in the Appendix at the back of this manual.

Rev. 8/02 - 2. 13 - TFXM

PART 2 - TRANSDUCER POSITIONING

Fluid Specific Gravity Entry

Transducer Spacing Calculation

SP GRVTY -- Fluid Specific Gravity Entry unitless

Allows adjustments to be made to the specific gravity (density) of the liquid.

If a fluid was chosen from the FL TYPE list, a nominal value for specific gravity in that media will be automatically loaded. If the actual specific gravity is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as FL TYPE, a SP GRVTY may need to be entered if mass flows are to be calculated. A list of alternate fluids and their associated specific gravities are located in the Appendix at the back of this manual.

XDCR SPAC -- Transducer Spacing Calculation ENGLSH (Inches)

METRIC (Millimeters)

This value represents the one-dimensional linear measurement between the transducers (the upstream/downstream measurement that runs parallel to the pipe). This value is in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected. This measurement is taken between the lines which are scribed into the side of the transducer blocks.

Important note for pipe sizes under 2 inches [50 mm]. If the transducer spacing that is calculated is lower than 2.65 inches [67 mm], enter W-mount as the transducer mount method or enter V-mount and place the transducers at 2.65 inches [67 mm]. See Page 3.11 for additional details.

Rev. 8/02 - 2. 14 - TFXM

PART 2 - TRANSDUCER POSITIONING

UltraLink Entry

UltraLink Data Entry

The UltraLink Windows®-based software utility provides an efficient means for entering piping and liquid parameters through the use of pop-up window/pull -down menu structures. Data can be entered into UltraLink, stored, later retrieved and downloaded at the TFXM installation site (provided that UltraLink and TFXM communications are not enabled at the time of data entry) or it can be downloaded immediately to the TFXM meter (provided that UltraLink and TFXM communications are enabled during data entry).

To install UltraLink and establish communications with a PC, please follow the instructions detailed in Section 4 of this manual.

The system information required for entry into the UltraLink package is identical to that required for Keypad Entry covered in the previous section. See pages 2.3.

After initializing UltraLink, click on the button labeled Config. The window shown in Figure 2.5 will appear. Enter the pipe and liquid parameters into the appropriate data fields in the Basic window. The correct transducer spacing will appear in the Transducer - Spacing data field.

After all data fields have been entered Download to the TFXM or File Save to a disk by clicking on the appropriate button in the Config window. Download is not possible unless communica- tions are enabled between the TFXM and UltraLink. Communications are enabled when a green OK is indicated in the lower right-hand COMM: status box. If communications are not en- abled, please review the documentation that is detailed in Section 4 of this manual.

Rev. 8/02 - 2. 15 - TFXM

PART 2 - TRANSDUCER POSITIONING

Transducer spacing appears here.

Figure 2.5 UltraLink Windows-based software utility configuration screen.

Rev. 8/02 - 2. 16 - TFXM

PART 2 - TRANSDUCER POSITIONING

3. Transducer Mounting

After selecting an optimal mounting location, Step 1, and successfully determining the proper transducer spacing, Step 2, the transducers can now be mounted onto the pipe.

The DTT transducers need to be properly oriented on the pipe to provide optimum reliability and performance. On horizontal pipes, the transducers should be mounted 180 radial degrees from one another and at least 45 degrees from the top-deadcenter and bottom-dead-center of the pipe. See Figure 2.5.

Figure 2.5 does not apply to vertically oriented pipes.

Figure 2.5 Transducer mounting locations on

horizontal pipe.

Before the transducers are bonded to the pipe surface, two ar-

Pipe Preparation

Rev. 8/02 - 2. 17 - TFXM

eas slightly larger than the flat surface of the transducer heads must be cleaned of all rust, scale and moisture. Finish the surface with some emery paper, and wipe the surface with a degreasing solvent such as trichlorethylene. Paint and other coatings, if not flaked or bubbled, need not be removed. Plastic pipes typically do not require surface preparation other than soap and water cleaning.

PART 2 - TRANSDUCER POSITIONING

Installation on Large Pipes

Mounting Transducers in Z-Mount Configuration

Installation on larger pipes requires careful measurements to the linear and radial placement of the DTT transducers. Failure to properly orient and place the transducers on the pipe may lead to weak signal strength and/or inaccurate readings. The section below details a method for properly locating the transducers on larger pipes. This method requires a roll of paper such as freezer paper or wrapping paper, masking tape and a marking device.

Wrap the paper around the pipe in the manner shown in Figure

2.6. Align the paper ends to within 0.25 inches [6mm].

Figure 2.6 Paper Template Alignment

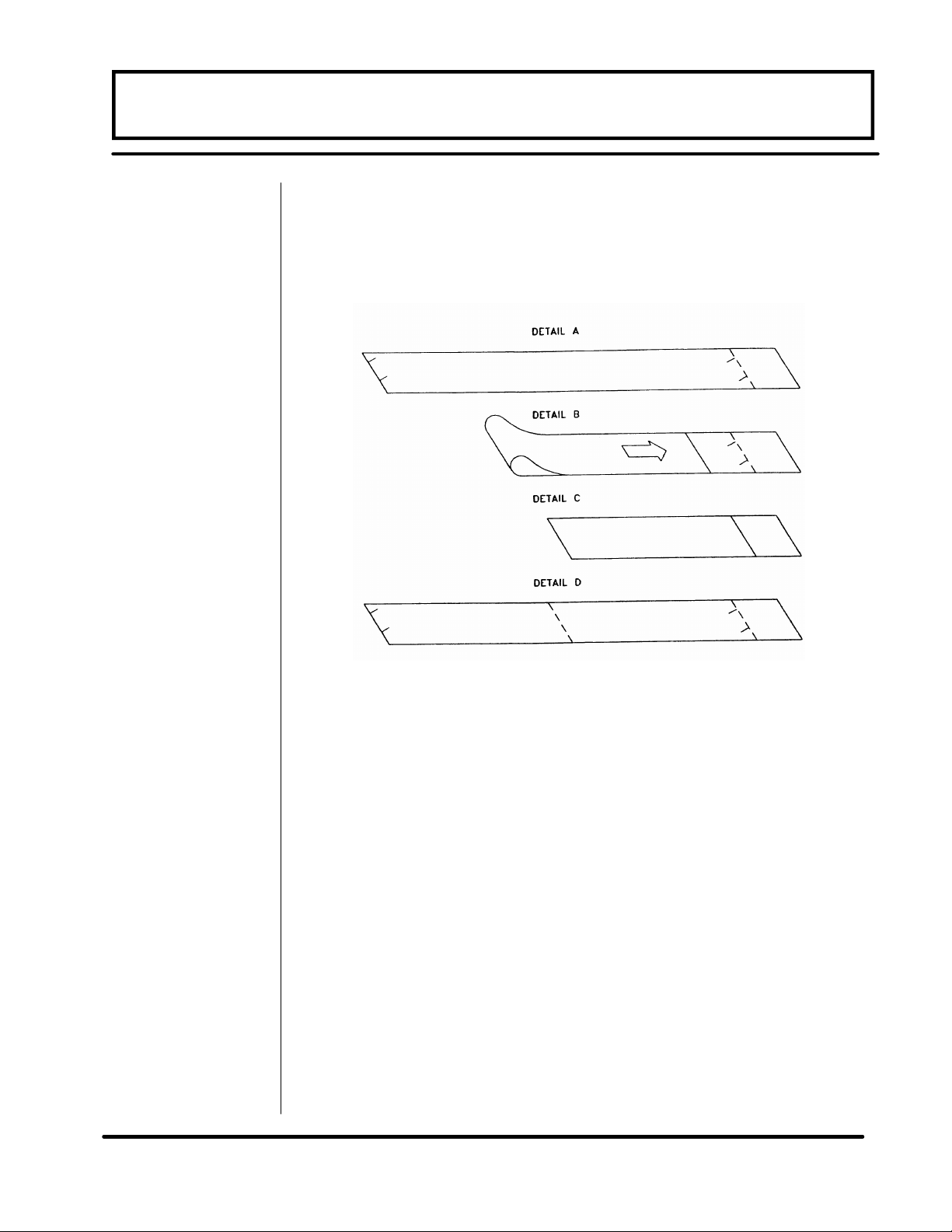

Mark the intersection of the two pieces of paper to indicate the circumference. Remove the template and spread it out on a flat surface. Fold the template in half, bisecting the circumference. See Figure 2.7.

Crease the paper at the fold line. Mark the crease. Place a mark on the pipe where one of the transducers will be located. See Figure 2.5 for acceptable radial orientations. Wrap the template back around the pipe, placing the beginning of the paper and corner in the location of the mark. Move to the other side of the pipe and mark the ends of the crease. Measure from the end of the crease (directly across the pipe from the first

Rev. 8/02 - 2. 18 - TFXM

PART 2 - TRANSDUCER POSITIONING

transducer location) the dimension derived in Step 2, Transducer Spacing. Mark this location on the pipe.

The two marks on the pipe are now properly aligned and measured.

Figure 2.7 Bisecting the pipe circumference

If access to the bottom of the pipe prohibits the wrapping of the paper around the circumference, cut a piece of paper to these dimensions and lay it over the top of the pipe.

Length = Pipe O.D. x 1.57 Width = Spacing determined on Pages 2.14 or 2.16

Mark opposite corners of the paper on the pipe. Apply transducers to these two marks.

Rev. 8/02 - 2. 19 - TFXM

PART 2 - TRANSDUCER POSITIONING

Transducer Mounting

1. Place a single bead of couplant, approximately 3/8 inch [6 mm] thick, on the flat face of the transducer. See Figure

2.8. Use Dow 732 for permanent and Dow 44 or Dow 111 for temporary (less than 12 months) installations. [For high temperature installations, utilize the Dow 112 and orange silicone pads that were shipped with the DTTH transducers. Apply the couplant to the transducer face as shown in Figure 2.8, then place the silicone pad over the couplant. Apply the couplant to the exposed surface of the silicone pad.

Figure 2.8 Transducer Couplant Application

2. Install the first transducer on the pipe, with the alignment groove placed over one of the marks created in the previous section. The stainless steel clamping band will be positioned within the groove on the front of the transducer. See Figure 2.9.

Rev. 8/02 - 2. 20 - TFXM

PART 2 - TRANSDUCER POSITIONING

Lineal measurements are made from these lines.

Figure 2.9 Z-Mode Transducer Mounting

3. Secure the transducer by tightening the stainless steel strap. (Excessive pressure is not required. Apply just enough pressure so that the couplant fills the gap between the pipe and transducer.) If DOW 732, or some other silicone RTV type sealant, was used ensure that no relative movement between the transducer and pipe takes place during the setting time and do not apply instrument power for at least 24 hours. If Dow 44 or Dow 111 or an alternate form of grease has been used as a couplant, setting time is not necessary.

4. Mount the transducer in the same manner as the first, but at the second mark on the pipe. Slide the transducer clamp over the transducer and secure with the stainless strap. Refer to Figure 2.9 for proper orientation.

NOTE: Since pipes larger than 20 inches (500 mm), typically can be out-of-round by a substantial amount, it is advised that the second transducer be left loose so that it can be positioned at the location of greatest Signal Strength. See Section 3 of this manual for Diagnostics and Signal Strength Measurement. Maximum Signal Strength can typically be obtained within 1 inch [25 mm] of the calculated lineal distance.

Rev. 8/02 - 2. 21 - TFXM

PART 2 - TRANSDUCER POSITIONING

Mounting Track Installation

1. Install the single mounting track on the pipe in an orientation suggested by Figure 2.5 (minus the rail mounted across the pipe) with the stainless steel bands provided. Orientation on vertical pipe is not critical. Ensure that the track is parallel to the pipe and that all four mounting feet are touching the pipe.

2. Slide the two transducer clamp brackets towards the center, 5 inch [125 mm] mark, on the mounting rail.

3. Place a single bead of couplant, approximately 3/8 inch [6 mm] thick, on the flat face of the transducer. See Figure

2.10. Use Dow 732 for permanent and Dow 44 for temporary (less that six months) installations. [High temperature installations require the use of Dow 112 and silicone pads.]

Figure 2.10 Transducer Couplant Application

4. Place the first transducer in between the mounting rails near the zero point on the mounting rail scale. Slide the transducer clamp over the transducer. Adjust the clamp/ transducer such that the notch in the clamp aligns with zero on the scale. See Figure 2.11.

Rev. 8/02 - 2. 22 - TFXM

PART 2 - TRANSDUCER POSITIONING

Figure 2.11 Transducer Space Measurement

5. Secure with the thumb screw. Ensure that the screw rests in

the counter bore on the top of the transducer. (Excessive pressure is not required. Apply just enough pressure so that the couplant fills the gap between the pipe and transducer.) If DOW 732 or some other silicone RTV type sealant was used, ensure that no relative movement between the transducer and pipe takes place during the setting time and do not apply instrument power for at least 24 hours. If Dow 44 or Dow 111 or an alternate form of grease has been used as a couplant, setting time is not necessary.

6. Place the second transducer in between the mounting rails

near the dimension derived in the Transducer Spacing section. Read the dimension on the mounting rail scale. Slide the transducer clamp over the transducer and secure with the thumb screw.

Rev. 8/02 - 2. 23 - TFXM

PART 3 - STARTUP AND CONFIGURATION

Before Starting the Instrument

Instrument Startup

Note: The TFXM flow meter system requires a full pipe of liquid before a successful startup can be completed. Do not

attempt to make adjustments or change configurations until a full pipe is verified.

Note: If Dow 732 RTV was utilized to couple the transducers to the pipe, the adhesive must fully cure before power is applied to the instrument. Dow 732 requires 24 hours to cure satisfactorily. If Dow 111 silicone grease was utilized as a couplant, the curing time is not required. [DTTH—High Temperature Transducers utilize Dow 112 couplant and orange silicone pads mounted between the transducer and the pipe. This setup does not require any curing time.]

Procedure:

1. Verify that all wiring is properly connected and routed as described previously in this manual.

2. Verify that the transducers are properly mounted as described in Part 2 of this manual.

3. Apply power to the flow meter. The TFXM display backlighting will illuminate and the software version number will appear on the display.

4. Confirm that Signal Strength is greater than 2% for each measurement channel. If it is not, verify that proper transducer mounting methods and liquid/pipe characteristics have been entered. The pipe must be full of liquid in order to make this measurement.

5. Verify that the actual measured Sound Speed of the liquid is within 0.5% of the table value utilized in the BASIC menu setup.

6. Once the meter is properly operating (proper signal strength and measured sound speed has been achieved) , refer to the later portions of this manual section for additional programming features.

Rev. 8/02 -3.1- TFXM

PART 3 - KEYPAD CONFIGURATION

General

Keypad Operation

After an installation of the transducer track or cradle assembly and connection of appropriate power supplies to the TFXM, keypad configuration of the instrument can be undertaken. All entries are saved in non-volatile FLASH memory and will be retained in the event of power loss.

The TFXM can be configured through the keypad interface or by using the UltraLink Windows® software utility. Of the two methods of configuration, the UltraLink software utility provides

more advanced features and offers the abililty to store and transfer meter configurations between TFXM meters.

SOFT KEYS

ARROW KEYS

INFRARED WINDOW

MEASUREMENT CHANNEL SELECTION

Figure 3.1

Keypad Description

The following “Soft Key” menu items will be displayed immediately above the two keys located in the lower corners of the Graphics Display. See Figure 3.1.

Rev. 8/02 -3.2- TFXM

PART 3 - KEYPAD CONFIGURATION

1. The (soft)MENU key is pressed from RUN mode to enter PROGRAM mode. The (soft)EXIT key is pressed in PROGRAM mode to exit configuration parameters and menus. If changes to any configuration parameters have been made, the user will be prompted with a SAVE? (soft) YES or (soft)NO when returning to RUN mode. If no changes have been made, the user will not be prompted to SAVE.

Measurement Channel Configuration

Display Contrast

Graphics Display Configuration

2. When the (soft)MENU key is pressed, the user is prompted for the measurement channel that is to be configured. Use the UP/DOWN arrow keys to display the measurement channel that requires configuration. Press (soft)ACCEPT when the required channel is visible in the center of the display.

3. The UP/DOWN ARROW keys are used to scroll through menus and configuration parameters. The ARROW keys can also be used to adjust parameter numerical values. In RUN mode the UP/DOWN ARROW keys are used to adjust the display contrast level.

4. The Numerical Keypad is used for entering numerical values.

5. The (soft)ACCEPT key is used to

?? accept configuration parameter changes.

6. The (soft)SELECT key is used to

?? Configure the engineering units on the graphics display—

Press the (soft)SELECT key from RUN mode to highlight the engineering unit presently being displayed on the graphics display (pressing the SELECT key multiple times will toggle the highlighted unit from line to line). Use the UP/DOWN ARROW keys to select display units of

?? RATE ?? TOTALizer ?? VELocity ?? SIGNAL STRength ?? Sound Speed ?? TEMP1 ?? TEMP2 ?? TEMP Diff

Rev. 8/02 -3.3- TFXM

PART 3 - KEYPAD CONFIGURATION

7. The (soft)CHAN UP/DOWN arrow keys are used to select a measuring entity for a particular display position and measuring channel.

8. The CHANNEL key is used during display setup to select what channel’s information will be displayed on the graphics display.

The eight menus used in the structure of the TFXM are as follows:

1. Basic Menu -- It contains all of the configuration parameters necessary to program the meter to measure flow.

2. Output 1 Menu -- Configures the type and operating parameters of the input/output features located internally in

the TFXM flow meter.

3. Output 2 Menu -- Configures the type and operating parameters of the input/output features located internally in

the TFXM flow meter.

4. AUX Com Port -- Configures BAUD rate, addresses and scale factors applied to all flow meters on the RS485 network.

5. Sensor Menu -- menu is for future use.

6. Security -- utilized for resetting totalizers, resetting the operating system and revising security passwords.

7. Service Menu -- contains system measurements that are used by service personnel for troubleshooting instruments

installed on piping systems. On -the-pipe “zero flow” can be captured in this menu.

8. Display Menu — used to select either 2 or 4 lines on the graphics display.

The following sections define the configuration parameters located in each of the menus.

Rev. 8/02 -3.4- TFXM

PART 3 - KEYPAD CONFIGURATION

UNITS Selection

1. BSC MENU -- BASIC MENU

The BASIC menu contains all of the configuration parameters necessary to make the TFXM operational.

UNITS ENGLSH

METRIC

Installs a global measurement standard into the operation of the instrument. The choices are either English or Metric measurements.

?? Select ENGLSH if all configurations (pipe sizes, etc.)are to

be made in inches. Select METRIC if the meter is to be configured in millimeters.

Transducer Mount

?? The ENGLSH/METRIC selection will also configure the

TFXM to display sound speeds in pipe materials and liquids as either feet per second or meters per second, respectively.

NOTE: If the UNITS entry has been changed from ENGLSH to METRIC or from METRIC to ENGLSH, the entry must be saved and the instrument reset (power cycled or System Reset entered) in order for the TFXM to initiate the change in operating units. Failure to save and reset the instrument will lead to improper transducer spacing calculations and an instrument that may not measure properly.

XDCR MNT -- Transducer Mounting Method V

W Z

Selects the mounting orientation for the transducers. The selection of an appropriate mounting orientation is based on pipe and liquid characteristics. See PART 2 - Transducer installation in this manual.

Rev. 8/02 -3.5- TFXM

PART 3 - KEYPAD CONFIGURATION

Pipe Diameter

V -- Mount. A reflective type (transducers mounted on one

side of the pipe) of installation used primarily on pipe sizes in the 3-10 inch [75-200 mm] internal diameter range.

W -- Mount. A reflective type (transducers mounted on one side of the pipe) of installation used primarily on pipe sizes in the 1-6 inch [25-75 mm] internal diameter range.

Z -- Mount. A direct type (transducers mounted on opposite sides of the pipe) of installation used primarily on pipe sizes in the 10-100 inch [200-2540 mm] internal diameter range.

PIPE OD -- Pipe Outside Diameter Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe outside diameter in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

Pipe Wall Thickness

IMPORTANT NOTE: Charts listing popular pipe sizes have been included in the Appendix of this manual. Correct entries for pipe O.D. and pipe wall thickness are critical to obtaining accurate flow measurement readings.

PIPE WT -- Pipe Wall Thickness Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe wall thickness in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

IMPORTANT NOTE: Charts listing popular pipe sizes have been included in the Appendix of this manual. Correct entries for pipe O.D. and pipe wall thickness are critical to obtaining accurate flow measurement readings.

Rev. 8/02 -3.6- TFXM

PART 3 - KEYPAD CONFIGURATION

Pipe Material

Pipe Sound Speed

PIPE MAT -- Pipe Material Selection CARBON S - Carbon Steel

STAINLES - Stainless Steel CAST IRO - Cast Iron DUCTILE - Ductile Iron COPPER - Copper PVC - Polyvinylchloride PVDF LOW - Low Density Polyvinylidene Flouride PVDF HI - High Density Polyvinylidene Flouride ALUMINUM - Aluminum ASBESTOS - Asbestos Cement FIBERGLA - Fiberglass OTHER

This list is provided as an example. Additional pipe materials are being added continuously. Select the appropriate pipe material from the list or select OTHER if the material is not listed.

PIPE SS -- Speed of Sound in the Pipe Material ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the pipe wall. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS (meters per second).

If a pipe material was chosen from the PIPE MAT list, a nominal value for speed of sound in that material will be automatically loaded. If the actual sound speed rate is known for the application piping system and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as PIPE MAT, a PIPE SS will need to be entered.

Rev. 8/02 -3.7- TFXM

PART 3 - KEYPAD CONFIGURATION

Pipe Roughness

Liner Thickness

Liner Type

PIPE R -- Pipe Material Relative Roughness UNITLESS VALUE

The TFXM provides Reynolds Number compensation in its flow measurement calculation. The ratio of average surface imperfection as it relates to the pipe internal diameter is used in this compensation.

Linear RMS measurement of the pipe PIPE R = internal wall surface Internal Diameter of the pipe

If a pipe material was chosen from the PIPE MAT list, a nominal value relative roughness in that material will be automatically loaded. If the actual roughness is known for the application piping system and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as PIPE MAT, a PIPE R may need to be entered.

LINER T -- Pipe Liner Thickness Entry ENGLSH (Inches)

METRIC (Millimeters)

Enter the pipe liner thickness. Enter this value in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected.

[If a LINER Thickness was selected] LINER MAT - Liner Material

TAR EPOXY RUBBER MORTAR POLYPROPYLENE POLYSTYROL POLYSTYRENE POLYESTER POLYETHYLENE EBONITE TEFLON

Rev. 8/02 -3.8- TFXM

Liner Sound Speed

Fluid Type

PART 3 - KEYPAD CONFIGURATION

Other This list is provided as an example. Additional materials are

being added continuously. Select the appropriate material from the list or select OTHER if the liner material is not listed.

LINER SS -- Speed of Sound in the Liner ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the liner. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS (meters per second).

If a liner was chosen from the LINER MAT list, a nominal value for speed of sound in that media will be automatically loaded. If the actual sound speed rate is known for the pipe liner and that value varies from the automatically loaded value, the value can be revised.

FL TYPE - Fluid/Media Type

WATER SEA WATE KEROSENE GASOLINE FUEL OIL CRUDE OI PROPANE BUTANE OTHER

This list is provided as an example. Additional liquids are being added continuously. Select the appropriate liquid from the list or select OTHER if the liquid is not listed.

Rev. 8/02 -3.9- TFXM

PART 3 - KEYPAD CONFIGURATION

Fluid Sound Speed

Fluid Viscosity

FLUID SS -- Speed of Sound in the Fluid ENGLSH (Feet per Second)

METRIC (Meters per Second)

Allows adjustments to be made to the speed of sound in the liquid. If the UNITS value was set to ENGLSH, the entry is in FPS (feet per second). METRIC entries are made in MPS (meters per second).

If a fluid was chosen from the FL TYPE list, a nominal value for speed of sound in that media will be automatically loaded. If the actual sound speed rate is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as FL TYPE, a FLUID SS will need to be entered. A list of alternate fluids and their associated sound speeds are located in the Appendix at the back of this manual.

FLUID VI -- Absolute Viscosity the Fluid cps

Allows adjustments to be made to the absolute viscosity of the liquid.

If a fluid was chosen from the FL TYPE list, a nominal value for viscosity in that media will be automatically loaded. If the actual viscosity is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as FL TYPE, a FLUID VI will need to be entered. A list of alternate fluids and their associated viscosities are located in the Appendix at the back of this manual.

Fluid Specific Gravity

Rev. 8/02 -3.10- TFXM

SP GRVTY -- Fluid Specific Gravity Entry unitless

Allows adjustments to be made to the specific gravity (density) of the liquid.

Transducer Spacing

PART 3 - KEYPAD CONFIGURATION

If a fluid was chosen from the FL TYPE list, a nominal value for specific gravity in that media will be automatically loaded. If the actual specific gravity is known for the application fluid and that value varies from the automatically loaded value, the value can be revised.

If OTHER was chosen as FL TYPE, a SP GRVTY may need to be entered if mass flows are to be calculated. A list of alternate fluids and their associated specific gravities are located the Appendix located at the back of this manual.

XDCR SPAC -- Transducer Spacing Calculation ENGLSH (Inches)

METRIC (Millimeters)

This value represents the one-dimensional linear measurement between the transducers (the upstream/downstream measurement that runs parallel to the pipe). This value is in inches if ENGLSH was selected as UNITS; in millimeters if METRIC was selected. This measurement is taken from the line which is scribed into the side of the transducer block.

If the transducers are being mounted using the transducer track assembly, a measuring scale is etched into the track. Place one transducer at 0 inches and the other at the appropriate measurement.

NOTE: If V-mounting is used on pipes that are smaller than 2 inches [50 mm], the transducers will be mounted "nose-tonose" as illustrated in Figure 3.2.

Figure 3.2

Rev. 8/02 -3.11- TFXM

PART 3 - KEYPAD CONFIGURATION

Engineering Units RATE

Engineering Units RATE INTERVAL

Engineering Units TOTAL

RATE UNT - Engineering Units for Flow Rate

GALLONS - U.S. Gallons LITERS - Metric Liter MGAL - Millions of U.S. Gallons CUBIC FT - Cubic Feet CUBIC ME - Cubic Meters ACRE FT - Acre Feet OIL BARR - Oil Barrels (42 U.S. Gallons) LIQ BARR - Liquor Barrels (31.5 U.S. Gallons) FEET - Linear Feet METERS - Linear Meters

Select a desired engineering unit for flow rate measurements.

RATE INT - Time Interval for Flow Rate

MIN - Minutes HOUR - Hours DAY - Days SEC - Seconds

Select a desired engineering unit for flow rate measurements.

TOTL UNT - Engineering Units for Flow Totalizer

GALLONS - U.S. Gallons LITERS - Metric Liter MGAL - Millions of U.S. Gallons CUBIC FT - Cubic Feet CUBIC ME - Cubic Meters ACRE FT - Acre Feet OIL BARR - Oil Barrels (42 U.S. Gallons) LIQ BARR - Liquor Barrels (31.5 U.S. Gallons) FEET - Linear Feet METERS - Linear Meters

Select a desired engineering unit for flow accumulator (totalizer) measurements.

Rev. 8/02 -3.12- TFXM

PART 3 - KEYPAD CONFIGURATION

Engineering Units TOTAL Exponent

TOTL E - Flow Totalizer Exponent Value

E-1 to E6 Utilized for setting the flow totalizer exponent. This feature is

useful for accommodating a very large accumulated flow. The exponent is a "X10n" multiplier, where "n" can be from -1 (X

0.1) to +6 (X 1,000,000).

Exponent Display Multiplier E-1 X 1 (No multiplier)

E0 X 1 (No multiplier) E1 X10 E2 X100 E3 X1,000 E4 X10,000 E5 X100,000 E6 X1,000,000

Minimum Flow Rate

Maximum Flow Rate

MIN RATE - Minimum Flow Rate Settings

Rate Unit/Rate Interval A minimum volumetric flow rate setting is entered to establish

NOTE: The Minimum Rate may be set anywhere in the flow measurement range of -40 to +40 FPS. For example: If bidirectional flow needs to be logged, set the MIN RATE at a negative value.

filter software settings.

MAX RATE - Maximum Flow Rate Settings

Rate Unit/Rate Interval A maximum volumetric flow rate setting is entered to establish

Rev. 8/02 -3.13- TFXM

PART 3 - KEYPAD CONFIGURATION

Low Flow Cut-off

Flow Reading Damping

filter software settings and as a baseline for the FL C-OFF entry below.

NOTE: The Maximum Rate may be set anywhere in the flow measurement range of -40 to +40 FPS. For example: If bidirectional flow needs to be logged, set the MIN RATE at a negative value and MAX RATE at a positive value.

FL C-OFF - Low Flow Cut -off

Percent of MAX RATE A Low Flow Cut-off entry is provided to allow very low flow

rates (that can be present when pumps are off and valves are closed) to be displayed as Zero flow. Typical values that should be entered are between 1.0% and 5.0% of full-scale.

DAMP PER - System Damping

Relative Percent Entry DAMP PER establishes a maximum adaptive filter value.

Under stable flow conditions (flow that varies less than the Flow Filter Hysteresis entry) this adaptive filter will increase the number of successive flow readings that are averaged together up to this maximum value. If flow changes outside of the Flow Filter Hysteresis window (typically ±5% of flow rate) , the Flow Filter adapts by decreasing and allows the meter to react faster. Increasing this value tends to provide smoother steady-state flow readings and outputs. The DAMP PER setting increases and decreases the response time of the flow meter display and outputs. Enter a value between 1 and 100 percent, a setting of 1 having the fastest response and 100 having the slowest response.

Rev. 8/02 -3.14- TFXM

PART 3 - KEYPAD CONFIGURATION

2&3. OUTPUT 1 and 2 MENUS

Standard

4-20mA

Integral 4-20mA Output

FL 4MA FL 20MA CAL 4MA

CAL 20MA 4-20 TST

The 4-20 mA Output interfaces with virtually all recording and logging systems by transmitting an analog current signal that is proportional to system flow rate. The output can be configured to be either internally or externally powered by setting the left DIP-switch at SW1 for Channel 1 and SW2 for Channel 2 . Refer to the Field Wiring Diagram at Figure 1.4 for terminal block and DIP-switch locations.

When powered from internal power, the 4-20 mA output can provide loop current for a maximum of 800 ohms of total loop resistance. When powered externally, the maximum load varies with the level of the voltage source. The insertion loss of the 420 mA circuit is 5Vdc, so the maximum loop load that can be powered is calculated by the equation:

Max Loop Load = (External Supply Voltage - 5)

0.02

4-20mA Span

Rev. 8/02 -3.15- TFXM

The FL 4MA and FL 20MA entries are used to set the span of the 4-20 mA analog output. These entries are volumetric rate units that are equal to the volumetric units configured as Engineering Rate Units and Engineering Units Time Interval entered on page 3.10. These entries may be entered anywhere in the flow measurement range of the instrument (velocity range of – 40 to +40 FPS [-12 to +12 MPS]).

For example, to span the 4-20mA output from –100 GPM to +100 GPM, with 12mA being 0 GPM, set the FL 4MA and FL 20MA inputs as follows:

FL 4MA = -100.0

4-20mA Calibration

PART 3 - KEYPAD CONFIGURATION

FL 20MA = 100.0 For example, to span the 4-20mA output from 0 GPM to +100

GPM, with 12mA being 50 GPM, set the FL 4MA and FL 20MA inputs as follows:

FL 4MA = 0.0 FL 20MA = 100.0

The 4-20mA ISO-MOD is factory calibrated and should not require adjustment unless it is replaced.

NOTE: The CAL 4MA and CAL 20MA entries should not be used in a attempt to set the 4-20mA range. Utilize FL 4MA and FL 20MA, detailed above, for this purpose.

The CAL4MA entry allows fine adjustments to be made to the “zero” of the 4-20mA output. To adjust the 4mA output, an ammeter or reliable reference connection to the 4-20mA output must be present.

Procedure:

1. Disconnect one side of the current loop and connect the ammeter in series (disconnect either wire at the terminals labeled 4-20mA IN or 4-20mA OUT, Fig. 1.4).

2. Using the arrow keys, increase the numerical value to increase the current in the loop to 4mA. Decrease the value to decrease the current in the loop to 4mA. Typical values range between 40-80 counts.

Re connect the 4-20mA output circuitry as required.

Calibration of the 20mA setting is conducted much the same way as the 4mA adjustments.

Procedure:

1. Disconnect one side of the current loop and connect the ammeter in series (disconnect either wire at the terminals

Rev. 8/02 -3.16- TFXM

PART 3 - KEYPAD CONFIGURATION

labeled 4-20mA IN or 4-20mA OUT, Fig. 1.4).

2. Using the arrow keys, increase the numerical value to increase the current in the loop to 20mA. Decrease the value to decrease the current in the loop to 20mA. Typical values range between 3700-3900 counts.

Re connect the 4-20mA output circuitry as required.

4-20mA Test

Relay Setup

4-20 TST - 4-20mA Output Test 4-20

Allows a simulated value to be output from the 4 -20mA output. By incrementing this value, the 4-20mA output will transmit the indicated current value.

Integral Dual Relay Configuration

RELAY 1 AND RELAY 2 NONE

TOTALIZE TOT MULT FLOW ON OFF SIG STR ERRORS

Two independent SPDT (single-pole, double-throw, Form C) relays are integrated into the TFXM for each measuring channel installed within the flow meter enclosure. The relay operations are user configured via software to act in either a flow rate alarm, signal strength alarm or totalizer/batching mode. See Figure 1.4 for terminal block locations. The relays are rated for 200 Vac max. and have a current rating of 0.5 A resistive load [175 Vdc @ 0.25 A resistive]. It is highly recommended that a slave relay be utilized whenever the control relays are used to control inductive loads such as solenoids and motors.

Rev. 8/02 -3.17- TFXM

PART 3 - KEYPAD CONFIGURATION

Batch/Totalizer Relay

Flow Rate Relay

Signal Strength Alarm

Error Alarm Relay

When one of the relays is set to TOTALIZE mode, an entry of TOT MULT must be programmed to establish the accumulated flow volume that needs to pass before the relay will “pulse”. The relay will pulse every time that volume is accumulated. The pulse has a duration of approximately 50mSec. Enter a value using the same units that were established as Engineering Units TOTAL on page 3.12.

When a relay is set to FLOW mode, two entries must be made: ON and OFF. The ON and OFF entries dictate at what volumetric flow rate (using the volumetric units established as Engineering Units RATE and RATE INTERVAL on page 3.12) the relay turns ON and at what flow rate the relay turns OFF - establishing a deadband. For “fail-safe” mode, the ON setting should be set higher than the OFF setting.

When a relay is set to SIG STR mode, the relay will activate when the measured Signal Strength falls below the Signal Strength Cutoff setting. See page 3.26.

When a relay is set to ERROR mode, the relay will activate when any error occurs in the flow meter that has caused the meter to stop measuring reliably. See the Appendix of this manual for a list of potential error codes.

4. AUX COMM MENU -- RS485

Integral RS485 Communications RS485 MODBUS Communications

Rev. 8/02 -3.18- TFXM

RS485 MO — MODE

SLAVE

MASTER

RS485 BA — BAUD RATE

1200

2400

9600

19200

ADDRESS — Device Address

1-127

PART 3 - KEYPAD CONFIGURATION

An RS485 driver and Modbus protocol is utilized by the TFXM

to communicate between the two channels located within the

TFXM flow meter enclosure (if so equipped), communicate with

satellite TFX flow meters and to interface with a personal com-

puter system. The TFXM can be used as the Primary meter

(Master) to program other Secondary (Slave) meters located

on the RS485 network. The TFXM contains a feature that per-

mits up to 8 flow measurement channels to be mathematically

manipulated. Software configuration is covered in Section 4 of

this manual.

RS485 interconnections are made at the terminal block located

within the TFXM Field Wiring Access Panel. See Figure 1.4 .

Utilize two conductor plus shield wiring cable for this purpose.

Avoid running these cables in wiring trays or conduits carrying

AC power or other electrically noisy devices.

RS485 MO

Select SLAVE for all of the TFXD meters.

RS485 BA

Select a Baud rate that is compatible with the operating system

– typically 9600.

ADDRESS

Each TFXD connected on the communications bus must have

an unique address number assigned.

Rev. 8/02 -3.19- TFXM

PART 3 - KEYPAD CONFIGURATION

Optional

Rate Pulse

Rate Pulse Span

ISO-MOD RATE PULSE FL 100H

FL 10KH CAL 100H CAL 10KH

The Rate Pulse Output Module is utilized to transmit information to external counters and PID systems via a frequency output that is proportional to system flow rate. Independent Zero and Span settings are established in software using the Flow Measuring Range entries. These entries can be set anywhere in the –40 to +40 FPS [-12 to +12 MPS] measuring range of the instrument. Output resolution of the module is 12-bits (4096 discrete points) and the maximum output frequency setting is 2,500 Hz. The 0.21-Ohm FET output is rated to operate at 100 V and 1 A maximum. This module does not source an output voltage and should be treated as an open collector type of output. An external voltage source and limit resistor must be present.

The FL 100H and FL FL10KH entries are used to set the span of the 0-2.5KHz frequency output. These entries are volumetric rate units that are equal to the volumetric units configured as Engineering Rate Units and Engineering Units Time Interval entered on page 3.12. These entries may be entered anywhere in the flow measurement range of the instrument (velocity range of –40 to +40 FPS [-12 to +12 MPS]).

For example, to span the 0-2.5KHz output from –100 GPM to +100 GPM, with 1.25KHz being 0 GPM, set the FL 100H and FL 10KH inputs as follows:

FL 100H = -98.0 (1% of span) FL 10KH = 100.0

For example, to span the Rate Pulse output from 0 GPM to +100 GPM, with 1.25 kHz being 50 GPM, set the FL 100H and FL 10KH inputs as follows:

FL 100H = 1.0 (1% of span) FL 10KH = 100.0

Rev. 8/02 -3.20- TFXM

PART 3 - KEYPAD CONFIGURATION

Rate Pulse Calibration

The Rate Pulse ISO-MOD is factory calibrated and should not require adjustment unless it is replaced.

The CAL 100H entry allows fine adjustments to be made to the “zero” of the 0-2.5KHz output. To adjust the 25Hz setting, frequency counter or reliable reference connection to the 0-

2.5KHz output must be present. The output of the module must be powered externally.

NOTE: The CAL 100H and CAL 10KH entries should not be used in a attempt to set the 0-2.5KHz range. Utilize FL 100H and FL 10KH, detailed above, for this purpose.

Procedure:

1. The module must be powered to perform this calibration. Connect the frequency counter at the terminals labeled +/-

on the ISO-MOD 0-2.5KHz module). Set the counter to the appropriate measuring range for measuring 25 Hz.

2. Using the arrow keys, increase the numerical value to increase the output frequency to 25 Hz ±1 Hz. Decrease the value to decrease the output frequency to 25 Hz ±1 Hz. Typical values range between 40-80 counts.

The CAL 10KH entry allows fine adjustments to be made to the “span” of the 0-2.5KHz output. To adjust the 2.5KH setting, frequency counter or reliable reference connection to the 0-

2.5KHz output must be present. The output of the module

must be powered externally. Procedure:

1. The module must be powered to perform this calibration. Connect the frequency counter at the terminals labeled +/-

on the ISO-MOD 0-2.5KHz module). Set the counter to the appropriate measuring range for measuring 2.5 KHz.

2. Using the arrow keys, increase the numerical value to increase the output frequency to 2.5 KHz ±3 Hz. Decrease the value to decrease the output frequency to 2.5 KHz ±3 Hz. Typical values is 4000 counts.

Rev. 8/02 -3.21- TFXM

PART 3 - KEYPAD CONFIGURATION

RTD Module

Optional

RS232C Module

Details of the RTD Module and its configuration are located in an Addendum to this manual. Those details are included with the purchase of the RTD module.

ISO-MOD RS-232C

RS232 MO — MODE HOST UIF RS232 BA — BAUD RATE 1200 2400 9600 19200

The RS232 Module can be interfaced with serial communication ports of PCs, PLCs and SCADA systems, running a Modbus protocol, detailed in the Appendix of this manual, that are used to monitor flow rate information in piping systems. The RS232 Module may also be used to form a hardwire connection to a PC that is running the UltraLink software utility. Baud rates up to 19.2 K are supported.

Rev. 8/02 -3.22- TFXM

PART 3 - KEYPAD CONFIGURATION

Totalizer RESET

5. SENSOR MENU

The SEN MENU is presently not utilized.

6. SECURITY MENU

The SEC MENU allows the user to make password revisions, reset the flow totalizer and reset the transmitter microprocessor.

TOT RES

NO YES

Select YES to reset the flow totalizer/accumulator to Zero.

SYS RSET

System RESET

Change Password

NO YES

Select YES to initiate a microprocessor reset. Totalizer values will be lost, but all other system configurations will be maintained.

CH PSWD? -- Change the Security Password

0-9999

By changing the Security Password from 0 to some other value (any value between 1-9999), configuration parameters will not be accessible without first entering that value when prompted. If the value is left at 0, no security is invoked and unauthorized changes could be made.

Rev. 8/02 -3.23- TFXM

PART 3 - KEYPAD CONFIGURATION

7. SERVICE MENU

The SERVICE Menu makes available two different system measurements that are used for trouble -shooting and fine tuning of the instrument. Actual liquid sound speed and system signal strength readings can be accessed through this menu. The SERVICE Menu also has features that allow adjustment of Signal Strength Cutoff, Error -Mode outputs and Zero Flow Rate Set.

SSPD MPS - Sound Speed in the Liquid Metric SSPD FPS - Sound Speed in the Liquid U.S.

The TFXM performs an actual speed of sound calculation for the liquid it is measuring. This speed of sound calculation will vary with temperature, pressure and fluid composition. The value indicated in this measurement should be within a couple of percent of the value entered/indicated in the BASIC menu item FLUID SS. (This value cannot be edited.) If the actual measured value is significantly different than the BASIC MENU’s FLUID SS value, it typically indicates a problem with the instrument setup. An entry such as PIPE O.D. or wall thickness was probably entered in error, the pipe may not be round, or the transducer spacing is not correct. Table 3.1 lists sound speed values for water at varying temperatures. If the TFXM is measuring sound speed within 0.5% of the table values, the installation and setup of the instrument is proper and accurate readings can be assured.

Rev. 8/02 -3.24- TFXM

PART 3 - KEYPAD CONFIGURATION

TABLE 3.1 Sound Speed in Liquid Water Vs. Temperature

Deg. C Deg. F Vs (m/s) Vs (f/s)

0 32 1402 4600 10 50 1447 4747 20 68 1482 4862 30 86 1509 4951 40 104 1529 5016 50 122 1543 5062 60 140 1551 5089 70 158 1555 5102 80 176 1554 5098 90 194 1550 5085

100 212 1543 5062 110 230 1532 5026 120 248 1519 4984

130 266 1503 4931 140 284 1485 4872 150 302 1466 4810 160 320 1440 4724 170 338 1412 4633 180 356 1390 4560 190 374 1360 4462 200 392 1333 4373 220 428 1268 4160 240 464 1192 3911 260 500 1110 3642

SIG STR - Signal Strength

Signal Strength

The measurement of Signal Strength assists service personnel with troubleshooting the TFXM system. In general, expect the signal strength readings to be greater than 5% on a full pipe with the transducers properly mounted. Signal strength readings that are less than 5% may indicate a need to chose an alternative mounting method for the transducers or that an improper pipe size has been entered.

Signal Strength readings in excess of 95% may indicate that a mounting method with a longer path length may be required. For example, if mounted on a 3 inch PVC pipe in V-mode causes the measured Signal Strength value to exceed 95%, change the mounting method to W-mode for greater stability in readings.

Rev. 8/02 -3.25- TFXM

PART 3 - KEYPAD CONFIGURATION

Signal Strength Cutoff

Signal Strength Cutoff SIG C-OF is used to drive the flowmeter and its outputs to a zero flow state should conditions occur that cause low signal strength. A signal strength indication of between 0.5 and 0.8 is considered to be inadequate for measuring flow reliably, so typical settings for SIG C-OF are in the range of 1.0 to 2.0.

Signal Strength indication of 0.5 to 0.8 is considered to be no signal at all. Verify that the pipe if full of liquid, the pipe size and liquid parameters are entered correctly and that the transducers have been mounted accurately.

Substitute Flow

Substitute Flow Entry

Substitute Flow or SUB FLOW is a value that the analog outputs will be driven at when an error condition in the flowmeter occurs. Typical settings are either –5% or 105% - a value outside of the normal operating range that can be used to indicate a fault condition to the target device.

MIN RATE SETTING

MAX RATE

SETTING

SUB FLOW

SETTING

DISPLAY

READING READING

DURING ERRORS

0.0 1,000.0 0.0 0.000

-500.0 500.00 50.0 0.000

-100.0 200.0 33.3 0.000

0.0 1,000.0 -5.0* -50.00

Rev. 8/02 -3.26- TFXM

PART 3 - KEYPAD CONFIGURATION

Setting/ Calibrating Zero Flow

Setting Zero Flow

Because every flowmeter installation is slightly different and sound waves can travel in slightly different ways through these various installations, a provision is made in this entry to establish “Zero” flow—SET ZERO.

To zero the meter:

1. The pipe must be full of liquid.

2. Flow must be absolute zero—verify by closing a valve securely. Allow time for any settling to occur.

3. Press ENTER, use the arrow keys to make the display read YES.

4. Press ENTER.

5. The procedure is complete.

Reset Zero—Factory Default Zero

If the flow in a piping system cannot be shutoff, allowing the SET ZERO procedure described above to be performed, the factory default zero should be utilized. To utilize the D-FLT 0 function, simply press ENTER, then press an ARROW key to display YES on the display and then press ENTER. This function can also be utilized to correct an inadvertently entered or erroneous SET ZERO entry.

Universal Correction Factor

COR FTR - Universal Correction Factor

This function can be used to make the TFXM system agree with a different or reference flow meter, by applying a correction factor/multiplier to the readings and outputs. A factory calibrated system should be set to 1.000. The range of settings for this entry is 0.500 to 1.500. The following examples describe two uses for the COR FTR entry.

?? The TFXM meter is indicating a flow rate that is 4% higher

than another flow meter located in the same pipe line. To make the TFXM indicate the same flow rate as the other meter, enter a COR FTR of 0.960, to lower the readings by 4%.

Rev. 8/02 -3.27- TFXM

PART 3 - KEYPAD CONFIGURATION

?? An out-of-round pipe, carrying water, causes the TFXM to

indicate a measured sound speed that is 7.4% lower than the TABLE 3.1 value. This pipe condition will cause the flow meter to indicate flow rates that are 7.4% lower than actual flow. To correct the flow readings, enter 1.074.

Rev. 8/02 -3.28- TFXM

PART 3 - KEYPAD CONFIGURATION

8. DSP MENU -- DISPLAY MENU

Graphics Display Mode

Display Units

DISPLAY LINES

Allows the selection of a two line or four line display format on the graphics display module.

In 2 Line mode, the display will display flow measurements with larger characters on the top half of the window and smaller standard sized characters on the lower half of the window. In 4 Line mode, the display will display flow measurements with standard sized characters on four lines in the window.

DISPLAY UNITS SELECTION

The (soft)SELECT key is used to conifgure the engineering units on the graphics display—Press the (soft)SELECT key from RUN mode to highlight the engineering unit presently being displayed on the graphics display (pressing the SELECT key multiple times will toggle the highlighted unit from line to line). Use the UP/DOWN ARROW (soft)CHAN keys to select display units of

?? RATE ?? TOTALizer ?? VELocity ?? SIGNAL STRength ?? Sound Speed ?? Temp 1 ?? Temp 2 ?? Temp Diff

Rev. 8/02 -3.29- TFXM

SOFTWARE UTILITIES

Important Notice!

The TFXM flow meter is available with two software utilities, UltraLink and DataLink. The UltraLink utility is used for configuration, calibration and communication with the TFXM flow meter. The DataLink utility is used for uploading and translating data accumulated in the optional datalogger module.

UltraLink has been designed to provide TFX users with a powerful and convenient way to configure and calibrate all TFX flowmeters. UltraLink can be used in conjunction with an infrared communications adapter (Dynasonics P.N. D005-2115-001), RS232 or RS485.

System Requirements

Computer type - PC, operating system Windows 95/98/2000/XP, a communications port, hard disk and 3.5" diskette drive.

Installation

1. Backup/Copy all files from the enclosed disk to a folder on the computer hard disk.

2. Remove the diskette from the computer and store.

3. From the "Start" command, RUN UlSetup.exe from the hard disk folder.

4. UlSetup will automatically extract and install on the hard disk and place a short -cut icon on the desktop.

5. Most PCs will require a restart after a successful installation.

Initialization

1. Connect the PC to the TFX flowmeter using the infrared communications adapter (Dynasonics P.N. D005-2115-001), ISO-MOD RS232 or ISO-MOD RS485.

2. Double-click on the UltraLink icon. The first screen is the “RUN-mode” screen, See Figure 4.1 , which contains real-time

Rev. 8/02 -4.1- TFXM

SOFTWARE UTILITIES

information regarding flow rate, totalizer accumulation, system signal strength, diagnostic data and the flow meter’s serial number. The indicator in the lower right-hand corner will indicate communications status. If a red ERROR is indicated, click on the Communications button on the top bar. Click on Initialize. Choose the appropriate COM port and interface type. Proper communications are established when a green OK is indicated in the lower right-hand corner of the PC display.

Notes: The range of the infrared communications adapter is roughly 3 meters. Some high-intensity lighting systems will significantly reduce the communications range of the infrared system.

Data Trend Data Trend Flow

Figure 4.1

UltraLink Data Screen

Rev. 8/02 -4.2- TFXM

SOFTWARE UTILITIES

Using UltraLink For Configuration

Click on the button labeled Configuration for updating flow range, liquid, pipe and I/O operating information. The first screen that appears after clicking the Configuration button is the BASIC tab. See Figure 4.2.

Figure 4.2

Basic Tab

1. BASIC TAB—See Figure 4.2

?? General Units allows selection of either English (U.S.) or

Metric units of measure. If measurements of the pipe are to be entered in inches, select English. If pipe measurements are to be entered in millimeters, select Metric. It is recommended that if the General Units are altered from those at instrument startup, that the Download button be pressed on the lower right-hand portion of the screen and that the TFXM have its power cycled.

?? Standard Configurations contains the most popular

applications for the TFXM. The TFXM has been constructed and configured at the Dynasonics factory for a specific pipe size. If the Standard Configuration does not match the pipe schedule or material, select the proper configuration from the drop down list. If the pipe schedule is not listed or if the liquid is not water, select Other on the drop down list and fill in the proper information on the setup screen.

Rev. 8/02 -4.3- TFXM

SOFTWARE UTILITIES

2. FLOW Tab—See Figure 4.3

Figure 4.3

Flow Tab

?? Flow Rate Units are selected from the pull down lists. Select

an appropriate rate unit and rate time-base from the two lists.

?? Totalizer Units are selected from pull down lists. Select an

appropriate totalizer unit and totalizer exponent. The totalizer exponents are in Scientific Notation and permit the eight digit totalizer to accumulate very large values before the totalizer “rolls over” and starts again at zero. The Table on page 3.13 illustrates the Scientific Notation values and their respective decimal equivalents.

?? MIN Flow is used by the TFXM to establish filter settings in its

operating system. Enter a flow rate that is the minimum flow rate anticipated within the system. For uni-directional systems, this value is typically zero. For bi-directional systems this value is set to a negative number that is equal to the maximum negative flow rate that is anticipated within the system.

?? MAX Flow is used by the TFXM to establish filter settings in

its operating system. Enter a flow rate that is the maximum, positive flow rate anticipated within the system.

Rev. 8/02 -4.4- TFXM

SOFTWARE UTILITIES

?? The Damping value is increased to increase stability of the

flow rate readings. Damping values are decreased to allow the flow meter to react faster to changing flow rates.

?? Low Flow Cutoff is entered as a percentage between MAX

Flow and MIN Flow and influences how the flow meter will act at flows very near zero. Generally, an entry of 1% provides for a stable zero indication, while providing a 100:1 turndown ratio for measurements.

?? Low Signal Cutoff is a relative value that should be entered

after a successful flow meter startup. For an initial value, enter 5% [Signal Strength indications below 3% are considered to be below the noise ceiling and should not be indicative of a successful flow meter startup.] The entry has three purposes: It provides an error indication—Low Signal Strength [Error 0010 on the TFXM display] when liquid conditions within the pipe have changed to the point where flow measurements may not be possible. It warns if the pipe’s liquid level has fallen below the level of the transducers. It can also signal that something with the flow meter installation or configuration may have changed. Examples would include such things as the couplant used to mount the transducer has become compromised, a cable has become disconnected or a pipe size setting has been altered.

?? Substitute Flow is used to provide an indication and output

that signifies that an error exists with the flow meter or its setup. It is set as a percentage between MIN Flow and MAX Flow. In a uni-directional system this value is typically set to zero, to indicate zero flow while in an error condition. In a bidirectional system, the percentage can be set such that zero is displayed in a error condition. To calculate out where to set the Substitute Flow value in a bi-directional system perform the following operation:

Substitute Flow = 100 x MAX Flow ____ MAX Flow + MIN Flow

Rev. 8/02 -4.5- TFXM

SOFTWARE UTILITIES

Downloading Configurations

Input/Output Configuration

?? Entry of data in the Basic and Flow tabs are all that is

required to provide flow measurement functions to the flow meter. If the user is not going to utilize input/output functions, click on the Download button to transfer the configuration to the TFXM instrument.

3. To configure input/output elements that may be present within the TFX, click on the Output Tab. See Figure 4.4. The output menu allows selection, configuration, calibration and testing of various input/output modules. The window will appear as shown in Figure 4.4. Detailed information regarding all of the modules available and configuration options are available in section 3 of this manual.

Figure 4.4

Output Tab

4. The Security tab, Figure 4.6, contains a provision for adding password protection to the configuration of the flow meter. Passwords between the values of 1 and 9999 are acceptable. The factory backdoor password is 8113. Use 8113 to access the flow meter should the entered password be forgotten. Leave the password set to 0 to avoid being prompted for password entry.

Rev. 8/02 -4.6- TFXM

Figure 4.6

Security Tab

7. ADVANCED TAB—See Figure 4.7

The Advanced TAB contains several filter settings for the TFXM flow meter. These filters can be adjusted to match response times and data “smoothing” performance to a particular application. The factory settings are suitable for most installations.

?? Time Domain Filter adjusts the number of raw data sets (the

wave forms viewed on the UltraLink Diagnostics Screen) that are averaged together. Increasing this value will provide greater damping of the data and slow the response time of the flow meter. This filter is not adaptive —it is operational to the value set at all times.

?? Low Signal Cutoff is a duplicate entry from Page 3.26.

Adjusting this value adjusts the value on the Flow TAB.

?? Substitute Flow is a duplicate entry from Page 3.26.

Adjusting this value adjusts the value on the Flow TAB.

Rev. 8/02 -4.7- TFXM

Figure 4.7

Advanced Tab

?? Short Pulse Duration is a function used on pipes larger than

8 inches [200 mm]. Set this value to zero to disable the function. Do not select the Auto Short Pulse box.

?? Flow Filter Damping establishes a maximum adaptive filter

value. Under stable flow conditions (flow that varies less than the Flow Filter Hysteresis entry) this adaptive filter will increase the number of successive flow readings that are averaged together up to this maximum value. If flow changes outside of the Flow Filter Hysteresis window, the Flow Filter adapts by decreasing and allows the meter to react faster. Increasing this value tends to provide smoother steady-state flow readings and outputs.

?? Flow Filter Hysteresis creates a window around the average

flow measurement reading whereby if the flow varies within that window, greater Flow Filter Damping will occur. The filter also establishes a flow rate window where measurements outside of the window are captured by the Bad Data Rejection Filter. The value is entered as a percentage of actual flow rate.

Rev. 8/02 -4.8- TFXM

SOFTWARE UTILITIES

Example:

If the average flow rate is 100 GPM and the Flow Filter Hysteresis is set to 5%, a filter window of 95-105 GPM is established. Successive flow measurements that are measured within that window are recorded and averaged in accordance with the Flow Filter Damping setting. Flow readings outside of the window are held up in accordance with the Bad Data Rejection Filter.

?? Flow Filter MinHysteresis sets a minimum hysteresis window

that is invoked at low flow rates, where the “of rate” Flow Filter Hysteresis is very small and ineffective. This entry is entered in pico-seconds and is differential time. This value is factory set and should not be altered without consulting the Dynasonics technical services department.

?? Flow Filter Sensitivity allows configuration of how fast the

Flow Filter Damping will adapt in the positive direction.

Increasing this value allows greater damping to occur faster than lower values. Adaptation in the negative direction is not user adjustable.

?? Bad Data Rejection is a value related to the number of

successive readings that must be measured outside of the Flow Filter Hysteresis and Flow Filter MinHysteresis windows before the flow meter will use that flow value. Larger values are entered into the Bad Data Rejection when measuring liquids that contain gas bubbles, as the gas bubbles tend to disturb the ultrasonic signals and cause more extraneous flow readings to occur. Larger Bad Data Rejection values tend to make the flow meter more sluggish to rapid changes in actual flow rate.

Rev. 8/02 -4.9- TFXM

SOFTWARE UTILITIES

Field Calibration

Setting Zero and Calibration

UltraLink contains a powerful multi-point calibration routine that can be used to calibrate the TFXM flow meter to a primary measuring standard in a particular installation. To initialize the three step calibration routine, press the Calibration button located on the top of the UltraLink Data Screen. The display shown in Figure 4.8 will appear. The first step in the calibration process is the selection of the engineering units that the calibration will be performed with. Select the units and press the Next button at the bottom of the window.

Figure 4.8

Calibration Units

Establish Zero Flow Rate

Rev. 8/02 -4.10- TFXM

The second screen, Figure 4.9 , establishes a baseline zero flow rate measurement for the instrument. To zero the flow meter, establish zero flow in the pipe (turn off all pumps and close a dead-heading valve). Wait until the delta-time interval shown in

Figure 4.9 is stable (and typically very close to zero). Press the Set button. Press the Next button when complete, then press the Finish button on the Calibration Screen. If the Set button was

pressed, do not proceed with Flow Rate Calibration before pressing the Finish button to save the Zero setting.

SOFTWARE UTILITIES

Wait for Stable Reading

Calibrating with Actual Flow

Figure 4.9

Setting Zero Flow

The screen shown in Figure 4.10 allows multiple actual flow rates to be run past the meter and the values recorded by the TFXM. To calibrate a point, establish a stable, known flow rate (verified by a real-time primary flow instrument), enter the actual flow rate in the Figure 4.10 window and press the Set button. Repeat for as many points as desired. Note: If only two points are to be used (zero and span), it is preferred that a flow rate as high as anticipated in normal operation is used as the calibration point. If an erroneous data point is collected, the point can be removed by pressing the Edit button, selecting the bad point and selecting Remove.

Press the Finish button when all points have been gathered.

Rev. 8/02 -4.11- TFXM

SOFTWARE UTILITIES

Figure 4.10

Flow Rate Calibration

Enter Actual Flow Rate

Saving the Configuration

Printing a Report

Saving Meter Configuration on a PC

The complete configuration of the flow meter can be saved from the Configuration screen. Select Save and name the file. This file may be transferred to other flow meters or may be recalled should the same pipe be surveyed again or multiple meters programmed with the same information.

Printing Out a Flow Meter Configuration and Calibration Report

Select File from the upper task bar and Print to print out a calibration/configuration information sheet for the flow meter installation.

Rev. 8/02 -4.12- TFXM

SOFTWARE UTILITIES

Uploading Data from the Logger

During the installation of UltraLink, a file called DatLog was installed and its icon will appear on the Desktop of the computer. Click on the icon to start the utility. The screen shown in Figure

4.11 will appear as the computer is attempting to establish communications with the logger module.

Figure 4.11

Data Logger Initialization

Connect the logger to the terminal strip (see Fig. 1.4) . After a few moments, the Please Wait window will disappear and a green OK will appear in the lower right-hand corner of the window. After communications are established (and the OK is displayed) the utility will scan the logger for all existing files. The scanning of the

Figure 4.12

Data Logger Upload

Rev. 8/02 -4.13- TFXM

SOFTWARE UTILITIES

logger module and the uploading of the file data can take up to several minutes. The files will appear on the table, See Figure

4.12, in a list running from the earliest file to the latest file.

Information regarding starting time and date and points collected will appear.

If a file is selected, the time stamped data will appear on the strip chart located on the bottom of the window. The mouse can be used to select a small portion of the graph and expand the data to the width of the screen. To revert to the entire data file, right-click the graph.

To save the file to a file on your computer, select the file from the file table and press the Save button located on the top task bar. See Figure 4.13. Datalog saves the files as a .CSV (Comma Separated Value). These files can be opened in programs such as Microsoft Excel® or Borland QuattroPro® for manipulation or graphical purposes.

Note: The spreadsheet programs listed above are limited to the number of lines of data that can be imported. Very large files may need to be opened in a program like Microsoft WordPad and saved in two or more sections.

Figure 4.13

Save Data Logger Files

Rev. 8/02 -4.14- TFXM

SOFTWARE UTILITIES

The datalogger module contains a real-time clock that can be set by pressing the Clock button on the top task bar. See Figure

4.14. Activating the window compares the datalogger clock to the clock located in the PC. Adjustments can be made and uploaded to the logger.

Figure 4.14

Setting Data Logger Clock

Rev. 8/02 -4.15- TFXM

MULTICHANNEL OPERATION

General Information

Multiple Channel Display Configuration

Series TFXM is a multiple channel flow meter designed with maximum user flexibility in mind. The product can be configured as a simple flow meter, showing flow on multiple pipe simultaneously. It can also be used to perform mathematical manipulation of flow rates between pipes using its powerful, yet simple to use, algorithms. This manual will provide instructions as to configuration of the TFXM in the following scenarios:

1. Multiple Pipe Flow Network

2. Multiple Path Flow Averaging

3. Flow Summations of Multiple Pipes

4. Flow Differences of Multiple Pipes

5. Leak Detection in Pipe Lines

Configuring of the graphics display

The graphics display on the TFXM can be configured to show either two or four lines of information. This information can be displayed for any flow meter on the TFXM RS485 network. The procedure to configure the display is as follows:

1. Menu Item 8 can be accessed to select either two or four lines of display information. See Page 3.29 for details.

2. Press the (soft)Select key on the right side of the graphics display to highlight the upper most display entity.

3. Utilize the soft(CHAN) keys UP/DOWN arrows to select what measuring entity is required: Flow RATE, Net TOTAL, Temp Difference, Temp 2, Temp 1, Signal Strength or liquid Sound Speed.

4. Utilize the CHANNEL key to select which measurement channel on the flow meter network is to be displayed:

M = Master Measurement 1 = Secondary Channel (Slave 1) integral to DTFXM2 2, 3, 4...119 = Secondary Channels (Slaves) external to DTFXM No Designation = Multichannel Manipulated Value

5. After the entity and measurement channel have been selected for a particular line, press the (soft)SELECT key to move the

Rev. 8/02 -5. 1- TFXM

MULTICHANNEL OPERATION

highlighting to the next line of the display. Pressing the (soft) SELECT key on the bottom line of the display will cause the display configuration to end and the setup will be saved.

Multiple Pipe Configuration

Multiple Pipe Flow Network

The TFXM is designed to be the Primary (Master) flow controller in a network of Secondary (Slave) flow meters. The TFXM can be used to display flow information and configure up to 119 satellite flow meters connected on its RS485, two-wire network.

To configure a multiple pipe setup, follow the entries shown in Figure 5.1 . The Primary board in the TFXM is established as the Master and all of the Secondary boards are considered slaves. The coefficient values located on the bottom of the window do not have a bearing on the display, because manipulated display

Rev. 8/02 -5. 2- TFXM

MULTICHANNEL OPERATION

values are not being shown on the graphics display.

Multiple Path Configuration

Figure 5.1

Configuration for Multiple Pipe Readings

Multiple Path Flow Meter

By applying more than one set of transducers radially around a pipe, accuracy can be improved in conditions where optimum straight pipe diameters are not available. Typical installations only involve two paths, but on large pipes several paths could be employed. See Figure 5.2 . Only one multiple path system is

permitted per flow measurement network.

To configure the flow meter for multiple path operation, apply the transducers radially around the pipe and apply equal coefficients to each channel that total up to 1.00. For two path systems, 0.50 +0.50 = 1.00; for three path systems 0.333+0.333+0.334 = 1.000; etc.

Rev. 8/02 -5. 3- TFXM

MULTICHANNEL OPERATION

Figure 5.2

Multiple Path Flow Meter

Summation Configuration

Multiple Pipe Summation Flow Meter

The TFXM can be used to measure the summation of several flow pipes. By entering coefficients of 1.00 for each channel, the sum of the channels will be displayed on the mathematically manipulated display configuration. See Figure 5.3.

Figure 5.3

Summation Flow Meter

Rev. 8/02 -5. 4- TFXM

MULTICHANNEL OPERATION

Difference Configuration

Difference Flow Meter

The difference of two pipes can be utilized to measure the flow in two pipes and calculate the flow rate in a third trunk line in a piping system. (The difference meter can also be applied to two ends of a piping system to display an alarm to leak between the two measuring points.) Apply a coefficient of +1.00 to one channel and a coefficient of –1.00 to the second channel. The sum of the two manipulated values will be the difference in the flow rates. See Figure 5.4.

Figure 5.4

Subtraction Flow Measurement

Setting Coefficients on the Keypad

Rev. 8/02 -5. 5- TFXM

Coefficients for measurement channels can also be established on the TFXM keypad in the AUX Com Port Menu.

A P P E N D I X

V

BSC MENU

OUT1 MEN OUT2 MEN SEN MENU

SEC MENU

SER MENU

DSP MENU

UNITS

ENGLSH METRIC

XDCR MNT

V W Z

PIPE OD

ENGLSH (INCHES) METRIC (MM)

PIPE WT

ENGLSH (INCHES) METRIC (MM)

PIPE MAT*

CARBON S STAINLES CAST IRO DUCTILE COPPER PVC PVDF LOW PVDF HI ALUMINUM ASBESTOS FIBERGLASS OTHER

PIPE SS

ENGLSH (FPS) METRIC (MPS)

PIPE R

(RELATIVE ROUGHNESS)

LINER T

ENGLSH (INCHES) METRIC (MM)

LINER TYPE*

TAR EPOXY RUBBER MORTAR POLYPROPYLENE POLYSTYROL POLYSTYRENE POLYESTER TEFLON OTHER

LINER SS

ENGLSH (FPS) METRIC (MPS)

FL TYPE*

TAP WATER SEWAGE KEROSENE GASOLINE FUEL OIL CRUDE OI PROPANE BUTANE OTHER

FLUID SS

ENGLSH (FPS) METRIC (MPS)

FLUID VI

CPS

SP GRVTY

UNITLESS

SP HEAT

NOMINAL HEAT CAPACITY

XDC SPAC

ENGLSH (INCHES) METRIC (MM)

RATE UNT

GALLONS LITERS MGAL CUBIC FT CUBIC ME ACRE FT OIL BARR LIQ BARR FEET METERS

RATE INT

MIN HOUR DAY SEC

TOTL UNT

GALLONS LITERS MGAL CUBIC FT CUBIC ME ACRE FT OIL BARR LIQ BARR FEET METERS

TOTL E

E-1 TO E6

MIN RATE

RATE/INT

MAX RATE

RATE/INT

FL C-OFF

% of Full Scale

DAMP PER

PERCENT

OUT1

OPTIONS

4-20MA FL 4MA FL 20MA 4-20 TST

0-10KHz FL 100H FL 10KH

RELAY RELAY 1 RELAY 2

RTD CAL 1 CAL 2 A B C

RS232 RS232 MO HOST UIF RS232 BA 1200 2400 9600 19200

RS485 RS485 MO SLAVE MASTER RS485 BA 1200 2400 9600 19200 ADDRESS 1-127

NONE

OUT2

OPTIONS

4-20MA FL 4MA FL 20MA 4-20 TST

0-10KHz FL 100H FL 10KH

RELAY RELAY 1 RELAY 2

RTD CAL 1 CAL 2 A B C

RS232 RS232 MO HOST UIF RS232 BA 1200 2400 9600 19200

RS485 RS485 MO SLAVE MASTER RS485 BA 1200 2400 9600 19200 ADDRESS 1-127

NONE

NOT USED

*List provided for example only. Additional entries may be available.

TOT RES NO

YES

SYS RSET NO

YES

CH PSWD? 0-9999

SSPD MPS

SSPD FPS

SIG STR

SIG C-OFF

SUB FLOW

SET ZERO

D-FLT 0

COR FTR

DISPLAY

FLOW TOTAL BOTH

TOTAL

NET POS NEG BATCH

SCN DWL 1-10

BTCH MUL TOTALIZER UNIT

W/ TOTAL E

Keypad Operations

1. The MENU key is pressed from RUN mode to enter PROGRAM mode. The MENU key is pressed in PROGRAM mode to exit configuration parameters and menus. If changes to any configuration parameters have been made, the user will be prompted with a SAVE?YES when returning to RUN mode.

2. The ARROW keys are used to scroll through menus and configuration parameters. The ARROW keys are also used to adjust parameter numerical values.

3. The ENTER key is

?? pressed from the RUN mode to view the current software version operating

in the instrument.

?? used to access the configuration parameters in the various menus. ?? Used to initiate changes in configuration parameters. ?? Used to accept configuration parameter changes.

Date: 3/21/2000 Revision: E Rev. Date: 7/10/2001 Software Version: 1.00.9799

Fluid Sound Speeds

20 degrees C

m/s

ft/s

m/s/degree C

m^2/s

Original Date: 7/30/99 Revision: none Revision Date: none File: I:/dynasonics/dyna_code/tables/fluid_ss.xls

Fluid Specific Gravity Sound Speed delta-v/degree C Kinematic Viscosity

Acetate, Butyl (n) 1270 4163.9 Acetate, Ethyl 0.901 1085 3559.7 4.4 0.489 Acetate, Methyl 0.934 1211 3973.1 0.407 Acetate, Propyl 1280 4196.7 Acetone 0.79 1174 3851.7 4.5 0.399 Alcohol 0.79 1207 3960.0 4.0 1.396 Alcohol, Butyl (n) 0.83 1270 4163.9 3.3 3.239 Alcohol, Ethyl 0.83 1180 3868.9 4 1.396 Alcohol, Methyl 0.791 1120 3672.1 2.92 0.695 Alcohol, Propyl (I) 1170 3836.1 Alcohol, Propyl (n) 0.78 1222 4009.2 2.549 Ammonia (35) 0.77 1729 5672.6 6.7 0.292 Anlline (41) 1.02 1639 5377.3 4.0 3.630 Benzene (29,40,41) 0.88 1306 4284.8 4.7 0.711 Benzol, Ethyl 0.867 1338 4389.8 0.797 Bromine (21) 2.93 889 2916.7 3.0 0.323 n-Butane (2) 0.60 1085 3559.7 5.8 Butyrate, Ethyl 1170 3836.1 Carbon dioxide (26) 1.10 839 2752.6 7.7 0.137 Carbon tetrachloride 1.60 926 3038.1 2.5 0.607 Chloro-benezene 1.11 1273 4176.5 3.6 0.722 Chloroform (47) 1.49 979 3211.9 3.4 0.550 Diethyl ether 0.71 985 3231.6 4.9 0.311 Diethyl Ketone 1310 4295.1 Diethylene glycol 1.12 1586 5203.4 2.4 Ethanol 0.79 1207 3960.0 4.0 1.390 Ethyl alcohol 0.79 1207 3960.0 4.0 1.396 Ether 0.71 985 3231.6 4.9 0.311 Ethyl ether 0.71 985 3231.6 4.9 0.311 Ethylene glycol 1.11 1658 5439.6 2.1 17.208 Freon R12 774.2 2540 Gasoline 0.7 1250 4098.4 Glycerin 1.26 1904 6246.7 2.2 757.100 Glycol 1.11 1658 5439.6 2.1 Isobutanol 0.81 1212 3976.4 Iso-Butane 1219.8 4002 Isopentane (36) 0.62 980 3215.2 4.8 0.340 Isopropanol (46) 0.79 1170 3838.6 2.718 Isopropyl alcohol (46) 0.79 1170 3838.6 2.718 Kerosene 0.81 1324 4343.8 3.6 Linalool 1400 4590.2

Linseed Oil .925-.939 1770 5803.3

1,1,1-Trichloro-ethane (47)

Water, distilled (49,50)

Methanol (40,41) 0.79 1076 3530.2 2.92 0.695 Methyl alcohol (40,44) 0.79 1076 3530.2 2.92 0.695 Methylene chloride (3) 1.33 1070 3510.5 3.94 0.310 Methylethyl Ketone 1210 3967.2 Motor Oil (SAE 20/30) .88-.935 1487 4875.4 Octane (23) 0.70 1172 3845.1 4.14 0.730 Oil, Castor 0.97 1477 4845.8 3.6 0.670 Oil, Diesel 0.80 1250 4101 Oil (Lubricating X200) 1530 5019.9 Oil (Olive) 0.91 1431 4694.9 2.75 100.000 Oil (Peanut) 0.94 1458 4783.5 Paraffin Oil 1420 4655.7 Pentane 0.626 1020 3346.5 0.363 Petroleum 0.876 1290 4229.5 1-Propanol (46) 0.78 1222 4009.2 Refrigerant 11 (3,4) 1.49 828.3 2717.5 3.56 Refrigerant 12 (3) 1.52 774.1 2539.7 4.24 Refrigerant 14 (14) 1.75 875.24 2871.5 6.61 Refrigerant 21 (3) 1.43 891 2923.2 3.97 Refrigerant 22 (3) 1.49 893.9 2932.7 4.79 Refrigerant 113 (3) 1.56 783.7 2571.2 3.44 Refrigerant 114 (3) 1.46 665.3 2182.7 3.73 Refrigerant 115 (3) 656.4 2153.5 4.42 Refrigerant C318 (3) 1.62 574 1883.2 3.88 Silicone (30 cp) 0.99 990 3248 30.000 Toluene (16,52) 0.87 1328 4357 4.27 0.644 Transformer Oil 1390 4557.4 Trichlorethylene 1050 3442.6

1.33 985 3231.6 0.902

Turpentine 0.88 1255 4117.5 1.400

0.996 1498 4914.7 -2.4 1.000 Water, heavy 1 1400 4593 Water, sea 1.025 1531 5023 -2.4 1.000 Wood Alcohol (40,41) 0.791 1076 3530.2 2.92 0.695 m-Xylene (46) 0.868 1343 4406.2 0.749 o-Xylene (29,46) 0.897 1331.5 4368.4 4.1 0.903 p-Xylene (46) 1334 4376.8 0.662

TFX Error Codes

Revised 2-22-2002

Code Number Description Correction

Warnings

0001

0010

0011

0020

Class C Errors

1001

1002

Class B Errors

Serial number not present Hardware serial number has become inoperative – system

performance will not be influenced.

Signal Strength is below Signal Strength Cutoff entry

Measured Speed of Sound the in the liquid is greater than 10% different than the value entered during meter setup

Heat Flow Units of measure have been selected and an RTD module has not been installed

System tables have changed Initiate a meter RESET by cycling power or by selecting SYSTEM

System configuration has changed Initiate a meter RESET by cycling power or by selecting SYSTEM

Low signal strength is typically caused by one of the following:

• Empty pipe

• Improper programming/incorrect values

• Improper transducer spacing

• Non-homogeneous pipe wall

Verify that the correct liquid was selected in the BASIC menu. Verify that pipe size parameters are correct.

Verify that RTD Module PN D020-1045-106 has been installed in one of the I/O meter slots. Verify that OUTPUT1 or OUTPUT 2 has been configured for RTD measurements.

RESET in the SEC MENU.

3001 3002 3003 3004 3005 3006 3007

3010

3011

Class A Errors

Invalid hardware configuration Upload corrected file

Invalid system configuration Upload corrected file

Invalid strategy file Upload correct ed file

Invalid calibration data Recalibrate the system

Invalid speed of sound calibration data Upload new data

Bad system tables Upload new table data

Data Logger is off or not present If desired, insert data logger and configure within the Datalog

Operations Menu. If logger is not present, configure I/O port for no logger.

One or more channels are not responding (Multi-channel meters only)

All channels are not responding (Multichannel meters only)

Display indicates which secondary units are not communicating with Master meter. Verify wiring, configuration and address of secondary instrument.

Verify wiring, configuration and address of secondary instruments.

4001

Flash memory full Return unit to factory for evaluation

FPS TO GPM CROSS - REFERENCE (Schedule 40)

Nominal

Pipe

(Inches)

1 1.05 2.6989 4.0484 5.3978 6.7473 8.097 9.4462 10.796 12.145 13.490 14.844 16.190 17.540 18.890 20.240 21.590 22.941 24.290

1.25 1.38 4.6620 6.9929 9.3239 11.655 13.99 16.317 18.648 20.979 23.310 25.641 27.970 30.300 32.630 34.960 37.300 39.627 41.958

1.5 1.61 6.3454 9.5182 12.691 15.864 19.04 22.209 25.382 28.555 31.730 34.900 38.070 41.250 44.420 47.590 50.760 53.936 57.109 2 2.07 10.489 15.734 20.979 26.224 31.47 36.713 41.958 47.202 52.450 57.692 62.940 68.180 73.430 78.670 83.920 89.160 94.405

2.5 2.47 14.935 22.402 29.870 37.337 44.80 52.272 59.740 67.207 74.670 82.142 89.610 97.080 104.50 112.00 119.50 126.95 134.41 3 3.07 23.072 34.608 46.144 57.680 69.22 80.752 92.288 103.82 115.40 126.90 138.40 150.00 161.50 173.00 184.60 196.11 207.65

3.5 3.55 30.851 46.276 61.702 77.127 92.55 107.98 123.40 138.83 154.30 169.68 185.10 200.50 216.00 231.40 246.80 262.23 277.66 4 4.03 39.758 59.636 79.515 99.394 119.3 139.15 159.03 178.91 198.80 218.67 238.50 258.40 278.30 298.20 318.10 337.94 357.82 5 5.05 62.430 93.645 124.86 156.07 187.3 218.50 249.72 280.93 312.10 343.36 374.60 405.80 437.00 468.20 499.40 530.65 561.87 6 6.06 89.899 134.85 179.80 224.75 269.7 314.65 359.60 404.55 449.50 494.45 539.40 584.30 629.30 674.20 719.20 764.14 809.09 8 7.98 155.89 233.83 311.78 389.72 467.7 545.61 623.56 701.50 779.40 857.39 935.30 1013.0 1091.0 1169.0 1247.0 1325.1 1403.0

10 10.02 245.78 368.67 491.56 614.45 737.3 860.23 983.12 1106.0 1229.0 1351.8 1475.0 1598.0 1720.0 1843.0 1966.0 2089.1 2212.0

I.D.

INCH

1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9

12 11.94 348.99 523.49 697.99 872.49 1047.0 1221.5 1396.0 1570.5 1745.0 1919.5 2094.0 2268.0 2443.0 2617.0 2792.0 2966.5 3141.0 14 13.13 422.03 633.04 844.05 1055.1 1266.0 1477.1 1688.1 1899.1 2110.0 2321.1 2532.0 2743.0 2954.0 3165.0 3376.0 3587.2 3798.2 16 15.00 550.80 826.20 1101.6 1377.0 1652.0 1927.8 2203.2 2478.6 2754.0 3029.4 3305.0 3580.0 3856.0 4131.0 4406.0 4681.8 4957.2

FPS TO GPM: GPM = (PIPE ID)² X VELOCITY IN FPS X 2.45 FPS X .3048 = MPS GPM TO FPS: FPS =

GPM

(ID)² X 2.45

GPM X .0007 = GPD GPM X 3.7878 = LPM

FPS TO GPM CROSS - REFERENCE (Schedule 40)

Nominal

Pipe

(Inches)

18 16.88 697.52 1046.3 1395.0 1743.8 2093.0 2441.3 2790.1 3138.8 3488.0 3836.3 4185.0 4534.0 4883.0 5231.0 5580.0 5928.9 6277.7 20 18.81 866.14 1299.0 1732.0 2165.3 2598.4 3031.5 3464.6 3897.6 4330.7 4763.8 5196.8 5629.9 6063.0 6496.0 6929.1 7362.2 7795.3 24 22.63 1253.7 1880.0 2507.0 3134.1 3761.0 4387.8 5014.6 5641.5 6268.3 6895.1 7522.0 8148.8 8775.6 9402.4 10029 10656 11283 26 25.25 1560.7 2341.0 3121.0 3901.9 4682.2 5462.6 6243.0 7023.4 7803.7 8584.1 9364.5 10145 10925 11706 12486 13266 14047 28 27.25 1817.8 2727.0 3636.0 4544.5 5453.4 6362.3 7271.2 8180.0 9088.9 9997.8 10907 11816 12725 13633 14542 15451 16360 30 29.25 2094.4 3142.0 4189.0 5236.0 6283.2 7330.4 8377.6 9424.9 10472 11519 12566 13614 14661 15708 16755 17803 18850 32 31.25 2390.6 3586.0 4781.0 5976.5 7171.9 8367.2 9562.5 10758 11953 13148 14344 15539 16734 17930 19125 20320 21516 34 33.25 2706.4 4060.0 5413.0 6766.0 8119.2 9472.4 10826 12179 13532 14885 16238 17592 18945 20298 21651 23004 24358 36 35.25 3041.8 4563.0 6084.0 7604.5 9125.4 10646 12167 13688 15209 16730 18251 19772 21292 22813 24334 25855 27376 42 41.25 4165.4 6248.0 8331.0 10414 12496 14579 16662 18744 20827 22910 24992 27075 29158 31241 33323 35406 37489 48 47.99 5637.8 8457.0 11276 14095 16913 19732 22551 25370 28189 31008 33827 36646 39465 42284 45103 47922 50740 54 53.98 7133.1 10700 14266 17833 21399 24966 28532 32099 35665 39232 42798 46365 49931 53498 57065 60631 64198

I.D.

INCH

1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9

60 60.09 8839.2 13259 17678 22098 26518 30937 35357 39777 44196 48616 53035 57455 61875 66294 70714 75134 79553 72 72.10 12726 19089 25451 31814 38177 44540 50903 57266 63628 69991 76354 82717 89080 95443 101805 108168 114531 84 84.10 17314 25971 34628 43285 51943 60600 69257 77914 86571 95228 103885 112542 121199 129856 138514 147171 155828

FPS TO GPM: GPM = (PIPE ID)² X VELOCITY IN FPS X 2.45 FPS X .3048 = MPS GPM TO FPS: FPS =

GPM

(ID)² X 2.45

GPM X .0007 = GPD GPM X 3.7878 = LPM

Dynasonics TFXM Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
