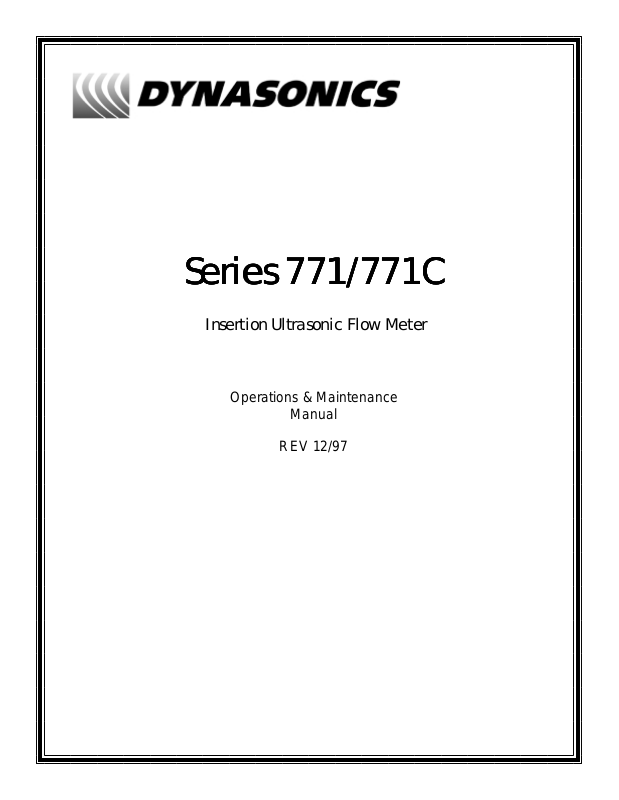

Series
Series 771/771C
Series Series
Insertion Ultrasonic Flow Meter
Operations & Maintenance
771/771C
771/771C771/771C
Manual
REV 12/97
Location
QUICK-START OPERATING INSTRUCTIONS
This manual contains detailed operating instructions for
all aspects of the D77X instrument. The following
condensed instructions are provided to assist the
operator in getting the instrument started up and running
as quickly as possible. This pertains t o basic operation
only. If specific instrument features are to be used or if
the installer is unfamiliar with this type of instrument,
refer to the appropriate section in the manual for
complete details.
1. TRANSDUCER LOCATION AND PIPE
PREPARATION
A. Select an appropriate mounting location for the
DT7 transducer probe.
B. The probe should be located on a straight piece of
pipe with a minimum of 10 unobstructed pipe
diameters upstream from the installation point and
a minimum of 5 unobstructed diameters
downstream of the installation point.
Pipe Preparation
and Mounting
C. A 1-1/2” NPT female threaded connection on the
pipe is required for the probe assembly to be
mounted. This connection is typically made by
welding a threaded coupling to the pipe wall or
installing a pipe saddle. The connection should
be mounted perpendicular to the pipe at a radial
location 20-160 degrees from the top of the pipe.
2. TRANSDUCER INSTALLATION
DO NOT remove the cotter pins located at the ends
of the threaded rods. They prevent the probe from
being completely extracted from the insertion fitting
and causing a potentially dangerous condition.
A. Insert the DT7 Transducer Probe tip to the 1/8
pipe I.D. location. The velocity measurement is
made 0.67 inches [17 mm] from the very tip of the
probe. Total insertion depth can be calculated at:
Rev. 12/97 -1- D77X
QUICK-START OPERATING INSTRUCTIONS
Insertion Depth =
(pipe I.D. inches) X 0.125 + 0.67 inches
or
(pipe I.D. mm) X 0.125 + 17 mm
B. Secure the probe insertion distance using the upper
and lower brass jam nuts located on the threaded
rods.
C. Loosen the set screw located in the probe retaining
collar with the enclosed allen wrench.
D. Rotate the probe body till the arrowhead, located
on the top of the probe, is parallel with the pipe and
points down stream in the direction of flow.
E. Lock the probe rotation with the set screw in the
retaining collar.
F. Route the transducer cable back to the transmitter,
avoiding locations near high voltage supply wires.
Transducer connections are made through the left
conduit hole in the bottom of the transmitter.
Connections
Startup
3. TRANSDUCER CONNECTION
A. DO NOT attempt to connect additional cable to the
factory supplied transducers.
B. Connect the transducer spade terminals to the
XDCR terminal block located on the lower left
corner of the main PCB.
4. INITIAL SETTINGS AND POWER UP
A. Route a stable, groun ded power supply to the
transmitter. Power wiring is made through the right
conduit hole.
B. Connect Power to the upper right t erminal block as
appropriate. Apply power.
C. Press the RESET key on the keypad.
D. If the pipe is full of a flowing liquid, the default
readings will be FPS (Feet per Second).
Rev. 12/97 -2- D77X
TABLE OF CONTENTS
Pages
Quick-Start Operating Instructions 1-2
Part 1 - Introduction
Part 2 - Installation
Introduction
General 3
Applications 3
Model Matrix 5
Product Specifications 7-8
Bench Test Procedure 9-10
Installation
Transducer Mounting Locations 11-18
Probe Retracting 19
Transmitter Installation 20-21
Electrical Connections 22-23
Part 3 - Startup and
Configuration
Rev. 12/97 -3- D77X
Instrument Startup and Configuration
Initial Settings 24
Keypad Operations 25-36
TABLE OF CONTENTS
Pages
Part 4 - Troubleshooting
Part 5 - Appendices
Trouble Shooting Guide 37-38
Appendices 39+
Spare Parts Listing
Face Plate Drawing
Pipe Dimension Chart: Cast Iron
Intrinsic Safety Connections
Pipe Dimension Chart: ST, SS, PVC
Velocity to Volumetric Conversion Chart
Statement of Warranty
Customer Service
Rev. 12/97 -4- D77X
PART 1 - INTRODUCTION
General
Application Versatility
User Safety
The D77 ultrasonic flow meter is designed to measure the
fluid velocity of liquid within closed conduit. The rugged
insertion probe has no moving parts, is insensitive to
coating buildup and can be accurately positioned at the
precise depth in the pipe required to measure liquid
velocity in a variety of liquid phases. (Conventional,
through the pipe wall, Doppler flow meters are sensitive
to large changes in liquid viscosity and solids content.
The D77 is not sensitive to such changes.)
The flow meter operates by transmitting an ultrasonic
sound from its transmitting piezoelectric crystal into the
flowing liquid. The sound will be reflected by suspended
particles or bubbles within the liquid and recorded by the
receiving piezoelectric crystal. A frequency shift (Doppler
effect) will occur that is directly related to the speed of the
moving particle or bubble. This shift in frequency is
interpreted by the instrument and converted to various
user defined measuring units.
The D77 flow meter can be successfully applied on a wide
range of metering applications. The simple to program
transmitter allows standard D77 to be used on pipe sizes
ranging from 1.5 - 120 inch [ 38 - 3048 mm ] pipe I.D. A
variety of liquid applications can be accommodated: raw
sewage, reclaimed water, cooling water, river water, plant
effluent, mining slurries, sludge, etc. The D77 is ideal for
measuring through thick walled pipes. The D77C is
designed specifically for Crude Oil measurements.
Because the transducers are encapsulated in a resilient
PVDF plastic shell and have no moving parts (in the
traditional sense), the flow meter is very resistant to
fouling and wear. Standard transducers are rated to
180?F [82?C].
The D77 employs modular construction and provides
electrical safety for the operator. The display face
contains voltages no greater than 15 Vdc and the
enclosure is made from non-conductive fiberglass. All
user connections are made through conduit hole located
on the under side of the D77 enclosure.
Rev. 12/97 -5- D77X
PART 1 - INTRODUCTION
Battery Backup
Product Identification
Product Matrix
A rechargeable nickel-cadmium battery on the back of
the display board retains all user-entered configuration
values in memory for several years (at 25?C), even if
power is lost or turned off. The ten year battery is
continually trickle charged whenever line power is
applied. A completely discharged battery recharges fully
after 48 hours of instrument operation.
The serial number and complete model number of your
D77 is located on the inside of the transmitter’s cover.
Should technical assistance be required, please provide
the Dynasonics' Customer Service Department with this
information.
Rev. 12/97 -6- D77X
PART 1 - SPECIFICATIONS
Description Specification
Power Requirements (Std) 110/220 VAC 50/60 Hz ? 5%. (Opt)
100/200 VAC 50/60 Hz ? 5% and 12/24
VDC. Power consumption less than 12 VA.
Velocity 0.12 - 30 FPS [ 0.03 – 9.1 MPS]
Outputs 4-20 mA, 1000 Ohms max., Isolated.
12 Vdc pulse, 100 ?S duration, 10 Hz max,
pulses with totalizer increments
Two Relays, 5A @ 250VAC resistive, SPDT
Display 2 line x 20 character alphanumeric LCD,
back lit. Digit height 0.2 inches [ 5 mm]
6 digit rate, 8 digit totalizer (resettable)
Units:
Rate US [Metric]
Totalizer US [Metric]
Ambient Conditions -22 to 160°F [ - 30 to 70 °C], 0-95% relative
Enclosure NEMA 4X, [IP-65] Fiberglass w/SS
User configured
FPS, GPM, GPH, ft.3/M, MGD, BPM, BPH,
BPD [ MPS, LPM, M3/hr, LPD ]
Gallons, barrels (crude oil) [ liters ]
humidity, non -condensing.
hardware.
11H x 9.25W x 5.5D inches
[280H x 235W x 140D mm]
Rev. 12/97 -7- D77X
PART 1 - SPECIFICATIONS
Non-linearity (Accuracy) ?2% Full Scale
Sensitivity 0.05% of Full Scale
Repeatability ?0.2% of Full Scale
Response Time 5-50 seconds, user configured, to 90% of
value, step change in flow.
Security Keypad lockout, access code enable
DT7 Insertion Probe
Description Specification
Liquid Requirements 25 ppm of 30 micron suspended solids or
bubbles minimum
Transducer to Transmitter Distance (Std) 15 feet [ 4.6 meters ], flexible armored
conduit. (Opt) lengths to 300 feet [ 90
meters ]
Pipe Sizes (Std.) 1½ - 120 inches [ 38 – 3050 mm ]
Pipe I.D.
Temperature (Std) - 40° to 180°F [ -40° to 82°C].
Housing Material (Std) 316 ss, PVDF, Viton™, Teflon™
Mounting (Std) 1½ MNPT, pipe saddle or female
threaded coupling required. (Opt) 1½ 150#
Approvals (Opt) FM approval I.S., Class I, Div 1,
Groups A-G.
Rev. 12/97 -8- D77X
PART 2 - PRE-INSTALLATION CHECKOUT
Unpacking
Functional Test
After unpacking, it is recommended to save the shipping
carton and packing materials in case the instrument is
stored or re-shipped. Inspect the equipment and carton
for damage. If there is evidence of shipping damage,
notify the carrier immediately.
The D77 flow meter can be checked for basic
functionality using the following Bench Test procedure.
It is recommended that this operation be performed
before permanently installing the system.
Procedure:
1. Open the D77 transmitter cover.
2. Connect the transducer cable connector to the
terminal locations on the lower left corner of the D77
main circuit card. See Figure 1.
3. Connect supply power to the appropriate terminal
locations on the upper right corner of the main circuit
card. See Figure 2.
4. Apply power.
5. Verify that the display indicates 0.00 FPS (or 0.0 flow
Figure 1
Figure 2
Rev. 12/97 -9- D77X
rate of any other unit). If the display does not register
0.0, then press the 2nd FUNCT key, then press
SIGNAL STR. Verify th at SIGNAL STR. is lower than
000100. If SIGNAL STR. is greater than 000100,
verify that the sensor/transmitter are not located near
electrically noisy components. (VFDs, inverters,
motors, power relays, etc) Verify that DT7 transmitter
connections are pr oper and secure. If the SIGNAL
STR. remains greater than 000100, consult the
Dynasonics Factory for assistance.
6. Press the 2nd FUNCT key to enter SERVICE MODE.
Press the SIGNAL STR key to display SIGNAL STR.
XXXXXX.
7. Tap the rounded black tip of the DT7 transducer on
the side facing opposite the flow direction arrow (the
arrow is located on the top cap of the DT7
PART 2 - PRE-INSTALLATION CHECKOUT
transducer) with the handle of a screwdriver or similar
blunt instrument.
8. Verify that signal strength increases with frequency of
the tapping. Typical increases will range from 20-30
counts.
9. Verify that signal strength decreases when tapping
ceases.
Bench Test is Complete
Rev. 12/97 -10- D77X
PART 2 - TRANSDUCER INSTALLATION
Transducer Mounting
Considerations
Step A - Mounting
Locations
The DT7 insertion transducer that is utilized by the D77
contains piezo electric crystals for transmitting and
receiving ultrasonic sound energy. The black PVDF
plastic tip of the DT7 contains these crystals, which are
designed to be inserted to the average fluid velocity point
within a pipe. Not all liquid within a pipe is flowing at a
uniform fluid velocity. But, a straight run of pipe, full of
flowing liquid, contains a predictable liquid velocity profile.
By selecting proper upstream and downstream lengths of
straight pipe from the transducer installation point and
precise insertion depths into the pipe, very accurate and
reliable volumetric flow rates and totals can be realized.
Select a transducer mounting location with adequate
straight runs (without disturbances) of pipe, both upstream
and downstream, to achieve stable and accurate readings.
Examples of minimum upstream and downstream
requirements are included in Table 1. Note that if
adequate straight plumbing cannot be provided the D77
system will operate repeatably, but will probably not
achieve ideal accuracy.
When installing the DT7 transducer in a horizontal pipe,
the preferred orientation is at least 20 degrees from the
top or bottom of the pipe. Ensure that the mounting
location allows for adequate clearance to install and
retract the probe fully from the pipe.
Rev. 12/97 -11- D77X
PART 2 - TRANSDUCER INSTALLATION
Table 1
Straight Pipe Recommendations
1
1
The D77 system will provide repeatable measurements on piping systems that do not
meet these requirements, but the accuracy of these readings may be influenced to various
degrees.
Rev. 12/97 -12- D77X
PART 2 - TRANSDUCER INSTALLATION
Step B - Hot Tapped
Installation
The installation instructions cover Hot-Tapped
installations (installations where it is required to install or
remove the transd ucer probe without shutting down the
process pressure). If the product is being installed
without an isolation valve, ignore the steps that pertain to
its installation. Figure 3 illustrates an exploded view of
an isolation valve assembly and names the various
components.
If the DBV or DSSV accessory kits were ordered with the
DT7 probe, a Hot-tapped installation can be conducte d.
The kits include an isolation valve assembly and is
designed for installation in pipes under pressure, up to
700 psi at 70? F.
All items required for installation are provided with the kit,
except for the 1.5" NPT weld coupling or service saddle
and the drilling and welding equipment. These
instructions call for the use of a drilling machine
designed for operations under pressure (for example,
Muller Co., Decatur, Illinois).
Rev. 12/97 -13- D77X
ine to be used.
pe sealants.
PART 2 - TRANSDUCER INSTALLATION
Step C - Component
Assembly
Procedures are as follows:
1.Verify that the pipe’s line pressure is
rated limits of the pressure drilling mach
2. Grind off paint or other coatings from the pipe in the
area where the DT7 Probe Assembly is to be
installed. Recommended minimum straight pipe
lengths for best accuracy are 10 diameters upstream
and 5 downstream.
3. Tack weld a 1 ½"NPT weld coupling to the pipe or
install service saddle according to the suppliers
instructions. The coupling or saddle must be aligned
perpendicular to the pipe axis and square to its plane.
4.Complete welding. A water tight, 0.25"
weld bead is recommended.
5.Install the close nipple (supplied with
into the weld coupling. Use appropriate pi
6.Install the isolating ball valve on the
close nipple. Verify that the valve is in fully open position.
7.Install drill bit and adapter into the
pressure drilling machine. Then attach the machine to the
isolation valve.
8. Drill through the pipe wall in accordance with the
instructions supplied with the drilling machine.
9. Withdraw the drill bit through the isolating valve.
Close the valve and remove the drilling machine.
Check for leakage at valve and connections.
10. Place pipe sealant on the 1-½” NPT threads of the
Insertion Fitting assembly. Screw the assembly into
the isolation valve and tighten with a 2-½” Pump
wrench.
Rev. 12/97 -14- D77X
PART 2 - PART 2 - TRANSDUCER INSTALLATION
Step D - Probe
Insertion Distances
TO CALCULATE INSERTION DEPTH
P = PROBE LENGTH = _______
H = LOWER FLANGE TO PIPE WALL
= ________
T = PIPE WALL THICKNESS
= ________
IL = 0.125 x PIPE ID = ________
M = INSERTION DEPTH
M = P - IL - T - H - 0.67”
PROBE INSERTION
Before beginning the probe insertion procedure, it is
necessary to calculate the probe insertion depth of the
sensor. For normal pipe runs, the probe tip must be
located at 1/8th of the pipe inside diameter. Figure 4
outlines the Necessary measurements and calculations
that will be needed to insure that the probe tip is at the
proper insertion point.
Figure 4
Rev. 12/97 -15- D77X
PART 2 - TRANSDUCER INSTALLATION
In order to calculate the proper insertion depth of the
probe several pieces of data will have to be collected. The
following fi ve constants defines the variables found in the
insertion depth calculation.
P = The overall length of the probe. This measurement
is taken form the top of the probe flange to the very
tip of the sensor. Subtract 0.67" from this
measurement and record this figure.
H= The distance from the bottom of the insertion
\retraction rod assembly flange to the outside wall
of the pipe.
T= Is the wall thickness of the pipe. The Appendix
provides wall thickness of a wide range of pipe
sizes and schedules. If the pipe size and schedule
are not found in the appendix, your pipe supplier
should be able to provide you with this data.
Important!
I.L.= The insertion point in the pipe. This is calculated
by multiplying the pipe inside diameter by 0.125.
M = The distance from the top of the probe flange to the
bottom of the insertion\retraction rod assembly
flange
M= P- I.L. - T- H
To insure that the probe tip is inserted to the proper
insertion point, the distance M, which is described above
should be measured and set very carefully.
Rev. 12/97 -16- D77X
PART 2 - TRANSDUCER INSTALLATION
Step E - Cable Routing
PROBE CABLES
Before inserting the probe into the pipe, the sensor cables
should be routed to the transmitter location. Verify that
the supplied cable length is sufficient to meet the
installation requirements. If the supplied length is found to
be insufficient, contact the factory to make probe
exchange arrangements.
CAUTION: Do not proceed with probe insertion should
the supplied cable length be insufficient for the installation.
Probes that have been exposed to process liquids are not
exchangeable.
CAUTION: The probe cables are designed to carry low
level signals that are developed by the sensor. Care
should be taken in routing the cables. Avoid running
cables near sources of high voltage or EMI\RFI. Also
avoid routing the cables in cable tray configurations,
unless the trays are specifically used for other low
voltage, low level, signal cables.
CAUTION: The internal DT7 Probe wiring is epoxy
encapsulated to seal it from moisture. The Probe is
provided with two coaxial cables to shield the low level
signals and must be continuous to the DT7 Probe
Transmitter. Do not splice the probe cable to extend it's
length as the integrity of the shielding must be maintained
to insure proper sensor operation. The cable may be cut
to a shorter length. If you have extra cable do not coil the
excess wire in the enclosure.
1. Run the lower Jam nuts down to a point that
approximates the final insertion position or at least far
enough to allow insertion into the Insertion Fitting. Using
the threaded rods as a guide, position the probe in the
Insertion Fitting. Continue to insert the probe as far into
the isolation assembly as possible. The probe tip will
come in contact with the closed "ball" in the isolation
valve.
Rev. 12/97 -17- D77X
PART 2 - TRANSDUCER INSTALLATION
Figure 5
CAUTION: Do Not Force the Probe Tip Against the "Ball",
damage to the probe tip may result.
2. Replace the upper Jam Nuts ( 2 on each rod) and the
cotter pins. The nuts should be run down to the top side
of the retaining collar and the cotter pins replaced. Orient
the probe in the direction of flow as indicated on by the
FLOW direction arrow located on the top of the probe
flange. See Figure 5. Lock the probe in position with the
enclosed allen wrench.
CAUTION: The nuts on both ends of the retaining
rods must always be in place as a safety measure to
prevent possible probe blow out. Inserting cotter pins is a
further safety measure.
3. Slowly open the isolation valve. When the valve is fully
open, use the proper size wrench on the insertion nuts,
alternately tightening each nut about two complete turns
to avoid uneven seal loading.
NOTE: For some low pressure\low temperature (less
than 30 PSIG and less than 100o F (38oC) the probe may
be pushed in by hand to decrease the insertion time.
Rev. 12/97 -18- D77X
PART 2 - TRANSDUCER INSTALLATION
Retracting the Probe
PROBE RETRACTION PROCEDURE
1. Retract the Probe by loosening the Upper Jam nuts
counterclockwise as viewed from the top of the probe
using the proper size wrench. If the pipe is under
pressure, the nuts must be turned alternately about two
turns at a time to prevent, binding as a result of
non-equal seal loading. In many cases, the line pressure
will cause the probe to retract. Should the probe bind, use
the retraction nuts on the lower side of the probe flange to
assist in the probe retraction. Continue this procedure
until the Probe is fully retracted into the Isolation Valve.
CAUTION: Do not run the drive nuts off the rods until the
isolation valve is fully closed.
2. After the
Probe is retracted past the "ball” in the isolation valve, the
Isolation Valve may be closed to isolate the Probe from
the line and the probe can be removed entirely.
3. CAUTION: If the se nsor is not above the "ball" of the
isolation valve, the valve cannot be closed. If the valve
will not close smoothly, the body or tip of the probe is most
likely not above the "ball". Attempting to force the valve
into the closed position may result in damage to the
sensor.
Rev. 12/97 -19- D77X
PART 2 - ELECTRICAL CONNECTIONS PART 2 - TRANSMITTER INSTALLATION
Transmitter
Installation
The D77 enclosure should be located in an area that is
convenient for observation of the LCD readout and keypad
operations.
1. Place the D77 transmitter in a location that is:
? Where little vibration exist.
? Protected from falling corrosive fluids.
? Within ambient temperature limits - 22 to 122°F [30 to
50°C]
? Out of direct sunlight. Direct sunlight may increase
temperatures within the transmitter to above maximum
limit.
2. Mounting: Refer to Figure 6 for enclosure and
mounting dimension details. Ensure that enough room
is available to allow for door swing, maintenance and
conduit entrances. Secure the enclosure to a flat
surface with four appropriate fasteners.
3. Conduit holes. Conduit hubs should be used where
cables enter the enclosure. Holes not used for cable
entry should be sealed with plugs.
NOTE: Use NEMA 4 [ IP65 ] rated fittings plugs to
maintain the water tight integrity of the enclosure.
Generally, the left conduit hole (viewed from front) is used
for line power; the right conduit hole for transducer
connections.
4. If additional holes are required, (analog outputs, etc.)
drill the appropriate size hole in the enclosure’s
bottom. Use extreme care not to run the drill bit into
the wiring or circuits cards.
Rev. 12/97 -20- D77X
PART 2 - SERVICE AND MAINTENANCE PART 2 - TRANSMITTER INSTALLATION
FIGURE 6
To access terminal strips for electronic connectors, loosen
the two screws in the enclosure door and open the door.
Important !
Rev. 12/97 -21- D77X
NOTE: The transducer cable carries low level signals.
Do not attempt to add additional cable to the factory
supplied transducer cable.
PART 2 - SERVICE AND MAINTENANCE PART 2 - TRANSMITTER INSTALLATION
4-20mA OUTPUT
Power Connections
Transducer
Connections
The 4-20mA output is proportional to the flow rate
measuring scale and can drive a load of up to 1000 ohms.
The output is isolated from earth ground and circuit low.
Connect the load to the 4-20 mA connection terminals
located on the inside of the D77 enclosure, matching
polarity as indicated.
Line power is connected by supplying power to the
appropriate terminals located inside of the D77 enclosure.
Use wiring practices that conform to local codes (National
Electric Code Hand book in the USA). Use only the
standard three wire connection. The ground terminal
grounds the instrument, which is mandatory for safe
operation.
CAUTION: Any other wiring method may be unsafe or
cause improper operation of the instrument.
It is recommended not to run line power with other signal
wires within the same wiring tray or conduit.
NOTE: This instrument requires clean electrical line
1. Guide the transducer terminations through the
transmitter conduit hole located on the left side of the
enclosure. Secure the transducer cable with the
supplied conduit nut.
2. The terminals on the transducer cable are coded with
wire markings. Connect the appropriate wires to the
corresponding screw terminals in the transmitter.
NOTE: The transducer cable carries low level signals.
Do not attempt to add additional cable to the factory
supplied transducer cable.
Rev. 12/97 -22- D77X
CTR Output
PART 2 - TRANSMITTER INSTALLATION
If additional cable is required, contact the Dynasonics
factory to arrange for an exchange transducer with the
appropriate length of cable. Cables to 300 feet [90
meters] are available.
NOTE: An additional hole in the transmitter enclosure is
required for outputs. Drill the hole in the the enclosure
bottom taking care not to drive the drill bit into wiring or the
circuit boards with the transmitter.
The CTR pulse output is proportional to the flow rate
measuring scale. This output may be used one of two
ways:
? To drive a 12V logic device.
? To drive a low impedance, 12V device. Minimum
resistance 50 ohms.
The pulse output pulses with totalizer increments. The
connections are located on the right side of the signal
processing PCB in the back of the enclosure. The pulse
width is fixed at 100 milli -seconds. CTR “ - ” represents
circuit low. CTR “ + “ represents 12 Vdc pulse output.
Rev. 12/97 -23- D77X
PART 3 - STARTUP AND CONFIGURATION
Before Starting the
Instrument
Instrument Startup
Important!
Note: The D77/DT7 flow meter system requires a full pipe
of liquid before a successful startup can be completed.
Do not attempt to make adjustments or change
configurations until a full pipe is verified.
Procedure:
1. Verify that all wiring is properly connected and routed.
2. Apply power. The POWER indicator will illuminate.
3. Press the SIGNAL STR key and verify SIGNAL STR
counts greater than 100. Adjust the GAIN (R13 on the
Main PCB) control so that a reading greater than 100
counts is observed. It is rare that this setting will need
adjustment from factory settings.
Note: It is undesirable to adjust the GAIN control to a
position higher than necessary, as ambient noise can
also be amplified. This noise can cause false readings to
occur.
5. If the pipe is full of a flowing liquid, the READ indicator
will illuminate and the display will begin reading fluid
velocity as FPS (Feet per Second) or MPS (Meters per
Second). It is normal to have low/zero SIGNAL
STRENGTH and FAULT indication at ZERO fl ow.
Rev. 12/97 -24- D77X
PART 3 - KEYPAD CONFIGURATION
After a successful flow meter installation and startup
(covered in the previous sections of this manual) the D77
can be keypad configured to provide select engineering
unit readings of flow and a scaled 4-20mA output.
Configuration inputs are made via the keypad and are
stored by the microprocessor. The entries are retained by
the flow meter’s backup battery in the event of power
failure. If fluid velocity readings, FPS or MPS, are the
only required measurement keypad configuration is not
required.
UP/DOWN Arrows
Allow changing of the D77 configuration constants. Use
the UP arrow to increase constant values and the DOWN
arrow to decrease values. The arrows can be
momentarily pressed to change values incrementally or
held to advance continuously. Constants outside of the
valid range of the D77 cannot be displayed. The scrolling
rate at which the values will change is two tiered.
Scrolling will be relatively slow during the first five seconds
of a continuous keypad press; the scrolling rate will
increase after that time to allow rapid changes of large
values.
2nd FUNCT
Controls access to the commands located on the lower
half of the keys. After pressing this key the word
SERVICE MODE will appear on the LCD indicator.
ENTER
Records and activates the configuration constant value
that is displayed on the LCD indicator. Can also be used
to return the meter to its run mode.
Rev. 12/97 -25- D77X
PART 3 - KEYPAD CONFIGURATION
F1 and F2
Not utilized.
RESET
Caution: Conducts a system reset. All configuration
constants will be lost and the D77 will load default values
for all constants.
I.D.
Allows entry of a pipes internal diameter. Internal
diameters must be entered if vol umetric flow rates are to
be displayed.
? If a UNITS code for U.S. measurements was made the
I.D. value will be entered in inches. Valid ranges for
this entry are 0.25 to 120.00 inches.
? If a UNITS code for metric measurement was made
the I.D. value will be entered in millimeters. Valid
ranges for this entry are 6 to 3050 millimeters.
The appendices in the back of this manual contain tables
of common pipe sizes and schedules. If the pipe size
does not appear in the table, consult the pipe manufacture
or conduct a physical measurement of the pipe internal
diameter. Errors in the entry of this value can result in
large inaccuracies.
FULL SCALE
Allows entry of the maximum fluid velocity anticipated
within the pipe. This value does not have any bearing on
displayed flow rates or values, but is used to scale the
span value of the 4-20mA analog output. If the analog
output is not going to be utilized set this value to 30.00 if
measuring in U.S. units or 10.00 if measuring in metric
units.
Rev. 12/97 -26- D77X
PART 3 - KEYPAD CONFIGURATION
? If a UNITS code for U.S. measurements was made the
FULL SCALE value will be entered in FPS (feet per
second). Valid ranges for this entry are 0.00 to 30.00
FPS. Two useful equations that relate liquid velocity to
volume:
GPM = 2.45 X I.D.2 X FPS
FPS = ( GPM X 0.408) / I.D.2
I.D. in inches
? If a UNITS code for metric measurement was made
the I.D. value will be entered in MPS (meters per
second). Valid ranges for this entry are 0 to 10.00
MPS. Two equations that relate liquid velocity to
volume are
LPM = 0.047 X I.D.2 X MPS
MPS = ( LPM X 21.28) / I.D.2
I.D. in inches
Note: Attempting to set a FULL SCALE value of less than
0.5 FPS [0.15 MPS] may result in an unstable transmitted
output. If flows are typically lower than this range, the
LOW FLOW FILTERS and higher DAMPing values may
be required.
UNITS
Utilized to set engineering units of measure. There are
twelve different selections possible. The Table 2 lists the
entry code number, flow rate unit of measure and totalizer
unit of measure.
Note: After changing the UNITS value, it may be
necessary to change other configuration values
accordingly. For example, FULL SCALE, I.D., HIGH/LOW
ALARM are influenced by th e UNITS entry.
Note: Flow already accumulated will not be correctly
compensated for if the UNITS of measure changes.
Rev. 12/97 -27- D77X
PART 3 - KEYPAD CONFIGURATION
Table 2
UNITS Code Flow Rate Totalizer
0 FPS (feet per sec) N/A
1 GPM (gallons per min) GALLONS
2 GPH (gallons per hr) GALLONS
3 MGD (millions of gal
pre day)
4 CFM (ft.3 per min) CF
5 MPS (meters per sec) N/A
6 CMH (m3 per hr) m3
7 LPM (liters per min) Liters
8 MLD (millions of liters
per day)
9 BPM (barrels per min) BARRELS
10 BPH (barrels per hr) BARRELS
11 BPD (barrels per day) BARRELS
GALLONS
Liters
Rev. 12/97 -28- D77X
PART 3 - KEYPAD CONFIGURATION
HIGH ALARM (Labeled RELAY-1 on the Main PCB)
Controls the set-point of the SPDT relay labeled RELAY-1
on the Main PCB. Enter a liquid velocity at which a relay contact action is desired. Relay contacts are utilized for
signaling flow rate conditions that are higher of lower than
a desired set point. If a relay setting is made very close to
a nominal liquid velocity, relay “chatter” ( rapid opening
and closing of the relay ) may result.
? If a UNITS code for U.S. measurements was made the
HIGH ALARM value will be entered in FPS. Valid
ranges for this entry are 0.00 to 30.00 FPS.
? If a UNITS code for metric measurements was made
the HIGH ALARM value will be entered in MPS. Valid
ranges for this entry are 0.00 to 10.00 MPS.
LOW ALARM (Labeled RELAY-2 on the Main PCB)
Controls the set-point of the SPDT relay labeled RELAY-2
on the Main PCB. Enter a liquid velocity at which a relay contact action is desired. Relay contacts are utilized for
signaling flow rate conditions that are higher of lower than
a desired set point. If a relay setting is made very close to
a nominal liquid velocity, relay “chatter” ( rapid opening
and closing of the relay ) may result.
? If a UNITS code for U.S. measurements was made the
HIGH ALARM value will be entered in FPS. Valid
ranges for this entry are 0.00 to 30.00 FPS.
? If a UNITS code for metric measurements was made
the HIGH ALARM value will be entered in MPS. Valid
ranges for this entry are 0.00 to 10.00 MPS.
TOTAL MULT
Utilized for setting the flow totalizer exponent and
changing the External Counter output. This feature is
Rev. 12/97 -29- D77X
PART 3 - KEYPAD CONFIGURATION
useful for accommodating a very large accumulated flow.
The exponent is a “ X 10n” multiplier, were “n” can be from
0 (100, X 1 multiplier) to 4 (104, X 10,000 multiplier).
The External Counter output, available at the two
terminals labeled CTR on the Main PCB, is influenced by
the TOTAL MULT value. Since the output is designed to
operate electromechanical accumulators, large flow rates
will require that the TOTAL MULT be set to a value usable
by these types of counters (typically speeds no faster than
3 cps). The following chart tabulates suggested settings
Exponent Multiplier Useable CTR
Range:
GPM or LPM
0 X1 30-600
1 X10 300-6,000
2 X100 3,000-60,000
3 X1,000 30,000-600,000
4 X10,000 300,000-6,000,000
vs. flow ranges:
Key press number Operation
First press Stops the internal totalizer/
external CTR and displays
the last value
Second press Resets the internal totalizer
to zero
TOTAL ON/OFF
(continued)
Rev. 12/97 -30- D77X
PART 3 - KEYPAD CONFIGURATION
(continued)
Third press Restarts the internal
totalizer/external CTR
(The internal totalizer starts
from zero.)
If inhibiting (pausing) the totalizer is necessary, there are
two methods suggested:
1. Connect and external totalizer to the CTR terminals.
See the section of this manual related to CTR
electrical connections for connection parameters.
2. To inhibit the internal totalizer without resetting the
accumulation, press the TEST key to pause the
accumulation. Press the ENTER key to resume
accumulation.
LOCK ON
To ensure security of the configuration and accumulated
flow, the keypad can be locked. To enable the keyboard
lock out, press LOCK ON key, the display will show
LOCK ON. Press ENTER to return to Run mode. To
turn the lock off, press the LOCK ON key. Use the arrow
keys to set a value of 125. Press the ENTER key. The
display will show LOCK OFF to acknowledge that all
keypad entries can now be made.
CAL
A few factors can influence the readings of a D77 flow
meter. The CAL entry allows the user to compensate for
flow discrepancies without affecting the factory
calibration. Examples of situations that can cause
reading discrepancies are:
? Operations on liquids with sonic velocity carrying
properties that are different from water.
Rev. 12/97 -31- D77X
PART 3 - KEYPAD CONFIGURATION
? Transducer mounted in non-recommended locations.
By applying a CAL value other than 100%, the factory-
calibrated readings will be altered by the percentage
entered. This CAL value will be reflected in the display, 420mA and CTR outputs and relay settings.
For example, if a reading of 175 GPM is displayed and the
known flow rate is 160 GPM, a CAL value of
160 GPM x 100 = 91.4%
175 GPM
The D77 will not allow decimal values to be entered as a
CAL constant, so round to the nearest whole number; in
this case 91%.
Acceptable input ranges for the CAL constant are 0-255%.
DAMP
In installations where very turbulent or erratic flow is
encountered, increasing the Damping setting can increase
display and output stability. The DAMP setting increases
and decreases the response time of the flow meter display
and outputs. To set the damping time constant, press the
DAMP key. Set a value between 1 and 10, 1 having the
fastest response and 10 having the slowest response.
Press ENTER to complete the configuration.
TEST
The meter contains a test function for verification of the 420mA analog and CTR external counter outputs. To
activate the test function, press the TEST key. Verify that
20mA is flowing in the 4-20mA output and verify that the
CTR output is supplying 100mS pulses. Press ENTER to
exit the test function.
2nd FUNCT - SERVICE MODE
Rev. 12/97 -32- D77X
PART 3 - KEYPAD CONFIGURATION
{2nd FUNCT} SIGNAL STR
Displays the raw Doppler signal strength value. This
value will increase as the velocity of the liquid increases.
Typically, a liquid flowing at a velocity greater than 0.2
FPS [0.06 MPS], with adequate suspended solids (25 ppm
or 30 micron or larger solids) or aeration, will produce
SIGNAL STR readings over 150 counts.
NOTE: If the liquid is not flowing a low SIGNAL STR
reading is non-conclusive. If a high SIGNAL STR is
indicated at zero flow rate, it indicates that a source of
interference (another ultrasonic instrument, VFD, or poor
electrical ground) may be present. Verify that SIGNAL
STR increases when the flow starts. If it does, increase
the SS CUTOFF setting (see SS CUTOFF).
If SIGNAL STR is lower than 100 counts in a f lowing
liquid, one or more of the following steps may need to be
invoked:
1. If the liquid velocity is less than 1 FPS (0.3 MPS) turn
SW-1 “LOW FLOW” switch ON. (This dual DIP switch
is located near the center of the Main PCB.)
2. If SW-1 did not cause an increase in SIGNAL STR to a
level above 100, turn ON SW-2.
3. There may not be adequate reflectors for the Doppler
principle to operate. The DT7 probe can be relocated
to a source of liquid degasification, such as would be
found a 1-3 diamet ers down stream of a 90-degree
elbow. A surrogate source of aeration can also be
introduced by bleeding a small amount of compressed
air into the line several diameters upstream of the DT7
probe.
{2nd FUNCT} 4 mA
The 4-20mA output on standard D77 flow meters is scaled
Rev. 12/97 -33- D77X
PART 3 - KEYPAD CONFIGURATION
at zero flow equals 4mA and 20 FPS (6.08 MPS) equals
20mA. The 4mA key allows fine adjustments to be made
to the “zero” of the 4-20mA output or allows offset to be
placed on the 4-20mA output. To adjust the 4mA output,
an ammeter or reliable reference connection to the 420mA output must be present.
Procedure:
1. Either break the present current loop and connect the
ammeter in series (disconnect either wire at the
terminal block labeled 4-20mA on the Main PCB of the
D77) or, if this output is not being utilized, connect the
ammeter + to the + terminal and – to the – terminal of
the 4-20mA output.
2. Press the 4mA key.
3. With no flow moving through the pipe, adjust the
setting count using the arrow keys until 4.00mA is
indicated on the ammeter. Th e typical count value
range for this setting is between 3350 and 3850.
4. Press ENTER to store the value.
5. Re connect the 4-20mA out put circuitry as required.
{2nd FUNCT} VEL ADC
Press VEL ADC to display the raw analog to digital
converter counts that are being processed by the
microprocessor. This count value will vary linearly with
flow rate from 0000 at zero flow rate to 1024 at m aximum
full-scale flow rate. No modifications of this count can be
made, this display is for diagnostic purposes only.
{2nd FU NCT} BLANKING
This key is unused.
{2nd FUNCT} 20mA
The 4-20mA output on standard D77 flow meters is scaled
Rev. 12/97 -34- D77X
PART 3 - KEYPAD CONFIGURATION
at zero flow equals 4mA and 20 FPS (6.08 MPS) equals
20mA. The 20mA key allows fine adjustments to be made
to the “span” of the 4-20mA output. To adjust the 20mA
output, an ammeter or reliable reference connection to the
4-20mA output must be present.
Procedure:
1. Either break the present current loop and connect the
ammeter in series (disconnect either wire at the
terminal block labeled 4-20mA on the Main PCB of the
D77) or, if this output is not being utilized, connect the
ammeter + to the + terminal and – to the – terminal of
the 4-20mA output.
2. Press the 20mA key.
3. With maximum flow moving through the pipe, adjust
the setting count using the arrow keys until 20.00mA is
indicated on the ammeter. The typical count value
range for this setting is between 1450 and 1950.
4. Press ENTER to store the value.
5. Re connect the 4-20mA output circuitry as required.
{2nd FUNCT} SS CUTOFF
This entry represents the signal strength cutoff level (low
velocity cutoff). At flow rates below 0.2 FPS [0.06 MPS]
the readings displayed by the D77 are unreliable. By
utilizing the default SS CUTOFF of 100 counts, small
unstable readings at low flow rates will be avoided.
Note: If SS CUTOFF is set to a level higher than the
SIGNAL STR value the meter will not show flow or output
any values.
{2nd FUNCT} INPUT F.S.
This key is used to select a maximum velocity that the
Rev. 12/97 -35- D77X
PART 3 - KEYPAD CONFIGURATION
instrument will operate. Choices are 10, 20 and 30 FPS.
It is not recommended to deviate alter this value from
factory settings, as certain spans have been set that
correlate to the set maximum velocity. Consult the
Dynasonics factory for adjustment procedures.
{2nd FUNCT} DAC 3
This key is not used.
{2nd FUNCT} BACK LIGHT
Toggles the electro-luminescent LCD back lighting ON
and OFF. This type of back lighting has an illumination
half-life of approximately one year. If the instrument is left
unattended for long periods of time, turning the back
lighting OFF can preserve the electro-luminescent panel
and save a small amount of power.
{2nd FUNCT} CONTRAST
This setting allows the adjustment of the LCD contrast.
An LCD’s viewing quality is affected by temperature,
ambient lighting, back lighting and viewing angle. Adjust
the contrast level to provide the best contrast possible.
Default count is 50.
Rev. 12/97 -36- D77X
PART 4 - TROUBLE SHOOTING
CONDITION
Unit does not turn “ON” when power is
applied
FAULT CONDITION is indicated on LCD
indicator
POSSIBLE CAUSE
? Verify that AC power source is live.
? Test the fuse
? Ensure that the transducer is properly
mounted to the pipe.
? Verify that transducer connections are
correct
? Ensure that the pipe is full of moving
liquid.
? If SIGNAL STR is less than 100 counts
and flow rate is greater than 1 FPS [0.3
MPS], adjust GAIN control (R13 on the
Main PCB) till SIGNAL STR reaches at
least 130 counts.
? On cleaner liquids, move the
transducers closer to a 90o pipe elbow.
? If GND connection and pipe are at
different potentials, ground D77 to pipe
potential.
? If Variable Frequency Drives are being
utilized, verify that the D77 obtains a
flow indication when the pump turns
OFF. If it does, contact the Dynasonics
factory.
Rev. 12/97 -37- D77X
PART 4 - TROUBLE SHOOTING
Stability of flow readings are
unsatisfactory
Erroneous Reading
? Increase the DAMP constant from keypad.
? Move transducers to a location further
from piping tees, elbows, valves, filters,
etc.
? Transducer mounted incorrectly or not
true to the pipe.
? Another local ultrasonic instrument is
operating at about the same frequency
[ consult the Dynasonics factory].
? Presence of large amounts of suspended
solids or aeration. Use CAL constant to
compensate.
? Sources of radiated interference are
present. Apply appropriate shielding.
? An electrically noisy power supply is
powering the D77. Power the meter with
a circuit that does not power motors,
ballasts or switching supplies.
The D77 display indicates flow, when
true fluid velocity is zero.
Rev. 12/97 -38- D77X
? Verify that residual leakage and flow is not
present. [I.e. leaking check valves]
? Verify that GAIN control (R13 on the Main
PCB) is not adjusted too high. With
nominal flow running through the pipe,
adjust GAIN control till the display zeros
with no flow.
PART 5 - APPENDICES
Appendices
Spare Parts List
Face Plate Drawing
Intrinsic Safety Connections
Pipe Dimension Chart: Cast Iron
Pipe Dimension Chart: Steel, SS, PVC
Velocity to Volumetric Conversion Chart
Statement of Warranty
Customer Service
Rev. 12/97 -39- D77X
SPARE PARTS - D77/DT77
Description Dynasonics Part Number
Series D77 Main PCB D020-1042-051
Series D77 Micro PCB D020-1038-005
Series D77 Enclosure w/keypad D040-0121-001
D77 Installation and Operations
Manual
Two conductor, 20 AWG wire D005-1003-100
Stainless Steel I.D. Tag DSS TAG
Probe Seal Kit D003-0135-000
Bronze Ball Valve Kit, 1-1/2” NPT DBV
SS Ball Valve Kit, 1-1/2” NPT DSSV
Portable Probe Crank: 8” probe DPC-1
Portable Probe Crank: 18” probe DPC-2
Portable Probe Crank: 28” probe DPC-3
Portable Probe Crank: 38” probe DPC-4
Portable Probe Crank: 48” probe DPC-5
D77 O&M
Rev. 12/97 -40- D77X
Ductile Iron Pipe
Standard Classes
Cement Lining
Pipe
Size
(inches)
3 3.96 3.46 0.25 3.40 0.28 3.34 0.31 3.28 0.34 3.22 0.37 3.14 0.41
4 4.80 4.28 0.26 4.22 0.29 4.16 0.32 4.10 0.35 4.04 0.38 3.93 0.44
6 6.90 6.40 0.25 6.34 0.28 6.28 0.31 6.22 0.34 6.16 0.37 6.10 0.40 6.04 0.43 .123/.250
8 9.05 8.51 0.27 8.45 0.30 8.39 0.33 8.33 0.36 8.27 0.39 8.21 0.42 8.15 0.45
10 11.10 10.32 0.39 10.46 0.32 10.40 0.35 10.34 0.38 10.28 0.41 10.22 0.44 10.16 0.47
12 13.20 12.58 0.31 12.52 0.34 12.46 0.37 12.40 0.40 12.34 0.43 12.28 0.46 12.22 0.49
14 15.30 14.64 0.33 14.58 0.36 14.52 0.39 14.46 0.42 14.40 0.45 14.34 0.48 14.28 0.51
16 17.40 16.72 0.34 16.66 0.37 16.60 0.40 16.54 0.43 16.48 0.46 16.42 0.49 16.36 0.52
18 19.50 18.80 0.35 18.74 0.38 18.68 0.41 18.62 0.44 18.56 0.47 18.50 0.50 18.44 0.53 .1875/.375
Outside
Diameter
(inches)
Class 54 Class 55 Class 56Class 50 Class 51 Class 52 Class 53
ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall
Std./Double
Thickness
20 21.60 20.88 0.36 20.82 0.39 20.76 0.42 20.70 0.45 20.64 0.48 20.58 0.51 20.52 0.54
24 25.80 25.04 0.38 24.98 0.41 24.92 0.44 24.86 0.47 24.80 0.50 24.74 0.53 24.68 0.56
30 32.00 31.22 0.39 31.14 0.43 31.06 0.47 30.98 0.51 30.90 0.55 30.82 0.59 30.74 0.63
36 38.30 37.44 0.43 37.34 0.48 37.06 0.62 37.14 0.58 37.40 0.45 36.94 0.68 36.84 0.73
42 44.50 43.56 0.47 43.44 0.53 43.32 0.59 43.20 0.65 43.08 0.71 42.96 0.77 42.84 0.83 .250/.500
48 50.80 49.78 0.51 49.64 0.58 49.50 0.65 49.36 0.72 49.22 0.79 49.08 0.86 48.94 0.93
54 57.10 55.96 0.57 55.80 0.65 55.64 0.73 55.48 0.81 55.32 0.89 55.16 0.97 55.00 1.05
March, 2000
Cast Iron Pipe
Standard Classes
CLASS A
Size
(Inches)
10 11.10 10.10 0.50 11.10 9.96 0.57 11.40 10.16 0.62 11.40 10.04 0.68 11.60 10.12 0.74 11.60 10.00 0.80 11.84 10.12 0.86 11.84 10.00 0.92
12 13.20 12.12 0.54 13.20 11.96 0.62 13.50 12.14 0.68 13.50 12.00 0.75 13.78 12.14 0.82 13.78 12.00 0.89 14.08 12.14 0.97 14.08 12.00 1.04
14 15.30 14.16 0.57 15.30 13.98 0.66 15.65 14.17 0.74 15.65 14.01 0.82 15.98 14.18 0.90 15.98 14.00 0.99 16.32 14.18 1.07 16.32 14.00 1.16
16 17.40 16.20 0.60 17.40 16.00 0.70 17.80 16.20 0.80 17.80 16.02 0.89 18.16 16.20 0.98 18.16 16.00 1.08 18.54 16.18 1.18 18.54 16.00 1.27
18 19.50 18.22 0.64 19.50 18.00 0.75 19.92 18.18 0.87 19.92 18.00 0.96 20.34 18.20 1.07 20.34 18.00 1.17 20.78 18.22 1.28 20.78 18.00 1.39
20 21.60 20.26 0.67 21.60 20.00 0.80 22.06 20.22 0.92 22.06 20.00 1.03 22.54 20.24 1.15 22.54 20.00 1.27 23.02 20.24 1.39 23.02 20.00 1.51
24 25.80 24.28 0.76 25.80 24.02 0.89 26.32 24.22 1.05 26.32 24.00 1.16 26.90 24.28 1.31 26.90 24.00 1.45 27.76 24.26 1.75 27.76 24.00 1.88
30 31.74 29.98 0.88 32.00 29.94 1.03 32.40 30.00 1.20 32.74 30.00 1.37 33.10 30.00 1.55 33.46 30.00 1.73
36 37.96 35.98 0.99 38.30 36.00 1.15 38.70 35.98 1.36 39.16 36.00 1.58 39.60 36.00 1.80 40.04 36.00 2.02
42 44.20 42.00 1.10 44.50 41.94 1.28 45.10 42.02 1.54 45.58 42.02 1.78
48 50.50 47.98 1.26 50.80 47.96 1.42 51.40 47.98 1.71 51.98 48.00 1.99
O.D.
Inch
3 3.80 3.02 0.39 3.96 3.12 0.42 3.96 3.06 0.45 3.96 3.00 0.48
4 4.80 3.96 0.42 5.00 4.10 0.45 5.00 4.04 0.48 5.00 3.96 0.52
6 6.90 6.02 0.44 7.10 6.14 0.48 7.10 6.08 0.51 7.10 6.00 0.55 7.22 6.06 0.58 7.22 6.00 0.61 7.38 6.08 0.65 7.38 6.00 0.69
8 9.05 8.13 0.46 9.05 8.03 0.51 9.30 8.18 0.56 9.30 8.10 0.60 9.42 8.10 0.66 9.42 8.10 0.66 9.60 8.10 0.75 9.60 8.00 0.8
I.D.
Inch
Wall
CLASS B CLASS C CLASS D CLASS E CLASS F CLASS G CLASS H
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
O.D.
Inch
I.D.
Inch
Wall
54 56.66 53.96 1.35 57.10 54.00 1.55 57.80 54.00 1.90 58.40 53.94 2.23
60 62.80 60.02 1.39 63.40 60.06 1.67 64.20 60.20 2.00 64.82 60.06 2.38
72 75.34 72.10 1.62 76.00 72.10 1.95 76.88 72.10 2.39
84 87.54 84.10 1.72 88.54 84.10 2.22
March, 2000
Steel, Stainless Steel, P.V.C.
Standard Schedules
Nominal
Pipe Size
Inches
1.25 1.660 1.530 0.065 1.442 0.109 1.380 1.380 0.140 1.278 0.191 1.278 0.191 1.160 0.250
OUTSIDE
DIAMETER
1 1.315 1.185 0.065 1.097 0.109 1.049 1.049 0.133 0.957 0.179 0.957 0.179 0.815 0.250
1.5 1.900 1.770 0.065 1.682 0.109 1.610 1.610 0.145 1.500 0.200 1.500 0.200 1.338 0.281
2 2.375 2.245 0.065 2.157 0.109 2.067 2.067 0.154 1.939 0.218 1.939 0.218 1.687 0.344
2.5 2.875 2.709 0.083 2.635 0.120 2.469 2.469 0.203 2.323 0.276 2.323 0.276 2.125 0.375
3 3.500 3.334 0.083 3.260 0.120 3.068 3.068 0.216 2.900 0.300 2.900 0.300 2.624 0.438
3.5 4.000 3.834 0.083 3.760 0.120 3.548 3.548 0.226 3.364 0.318 3.364 0.318
4 4.500 4.334 0.083 4.260 0.120 4.026 0.237 4.026 0.237 3.826 0.337 3.826 0.337 3.624 0.438 3.624 0.438 3.438 0.531
5 5.563 5.345 0.109 5.295 0.134 5.047 0.258 5.047 0.258 4.813 0.375 4.813 0.375 4.563 0.500 4.563 0.500 4.313 0.625
6 6.625 6.407 0.109 6.357 0.134 6.065 0.280 6.065 0.280 5.761 0.432 5.761 0.432 5.501 0.562 5.501 0.562 5.187 0.719
8 8.625 8.407 0.109 8.329 0.148 8.125 0.250 8.071 0.277 7.981 0.322 7.981 0.322 7.813 0.406 7.625 0.500 7.625 0.500 7.437 0.594 7.187 0.719 7.187 0.719 6.183 1.221
10 10.750 10.482 0.134 10.42 0.165 10.25 0.250 10.13 0.310 10.02 0.365 10.020 0.365 9.750 0.500 9.750 0.500 9.562 0.594 9.312 0.719 9.062 0.844 9.062 0.844 8.500 1.125
12 12.750 12.420 0.165 12.39 0.180 12.25 0.250 12.09 0.330 12.00 0.375 11.938 0.406 11.626 0.562 11.750 0.500 11.370 0.690 11.060 0.845 10.750 1.000 10.750 1.000 10.120 1.315
14 14.000 13.50 0.250 13.37 0.315 13.25 0.375 13.25 0.375 13.124 0.438 12.814 0.593 13.000 0.500 12.500 0.750 12.310 0.845 11.810 1.095 11.810 1.095 11.180 1.410
16 16.000 15.50 0.250 15.37 0.315 15.25 0.375 15.25 0.375 15.000 0.500 14.688 0.656 15.000 0.500 14.310 0.845 13.930 1.035 13.560 1.220 13.560 1.220 12.810 1.595
18 18.000 17.50 0.250 17.37 0.315 17.12 0.440 17.25 0.375 16.876 0.562 16.564 0.718 17.000 0.500 16.120 0.940 15.680 1.160 15.250 1.375 15.250 1.375 14.430 1.785
20 20.000 19.50 0.250 19.25 0.375 19.25 0.375 19.25 0.375 18.814 0.593 18.376 0.812 19.000 0.500 17.930 1.035 17.430 1.285 17.000 1.500 17.000 1.500 16.060 1.970
24 24.000 23.50 0.250 23.25 0.375 23.25 0.375 23.25 0.375 22.626 0.687 22.126 0.937 23.000 0.500 21.560 1.220 20.930 1.535 20.930 1.535 20.930 1.535 19.310 2.345
30 30.000 29.37 0.315 29.00 0.500 29.00 0.500 29.25 0.375 29.250 0.375 29.000 0.500
36 36.000 35.37 0.315 35.00 0.500 35.00 0.500 35.25 0.375 35.250 0.375 35.000 0.500
42 42.000 41.25 0.375 41.250 0.375 41.000 0.500
48 48.000 47.25 0.375 47.250 0.375 47.000 0.500
SCH.
5
ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall ID Wall
SCH. 10
(LTWALL)
SCH. 20 SCH. 30 STD. SCH. 40 SCH. 60
X STG. SCH. 80 SCH. 100 SCH. 120
SCH. 140 SCH. 180
March, 2000
FPS TO GPM CROSS - REFERENCE (Schedule 40)
Nominal
Pipe
(Inches)
1 1.05 2.6989 4.0484 5.3978 6.7473 8.097 9.4462 10.796 12.145 13.490 14.844 16.190 17.540 18.890 20.240 21.590 22.941 24.290
1.25 1.38 4.6620 6.9929 9.3239 11.655 13.99 16.317 18.648 20.979 23.310 25.641 27.970 30.300 32.630 34.960 37.300 39.627 41.958
1.5 1.61 6.3454 9.5182 12.691 15.864 19.04 22.209 25.382 28.555 31.730 34.900 38.070 41.250 44.420 47.590 50.760 53.936 57.109
2 2.07 10.489 15.734 20.979 26.224 31.47 36.713 41.958 47.202 52.450 57.692 62.940 68.180 73.430 78.670 83.920 89.160 94.405
2.5 2.47 14.935 22.402 29.870 37.337 44.80 52.272 59.740 67.207 74.670 82.142 89.610 97.080 104.50 112.00 119.50 126.95 134.41
3 3.07 23.072 34.608 46.144 57.680 69.22 80.752 92.288 103.82 115.40 126.90 138.40 150.00 161.50 173.00 184.60 196.11 207.65
3.5 3.55 30.851 46.276 61.702 77.127 92.55 107.98 123.40 138.83 154.30 169.68 185.10 200.50 216.00 231.40 246.80 262.23 277.66
4 4.03 39.758 59.636 79.515 99.394 119.3 139.15 159.03 178.91 198.80 218.67 238.50 258.40 278.30 298.20 318.10 337.94 357.82
5 5.05 62.430 93.645 124.86 156.07 187.3 218.50 249.72 280.93 312.10 343.36 374.60 405.80 437.00 468.20 499.40 530.65 561.87
6 6.06 89.899 134.85 179.80 224.75 269.7 314.65 359.60 404.55 449.50 494.45 539.40 584.30 629.30 674.20 719.20 764.14 809.09
8 7.98 155.89 233.83 311.78 389.72 467.7 545.61 623.56 701.50 779.40 857.39 935.30 1013.0 1091.0 1169.0 1247.0 1325.1 1403.0
10 10.02 245.78 368.67 491.56 614.45 737.3 860.23 983.12 1106.0 1229.0 1351.8 1475.0 1598.0 1720.0 1843.0 1966.0 2089.1 2212.0
I.D.
INCH
1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9
12 11.94 348.99 523.49 697.99 872.49 1047.0 1221.5 1396.0 1570.5 1745.0 1919.5 2094.0 2268.0 2443.0 2617.0 2792.0 2966.5 3141.0
14 13.13 422.03 633.04 844.05 1055.1 1266.0 1477.1 1688.1 1899.1 2110.0 2321.1 2532.0 2743.0 2954.0 3165.0 3376.0 3587.2 3798.2
16 15.00 550.80 826.20 1101.6 1377.0 1652.0 1927.8 2203.2 2478.6 2754.0 3029.4 3305.0 3580.0 3856.0 4131.0 4406.0 4681.8 4957.2
FPS TO GPM: GPM = (PIPE ID)² X VELOCITY IN FPS X 2.45 FPS X .3048 = MPS
GPM TO FPS: FPS =
GPM
(ID)² X 2.45
GPM X .0007 = GPD
GPM X 3.7878 = LPM
FPS TO GPM CROSS - REFERENCE (Schedule 40)
Nominal
Pipe
(Inches)
18 16.88 697.52 1046.3 1395.0 1743.8 2093.0 2441.3 2790.1 3138.8 3488.0 3836.3 4185.0 4534.0 4883.0 5231.0 5580.0 5928.9 6277.7
20 18.81 866.14 1299.0 1732.0 2165.3 2598.4 3031.5 3464.6 3897.6 4330.7 4763.8 5196.8 5629.9 6063.0 6496.0 6929.1 7362.2 7795.3
24 22.63 1253.7 1880.0 2507.0 3134.1 3761.0 4387.8 5014.6 5641.5 6268.3 6895.1 7522.0 8148.8 8775.6 9402.4 10029 10656 11283
26 25.25 1560.7 2341.0 3121.0 3901.9 4682.2 5462.6 6243.0 7023.4 7803.7 8584.1 9364.5 10145 10925 11706 12486 13266 14047
28 27.25 1817.8 2727.0 3636.0 4544.5 5453.4 6362.3 7271.2 8180.0 9088.9 9997.8 10907 11816 12725 13633 14542 15451 16360
30 29.25 2094.4 3142.0 4189.0 5236.0 6283.2 7330.4 8377.6 9424.9 10472 11519 12566 13614 14661 15708 16755 17803 18850
32 31.25 2390.6 3586.0 4781.0 5976.5 7171.9 8367.2 9562.5 10758 11953 13148 14344 15539 16734 17930 19125 20320 21516
34 33.25 2706.4 4060.0 5413.0 6766.0 8119.2 9472.4 10826 12179 13532 14885 16238 17592 18945 20298 21651 23004 24358
36 35.25 3041.8 4563.0 6084.0 7604.5 9125.4 10646 12167 13688 15209 16730 18251 19772 21292 22813 24334 25855 27376
42 41.25 4165.4 6248.0 8331.0 10414 12496 14579 16662 18744 20827 22910 24992 27075 29158 31241 33323 35406 37489
48 47.99 5637.8 8457.0 11276 14095 16913 19732 22551 25370 28189 31008 33827 36646 39465 42284 45103 47922 50740
54 53.98 7133.1 10700 14266 17833 21399 24966 28532 32099 35665 39232 42798 46365 49931 53498 57065 60631 64198
I.D.
INCH
1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9
60 60.09 8839.2 13259 17678 22098 26518 30937 35357 39777 44196 48616 53035 57455 61875 66294 70714 75134 79553
72 72.10 12726 19089 25451 31814 38177 44540 50903 57266 63628 69991 76354 82717 89080 95443 101805 108168 114531
84 84.10 17314 25971 34628 43285 51943 60600 69257 77914 86571 95228 103885 112542 121199 129856 138514 147171 155828
FPS TO GPM: GPM = (PIPE ID)² X VELOCITY IN FPS X 2.45 FPS X .3048 = MPS
GPM TO FPS: FPS =
GPM
(ID)² X 2.45
GPM X .0007 = GPD
GPM X 3.7878 = LPM
Limited Warranty and Disclaimer
Dynasonics, div. of Racine Federated Inc. warrants to the end purchaser, for a period of
one year from the date of shipment from our factory, that all new transmitters and
transducers manufactured by it are free from defects in materials and workmanship.
This warranty does not cover products that have been damaged due to normal use,
misapplication, abuse, lack of maintenance, or improper installation. Dynasonics’
obligation under this warranty is limited to the repair or replacement of a defective
product, at no charge to the end purchaser, if the product is inspected by Dynasonics
and found to be defective. Repair or replacement is at Dynasonics’ discretion. An
authorization number must be obtained from Dynasonics before any product may be
returned for warranty repair or replacem ent. The product must be thoroughly cleaned
and any process chemicals removed before it will be accepted for return.
The purchaser must determine the applicability of the product for its desired use and
assumes all risks in connection therewith. Dynasonics assumes no responsibility or
liability for any omissions or errors in connection with the use of its products.
Dynasonics will under no circumstances be liable for any incidental, consequential,
contingent or special damages or loss to any person or property arising out of the failure
of any product, component or accessory.
All expressed or implied warranties, including the implied warranty of
merchantability and the implied warranty of fitness for a particular purpose or
application are expressly disclaimed and shall not apply to any products sold or
services rendered by Dynasonics.
The above warranty supersedes and is in lieu of all othe r warranties, either expressed or
implied and all other obligations or liabilities. No agent or representative has any
authority to alter the terms of this warranty in any way.
GENERAL TERMS AND CONDITIONS OF SALES
1. PAYMENT – Terms of payment are effective from the actual date of invoice. If, in the Seller’s
opinion, the financial condition of the Buyer at any time – or any other circumstances – do not justify
the incurrence of production costs of shipment on the terms of payment specified, the Seller may
require partial or full payment in advance. Payment terms are net 30 days unless otherwise stated on
invoice.
2. F.O.B. – All shipments are from Racine, Wisconsin, USA, unless other wise other stated, and title
transfers to the buyer upon leaving factory.
3. QUOTATION AND PRICES – Quoted prices are firm for 30 days unless stated in the quotation and
are subject to change without notice after expiration of this period.
4. TAXES – Any applicable sales, use, revenue, excise or other taxes not specifically stated in the
quotation are to be remitted by the Buyer directly to the appropriate regulatory agency.
5. WARRANTY – Seller’s standard published warranty in effect at the time of shipment shall apply.
This warranty is exclusive and is in lieu of all other warranties, express, implied, or statutory, including
the warranty of merchantability.
6. DELIVERY – The Seller shall not be liable for loss or damage of any kind resulting from delay or
inability to deliver on account of flood, fire, labor trouble, riots, civil disturbances, accidents, acts or
orders or regulations of civil or military authorities, shortages of material, or any other causes beyond
Seller’s control.
7. PRODUCT CHANGES – In keeping with our continuing policy of product improvement, we reserve
the right to make changes in our products at any time, without incurring an obligation to change,
replace or upgrade equipment previously shipped.
8. CANCELLATIONS – An order placed by Buyer and accepted by Seller may be cancelled only with
the Seller’s consent and upon terms that will indemnify the Seller against loss.
9. RESTOCKING CHARGE – On standard equipment, the charge is 25%, provided the equipment is
returned within 30 days in acceptable condition with a RGA number. Restocking charges for special
equipment may vary from standard equipment, and will be handled on a case-by-case basis. No
returns will be taken after one year.
DIVISION OF RACINE FEDERATED INC.
2200 SOUTH STREET, RACINE, WI 53404
RETURN OF EQUIPMENT/SALES INFORMATION
CONTACTS AND PROCEDURES
Customer Service/Application Engineer:
If you have a question regarding order status, placing an order, reviewing applications for
future purchases, or wish to purchase a new flowmeter, please contact our new National
Sales and Marketing Headquarters:
DYNASONICS
Division of Racine Federated, Inc.
2200 South Street
Racine, WI 53404-1526
PHONE: (262)639-6770
FAX: (262)639-2267
Service/Repair Department:
If you already purchased equipment and have an operation problem, require service, or
need to schedule field service, please contact our Service Department:
DYNASONICS
Division of Racine Federated, Inc.
2200 South Street
Racine, WI 53404-1526
PHONE: (262)639-6770
FAX: (262)639-2267
Return Goods Authorization:
When returning equipment, it is necessary for you to contact our Service Department at
(262)639-6770 to obtain an RGA number for the authority and proper tracking of your
material and its prompt inspection and return. All returns of equipment go to the
following address:
DYNASONICS
Division of Racine Federated, Inc.
2200 South Street
Racine, WI 53404-1526
RGA #0000
2200 SOUTH STREET RACINE, WI 53404
TOLL-FREE IN North America: TEL: (800) 535-3569
TEL: (262) 639-6770 FAX: (262) 639-2267
URL: www.dynasonics.com
D771 O&M REV 12/97
Loading...
