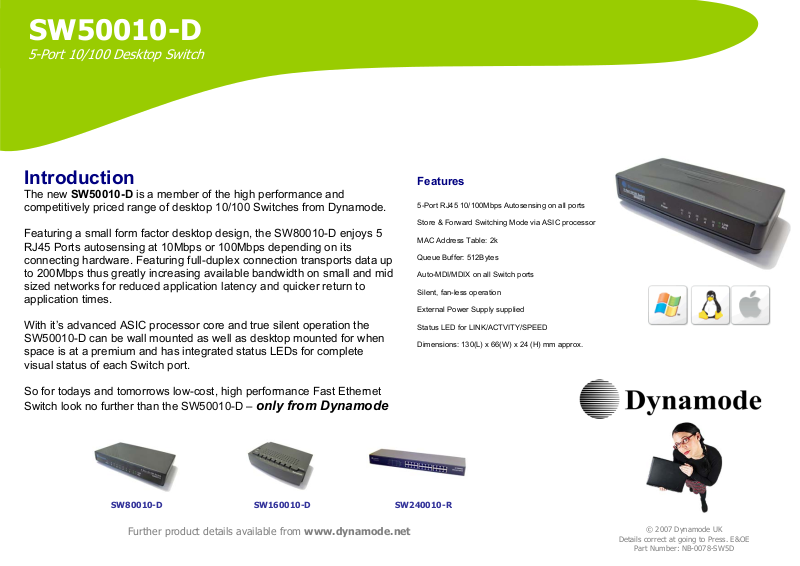

Dynamode SW50010-D BROCHURE

SW50010-D

5-Port 10/100 Desktop Switch

Introduction

The new SW50010-D is a member of the high performance and
competitively priced range of desktop 10/100 Switches from Dynamode.

Featuring a small form factor desktop design, the SW80010-D enjoys 5
RJ45 Ports autosensing at 10Mbps or 100Mbps depending on its
connecting hardware. Featuring full-duplex connection transports data up
to 200Mbps thus greatly increasing available bandwidth on small and mid
sized networks for reduced application latency and quicker return to
application times.

With it’s advanced ASIC processor core and true silent operation the
SW50010-D can be wall mounted as well as desktop mounted for when
space is at a premium and has integrated status LEDs for complete
visual status of each Switch port.

So for todays and tomorrows low-cost, high performance Fast Ethernet
Switch look no further than the SW50010-D – only from Dynamode

Features

5-Port RJ45 10/100Mbps Autosensing on all ports

Store & Forward Switching Mode via ASIC processor

MAC Address Table: 2k

Queue Buffer: 512Bytes

Auto-MDI/MDIX on all Switch ports

Silent, fan-less operation

External Power Supply supplied

Status LED for LINK/ACTVITY/SPEED

Dimensions: 130(L) x 66(W) x 24 (H) mm approx.

SW80010-D SW160010-D SW240010-R

Further product details available from www.dynamode.net

© 2007 Dynamode UK

Details correct at going to Press. E&OE

Part Number: NB-0078-SW5D
