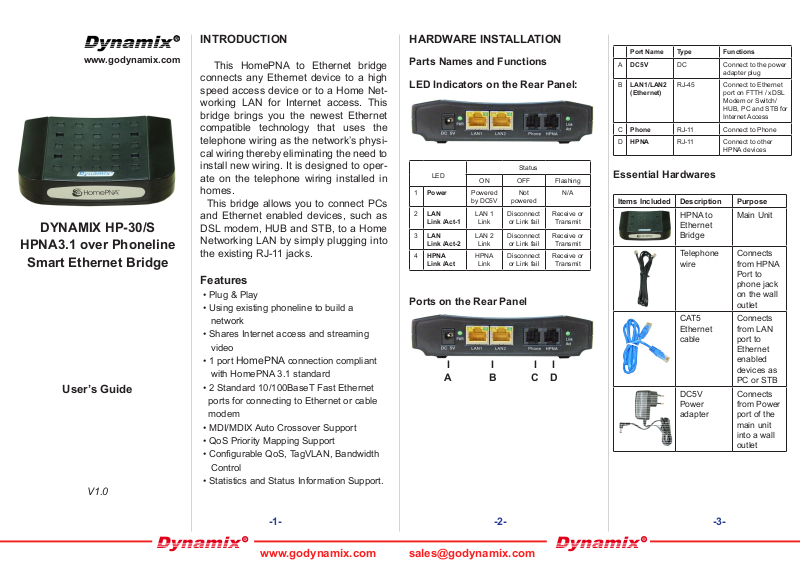

Dynamix HP-30/S User Manual

www.godynamix.com

DYNAMIX HP-30/S

HPNA3.1 over Phoneline

Smart Ethernet Bridge

User’s Guide

V1.0

INTRODUCTION

This HomePNA to Ethernet bridge
connects any Ethernet device to a high
speed access device or to a Home Net­working LAN for Internet access. This
bridge brings you the newest Ethernet
compatible technology that uses the
telephone wiring as the network’s physi­cal wiring thereby eliminating the need to
install new wiring. It is designed to oper­ate on the telephone wiring installed in
homes.
This bridge allows you to connect PCs
and Ethernet enabled devices, such as
DSL modem, HUB and STB, to a Home
Networking LAN by simply plugging into
the existing RJ-11 jacks.

Features

• Plug & Play

• Using existing phoneline to build a

network

• Shares Internet access and streaming
video

• 1 port HomePNA connection compliant

with HomePNA 3.1 standard

• 2 Standard 10/100BaseT Fast Ethernet
ports for connecting to Ethernet or cable
modem

• MDI/MDIX Auto Crossover Support

• QoS Priority Mapping Support

• Congurable QoS, TagVLAN, Bandwidth

Control

• Statistics and Status Information Support.

HARDWARE INSTALLATION

Parts Names and Functions

LED Indicators on the Rear Panel:

LED

1 Power Powered

2 LAN

Link /Act-1

3 LAN

Link /Act-2

4 HPNA

Link /Act

ON OFF Flashing

by DC5V

LAN 1

Link

LAN 2

Link

HPNA

Link

Ports on the Rear Panel

I I I I
A B C D

Status

Not

powered

Disconnect

or Link fail

Disconnect

or Link fail

Disconnect

or Link fail

N/A

Receive or

Transmit

Receive or

Transmit

Receive or

Transmit

Port Name Type Functions

A DC5V DC Connect to the power

B LAN1/LAN2

(Ethernet)

C Phone RJ-11 Connect to Phone

D HPNA RJ-11 Connect to other

RJ-45 Connect to Ethernet

adapter plug

port on FTTH / xDSL
Modem or Switch/

HUB, PC and STB for
Internet Access

HPNA devices

Essential Hardwares

Items Included Description Purpose

HPNA to
Ethernet
Bridge

Telephone
wire

CAT5
Ethernet
cable

DC5V
Power
adapter

Main Unit

Connects
from HPNA
Port to
phone jack
on the wall
outlet

Connects
from LAN
port to
Ethernet
enabled
devices as
PC or STB

Connects
from Power
port of the
main unit
into a wall
outlet

-1- -2- -3-

www.godynamix.com

[e-mail]

Additional Items
(Not included)

HUB

Description

A well-installed WAN
environment (Cable

or xDSL Modem)

A well-installed LAN
environment

Hardware Connections

1. Select a convenient location for the
bridge near the PC or Ethernet device
to which it will be connected. The bridge
should be kept away from excessive heat.

2. Using one telephone wire to connect the

HPNA port to RJ-11 jack on the wall. Us­ing another telephone wire to connect the
other Phone Port to a telephone set (or
connect the Phone port to “Phone” port of

splitter of ADSL modem).

3. Connect the LAN1/LAN2 port to your
Ethernet-equipped device.

4. Connect the power adapter to the DC5V

port into a wall outlet.

The gure above shows how to connect a

xDSL modem to a home phoneline network.
Follow the same steps to connect any Ether­net device such as a STB or PC, to a home
phoneline network.

Now you should have connected the LAN
port, HPNA port and the DC5V port to the
appropriate devices or lines.

LED will be as:

POWER ON
LAN Link/Act ON
HPNA Link/Act ON

For more information on LEDs,
see section:

“LED Indicators on the Rear Panel”.

TROUBLESHOOTING

The bridge has been designed to be a re­liable and easy to use connection device.
Please refer to the list below to aid in trouble­shooting.

The Power (green) LED is off.

• Make sure the power adapter is properly
plugged into a live electrical outlet.

The LAN (Ethernet) or
HPNA Link/Act LED is off.

• Make sure the connection to these two
ports is secure.

• The Ethernet or HPNA device to which
you are connected should be powered on

and properly congured.

SPECIFICATIONS

Standards

• IEEE802.3 10BASE-T Ethernet compliant

• IEEE802.3u 100BaseTX Fast Ethernet

compliant

• HomePNA 3.1 specication compliant

Maximal Data Rates

• Home Networking : 160 or
144 / 112 Mbps

• Ethernet: 10/100 Mbps

Distances

• Home Networking : 600 meter maximum
between the two farthest nodes on the LAN

• Ethernet: 100 meter maximum

Power Consumption:

• 5V DC IN, Less than 4Watt

Certications

• CE, FCC Part 15

• FCC Part 68

LEDs

• Power

• Ethernet Link/Activity

• HPNA Link/Activity

Connectors

• Two RJ-11, one for connecting with
HomePNA device, and one for telephone
bypass

• Two RJ-45 for 10/100M Ethernet

Cables

• Home Networking: standard home
phone wire

• Fast Ethernet: CAT5 or better UTP

-4- -5- -6- -7-
