DYNAMIX
FIBERMIX 2201/2401/2601-60 (REV.A)
Modular Ethernet Multiplexer
User Manual
Dynamix Co., Ltd
Dynamix Co., Ltd
Cautions
Please read the following notices carefully before installing and
using the device, Dynamix does not respond to any loss that
caused by violating safety notice.
FIBERMIX 2201-30 is integrated device that has precise
elements, please avoid violent shakes and impacts, and do
not disassemble or maintain the device yourself. If it is
required, please do it under the guide of our technical staff
follo w in g i n the steps of anti static. Please contact us if there is
any need.
There must be grounding protection for the sake of safety; do
not disassemble the device yourself, we regard it as you waiver
your rights of repair guarantee.
Dynamix Co., Ltd
Contents
1. Overview ......................................................................................................................... 1
1.1 Main Features .....................................................................................................1
1.2 Part Number Explanation ....................................................................................2
2. Parameters......................................................................................................................2
2.1 E1 Interface Specification....................................................................................2
2.2 Fast Ethernet Interface Specifi c ation...................................................................3
2.3 Optical Interface Specification.............................................................................. 3
2.4 Ambience............................................................................................................3
3. How to use ...................................................................................................................... 3
3.1 Desc r i p t i o n of the Fron t Panel.............................................................................. 3
3.2 Dip-switch............................................................................................................4
3.2.1 SW1 for Working Modes ...........................................................................4
3.2.2 Fault -Pass-Th r ough Capa b ility Exp lanation................................................5
3.2 .3 E1 Rem ote Loop-b ack Test..........................................................................6
3.2 .4 How to Im p l ement Rem ote Netwo r k Management .....................................6
4. Install ation and Test.........................................................................................................7
4.1 Inspect after Opening..........................................................................................7
4.2 Preparation before Installation ............................................................................7
4.3 Installation...........................................................................................................7
4.3.1 Connecting the Cables .............................................................................. 7
4.3.2 Function Configuration................................................................................. 8
5. Troubleshooting ..............................................................................................................8
6. Appendix A C a ble Making...............................................................................................9
A.1 E1 Cable Making................................................................................................... 9
A.2 Et h ernet Cable M aking.........................................................................................10
Dynamix Co., Ltd
1. Overview
FIBERMIX 2201/2401/2601-60 Ethernet Multiplexers are fiber-optic transmission devices
for dedicated communication networks, data communication networks, switching
networks, and also for point-to-point networks, medium-sized and small capacity networks.
It can multiplex one E1 channel and one Fast Ethernet on to one fiber-optic cable, and
implement the line-speed transmission of the Ethernet data. FIBERMIX 2201-6CK
FIBERMIX 2401-60 fll FIBERMIX 2201/2401/2601-6 series is featured by high integration
and complete network management functions. It can be installed into the Dynamix 3U-high
16-slot chassis, or desktop single-slot chassis, providing various network management
functions.
1.1 Main Features
• Low power consumption due to extra large -scale ASIC chips; high r eliability due to
4-layer PCB
• Providing 2 E1 channel interface, transparent transmission mode
- 1 -
Dynamix Co., Ltd
Providing 1 10/1 00Mbps auto-sensing Ethernet interface
Providing 1 optical interface, multiplexing E1 and Ethernet data together
Alarm indications of local and remote equipment
Supporting E1 link remote loop-back function, easy fault location
Supporting speed limit on both transmitting and receiving directions of Ethernet
interface, increment 32kbps
Implementation of SNMP, capable of local and remote management
1.2 Part Number Explanation
Example
FiberMix 2 2 01 - 60
2 E1 channel
1 Ethernet interface
Modular, dual-strand fiber-optic
L2 Ethernet switching capability
Multi-service Dynamix code
2. Parameters
2.1 E1 Interface Specification
Bit rate: Line
code:
Interface impedance:
Electrical characteristic:
Transfer characteristic:
Jitter Tolerance:
2048Kbps±50ppm
HDB3
120Q balanced signal
Compliant to ITU-T G.703
Compliant to ITU-T G.823
ITU-T G.724
- 2 -
Dynamix Co., Ltd
2.2 Fast Ethernet Interface Specification
IEEE 802.3
IEEE 802.3u
IEEE 802.1d Spanning Tree
IEEE 802.1q VLAN
Support oversized Ethernet data frame up to 1916 bytes
Working mode: 10/100M Auto-Negotiation, Auto-MDI/MDIX (manual configurable)
Flow control: IEEE802.3x and back pressure
2.3 Optical Interface Specification
Bit rate:
Fiber connector:
Transmission distance:
150Mbps
Single strand fiber SC/PC
Single mode, S1=0~25 km
2.4 Ambience
Working temperature: 0 ~ 45°C
Relative humidity: < 90% (25°C)
3. How to use

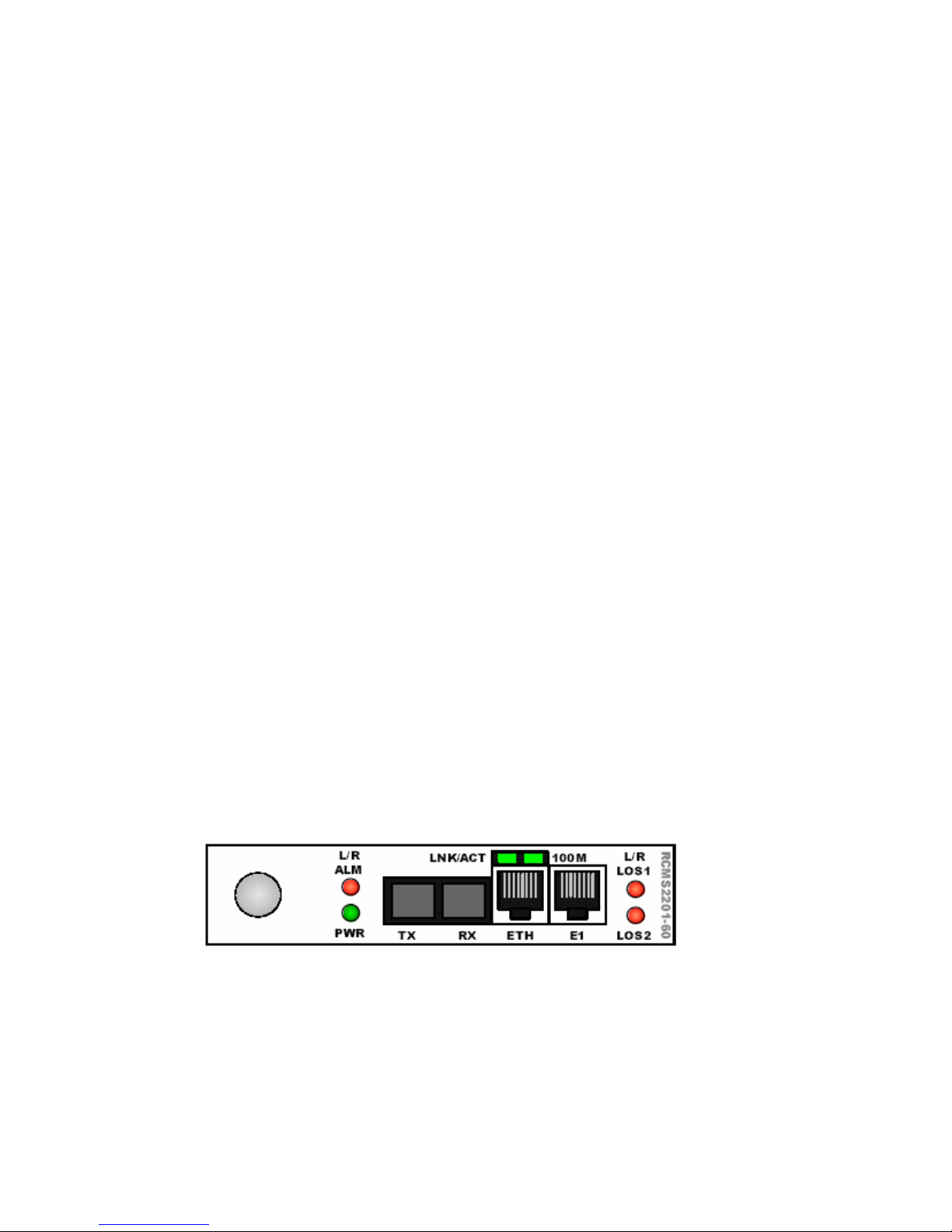

3.1 Description of the Front Panel
Power Supply Indicator:
PWR (Power): the green indicator will be lightened when the power supply is in good
condition
- 3 -
Dynamix Co., Ltd
Optical Connector:
SC type in the above figure, TX for transmitting direction, and RX for recei vi ng dire ction
The optical interface type of FIBERMIX 2201-60 is DSC/PC,
The optical interface type of FIBERMIX 2401-60 and FIBERMIX 2601-60 is SC/PC.
L/R ALM (Fiber Local or Remote Alarm)
The red alarm indicator will be lightened when error occurs at local or remote optical
receiving direction. It includes 4 alarm levels: lose of signal, lose of frame, BER
exceeds 10-3, and BER exceeds 10-6. Users shall inquire the network management
system for alarm details.
ETH Ethernet Interface:
RJ45 socket, unshielded twisted pair
LNK/ACT (Link/Action):
The green indicator will be lightened when the link is in normal condition. It flashes
when transmitting to receiving data.
100M (100Mbps):
The green indicator will be lightened when working at the rate of 100Mbps.
E1 Interface:
RJ45 socket, 120 Ohm balanced signal.

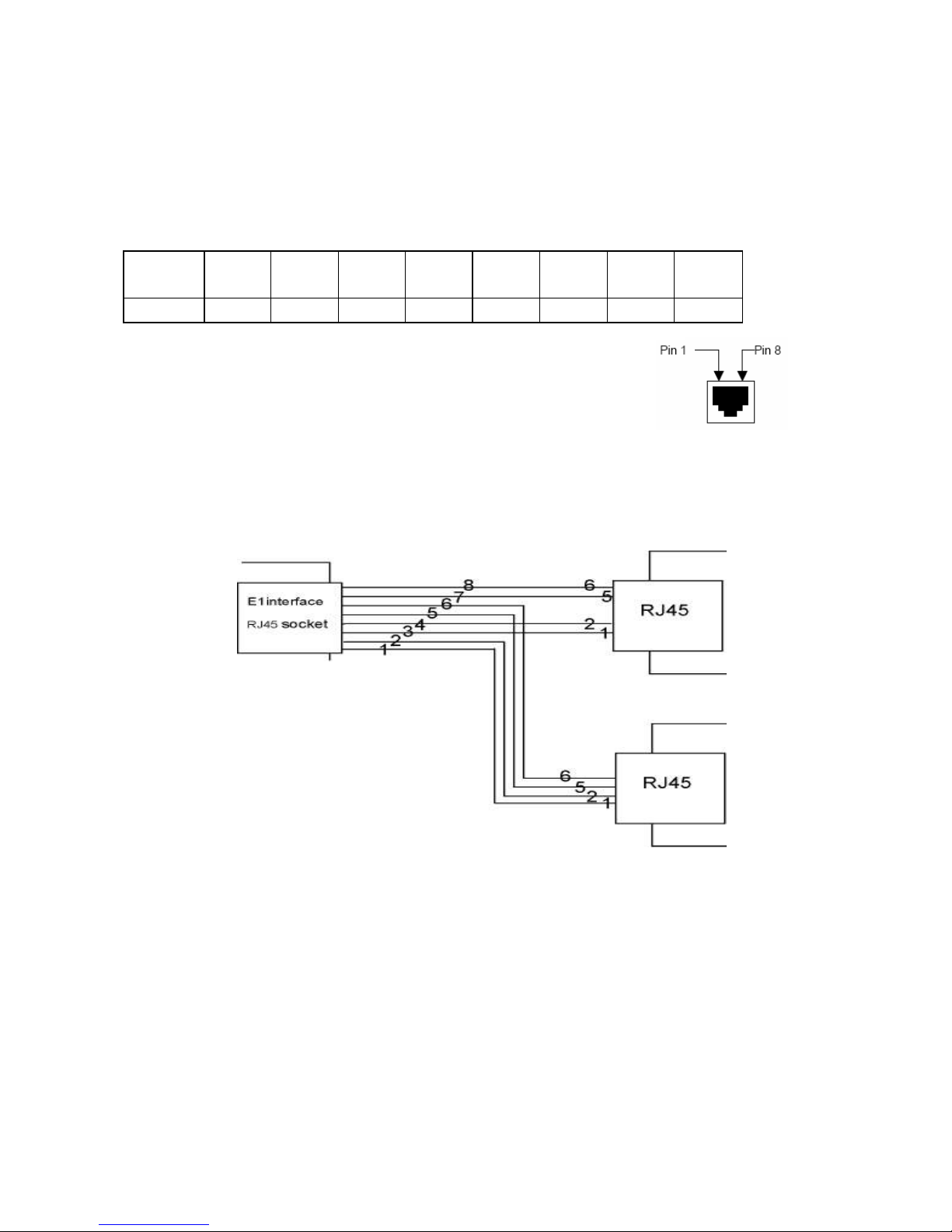

Pin 1, 2 for output of first E1 channel, pin 5, 6 for input of first E1 channel
Pin 3, 4 for output of second E1 channel, pin 7, 8 for input of second E1 channel
L/R LOS1 (Local/Remote Lose Signal of first E1)
E1 alarm of first E1 channel, the red alarm indicator will be lightened when E1 input
loss of frame occurs at the local site; it flashes when E1 input loss of fra me occurs at
the remote site. There is no alarm, when no E1 input loss of frame of local and remote
site.
L/R LOS2 (Local/Remote Lose Signal of second E1) :
E1 alarm of second E1 channel, definition is same as above.
3.2 Dip-switch
3.2.1 SW1 for Working Modes

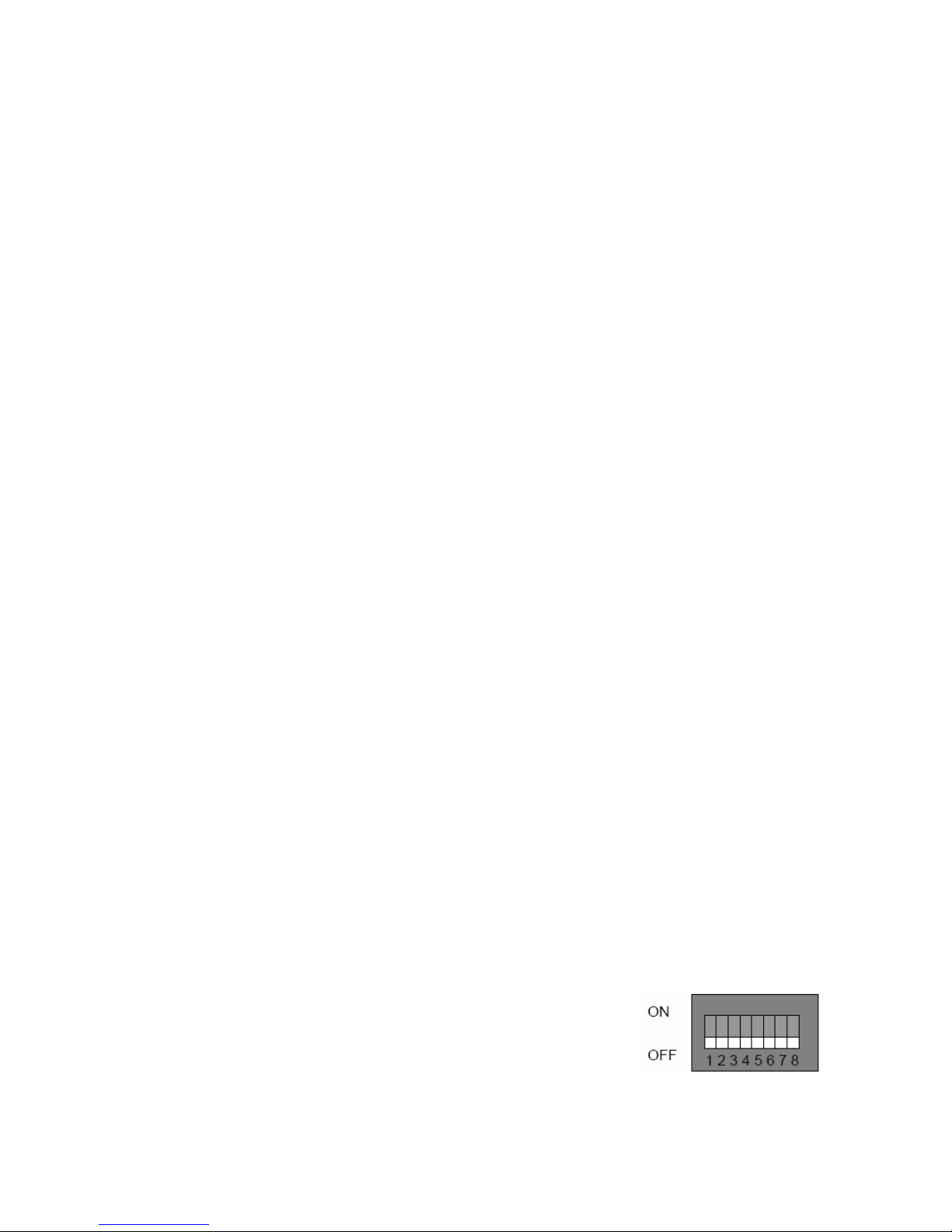

SW1 is an 8-bit DIP-switch, as the figure on the right
- 4 -
Dynamix Co., Ltd
Switch OFF (default status) ON
1 Enable Ethernet interface auto-sensing
Disable Ethernet interface autosensing
2
a) Ethernet forced 100M when
auto-sensing disabled b)Invalid when
auto-sensing enabled
a) Ethernet forced 10M when
auto-sensing disabled b) Invalid when
auto-sensing enabled
3
a) Ethernet forced full duplex when
auto-negotiation disabled b) Ethernet
forced full duplex when autonegotiation failed; invalid when autonegotiation success
a) Ethernet forced half duplex when
auto-negotiation disabled b) Ethernet
forced half duplex when autonegotiation failed; invalid when auto-
negotiation success
4 Fault Pass Through disabled Fault Pass Through enabled
5 Enable MDI/MDIX auto-negotia tion
Disable MDI/MDIX auto-negotiation.
Straight-through cable shall be used to
connect to Switch; crossover cable
shall be used to connect to NIC and
Routers
6 First E1 link normal working mode First E1 link remote loop-back
7 Second E1 link normal working mode Second E1 link remote loop-back
8
Auto recognition of network
management channel
Forced remote network management.
Please configure as per the network
topology.
Priority of configuration and command of network management software is higher than
configuration of SW1. Configuration of SW1 is invalid when using network management
software to configure.
Note: The other dip-switch SW2 is a 2-bit switch, which shall be used by manufacturing
people. Users are not advised to change the default status.
3.2.2 Fault-Pass-Through Capability Explanation
When Fault-Pass-Through capability is enabled, there are 3 situations that we call it a link
fault.
1. The equipment will monitor the status of remote Ethernet interface. When it
changes to link down from link up, we take it as a link fault of remote Ethernet. At
the same time, the status of local module will change to link down form link up. It
will not be recovered until the fault disappears at remote site.
2. The equipment will monitor the status of remote E1 interface. When it changes to
loss of signal status from normal, we take is as a link fault of remote E1 link. At the
mean time, the equipment will cut off the transmission of local E1 interface but not
send AIS signal. The local E1 interface will not recover until the fault disappears at
- 5 -
Dynamix Co., Ltd
remote site.
3. The equipment will monitor the status of optical link, either transmitting alarm or
receiving alarm will be taken as an optical link fault. At the mean time, the Ethernet
interface status will change to link down and the E1 interface will be cut off. The
Ethernet interface and E1 interface will not recover until the optical interface
recovers.
The fault-pass-through capability is designed for users who have particular requirements.
When it is disabled, any fault at remote site and at optical interface has nothing to do with
local interfaces; all the interfaces of local module will be open.
In order to avoid misunderstanding, users are advised to use it cautiously. The factory
default status is disabled.
3.2.3 E1 Remote Loop-back Test

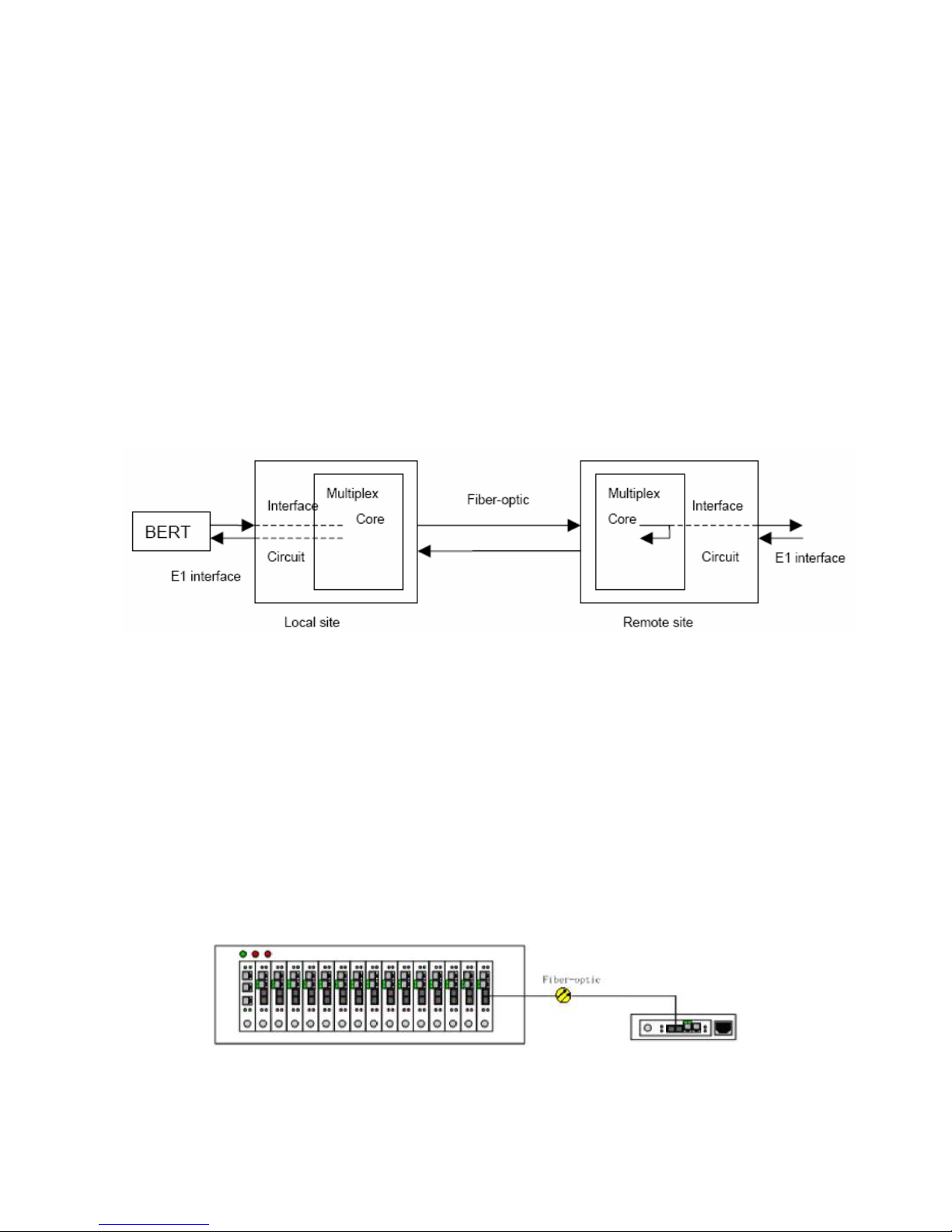

"E1 remote loop-back" setup at local Ethernet Multiplexer
Note: when setup any kinds of loop-back at the local Ethernet Multiplexer, the "remote
loop-back" switch at remote Ethernet Multiplexer must be at default status. When the
module is at E1 remote loop-back status, the Ethernet data communication will not be
interfered.
3.2.4 How to Implement Remote Network Management

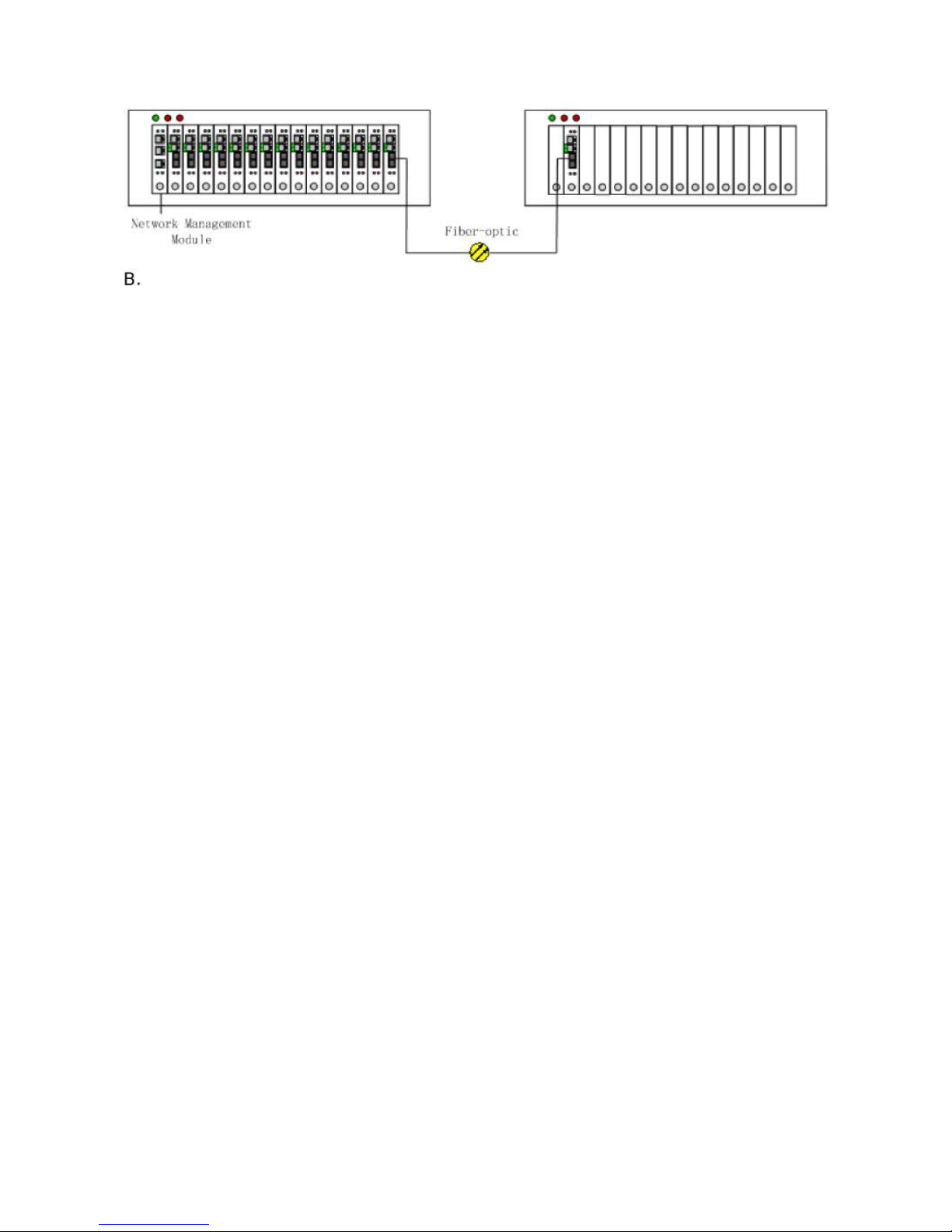

When the equipment is connected as the following topology, the remote network
management can be implemented.
A.
The host-site module is installed in Dynamix's dedicated 16-slot 3U-high chassis,
which also has the network management module installed. The remote-site module
is installed in Dynamix's single slot chassis.
- 6 -
Dynamix Co., Ltd
The both modules are installed in 16-slot 3U-high chassis, but only the host-site
chassis is equipped with network management module. The remote-site module
shall be set to "forced remote network management mode". That is to say, the 8
th
switch shall be turned to ON.
4. Installation and Test
4.1 Inspect after Opening
Please first check if the models and part numbers are in consistence, and also check if the
equipments are damaged.
4.2 Preparation before Installation
• Carefully read this manual
• Prepare all kinds of the cable. Ensure that they are not short-circuited. Refer to
Appendix A for cable making.
• Ensure the pressure of power supply is in the tolerance range, the chassis is well
connected with the ground.
• Prepare the BERT and optical power meter for test of line quality.
• Place the equipment at stable and secure environment. Pay attention to the
requirements of the ambience.
4.3 Installation
This module can be installed into Dynamix's dedicated 16-slot 3U-high chassis, 4-slot
1 U-high chassis, and single slot chassis. Slowly insert the module into the slot to the end,
and fasten the fixing screw tightly.
4.3.1 Connecting the Cables
• E1 Interface:
RJ45 socket, 120 Ohm balanced signal.
- 7 -
Dynamix Co., Ltd
Pin 1, 2 for output of first E1 channel, pin 5, 6 for input of first E1 channel
Pin 3, 4 for output of second E1 channel, pin 7, 8 for input of second E1 channel
• Ethernet Interface
Connect with Cat. 5 or hyper Cat. 5 twisted-pair cables. Either straight-through or
crossover cable is OK.
• Optical Interface
Plug the tail fiber into the fiber socket to the end.
4.3.2 Function Configuration
After connecting the cables and applying the power supply, there shall not be alarms at
the optical interface.
If users want to configure the dip-switches, first unplug the module from the chassis and
then use a flat screw-driver to set switches.
5. Troubleshooting
If there is any problem during installation and operation, please try the following solutions. If
the problem still cannot be solved, please contact distributors for technical support. The
following explanations and solutions to optical and E1 LOS alarms are for the local
module. If the alarms are at the remote site, please solve them at remote site.
• Power (PWR) indicator (Green) is not ON
Answer: Power supply fails. Check whether the power supply is working properly
• LAL indicator (Red) at optical interface is ON
Answer: Loss of signal at the optical interface. Check whether the input of optical fiber is
connected properly. Users can test the optical power using optical power meter. The optica l
power shall be larger than the receiving sensitivity.
• E1 sub-channel L/R LOS indicator (Red) is ON
Answer: The local E1 sub-channel receiving signal is lost. If the indicator is flashing, it
means the remote E1 sub-channel receiving signal is lost. Please check if the E1 interface
is well connected.
- 8 -
Dynamix Co., Ltd

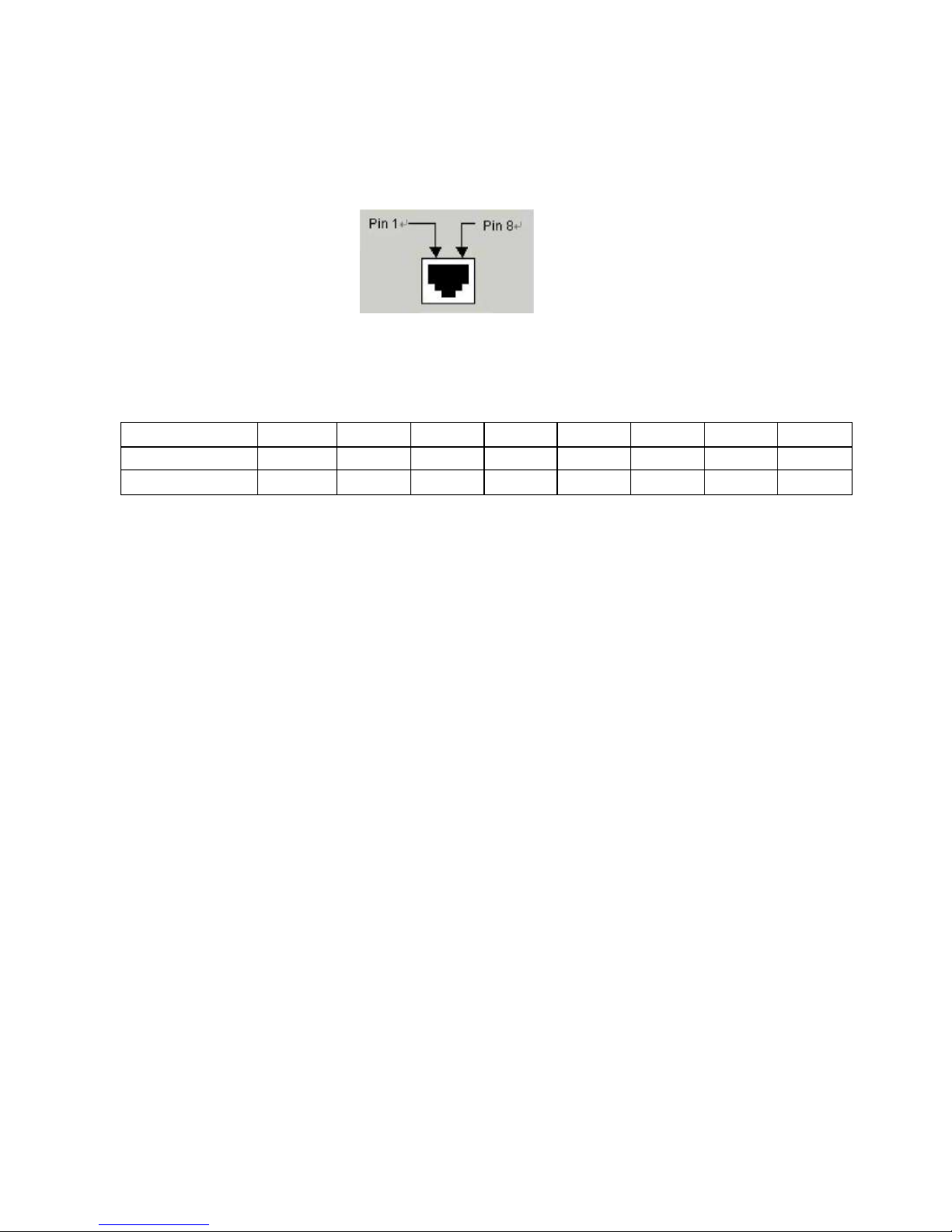

6. Appendix A Cable Making
A.1 E1 Cable Making
Pin
Number
1 2 3 4 5 6 7 8
Definition OUT1 + OUT1- OUT2+ OUT2- IN1 +
IN1-
IN2+
IN2-
When user needs balanced signal, modules can be connected
to 120ohm balanced E1 interface of other equipment as per
above table.
When user needs 75ohm unbalanced E1 interface, twisted-pair
can be connected to E1 impedance converter. RC909-1E1 is single E1 channel impedance
converter of Dynamix. Following is connecting figure of FIBERMIX 2201-60/ FIBERMIX
2401-60/ FIBERMIX 2601-60 and RC909-1E1
BNC
BNC
- 9 -
FIBERMIX 2201-60
FIBERMIX 2401-60
FIBERMIX 2601-60
Dynamix Co., Ltd
A.2 Ethernet Cable Making
Use Cat.5 twisted-pair cable with RJ45 connector to connect this
equipment. Note that the cable shall not be longer than 100 meters.
The cable can be either straightthrough or crossover. The sequence
of the RJ45 connector is as follows.
Pin Number
1 2 3 4 5 6 7 8
MDI Definition
TX+ TX- RX+
Not Used Not Used
RX-
Not Used Not Used
MDI-X Definition
RX+ RX- TX+
Not Used Not Used
TX-
Not Used Not Used
Loading...
