Preface

About this User’s Manual

This user’s guide includes specifications, installation guide, web management and command line configuration interface for the Dynamix IAD -162 VoIP Gateway .

This part introduces the software/hardware specifications and default settings of the IAD Gateway.

Dynamix IAD-162 Gateway

Part I:

Dynamix

IAD-162 Gateway Overview

- 1 -

Dynamix IAD-162 Gateway

1.1 Overview

Dynamix IAD-161 is a one-port telephone extension and three ports SOHO Router to IP network gateway. It provides Data transfer by 10/100Mbps, telephone services and T.38 fax over IP network with easily operation and configuration. It is most suitable for SOHO and small-to-medium enterprise in Internet communication environment.

Dynamix IAD 162 provides two telephone numbers that one is IP telephone number and the other is PSTN telephone number in one device for end users. You can make phone call via Internet or PSTN in one telephone set now. No more long distance and international telephony fee! Especially, User still can make phone call when external power is failure.

Dynamix IAD also can connect three computers with embedded IP sharing and DHCP server function.

- 2 -

Dynamix IAD-162 Gateway User Manual

1.2 Software Specifications

Dynamix IAD-162 Gateway Features



Provide Voice over IP and Fax over IP features.



Built-in NAT/IP sharing function



FSK and DTMF Caller ID



Transmit Voice and T.38 fax simultaneously



Support T.38 ECM function (Error Correction in high speed fax Mode)



Provides call progress tone



E.164 Common Dial Plan



DTMF Dialing



Inband/ Out of band DTMF



TFTP/FTP software upgrade



Remote configuration/reset



LED indication for system status



Support Static IP, DHCP and PPPoE



Set the ring back tone from the IP or local



FAX redundancy support



RAS and Signal port exchangeable



GK id support and GK auto discovery



Provide both IP telephone number and PSTN telephone number in one device for end users (IAD 162 only)



PSTN backup: user still can make phone call when external power is failure

(Dynamix IAD -162 only)

Audio feature



Codec: G.711 a/μlaw, G.723.1 (6.3kbps), G.729A, G.729B, G.729AB



VAD (Voice Activity Detection)



CNG (Comfort Noise Generate)



G.168/165-compliant adaptive echo cancellation



Dynamic Jitter Buffer



Bad Frame Interpolation



Voice/DTMF Gain Settings



Generate Caller ID (DTMF or FSK)



Provide In-band or Out-band DTMF generation/detection



Provide Progress tone

System Monitoring



System status (WAN, LAN, TEL, Status, Power)

- 3 -

Dynamix IAD-162 Gateway User Manual

Remote Firmware Upgrade

You can use FTP/TFTP to perform firmware upgrade for the Dynamix IAD-162 Gateway from a remote location.

Security



Password protection for system management



Built-in NAT function.

Certification



CE, FCC

1.3 Hardware Specifications

Chassis



190mm(W) x 110mm(D) x 51.5mm(H)



Weight (unit): 0.3 kg

Interface



Four 10/100 Base-T Ethernet RJ-45 ports (Auto LAN MDI/MDIX).



Input AC 100V-240V, Output DC 12V.



One/Two RJ11 Telephone Port (IAD).

Special Housing



The plastic housing can be adjustable by manual (Vertical type or Horizontal

type)

Environment



Operational Humidity: 10 to 90 % (Non-condensing)



Operational Temperature: 0 to +40 °C



Storage Humidity: 10 to 90 % (Non-condensing)



Storage Temperature: -10 to +50 °C

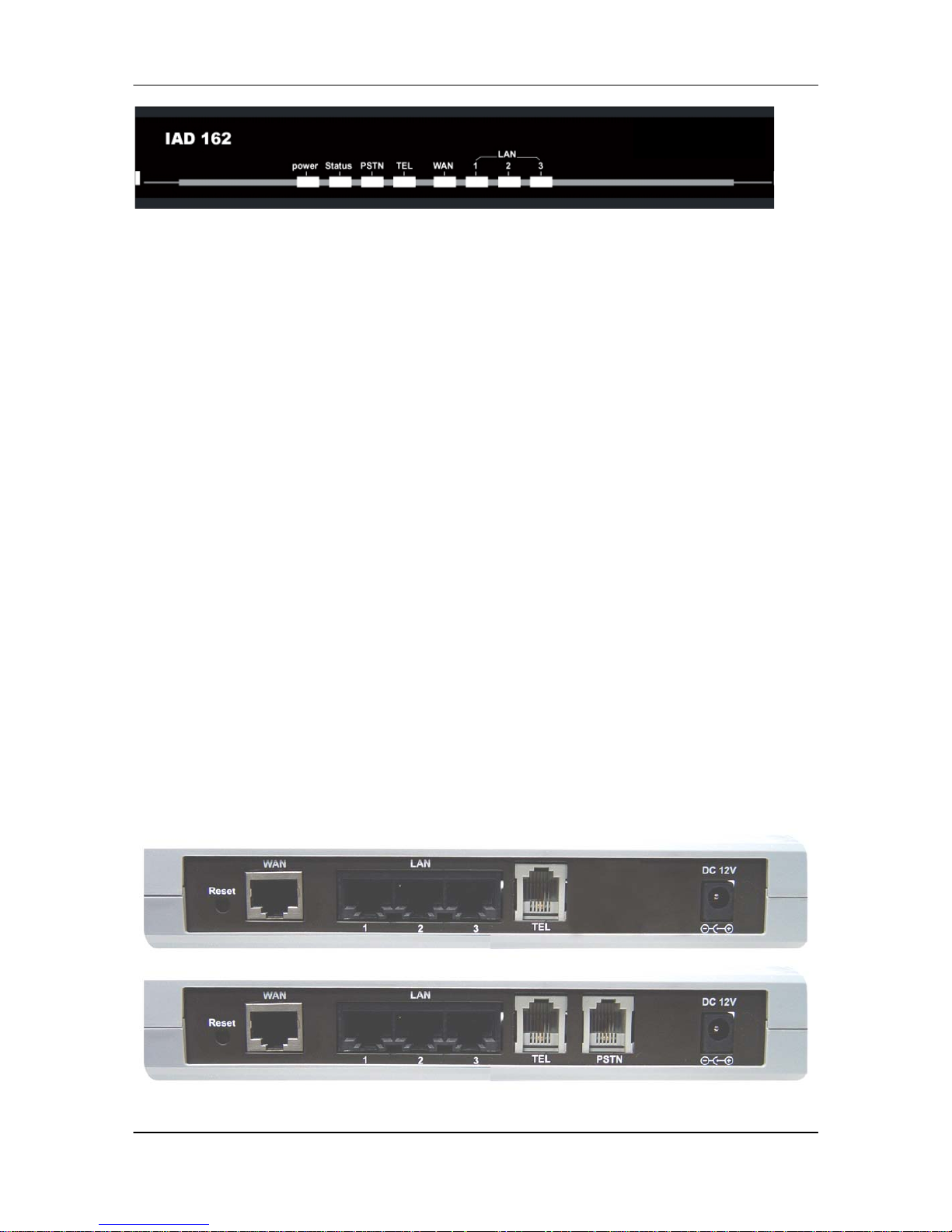

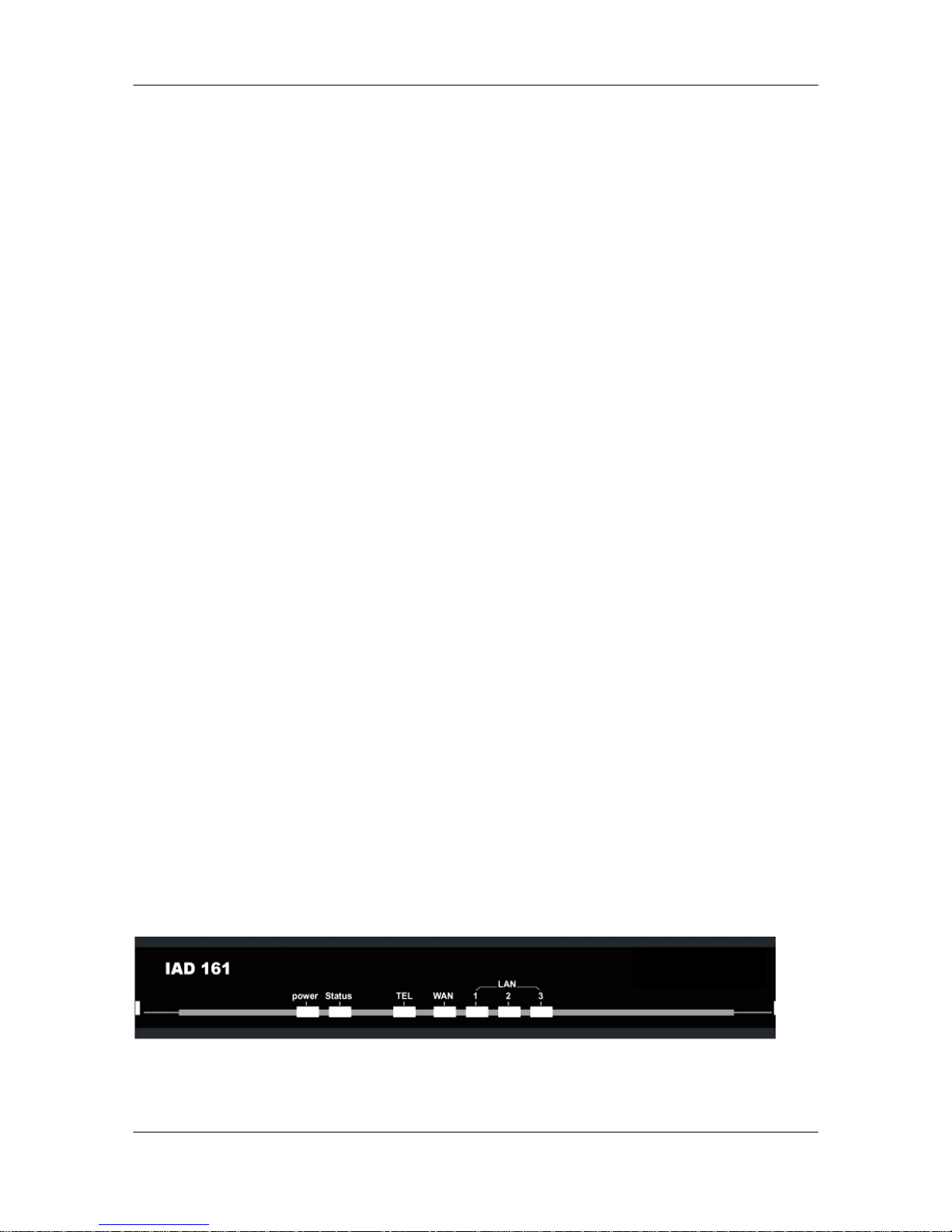

Front Panel

The LEDs on the front panel indicate the operational status of the Gateway.

- 4 -

Dynamix IAD-162 Gateway



Power (Green):

(1) Light on: IAD is connected with power adapter correctly and power on. (2) Light off: IAD is not connected with power adapter correctly or not power

on.



Status (Green):

(1) Light on: IAD is under Gatekeeper mode and successfully register to

Gatekeeper. (2) Light off: Under Peer-to-Peer mode. (3) Light Blanking: IAD is under Gatekeeper mode and not successfully



TEL (Orange):

(1) Light Blinking: IAD IP side has incoming call. (2) Light On: IAD IP side is in communication. (3) Light Off: IP Line of IAD is in standby mode.



WAN/LAN (Green):

(1) Light on: Ethernet port successfully connected with network. (2) Light Blanking: Ethernet port is transmitting or receiving data.



PSTN (Orange): (IAD 162 only)

(1) Light Blinking: IAD IP side has incoming call. (2) Light On: IAD PSTN side is in communication. (3) Light Off: PSTN Line of IAD is in standby mode.

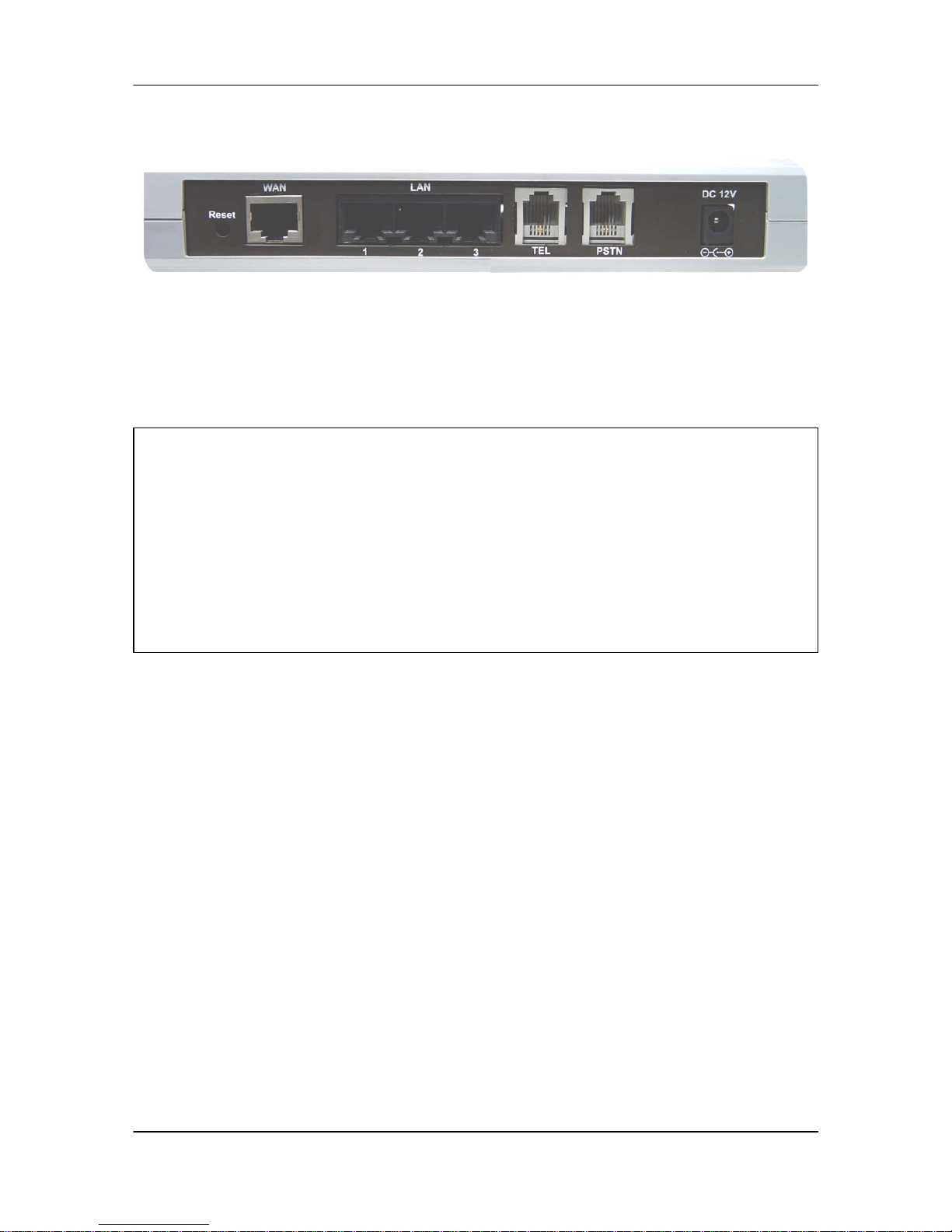

Back Panel

- 5 -

Dynamix IAD-162 Gateway



Reset Button:

All of the configuration, including network interface configuration, can be back to default value by pressing Reset Button.



Ethernet Port:

Ethernet port is for connecting VoIP Gateway to network, transmit rate supports 10/100 Base-T.

Ethernet connector

（

LAN/WAN

）



TEL Port:

RJ-11 connector, IAD interface to connect analog phone sets or trunk port of PABX.



PSTN Port (IAD 162 Only):

RJ-11 connector, IAD interface to CO PSTN line or extension port of PABX.



DC 12V Port:

DC 12V Power supply.

- 6 -

This part explains how to configure essential and basic items before user can run Dynamix IAD-162 Gateway

Dynamix IAD-162 Gateway

Part II: Start-UP

- 7 -

Dynamix IAD-162 Gateway

2.1 Software Installation Guide

This guide covers all essential configurations under different application, user can follow steps below to configure basic items to run Dynamix IAD-162 Gateway.

2.1.1 Default Settings of Dynamix IAD-162 Gateway

WAN IP Parameters

(1) WAN



IP Address = 10.1.1.3



Subnet mask = 255.0.0.0



Default gateway = 10.1.1.254

(2) LAN



IP Address = 192.168.123.123



Subnet mask = 255.255.255.0

Telnet and Web Login Password



Password = “Null” (default)

2.1.2 Additional Installation Requirements

In addition to the contents of your package, there are other hardware and software requirements you need before you can install and use your Dynamix IAD162 Gateway. These requirements include:

1. A computer with an Ethernet NIC (Network Interface Card) installed.

2. Use Internet Explorer 5.5 or later / Netscape Navigator 6 or later versions.

3. Analog telephone set.

4. Software tools: H323 Gatekeeper (optional)

5. Installation Wizard (optional): This is a configuration tool for users can easy access products and configuring IP address. Please contact with your retailer for more information.

Please follow steps below to access IAD configuration interface:

Step 1.Connect WAN Port of Dynamix IAD-162 Gateway to public network

Connect the WAN port (silver) on the Dynamix IAD-162 Gateway to the Ethernet port of your network (e.g. Cable Modem, ADSL Modem) using the standard CAT-5 straight Ethernet cable.

- 8 -

Dynamix IAD-162 Gateway

Step 2. Connect your PC to the LAN port of IAD

Connect your PC to the LAN port of IAD with standard CAT-5 straight Ethernet cable.

Step 3. Set your PC as DHCP mode

Please go to the network setting of your PC and set it as DHCP mode, let your PC can automatically search for DHCP server and get one valid IP address. IAD has embedded DHCP server (default is enabled) so that your PC will get one IP address from IAD DHCP server.

Step 4.Open your browser and input IP address 192.168.123.123

Once your PC has got an IP from IAD, you may connect IAD via WEB browser to do more configurations. The default LAN IP address of IAD is “192.168.123.123”; please input this IP address on web browser to connect with web management interface. Please refer to Part III Web management for more information.

Step 5.Advanced Setting via Telnet (Optional)

If user wants to do more advanced and complete settings that cannot be found via web management interface, please Telnet to the IAD to do more detail configurations.

Step 6.Connect other PC with LAN Ports (Optional)

If you have more than one PC, you can connect them with LAN Ports (black) on the Dynamix IAD-162 Gateway. Please set these PCs as DHCP mode so that they can automatically get IP from IAD DHCP server. DHCP server of IAD can assign 253 IP most.

Caution: To prevent damage to the Dynamix IAD-162 Gateway, please make sure

you have connected with the correct power adapter.

2.1.3 Essential Configuration via Web Management interface

This section describes how to setup IAD via Web management interface. Please follow procedures below to configure essential items before you use Dynamix IAD-162 Gateway.

2.1.3.1 Save Data and Reboot

After any configuration has been made, user has to save all data and reboot system to make configurations take effect.

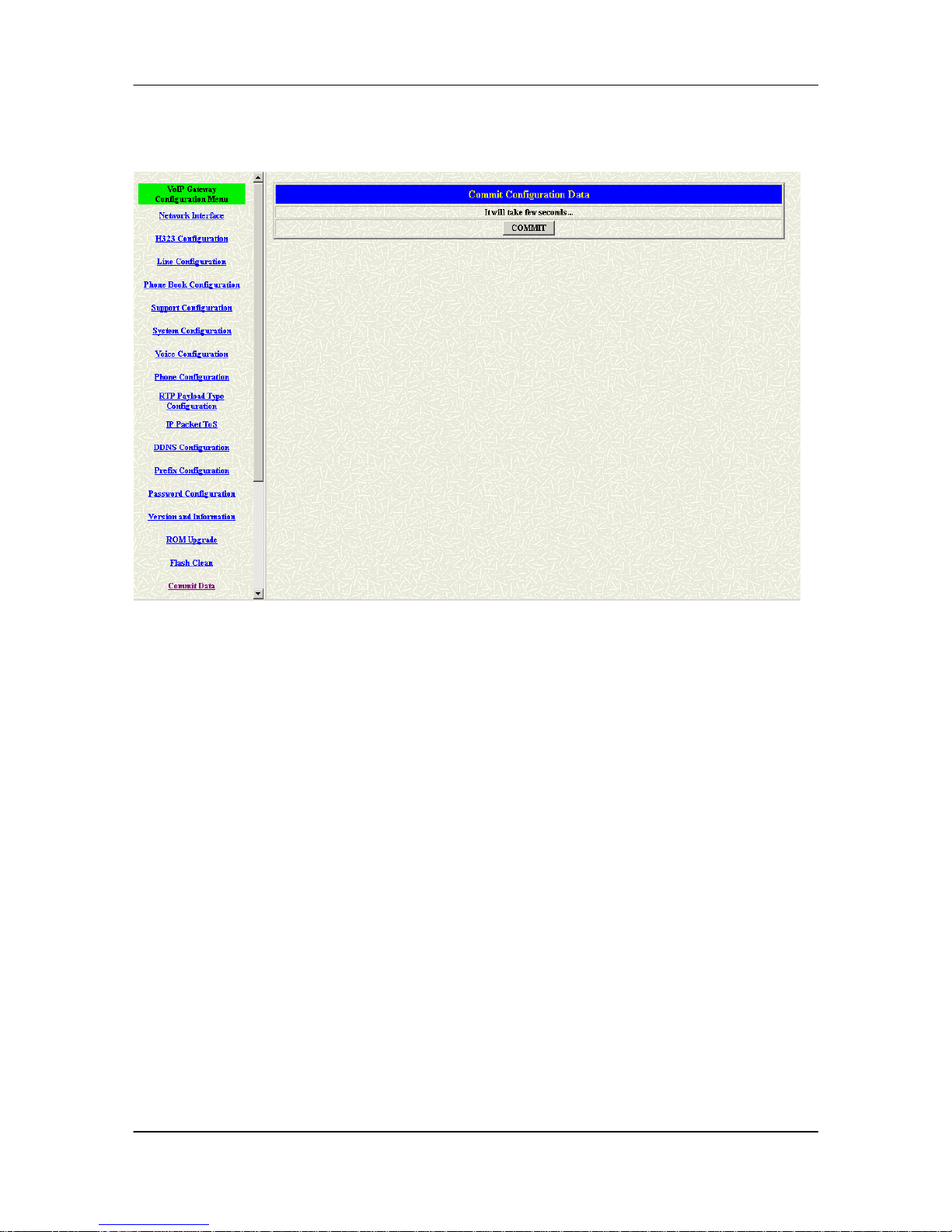

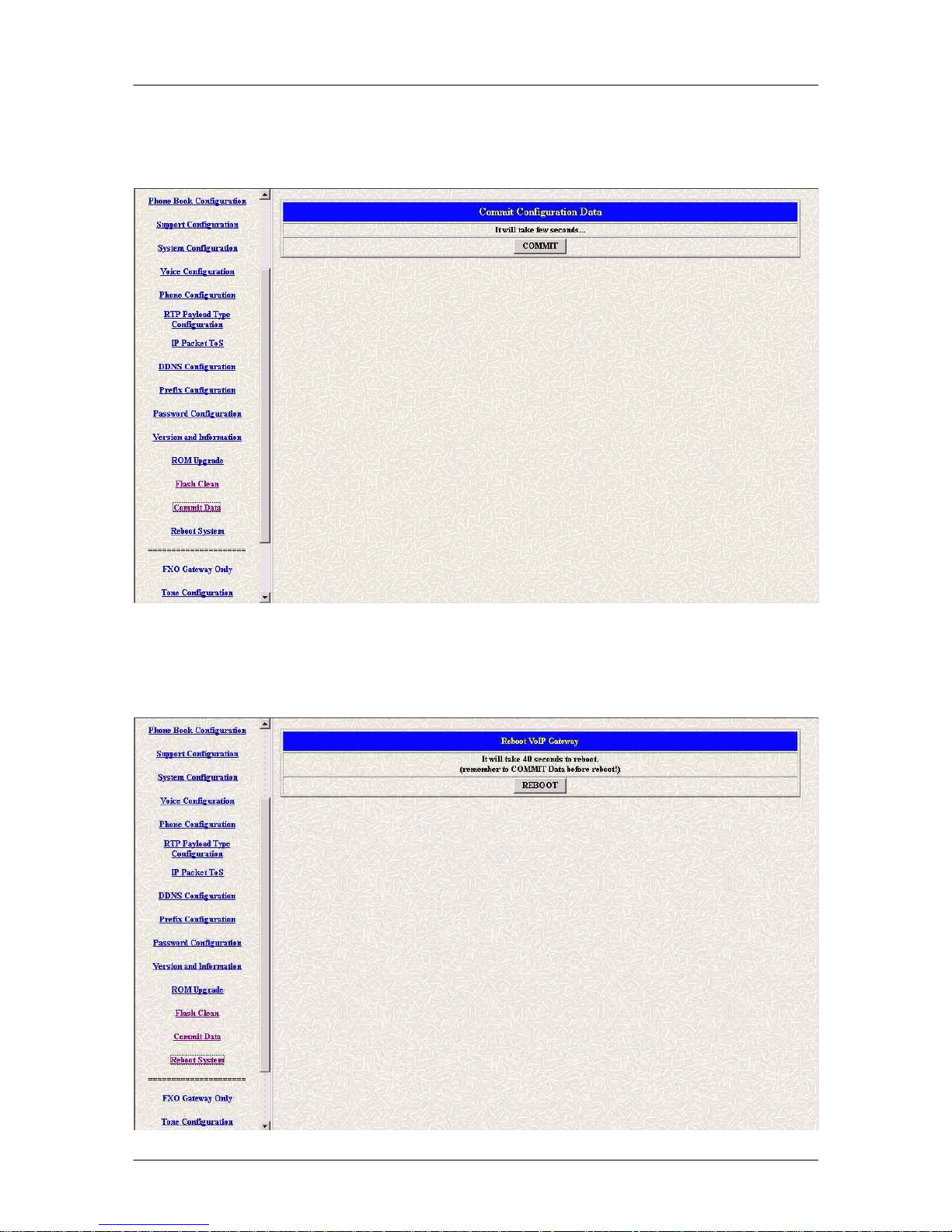

Step 1. Click [Commit Data] on the navigation panel. In the Commit Configuration

- 9 -

Dynamix IAD-162 Gateway

Data screen, click the [Commit] button. In the Commit Configuration Data screen will Display [Commit to Flash OK!], when IAD finished committing data.

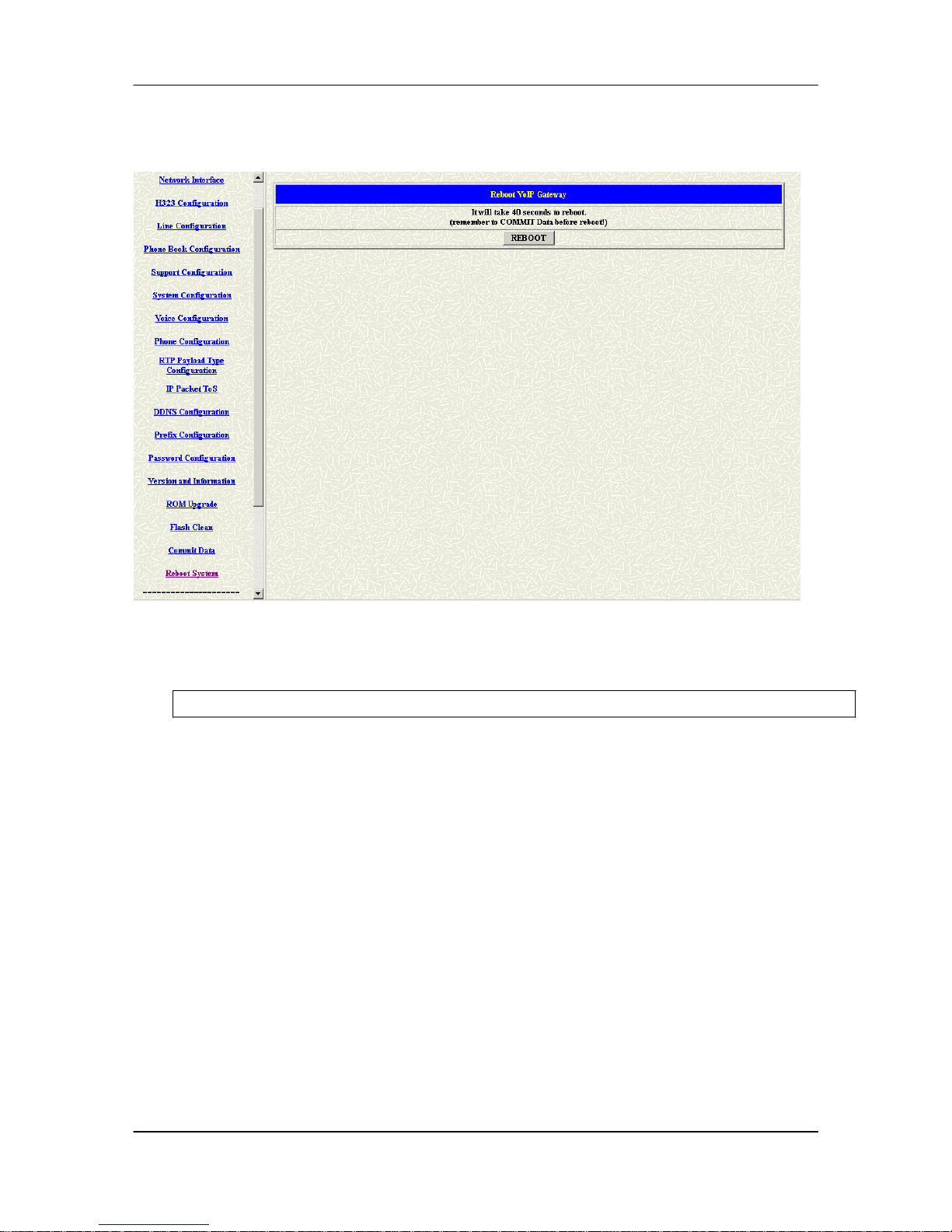

Step 2. Click [Reboot System] on the navigation panel. In the Dynamix IAD-162

Gateway screen, click the [Reboot] button. It will take around 40 seconds to reboot.

- 10 -

Dynamix IAD-162 Gateway

Step 3. Close the current browser windows and launch your web browser again.

- 11 -

Dynamix IAD-162 Gateway

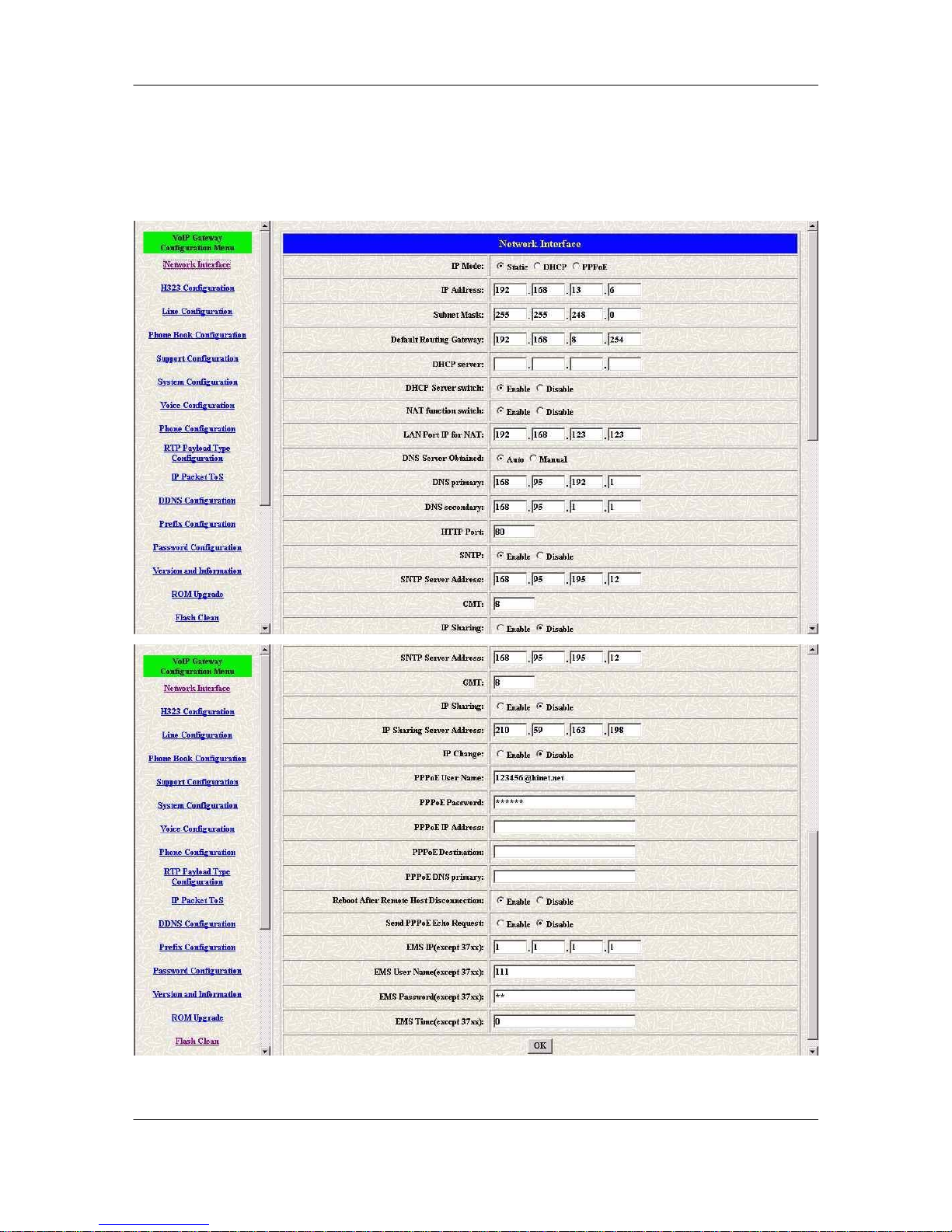

2.1.3.2 Setup Network

(1) Fixed IP

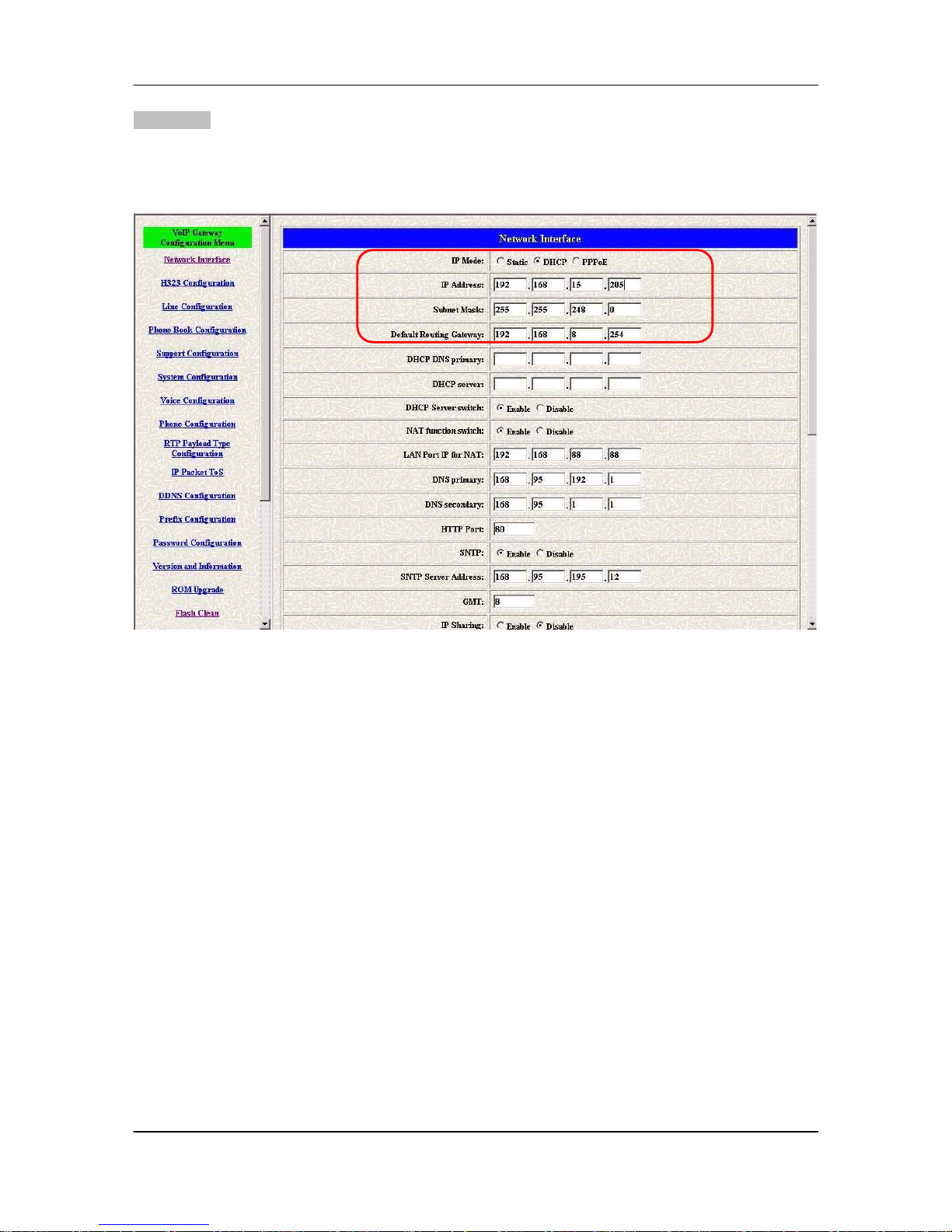

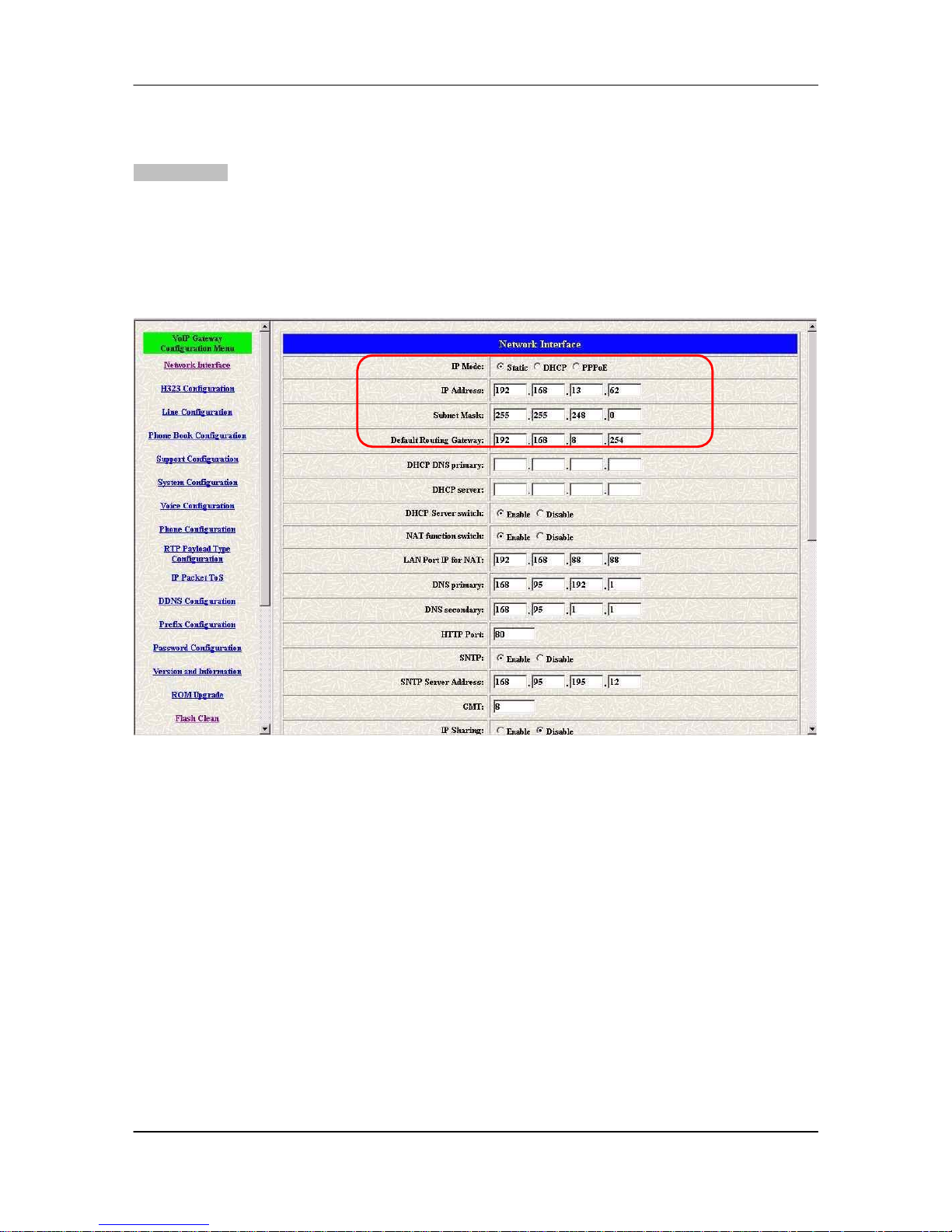

To configure the VoIP Gateway IP address, please click [Network Interface] on the navigation panel. In the Network Interface screen, type a new IP address, subnet mask and the default routing gateway (e.g. IP Address: 192.168.13.62, Subnet mask: 255.255.248.0, Default routing gateway: 192.168.8.254) and click the OK button.

- 12 -

Dynamix IAD-162 Gateway

(2) DHCP

Click [Network Interface] on the navigation panel. In the Network Interface screen, enable the DHCP function if you are using the cable modem or DHCP server and click the [OK] button.

- 13 -

Dynamix IAD-162 Gateway

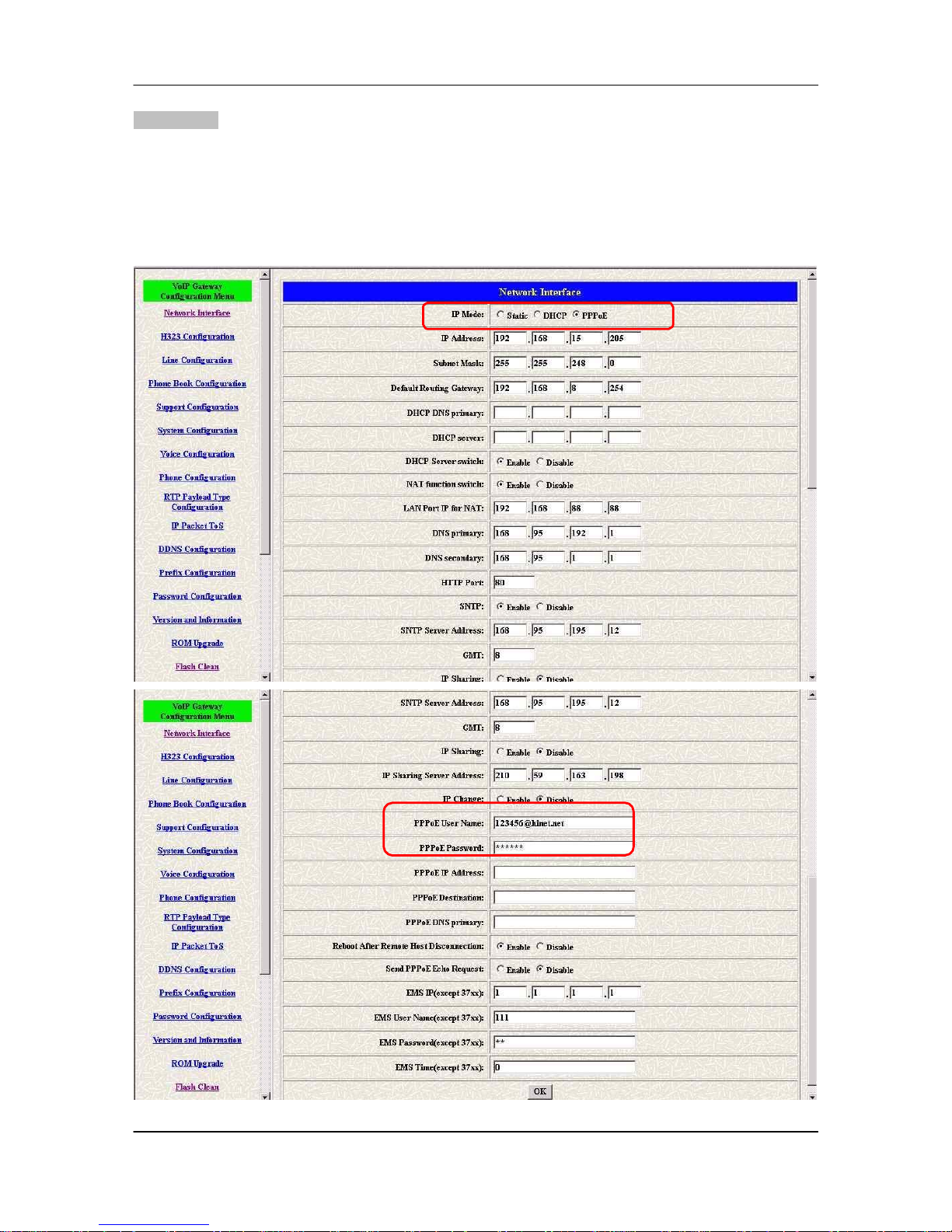

(3) PPPoE

Configuring the VoIP Gateway IP address for PPPoE Mode. Click [Network Interface] on the nav igation panel. In the Network Interface screen, Select IP mode: PPPoE, and put the info of the PPPoE User Name, password, and Reboot After Remote Host Disconnection: Enable (e.g. User: 123456@hinet.net, password: 123456) and click the [OK] button.

- 14 -

Dynamix IAD-162 Gateway

- PPPoE User Name: Set PPPoE authentication User Name.

- PPPoE Password: Set PPPoE authentication password.

- Reboot After Remote Host Disconnection: Enable/Disable auto reboot after

PPPoE disconnection. If user enables this function, after PPPoE being disconnected, IAD will automatically reboot to re-connect, and after rebooting, if IAD still can’t get contact with server, IAD will keep trying to connect. After re-connected, IAD will also restart system. On the other hand, if user disables this function, IAD won’t reboot and keep trying to connect.

- Other PPPoE items: for reference only, cannot allow to be configured.

- 15 -

Dynamix IAD-162 Gateway

2.1.3.3 Application mode-GK/Peer-to-Peer Mode

After setting IP address, user must assign IAD to work under GK routed mode or Peer-to-Peer mode. If there is no Gatekeeper, please set your IAD as Peer-to-Peer Mode.

2.1.3.3.1 GK routed mode GK mode means that there will be an intermediate Gatekeeper between Dynamix IAD-162 Gateway and the remote entity. While operating at this mode, Dynamix IAD162 Gateway will first register to the Gatekeeper located at the ISP side. Step 1. Configure the Dynamix IAD-162 Gateway H323 Configuration. Click [H323

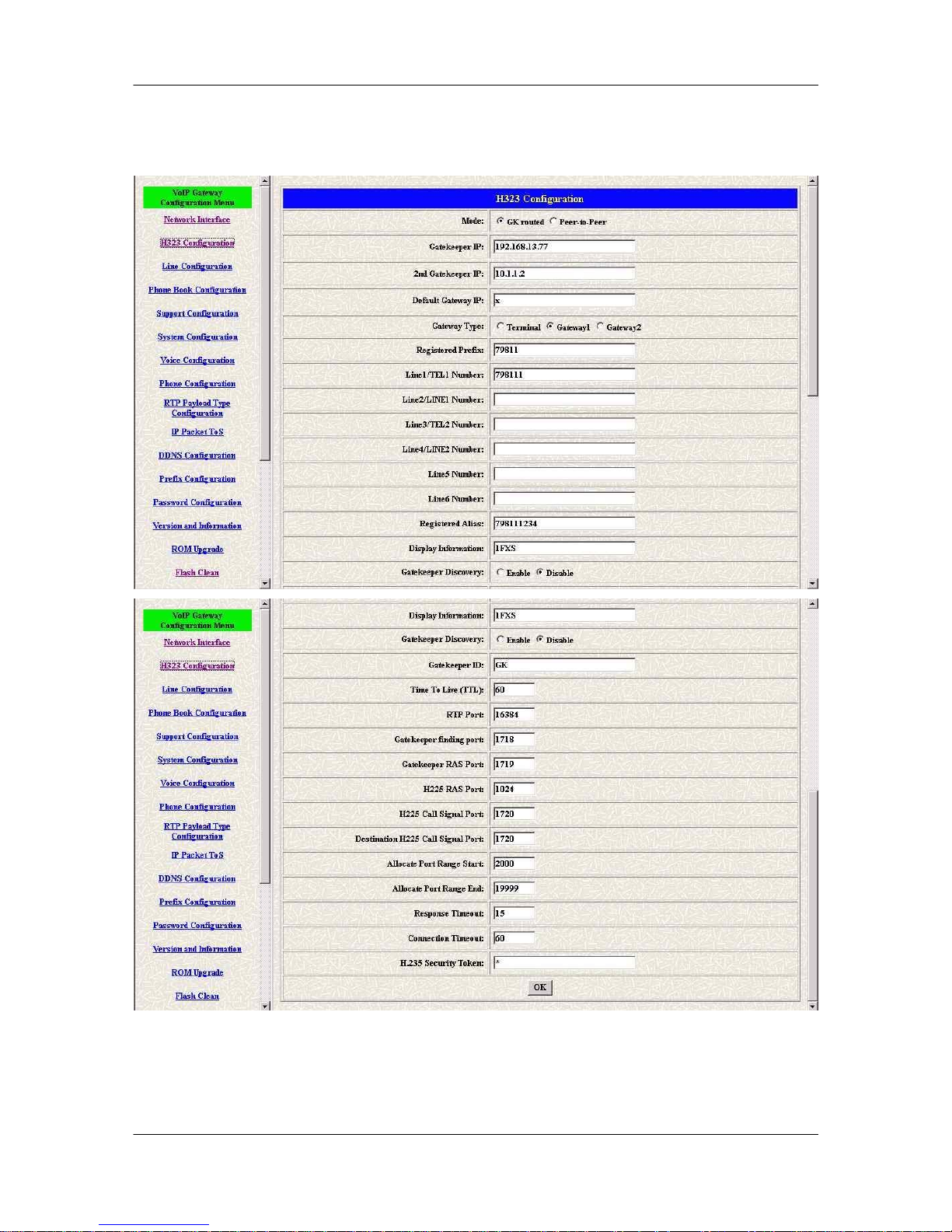

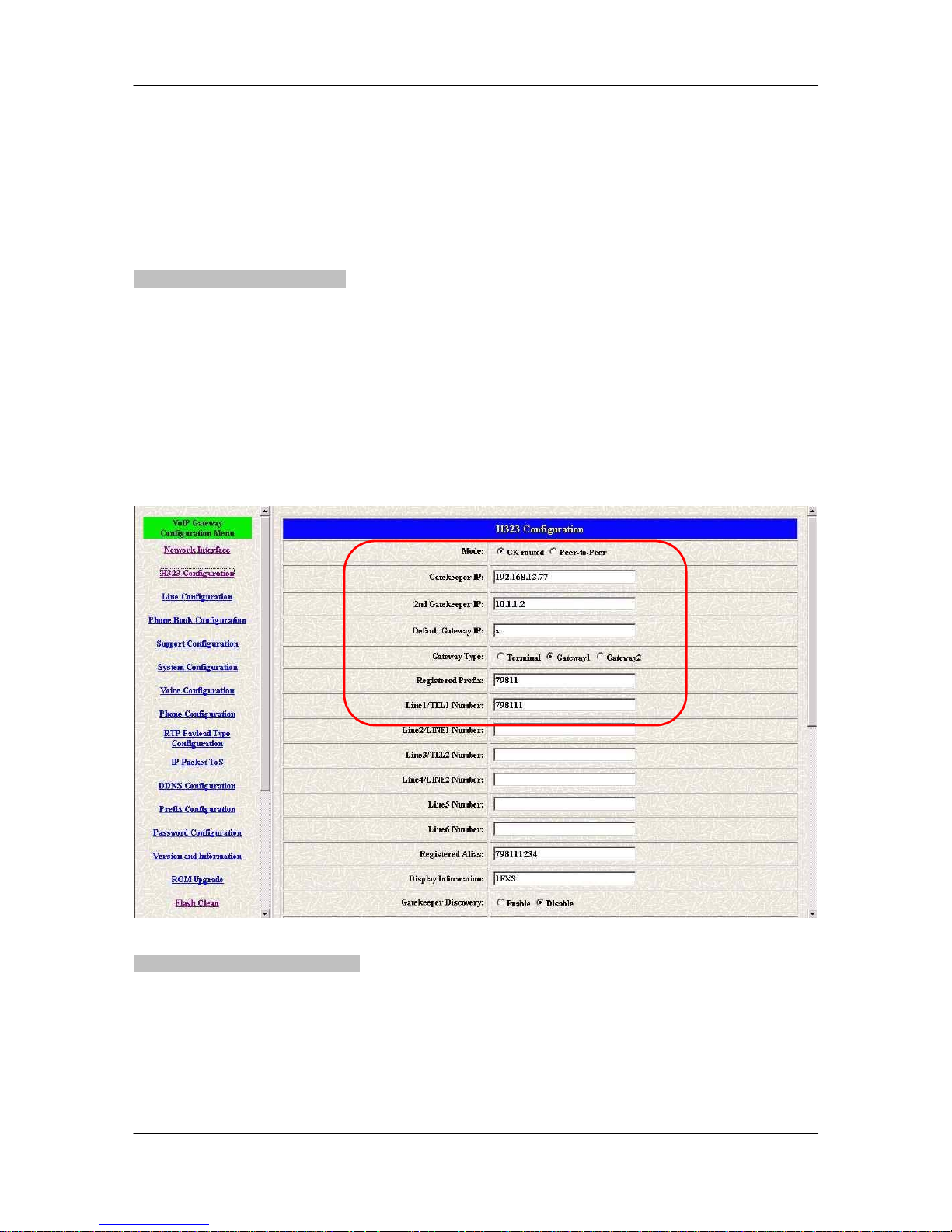

Configuration] on the navigation panel. In the H323 Information screen, select GK routed Mode function.

Step 2. Set the H323 information from your service provider: Gatekeeper IP Address,

Gateway Type, Registered Prefix, Line1 Number, and click the [OK] button.

2.1.3.3.2 Peer-to-Peer Mode Peer-to-Peer Mode allows users to call other VoIP devices without the

Gatekeeper. When in Peer-To-Peer mode, Dynamix IAD-162 Gateway use Phone Book, which will dial predefined phone number, and press “#” (optional, to accelerate the dial) as end of dial.

- 16 -

Dynamix IAD-162 Gateway

To configure Peer-To-Peer Mode in Dynamix IAD-162 Gateway, follow the steps below:

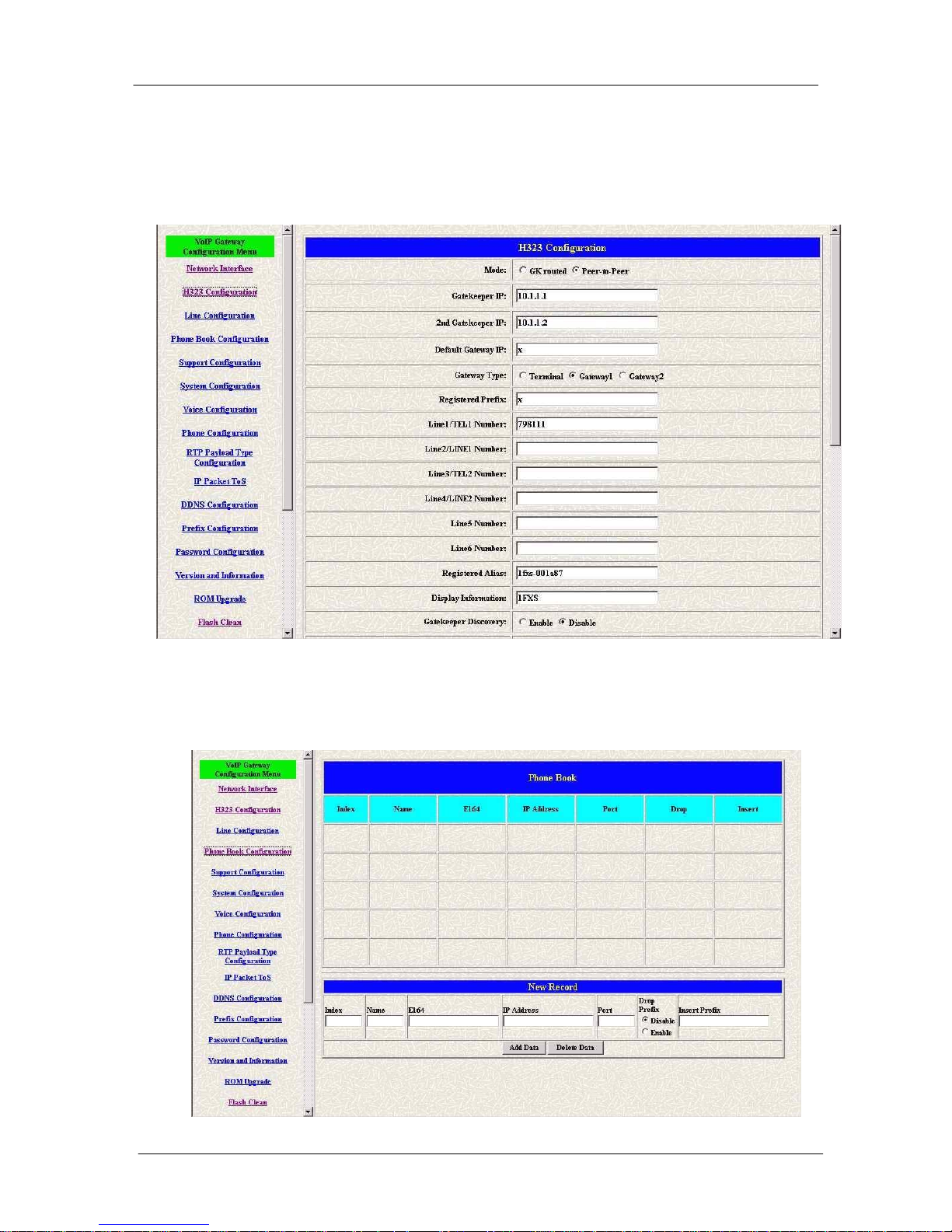

Step 1. Configure the Dynamix IAD-162 Gateway H323 Configuration. Click [H323

Configuration] on the navigation panel. In the H323 Configuration screen, select Peer-to-Peer Mode function, set Line1 number and click the [OK] button.

Step 2. Configure Phone Book in the IAD Gateway. Click [Phone Book] on the

navigation panel. In the Phone Book screen, enter the Index, Name, IP address and e164 (phone number) of the destination and click the Add Data button.

- 17 -

Dynamix IAD-162 Gateway

2.1.4 Essential Configuration via Telnet Command Line interface

This section describes how to setup IAD via Telnet command line interface. Please follow procedures below to configure essential items before you use Dynamix IAD-162 Gateway.

2.1.4.1 Save Data and Reboot

After any configuration has been made, user has to save all data and reboot system to make configurations take effect. Step 1. Confirm the changed configurations, input [commit] and press [enter] key to

save it.

Step 2. Input [reboot] then press [enter] key to restart Gateway. Step 3. After around 40 seconds, Gateway will take effect in new configurations.

Do not turn off your Gateway or remove the Gateway while saving your configuration.

2.1.4.2 Setup Network

Use command [ifaddr] to configure Gateway IP Address and related information.

(1) Static IP

usr/config$ ifaddr –mode 0 usr/config$ ifaddr –ip 192.168.1.11 –mask 255.255.255.0 –gate 192.168.1.254

In this case is to configure Gateway IP Address as [192.168.1.11], subnet mask as [255.255.255.0], default router gateway as [192.168.1.254].

(2) DHCP

usr/config$ ifaddr –mode 1

In this case is to enable DHCP mode of IAD, once IAD reboot system, it will automatically capture IP from DHCP server.

(3) PPPoE

Step 1. To Set PPPoE mode, please use [pppoe] command:

usr/config$ ifaddr –mode 2

Step 2. Input the user id & password provided by your ISP:

usr/config$ ifaddr –id 84460791@hinet (PPPoE login account) usr/config$ ifaddr –pwd 123 (PPPoE login Passowd)

Step 3. Commit and reboot IAD.

- 19 -

Dynamix IAD-162 Gateway

usr/config$ commit usr/config$ reboot

Step 4. When IAD successfully establish PPPoE connection, use command [ifaddr -print] to see detail information.

For example:

usr/config$ ifaddr -print IP mode : PPfPoE PPPoE adapter information

Status : Ready IP address : 61.223.39.135 Destination : 61.223.128.254 DNS primary : 168.95.192.1 Subnet Mask : 255.255.255.255 Authenticate : PAP Protocol

: TCP/IP

Device

: PPP/PPPoE DHCP server switch : Enable NAT function switch : Enable LAN port IP (for NAT) : 192.168.123.123 DNS primary : 168.95.192.1 DNS secondary : 168.95.1.1 HTTP port : 80 SNTP : mode=1

server 168.95.195.12 time zone : GMT+8

cycle=1024 mins IPSharing : no IPSharing device. IP change

: Disable PPPoE user name : 84460791@hinet.net PPPoE password

: ******** PPPoE reboot : Yes PPPoE echo

: Enable EMS IP : 192.168.10.71 EMS user name

: vwusr EMS password

: *****

EMS time : 0

- 20 -

Dynamix IAD-162 Gateway

2.1.4.3 Application mode-GK/Peer-to-Peer Mode

After setting IP address, user must assign IAD to work under GK routed mode or Peer-to-Peer mode. If there is no Gatekeeper, please set your IAD as Peer-to-Peer Mode.

2.1.4.3.1 GK routed mode GK mode means that there will be an intermediate Gatekeeper between Dynamix IAD-162 Gateway and the remote entity. While operating at this mode, Dynamix IAD162 Gateway will first register to the Gatekeeper located at the ISP side.

Step 1. Set GK routed Mode, using “h323” command

usr/config$ h323 –mode 0

Mode 0 is for GK mode, while mode 1 is for Peer-to-Peer mode.

Step 2. Set the H323 information from your service provider: Gatekeeper IP Address, Gateway Type, Registered Prefix, Line1 Number, and click the [OK] button.

For example:

usr/config$ h323 –gk 192.168.13.77 usr/config$ h323 –gwtype 1 usr/config$ h323 –prefix 798 usr/config$ h323 –line1 7981

2.1.4.3.2 Peer-to-Peer Mode Peer-to-Peer Mode allows users to call other VoIP devices without the GK server.

When in Peer-To-Peer mode, IAD Gateway use Phone Book, which will dial predefined phone number, and press “#” (optional, to accelerate the dial) as end of dial.

To configure Peer-To-Peer Mode in Dynamix IAD-162 Gateway, follow the steps below:

Step 1. Set Peer-To-Peer Mode, using “h323” command

usr/config$ h323 –mode 1

Mode 0 is for GK mode, while mode 1 is for Peer-to-Peer mode.

- 21 -

Dynamix IAD-162 Gateway

Step 2. Configure Phone Book, using “pbook” command.

usr/config$ pbook –add name TEST1 ip 10.1.1.1 e164 10

In this case user add one callee record named as TEST1, IP address as 10.1.1.1, and mapping e.164 number as 10. After phone book dat a has been set, user can dial 10 to make a call for IP 10.1.1.1.

After the command completed, you can type “pbook –print” to see if the input record is correct.

When adding a record to Phone Book, user does not have to reboot the machine, and the record will be effective immediately.

- 22 -

Dynamix IAD-162 Gateway

2.1.5 Essential Configuration via Installation Wizard

Installation Wizard is a friendly software tool that can provide you an easy way to

configure your VoIP devices. You only need to Input the MAC address of your product and Click [Search Device]; you can configu re your VoIP device without changing your PC’s setting.

Additionally, when you forget IP address of the VoIP device, Installation Wizard

gives you a solution to solve this problem.

For more information, please refer to the Installation Wizard user manual.

- 23 -

Dynamix IAD-162 Gateway

2.1 Special Housing Installation Guide

Dynamix IAD 162 has special

adjustable

housing for vertical or horizontal type.

Please follow procedures as below to change type you like.

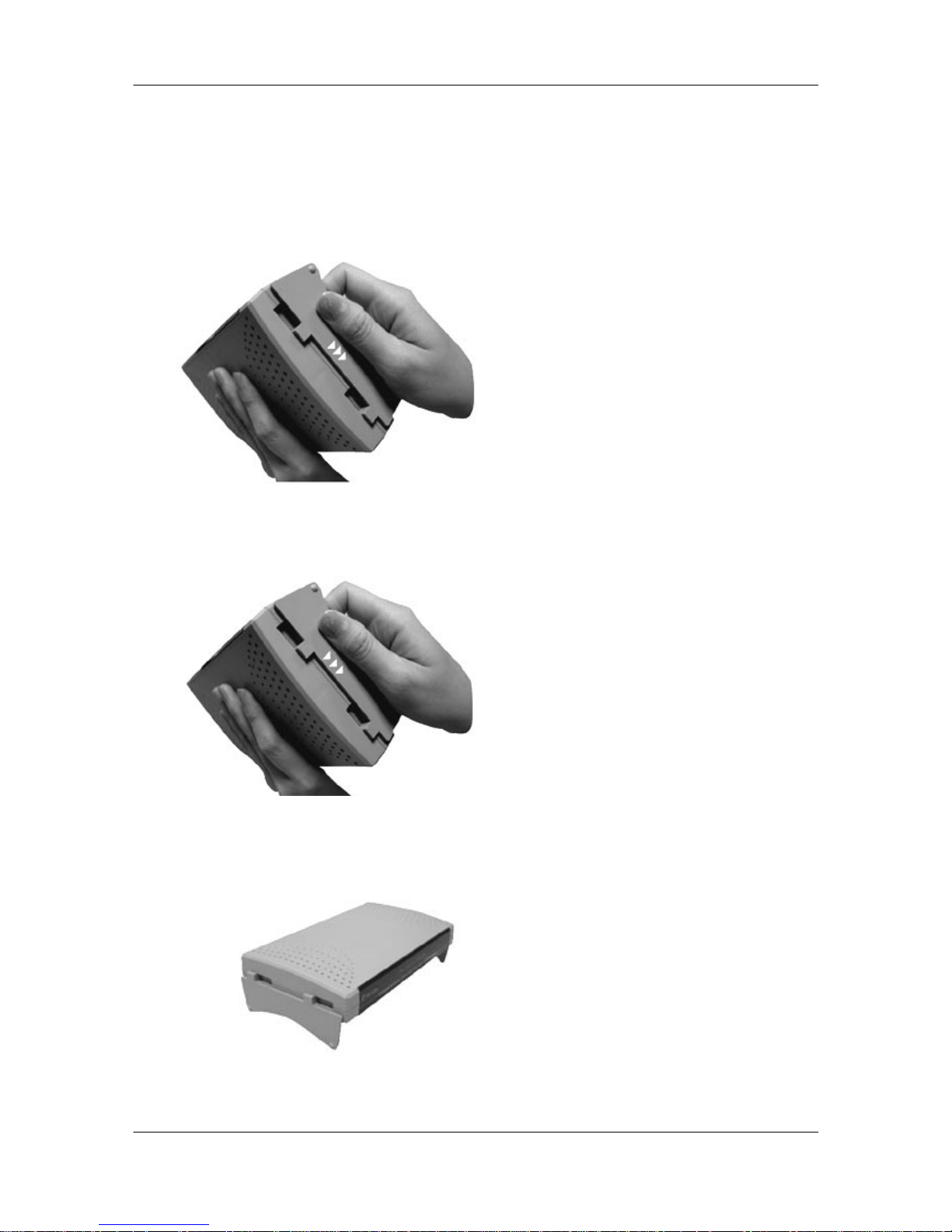

2.1.1 Horizontal Type

2.1.1.1

Insert stand board on one side.

2.1.1.2

Insert the other stand board on the other side.

2.1.1.3

Finally IAD can stand as horizontal type.

- 24 -

Dynamix IAD-162 Gateway

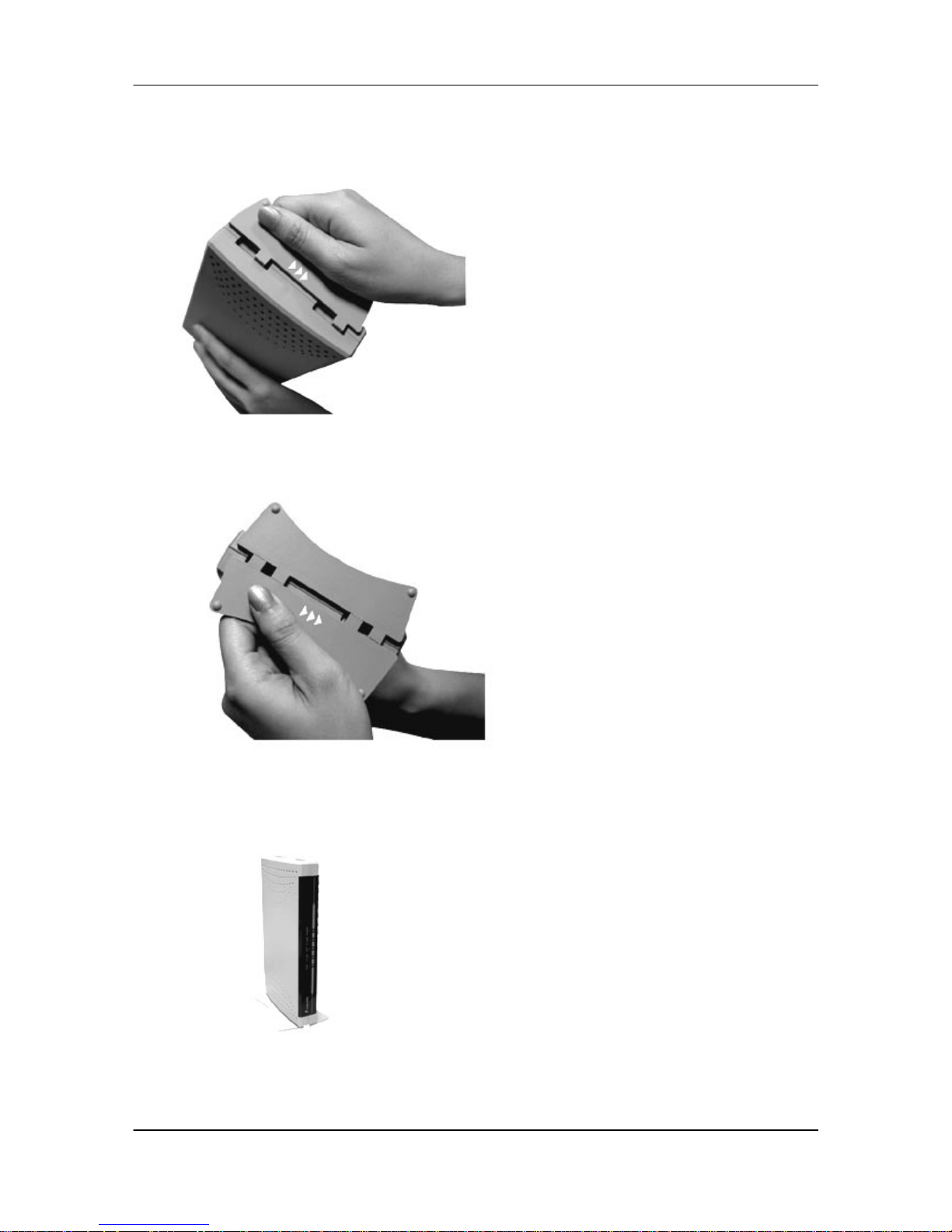

2.1.2 Vertical Type

2.1.2.1

Insert stand board on one side.

2.1.2.2

Insert the other stand board on the same side.

2.1.2.3

Finally IAD can stand as vertical type.

- 25 -

This part explains how to configure IAD Gateway under special application mode, such as behind NAT, and how to upgrade firmware.

Dynamix IAD-162 Gateway

Part

III:

Special

Applications

and

Features

- 26 -

Dynamix IAD-162 Gateway

3.1 Behind IP-Sharing

3.1.1 IP Sharing Configuration

3.1.1.1 One Dynamix IAD-162 Gateway behind IAD

This application is only for the user who is using the IP Sharing device. It is said

Gateway is connected behind IP Sharing. The IP Sharing Device must support the DMZ or Virtual server functions such as ADSL network.

Step 1. The WAN IP Address obtained from ADSL has two kinds of methods. One is

fixed IP Address, while user applies for one or more fixed IP Addresses. Another is dynamic IP Address while user applies for dial-up connection way. Only when the IP address is fixed user can put IAD behind NAT device.

Step 2. The LAN IP Address of User’s PC can be set as DHCP client in order to gain

a valid one.

Step 3. One can also assign a fixed IP address, which belongs to the same network

segment as the LAN interface of IP Sharing device.

Step 4. IAD Gateway must enable the IP Sharing function for the fixed / dynamic

WAN IP Address.

Note: With Dynamic WAN IP Address, a valid GK for Dynamix IAD-162 Gateway to

get register on is necessary. In other words, it is not workable in Peer-to-Peer mode while dynamic WAN IP Address.

Step 5. IP Sharing device must have a function to do IP/Port mapping. Some is

named as DMZ, some is named as virtual server. The VoIP messages from WAN have to completely pass forward to the LAN. It mean that if the Dynamix IAD-162 Gateway is assigned a virtual fixed IP Address such as 192.168.1.5, IP Sharing device must forward the VoIP message to

192.168.1.5.

- 27 -

Dynamix IAD-162 Gateway

Please see following for example:

>Advanced setting > NAT setting > DMZ Host setting

DMZ Host setting

Activate DMZ DMZ Host IP: 192.168.1.5

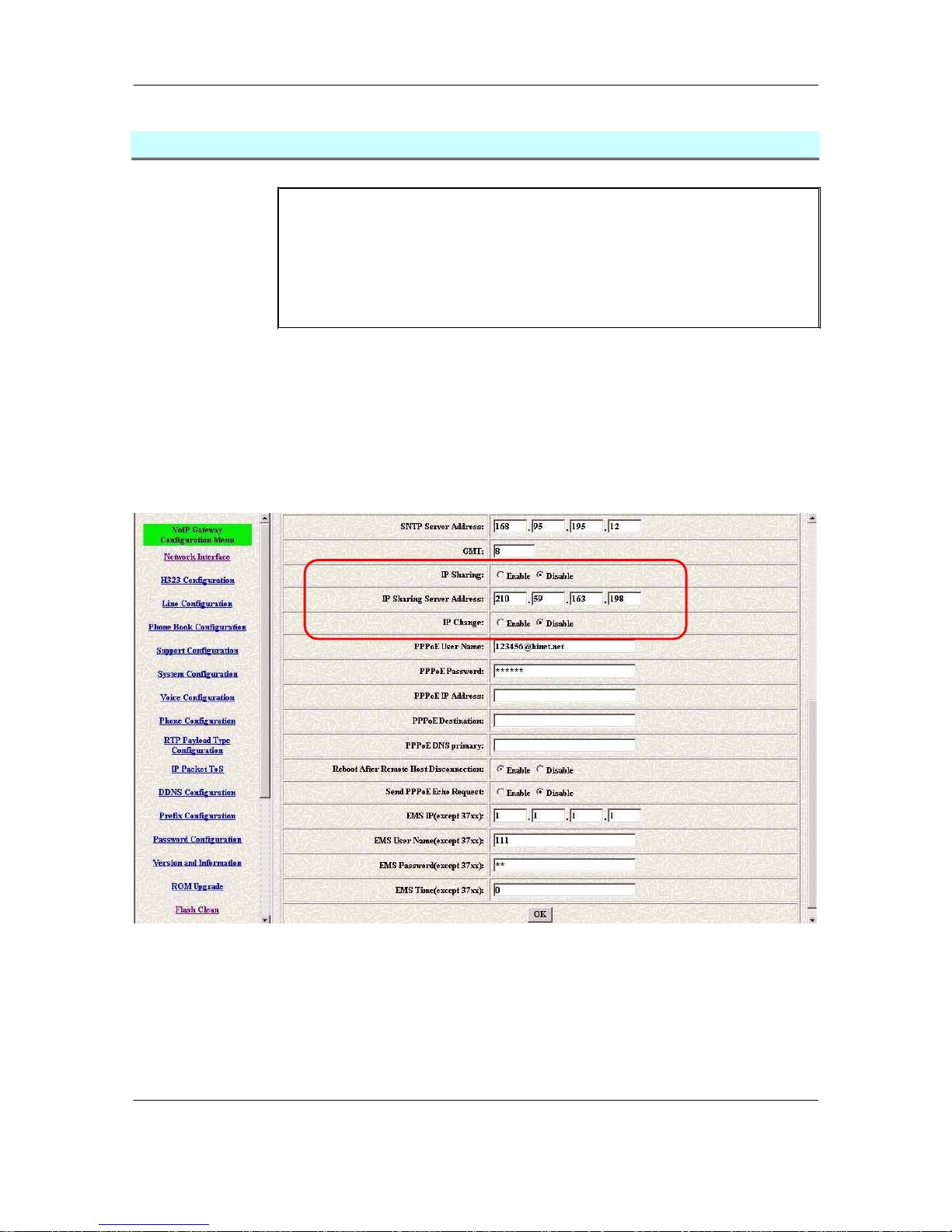

Step 6. Configure the Dynamix IAD-162 Gateway IP address for IP Sharing

Mode. Click [Network Interface] on the navigation panel. In the Network Interface screen, enter the IP address, Subnet mask and the default gateway in the network table. Please follow up your IP Sharing device

Step 7. Enable the IP sharing function and input the static IP address in the IP

Sharing server address (e.g. 210.59.163.198) and click the OK button.

Step 8. Click [Commit Data] on the navigation panel. In the Commit Configuration

Data screen, click the Commit button. In the Commit Configuration Data screen will Display [Commit to Flash OK!], when IAD finished committing data.

Step 9. Click [Reboot System] on the navigation panel. In the VoIP Gateway screen,

- 28 -

Dynamix IAD-162 Gateway

click the [Reboot] button. It will take around 40 seconds to reboot.

Step 10. Close the current browser windows and launch your web browser again.

Enter the new IP address in the Location or Address field.

- 29 -

Dynamix IAD-162 Gateway

3.2 NAT mode (PPPoE)

Step 1. Set PPPoE mode, using [ifaddr –mode 2], input the user id & password

provided by your ISP, using [ifaddr –id –pwd], reboot the device after disconnection, using [ifaddr –reboot 1]

usr/config$ ifaddr –mode 2 usr/config$ ifaddr –id 123@hinet.net (PPPoE login account) usr/config$ ifaddr –pwd 123 (PPPoE login Passowd) usr/config$ ifaddr –reboot 1 (Enable)

Step 2. Set NAT function (Default NAT function is enable)

usr/config$ ifaddr -nat 1

Step 3. Set DHCP server function (Default DHCP server function is enable)

usr/config$ ifaddr -dhcpsv 1

For example:

usr/config$ ifaddr -print

IP mode : PPPoE PPPoE adapter information

Status : Ready IP address : 61.223.39.135 Destination : 61.223.128.254 DNS primary : 168.95.192.1 Subnet Mask : 255.255.255.255 Authenticate : PAP Protocol

: TCP/IP

Device

: PPP/PPPoE DHCP server switch : Enable NAT function switch : Enable LAN port IP (for NAT) : 192.168.123.123 DNS primary : 168.95.192.1 DNS secondary : 168.95.1.1 HTTP port : 80 SNTP : mode=1

server 168.95.195.12

- 30 -

Dynamix IAD-162 Gateway

time zone : GMT+8

cycle=1024 mins IPSharing : no IPSharing device. IP change

: Disable PPPoE user name : 84460791@hinet.net PPPoE password

: ******** PPPoE reboot : Yes PPPoE echo

: Enable EMS IP : 192.168.10.71 EMS user name

: vwusr EMS password

: *****

EMS time : 0

usr/config$

Step 3. When Gateway connection succeed. Setup PC use LAN IP connection

Network

Select [Specify an IP Address] and enter [192.168.123.xxx] in the [IP Address] location (where xxx is a number between 2 and 254 used by the VoIP Gateway to identify each computer), and the default [Subnet Mask 255.255.255.0]. Please notice that two computers on the same LAN cannot have the same IP address. Set Default Gateway value as 192.168.123.123 in the [new gateway] field. Then save your change. PC can also use DHCP mode when DHCP server of IAD is enabled.

- 31 -

Dynamix IAD-162 Gateway

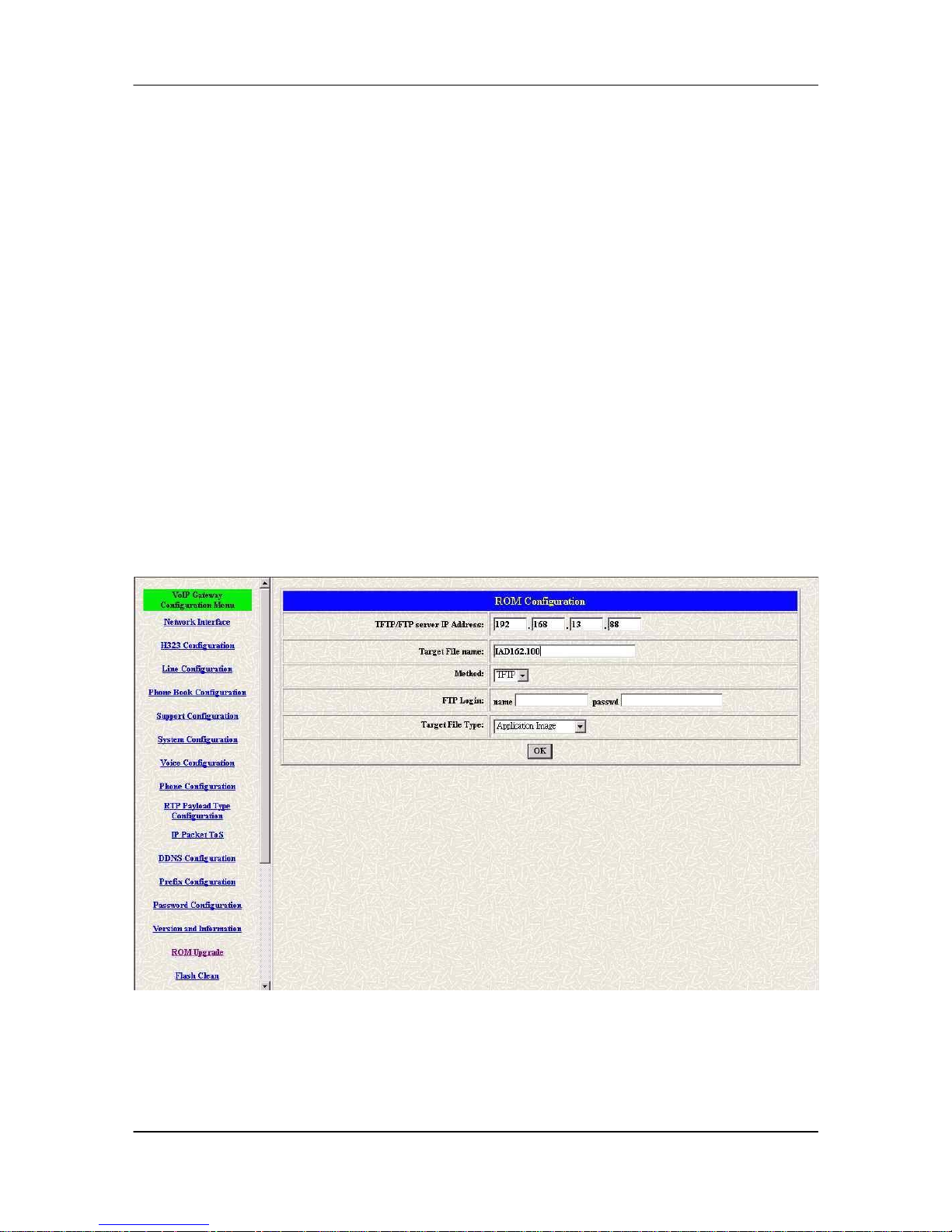

3.3 Upgrade Your IAD

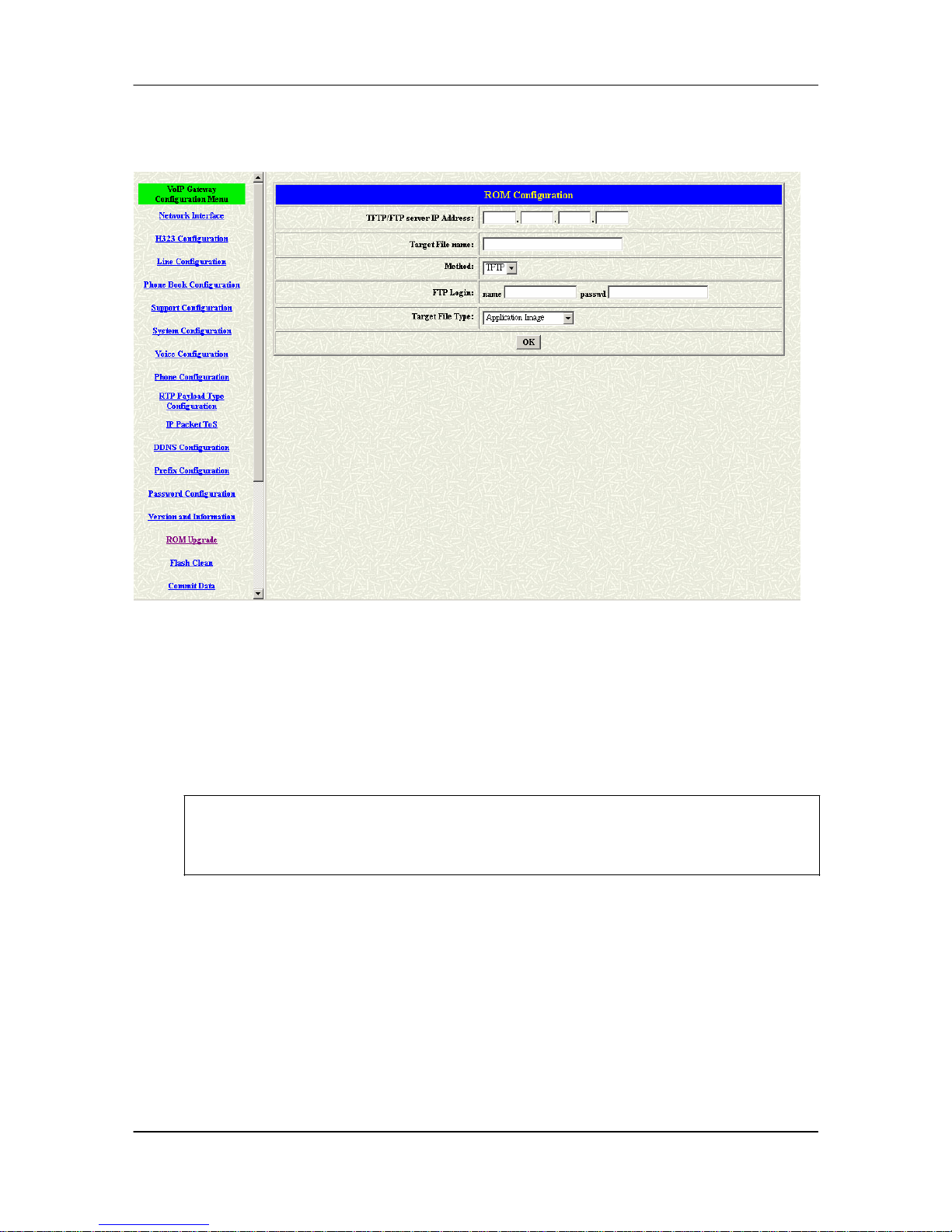

3.3.1 Upgrade via Web management interface

3.3.1.1 Before start

Step 1. Please confirm Host PC, which is installed as TFTP / FTP server and is in

available network.

Step 2. Note down your current configurations, such as [H323 Configuration], [Phone

Book].

3.3.1.2 Upgrade Version

Step 1. To update the Dynamix IAD-162 Gateway ROM Version, please click [ROM

Upgrade] on the navigation panel. In the [ROM Configuration] screen, type TFTP/FTP Server IP address, Target File Name, Method, Target File Type (e.g. Server IP Address: 192.168.13.88, Target File Name: IAD162.100, Method: TFTP, Target File Type: Application image) and click the [OK] button.

Step 2. After upgrade finished, on screen will display [Please issue FLASH CLEAN to

consist software version.] information.

- 32 -

Dynamix IAD-162 Gateway

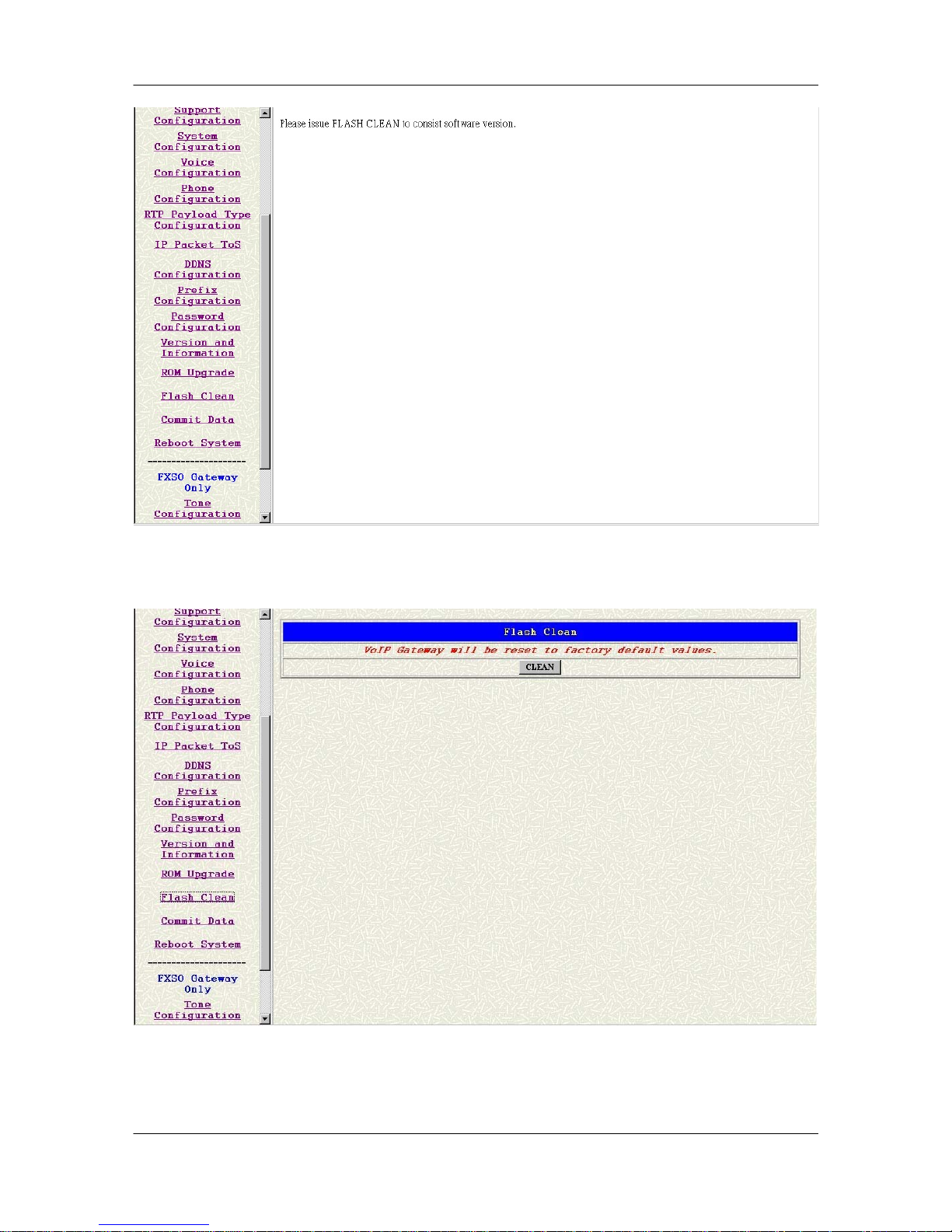

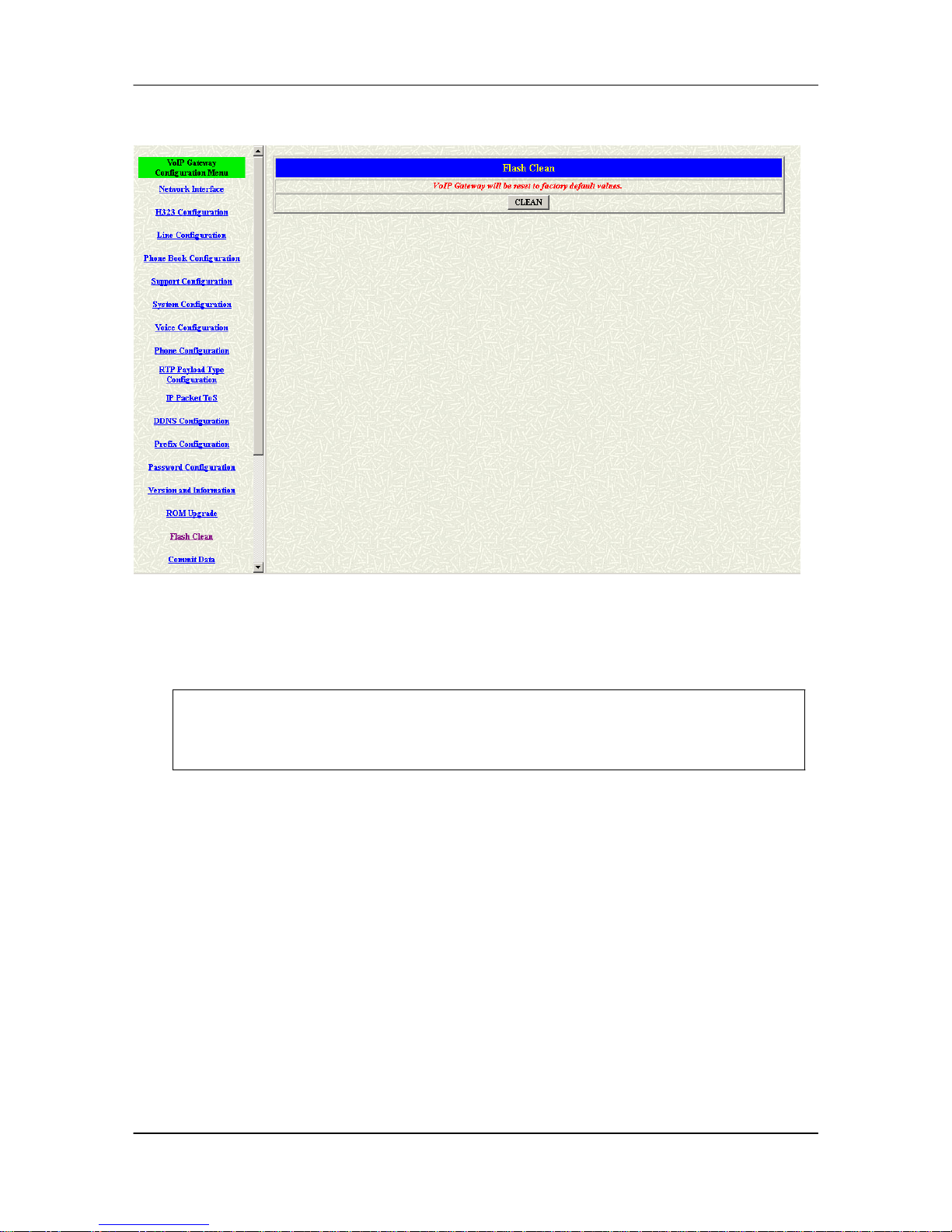

Step 3. Click [Flash Clean] on the navigation panel. In the Flash Clean screen, click

the [CLEAN] button.

Step 4. In the Flash Clean sc reen to Display [Flash cleaned!! Please reboot your

system!!], when Flash Clean Ok.

- 33 -

Dynamix IAD-162 Gateway

Step 5. Click [Reboot System] on the navigation panel. In the Reboot Dynamix IAD-162

Gateway screen, click the [Reboot] button. It will take 40 seconds to reboot.

Step 6. Close the current browser windows and launch your web browser again.

Enter the IP address in the Location or Address field.

3.3.2 Upgrade via Telnet Command interface

Use [rom] command to upgrade software of IAD.

usr/config$ rom

ROM files updating commands Usage: rom [-print][-app][-boot][-boot2m][-dsptest][-dspcore][-dspapp]

[-s TFTP/FTP server ip][-f filename][-method used] [-ftp [username][passwd]]

rom -print Show versions of rom files (optional).

-app Update main application code (optional).

-boot Update main boot code (optional).

-boot2m Update 2M code (optional).

-dsptest Update DSP testing code (optional).

-dspcore Update DSP kernel code (optional).

-dspapp Update DSP application code (optional).

-s IP address of TFTP/FTP server (mandatory).

-f File name (mandatory).

-method Download via TFTP/FTP (0=TFTP, 1=FTP)

-ftp specify username and password for FTP.

Note:

This command can run select one option in 'app', 'boot', 'dsptest', 'dspcore', and 'dspapp'.

Example:

rom -method 1 rom -ftp vwusr vwusr rom -app -s 192.168.4.101 -f app.bin

usr/config$

Parameter Usages:

-print: show versions of all rom files.

- 34 -

Dynamix IAD-162 Gateway

-app, boot, boot2m, dsptest, dspcore, dspapp, ht: To update main Application program code, Boot code, DSP testing code, DSP kernel code, or DSP application code, and Hold Tone file.

Note:

Most of all, the Rom file needed to get upgrade is App or Boot2m. Please check the exact Rom file before doing download procedure.

-s: To specify TFTP server’s IP address when upgrading ROM files.

-f: To specify the target file name, which will replace the old one.

-method: To decide using TFTP or FTP as file transfer server. [0] stands for TFTP, while [1] stands for FTP.

-ftp: If users choose FTP in above item, it is necessary to specify pre-defined username and password when upgrading files.

For example:

usr/config$ rom -print

Download Method : TFTP

Boot Rom : sdboot.200

Application Rom : IAD_1213.bin

DSP App : 48302ce3.140

DSP Kernel : 48302ck.140

DSP Test Code : 483cbit.bin

usr/config$

After software like application has been upgraded, please execute [flash -clean] to clear old configurations and make upgrade complete. This will keep all configurations under [ifaddr].

usr/config$ flash –clean

- 35 -

Dynamix IAD-162 Gateway

3.4 Dynamix IAD 162 PSTN Line Application

3.4.1 PSTN Outgoing Call

3.4.1.1 Make PSTN call from TEL Phone set

Default TEL line is intended to make IP call, if user wants to make a call via PSTN line, please dial “* #”, then user will hear dial tone from PSTN side. The dial tone between IP side and PSTN are different. If the PSTN port doesn't connect a PSTN line, press “*#”, the signal will be back to IP side then play busy tone.

3.4.1.2 PSTN Backup

If IAD is working under GK mode, and fail to register to Gatekeeper, TEL line will automatically switch relay to PSTN line, which means when VoIP system is failed, user can still make a call from PSTN line without pressing “*#”.

3.4.2 PSTN Incoming Call

3.4.2.1 VoIP TEL is busy

Caller from PSTN side can still make a call to IAD, PSTN LED will be blanking, when user hangs up IP call, TEL phone set will ring, and user can pick up the call from PSTN side. The Dynamix IAD-162 Gateway has “call waiting tone” function, when IP side is under calling, if PSTN side has an incoming call, the user in IP side will hear a call waiting tone.

3.4.2.2 VoIP TEL is available

When IAD has incoming call from PSTN side, TEL phone set will ring, user can pick the call from PSTN side.

3.4.3 VoIP Outgoing Call

Default TEL line is intended to make IP call, user can just pick up the phone set connected with TEL port and make VoIP call while VoIP network system is available.

3.4.4 VoIP Incoming Call

When user is communicating with PSTN side with TEL Phone set, IAD can’t have VoIP incoming call.

- 36 -

Dynamix IAD-162 Gateway

3.5 Reset Button Feature

Dynamix IAD-162 has a reset button, it is using software reset. User just need to press this button 3 seconds, all of the configuration, including network interface configuration, will be back to default value.

Warning:

1. The reset feature is using software reset, so user must press this button 3 seconds, and IAD will clean its Flash ROM. After Flash Clean OK, it will reboot automatically.

2. During the period of Flash Clean, user should keep the power supply. If you cut off the power supply during Flash Clean, the IAD may crash and break, caused by the Flash error.

- 37 -

This part explains how to configure theDynamix IAD-162 Gateway via WEB

Dynamix IAD-162 Gateway

Part IV: Web Management Interface

- 38 -

4.1 Login and welcome screen

Dynamix IAD-162 Gateway

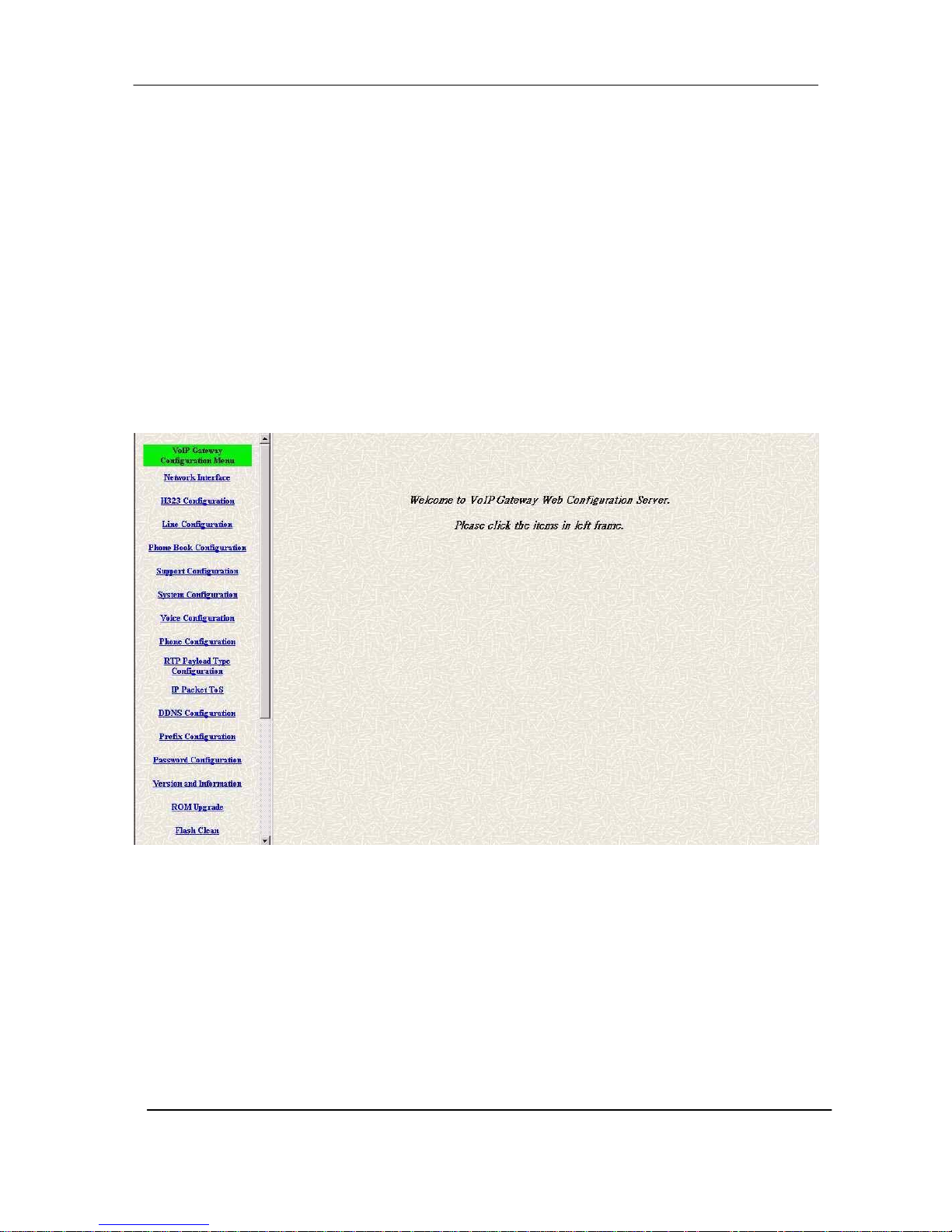

Step 1. Start your web browser. Step 2. Launch your web browser and enter [192.168.123.123] (the default IP

address of the LAN port) in the Location or Address field. Press Enter.

Step 3. Password request screen will appear as below. Please input “root” or

“administrator” in the user name field and no password in the password field.

Step 4. Click OK. Step 5. After a successful login, you will see the welcome screen described next.

User can click links on the navigation panel at left to go to corresponding configuration screen

- 39 -

4.2 Save and Reboot

Dynamix IAD-162 Gateway l

Click OK at the end of every configuration page to confirm your changes. All configurations will not take effect before reboot system. Please remember to do [Commit Data] to save all configuration then [Reboot System] to reboot IAD.

- 40 -

4.3 Web Management Configuration

4.3.1 Network Interface

Dynamix IAD-162 Gateway

Click [Network Interface] in the navigation panel and open the Network Interface Screen.

- IP Mode: To configure the fixed or dynamic IP address for this unit. Please

configure to PPPoE if the ADSL is using the PPPoE type.

- 41 -

Dynamix IAD-162 Gateway

- IP Address: Set WAN IP Address of IAD.

- Subnet Mask: Set the Subnet Mask of IAD

- Default routing gateway: Set Default routing gateway of IAD

- DHCP server: The DHCP server IP address.

- DHCP Server switch: Enable the DHCP function for the LAN interface.

- NA T function switch: To enable or disable the NAT function.

- LAN port IP for NAT: To configur e the LAN port IP for the NAT device.

- DNS Server Obtained: If the IP mode is DHCP mode, the DNS is obtained

from the DHCP server, user cannot change the DNS IP address. But if users configure this option to manual, they can change it.

- DNS Primary: Set Primary Domain Name Server IP address.

User can set Domain Name Server IP address. Once IAD can connect with DNS server, user can specify URL address instead of IP address for GK and phone book IP address.

- DNS Secondary: Set Secondary Domain Name Server IP address.

- HTTP Port: To configure the HTTP port for access this unit from the remote

side.

- SNTP: Enable / Disable the Simple Network Time Protocol function

- SNTP Server Address: Set SNTP Server Address

When SNTP server is available, enable IAD SNTP function to point to SNTP server IP address so that IAD can get correct current time.

- GMT: Set time zone for SNTP Server time

User can set different time zone according to the location of IAD. For example, in Taiwan the time zone should be set as 8,which means GMT+8.

- IP Sharing: Enable it if IAD is behind IP Sharing router.

- IP Sharing Server Address: Enter the WAN IP address of the IP sharing device

if it is the fixed ip.

- IP Change: Enable this function if the WAN IP address of the IP sharing device

is dynamic address.

- PPPoE User Name: To configure the user name for the PPPoE connection.

- PPPoE Password: To configure the password for the PPPoE connection.

- PPPoE IP Address: In the PPPoE mode, this table will show the ip address

that this unit gets from the ISP.

- PPPoE Destination: In the PPPoE mode, this table will show the default

gateway address that this unit gets from the ISP.

- PPPoE DNS primary: In the PPPoE mode, this table will show the DNS ip

address that this unit gets from the ISP.

- After Remote Host Disconnection: This unit will reboot and re-connect to the

ISP

- 42 -

Dynamix IAD-162 Gateway

- Send PPPoE Echo Request: In the PPPoE mode, if the network connector or

the ADSL modem was lost, after the connector and modem connected, it will reboot automatically for the re-connect with the PPPoE server.

- EMS IP: Set the EMS server IP address.

- EMS User name: Set the EMS login user name.

- EMS password: Set the EMS login password.

- EMS time: Set the EMS search time. For example, if user configure the EMS

time as 2, the IAD will search the EMS server every 2 minutes.

Note:

1. The IP change function could support the GK from us only. Pleas e pay more attentions about this function if your IP sharing device is using the dynamic IP address.

2. The EMS server is a managed center, user can use it to upgrade firmware or restore the configuration. For more information, please refer to the EMS user manual.

- 43 -

4.3.2 H323 Configuration Screen

Dynamix IAD-162 Gateway

Click [H323 Configuration] in the navigation panel and open the H323 Configuration Screen.

- Mode: Choosing the calling mode for this gateway.

1. GK routed: Users have to register on the GK if users picked up this option.

- 44 -

Dynamix IAD-162 Gateway

2. Peer-to-Peer: It only supports the peer-to-peer and users have to define the phone book for this mode.

- Gatekeeper IP Address: Enter the GK ip if users pick up the GK routed mode.

It support on GK mode only.

- 2nd Gatekeeper IP: Support the secondary GK function. It support on GK

mode only.

- Default Gateway IP: if the number couldn’t be found in the phone book configuration, it will be sent to this location.

- Gateway Type: Pick up the type for gateway. It support on GK mode only.

1. Terminal: Couldn’t support one-stage-dialing function.

2. Gateway1: Could support one-stage-dialing function and the prefix number is necessary for this type.

3. Gateway2: Following the Cisco GK registration function.

- Registered Prefix: The phone number for the GK registering. It support on GK

mode only.

- Line 1/ TEL 1 Number: Configure the number of the first port in this unit.

- Line 2 / LINE1 Number: Configure the number of the second port in this unit.

Not support on IAD.

- Line 3 / TEL 2 Number: Configure the number of the third port in this unit. Not

support on IAD.

- Line 4 / LINE2 Number: Configure the number of the fourth port in this unit.

Not support on IAD.

- Line 5 Number: Configure the number of the fifth port in this unit. Not support

on IAD.

- Line 6 Number: Configure the number of the sixth port in this unit. Not support

on IAD.

- Registered Alias: The name of this gateway for the GK registering. It support

on GK mode only.

- Display Information: This configuration will change the display name for this

unit.

- Gatekeeper Discovery: Gateway will send the GRQ message and it will

- 45 -

Note:

Dynamix IAD-162 Gateway

When users enable this function, the GK name is necessary. User could enable this function first and define the name of the GK. Gateway will send the GRQ message by broadcast if users define the IP address of GK is 255.255.255.255. If the gateway receive GCF message that’s meaning the GK accept the request from gateway, so the gateway could regist er on that GK successfully who reply the GCF message.

- Gatekeeper ID: The name of the GK. It has used with the Gatekeeper

Discovery function. Support the GK mode only.

- Time To Live (TTL): The time for registration confirm. Support the GK mode

only.

- RTP Port: The UDP port for the voice sending. RTP ports support a range of

the UDP. The line 1 is using UDP (RTP) 16384 and (RTCP) 16385. The line 2 is using UDP (RTP) 16386 and (RTCP) 16387….etc. This configuration is defining the start port for the RTP packets. Support the GK and Peer-to-Peer

mode both.

- Gatekeeper finding port: The port for the Gatekeeper Discovering function of

this gateway. Support the GK mode only.

- Gatekeeper RAS Port: The GK registering port of this gateway. Support the

GK mode only.

- H225 RAS Port: The RAS port of this unit. Support the GK mode only.

- H225 Call Signal Port: The Call Signal port of this unit. Support the GK mode

only.

- Destination H225 Call Signal Port: To configure the Call Signal port for the

destination unit. Support the P2P mode only.

- Allocate Port Range Start: To configure the beginning of the ports.

- Allocate Port Range End: To configure the end of the ports.

Note:

The port range is for the H245 TCP port. Please info your vendor if you want to configure these ports for using.

- Response Timeout: The call will be timed out if the call proceeding message

didn’t received from the remote side. Support the GK mode only.

- Connection Timeout: The call will be timed out if the connect message didn’t

received from the remote side. Support the GK mode only.

- H235 Security Token: Support the H235 security policy for the GK. Support

the GK mode only.

- 46 -

4.3.3 Line Configuration

Dynamix IAD-162 Gateway

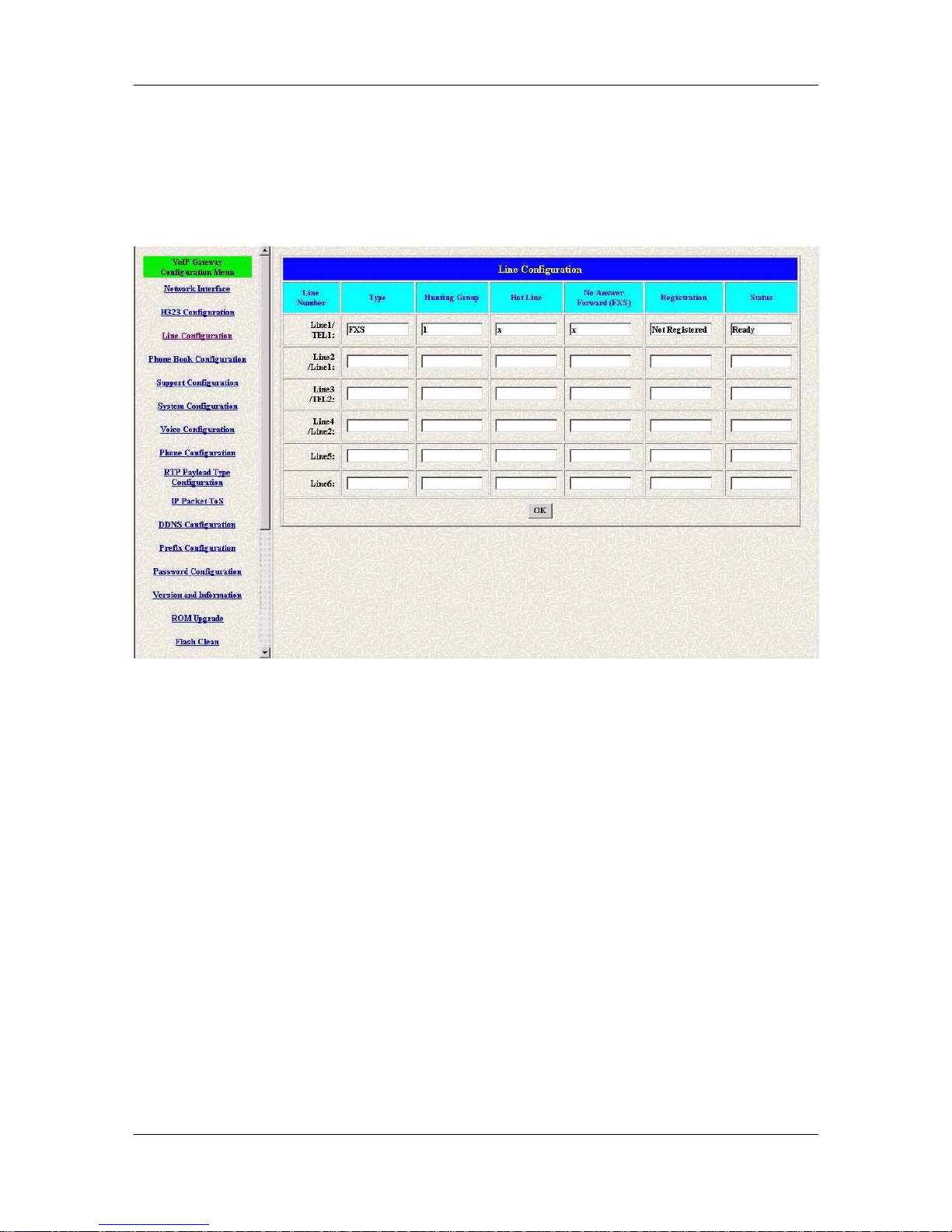

Click [System Configuration] in the navigation panel and open the [System Configuration] Screen.

The Line configuration will show the status of the registrations and the ports. It includes the hunt group, hotline, and no answer forward configuration.

- Type: Just show the interface for this port.

- Hunt Group: Define the group number of this port. When the port is busy, the

call could be transferred to another port in the same group. Only the same type could be configured in the same group.

- Hotline: Enable or Disable the hotline mode. The hotline mode will be enabled

if you enter the hotline number. The default setting is disabled.

- No Answer Forward: When the port didn’t answer the call, this call will be

forwarded to the number you configured. This is only for the E164 number or the phone numbers you want to transfer.

- Registration: To show the gateway registered on the GK or not. Support the

GK mode only.

- Status: To show the port is busy or ready.

- 47 -

4.3.4 Phone Book Configuration Screen

Dynamix IAD-162 Gateway

Click [PPPoE Configuration] in the navigation panel and open the [PPPoE Configuration] Screen.

The Phone Book configuration is only support the gateway in Peer-to-Peer mode.

- Add Data: User can specify 5 sets of phone book via Web Management

Interface. Please input index, Name, IP Address and E.164 number of the destination device.

Note:

User only can add 5 phone book items via Web Management Interface, if user wants add more than 5 items, please uses the Command Line Interface to do it.

- Delete Date: User can delete any configured phone book data by index.

Note:

The e164 number defined in phone book will be fully sent to destination. It is not just a representative number for destination’s IP Address. In other words, user dial this e164 number to reach destination, destination will receive the number and find out if it is matched to its line number.

- 48 -

4.3.5 Support Configuration Screen

Dynamix IAD-162 Gateway

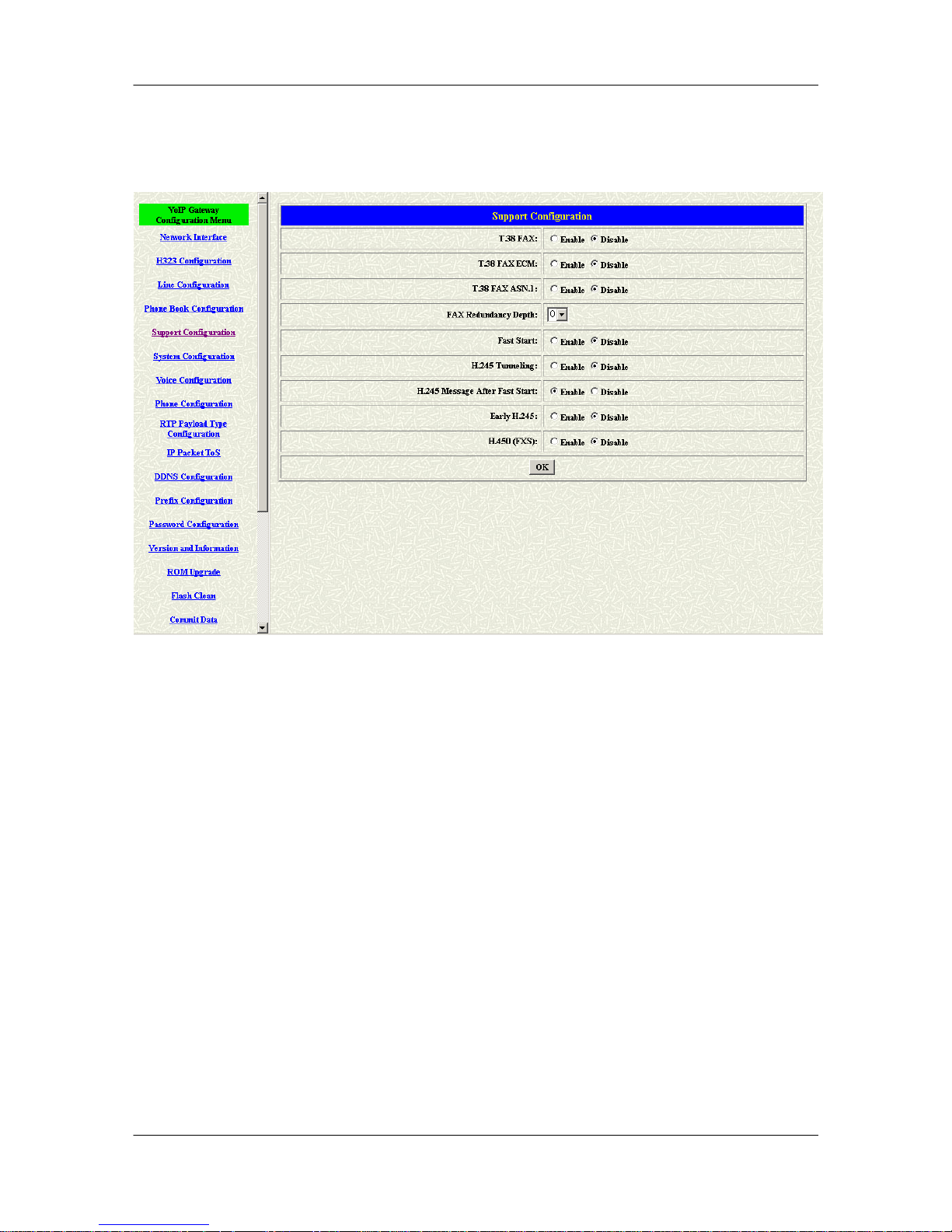

Click [Support Configuration] in the navigation panel and open the [Support Configuration] Screen. This gateway supports the FAX over IP, fast start function and other functions.

- T.38 FAX: Enable this function to support the FAX function.

- T.38 FAX Request Mode: The switch can control the request message sending

or not. This is the special function, please info your reseller before you change this switch.

- T.38 FAX ECM: This function could support the error correction mode during

the high-speed function.

- T.38 FAX ASN.1 Support: Support the ASN.1 function.

- Fax Redundancy depth: This support function can make the data for the FAX

sending for twice. But this will take more bandwidth.

- Fast Start: Enable this function will support the Fast start function.

- H.245 Tunneling: Enable or disable the Tunneling support.

- H.245 Message After Fast Start: Enable or disable this support function.

- Early H.245: Enable or disable the Early H.245 support function.

- H.450 (FXS): Support H.450 function.

- 49 -

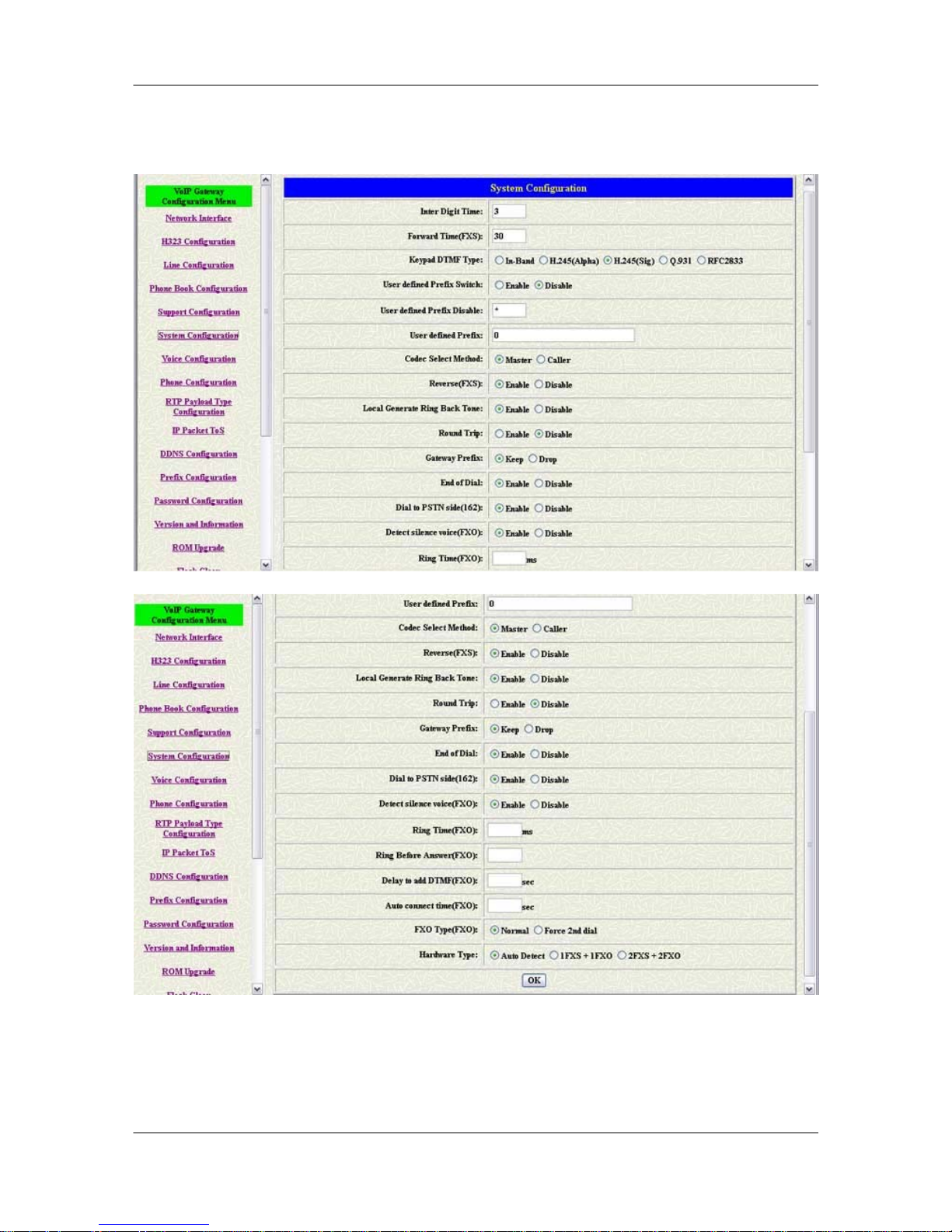

4.3.6 System Configuration Screen

Dynamix IAD-162 Gateway

Click [System Configuration] in the navigation panel and open the [System

Configuration] Screen.

- Inter Digit Time: The call will be sent out if user didn’t enter the digits after this

timer.

- Forward time: It supports the No Answer Forward function. If users configure it

- 50 -

Dynamix IAD-162 Gateway

for 10, the call will be forwarded when it rings about 10 seconds. From 5 to

65535.

- Keypad T ype: User could define the keypad for the DTMF sending.

1. In-Band : The DTMF signal sending by RTP.

2. Out-Band : The DTMF signal sending not by RTP. Including the H.245(Alpha), H.245(Signal), Q.931 and RFC 2833.

- User Defined Prefix Switch: Select on/off for User defined local zone prefix

switch. If user enables prefix function, once user dials out, gateway will automatically add prefix number before number user dialed.

- User Defined prefix Disable: Disable the defined pref ix after press the

selected digit (0,1~9, *).

- User Define prefix: This will be added in the first digits of the numbers that

users had dialed. Can also define IP address here in P2P mode, once user press “#”, Gateway will call out this IP address.

- Codec Select Method: This could support that the codec will follow the MSD

(MasterSlaveDetermination) or the caller side.

1. Master: Follow the result from the MasterSlaveDetermination.

2. Caller: Follow the caller side.

- Reverse (FXS): Enable or disable the Reverse signal generation function.

- Local Generate Ring Back Tone (FXS): T o enable or disable the ring back

tone generation from the local side.

- Round Trip: The call will be disconnected automatically, if the network is failed,

default value is 10 seconds.

- Gateway Prefix: To keep or drop the prefix number of this gateway. This only

support the Gateway type in the GK routed mode. Please get more detail useful as below:

- End of Dial: To enable or disable the end of dial function. This function key will

be the digit “#”.

- Dial to PSTN side (162): This function can let user dial out by PSTN. User just

need to press “*#”, the call signal will relay from IP side to PSTN side.

- Detect silence voice (FXO): This function could detect the silence from the

PSTN side. If the FXO detect the silence for 40 seconds continuous, it will drop the calls. Only support FXO.

- Ring Time (FXO): It for the ring detection from the PSTN. The ring detection

will be failed if users configure it too long. Only support FXO.

- Ring Before Answer (FXO): This will help the users to answer the calls from

PSTN into this gateway quickly. The call will be connected by one time ring if users configure this for 1. Only support FXO.

- Delay to add DTMF (FXO): The timer for sending DTMF signal, if the calls are

- 51 -

Dynamix IAD-162 Gateway

from the IP to PSTN side. It could only support the one-stage-dialing function.

Only support FXO.

- Auto connect time (FXO): The FXO will send the connect message to the IP

side is this timer is up in the one-stage-dialing function. It could only support the one-stage-dialing function. Only support FXO.

- FXO type: Users could configure the calls need the 2

stage dialing or not.

Only support FXO.

- Hardware Type: This will show the hardware detection type. Only support

FXO.

Note:

The default value is to auto detect hardware type. Usually it is not necessary to change this setting. Please make sure about your Hardware Type, Gateway may be not functional if set wrong hardware type.

- 52 -

4.3.7 Voice Configuration Screen

Dynamix IAD-162 Gateway

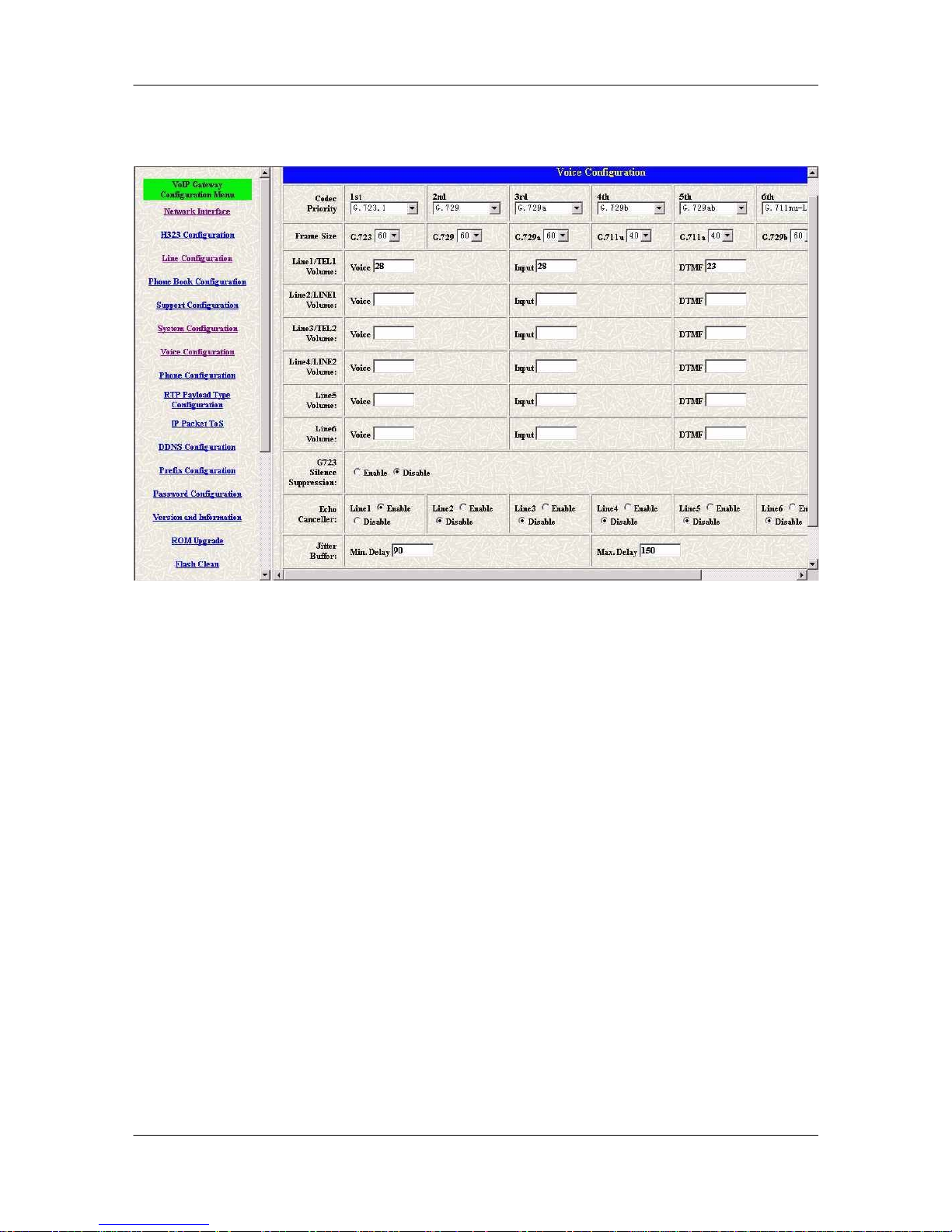

Click [Voice configuration] in the navigation panel and open the [Support Configuration] Screen.

- Codec Priority: Set priority preference of installed codes, G.723, G.711A,

G.711U, G.729, G.729A, G. 729B, and G.729AB.

- Frame Siz e: Set Specify sending packet size, G.723: 30/60/90, G.711A,

G.711U, G. 729, G.729A, G. 729B, G.729AB: 20/40/60ms.The smaller the packet size, the shorter the delay time. If network is in good condition, smaller sending packet size is recommended.

- Line1/ TEL1 Volume: Set voice volume stands for volume, which can be heard

from VoIP Gateway side (0~63, default: 28). Set input gain stands for volume, which the opposite party hears (0~38, default: 28). Set DTMF volume stands for DTMF volume/level (0~31, default: 23).

- Line2/ Line1 Volume: IAD does not support.

- Line3/TEL2 Volume: IAD does not support.

- Line4/Line2 Volume: IAD does not support.

- Line5 Volume: IAD does not support.

- Line6 Volume: IAD does not support.

- G723 Silence Suppression: Select enable/disable for G723 silence

suppression and comfort noise generation setting.

- Echo Canceller: Setting enable/disable of echo canceller.

- Jitter Buffer: Setting of jitter buffer min/max delay.

- 53 -

4.3.8 Phone Configuration Screen

Dynamix IAD-162 Gateway

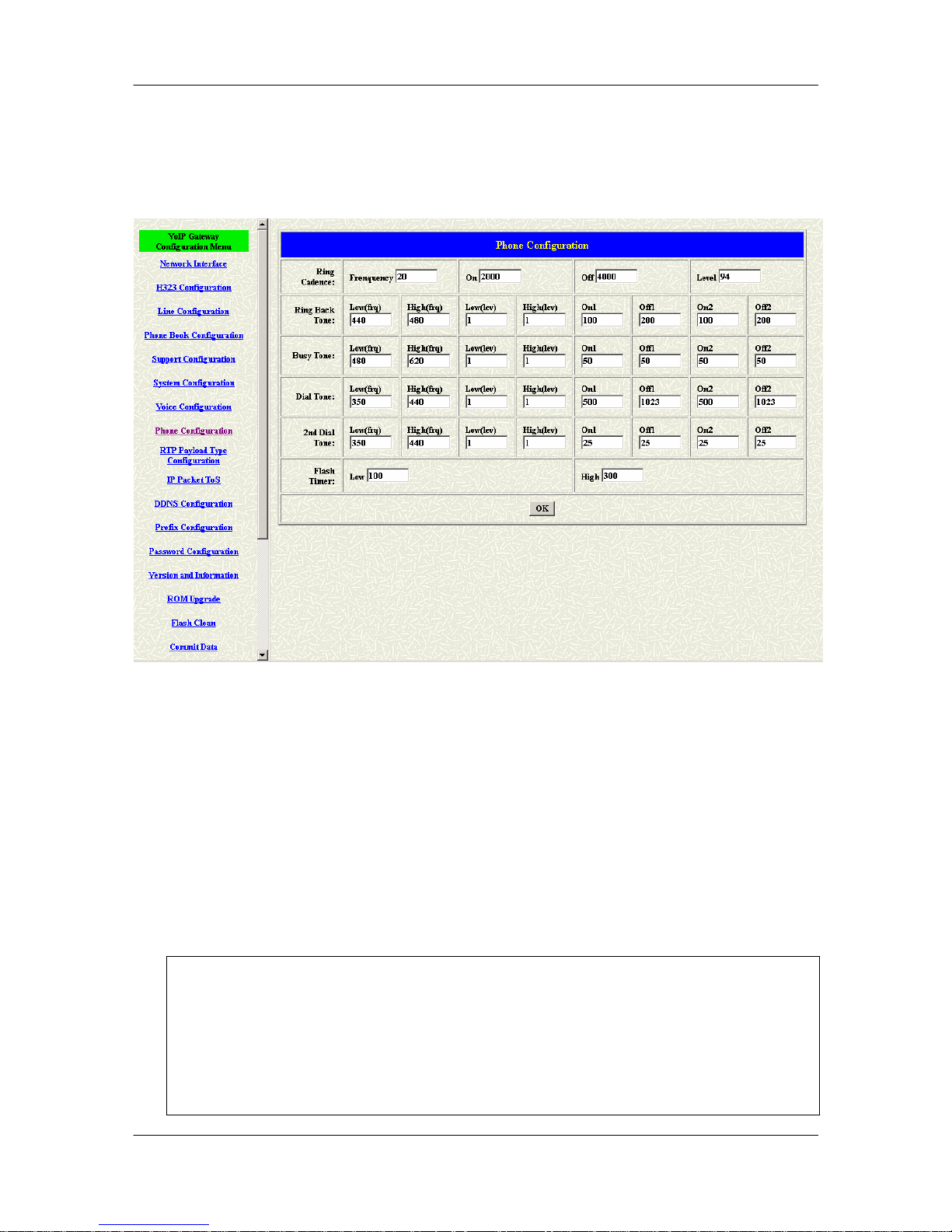

Click [Phone Configuration] in the navigation panel and open the [Phone Configuration] Screen. For tone simulation, IAD Gateway adopts dual frequencies as traditional telephone does. If users want to have their own call progress tone, they can change the value of tones.

- Ring Cadence: Setting the played tone type, when VoIP Gateway is receiving

a call.

- Ring Back Tone: Setting the played tone type, when VoIP Gateway receives a

Q.931 Alerting message. In condition that VoIP Gateway is the originate side.

Busy T one: Setting the played tone type, when destination is busy.

Dial tone: Setting the played tone type, when hook off a phone set of workable

V oIP Gateway.

2nd Dial Tone: To configure the value of the local 2nd dial tone (FXO only).

- Flash Timer: Setting the detective flash range in ms, for example, 300-500 ms.

Note:

For tone simulation, VoIP Gateway adopts dual frequenc ies as traditional telephone does. If users want to have their own call progress tone, they can change the value of tones. High and Low frequency/level/cadence can be configured respectively.

ringing frequency: 15 ~ 100 (Unit: Hz)

- 54 -

ringing ring ON/OFF: 0 ~ 8000 (Unit: ms)

ringing level: 0 ~ 94 (Unit: V)

tone frequency: 0 ~ 65535 (Unit: Hz)

tone freqLevel: 0 ~ 65535 (Unit: mVrms)

tone Tone ON/OFF: 0 ~ 8000 (Unit: ms)

Dynamix IAD-162 Gateway

- 55 -

4.3.9 RTP Pay Load Type Configuration

Dynamix IAD-162 Gateway

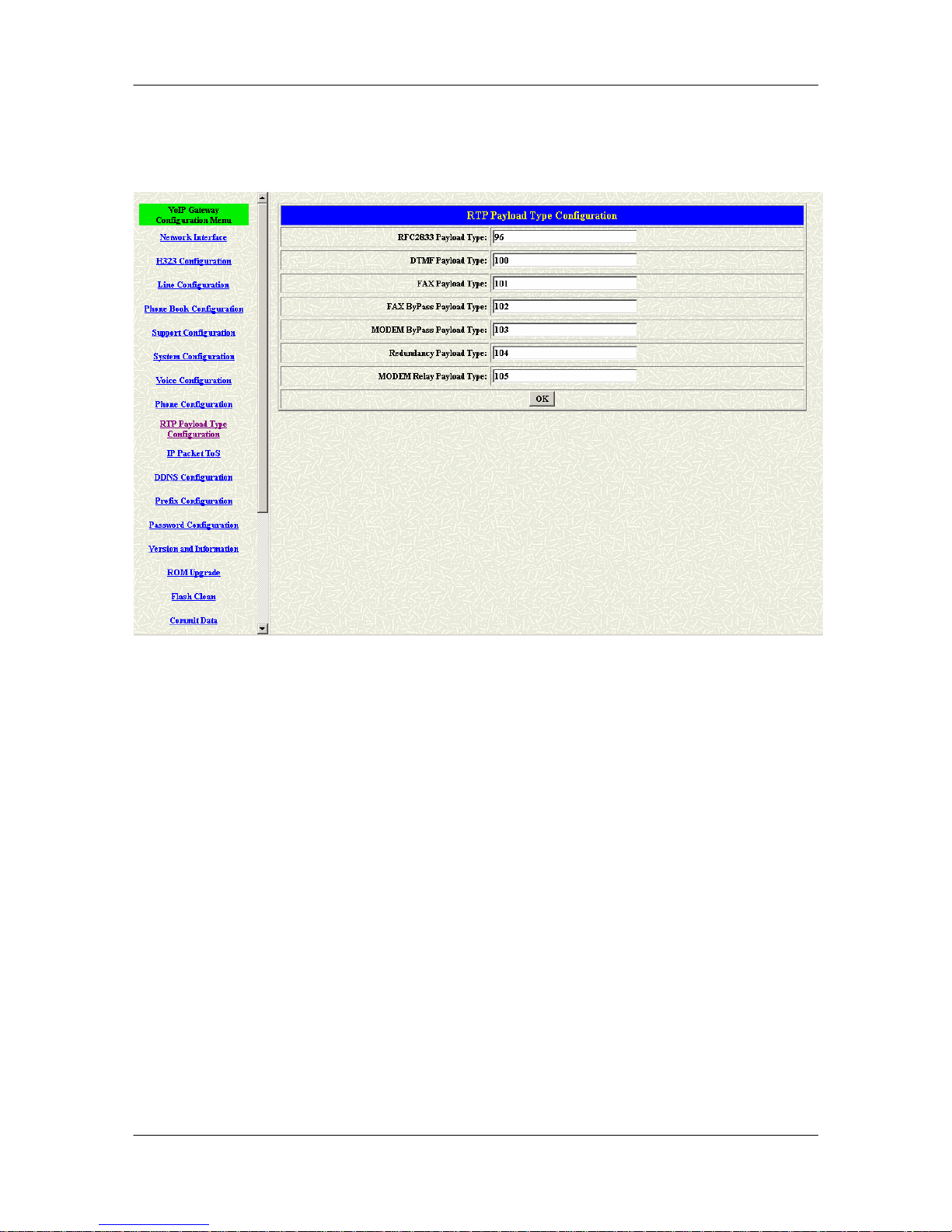

Click [RTP Payload Type Configuration] in the navigation panel and open the [RTP Payload Type Configuration] Screen.

- RFC2833 Payload Type: To define the payload type for RFC2833 type.

- DTMF Payload Type: To define the payload for the DTMF type.

- FAX Payload Type: To define the payload for the FAX type.

- FAXByPass Payload type: To define the payload for the FAX by Pass type.

- MODEMByPass Payload Type: To define the payload for the Modem by Pass

type. (This is no use for the hardware as so far.)

- Redundancy Payload Type: To define the payload for the Redundancy type.

- MODEMRelay Payload Type: To define the payload for the FAX by Pass type.

(This is no use for the hardware as so far.)

- 56 -

4.3.10 IP Packets ToS Configuration Screen

Dynamix IAD-162 Gateway

The Type of Service should be worked with the network router. The router will check all the packets if it support the TOS function. There is a field in the packet for the TOS value. This WEB is for users to configure these values to make the packets with the correct values for the TOS service from the gateway.

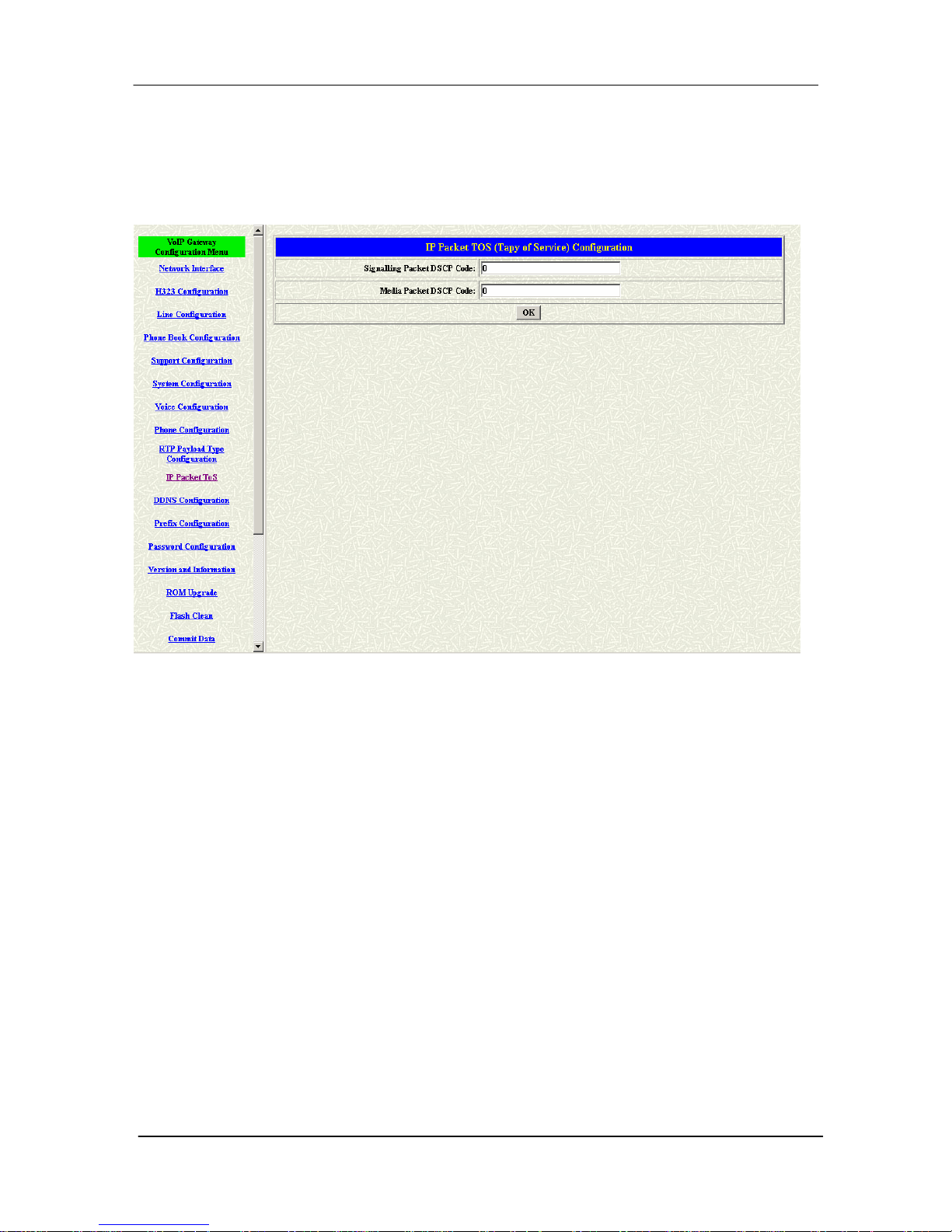

Set Signal or RTP Packet DSCP value:

- Default: Select TOS value as 0

- User Assign Special DSCP Code: User can set other unspecified value here.

TOS/DiffServ (DS) priority function can discriminate the Differentiated Service Code Point (DSCP) of the DS field in the IP packet header, and map each Code Point to a corresponding egress traffic priority. As per the def inition in RFC2474, the DS field is Type-of-Service (TOS) octet in IPv4. The recommended DiffServ Code Point is defined in RFC2597 to classify the traffic into different service classes. The mapping of Code Point value of DS-field to egress traffic priorities is shown as follows.

- 57 -

Dynamix IAD-162 Gateway

DROP Precedence

Class #1 Class #2 Class #3 Class #4

Low Drop Precedence

(AF11)

001010

(AF21)

010010

(AF31)

011010

(AF41)

100010

Medium Drop Precedence

(AF12)

001100

(AF22)

010100

(AF32)

011100

(AF42)

100100

High Drop Precedence

(AF13)

001110

(AF23)

010110

(AF33)

011110

(AF43)

100110

Please refer to RFC standard documents for more information about what is DSCP.

- 58 -

4.3.11 DDNS Screen

Dynamix IAD-162 Gateway

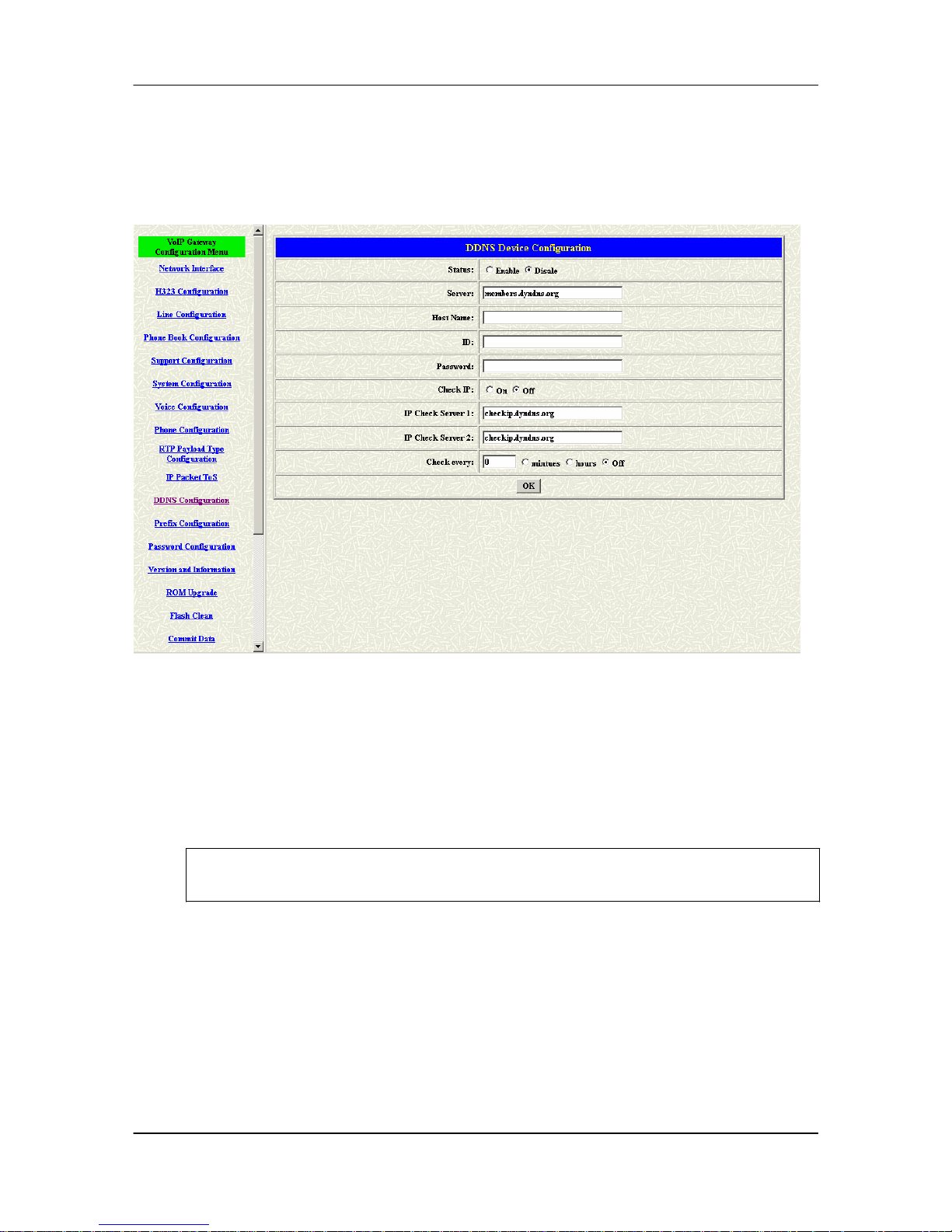

IAD supports DDNS function. Before using this function, please have a DDNS account and some info from your DDNS server. Click [Password configuration] in the navigation panel to open the [Password Configuration] screen.

- Status: To enable or disable this function.

- Server: Enter the server address of your DDNS server.

- Host Name: Your DDNS address.

- ID: Your account.

- Password: Your password.

Note: Please get this info from your DDNS service provider.

- Check IP: Enable or Disable the IP Check function.

- IP Check Server: Will check the endpoints IP address.

- Check Every: The endpoint will check the server after a period of time.

- 59 -

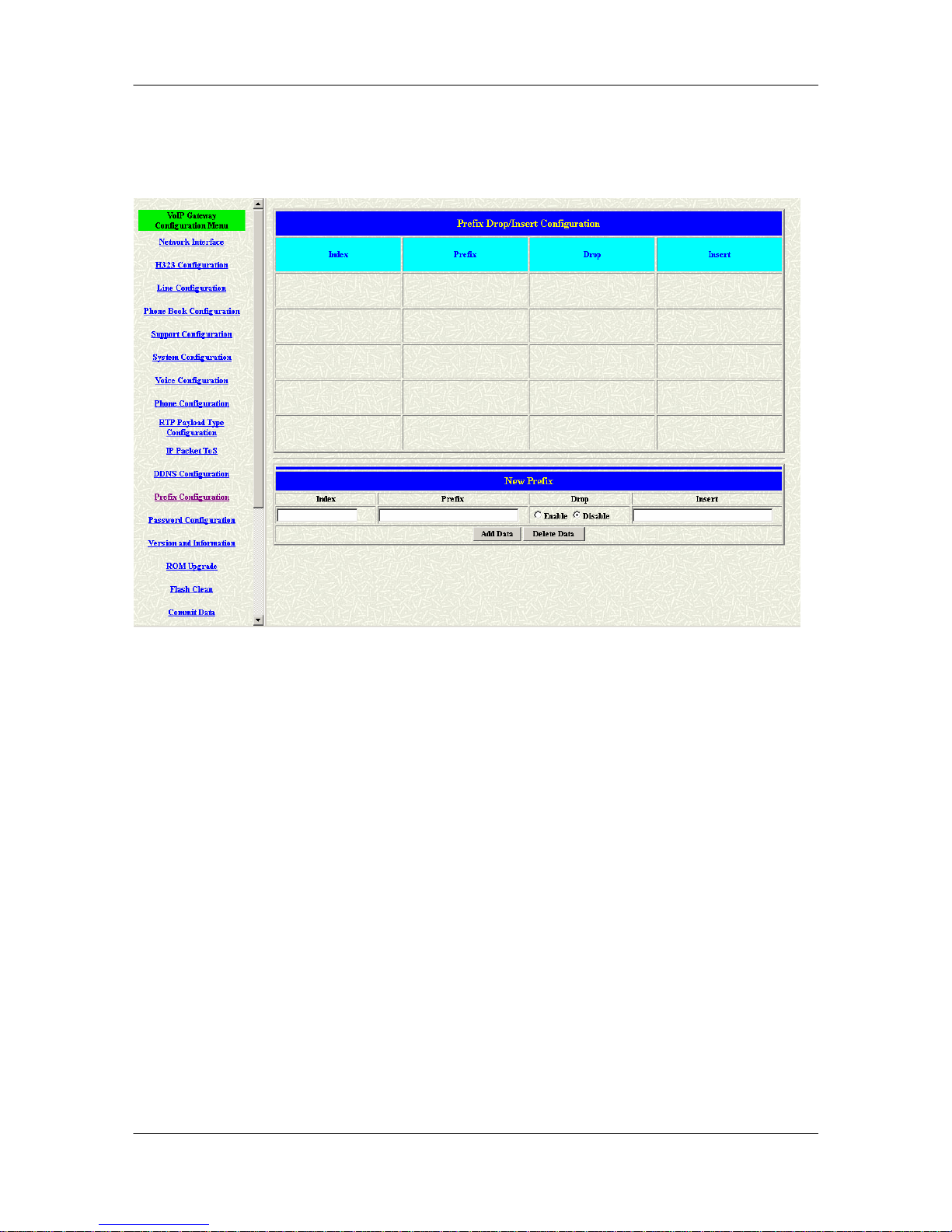

4.3.12 Prefix Configuration Screen

The Prefix function is using the drop and inserts function.

Dynamix IAD-162 Gateway

Click [Prefix Configuration] in the navigation panel and open the [Prefix Configuration] Screen.

- Index: Setting the index number for prefix record (max 30 record).

- Prefix: Setting the prefix number of the whole numbers that could be into this

VoIP gateway (1~20 digits).

- Drop: Select enable or disable drop prefix function. The function is enabled

means to drop prefix number when dialing out. The function is disabled means to keep prefix number.

- Insert: Setting the digits that you want to insert in this number (1~30 digits).

- 60 -

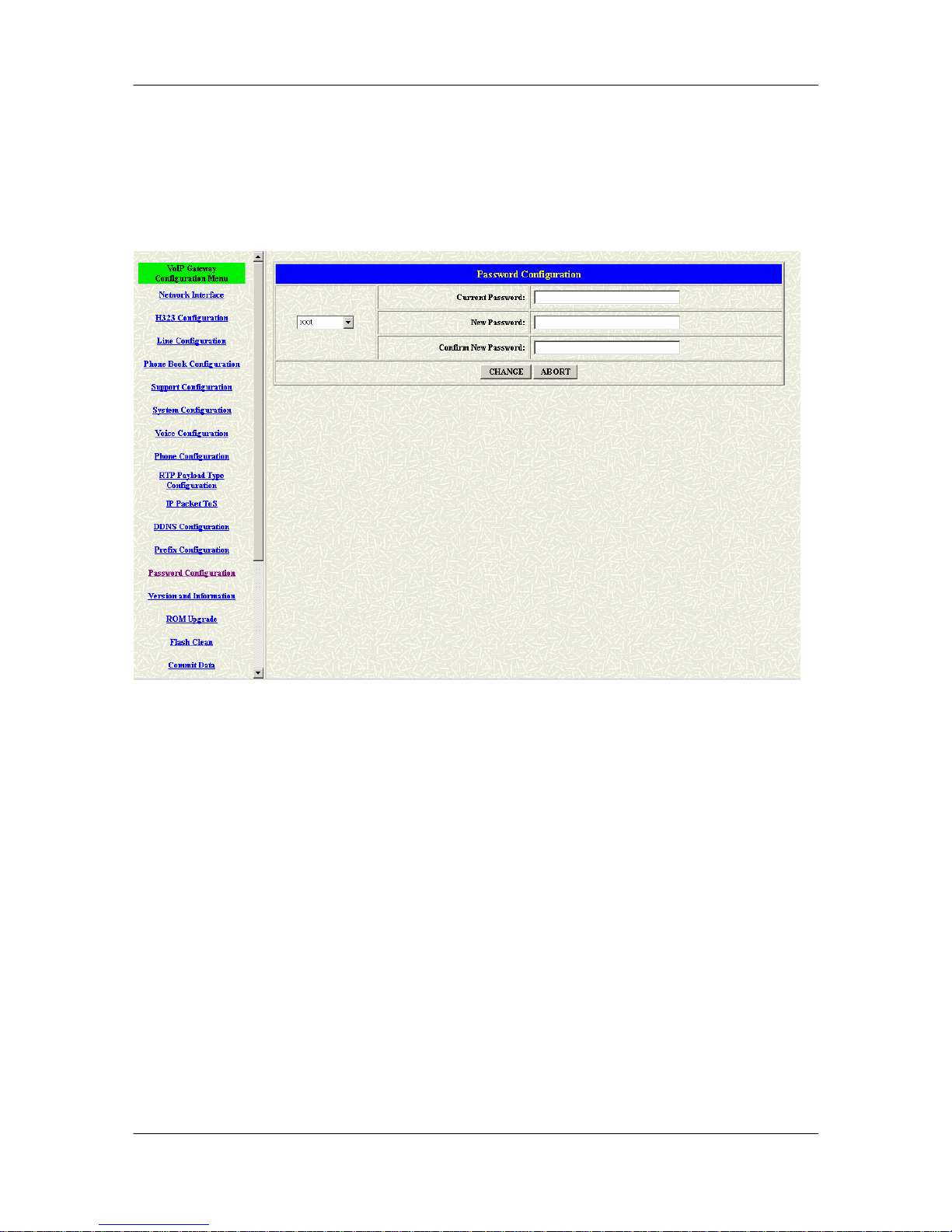

4.3.13 Password Configuration Screen

Dynamix IAD-162 Gateway

There are two login accounts in this unit. One is the “root” another is “administrator”. The default passwords for these two accounts are null. Users can define the passwords for these two accounts. Click [Password Configuration] in the navigation panel and open the [Password Configuration] Screen.

- Root: The password for the root account.

- Administrator: The password for the administrator account. This account

couldn’t upgrade the 2M and boot rom file.

- Current Password: Enter the original password for the account.

- New Password: Enter the new password for the account.

- Confirm New Password: Enter the new password again.

- Change: This button will make the configurations saved and next time login

will need the new password.

- Abort: Abort the configuration of the password changing.

- 61 -

4.3.14 Version and Information Screen

Dynamix IAD-162 Gateway

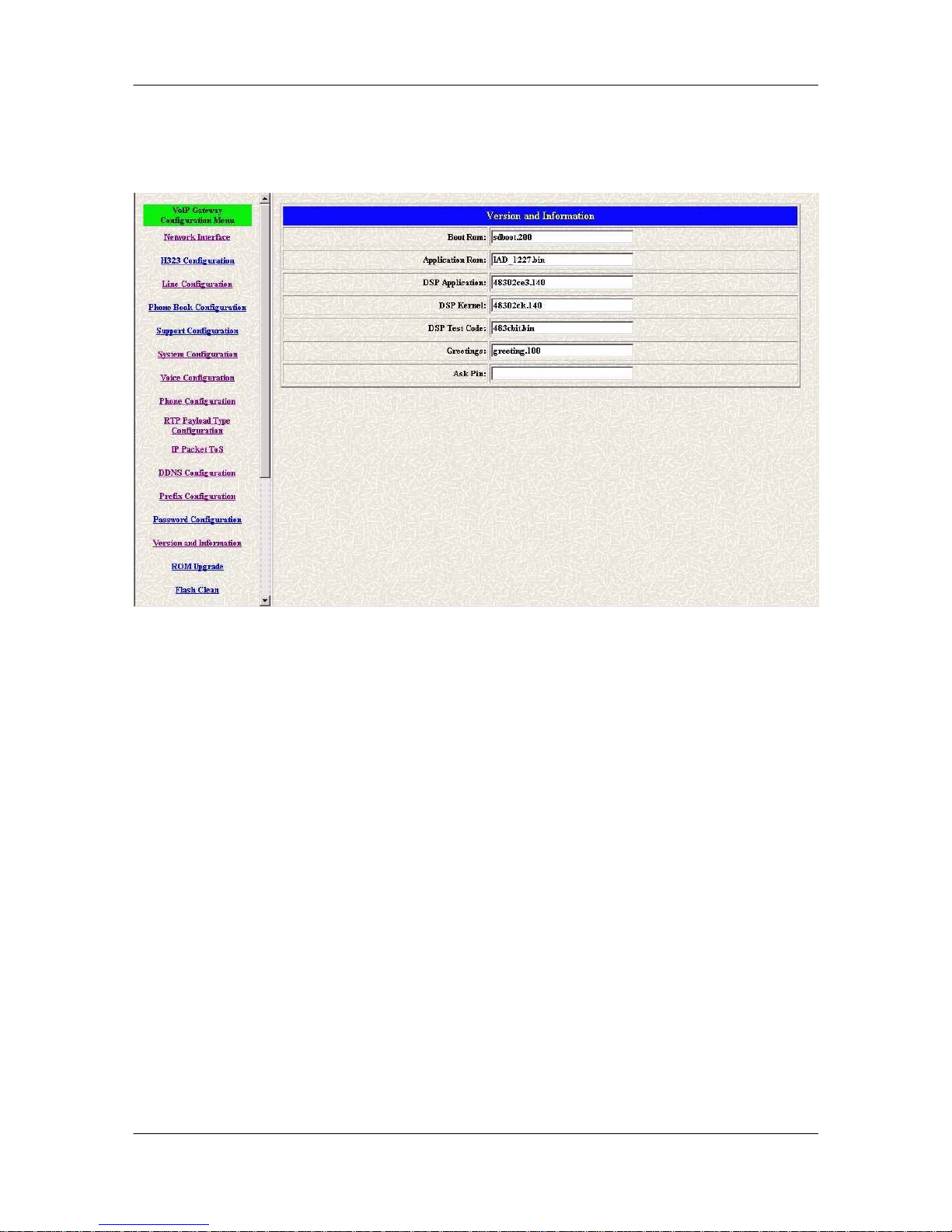

Users can get more detail about the software version for all the parts in this web page. Click [Version and Information] in the navigation panel and open the [Version and Information] Screen.

- Boot Rom: The version of the Boot Rom layer.

- Application Rom: The version of the Application Rom layer.

- DSP Application: The version of the DSP Application Rom layer.

- DSP Kernel: The version of the DSP Kernel layer.

- DSP Test Code: The version of the DSP Test Code layer.

- Greeting: The version of the Greeting file. For FXO only.

- ASK Pin: The version of the ASK Pin file. For FXO only.

- 62 -

4.3.15 ROM Configuration Screen

Dynamix IAD-162 Gateway

Click [ROM Upgrade] in the navigation panel and open the [ROM Configuration] Screen.

- FTP/TFTP Server IP Address: Set TFTP server IP address

- Target File name: Set file name prepared to upgrade

- Method: Select download method as TFTP or FTP

- FTP Login: Set FTP login name and password

- Target File Type: Select which sector of IAD to upgrade

Note: After upgrading 2mb file or Application, please remember to execute Flash Clean, which will clean all configurations become factory values except IP address.

- 63 -

4.3.16 Flash Clean Screen

Dynamix IAD-162 Gateway

Click [Flash Clean] in the navigation panel and open the [Flash Clean] Screen.

- Press CLEAN will clean all configurations of IAD and reset to factory default

value.

Note: User must re-configure all commands all over again (except Network Configure) once execute this function.

- 64 -

4.3.17 Commit Configuration Data Screen

Dynamix IAD-162 Gateway

Click [Commit Data] in the navigation panel and open the [Commit Configuration Data] Screen.

- Commit Date to save all configurations. Please remember to commit data

before reboot your IAD.

- 65 -

4.3.18 Reboot IAD System screen

Dynamix IAD-162 Gateway

Click [Reboot System] in the navigation panel and open the [Reboot Dynamix IAD162 Gateway] Screen.

- Press reboot will reset IAD.

Note: To execute reboot, please remember to do Commit Data before Reboot System.

- 66 -

This part gives information on how to configure Dynamix IAD-162 gateway via Telnet command line interface.

Dynamix IAD-162 Gateway

Part V: Telnet Command Interface

- 67 -

Dynamix IAD-162 Gateway

5.1 Login

For you first login, enter the login: [root] and default no password.

usr/config$

Note:

5.2 Save and Reboot

save it.

Step 2. Input [reboot] then press [enter] key to restart Gateway. Step 3. After around 40 seconds, Gateway will take effect in new configurations.

Do not turn off your Gateway or remove the Gateway while saving your configuration.

usr/config$ passwd -set root voip

Setting Login: root Password: voip OK

usr/config$

- 68 -

5.3 System Commands Overview

Dynamix IAD-162 Gateway

5.3.1 [help]

Press help/man/ ? will display all command list of IAD. The following table lists all of the commands that you can use with the Gateway. Refer to the following chapters for descriptions of commonly used commands.

This user ’s guide describes commands that are helpful for configuring the Gateway. Using commands not documented in the user ’s guide can damage the unit and possibly render it unusable.

Commands with Dynamix IAD-162 Gateway

Command Description

help help/man/? [command] quit quit/exit/close debug Show debug message reboot Reboot local machine flash Clean configuration from flash rom commit Commit flash rom data ifaddr Internet address manipulation time Show current time ping Test that a remote host is reachable sysconf System information manipulation h323 H.323 information manipulation line Gateway line information and configuration prefix Prefix drop/insert information manipulation pbook Phonebook information and configuration voice Voice information manipulation support Special Voice function support manipulation sysinfo System information phone Setup of call progress tones and ringing (SLIC control) tos IP Packet ToS (Type of Service) values ddns Dynamic DNS update manipulation pt RTP payload type configuration and information rom ROM file update Auth Auth to customized the WEB configuration item for administrator. passwd Password setting information and configuration

- 69 -

5.3.2 [quit]

Dynamix IAD-162 Gateway

Type [quit] will quit the Gateway configuration mode. And turn back to login prompt.

usr/config$ quit

Disconnecting.. login: root Welcome to Terminal Configuration Mode Please enter your configuration item

usr/config$

Note:

It is recommended that type the [quit] command before you leave the console. If so, Gateway will ask password again when next user connects to console port.

5.3.3 [debug]

Open debug message will show up specific information while Gateway is in operation. After executing the debug command, it should execute command [debug –open] as well.

usr/config$ debug

Debug message information and configuration Usage: debug [-add type1 [[type2]..]] | -open | -close | -status

-status Display the enabled debug flags.

-add Add debug flag.

-delete Remove specified debug flag.

-open Start to show debug messages.

-close Stop showing debug messages.

Example:

debug -add h323 h323vp

debug -open

usr/config$

Parameter Usages:

- status: Display the enabled debug flags.

- 70 -

- add: Add debug flag.

h323: h323 related information vp: voice related information

- delete: Remove specified debug flag.

- open: Start to show debug messages.

- close: Stop showing debug messages.

Dynamix IAD-162 Gateway

In this example, user open debug flags including h323, vp, h323vp.

usr/config$ debug -add h323 vp h323vp usr/config$ debug –open

For example:

usr/config$ debug -status

Current debug type enabled : Debug Mode is open DEBUG-> H323VP H323 usr/config$

5.3.4 [reboot]

After [commit], type [reboot] to reload Gateway in new configuration. The procedure is as below:

usr/config$ reboot

....Attached TCP/IP interface to cpm unit 0

Attaching interface lo0...done

Hardware Type : 1FXS Set RTL8305SB

no answer from 192.168.4.114

HTTPD initialized... cmInitialize succeed! Ras port:1024 CallSignal port:1720

AC4804[0] is ok successful 1 2 Initialize OSS libraries...OK! VP v1.44 stack open sucessfully.

- 71 -

Dynamix IAD-162 Gateway

5.3.5 [flash]

Clean the configuration stored in flash.

usr/config$ flash

Flash memory information and configuration Usage: flash [-clean] flash -clean Clean the configuration stored.

Note:

This command will clean the configuration stored in the flash and reboot it.

usr/config$

Parameter Usages:

- clean: clean all the user defined value, and reboot Gateway in factory default

mode.

Note:

It is recommended that use [flash –clean] after application firmware id upgraded.

Warning:

User whose login name is root only executes it. All configurations in command

[ifaddr] will be kept.

For example:

usr/config$ flash -clean

- 72 -

Dynamix IAD-162 Gateway

Flash clean ok!! Rebooting ... Attached TCP/IP interface to cpm unit 0 Attaching interface lo0...done

Hardware Type : 1FXS Set RTL8305SB

no answer from 192.168.4.114

HTTPD initialized... cmInitialize succeed! Ras port:1024 CallSignal port:1720

AC4804[0] is ok successful 1 2 Initialize OSS libraries...OK! VP v1.44 stack open sucessfully.

5.3.6 [commit]

Save changes after configuring Gateway.

usr/config$ commit

This may take a few seconds, please wait.. Commit to flash memory ok!

usr/config$

Note:

Users shall use [commit] to save modified value, or they will not be activated after system reboot.

5.3.7 [ifaddr]

Configure and display Gateway network information.

usr/config$ ifaddr

LAN information and configuration

- 73 -

Usage:

Dynamix IAD-162 Gateway

ifaddr [-print][-mode used][-ip IP Address][-mask Subnet Mask]

[-gate Default Gateway][-dns 1 IP Address][-http portnumber] [-dhcpsv used][-nat used][-lanip IP Address][-sntp mode [server]] [-timezone GMT][-ipsharing used IP address][-ipchange used] [-id PPPoE username][-pwd PPPoE password][-reboot used][-emsip

EMS IP]

[-emsid EMS username][-emspwd EMS password][-emstime EMS digit]

-print Display network information and configuration.

-mode Specify WAN IP mode (0=Static, 1=DHCP, 2=PPPoE).

-ip Specify WA N port static IP address.

-mask Set WAN port static IP subnet mask.

-gate Specify WAN port static IP default gateway IP address

-autodns Specify the way to obtain DNS Server (0=Manual, 1=Auto).

-dns Set DNS server IP address. Provide set DNS primary and secondary IP address (1=primary IP address, 2=secondary).

-http Specify http port number.

-dhcpsv DHCP server switch (0=disable, 1=enable).

-nat NAT function switch (0=disable, 1=enable).

-lanip Specify LAN port IP address (For NAT function).

-sntp Set SNTP server mode and specify IP address. SNTP mode (0=No update, 1=Specify server IP, 2=broadcast

mode).

-timezone Set local timezone.

-ipsharing Specify usage of an IP sharing device and specify IP address (0=Disable, 1=Enable).

-ipchange Replace IP address if the shared IP is changed (0=Disable, 1=Enable).

-id PPPoE connection user name.

-pwd PPPoE connection password.

-reboot Reboot after remote host disconnection in PPPoE mode (0=No Reboot, 1=Yes Reboot).

-echo PPPoE Echo Request (0=disable, 1=enable).

-emsip EMS server IP(x=IP null).

-emsid EMS user name.

-emspwd EMS user password.

-emstime EMS refresh time(0~1024 min).

Note:

- 74 -

Dynamix IAD-162 Gateway

Range of IP address setting (0.0.0.0 ~ 255.255.255.255). LAN IP can not support subnet x.x.0.x

Example:

ifaddr -mode 0 ifaddr -ip 210.59.163.202 -mask 255.255.255.0 -gate 210.59.163.254 ifaddr -dns 1 168.92.1.1 -dns 2 168.95.1.2 ifaddr -http 80 ifaddr -lanip 192.168.123.123 ifaddr -sntp 1 210.59.163.254 ifaddr -ipsharing 1 210.59.163.254 -ipchange 1 ifaddr -id 123456@hinet.net -pwd 123456 -reboot 1

Parameter Usages:

- print: Print current IP setting and status

- mode: Specify WAN IP mode (0=Static, 1=DHCP, 2=PPPoE), DHCP mode:

Dynamic Host Configuration, PPPoE mode: PPPoE Dial-up function.

- ip: Assigned IP address for Gateway

- mask: Assigned internet subnet mask

- gate: Assigned IP default gateway

- autodns: Specify the way to obtain DNS Server (0=Manual, 1=Auto), this

function is only usable in DHCP or PPPoE mode.

- dns: Setup DNS Server IP Address.

- http: Assigned Gateway web browser connection port number , default port

number 80.

- dhcpsv: Using this command to let IAD as a DHCP server for LAN port.

- nat: Enable or Disable NAT function

- lanip: Specify LAN port IP address (For NAT function), use this command

setup LAN IP address assigned to PC or other machine.

usr/config$ ifaddr -lanip 192.168.XXX.YYY (The range of LAN IP is XXX: 1-254, YYY: 1-254)

- sntp: Simple Network Time Protocol (0=No update, 1=Specify server IP,

2=broadcast mode). When SNTP function is activated, users have to specify a SNTP server as network time source. An example is demonstrated below:

usr/config$ ifaddr -sntp 1 10.1.1.1

Note:

The 10.1.1.1 stands for SNTP server’s IP address.

- timezone: set local time zone according to GMT

- 75 -

Dynamix IAD-162 Gateway

- ipsharing: To specify a global fixed IP address, user can add this IP address in

the command.

usr/config$ ifaddr -ipsharing 1 210.11.22.33

Note:

If the IP address is not a fixed one, the dedicated IP address is not necessary

in the command. However, dynamic IP Address is not working in Peer-to-Peer mode.

- ipchange: If the unit is behind the IP sharing device and the IP address for the

WAN port of that IP sharing is using the dynamic IP address. This function has to be enabled.

- usr/config$ ifaddr -ipchange 1

- id: This id is for the user name of the PPPoE usage.

- pwd: This password is for the user name of the PPPoE usage.

- reboot: If the connect ion disconnected by the ISP, the unit will reboot and get

the ip again.

- echo: In the PPPo E mode, if the network connector or the ADSL modem was

lost, after the connector and modem connected, it will reboot automatically for the re-connect with the PPPoE server.

- emsip: Set the EMS server IP address.

- emsid: Set the EMS login user name.

- emspwd: Set the EMS login password.

- emstime: Set the EMS search time. For example, if user configures the EMS

time as 2, the IAD will search the EMS server every 2 minutes.

Note:

The EMS server is a managed center, user can use it to upgrade firmware or restore the configuration. For more information, please refer to the EMS user manual.

5.3.8 [time]

When SNTP function of Gateway is enabled and SNTP server can be found as

well, type [time] command to show current network time.

usr/config$ time Current time is WED SEP 17 12:36:49 2003

usr/config$

- 76 -

5.3.9 [ping]

Dynamix IAD-162 Gateway

Use [ping] to test whether a specific IP is reachable or not. For example: if 192.168.1.2 is not existing while 210.63.15.32 exists. Users will

have the following results:

usr/config$ ping 192.168.1.2 no answer from 192.168.1.2 usr/config$ ping192.168.1.254 PING 192.168.1.254: 56 data bytes 64 bytes from 192.168.1.254: icmp_seq=0. time=5. ms 64 bytes from 192.168.1.254: icmp_seq=1. time=0. ms 64 bytes from 192.168.1.254: icmp_seq=2. time=0. ms 64 bytes from 192.168.1.254: icmp_seq=3. time=0. ms

----192.168.1.254 PING Statistics---- 4 packets transmitted, 4 packets received, 0% packet loss round-trIP (ms) min/avg/max = 0/1/5

210.63.15.32 is alive usr/config$

5.3.10 [sysconf]

This command displays system information and configurations.

usr/config$ sysconf

System information and configuration Usage:

sysconf [-print][-idtime digit][-forwardtime digit][-keypad used]

[-prefixsw used][-prefixdisab used][-usrdefprefix digits] [-codec used][-reverse used][-localrbt used][-roundtrip used] [-gwprefix used][-eod used]

sysconf

-print Display system overall information and configuration.

-idtime Inter-Digits time (1~10 sec).

-forwardtime Forward time for FXS line if no answer (5~65535 sec).

-keypad Select DTMF type: 0=In-band, 1=H.245 Alphanumeric, 2=H.245 SignalType, 3=Q.931 UserInfo, 4=RFC2833.

-prefixsw User defined local zone prefix switch (0=OFF, 1=ON).

-prefixdisab Local zone prefix disable character (one character from 0~9, *, or NONE('-' key)).

-usrdefprefix User defined local zone prefix (0 ~ 20 digits).

- 77 -

Dynamix IAD-162 Gateway

-codec Codec select method (0=Caller, 1=Master).

-reverse Reverse.(0=Disable, 1=Enable).

-callerid caller ID.(0=Disable, 1=Enable).

-localrbt Local ring back tone (0=Disable, 1=Enable).

-roundtrip Disconnect no connect in line busy.(0=Disable, 1=Enable).

-gwprefix Drop gateway prefix when call from IP (0=Keep, 1=Drop).

-eod End of dial (0=Disable, 1=Enable).

-dPSTN FXS dial *# and change to PSTN

side(0=Disable,1=Enable).

Example: sysconf -idtime 5

Parameter Usages:

- print: Print current sysconf settings.

- idtime: Set the duration (in second) of two pressed digits in dial mode as timed

out. If after the duration user hasn’t pressed next number, it will dial out all number pressed (1-10 seconds).

- forwardtime: Set forward time (5-65535 seconds) for FXS Line. If call hasn’t

answered the call in this time, call will be forward to assigned number in [line] command. (Please refer to [line] command for forward setting.)

- keypad: Select DTMF replay type (0=In-band, 1=H.245 Alphanumeric,

2=H.245 SignalType, 3=Q.931 UserInfo, 4=RFC2833), Users can adjust the value according to various applications. In-band: Gateway will transfer DTMF signal via RTP payload. H.245 Alphanumeric via H.245 UII Alphanumeric. H.245 SignalType FXS (VoIP) via H.245 UII Singal Type. Q.931 UserInfo via Q.931 UserInfo. RFC2833 via RFC2833.

- prefixsw: Switch on/off prefix function. If user enables prefix function, once

user dials out, gateway will automatically add prefix number before number user dialed.

- prefixdisab: Set disable key (0,1~9, *) to disable the prefix function in this

current call. For example, if user has set prefix as 100, and wants to dial out 100123, user can only press 123, to dial out 100123.However, if user wants to dial 123 without prefix, user can press prefix disable key, for example [*], user can press [*], then dial 123, gateway will dial out 123 without adding prefix.

- usrdefprefix: Define prefix number.

Note:

The above three commands [prefixsw], [prefixdisab] and [usrdefprefix] have to work together. If user would like to dial 9 to replace 123456789, he can firstly switch on the command [sysconf -prefixsw 1], secondly to define the prefix digits as 12345678 [sysconf –usrdefprefix 12345678]. While user would like to dial other

- 78 -

Dynamix IAD-162 Gateway

numbers, he can dial a defined digit – [*] to disable the function [sysconf –prefixdisab *], then dial to the number he wants to dial.

- codec: Set who is the one to determine voice codec during negotiation. 0 is

caller will determine the codec, and 1 is mater will determine the codec. (During negotiation 2 endpoints will compare gateway type level to determine who is master.)

- reverse: If the FXS is the calling party, it will generate the reverse signa l to the

analog side when it got the connect message from the IP side. It could be used in the pay phone application

- callerid: Enable or Disable the caller-id function.

- localrbt: Enable or Disable locally generate ring back tone. Disable means

gateway will receive ring back tone from remote callee, Enable means gateway will generate ring back tone locally.

- roundtrip: The call will be disconnected automatically, if the network is failed,

default value is 10 seconds.

- gwprefix: Drop or keep gateway prefix . Keep Means when gateway has

incoming call from IP side, it will not drop prefix before searching for call number. Drop Means when gateway has incoming call from IP side, it will drop prefix before searching for called number.

- eod: It will transfer the DTMF in [#] if users disable the end of dial function.

Users have to press the keypad in [#] if the end of dial function is enable.

Note:

User can also define IP address here in P2P mode, once user press “#”, Gateway will call out this IP address.

- dPSTN: This function can let user dial out by PSTN. User just need to press

“*#”, the call signal will relay from IP side to PSTN side.

For example:

usr/config$ sysconf -print

System information

Inter-Digits time : 3

Forward time : 30

Keypad DTMF type : H.245 SignalType

User defined prefix switch

: OFF User defined prefix disable : * User defined prefix : 0 Codec select method : Master Reverse : Enable

- 79 -

Caller ID : Disable Local generate ring back tone : Enable Round Trip : Disable Gateway prefix

: Keep End of dial : Enable Dial to PSTN side : Enable

usr/config$

Dynamix IAD-162 Gateway

5.3.11 [h323]

This command is to configure H.323 related parameters.

usr/config$ h323

H.323 stack information and configuration Usage: h323 [-print][-mode used][-gk IP address][-algk IP address][-gwtype used]

[-dfgw IP address][-prefix number][-line number][-passwd number] [-alias h323id][-display information][-gkid ID][-gkdis used]

-print Display H.323 stack information and configuration.

-mode Configure as Gatekeeper mode or Peer-to-Peer mode

(0=Gatekeeper, 1=Peer-to-Peer).

-gk Gatekeeper IP address.

-algk Second Gatekeeper IP address.

-gwtype Gateway Type (0=Terminal, 1=Gateway1, 2=Gateway2).

-dfgw Default Gateway IP address.

-prefix Prefix number.

-line1 Line 1 E.164 number.

-passwd H.235 security password.

-alias IP side registered H323 ID.

-display String representing display information for reporting

to the called party.

-gkid Gatekeeper ID.

-gkdis Gatekeeper discovery (0=Off, 1=On).

-ttl RAS TTL time (0~3600 second).

-rtp RTP port number (1~65535).

-gkfind Gatekeeper finding port (1~65535).

-gkras Gatekeeper RAS port (1~65535).

- 80 -

-h225 H225 ras port (1~65535).

-q931 H225 call signal port (1~65535).

Dynamix IAD-162 Gateway

-dstq931 Destination H225 call signal port (1~65535).

-range Dynamically allocated port range (1~65535).

-respto Max waiting time for 1st response to a new call (1~200).

-connto Max waiting time for call establishment after receiving 1st

response of a new call (1~20000).

Note:

Range of IP address setting (0.0.0.0 ~ 255.255.255.255).

Example:

h323 -gk 210.59.163.171 -line1 70 -line2 71 h323 -alias Your_Alias_Name -gkid GK -gkdis 1 -passwd 1234 h323 -range start 1024 end 19999

Parameter Usages:

- print: Print current h323 related settings

- mode: Alternatives for gatekeeper or peer-to-peer mode (0=gatekeeper mode;

1=peer-to-peer mode). If users select gatekeeper mode, an extra gatekeeper is needed when Gateway is in operation.

- usr/config$ h323 –mode 1 (peer to peer mode)

- gk: Assign gatekeeper’s IP address when Gateway is in gatekeeper mode.

- algk: Assign second gatekeeper’s IP address as redundancy. If Gateway fails

to register to main GK for 10 times, it will try to register to alternative GK.

- gwtype: Gateway type has two kinds, gateway and terminal. Gateway type:

will register as H.323 defined Gateway; user has to define [prefix] in next command. Terminal type: will register as H.323 defined Terminal, [prefix] command is not necessary.

- dfgw: Default gateway is applied under Peer-to-Peer mode. User defines a

constant default gateway IP address, then any number dialed will p ass forward to this IP Address.

- prefix: Assign VoIP Gateway prefix number, as well as the registered number

on the Gatekeeper.

- line1: Assign line 1 number.

- passwd: Set H.235 security password. If user’s GK need H.235 security token

password to authenticate, user have to input open password in this command.

- alias: H.323 ID. If in gatekeeper mode, this h.323 ID must be different from

others who are registering to the same gatekeeper.

- 81 -

Dynamix IAD-162 Gateway

- display: An addition name for user to recognize in called site.

- gkid: Set GateKeeper name for GateKeeper discovery. When Gateway send

out GateKeeper discovery message will search GateKeeper with this GateKeeper name.

- gkdis: Set auto discovery function on or off. If this function is enabled and IP

address of GateKeeper is set as 255.255.255.255, Gateway will multicast to search a GateKeeper on network with configured GateKeeper name; if IP address of GateKeeper is set, before Gateway register to the assigned GateKeeper, it will send out GRQ (GateKeeper Request) message with configured GateKeeper name to GateKeeper first.

- ttl: To set timer for TTL (Time To Live). Gateway would send RRQ, with keep

Alive, to gatekeeper periodically according to TTL timer, default:60 (0~3600 second).

- rtp: To allocate RTP port range—NOT RECOMMENDED. This may be used

when RTP port range conflicts with Firewall policy (1~65532).

- gkfind: Gatekeeper finding port. Which Gateway uses it to discover a

gatekeeper. Default value is 1718 (1~65535).

- gkras: To set default gatekeeper RAS port number. Default value, is 1719

well-known port for RAS communication.

- h225: To set the ras port.(1~65535)

- q931: To set the call signal port.(1~65535)

- dstq931: To specify destination H.225 signal port number.

- range: To allocate port range (1-65535) Gateway may use it.

- respto: Maximum response time out

- connto: Maximum connection time out.

For example:

usr/config$ h323 -print

H.323 stack relate information

RAS mode : GK mode Gatekeeper IP address : 10.1.1.2 Second Gatekeeper IP : 10.1.1.2 Gateway Type : Gateway1 Registered prefix number : 0 Line1 : 000 H.235 security token : *** Registered alias : 1FXS-01778c Display Information : 1FXS

- 82 -

Gatekeeper discovery : Off Gatekeeper ID

: GK

RAS TTL time

: 60 RTP port : 16384 Gatekeeper finding port : 1718 GK RAS port : 1719 H225 RAS port : 1024 H225 Call signal port : 1720 Allocated port range :

start port : 2000

end port : 19999 Response timeOut : 15 Connect timeOut : 60

usr/config$

Dynamix IAD-162 Gateway

5.3.12 [line]

Line information and configuration.

usr/config$ line

Gateway line information and configuration Usage: line [-print][-config number [hunt number][hotline number]

[forward number]]

line -print Gateway line information.

-config Set Gateway line information. hunt: Hunting group. hotline: Hot line configuration. forward: No answer forward for FXS line.

Example:

line -config 1 hunt 1 hotline 1003 forward 1002

usr/config$

Parameter Usages:

- print: print out all current settings of line

- config: determine which line to configure

hunt: Set hunting group flag of each line. User can assign different hunt

- 83 -

group number represent different hunt group.

Dynamix IAD-162 Gateway

hotline: Set hotline table. The Hotline Mode is applied in limited two channels. User just picks up the phone set of one FXS TEL or calls in one FXO line, and gateway will automatically dial out a phone number. In the other hand, user will hear ring back tone or dial tone immediately depended on configurations of destination device.

forward: Set no answer forward table.

For example:

usr/config$ line -print

Line information and configuration Index Type Hunt Hotline No Answer Forward Registration Status ============================================================ ==================== 1 FXS 1 x x No Ready usr/config$

5.3.13 [prefix]

This command is for make rules for drop or insert prefix digits.

usr/config$ prefix

Prefix drop/insert information and configuration Usage: prefix [-print]

[-add [prefix number][drop used][insert digits]] [-modify index [prefix number][drop used][insert digits]] [-delete index number]

prefix -print Display drop/insert information.

-add Add new prefix drop/insert information prefix : The prefix of dialed number. drop : Drop prefix (0=Disable, 1=Enable). insert : 1~10 digits.

- 84 -

-modify Modify prefix drop/insert information

Dynamix IAD-162 Gateway

index : The prefix index number record. prefix : The prefix of dialed number. drop : Drop prefix (0=Disable, 1=Enable). insert : 1~10 digits.

-delete Delete prefix index number record.

Example:

prefix -print prefix -add prefix 100 drop 1 insert 2000 prefix -add prefix 100 drop 1 prefix -add prefix 100 drop 0 insert 200 prefix -modify 1 prefix 100 drop 0 insert 300 prefix -delete 1

usr/config$

Parameter Usages:

- add: Add a rule to drop or insert prefix digits of incoming call.

prefix: Set which prefix number to implement prefix rule.

drop: Enable or disable drop function. If this function is enabled, Gateway will drop prefix number on incoming call.

insert: Set which digit to insert on incoming call.

usr/config$ prefix -add prefix 100 drop 1 insert 2000

- modify: Modify a rule to drop or insert prefix digits of incoming call.

usr/config$ prefix –modify 100 drop 0 insert 200

- delete: Delete a rule to drop or insert prefix digits of incoming call.

usr/config$ prefix –delte modify 100 drop 0 insert 200

For example:

usr/config$ prefix -print

Prefix drop/insert information and configuration Index Prefix Drop Insert ======================================================== 1 100 Enable 2000

- 85 -

usr/config$

Dynamix IAD-162 Gateway

5.3.14 [pbook]

Phone Book function allows users to define their own numbers, which mapping to real IP address. It is effective only in peer-to-peer mode. When adding a record to Phone Book, users do not have to reboot the machine, and the record will be effective immediately.

usr/config$ pbook

Phone book information and configuration

Usage:

pbook [-print]

[-add [name string][e164 number][IP address][port number]

[drop used][insert digits]]

[-modify number [name string][e164 number][IP address][port number]

[drop used][insert digits]]

[-delete number]

pbook -print Display phone book information and configuration.

-add Add new phone book record. name : 1 ~ 20 characters. e164 : 1 ~ 20 digits. ip : IP adress. port : 1024 ~ 65535. drop : Drop prefix (0=Disable, 1=Enable). insert : 1 ~ 30 digits.

-modify Modify phone book record. name : 1 ~ 20 characters. e164 : 1 ~ 20 digits. ip : IP adress. port : 1024 ~ 65535. drop : Drop prefix (0=Disable, 1=Enable). insert : 1 ~ 30 digits.

-delete Delete phone book index record.

Note:

Range of IP address setting (0.0.0.0~255.255.255.255). Range of index setting value (1~50).

Example:

pbook -print

- 86 -

pbook -add name test e164 1234 ip 192.168.1.10

Dynamix IAD-162 Gateway

pbook -add name test e164 1234 ip 192.168.1.10 port 1720 drop 1 insert

5678

pbook -modify 1 name test e164 5678 ip 192.168.1.10 port 1720 drop 0 pbook -delete 1

usr/config$

Parameter Usages:

- print: Print out current contents of Phone Book. Users can also add index number, from 1 to 100, to the parameter to show specific phone number.

Note:

Index number: means the sequence number in phone book. If users do request a specific index number in phone book, Gateway will give each record a automatic sequence number as index.

- add: add a new record to phone book. When adding a record, users have to

specify name, IP, and e164 number to complete the command.

name: Name to represent caller.

e164: e.164 number for mapping with IP address of caller

ip: IP address of caller

port: Call signal port number of caller

drop : Drop e.164 number when dial out. 0 means to keep e.164 number, 1 means to drop e.164 number when dialing out.

inert: Insert digits.(1~10 digits)

usr/config$ pbook –add name test e164 100 ip 192.168.13.78

- modify: modify an existing record. When using this command, users have to

specify the record’s index number, and then make the change.

usr/config$ pbook –modify 1 name test e164 5678 ip 192.168.1.10 port 1730 drop 0

- delete: delete a specific record. [pbook –delete 3] means delete index 3

record.

usr/config$ pbook –delete 3

PhoneBook Rules:

The e164 number defined in phone book will fully carry to destination. It is not just

a representative number for destination’s IP Address. In other words, user dial this e164 number to reach destination, destination will receive the number and find out if it

- 87 -

Dynamix IAD-162 Gateway

is matched to its e164, including Line number in some particular device.

For example:

usr/config$ pbook –print

Phone book information and configuration Index Name E.164 IP Port Drop Insert ======================================================== 1 test 100 192.168.13.78 1720 Disable

usr/config$

5.3.15 [voice]

The voice command is associated with the audio setting information. There are

four voice codecs supported by Gateway.

usr/config$ voice

Voice codec setting information and configuration Usage: voice [-print]

[-send [G723 ms] [G729 ms] [G729A ms] [G729B ms] [G729AB ms] [G711U ms] [G711A ms] ] voice [-priority [G723] [G729] [G729A] [G729B] [G729AB] [G711U] [G711A] ]

[-volume line [voice level][input level][dtmf level]]

[-nscng [G711U used1][G711A used2][G723 used3]]

[-echo used][-mindelay t1][-maxdelay t2]

-print Display voice codec information and configuration.

-send Specify sending packet size. G.723 (30/60/90 ms) G.729 (20/40/60/80 ms) G.729A (20/40/60/80 ms) G.729B (20/40/60/80 ms) G.729AB (20/40/60/80 ms) G.711U (20/40/60 ms) G.711A (20/40/60 ms)

-priority Priority preference of installed codecs. G.723 G.729

- 88 -

G.729A G.729B

G.729AB

G.711U G.711A

-volume Specify the following levels: voice volume (0~63, default: 30), input gain (0~63, default: 30), dtmf volume (0~31, default: 23),

Dynamix IAD-162 Gateway

-nscng No sound compression and CNG (G.723.1 only, 0=Off, 1=On).

-echo Setting of echo canceller. (0=Off, 1=On, per port basis).

-mindelay Setting of jitter buffer min delay. (0~150, default: 90).

-maxdelay Setting of jitter buffer max delay. (0~150, default: 150).

Example:

voice -send g723 60 g729 60 g729a 60 g729b 60 g729ab 60 g711u 60

g711a 60

voice -volume 1 voice 20 input 32 dtmf 27 voice -echo 1

usr/config$

Parameter Usages:

- print: Print current voice information and configurations.

- send: To define packet size for each codec. 20/40/60ms means to send a

voice packet per 20/40/60 milliseconds. The smaller the packet size, the shorter the delay time. If network is in good condition, smaller sending packet size is recommended. In this parameter, 20/40/60ms is applicable to G.711u/a law, and G.729 codec, while 30/60ms is applicable to G.723.1 codec.

- priority: Codec priority while negotiating with other h323 device. This

parameter determines the listed sequence in h.245 TCS message. The codec listed in left side has the highest priority when both parties determining final codec. User can also select the particular codec without others.

usr/config$ voice –priority g723 (only select this codec) usr/config$ voice –priority g723 g729 g711u g711a (select four codecs, and g723 is the first choice)

- volume: There are three adjustable value.

voice volume stands for volume, which can be heard from Gateway side(range 0~63, default: 28).

- 89 -

Dynamix IAD-162 Gateway

input gain stands for volume, which the opposite party hears (range 0~38, default: 28).

dtmf volume stands for DTMF volume/level, which sends to its own Line (range 0~31, default: 23).

- nscng: Silence suppression and comfort noise generation setting (1 = ON;

0 = OFF). It is applicable to G.723 codec only.

usr/config$ voice -nscng g723 1

- echo: On or Off the activate each canceler.

- mindelay: The minimum jitter buffer size (Default value= 90 ms).

- maxdelay: The minimum jitter buffer size (Default value= 150 ms).

usr/config$ voice –mindelay 90 –maxdelay 150

Note:

Be sure to know well the application before you change voice parameters

because this might cause incompatibility.

For example:

usr/config$ voice -print

Voice codec setting relate information

Sending packet size :

G.723.1 : 60 ms G.729 : 60 ms G.729A

: 60 ms

G.729B

: 60 ms

G.729AB

: 60 ms

G.711U

: 40 ms

G.711A : 40 ms

Priority order codec :

g7231 g729 g729a g729b g729ab g711u g711a

Volume levels

: voice volume : 28 input gain : 28 dtmf volume : 23

No sound compress & CNG :

G.723.1 : Off G.729 : There is no setting G.729A : There is no setting

- 90 -

G.729B : There is no setting G.729AB

: There is no setting G.711(U-Law) : There is no setting G.711(A-Law) : There is no setting

Echo canceller : On Jitter buffer :

Min Delay : 90 Max Delay : 150

usr/config$

Dynamix IAD-162 Gateway

5.3.16 [support]

This command provides some extra functions that might be needed by users.

usr/config$ support

Special Voice function support manipulation Usage: support [-print][-t38 used][-t38ecm used][-t38asn1 used][-faxrdd digits]

[-fstart used][-tunnel used][-h245fs used][-earkyh245 used] [-h450 used]

support -print Display support information and configuration.

-t38 T.38(FAX) (0=Disabled, 1=Enabled).

-t38rq T.38(FAX) Send request Mode.(0=Disabled, 1=Enabled).

-t38ecm T.38(FAX) ECM (0=Disabled, 1=Enabled).

-t38asn1 T.38(FAX) ASN.1 support (0=Disabled, 1=Enabled).

-faxrdd FAX redundancy depth (0 ~ 2).

-fstart Fast start (0=Disabled, 1=Enabled).

-tunnel H245 Tunneling (0=Disabled, 1=Enabled).

-h245fs H245 message after FastStart support (0=Disabled,

1=Enabled).

-earlyh245 EarlyH245 support (0=Disabled, 1=Enabled).

-h450 H450 support (0=Disabled, 1=Enabled).

Example:

support -t38 1 support -t38rq 1 support -t38ecm 1

support -t38asn1 1

- 91 -

support -faxrdd 1 support -fstart 1 support -tunnel 1 support -h245fs 1 support -earlyh245 1 support -h450 1

usr/config$

Dynamix IAD-162 Gateway

Parameter Usages:

- print: print current settings in support command.

- t38: Enable or disable T.38 fax ability. The function is will automatically defer

codec (G.723 or G. 729a) to T.38 when FAX signal is detected.

- t38rq: The T.38 could support the request mode message sending or not. 0 for

disable the request mode sending and 1 for request mode sending with the T.38.

- t38ecm: Enable or disable t38ecm function. The function is support the error

correction in the high-speed fax mode.

- t38asn1: Enable or disable Enable ASN.1 function. The function is support

with the FAX.

- faxrdd: Set fax redundancy depth. User can increase FAX redundancy depth

when network traffic is heavy. For example, if user set fax redundancy as 2, Gateway will resend fax packets every 2 packets.

- fstart: Enable or disable fstartStart function. The function is can shorten the

connection time if the opposite party also supports fastStart.

- tunnel: Enable or disable H.245 tunneling function. The function is send H.245

(Call Control messages) via H.225’s (Call Signal messages) link. The function is effective only when both side support h245 tunnel.

- h245fs: Enable or disable Gateway H.245 FastStart. The function is send

h.245 messages after FastStart.

- earlyh245: Enable or disable early H.245 function. The function is effective

only when both sides support early H.245.

- h450: Enable or disable H.450 related features, which include transfer, hold

and forward.

Note:

It is not recommended to change the value in this command, only if users do know

well the application. This might cause incompatibility with other devices.

- 92 -

For example:

usr/config$ support -print

Special Voice function support manipulation

T.38(FAX) support : Disabled T.38(FAX) Request Mode : Enabled T.38(FAX) ECM : Disabled T.38(FAX) ASN.1 : Disabled FAX redundancy depth : 0 FastStart support : Disabled Tunneling support : Disabled H.245 message after FastStart support : Enabled EarlyH245 support : Disabled H450 support : Disabled

usr/config$

Dynamix IAD-162 Gateway

5.3.17 [sysinfo]

This command could show up the line is busy or not.

usr/config$ sysinfo

System information Index Registration Status =========================== 1 No Ready

usr/config$

Parameter Usages:

- Index: Line channel.

- Reg: Line registration Gatekeeper status. If you use registration Gatekeeper

server, then display registration status [No] or [OK].

- Status: Line status in use display [busy] or not use display [Ready]. When you

set h323 line number [x] disable, the status field not check h323 line number setup.

5.3.18 [phone]

Gateway progress tone is configurable. Default tone value is set according to U.S.

tone specification. Users may adjust the values according to their own country’s tone

- 93 -

specification or users-defined tone specification.

usr/config$ phone

Dynamix IAD-162 Gateway

Phone ringing , ringback tone , busy tone , dial tone setting and notes Usage: phone [-print [ring][rbt][bt][dt][flash]]

[-ring [freq ][ringON ][ringOFF ][ringLevel]] [-rbt [freqLo ][freqHi ][freqLoLev][freqHiLev]

[Tone1ON][Tone1OFF][Tone2ON ][Tone2OFF ]]

[-bt [freqLo ][freqHi ][freqLoLev][freqHiLev]

[Tone1ON][Tone1OFF][Tone2ON ][Tone2OFF ]]

[-dt [freqLo ][freqHi ][freqLoLev][freqHiLev]

[Tone1ON][Tone1OFF][Tone2ON ][Tone2OFF ]]

[-flash [freqLo ][freqHi ]]

phone -print Display phone ringing/tone configuration.

ring : ringing rbt : ringback tone bt : busy tone dt : dial tone flash : flash tone

-ring ringing configuration set.

-rbt ringback tone configuration set.

-bt busy tone configuration set.

-dt dial tone configuration set.

-flash flash configuration set.

Note:

ringing frequency : 15 ~ 100 (Unit : Hz) ringing ring ON/OFF : 0 ~ 8000 (Unit : ms) ringing level : 0 ~ 94 (Unit : V) tone frequency

: 0 ~ 65535 (Unit : Hz) tone freqLevel : 0 ~ 65535 (Unit : mVrms) tone Tone ON/OFF : 0 ~ 8000 (Unit : ms)

Example:

phone -print rbt phone -ring 20 2000 4000 94 phone -rbt 440 480 8 8 2000 4000 2000 4000 phone -bt 620 480 8 8 500 500 1023 1023 phone -dt 440 350 8 8 500 1023 500 1023

- 94 -

phone -flash 100 300

usr/config$

Dynamix IAD-162 Gateway

Parameter Usages:

- print: Print current call progress tone configurations (ring: ring tone, rbt: ring

back tone, bt: busy tone, dt: dial tone). This parameter should be accompanied with tone type.

- ring: To set RING tone value. The played tone type, when Gateway is

receiving a call.

- rbt: To set RingBackTone value. The played tone type, when Gateway

receives a Q.931 Alerting message. In condition that Gateway is the originate side.

- bt: To set BusyTone value. The played tone type, when destination is busy.

- dt: To set DialTone value. The played tone type, when hook off a phone set of

workable Gateway.

- flash: Set the detective flash range in ms, for example, 300-500 ms.

Note:

For tone simulation, Gateway adopts dual frequencies as traditional telephone does. If users want to have their own call progress tone, they can change the value of tones. High and Low frequency/level/cadence can be configured respectively.

For example:

usr/config$ phone -print rbt

Phone ringback tone paramter

Ringback Tone frequency high : 480 Ringback Tone frequency low : 440 Ringback Tone frequency high level : 155 Ringback Tone frequency low level : 155 Ringback Tone tone1 on : 2000 Ringback Tone tone1 off : 4000 Ringback Tone tone2 on : 2000 Ringback Tone tone2 off : 4000

5.3.19 [tos]

Define IP Packet ToS (Type of Service)/ Differentiated Service configuration.

Usr/config$ tos

- 95 -

Dynamix IAD-162 Gateway

IP Packet ToS (Type of Service)/Differentiated Service configuration Usage: tos [-print][-rtptype dscp][-sigtype dscp]

tos -print Display IP packet Tos configuration.

-rtptype The packages of voice (0~63).

-sigtype The package of call signal (0~63).

Example:

tos -rtptype 7 -sigtype 0

usr/config$

Parameter Usages:

- rtptype: the packages of voice (0~63).

- sigtype: the package of call signal (0~63).

Note:

The value of rtptype and sigtype is from 0 to 63. It’s working if it supported by your

network.

For example:

usr/config$ tos –print

IP Packet ToS information:

Signalling Packet:

DSCP Code : 0

Media Packet :

DSCP Code : 0

usr/config$

5.3.20 [ddns]

The dynamic DNS service information and configuration

usr/config$ ddns

The dynamic DNS service information and configuration Usage: ddns [-print][-enable used][-server Address][-hostname Name][-id Account]

- 96 -

Dynamix DW IAD - 162 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
