FFXXOO SSIIPP GGaatteew
waayy
User Manual
Dynamix DW-2/4 FXO SIP Gateway User Manual
STEPS IN CONFIGURATION........................................................................................3
1. START UP .......................................................................................................................4
1.1 INTRODUCTION .........................................................................................................4
1.2 FEATURES AND SPECIFICATION.........................................................................................5
1.3 ACCESSORIES AND EQUIPMENT................................................................................... 7
1.4 APPEARANCE ............................................................................................................ 8
1.4.1 2 FXO Gateway................................................................................................ 8
1.4.2 4 FXO Gateway................................................................................................ 9
1.4.3 6 FXO Ga t ew a y ..........................................................................................10
2. HOW TO SETUP AND CONNECT BASICALLY.................................................12
2.1 SYSTEM REQUIREMENT.............................................................................................12
2.2 IP ENVIRONMENT SETTING .......................................................................................13
2.2.1 For Windows 2000/NT......................................................................................13
2.3 NETWORK CONFIGURATIONS IN YOUR GATEWAY...........................................................15
2.3.1 Static ip address............................................................................................17
2.3.2 DHCP mode................................................................................................19
2.3.3 PPPoE mode .............................................................................................. 20
2.4 MAKING A VOIP CALL...................................................................................................21
2.4.1 Configure the gateway into the Peer-to-Peer mode...................................... 21
2.4.2 Configure the gateway into the Proxy mode ................................................. 24
3. ADVANCED.....................................................................................................................26
3.1 NETWORK CONFIGURATION ........................................................................................27
3.2 SIP CONFIGURATION....................................................................................................29
3.3 SECURITY...................................................................................................................30
3.4 LINE...........................................................................................................................31
3.5 SYSTEM CONFIGURATION............................................................................................32
3.6 VOICE SETTING..........................................................................................................33
3.7 TONE SETTING...........................................................................................................34
3.8 PHONE BOOK CONFIGURATION ...................................................................................35
3.9 PREFIX .......................................................................................................................36
3.10 ROUTING TABLE...........................................................................................................39
3.10.1 Add a new Routing Table................................................................................40
3.11 FXO PASSWORD .....................................................................................................42
3.12 IP PACKET TOS..........................................................................................................43
3.13 PASSWORD..................................................................................................................44
1
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.14 ROM UPGRADE.................................................................................................... 45
3.14.1 \Upgrade using the FTP............................................................................... 45
3.14.2 Upgrade using the TFT................................................................................ 46
3.15 FLASH CLEAN ...................................................................................................49
3.16 COMMIT ............................................................................................................... 50
3.17 REBOOT ............................................................................................................... 51
4. COMMAND LIST..................................................................................................... 52
4.1 HYPER TERMINAL SETTING .........................................................................................52
4.2 COMMAND LIST.........................................................................................................55
4.2.1 [help] ............................................................................................................55
4.2.2 [quit].............................................................................................................55
4.2.3 [debug] ........................................................................................................... 56
4.2.4 [reboot]........................................................................................................... 56
4.2.5 [flash]............................................................................................................57
4.2.6 [commit]............................................................................................................57
4.2.7 [ifaddr]..........................................................................................................58
4.2.8 [time] ............................................................................................................59
4.2.9 [ping]............................................................................................................59
4.2.10 [sysconf]........................................................................................................ 60
4.2.11 [sip]...........................................................................................................61
4.2.12 [security].....................................................................................................63
4.2.13 [line]............................................................................................................63
4.2.14 [route]...........................................................................................................65
4.2.15 [prefix].......................................................................................................... 66
4.2.16 [pbook].......................................................................................................... 67
4.2.17 [voice].......................................................................................................69
4.2.18 [tone]...........................................................................................................72
4.2.19 [fxopwd]....................................................................................................73
4.2.20 [record]............................................................................................................73
4.2.21 [tos]...........................................................................................................81
4.2.22 [pt]...............................................................................................................82
4.2.23 [rom]................................................................................................................83
4.2.24 [passwd]........................................................................................................ 84
2
Dynamix DW-2/4 FXO SIP Gateway User Manual
Steps in configuration
STEP 1
Start Up
To check out the peripheral equipments and
understand the feature of this gateway. Please read
this step very carefully before starting the configuring.
Connecting the gateway and computer to start
configuring by WEB GUI.
STEP 2
How to
Setup and
Connect
basically
Setting the ip address for this gateway to make sure that
it could connect with the internet.
Setting the configurations of dialing, including the Peer-
To-Peer, GK mode and how to set these tables to make
calls by this gateway easily. The other configurations of
make call will be discussed in this step.
STEP 3
Advanced
Advanced configurations and special functions of this
gateway. Using the WEB GUI to show how to set this
table and explain the meaning of these tables.
To explain the meaning of the command in the command
line interface and example the usage of the command.
To get more usages or configuration in this step and
study about the command line configuration.
з
Dynamix DW-2/4 FXO SIP Gateway User Manual
1. Start Up
1.1 Introduction
Dynamix DW-2 FXO gateway provides voice/fax service over IP network
with H.323 v3 protocol. By connecting to your existing ADSL or cable
modem service, which allows the use of a single, network for voice and
fax services with consequent saving in network infrastructure and greatly
reduced telephone charges. Ideal solution for providing low cost
communications between headquarters and branch offices in the world,
as well as for SOHO and office telephony applications.
FXO gateway provides analog lines to connect local PSTN/PTT interface
(FXO), and converts voice/fax signal onto IP network. The management
feature is via RS-232C COM port and TELNET.
Dynamix DW-2/4 FXO SIP Gateway User Manual
1.2 Features and specification
Features
- ITU-T H.323 v3 compliance
- Automatically Gatekeeper Discovery
- Peer-to-Peer mode (non-Gatekeeper)
- Support auto-attendant (2nddial Tone / Voice greeting)
- Dimensions : 221mm(W)*42mm(H)*217mm(L)
- Line hunting
- 2(2FXO gateway)/4(4FXO gateway)/6(6FXO gateway) RJ-11 FXO
ports
- E.164 (Telephone Number Plan)
- DTMF dialing
- DTMF detection/generation
- TFTP software upgrade
- Remote configuration/reset via Telnet
- LED indication for system status
- LAN interface : One RJ-45 connector of 10Base-T
- Microsoft Netmeeting v3.0 compatible
- Support static IP and DHCP
- QoS by ToS (Type Of Service)
- SNTP (Simple Network Time Protocol)
- Security: Password setting
Audio feature
Extension
- Codec -- G.711 a/µlaw,
G.723.1 (6.3K/bps), G.729A (Optional)
- VAD (Voice Activity Detection), CNG (Comfort Noise Generate)
- G.168/165-compliant adaptive echo cancellation
- Dynamic Jitter Buffer
5
Dynamix DW-2/4 FXO SIP Gateway User Manual
- Bad Frame Interpolation
- Gain Settings
- Provide Call Progress Tone: Dial tone, busy tone, call-holding tone and
ring-back tone
Management Features:
Two easy ways for system configuration
- Console port: RS-232C port
- TELNET
- HTTP Brower (e.g. Internet Explorer)
Management Feature
- TELNET/Console port and Web Browser configuration
Certification
- UL, CE, FCC
FXO Features
- 2-wire loop start
- Support auto-attendant (Tone or voice greeting)
- PSTN polarity reversal detection
- Provide 2nd dial tone to PSTN
- Disconnect tone detection
- Asking ping function with the incoming calls from PSTN side
- Record and analyze the Tone from PSTN side
Environmental
- Operation temp:0°C to 40°C
- Humidity: 10% to 90% (Non-condensing)
6
Dynamix DW-2/4 FXO SIP Gateway User Manual
1.3 Accessories and equipment
♦ The voice gateway in 2, 4 or 6 FXO ports and with one RJ-45 connector.
♦ The AC adapter.
♦ The CD of user manual.
♦ The connection cable in RS-232 interface.
7
Dynamix DW-2/4 FXO SIP Gateway User Manual
Power : Light on means 2FXO gateway is power on.
L1-L2 : Light on means the line is in use.
Link : Light on means 2FXO gateway is connected to the network
correctly. Act : LED should be light on and in flash display
when data is transmitting. Ready : 1. Light on and in slow flash
means 2FXO gateway is in
operation mode. Status : 1. Light on means 2FXO
gateway successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means 2FXO gateway is not registered to
Gatekeeper when it is set as Gatekeeper Mode.
3. Or when 2FXO gateway is in downloading mode, LED
should be flash as well.
4. Light off means 2FXO gateway is in Peer-to-Peer Mode.
Back panel:
8

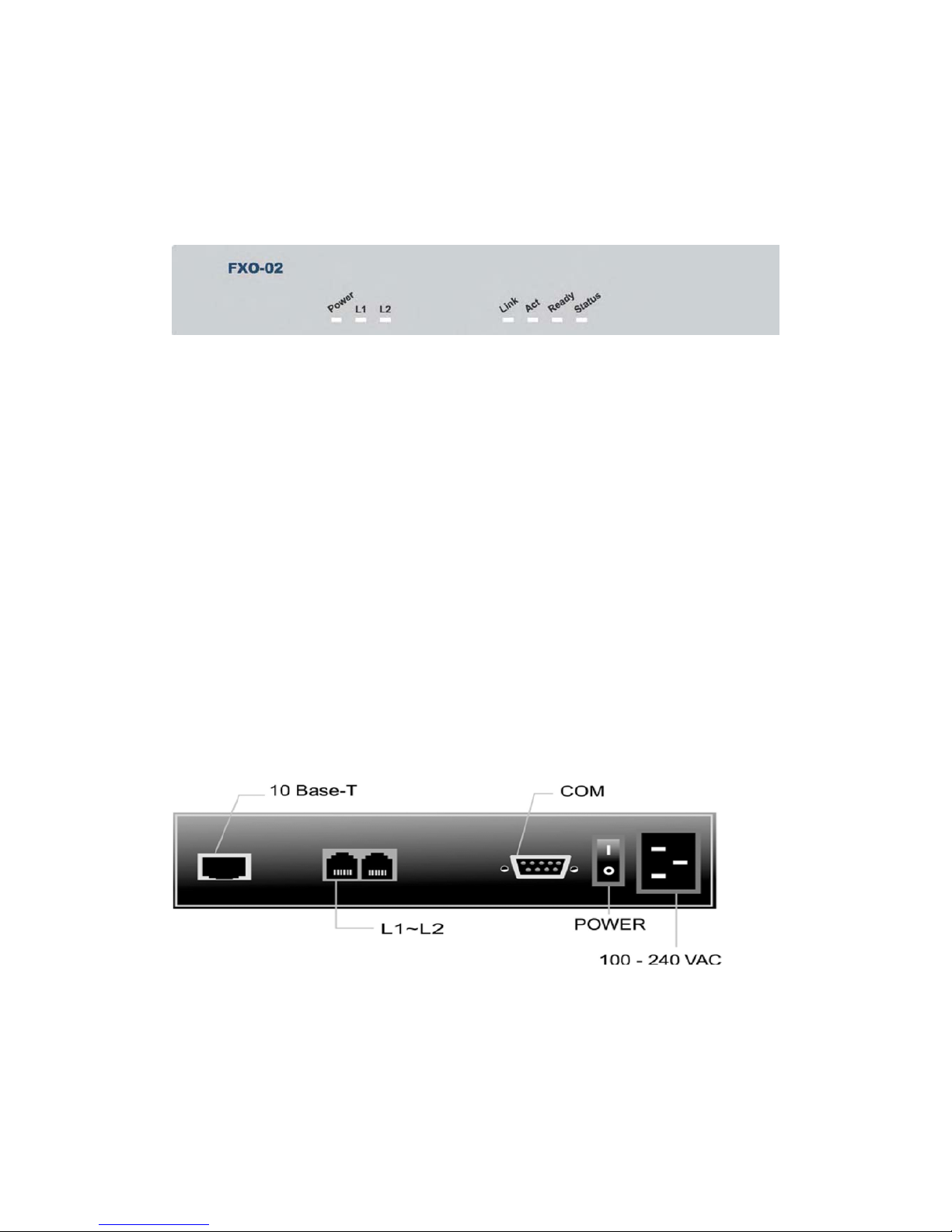

1.4 Appearance
1.4.1 2 FXO Gateway
Front panel: The LED light provides system message of 2FXO gateway.
Dynamix DW-2/4 FXO SIP Gateway User Manual

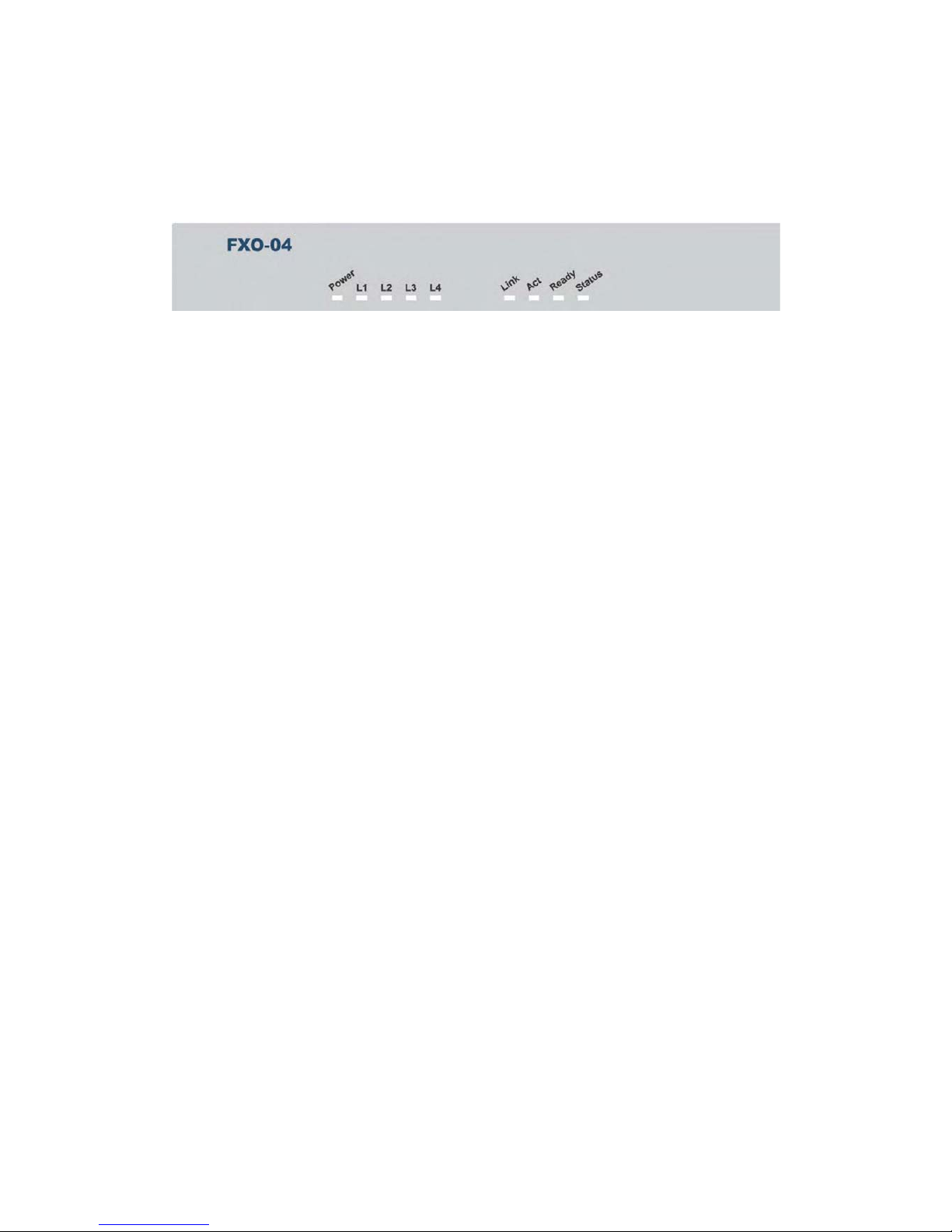

1.4.2 4 FXO Gateway
Power : Light on means FXO gateway is power on.
L1-L4 : Light on means the line is in use.
Link : Light on means FXO gateway is connected to the network
correctly. Act : LED should be light on and in flash display
when data is transmitting. Ready : 1. Light on and in slow flash
means FXO Gateway is in
operation mode. Status : 1. Light on means FXO
Gateway successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means FXO Gateway is not registered to
Gatekeeper when it is set as Gatekeeper Mode.
3. Or when FXO Gateway is in downloading mode, LED
should be flash as well.
4. Light off means FXO Gateway is in Peer-to-Peer Mode.
9
Front panel: The LED light provides system message of FXO Gateway.
Dynamix DW-2/4 FXO SIP Gateway User Manual
Power : Light on means 6FXO gateway is power on.
L1-L6 : Light on means the line is in use.
Link : Light on means 6FXO gateway is connected to the network
correctly. Act : LED should be light on and in flash display
when data is transmitting. Ready : 1. Light on and in slow flash
means 6FXO gateway is in
operation mode. Status : 1. Light on means 6FXO
gateway successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means 6FXO gateway is not registered to
Gatekeeper when it is set as Gatekeeper Mode.
3. Or when 6FXO gateway is in downloading mode, LED
should be flash as well.
4. Light off means 6FXO gateway is in Peer-to-Peer Mode.
1. Ethernet Port
LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET
10/100base-T.
The pin-out is as following:
10
1.4.3 6 FXO Gateway
Front panel: The LED light provides system message of 6FXO gateway.
Dynamix DW-2/4 FXO SIP Gateway User Manual
PIN 1, 2: Transmit
PIN 3, 6: Receive

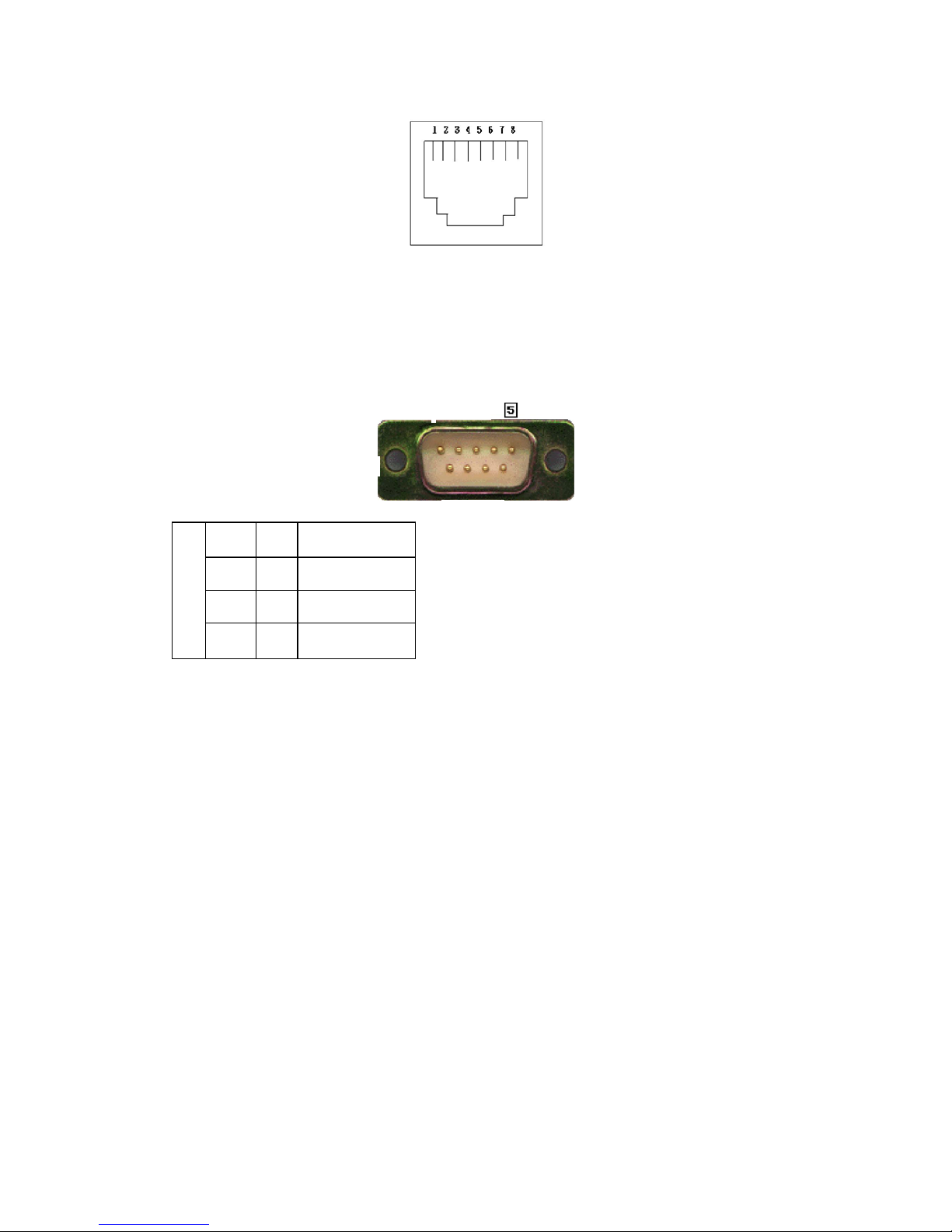

2. COM:
RS232 console port (DB-9pin male connector) Note: use
straightforward cable to connect to your computer.
Ш
PINOUTS
Name Dir Description
RXD
«-
Receive Data
TXD
-►
Transmit Data
Pin
2 3
5
GND
System Ground
3. LINE:
RJ-11 connector, FXO interface is for connecting the extension line of PABX
or PSTN Line.
4. 12V DC:
Input AC 100V~120V;output DC12V.
11
HI E
Dynamix DW-2/4 FXO SIP Gateway User Manual
2. How to Setup and connect basically
2.1 System Requirement
1. One PC (a) Pentium 100 or above, 64 RAM, Windows 98 or above.
(b) Ethernet card or COM port
2. One standard straightforward RS-232 cable (female connector to Gateway
side).
3. PBX extension Lines or PSTN Lines.
4. Software tools (a) Hyper Terminal, TELNET, Web Browser.
(b) Gatekeeper (optional).
12
Dynamix DW-2/4 FXO SIP Gateway User Manual
2.2 IP Environment Setting
User must prepare a valid IP address, complied with IP Network, for Gateway’s
proper operation.
For testing the validation of chosen IP address, using the same IP configuration
in other PC or Notebook, and then try to connect to Public Internet (go to wellknown website, receive Internet mail, or ping a specific public IP address). If it
works, use the same IP address and network configuration for Gateway.
Please follow up the step for the configuration of your computer or notebook.
2.2.1 For Windows 2000/NT
Please make sure that the network interface of your computer is working fine
and the cross over line (RJ-45) is connecting with the computer correctly or you
could use a hub to connect with your computer and this gateway. Turn on your
computer and configure the network parameter as follow:
1 Go to the start menu and enter the setting area. Click control
panel.
2 Enter the network configuration.
13
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 2.1: Network Configuration
3 Select the Property of the LAN card.
Setup the ip address, subnet mask and default gateway as below:
Figure 2.2: Configure the network
5Click OK after you finished the network setup.
The default ip address, netmask and default gateway address of the gateway is
10.1.1.3, 255.0.0.0, 10.1.1.254.
14
4
Dynamix DW-2/4 FXO SIP Gateway User Manual
2.3 Network configurations in your gateway
1 Key in the ip address of the gateway (http://10.1.1.3) with the
browser. (see figure 2.3)
Figure 2.3: WEB Browser
2 After key in the ip address, you have to enter the user name and
password to enter the WEB configuration. (Username: root ; No password)
(see figure 2.4)
15
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 2.4: Login the username and password
3 You will enter the main page of the configuration after key in the
login name and password correctly: (see figure 2.5)
Figure 2.5: The main WEB configuration
16
Dynamix DW-2/4 FXO SIP Gateway User Manual
4 Press the Network Interface to configure the networking of your
gateway. (see figure 2.6)

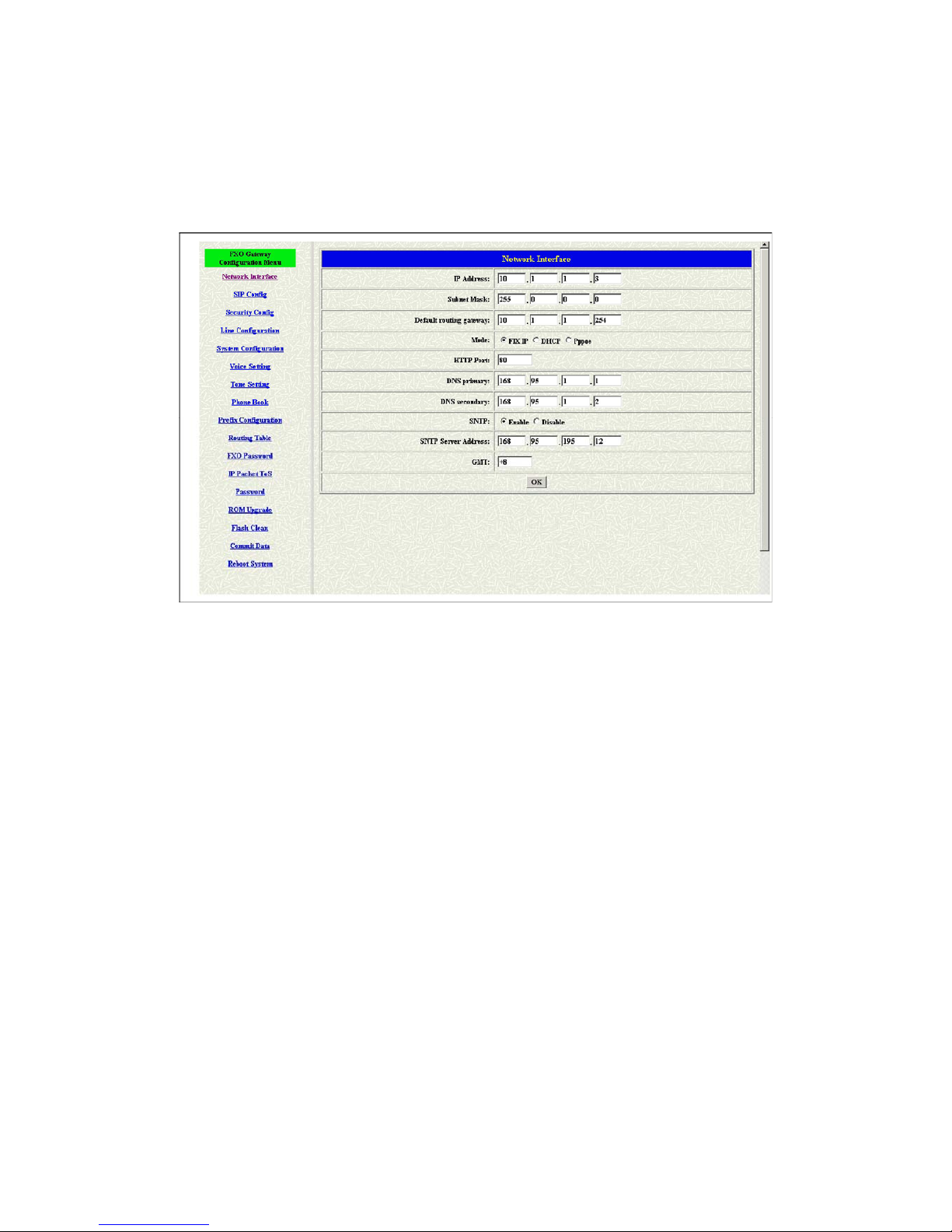

Figure 2.6: The Network Interface
2.3.1 Static ip address
1 Please get the correct ip address, netmask and default gateway
address from your ISP first. Press the OK button if you finished. (see figure
2.7)
17
Dynamix DW-2/4 FXO SIP Gateway User Manual

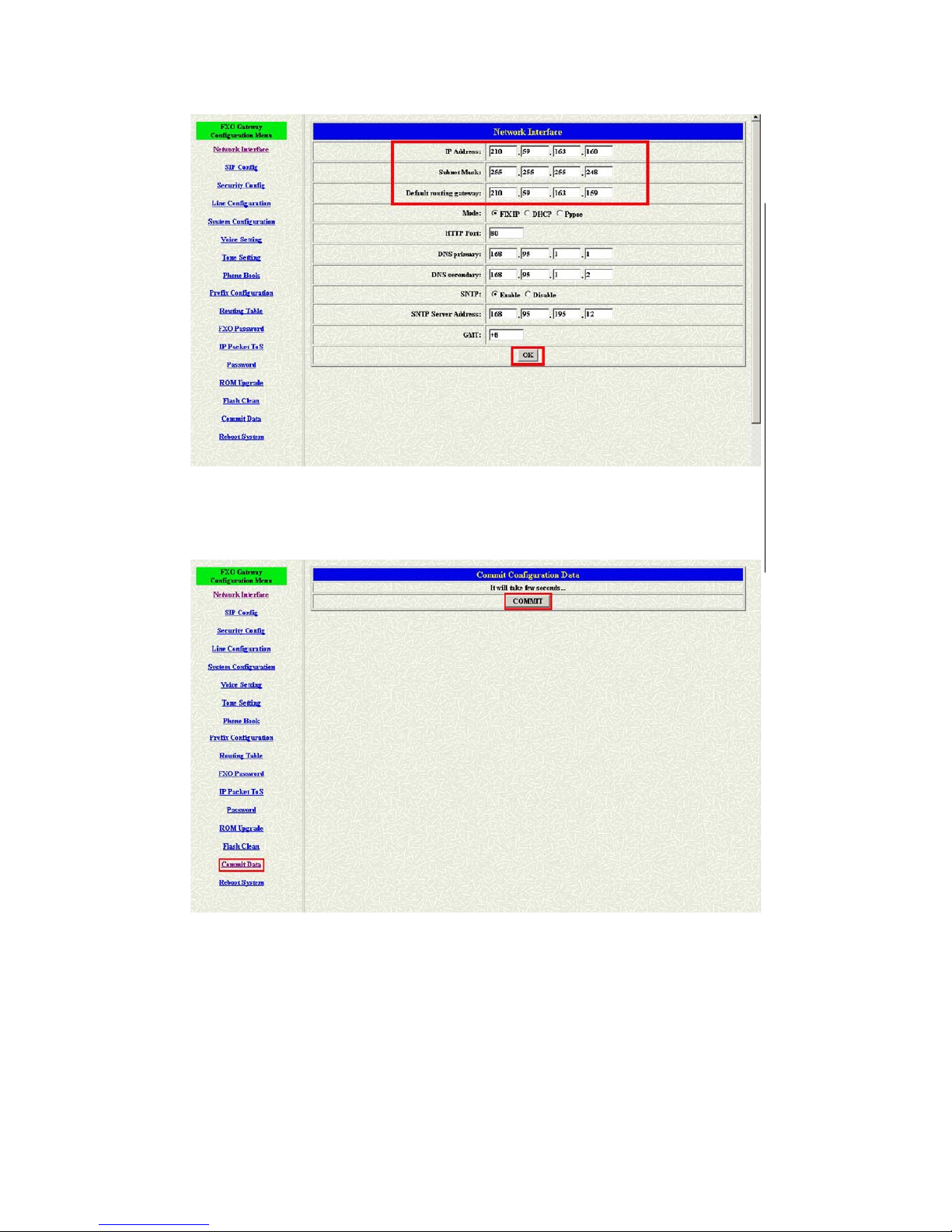

Figure 2.7: Configure the static ip address

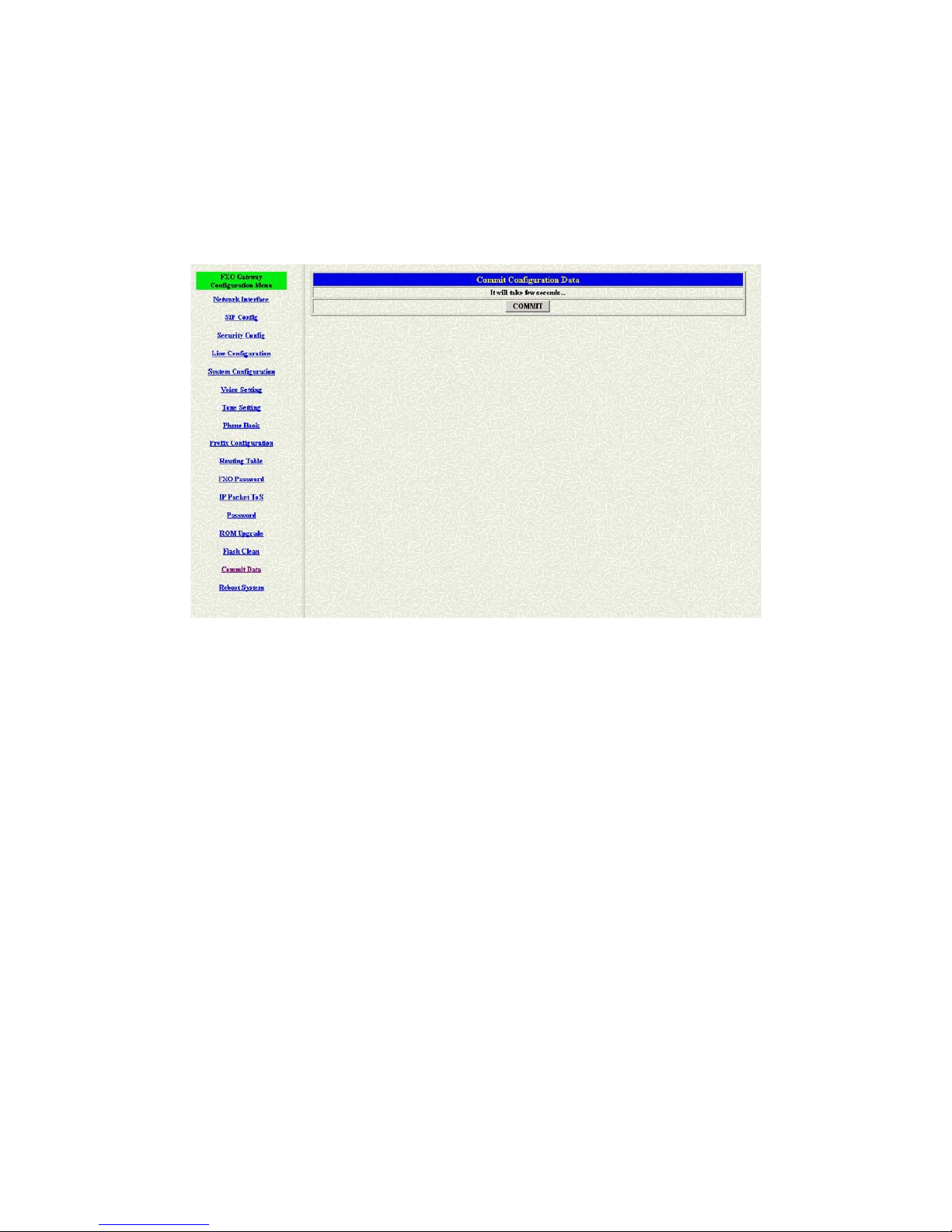

2 Press the commit if you finish the configuration. (see figure 2.8)
Figure 2.8: Commit the data
3 Press the reboot if you want the configuration executed. (see figure
2.9)
18
Dynamix DW-2/4 FXO SIP Gateway User Manual

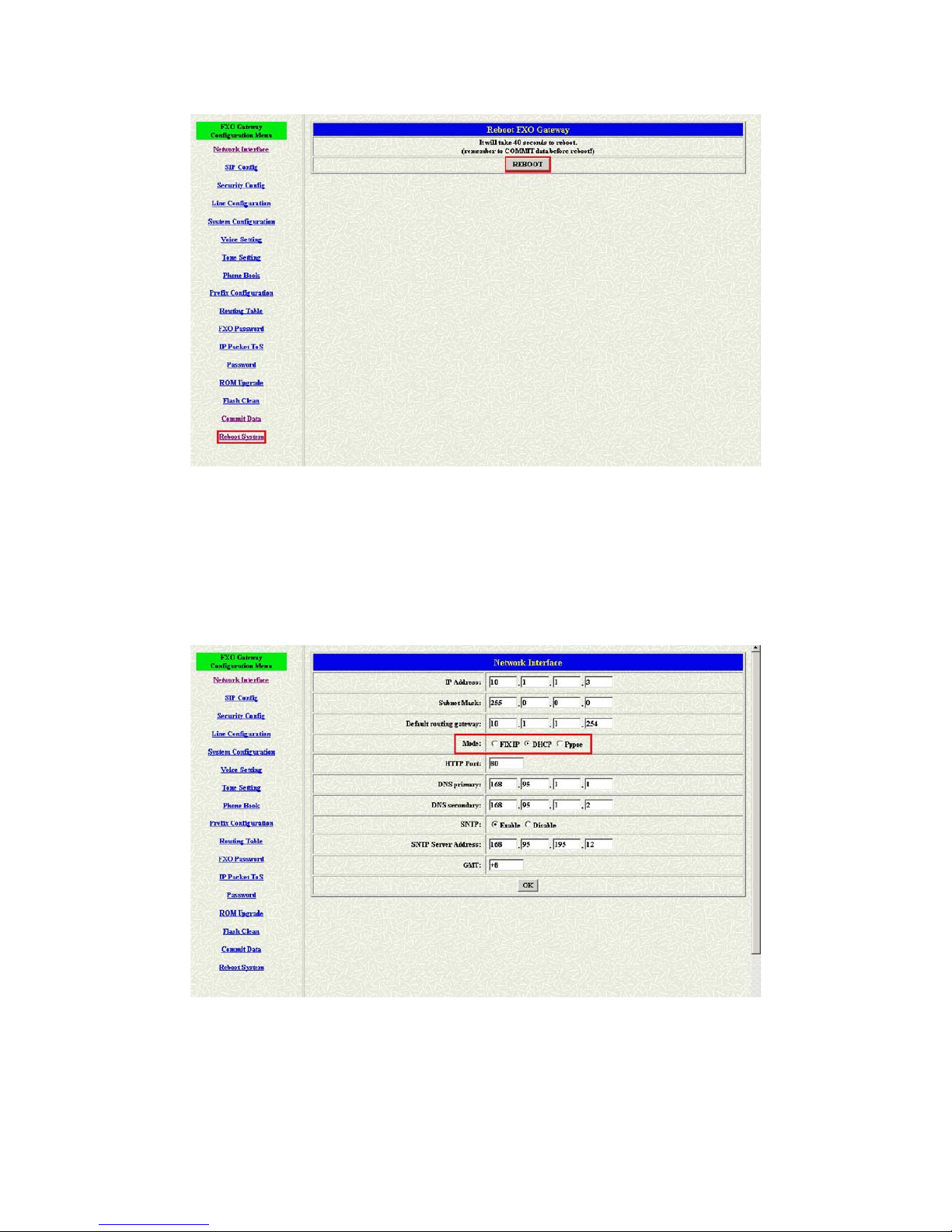

Figure 2.9: Reboot the system
2.3.2 DHCP mode
1 Enable the DHCP if you are using the cable modem or DHCP
server. (see figure 2.10)
Figure 2.10: Enable the DHCP function
19
Dynamix DW-2/4 FXO SIP Gateway User Manual
2 Please commit the data and reboot the machine after you enable the
DHCP function.
2.3.3 PPPoE mode
1 Switch to the PPPoE mode and press the “OK” button. Press the
Network Interface button after the “OK” button. (see figure 2.11)
Figure 2.11: Switch to the PPPoE mode
20
Dynamix DW-2/4 FXO SIP Gateway User Manual

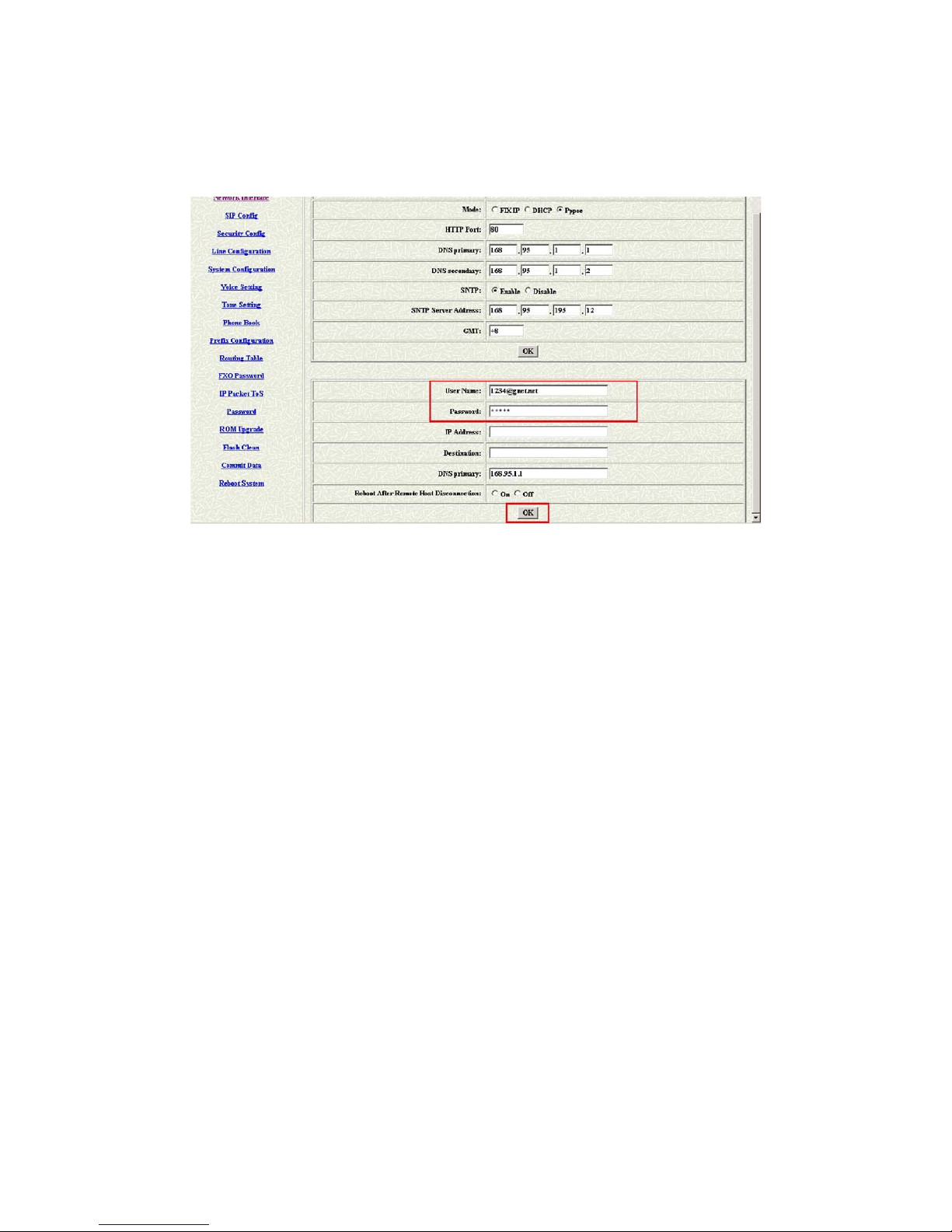

2 Enter the Login account and password. Press the “OK” button if the
configuration is finished. (see figure 2.12)
Figure 2.12: Enter the Account and password
2 Please commit the data and reboot the machine after you
finished the configuration about the PPPoE function.
2.4 Making a VoIP Call
There are two modes that you could configure the gateway for making VoIP
calls. One is the Peer-to-Peer mode, another is Proxy mode. The configurations
and functions are different. Please make sure about the mode you want and
follow up the step to configure your gateway.
2.4.1 Configure the gateway into the Peer-to-Peer mode
1 Enter the SIP Configuration table and change the mode to Peer-to-
Peer.
Define the port numbers whatever you like. Press the “OK” button if the
configuration is all finished. (see figure 2.13)
21
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 2.13: Configure the Peer-to-Peer mode

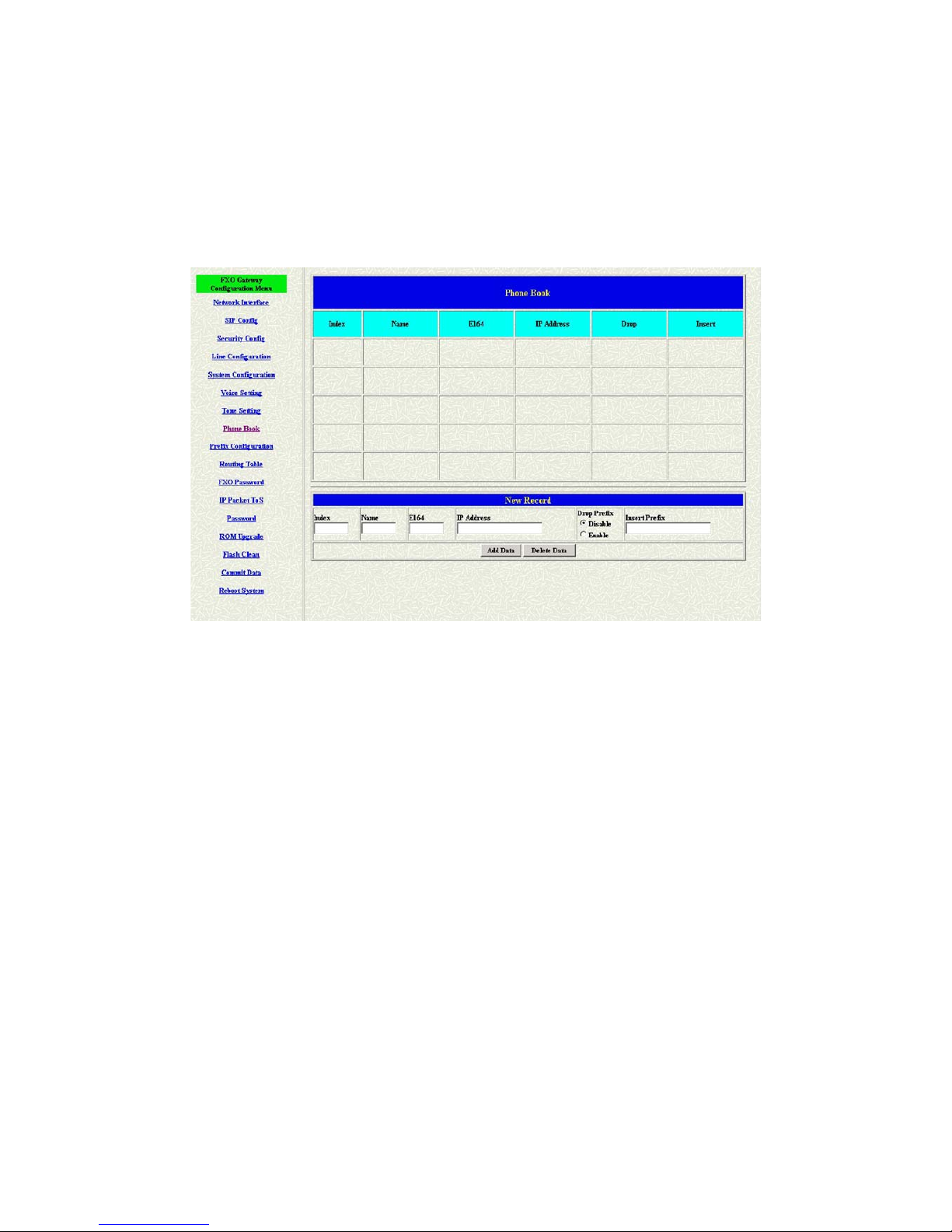

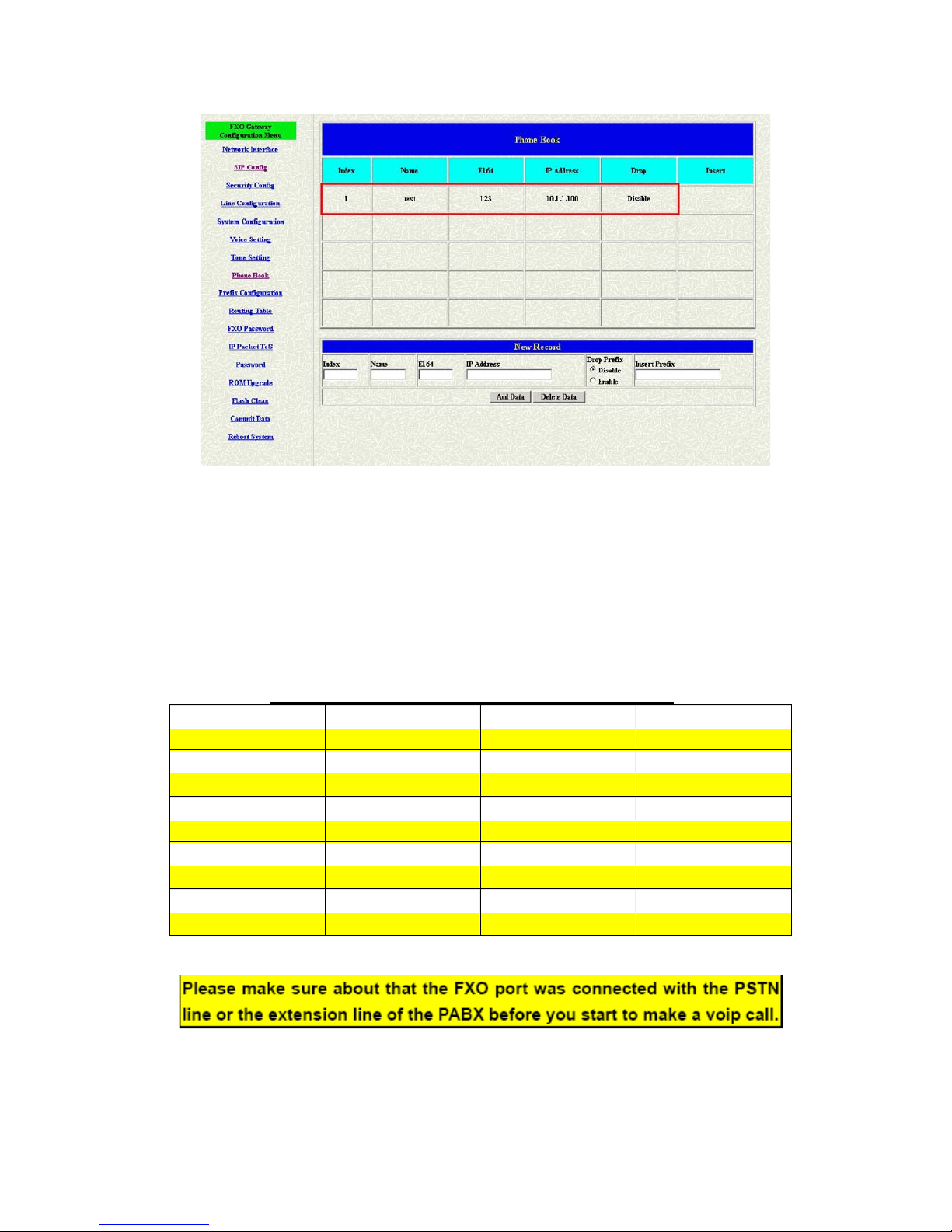

2 Enter the Phone Book configuration table and configure the name, ip
address and phone number of the destination. (see figure 2.14)
Figure 2.14: Phone Book
22
Dynamix DW-2/4 FXO SIP Gateway User Manual

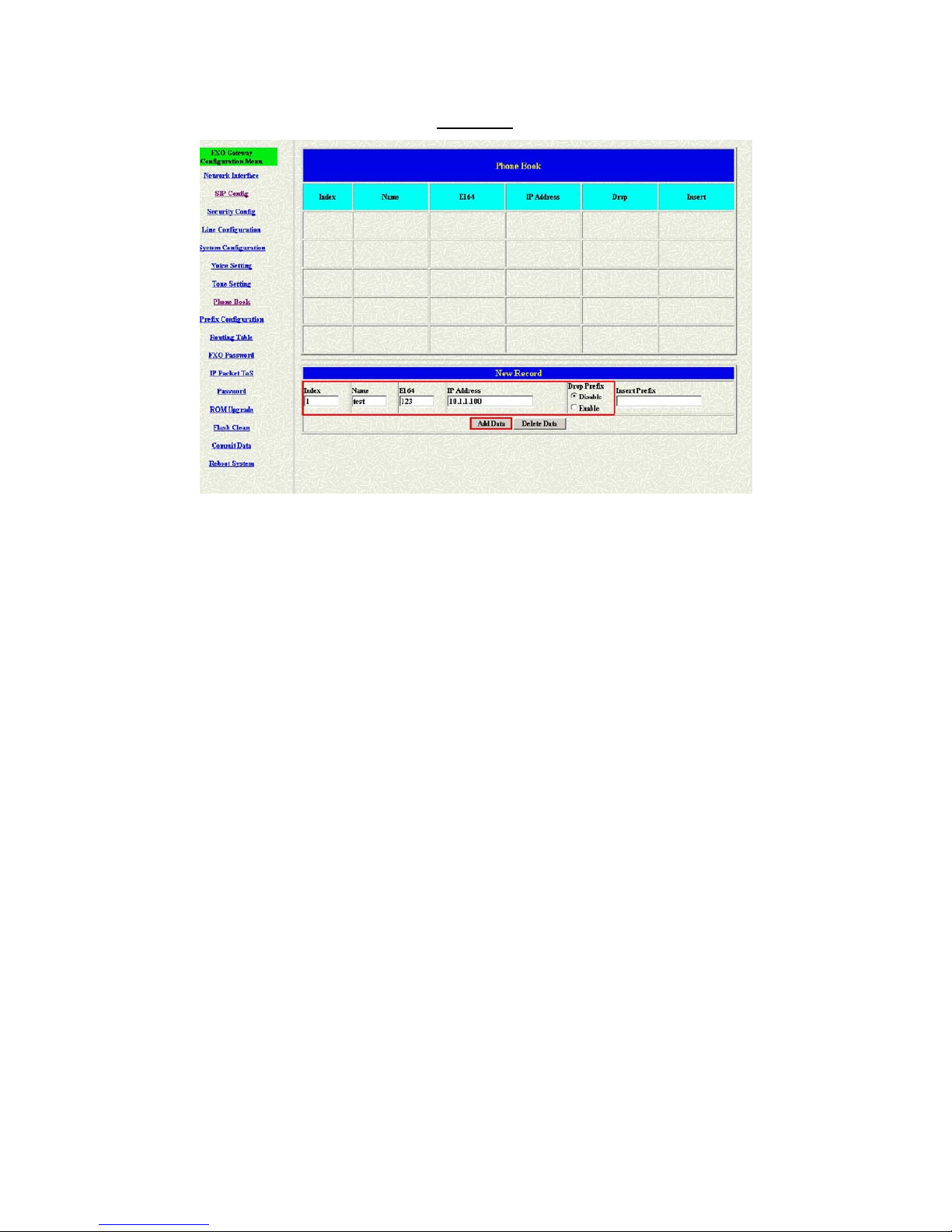

Figure 2.15: The example of Phone Book configuration
The name of the destination: test
The E164 number (phone number) of the destination: 123
The ip address of the destination: 10.1.1.100
(The port will be 1720 if you don’ t define it)
Drop prefix: Enable – The e164 number you define will be deleted
Disable – The e164 number you define will be kept
Insert prefix: To add a number you define in this table
Press the “Add Data” button when you finished, and the new table will display
on the first index if you press the Phone Book configuration button.
4 Please Commit it and Reboot the system if the configuration is
finished. (see figure 2.16)
23
Example
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 2.16: To show the Phone Book record
Phone Book is only for the Peer-to-Peer mode.
Fifty index support.
The application in the drop and insert function
Input (E164) Drop Insert Output
100 Disable X 100
200 Disable 0 0200
300 Enable X X
400 Enable 500 500
X - Do not enter any numbers
24
Dynamix DW-2/4 FXO SIP Gateway User Manual
2.4.2 Configure the gateway into the Proxy mode
Figure 2.17: Configure the Proxy info
2 Press the OK button that is on the bottom of this page to save the
configuration.
3 Switch to the Security Config page and put the user account and
password in the correct table. Please get this info from your ITSP. Press the
OK button if the configuration is finished. (see figure 2.20)
25
1 Enter the SIP configuration table and change the mode from Peer-to-Peer to
Proxy mode. To change the Proxy information from your service provider (Ex. The
Proxy IP, Outbound Proxy IP and Registered Number)
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 2.20: Configure the Security info
4 Press the Commit Data and Reboot System buttons when you
finished the configuration.
3. Advanced
There are too many advanced commands for the advanced users. The
following chapters are based on the application layer. Please get the info what
you need. If you need the command, please watching the chapter of Command
Line Interface.
26
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.1 Network Configuration
The Network configuration will help users to configure the info about the
network. Please get more detail info from the following. (see figure 3.1)
Figure 3.1: Network Configuration
♦ IP Address - Define the ip address for your networking if it is the fixed ip.
Please get this info from your ISP.
♦ Subnet Mask - Define the mask address for your networking. Please get
this info from your ISP.
♦ Default Gateway - Define the default gateway for your networking. Please
get this info from your ISP.
♦ Mode - Users could define the networking type for this gateway. It could
support the Static, DHCP and PPPoE function.
♦ HTTP Port - This port is for the WEB configuration. The default port for the
WEB is users could change it by this table.
♦ DNS primary - Users could define the primary DNS server address.
♦ DNS secondary - Users could define the primary DNS server address.
♦ SNTP - Enable the SNTP server registering function if user wants to get
the correct time from the Command Line Interface.
♦ SNTP Server Address - Enter the correct ip address of the SNTP server or
get the incorrect time from the Command Line Interface.
27
Dynamix DW-2/4 FXO SIP Gateway User Manual
♦ GMT - Configuring the time area for the time display in the Command Line
Interface.
The following is for the PPPoE configuration. (see figure 3.2)
Figure 3.2: PPPoE Configuration
♦ PPPoE User Name - Put the PPPoE connection account in this table.
Please get this info from your ISP.
♦ PPPoE Password - Put the PPPoE connection password in this table.
Please get this info from your ISP.
♦ PPPoE IP Address - After the connection success, this table will show you
the IP address which the gateway got from the ISP.
♦ PPPoE Destination - After the connection success, this table will show you
the default gateway address, which the gateway got from the ISP.
♦ PPPoE DNS primary - After the connection success, this table will show
you the DNS ip address from the ISP.
♦ Reboot After Remote Host Disconnection - Enable this function will make
the gateway restart automatically if the PPPoE connection is disconnected
or the IP address was taken back by the ISP.
28
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.2 SIP Configuration
For the Proxy mode, users have to put the info about the Proxy in to this
configuration table and configure the phone number. (see figure 3.3)
Figure 3.3: SIP Configuration
♦ Mode - Switch the P2P or Proxy mode.
♦ Proxy IP Address - Enter the IP address of the SIP Proxy.
♦ Domain - Enter the domain name of the SIP Proxy.
♦ Prefix String - For the special registration for the special proxy. This
configuration could use the letters for the registration.
♦ Line1 Number - The phone number for the port 1.
♦ Line2 Number - The phone number for the port 2.
♦ Line3 Number - The phone number for the port 3.
♦ Line4 Number - The phone number for the port 4.
♦ SIP Port - To adjust the SIP port for this unit.
♦ RTP Port - The RTP port for the communication.
♦ Expire - The TTL time.
29
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.3 Security
Users could define the account and password for the port for the registration.
(see figure 3.4)
Figure 3.4: Security Configuration
♦ Account - The account name for this port.
♦ Password - The password for this account.
30
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.4 Line
The Line configuration will show the status of the registrations and the ports. It
includes the hunt group, hotline, and no answer forward configuration. Press
the Line configuration button to enter configuration table (see figure 3.5)
Figure 3.5: Line Configuration
♦ Type - Show the type of this port. There is only FXO type of this gateway
and it couldn’t be changed.
♦ Hunting Group - Define the group number of this port. When the port is
busy the call could be transferred to another port in the same group.
♦ Hotline - Enable or Disable the hotline mode. The hotline mode will be
enabled if you enter the hotline number. The default setting is disabled.
♦ Registration - Showing the gateway registered on the Proxy or not.
♦ Status - Showing the port is busy or ready.
31
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.5 System Configuration

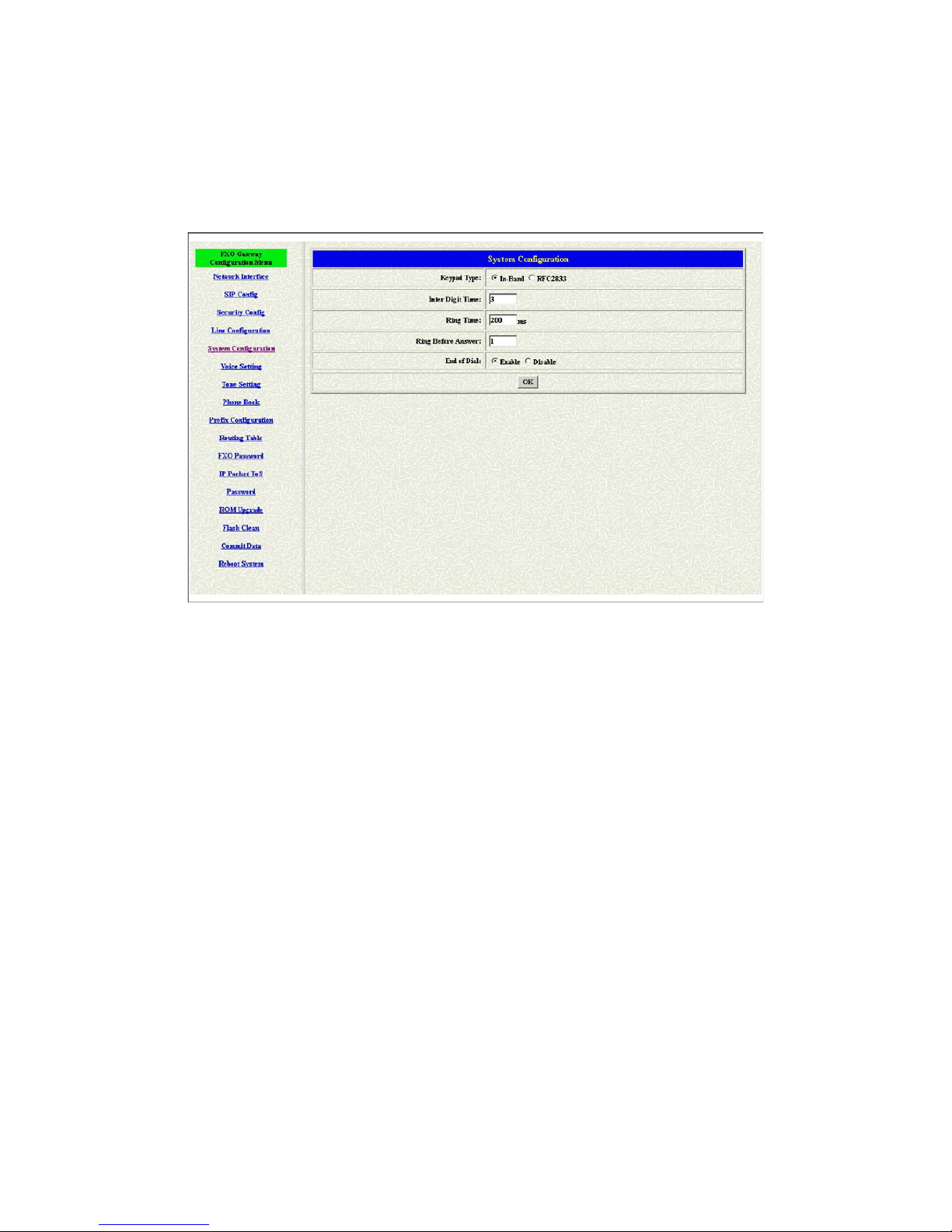

There are some parameters in the system configurations, please get more
detail as following. (see figure 3.6)
Figure 3.6: System Configuration
♦ Keypad type - There are two types for the Keypad. One is the In-Band type,
another is the RFC2833 type. User could define the keypad type for the
dialing.
♦ Inter Digit Time - It’s the time for the time out during the dialing numbers.
♦ Ring Time - FXO will detect the ring tone according this time.
♦ End of Dial - It will transfer the digit “#” if this function was disable.
32
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.6 Voice Setting

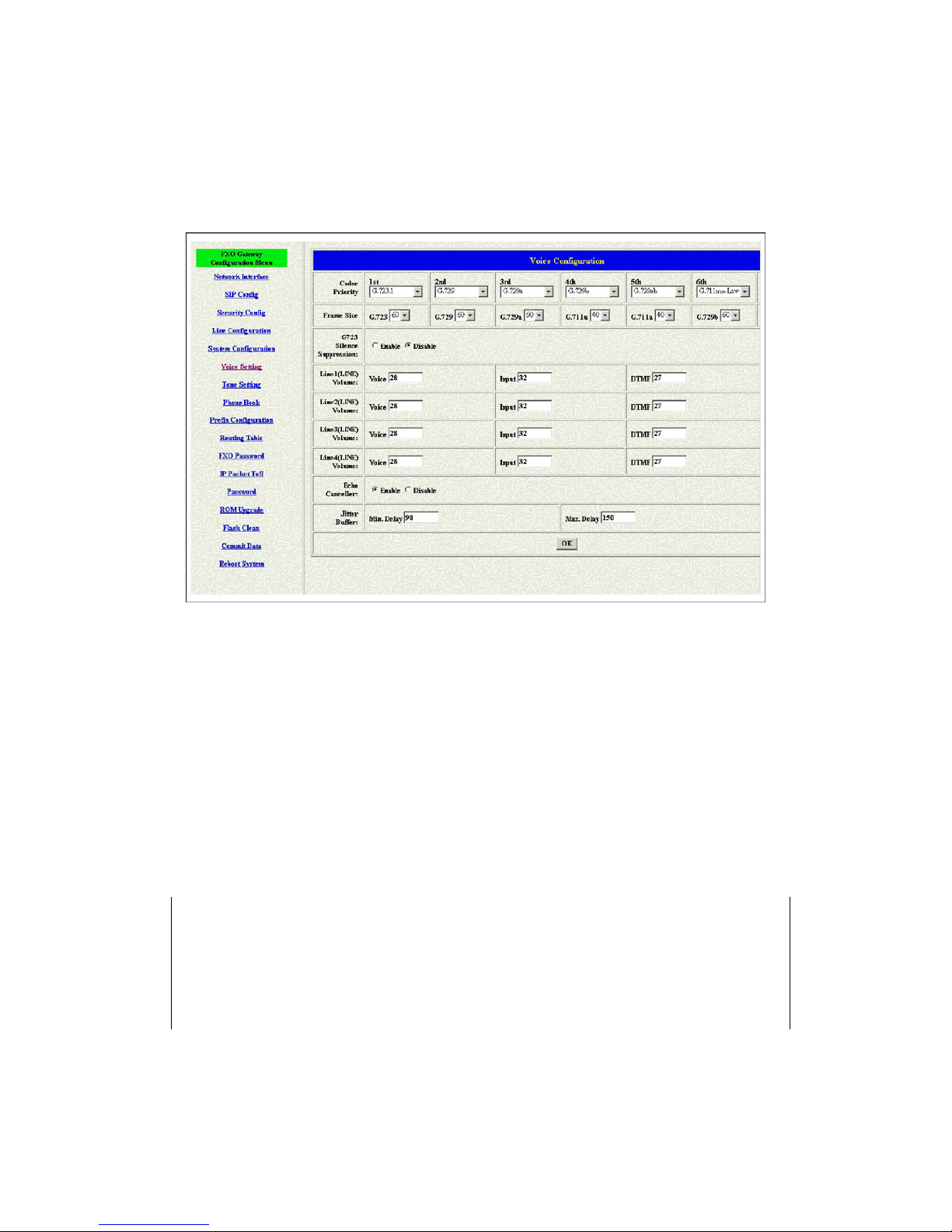

User could define some parameters about the voice in this voice-setting page.
(see figure 3.7)
Figure 3.7: Voice Setting
♦ Codec Priority It’s for the codec setting. User could use the codec, which
they want by the setting.
♦ Frame Size It’s the packet size for all codec. It will take more bandwidth if
user configure the packet size in the minimum value.
♦ G723 Silence Suppression For the VAD and CNG function support.
♦ Volume To adjust the gain of the output, input and dtmf.
♦ Echo Canceller To enable the echo cancellation function.
♦ Jitter Buffer To adjust the Jitter Buffer size to avoid the packets losing.
A large jitter buffer causes increase in the delay and decreases the packet loss.
A small jitter buffer decreases the delay but increases the packet loss. The size
of the jitter buffer depends on the condition of the network, which varies with
time. Typically the packet loss should be less than 10% for a good quality of
speech.
33
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.7 Tone Setting
The Tone Setting is for the Tone detecting. The call will be dropped if the pattern
of the tone from PSTN side is as same as the pattern in the disconnect tone
table. The same result for the Ring Back Tone. User could define the pattern of
the disconnect tone if the disconnect tone from PSTN side is not the standard
tone. (see figure 3.8)

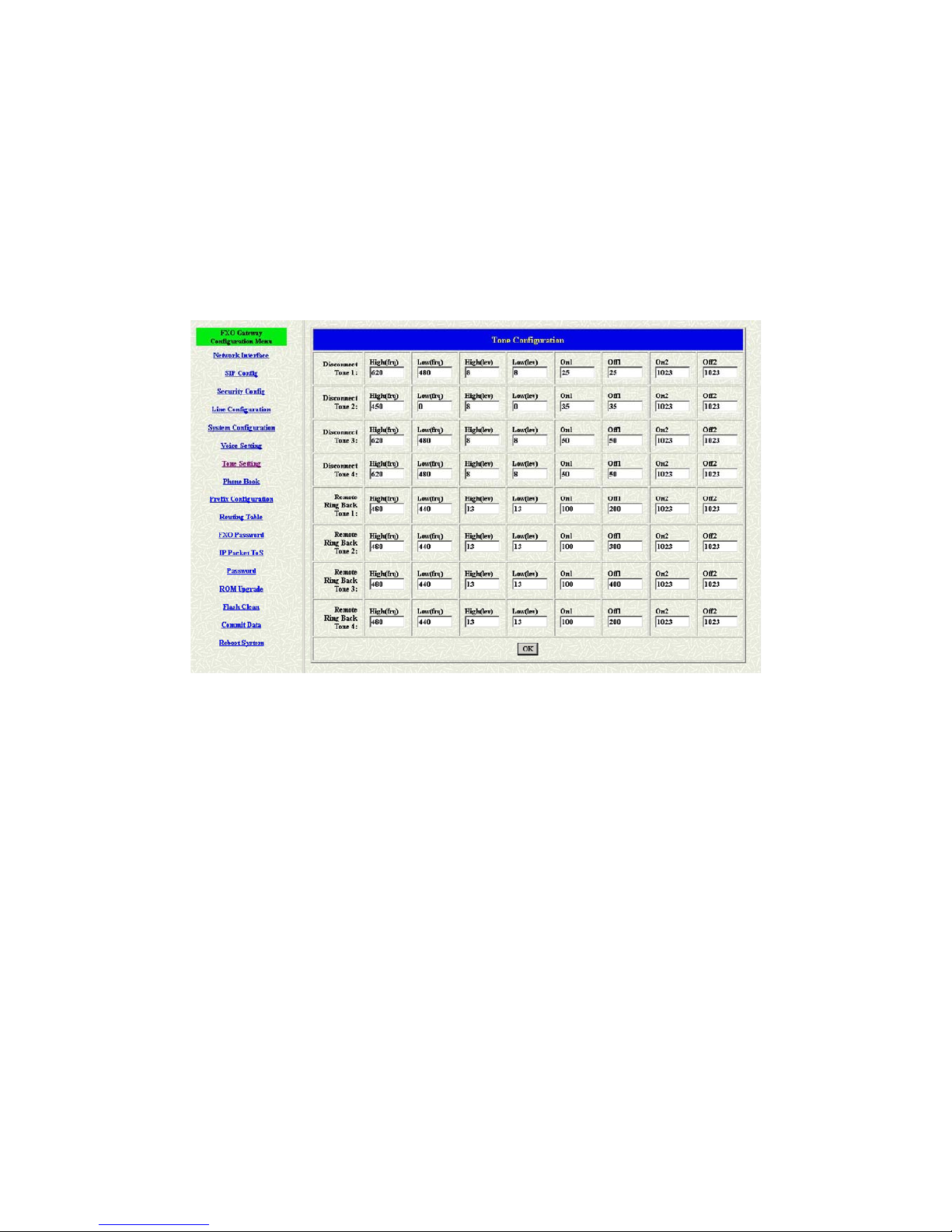

Figure 3.8: Tone Setting
♦ Disconnect Tone - Users could put the correct pattern of the disconnect
tone in this table. The call will be dropped if the tone from PSTN side is
match with these patterns. Users could have four tables for the disconnect
tone.
♦ Remote Ring Back Tone - User could adjust this table to help this gateway
to detect the Remote Ring Back Tone. There could be four tables for the
configuration.
34
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.8 Phone Book Configuration
The Phone Book could only support the Peer-to-Peer mode. Users have to put
the complete info in this table and follow up the E164 number from this table.
Please get the detail info from the following. (see figure 3.9)
Figure 3.9: Phone Book Configuration
♦ Index - The number for this record.
♦ Name - The name for this record.
♦ E164 - The dialing number for this record.
♦ IP Address - The IP address for this destination.
♦ Drop - For the drop digits function.
♦ Insert - For the insert digits function.
♦ Add Data - Users have to put the whole info about this record and press
this button to add this in the table.
♦ Delete Data - Users have to put the index number in the index table and
press this button to delete this record.
35
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.9 Prefix

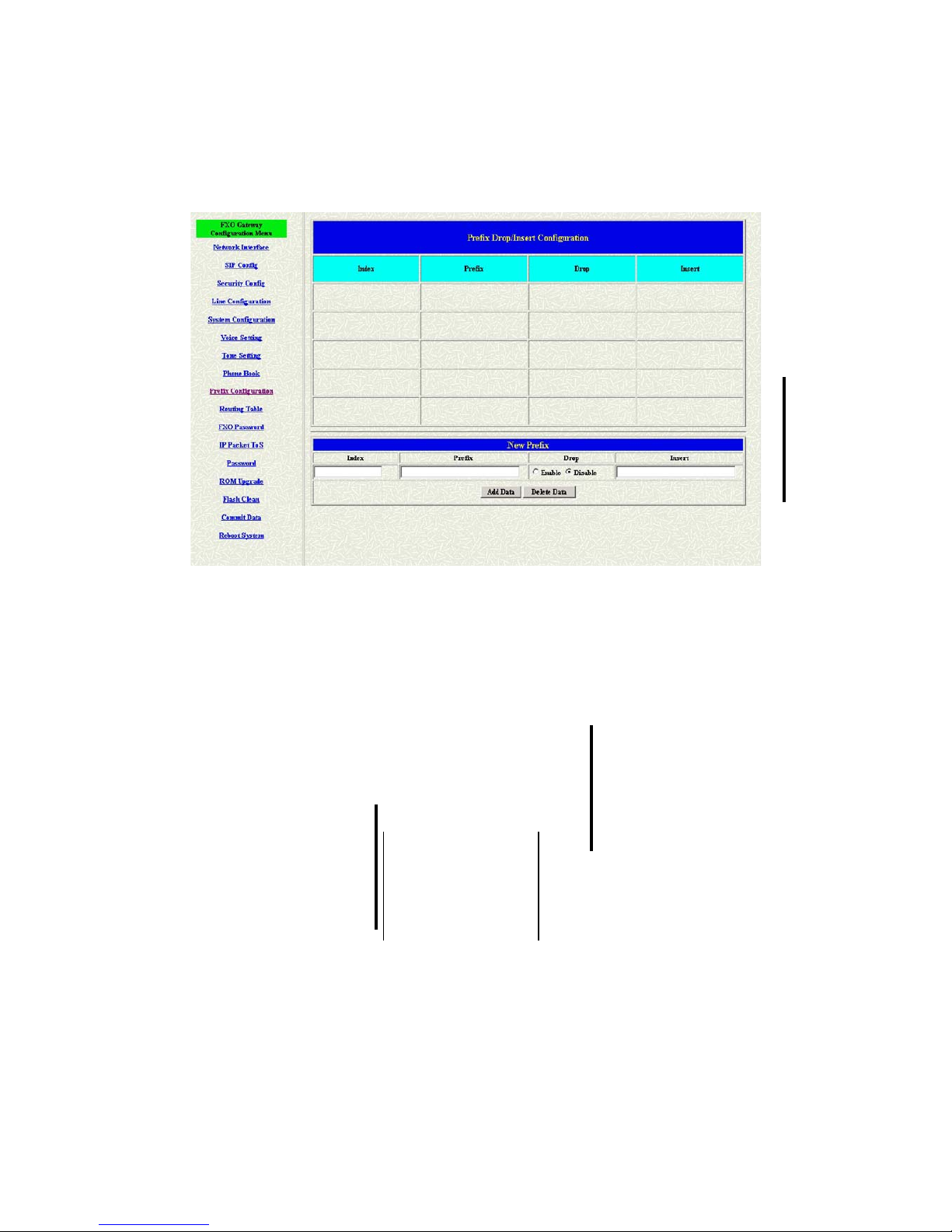

The Prefix function is using the drop and insert function (see figure 3.10).
Figure 3.10: Prefix Configuration
There is a rule between Prefix and Routing command, the Prefix command
have the higher priority over the Routing command. If there is an incoming call
from any sides, the Routing will check this calling number after the Prefix
checked (see figure 3.)
YES
Follow the Routing
you configure
Check the Prefix
Table first
NO
Follow the Default
Routing
Figure 3.11: The Priority
36
Dynamix DW-2/4 FXO SIP Gateway User Manual
There is an example about the configuration, please follow up these steps.
1 Press the Prefix Configuration button to enter the configuration table
(see figure 3.6)

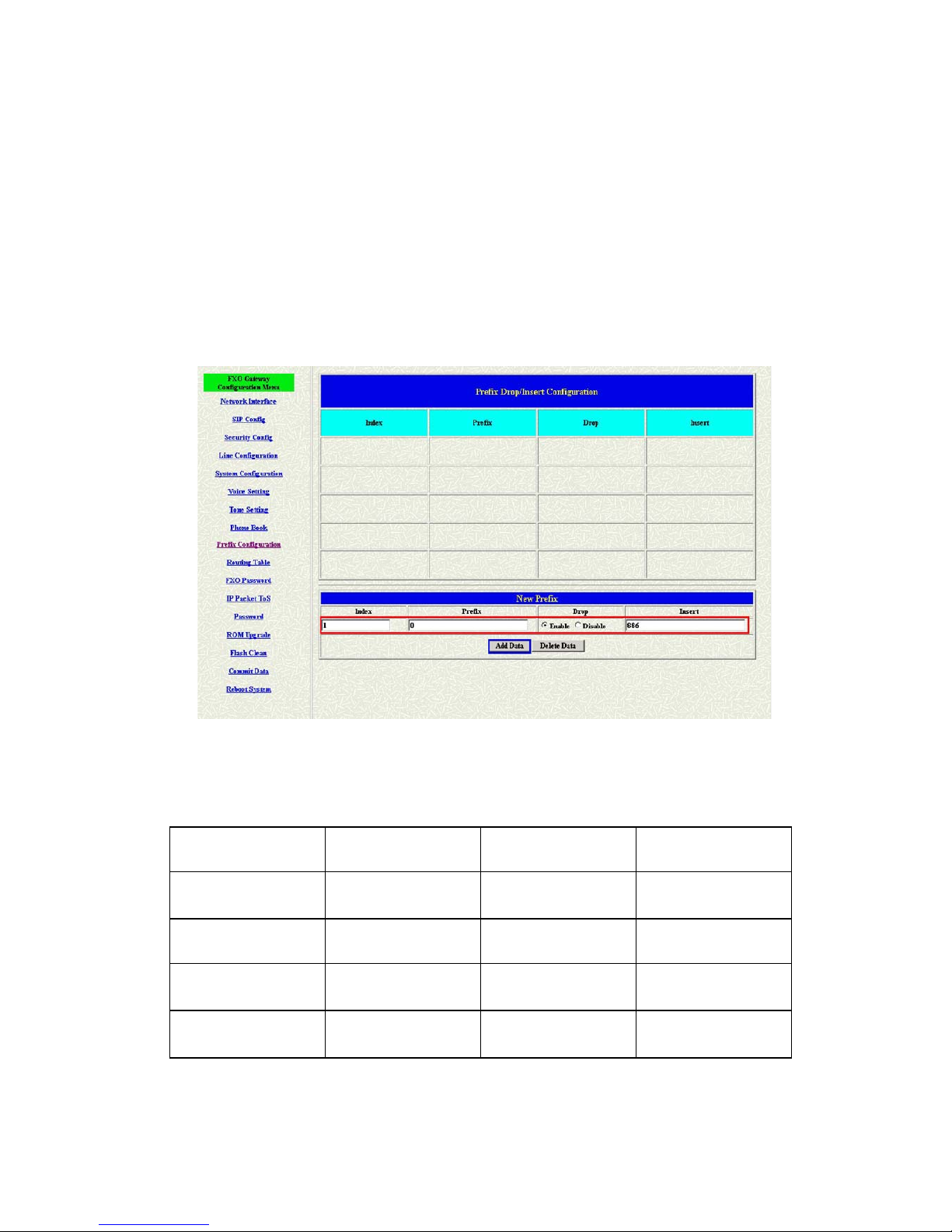

2 Enter the index number. Put the prefix numbers you will dial in the
prefix table, enable (disable) the drop function and enter the numbers you want
to insert. Pressing the add data button to add this record. (see figure 3.12).
Figure 3.12: Configure the Prefix Table
The usage is as same as the drop, insert function of the Phone Book.
Input (Prefix) Drop Insert Output
100 Disable X 100
200 Disable 0 0200
300 Enable X X
400 Enable 500 500
37
Dynamix DW-2/4 FXO SIP Gateway User Manual
3 Press the Prefix Configuration button to reload the configuration table
(see figure 3.13)
Figure 3.13: Show the added table
4 Please Commit it and Reboot the system if the configuration is
finished.
38
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.10 Routing Table
Routing Table is a rule to define the destination of the calls you make. You could
define the rules by the number you dial or by the ports. The Routing Table
button will show you the configuration table (see figure 3.14). In fact, there are
two directions of the incoming calls (from IP or FXO side). The explanation of
the default routing is as below:
The location with
the incoming calls
The location with
the destination
The explanation
IP (Default) Fxo
The destination will be the FXO port
when the calls from the IP side
without any define rules.
Fxo (Default) IP
The destination will be the IP side
when the calls from the FXO port
without any define rules.
The most important usage is for the one-stage-dialing function. For the onestage-dialing function under the Proxy mode, users have to make sure about
that the Proxy could support some kind of the function just like the routing.

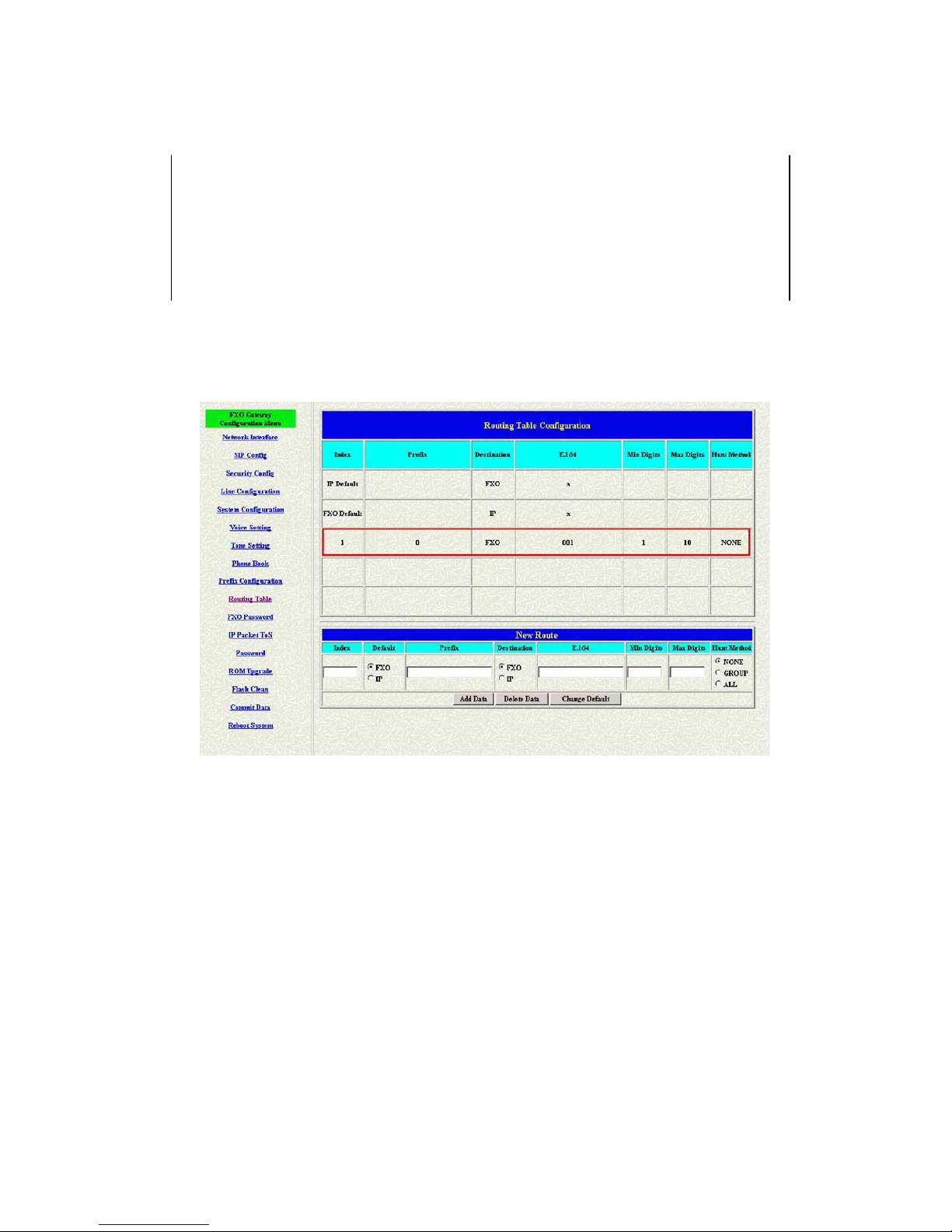

Figure 3.14: Routing Table Configuration
39
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.10.1 Add a new Routing Table
1 The default setting is changed after you press the Change Default
button.
Please press the Routing Table button again to show the new setting. (see
figure 3.15)
FIGURE 3.15: EDIT AND ADD A NEW ROUTING TABLE
♦ Index - Define the number of this data.
♦ Prefix - Define the number you dial. You could just define the first digit of
the numbers
♦ Destination - Define the destination of this rule. There are three directions
of the destination.
♦ E164 - Define a right E164 number of the destination you want.
For example: There are two FXO ports of the gateway (2S2O) and I want the
first FXO port (1002 is the default E164 number) to be the destination. So the
E164 number I have to define is 1002.
♦ Min Digits - The minima digits you dial.
♦ Max Digits - The maxima digits you dial.
Dynamix DW-2/4 FXO SIP Gateway User Manual
♦ Hunt - Define the hunt group function.
None – Disable this function
Group – The call will search other ports to be the destination with the same group if
the origin destination is busy.
All – The call will search other ports to be the destination with the same type if the
origin destination is busy.
2 Press Add Data button to save the configuration and press the Routing
Table button again to reload the configuration. (see figure 3.16)
Figure 3.16: New Special Routing
The explanation of figure 3.16 is as below:
When the user dial 0 with the first digit of the numbers (from IP side). The
numbers you dial is between 1 and 10 digits. If this call matches the rule, it will
be transferred to the FXO port whose E164 number is 001.
3 Please Commit it and Reboot the system if the configuration is
finished.
41
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.11 FXO Password
You will get the IVR if you make calls from PSTN side. The IVR will ask you the
password you set, and you could make other calls to IP side if the password you
type is correct. Please press the FXO Password button to configure the
password (see figure 3.17)
Figure 3.17: FXO Password
♦ Index - The number of this table.
♦ Password - The password you set.
This function is only for the calls from the PSTN side. It’s not ready for
the IP side as so far.
42
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.12 IP Packet ToS
The Type of Service should be worked with the network router. The router will
check all the packets if it support the TOS function. There is a field in the packet
for the TOS value. This WEB is for users to configure these values to make the
packets with the correct values for the TOS service from the gateway. (see
figure 3.18)
Figure 3.18:TOS Configuration
According to the RFC 1349 document, the TOS value as following :
1000 – minimize delay 0100 –
maximize throughput 0010 –
maximize reliability 0001 –
minimize monetary cost 0000 –
normal service
These values are the Binary format. Please change to the Decimal and put
these values in to the correct table.
43
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.13 Password
There are two accounts for login to access or change the configurations. One is
“root”, another is “administrator”. Users could define the password for these two
login account. The account “root” could make all the configurations back to the
default setting, but the account “administrator” couldn’t. This is the difference
between these two accounts. Users could define the password for the accounts
in this page. (see figure 3.19)

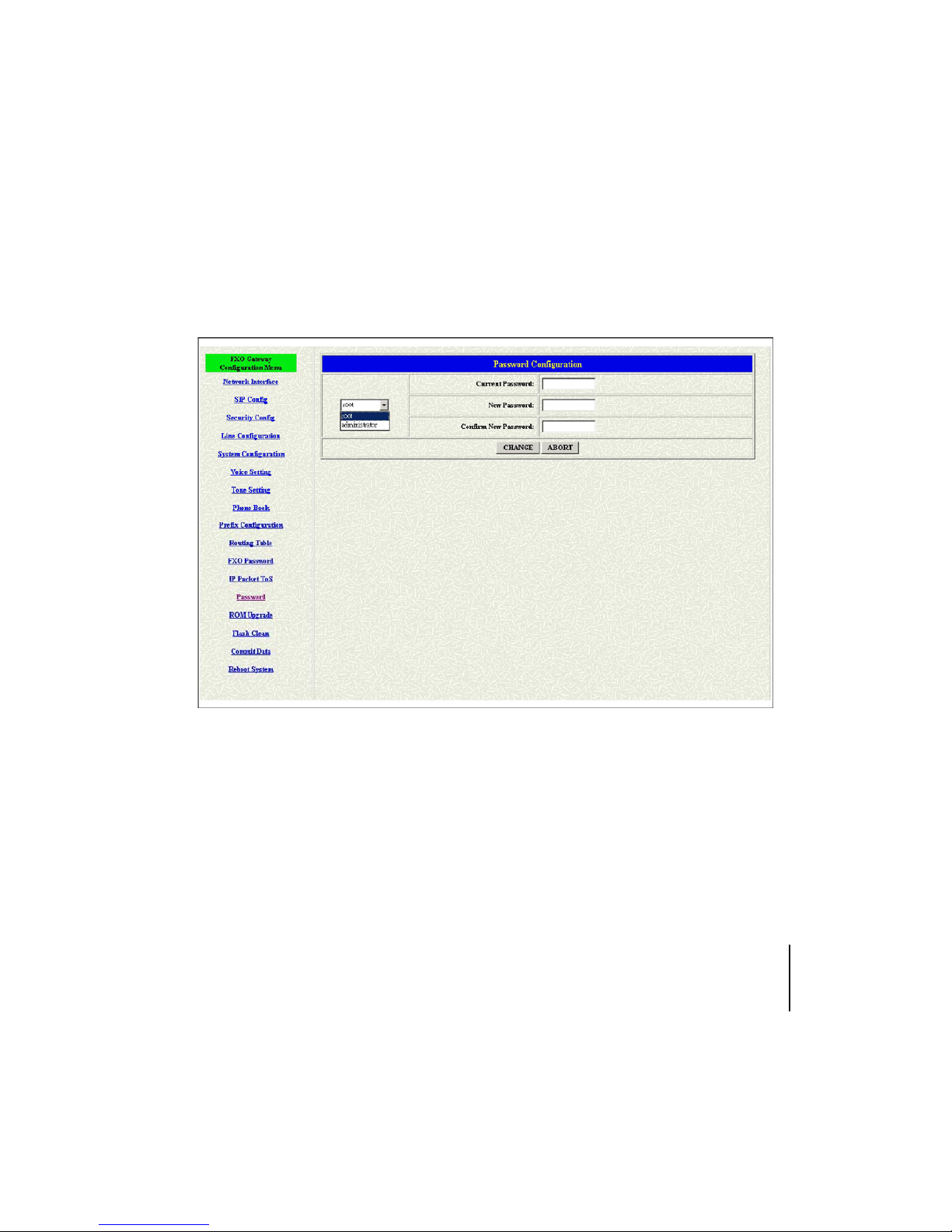

Figure 3.19: Password
♦ Account - The “root” could make all the configurations back to the default
setting except the ip address and the password of the account. But the
“administrator” couldn’t.
♦ Current Password - Enter the original password.
♦ New Password - Enter the new password, which you want.
♦ Confirm New Password - Enter the new password again.
Please remember the password you configure for the account. It will be
more difficult to access it if you forgot the password.
44
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.14 ROM Upgrade
User could update the firmware just by the web configuration interface. There
are two type for the upgrading procedure. One is using the TFTP server,
another is using the FTP server. Please follow the step to update the gateway
firmware version.
3.14.1 Upgrade using the FTP
1 Pick up the “Rom Upgrade” button to enter the upgrading web page
and switch to the FTP method. (see figure 3.20)
Figure 3.20: ROM Upgrade for FTP

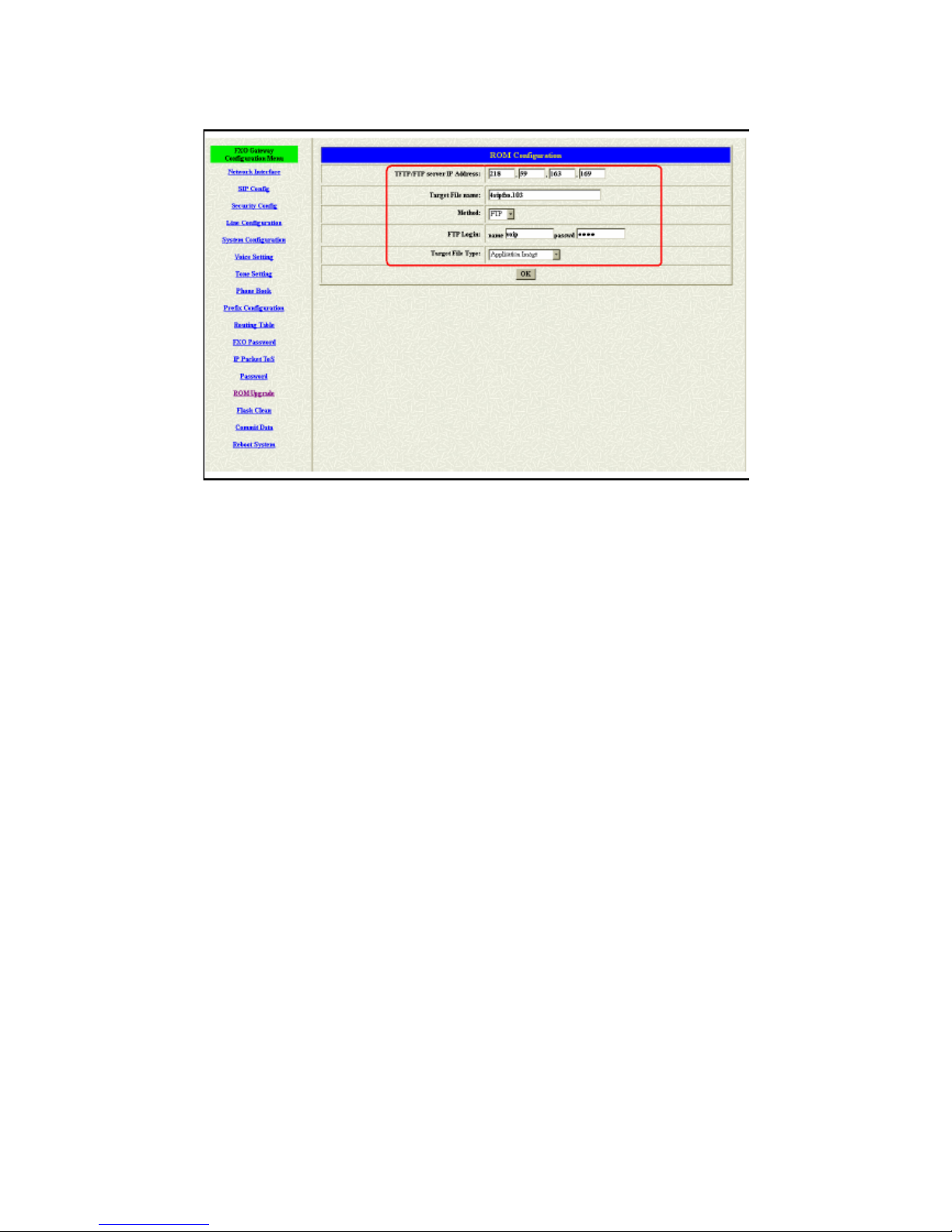

2 Key in the IP address, the login name, password of your FTP server
and the correct file name. (see figure 3.21)
45
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 3.21: FTP information
Please pay more attentions about the blue blank. The Target File Type
has to be matched with the Target File name. Please put the correct info
about the Target file in this table.
3 Press the OK button to execute the upgrade procedure.
4 Please press the “Reboot System” button to make it reboot.
3.14.2 Upgrade using the TFTP
1
Downloading the TFTP program from our web site and install it first.
Executing the TFTP program before you want to use the TFTP upgrade
method.

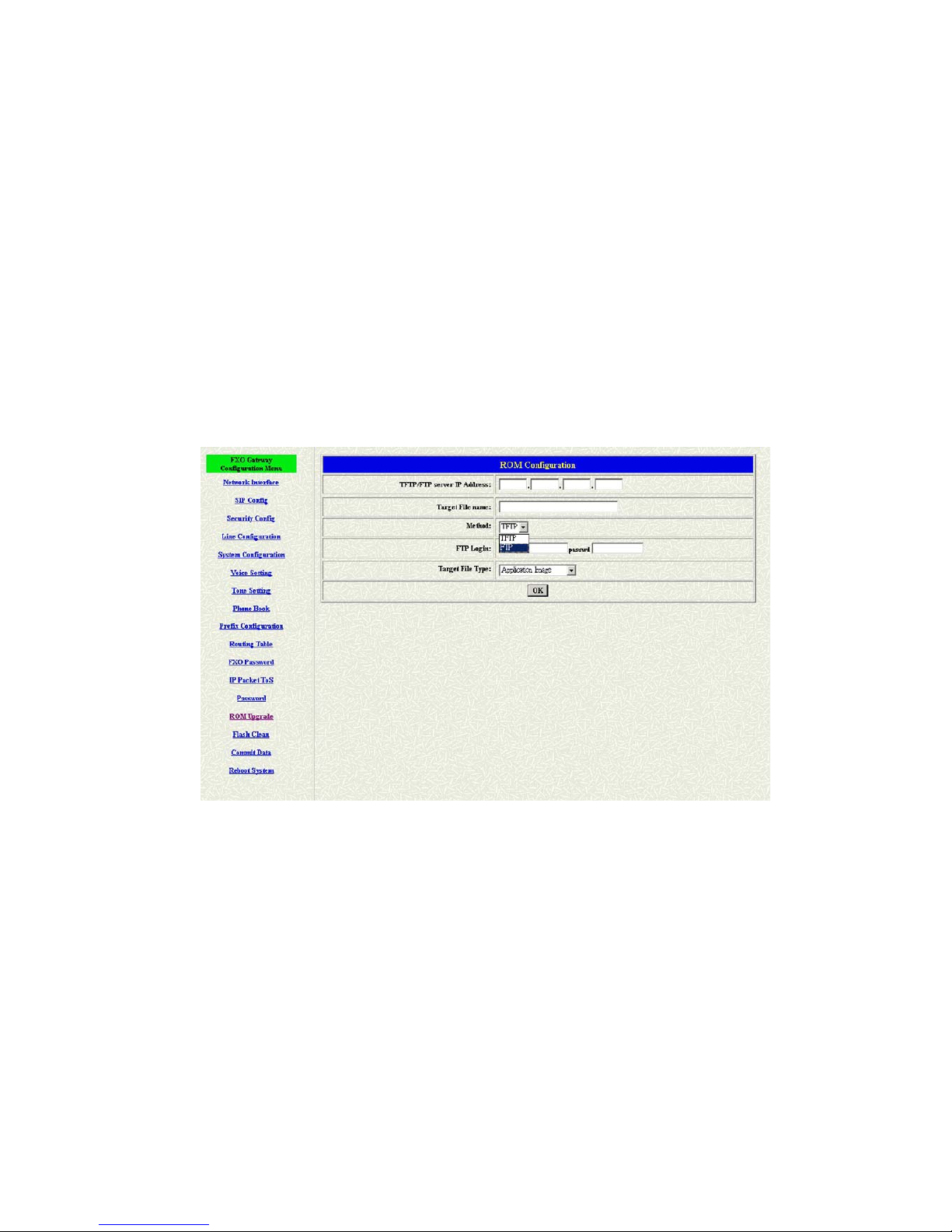

2 Pick up the “Rom Upgrade” button to enter the upgrading web page
and switch to the TFTP method. (see figure 3.22)
46
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 3.22: ROM Upgrade for TFTP
3 Key in the IP address of your TFTP server, pick up the file type for
your upgrade file and the correct file name for upgrading. (see figure 3.23)
Figure 3.23 : TFTP information
4 Press the OK button to execute the upgrade procedure.
47
Dynamix DW-2/4 FXO SIP Gateway User Manual
Please press the “Flash Clean” button when the procedure is finished.
After pressing the “Flash Clean” button, please press the “Reboot System”
button to make it reboot.
48
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.15 Flash Clean
Users could make all the configurations back to the default setting by this button.
The password of the account and the networking configuration couldn’t be back
to the default setting by this command. (see figure 3.24)
Figure 3.24: Flash Clean
49
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.16 Commit
This web page could save the configurations if users change some
configurations. This is necessary for users change the configurations. (see
figure 3.25)
Figure 3.25: Flash Clean
50
Dynamix DW-2/4 FXO SIP Gateway User Manual
3.17 Reboot
This web page will restart the whole system. This is the necessary step for the
changing the configurations and makes it executed. (see figure 3.26)
Figure 3.26: Flash Clean
51
Dynamix DW-2/4 FXO SIP Gateway User Manual
4. Command List
4.1 Hyper Terminal Setting
A terminal emulator is needed when using RS-232 port to configure Gateway.
There are kinds of terminal emulator software. Here, we use Microsoft
HyperTerminal to depict how to set up terminal emulator:

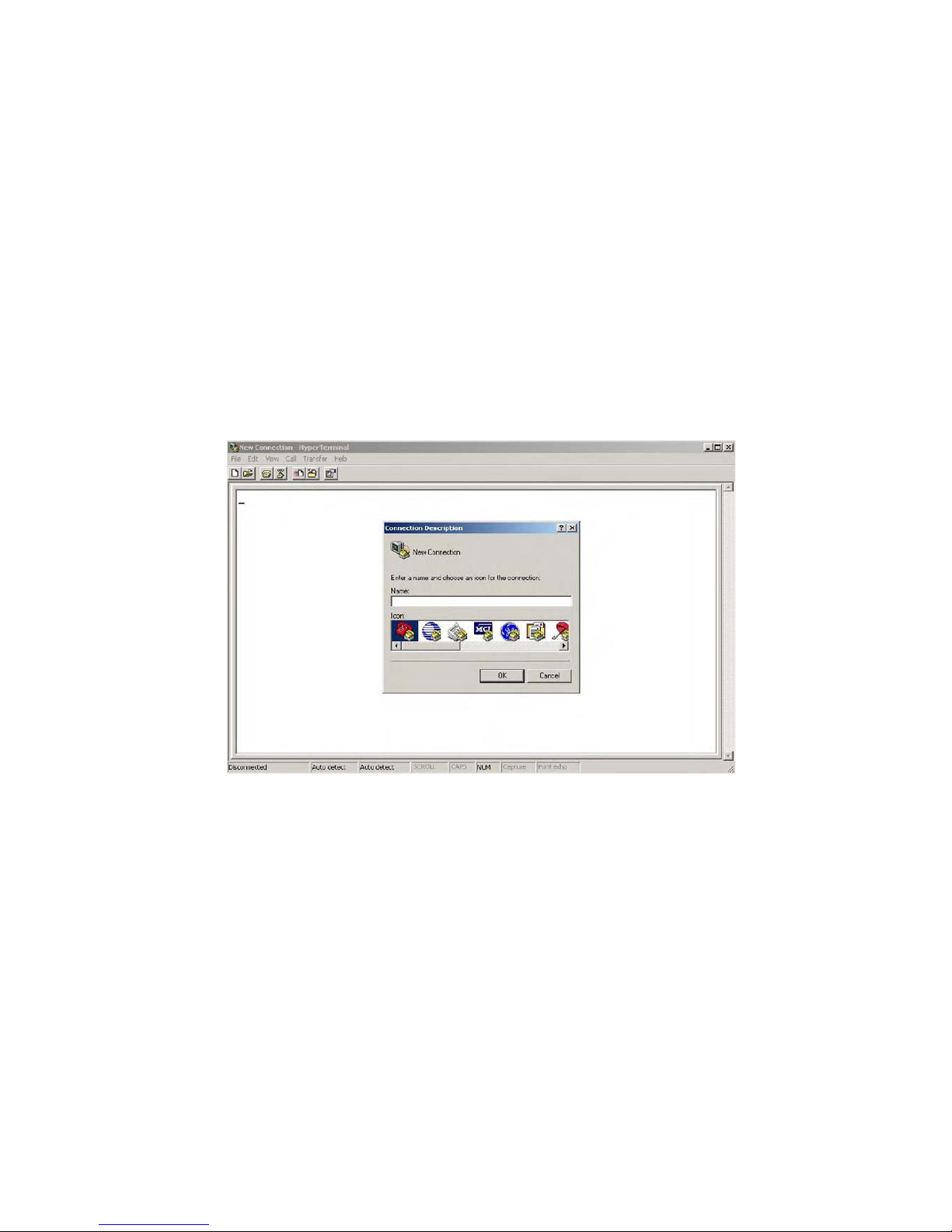

1. Execute the Hyper Terminal program, and then the following windows will
pop-up on the screen. (START – Program files – Accessories –
Communication – Hyper Terminal)
Figure 4.1: Hyper Terminal
2. Define a name for this new connection.
52
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 4.2: Edit the name of the connection

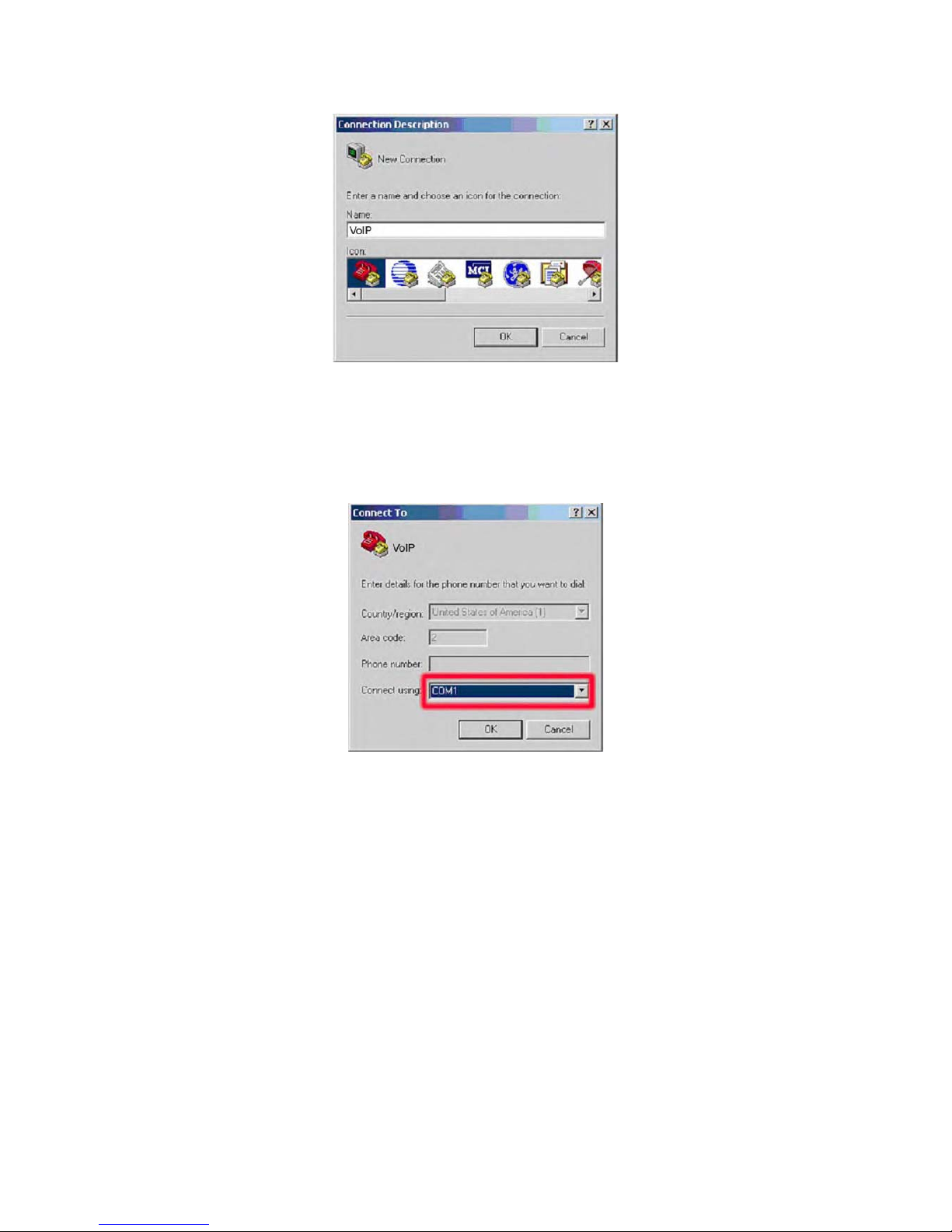

3. After pressing OK button, the next window appear, and then choose
COM1/2 Port, which you are going to use.
Figure 4.3: Pick up the right interface to use
4. Configure the COM Port Properties as following:
♦ Bits per second: 9600
♦ Flow control: None
53
Dynamix DW-2/4 FXO SIP Gateway User Manual
Figure 4.4: Configure the right Bps and control
5. Press ‘OK’ button, and then start to configure Gateway.
54
Dynamix DW-2/4 FXO SIP Gateway User Manual
4.2 Command List
4.2.1 [help]
Type help or man or ? to list all the available command.
usr/config$ help
help help/man/? [command]
quit quit/exit/close
debug show debug message
reboot reboot local machine
flash clean configuration from flash rom
commit commit flash rom data
ifaddr Internet address manipulation
time show current time
ping test that a remote host is reachable
sysconf System information manipulation
sip SIP information manipulation
security Security information manipulation
line Line information manipulation
route Routing information manipulation
prefix Prefix drop/insert information manipulation
pbook Phone book information manipulati on
voice Voice information manipulation
tone Setup of disconnect tone
fxopwd Setup of FXO password
record Record voice for greeting and ask pin code
tos IP Packet ToS (Type of Service)values
pt DSP payload type configuration and information
rom ROM file update
passwd Password setting information and configuration
usage: help [command]
4.2.2 [quit]
Type quit will quit the Gateway configuration mode and turn back to login
prompt (in console mode) or disconnect (in TELNET mode). usr/config$
quit
55
Dynamix DW-2/4 FXO SIP Gateway User Manual
Disconnecting...
login:
Note: It is recommended that type the “quit” command before you leave the
console. If so, Gateway will ask password again when next user connects to
console port.
4.2.3 [debug]
Open debug message will show up specific information while Gateway is in
operation. After executing the debug command, it should execute
command debug -open as well. One example is demonstrated below.
usr/config$ debug -add fsm vp
usr/config$ debug -open In this example, user open debug
flags including fsm, vp.
Parameters Usage:
-status Display the enabled debug flags.
-add Add debug flag.
-- fsm: sip related information
-- vp : voice related information
-delete Remove specified debug flag.
-open Start to show debug messages.
-close Stop showing debug messages.
4.2.4 [reboot]
After commit command, type reboot to reload Gateway in new
configuration. The procedure is as below:
usr/config$ reboot
.Attached TCP/IP interface to cpm unit 0
Attaching interface lo0...done
Hardware auto detect...
Hardware Type : 2FXO REAL_MAXCALL=2
HTTPD initialized...
56
Dynamix DW-2/4 FXO SIP Gateway User Manual
VoicePacketizermain comming
WorkMode : PROXY_MODE
incoming InitCallArray....REAL_MAXCALL=2
SIP stack was constructed successfully. Version - 2.2.1.8
Start registering to Proxy server
AC4804[0] is ok
successful 1 2
Initialize OSS libraries...OK!
VP v1.44 stack open sucessfully.
login:
4.2.5 [flash]
This command will clean the configuration stored in the flash ROM and
reboot Gateway in factory default setting.
Parameter Usage:
-clean clean all the user defined values, and reboot Gateway in factory
default mode. Note: It is recommended that use “flash –clean” after
application firmware id upgraded.
4.2.6 [comm it]
Save changes after configuring Gateway.
----------------------------------------------------------------------------------------------
usr/config$ commit
This may take a few seconds, please wait....
Commit to flash memory ok!
usr/config$
Note: Users shall use commit to save modified value, or they will not be
activated after system reboot.
57
Dynamix DW-2/4 FXO SIP Gateway User Manual
4.2.7 [ifaddr]
Configure and display Gateway network information.
usr/config$ ifaddr
LAN information and configuration
Usage:
ifaddr [-print]|[-mode used]|[-sntp mode [server][-cmcenter ipaddress]]
ifaddr [-ip ipaddress] [-mask subnetmask] [-gate defaultgateway]
ifaddr [-id username][-pwd password][-http http port]
-print Display LAN information and configuration.
-ip Specify ip address.
-mask Set Internet subnet mask.
-gate Specify default gateway ip address
-mode Set ip client service(0=Fix ip, 1=DHCP, 2=PPPoE).
-sntp Set SNTP server mode and specify IP address.
-timezone Set local timezone.
-id connection user name for pppoe.
-pwd connection password for pppoe.
-http Http port.
Note:
SNTP mode (0=no update, 1=specify server IP, 2=broadcast mode).
Example:
ifaddr -ip 210.59.163.202 -mask 255.255.255.0 -gate 210.59.163.254
ifaddr -mode 1
ifaddr -sntp 1 210.59.163.254
usr/config$
Parameters Usage:
-print print out current [ifaddr] settings and status
-ip assign IP address for Gateway
-mask assign internet subnet mask
-gate assign IP default gateway
-mode Switch the network type (0 = Static IP; 1 = DHCP mode 2 =
PPPoE mode)
58
Dynamix DW-2/4 FXO SIP Gateway User Manual
-sntp Simple Network Time Protocol (1 = ON; 0 = OFF) When SNTP
function is activated, users have to specify a SNTP server as
network time source. An example is demonstrated below:
-timezone set local time zone according to GMT
----------------------------------------------------------------------------------------------
usr/config$ ifaddr -sntp 1 10.1.1.1
10.1.1.1 stands for SNTP server’s IP address.
-id To configure the pppoe connection account for the pppoe
connection.
-pwd To configure the pppoe connection password for the pppoe
connection.
-http To configure http port for the web configuration.
4.2.8 [time]
When SNTP function of Gateway is enabled and SNTP server can be found
as well, type time command to show current network time.
----------------------------------------------------------------------------------------------
usr/config$ time
Current time is THU JAN 01 05:29:23 1970
4.2.9 [ping]
Use ping to test whether a specific IP is reachable or not. For
example: if 192.168.1.2 is not existing while 192.168.1.254 exists.
Users will have the following results:
usr/config$ ping 192.168.1.2
no answer from 192.168.1.2
usr/config$ ping 192.168.1.254
PING 192.168.1.254: 56 data bytes
64 bytes from 192.168.1.254: icmp_seq=0. time=5. ms
64 bytes from 192.168.1.254: icmp_seq=1. time=0. ms
59
Dynamix DW-2/4 FXO SIP Gateway User Manual
64 bytes from 192.168.1.254: icmp_seq=2. time=0. ms
64 bytes from 192.168.1.254: icmp_seq=3. time=0. ms
----192.168.1.254 PING Statistics----
4 packets transmitted, 4 packets received, 0% packet loss
round-trip (ms) min/avg/max = 0/1/5
usr/config$
4.2.10 [sysconf]
This command displays system information and configurations.
-------------------------------------------------------------------------------------------
usr/config$ sysconf
System information and configuration
Usage: sysconf [-idtime digit][-keypad
dtmf]
[-rba digit][-eod digit]
[-ring on_time off_time]
sysconf -print
-print Display system overall information and configuration.
-idtime Inter-Digits time.(1~10 sec)
-keypad Select DTMF type: 0=In-band,
1=RFC2833.
-ring The ring time for ring detection.(Uint:ms)
-rba The number of ring times before answer.(1~5)
-eod End of dial.(Enable: 1 / Disable : 0)
Example: sysconf -ring 500
usr/config$
Parameters Usage: -print print out
all current settings
-idtime set the duration(in second) of two pressed digits in dial mode as
timed out. If after the duration user hasn’t pressed next number, it
60
Dynamix DW-2/4 FXO SIP Gateway User Manual
will dial out all number pressed. (1-10 seconds) -keypad DTMF
replay type. When value is “0”, Gateway will transfer DTMF
signal via In-Band type, “1” via RFC2833 type. Users can adjust
the value according to various applications. -ring ring time for
ring detection(in ms). When Gateway has incoming
call from PSTN side to FXO port, Gateway will determine it is a ring
but not noise only if it is longer than this ring time.
Note:
In Taiwan the ring time of PSTN usually is 1000ms, so if user set
ring time longer that 1000ms, FXO port may not be able to pick up
the call from PSTN side. -rba When the calls from the PSTN
side, FXO port will off hook if the
ring time is matched with this number. -eod It will transfer
the DTMF in “#” if users disable the end of dial
function. Users have to press the key pad in “#” if the end of dial
function is enable.
4.2.11 [sip]
This command is for sip configuration related parameters.
----------------------------------------------------------------------------------------------
usr/config$ sip
sip stack information and configuration
Usage:
-print Display SIP stack information and configuration.
-mode Con figure as Proxy mode or Peer-to-Peer mode.
-px Proxy server address. (Proxy IPv4 address or Proxy
dns name)
-domain Second domain name in the URL (if domain name is
not used, specify as null)
-prefix Specify prefix string, use it when the UserID contains
alphabets
-line1 Line 1 is E.164 number of L1.
-line2 Line 2 is E.164 number of L2.
-expire The relative time after which the message expires
(0~65535).
-port SIP local UDP port number (5060~5070). Default :
5060
61
Dynamix DW-2/4 FXO SIP Gateway User Manual
-rtp RTP port number (2326~65532). Default : 16384
Example:
sip -px 210.59.163.171 -line1 70 -line2 71 -line3 72 -line4 73
usr/config$
Parameters Usage:
-print print current h323 related settings
-mode alternatives for proxy or peer-to-peer mode (1=proxy mode;
0=peer-to-peer mode). If users select proxy mode, a valid proxy is
needed when Gateway is in operation.
----------------------------------------------------------------------------------------------
usr/config$ sip –mode 0 (peer to peer mode)
-px to assign the ip address of the proxy when Gateway is in proxy
mode. -domain to assign the domain name of the proxy
when it is needed. -prefix this will be prefix the alphabets before the
sip line number. -line1 assign the port 1 number. -line2 assign
the port 2 number.
Note:
User can also set “x” in line number to disable the port. If the port is
disabled, it can only receive calls but not calling out.
Note:
1. This is for 2FXO unit, for 4FXO and 6FXO model, there will be line1 to
line4 or line 1 to line6.
2. No matter in Proxy or P2P mode, user only needs to dial line number to
reach local port. For example, in P2P mode, user wants to dial from the
Line1 to local Line2, only need to dial number of line2.
-expire It just like the TTL function in H323, the gateway will make sure the
registration is success or not for a period times.
-port define the local sip port for this gateway.
-rtp to allocate RTP port range—NOT RECOMMENDED. This may be
used when RTP port range conflicts with Firewall policy. (each port
of Gateway use 2 RTP ports)
62
Dynamix DW-2/4 FXO SIP Gateway User Manual
4.2.12 [security]
This is the authentication for the SIP account.
---------------------------------------------------------------------------------------------
usr/config$ line
Secuirty information and configuration
Usage:
security [-name username] [-password password]
security -print
-print Display system account information and configuration.
-line Specify which line number you want to set the account.
-name Specify user name.
-password Specify password. Example:
security -line 1 -name kkk -password 12345
Parameter Usages:
-print print out all current settings of security. -line the line
number, which you want to define the security info -name the
name is as same as the SIP number.
-password the password for the authentication if it is the necessary for
the proxy.
4.2.13 [line]
This command is for configure each line parameters of Gateway.
---------------------------------------------------------------------------------------------
usr/config$ line
Gateway line information and configuration
Usage:
line -config number [the port number]
line -print Gateway line information.
hunt Hunting group.
63
Dynamix DW-2/4 FXO SIP Gateway User Manual
hotline Hot line configuration.
Example:
line -config 1 hunt 1 hotline 1003
usr/config$
Parameter Usages:
-print print out all current settings of line
-config determine which line to configure
-hunt set hunting group flag of each line. For example, if user assigns
the Line1 as hunt group 1, and the Line2 as hunt group 2, they will
be determined as 2 different groups. On the other hand, if user
assigns the Line1 as hunt group 1, and the Line2 as hunt group 1
too, when having incoming call to the Line1 port, which is busy, this
call will be routed to Line2.
-hotline set hotline table. User just dial into the line port of this unit, and
gateway will automatically dial out a phone number. In the other
hand, user will hear ring back tone or dial tone immediately
depended on configurations of destination device.
Note: This function can both work in Proxy or P2P mode.
Proxy Mode Usage:
Set gateway under proxy mode.
Create a Hotline table with “line ” command.
------------------------------------------------------------------------------
usr/config$ line –config 1 hotline 1001
------------------------------------------------------------------------------
In this example means: if there is a incoming call from PSTN into
the port 1, gateway will automatically dial out the number “1001”.
P2P Mode Usage:
Set gateway under P2P mode.
Create phone book table with “pbook ” command.
Create a Hotline table with “line ” command.
------------------------------------------------------------------------------
usr/config$ pbook –add name sipfxo ip 10.1.1.1 e164 1001
usr/config$ line –config 1 hotline 1001
64
Dynamix DW-2/4 FXO SIP Gateway User Manual
------------------------------------------------------------------------------
In this example means: if there is a incoming call from PSTN into
the port 1, gateway will automatically dial out the number “1001”.
4.2.14 [route]
This command is to set routing table for Gateway.
usr/config$ route
Routing table information and configuration
Usage:
route -add [prefix number][dst number][e164 number]
[min number][max number][hunt number] route -delete
index route -modify index [prefix number][dst n u m ber][e164
number]
[min number][max number][hunt number]
route -ip [dst number][SIP number] route -fxo [dst
number][SIP number] route -print Routing table
information.
prefix The prefix of dialed number.
dst Destination port(FXO:1/IP:2).
e164 Destination e164 number(when destination is FXO).
min Min digits.(0 ~ 255)
max Max digits.(0 ~ 255)
hunt Hunt method for busy forward(NONE:0 / GROUP:1 / ALL:2)
Example:
route -add prefix 100 dst 1 e164 1001 min 1 max 3 hunt 1
route -ip dst 1 e164 1001 route -fxo dst 1 e164 x
route -modify 1 prefix 100 dst 0 e164 1001 min 1 max 3 hunt 1 route delete 1 usr/config$
Parameter Usages:
-print print out all routing table information
-add add a routing rule in routing table. User can add less than 50 rules.
(route –add prefix “prefix number” dst “destination port type”
e164 “SIP number of port” min “minimum digits needed” max
65
Dynamix DW-2/4 FXO SIP Gateway User Manual
“maximum digits can’t be exceeded”) -delete delete a routing
rule in routing table (route –delete “index of
routing rule”)
-modify modify a routing rule in routing table. (route –modify “index of
routing rule” prefix “prefix number” dst “destination port
type” e164 “SIP number of port” min “minimum digits
needed” max “maximum digits can’t be exceeded”)
-ip create routing table for incoming call from IP side. (route –ip dst
“destination port type” e164 “SIP number of port”) -fxo
create routing table for incoming call from FXO Lines. (route –fxo
dst “destination port type” e164 “SIPnumber of port”) prefix
prefix of the dialed number dst destination port, 1 means FXO Lines, 2
means IP side, x means no
determinate number. e164 destination SIP number. This only
need to be set when routed port
is FXO Lines to determine which port will this call be routed to.
min minimum digits needed. max maximum digits needed.
hunt set hunt method for busy forward. 0 means no hunting, 1 means
hunting method follows the rule of [line], 2 means hunting method
is to hunt between all ports in the same type, for example,
destination port is FXO Lines will hunt in all FXO Lines.
Usage Example:
1. route –add prefix 100 dst 1 e164 1001 min 1 max 3 hunt 1
This command means if gateway has incoming call’s prefix number is
100, and total digits are between 1 to 3, this call will be routed to FXO
port whose number is 1001. If the destination port is busy, call will be
routed to another port, which is in the same group.
2. route –ip dst 1 e164 1002
This command means incoming call from IP side will be routed to FXO
Line of number 1002.
4.2.15 [prefix]
This command is for make rules for drop or insert prefix digits.
---------------------------------------------------------------------------------------------
usr/config$ prefix
66
Dynamix DW-2/4 FXO SIP Gateway User Manual
Prefix drop/insert information and configuration
Usage:
prefix -add [prefix number][drop number][insert digits]
prefix -delete index
prefix -modify index [prefix number][drop number][insert number]
prefix -print Prefix drop/insert information.
prefix The prefix of dialed number.
drop Drop prefix(Enable:1/Disable:0).
insert Insert digits.
Example:
prefix -add prefix 100 drop 1 insert 2000
prefix -add prefix 100 drop 1
prefix -add prefix 100 drop 0 insert 200
prefix -delete 1
prefix -modify 1 prefix 100 drop 0 insert 300
usr/config$
Parameter Usages:
-add add a rule to drop or insert prefix digits of incoming call.(prefix –add
prefix “prefix number” drop 0/1 insert “insert number”) -
delete delete a rule to drop or insert prefix digits of incoming call.
(prefix –delete prefix “prefix number”) -modify modify a
rule to drop or insert prefix digits of incoming call.
(prefix –modify prefix “prefix number” drop 0/1 insert “insert number”)
prefix set which prefix number to implement prefix rule. drop enable or
disable drop function.If this function is enabled, Gateway will
drop prefix number on incoming call.
insert set which digit to insert on incoming call.
4.2.16 [pbook]
Phone Book function allows users to define their own numbers, which
mapping to real IP address. It is effective only in peer-to-peer mode. When
adding a record to Phone Book, users also have to reboot the machine after
the commit command, and the record will be effective immediately.
67
Dynamix DW-2/4 FXO SIP Gateway User Manual
----------------------------------------------------------------------------------------------
usr/config$ pbook
Phone book information and configuration Usage: pbook [-add
[name string][e164 number][ip address] [port number][drop
digit][insert number]] [-modify number [name string][e164 number][ip
address] [port number][drop digit][insert number]] [-delete number]
pbook -print
Display phone book information and configuration.
Add new phone book record) Delete
phone book record
Modify phone book record.
name : 1 ~ 10 characters.
e164 : 1 ~ 10 digits.
ip : IP adress.
port : 1024 ~ 65535.
drop : 0:Disable/1:Enable.
insert : 1 ~ 10 digits. Example: pbook -add name test
e164 1234 ip 192.168.1.10 drop 1 insert 5678 pbook -delete 1 pbook modify 1 name test e164 5678 ip 192.168.1.10 drop 0
usr/config$
Parameter Usages:
-print print out current contents of Phone Book. (pbook -print) Users can
also add index number, from 1 to 100, to the parameter to show
specific phone number. (Ex. pbook –print 1)
Note: <index number> means the sequence number in phone
book. If users do request a specific index number in phone
book, Gateway will give each record a automatic sequence
number as index.
68
-print add delete
-modify
Dynamix DW-2/4 FXO SIP Gateway User Manual
-add add a new record to phone book. When adding a record, users
have to specify name, ip, and e164 number to complete the command.
name name to represent callee.
e164 The SIP number for mapping with IP address of called
ip ip address of called
drop drop e.164 number when dial out. 0 means to keep e.164 number,
1 means to drop e.164 number when dialing out. insert insert
digits.(1~10 digits) -delete delete a specific record. “pbook –delete 3”
means delete index 3
record. -modify modify an existing record. When using this command,
users have to specify the record’s index number, and then make the
change.
PhoneBook Rules:
The SIP number defined in phone book will fully carry to destination. It is
not just a representative number for destination’s IP Address. In other
words, user dial this number to reach the destination, destination will
receive the number and find out if it is matched to itself, including Line
number in some particular device.
4.2.17 [voice]
The voice command is associated with the audio setting information.
There are four voice codecs supported by Gateway.
----------------------------------------------------------------------------------------------
usr/config$ voice
Voice codec setting information and configuration
Usage:
voice [-send [G723 ms] [G711A ms] [G711U ms] [G729 ms] [G729A ms]
[G729B ms] [G729AB ms] ]
[-volume [voice level] [input level] [dtmf level]] [-nscng
[G711U used1] [G711A used2] [G723 used3]] [-echo used]
[-mindelay t1] [-maxdelay t2] [-optfactor f]
voice -print
69
Dynamix DW-2/4 FXO SIP Gateway User Manual
voice -priority [G723] [G711A] [G711U] [G729] [G729A] [G729B] [G729AB]
-print Display voice codec information and configuration.
-send Specify sending packet size.
G.723 (30/60 ms)
G.711A (20/40/60 ms)
G.711U (20/40/60 ms)
G.729 (20/40/60 ms)
G.729A (20/40/60 ms)
G.729B (20/40/60 ms)
G.729AB (20/40/60 ms) -priority
Priority preference of installed codecs.
G.723
G.711 A
G.711 U
G.729
G.729A
G.729B
G.729AB -volume
Specify the following levels:
voice volume (0~63, default: 29,28),
input gain (0~63, default: 26),
dtmf volume (0~31, default: 23),
-nscng No sound com pression and CNG. (G.723.1 only, On=1 ,
Off=0).
-echo Setting of echo canceller. (On=1, Off=0, per port basis).
-mindelay Setting of jitter buffer min delay. (0~150, default: 90). maxdelay Setting of jitter buffer max delay. (0~150, default: 150).
Example:
voice -send g723 60 g711a 60 g711u 60 g729 60 g729a 60 g729b 60
g729ab 60
voice -volume voice 20 input 32 dtmf 27
voice -echo 1 1
usr/config$
Parameters Usage:
-print print current voice information and configurations.
70
Dynamix DW-2/4 FXO SIP Gateway User Manual
-send define packet size for each codec. 20/40/60ms means to send a
voice packet per 20/40/60 milliseconds. The smaller the packet size, the
shorter the delay time. If network is in good condition, smaller sending
packet size is recommended. In this parameter, 20/40/60ms is applicable
to G.711u/a law, and G.729/G.729A/G.729B/G.729AB codec, while
30/60ms is applicable to G.723.1 codec. -priority codec priority while
negotiating with other h323 device. This
parameter determines the listed sequence in h.245 TCS message.
The codec listed in left side has the highest priority when both
parties determining final codec. User can also select the particular
codec without others.
----------------------------------------------------------------------------------------------
usr/config$ voice –priority g723 (only select this codec) usr/config$ voice
–priority g723 g729 g711u g711a (select four codecs,
and g723 is the first choice)
-volume There are three adjustable value. voice volume stands for volume,
which can be heard from Gateway side; input gain stands for
volume, which the opposite party hears; dtmf volume stands for
DTMF volume/level, which sends to its own Line.
Note: level of volume is too high or too low may be result in bad
performance while connecting to each other.
-nscng silence suppression and comfort noise generation setting (1 = ON;
0 = OFF). It is applicable to G.723 codec only. An example is
demonstrated below:
----------------------------------------------------------------------------------------------
usr/config$ voice -nscng g723 1
-echo activate each canceler (1 = ON; 0 = OFF).
-mindelay the minimum jitter buffer size. (Default value= 90 ms)
-maxdelay the minimum jitter buffer size. (Default value= 150 ms)
----------------------------------------------------------------------------------------------
usr/config$ voice –mindelay 90 –maxdelay 150
71
Dynamix DW-2/4 FXO SIP Gateway User Manual
Note: be sure to know well the application before you change voice
parameters because this might cause incompatibility.
4.2.18 [tone]
This command is basically for FXO ports.
--------------------------------------------------------------------------------------------
usr/config$ tone
Disconnect tone and remote ring back tone configuration
Usage:
tone [num][freqHi ][freqLo ][freqHiLev][freqLoLev]
[Tone1ON][Tone1OFF][Tone2ON ][Tone2OFF ]]
tone -print Display disconnect tone configuration.
[num] Tone index(1~4:Disconnect tone / 5~8:Remote ring back
tone). Example:
tone -print
tone 1 620 480 8 8 50 50 1023 1023
usr/config$
Parameter Usages:
-print show all tone configuration
[num] tone index. 1~4 is disconnect tone, 5~8 is remote ring back tone.
For FXO ports Gateway must detect disconnect tone to determine
when to disconnect the call, so user must set disconnect tone of
PBX or PSTN network connected to FXO ports. When making a
call from FXO ports, there are 2 ways to detect callee has
already picked up the call, one is to detect reverse signal, the
other is to detect the termination of ring back tone, so user must
set ring back tone of PBX or PSTN network. (If user doesn’t know
about the frequency of disconnect tone or ring back tone, please
refer to [record] command to detect frequency.)
72
Dynamix DW-2/4 FXO SIP Gateway User Manual
For each tone may has 1 set or 2 sets (high and low) of
frequencies. If user wants to set 0 in on/off time, please set “1023”
represent “0”. (ex. tone 1 620 480 8 8 50 50 1023 1023) (tone
“index of tone” “frequency of high” “frequency of low” “level
of high” “level of low” “on time of high” “off time of high”
“on time of low” “off time of low” )
4.2.19 [fxopwd]
This command is for FXO ports.
----------------------------------------------------------------------------------------------
usr/config$ fxopwd
FXO password information and configuration
Usage:
fxopwd -add [passwd number][direction number]
fxopwd -delete index
fxopwd -modify index [passwd number][direction number]
fxopwd -print FXO password information.
passwd The password.
Example:
fxopwd -add passwd 1234
fxopwd -delete 1
fxopwd -modify 1 passwd 1234
usr/config$
Parameter Usages: -print show all FXO
password configuration -add add 1 set of FXO
password -delete delete 1 specific set of FXO
password -modify modify 1 specific set of FXO
password
passwd password
4.2.20 [record]
User can record greeting and askpin file and analyze tone frequency by
calling in FXO line of Gateway.
73
Dynamix DW-2/4 FXO SIP Gateway User Manual
usr/config$ record
Recoed greeting voice and ask pin code voice, tone analize.
Usage:
record -greeting filename askpin filename -tone
Example:
record -greeting greeting.100
record -askpin askpin.100
record -tone
usr/config$
Parameter Usages: -greeting record greeting file. User must assign a file
name for greeting, once record is finished, file recorded will be display in
rom -print.
usr/config$ record -greeting test.100
Please off hook TEL 1 and press (N) for next step...
Please make calls from the PSTN side into this port
n
Press (R) to start record... r
Press (S) to stop record...
................................................................................s ........
Press (P) to play the voice or (W) to write to flash or (Q) to quit...
74
Dynamix DW-2/4 FXO SIP Gateway User Manual
p
w
Please wait a moment...
Write flash ok...
Boot Rom : sdboot.200
Application Rom : 4sipfxo.103
DSP App : 48302ce3.300 DSP
Kernel : 48302ck.300 DSP Test Code
: 483cbit.bin Greetings : test.100
Ask Pin : askpin.100 q
usr/config$
-askpin record askpin file. User must assign a file name for askpin file,
once record is finished, file recorded will be display in rom –print.
usr/config$ record -askpin askpintest
Please off hook TEL 1 and press (N) for next step...
Please make calls from the PSTN side into this port
n
Press (R) to start record... r
Press (S) to stop record...
75
Dynamix DW-2/4 FXO SIP Gateway User Manual
..........................s ..................................................
Press (P) to play the voice or (W) to write to flash or (Q) to quit...
p
w
Please wait a moment...
Write flash ok...
Boot Rom : sdboot.200
Application Rom : 4sipfxo.100
DSP App : 48302ce3.300 DSP
Kernel : 48302ck.300 DSP Test Code
: 483cbit.bin Greetings :
greeting.100 Ask Pin : askpintest q
usr/config$
Note: Remember to press enter after press any command.
-tone analyze tone frequency. Gateway can analyze tone frequency as
user provide tone in FXO Line1.
----------------------------------------------------------------------------------------------
usr/config$ record -tone
Press (R) to start record...
r
76
Dynamix DW-2/4 FXO SIP Gateway User Manual
Analyzing!! Please wait a moment……..
Frequency 1 : 480
Frequency 2 : 620
Frequency 3 (2623) is more than 1000, please ignore it.
0.25sec on 0.25sec off
usr/config$
Note:
1. About the tone detection or tone recording for FXO unit, two
extension or PSTN line is necessary.
2. Records disconnect tone: Please read the pr ocedure of recording
disconnect tone file from the web site in application.
3. The values of disconnect tone and ring back tone will not write in
flash automatically. Please use the command in “tone” to write in
the tone table.
The Procedures of recording the disconnect tone
Before you start
Prepare two PSTN lines, which connect with the Line 1 and Line 2 port.
Please record the disconnect tone just follow the stage as below
1. Please enter the command before you record the disconnect tone
record -tone
2. Make a call from PSTN side into Line 2 port.
3. You will get a greeting when the call enters the gateway.
4. Pease dial the number of the Line 1 port.
5. Users will get the dial tone from the PSTN side and please dial the number
to contact with another person.
6. Please drop the call from the calling aide and the called side could get the
disconnect tone from the Line 2 port.
7. When you get the disconnect tone from the Line 2 port, press <R> and
<ENTER> buttons to start recording the disconnect tone.
8. Please hang up another side if users get the message as below Analizing!!
Please wait a moment…
ii
Dynamix DW-2/4 FXO SIP Gateway User Manual
9. There are three values you will get after analyzing. Please leave the value
which is over 1000 Hz, this is not the frequency of disconnect tone.
10. Please put the frequency in the tone table just follow the command
tone 4 420 680 8 8 25 25 50 50
Example-1
(Make a call from PSTN to FXO port)
usr/config$ record -tone
Press (R) to start record...
(Please make sure that you are already finish the steps 2 ~ 7)
r (Press “Enter” button after you key in “R”)
Analizing!! Please wait a moment...
(You coule hang up the call from PSTN if you get this message)
Frequency 1 : 481
Frequency 2 (2623) is more than 1000, please ignore it.
Frequency 3 : 621
tone 4 481 621 8 8 25 25 1023 1023
(Put this value in to the tone table)
tone –print
Disconnect tone 1 paramter
Frequency high : 620
frequency low : 480
frequency high level : 8
frequency low level : 8
Tone1 on : 25
78
Dynamix DW-2/4 FXO SIP Gateway User Manual
Tone1 off : 25
Tone2 on : 1023
Tone2 off : 1023
connect tone 2 paramter
Frequency high : 450
frequency low : 0
frequency high level : 8
frequency low level : 0
Tone1 on : 35
Tone1 off : 35
Tone2 on : 1023
Tone2 off : 1023
connect tone 3 paramter
Frequency high : 620
frequency low : 480
frequency high level : 8
frequency low level : 8
Tone1 on : 50
Tone1 off : 50
Tone2 on : 1023
Tone2 off : 1023
connect tone 4 paramter
Frequency high : 621
frequency low : 481
frequency high level : 8
frequency low level : 8
Tone1 on : 25
Tone1 off : 25
Tone2 on : 50
Tone2 off : 50
79
Dynamix DW-2/4 FXO SIP Gateway User Manual
tone –print
Disconnect tone 1 paramter
Frequency high : 620
frequency low : 480
frequency high level : 8
frequency low level : 8
Tone1 on : 25
Tone1 off : 25
Tone2 on : 1023
Tone2 off : 1023
Disconnect tone 2 paramter
Frequency high : 450
frequency low : 0
frequency high level : 8
frequency low level : 0
80
Dynamix DW-2/4 FXO SIP Gateway User Manual
Tone1 on : 35
Tone1 off : 35
Tone2 on : 1023
Tone2 off : 1023
connect tone 3 paramter
Frequency high : 620
frequency low : 480
frequency high level : 8
frequency low level : 8
Tone1 on : 50
Tone1 off : 50
Tone2 on : 1023
Tone2 off : 1023
connect tone 4 paramter
Frequency high : 621
frequency low : 481
frequency high level : 8
frequency low level : 8
Tone1 on : 25
Tone1 off : 25
Tone2 on : 50
Tone2 off : 50
(Confirm the values is correct or not)
(Key in the commit and reboot command if you finish the procedures as above
4.2.21 [tos]
IP Packet ToS(type of Service)/Differentiated Service configuration.
----------------------------------------------------------------------------------------------
usr/configtos
IP Packet ToS(type of Service)/Differentiated Service configuration
Usage:
tos [-rtptype dscp]
tos [-sigtype dscp]
tos -print
81
Dynamix DW-2/4 FXO SIP Gateway User Manual
[-rtpreliab mode] tos
-print
Example:
tos -rtptype 7 -sigtype 0
Parameter Usages:
-rtptype the packages of voice
-sigtype the package of call signal
Note:
The value of rtptype and sigtype is from 0 to 63.
It’s working if it supported by your network.
4.2.22 [pt]
RTP payload type configuration and information
----------------------------------------------------------------------------------------------
usr/config$ pt
RTP payload type configuration and information
Usage:
pt-print Display the RTP payload type information
-rfc2833 Configure the DTMF RFC2833 payload type
-dtmf Configute the DTMF payload type
-fax Configure the FAX payload type
-faxbypass Configure the FAX ByPass payload type
-modembypass Configure the MODEM ByPass payload type redundancy Configure the Redundancy payload type modemrelay Configure the MODEM Relay payload type
Example:
pt -rfc2833 96 -fax 101
usr/config$ Users could configure the payload type for this
function.
82
Dynamix DW-2/4 FXO SIP Gateway User Manual
4.2.23 [rom]
ROM file information and firmware upgrade function.
----------------------------------------------------------------------------------------------
usr/config$ rom
ROM files updating commands
Usage:
rom [-print][-app][-boot][-dsptest][-dspcore][-dspapp][-greet][-askpin]
-s TFTP/FTP server ip -f filename
rom -print
-print show versions of rom files. (optional)
-app update main application code(optional)
-boot update main boot code(optional)
-boot2m update 2M code(optional)
-dsptest update DSP testing code(optional)
-dspcore update DSP kernel code(optional)
-dspapp update DSP application code(optional)
-greeting update greeting voice file(optional)
-askpin update ask pin code voice file(optional)
-s IP address of TFTP/FTP server (mandatory)
-f file name(mandatory)
-method download via TFTP/FTP (TFTP: mode=0, FTP: mode=1)
-ftp specify username and password for FTP
Note:
This command can run select one option in 'app', 'boot',
, 'dsptest', 'dspcore', and 'dspapp'.
Example:
rom -method 1
rom -ftp vwusr vwusr
rom -app -s 192.168.4.101 -f app.bin
usr/config$ Parameter
Usages:
-print show versions of all rom files -app, boot, boot2m, dsptest,
dspcore, dspapp, greeting, askpin to update
main Application program code, Boot code,
DSP testing code, DSP kernel code, DSP
83
Dynamix DW-2/4 FXO SIP Gateway User Manual
application code, greeting file, askpin file.
-s to specify TFTP server’s IP address when upgrading ROM files.
-f to specify the target file name, which will replace the old one.
-method to decide using TFTP or FTP as file transfer server. “0” stands for
TFTP, while “1” stands for FTP.
-ftp if users choose FTP in above item, it is necessary to specify
pre-defined username and password when upgrading files.
4.2.24 [passwd]
For security concern, users have to input the password before entering
configuration mode. “passwd” command is for password setting purpose.
----------------------------------------------------------------------------------------------
usr/config$ passwd
Password setting information and configuration
Usage:
passwd -set Loginname Password
passwd -clean
Note:
1. Loginname can be only 'root' or 'administrator'
2. passwd -clean will clear all passwd stored in flash,
please use it with care. Example:
passwd -set root Your_Passwd_Setting
usr/config$
Parameter Usages:
-set
(passwd –set “login name” “password”)
Note : “login name” can be “root” or “administrator” only. “root” and
“administrator” have the same authorization, except some commands
that can be executed by “root” only – “passwd –clean”, “rom –boot”,
”rom –bot2m” and “flash –clean”.
84
Loading...
