DYNAMIX IP PHONE 530. User Manual
DYNAMIX IP PHONE 530
User Manual
1/49
DYNAMIX IP PHONE 530. User Manual
1.1 Appearance..........................................................................................................................4
1.2 Interface ..............................................................................................................................4
1.3 Electricity characteristic......................................................................................................4
1.4 Software..............................................................................................................................4
1.5 Standard and Protocols........................................................................................................5
1.6 Compliant Standard.............................................................................................................5
1.7 Operating requirement ........................................................................................................5
1.8 Package...............................................................................................................................6
1.9 Installation...........................................................................................................................6
2.1 Access Web setting page.....................................................................................................6
2.2 Current state........................................................................................................................7
2.3 Network...............................................................................................................................8
2.3.1 Wan Config .....................................................................................................................8
2.3.2 LAN Config ....................................................................................................................9
2.4 VoIP SIP Config................................................................................................................10
2.5 Advance ............................................................................................................................12
2.5.1 DHCP Server.........................................................................................................12
2.5.2 NAT.......................................................................................................................13
2.5.3 Net Service............................................................................................................14
2.5.4 Firewall settings....................................................................................................15
2.5.5 QoS settings ..........................................................................................................16
2.5.6 Advance SIP settings.............................................................................................17
2.5.7 Digital Map...........................................................................................................18
2.5.8 Call Service Settings.............................................................................................20
2.5.9 MMI Filter............................................................................................................. 22
2.5.10 Audio Settings.......................................................................................................22
2.5.11 VPN.......................................................................................................................23
2.5.12 Memory Key .........................................................................................................24
2.6 Dial-Peer...........................................................................................................................24
2.7 Config Manage..................................................................................................................25
2.8 Update...............................................................................................................................25
2.8.1 Web Update:..........................................................................................................25
2.8.2 TFTP/FTP Update:................................................................................................ 25
2.8.3 Auto Provisioning:................................................................................................25
2.9 System Manage.................................................................................................................27
2.9.1 Account Manage ................................................................................................... 27
2.9.2 Phone Book:..........................................................................................................27
2.9.3 Syslog Config:.......................................................................................................27
2.9.4 Time Set: ...............................................................................................................28
2.9.5 Reboot:.................................................................................................................. 28
3.1 Keypad function................................................................................................................29
3.2 Keypad Menu....................................................................................................................30
4.1 Introduce...........................................................................................................................32
4.2 Global Command..............................................................................................................33
2/49
DYNAMIX IP PHONE 530. User Manual
9.1.1 How many servers may Dynamix IP phone 530 register simultaneously? ........... 43
9.1.2 Why the settings vanish after reboot? ...................................................................43
9.1.3 How to use the dial rule?.......................................................................................43
9.1.4 How to use speed dial function?........................................................................... 44
9.1.5 How to configure digital map? ..............................................................................44
9.1.6 How to use Call Forward, Call Transfer and 3-way Conference calls? ................ 44
9.1.7 How to use the record function? ...........................................................................46
9.1.8 How to use set the IP type via keypad?.................................................................47
9.1.9 VLAN implement..................................................................................................47
3/49
1 DYNAMIX IP PHONE 530 Features

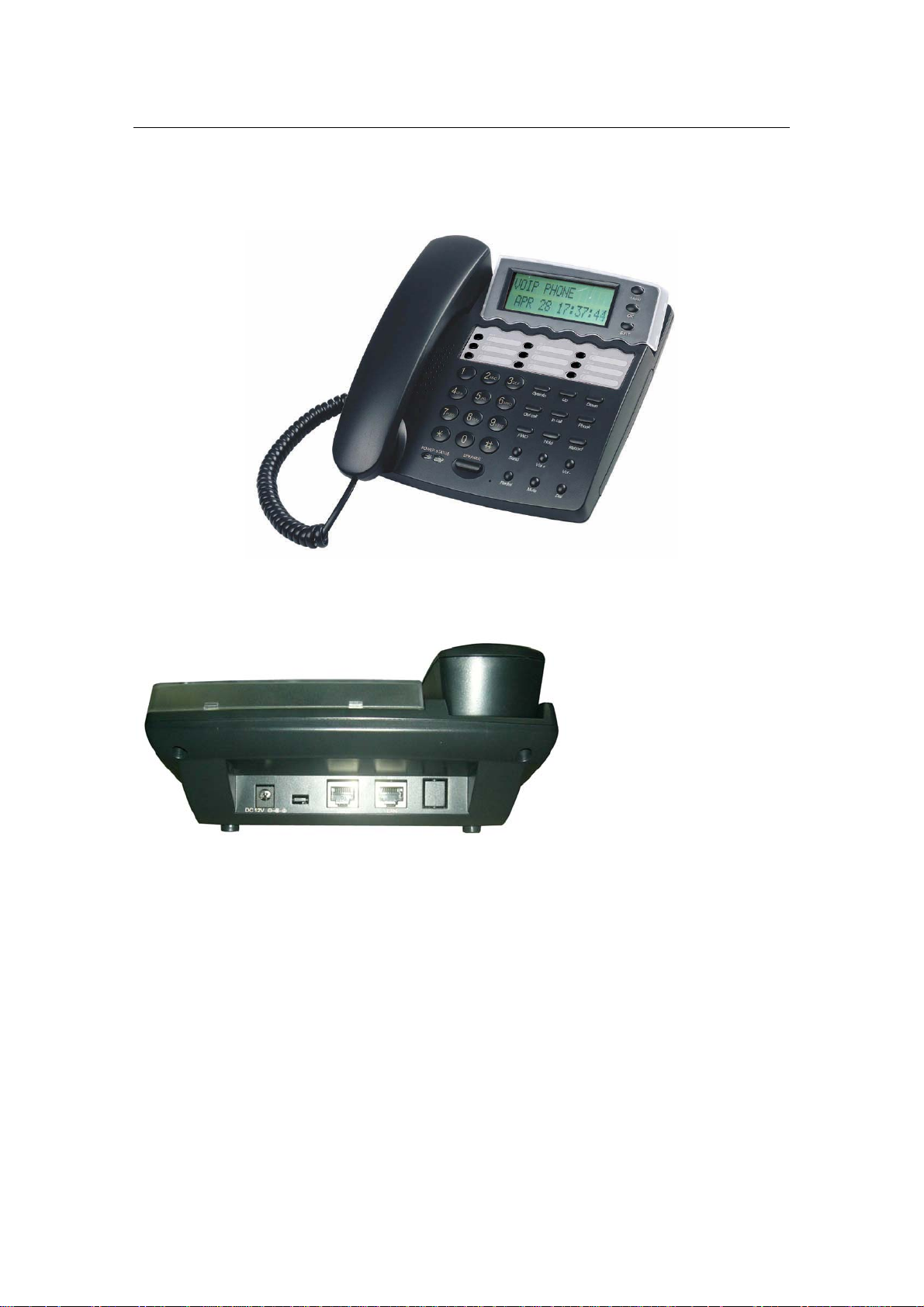

1.1 Appearance
DYNAMIX IP PHONE 530. User Manual
1.2 Interface
Power: Output Power:12VDC,500mA. WAN: LAN:
RJ45 port. RJ45 port.
1.3 Electricity characteristic
z Speciality of electric: output the 12V 500mA DC z The network connects:2 RJ45 connect, a WAN, a LAN
1.4 Software
z Support two sip accounts at the same time. z Redundancies server support. z NAT, Firewall. z DHCP client and server. z Support PPPoE, (used for ADSL, cable modem connecting). z Support major G7.xxx CODEC. z VAD,CNG.
4/49
DYNAMIX IP PHONE 530. User Manual
z G.168 compliant 32ms echo cancellation z Tone generation and Local DTMF re-generation according with ITU-T z E.164 dial plan and customized dial rules z Hotline. z Speed Dial z Call Forward, Call Transfer, 3-way conference calls z Record z Caller ID display z DND(Do Not Disturb),Black List,Limit List z Upgrade firmware through FTP, TFTP or HTTP,. z Web management. z Telnet remote management. z adjustable user password and super password
1.5 Standard and Protocols
z IEEE 802.3 /802.3 u 10 Base T / 100Base TX z PPPoE: PPP Protocol over Ethernet z DHCP Client and Server: Dynamic Host Configuration Protocol z G.711 u/a; G729, G7231 5.3/6.3 audio Codec z SIP RFC3261, RFC 25 43 z IAX2 z TCP/IP: Internet transfer and control protocol z RTP: Real-time Transport Protocol z RTCP: Real-time Control Protocol z VAD/CNG save bandwidth z Telnet: Internet's remote login protocol z DNS: Domain Name Server z TFTP: Trivial File Transfer Protocol z HTTP: Hyper Text Transfer protocol z FTP: File Transfer protocol
1.6 Compliant Standard
z CE：EN55024,EN55022 z FCC part15
z comply with ROHS in EU z comply with ROHS in China
z
Explanation:
The letter “e” is the first letter of “environment : and “electronic”, Th e rim is a round with two arr ow , stands for recycle. The number 20 stands for the years of environment protection. Please note the years of environment protection is not discarding year nor us ag e life
1.7 Operating requirement
z Operation temperature: 0 to 40° C (32° to 104° F) z Storage temperature: -30° to 65° C (-22° to 149° F) z Humidity: 10 to 90% no dew
5/49
DYNAMIX IP PHONE 530. User Manual
1.8 Package
z Size: 338×220×85mm z Packing List
9 DYNAMIX IP PHONE 530 9 Power adaptor (out put 12v ,500mA) 9 Manual CD
1.9 Installation
Use ethernet cable to connect DYNAMIX IP PHONE 530’s LAN port and your computer. Set your computer’s ip to the network 192.168.10.x or using dynamic obtain IP. Open y our web browser and key in 192.168.10.1. Then you will see the logon page of DYNAMIX IP PHONE 530, the default username and password is admin/admin for administrator and guest/guest for guest. Set up page for VoIP use only:
2 Web Configuration

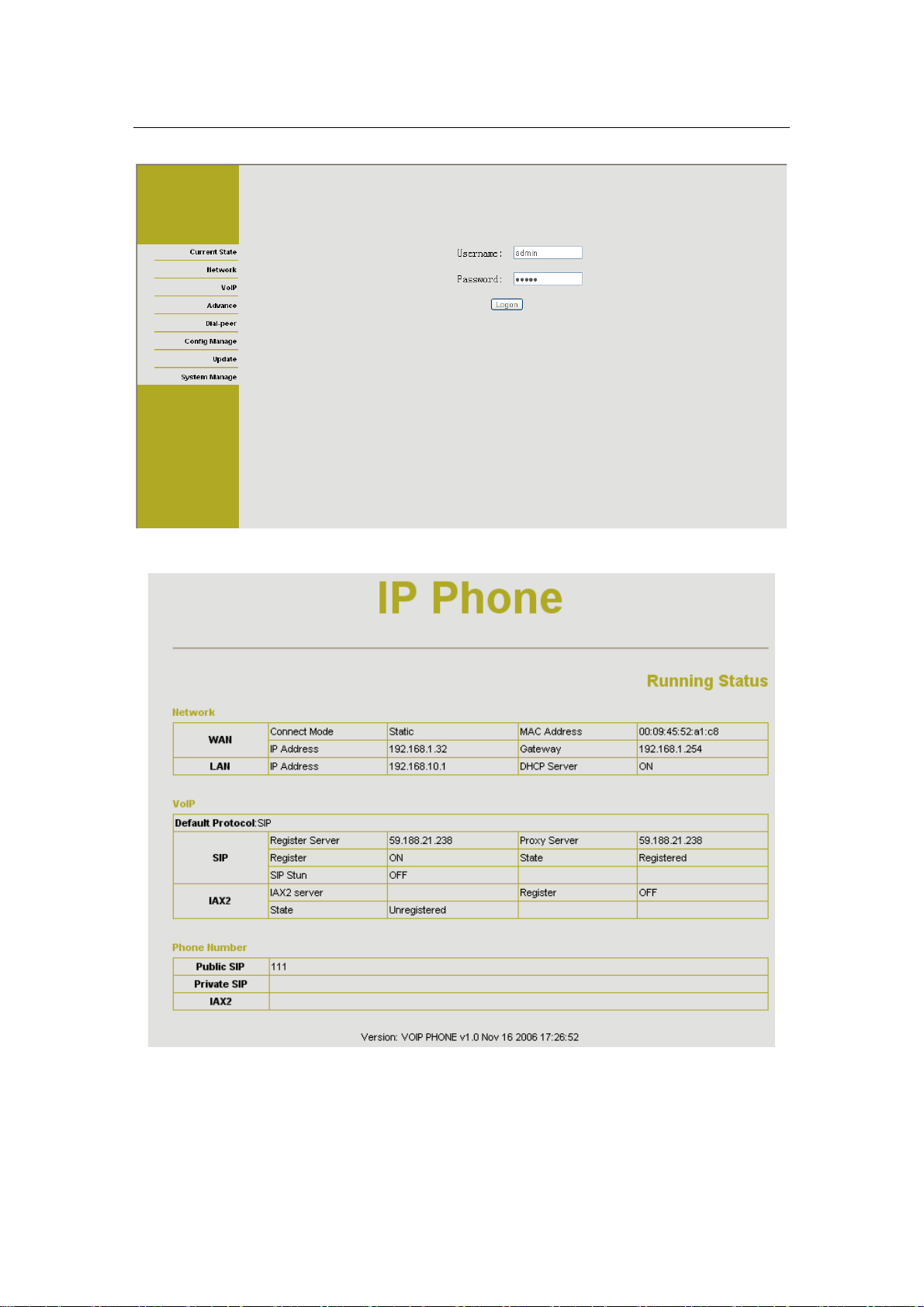

2.1 Access Web setting p age
Enter DYNAMIX IP PHONE 530 IP address in the web browser and p ress EN TER to g o to th e log on page, and key in the username and password to access DYNAMIX IP PHONE 530 setting page. Default username and password is:
Administrator: Username: admin password: admin User: Username: guest Username: guest
6/49
2.2 Current state
DYNAMIX IP PHONE 530. User Manual
This page shows DYNAMIX IP PHONE 530’s running state.
Network shows the WAN and LAN port connecting state and current settings. VoIP part show the working state of VoIP, you can see whether DYNAMIX IP PHONE 530 has
registered the public sip server
7/49
Phone Number public sip and private sip phone numbers.
2.3 Network
2.3.1

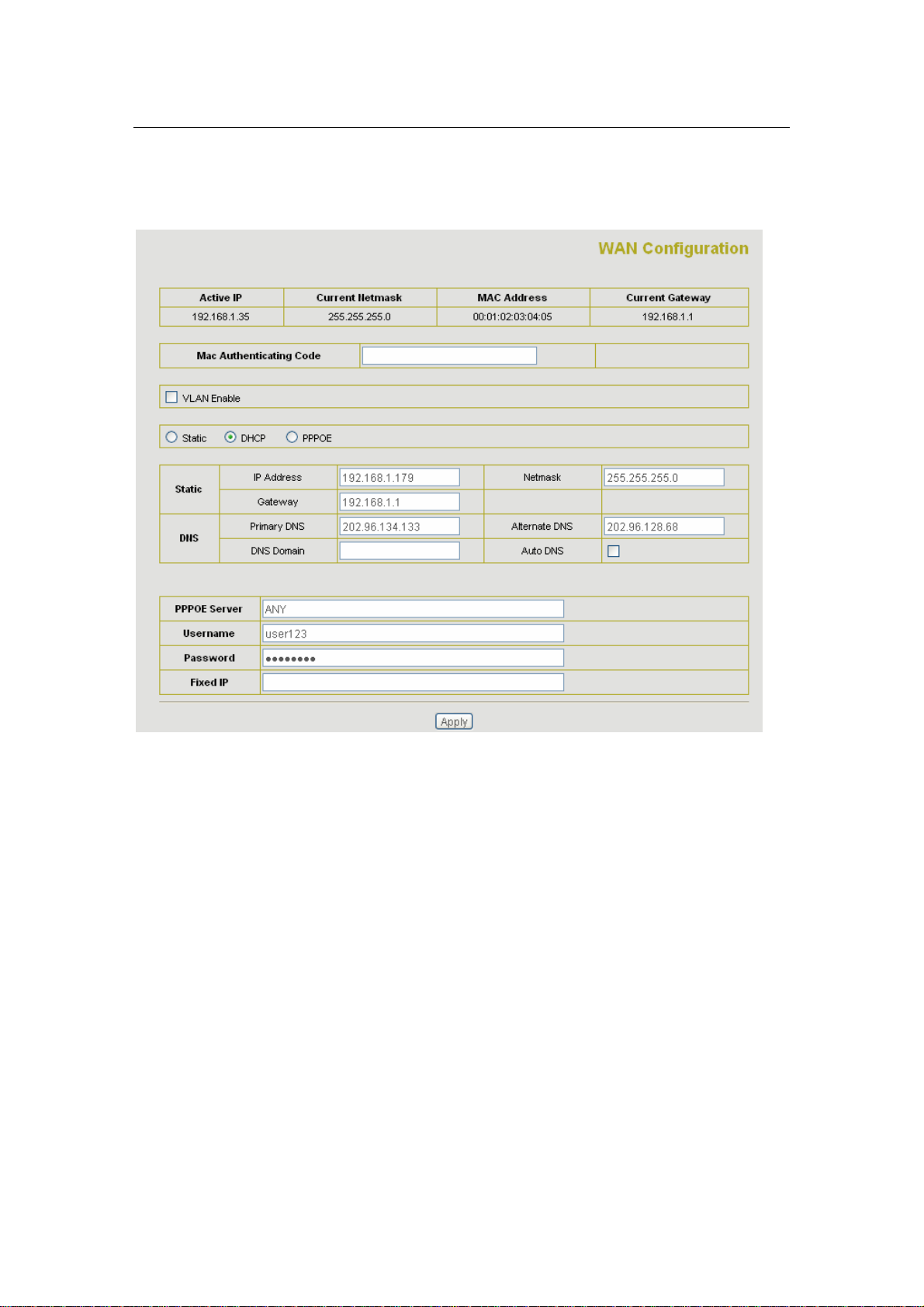

Wan Config
DYNAMIX IP PHONE 530. User Manual
WAN port network setting page. Support static IP, dynamic obtain IP and PPPoE.
VLAN Enable: Enable Vlan
¾ Configure Static IP:
----Enable Static;
----Set DYNAMIX IP PHONE 530’s IP address in the IP Address;
----Set netmask in the Netmask field;
----Set router IP address in the Gateway;
----DNS Domain:
----Set local DNS server in the Preferred DNS and the Alternate DNS
----Auto DNS：DNS select it to get the DNS address automatically
¾ Configure to dynamic obtain IP
----Enable DHCP; If there is DHCP server in your local network, DYNAMIX IP PHONE 530 will automatically obtain WAN po rt network informati o n from your DHCP server.
¾ Configure PPPoE:
----Enable PPPoE
----PPPoE server: Enter “ANY” if no specified from your ITSP.
----Enter PPPoE username and pin in the username and password.
-----Fixed IP: use the fixed IP address
DYNAMIX IP PHONE 530 will automatically obtain WAN port network information from your
8/49
DYNAMIX IP PHONE 530. User Manual
ITSP if PPPoE setting and the setup are correct. Notice: If user accesses the IP phone through WAN port. He/Sh e should use the new IP address to access the IP phone when the WAN port address was changed.
2.3.2 LAN Config
Bridge Mode: Enable this option to switch to bridge mod e. IP phone won’t assi gn IP for its LAN
port in bridge mode and its LAN and WAN port will be in the same network. (This setting won’t take effect unless you save the config and reboot the device)
IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port NA T: Enable NAT.
9/49

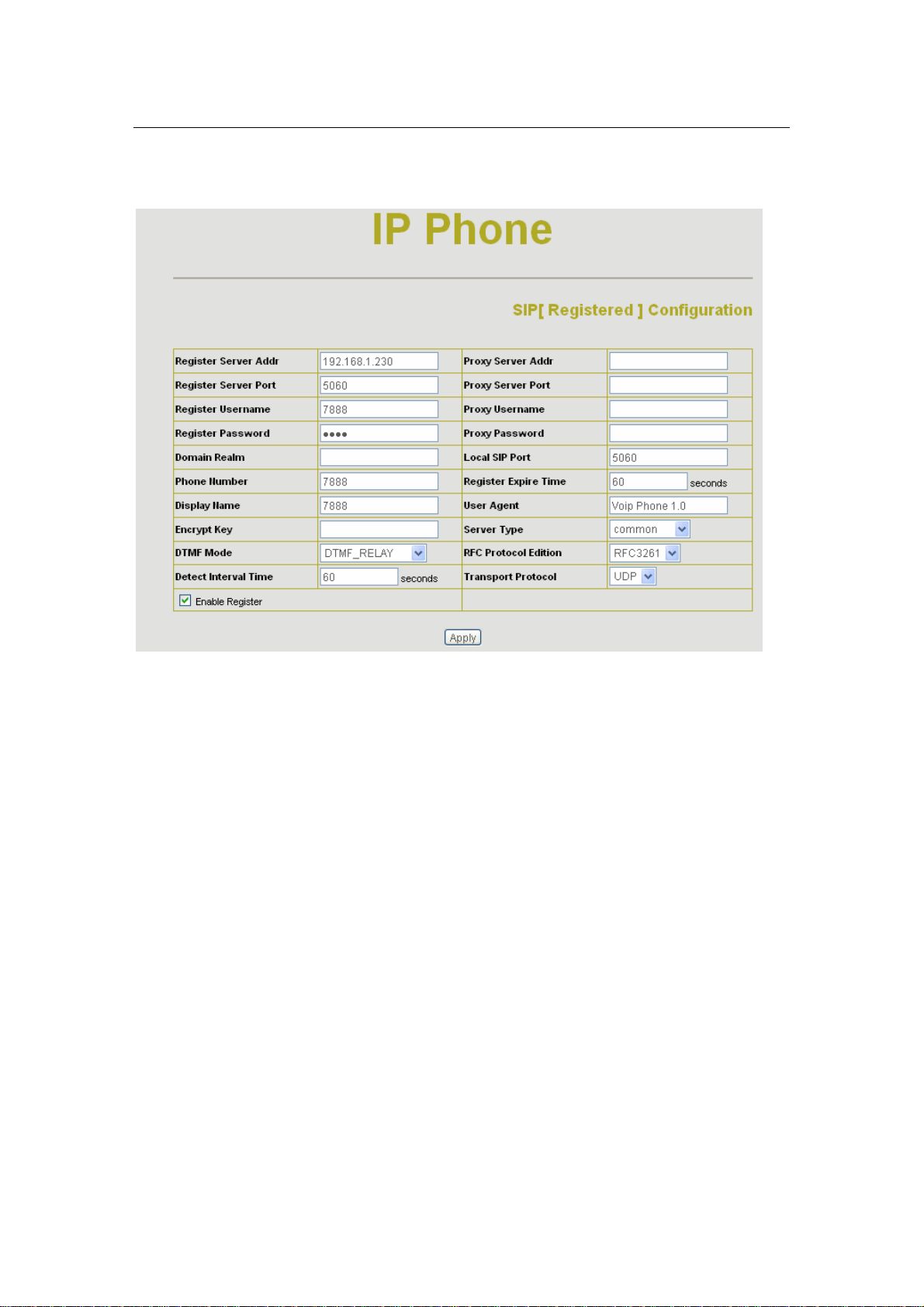

2.4 VoIP SIP Config
2.4.1 SIP config
DYNAMIX IP PHONE 530. User Manual
Setting page of public SIP server:
Register Server Addr: Register address of public SIP server Register Server Port: Register port of public SIP server，default port is 5060
Register Username: Username of your SIP account (Always the same as the phone number) Register Password: Password of your SIP account. Proxy Server Addr: IP address of proxy SIP server (SIP provider always use the same IP for
register server and proxy server, in this case you don’t need to configure the proxy server information. )
Proxy Server Port: Signal port of SIP proxy Proxy Username: proxy server user name Proxy Password: proxy server password Domain Realm: SIP domain, enter the sip domain if any, otherwise DYNAMIX IP
PHONE 530 will use the proxy server address as sip domain.
Local SIP port: Local SIP register port, def ault 5060 Phone Number: Phone number of your SIP account Display name: config the diaply name , it can be displayed at the callee's side . only letter and
number input is allowed here Register Expire Time: register expire time, default is 600 seconds. DYNAMIX IP PHONE 530 will auto configure this expire time to the server recommended setting if it is different from the SIP server. Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, DYNAMIX IP PHONE 530 will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key , matching with the server Type usage, the key provide by the particul ar service system suppl ier, default is empty
10/49
DYNAMIX IP PHONE 530. User Manual
Server Type：The particular service system supplier carries out the sign and speeches to encry pt, default is common
DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current DYNAMIX IP PHONE 530 SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261. Enable Register: Enable/Disable SIP register. DYNAMIX IP PHONE 530 won’t sent register info to SIP server if disable register. Transport Protocol: config the transfer protocol, TCP or UDP.
2.4.2 Iax2 Config
Setting page of public IAX server:
IAX Server Addr: Register address of public IAX server IAX Server Port: Account Name:
Register port of public IAX server，default port is 4569 Username of your SIP account (Always the same as the phone number)
Account Password: Password of your IAX account. Local port: Phone Number:
Voic e mail number: If the IAX support voice mail, but your username of the voice mail is letters which you can not input with the ATA , then you use the number to stand for your username
Voice mail text: if IAX support voice mail, config the domain name of your mail box here. Echo test number: If the platform support echo test , and the number is test form , the config the test
number to replace the text format The echo test is to test the woring status of terminals and platform
Echo test text: echo test number in text format Refresh time: IAX refresh time Enable Register: enable or disable register IAX(Default Protocol): Set IAX 2 as the default protocol , if not the system will choose SIP as
default
Signal port of local, default port is 4569
Phone number of your IAX account
11/49
Enable G.729: Using G.729 speech coding mandatory consultations
2.5 Advance

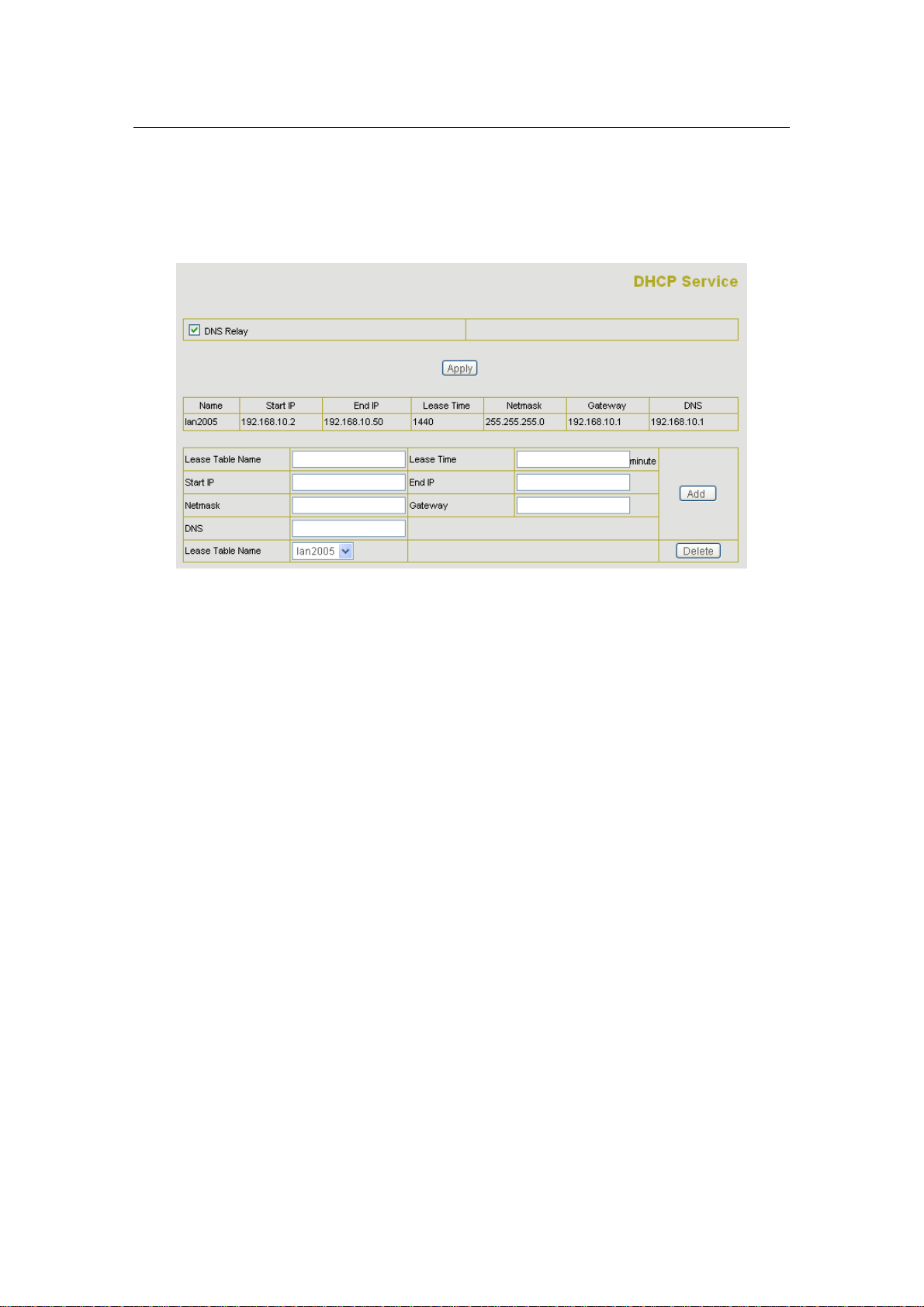

2.5.1 DHCP Server
DYNAMIX IP PHONE 530. User Manual
DHCP server manage page. User may trace and modify DHCP server information in this page. DNS Relay: enable DNS relay function. User may use below setting to add a new lease table.
Lease Table Name: Lease table name. Lease Time: DHCP server lease time. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the DYNAMIX IP PHONE 530 LAN
port can dynamic obtain the IP in the range between start IP and end IP.
Netmask: Netmask of lease table. Gateway: Default gateway of lease table DNS: default DNS server of le ase table.
Notice: This setting won’t take effect unless you save the config and reboot the device
12/49

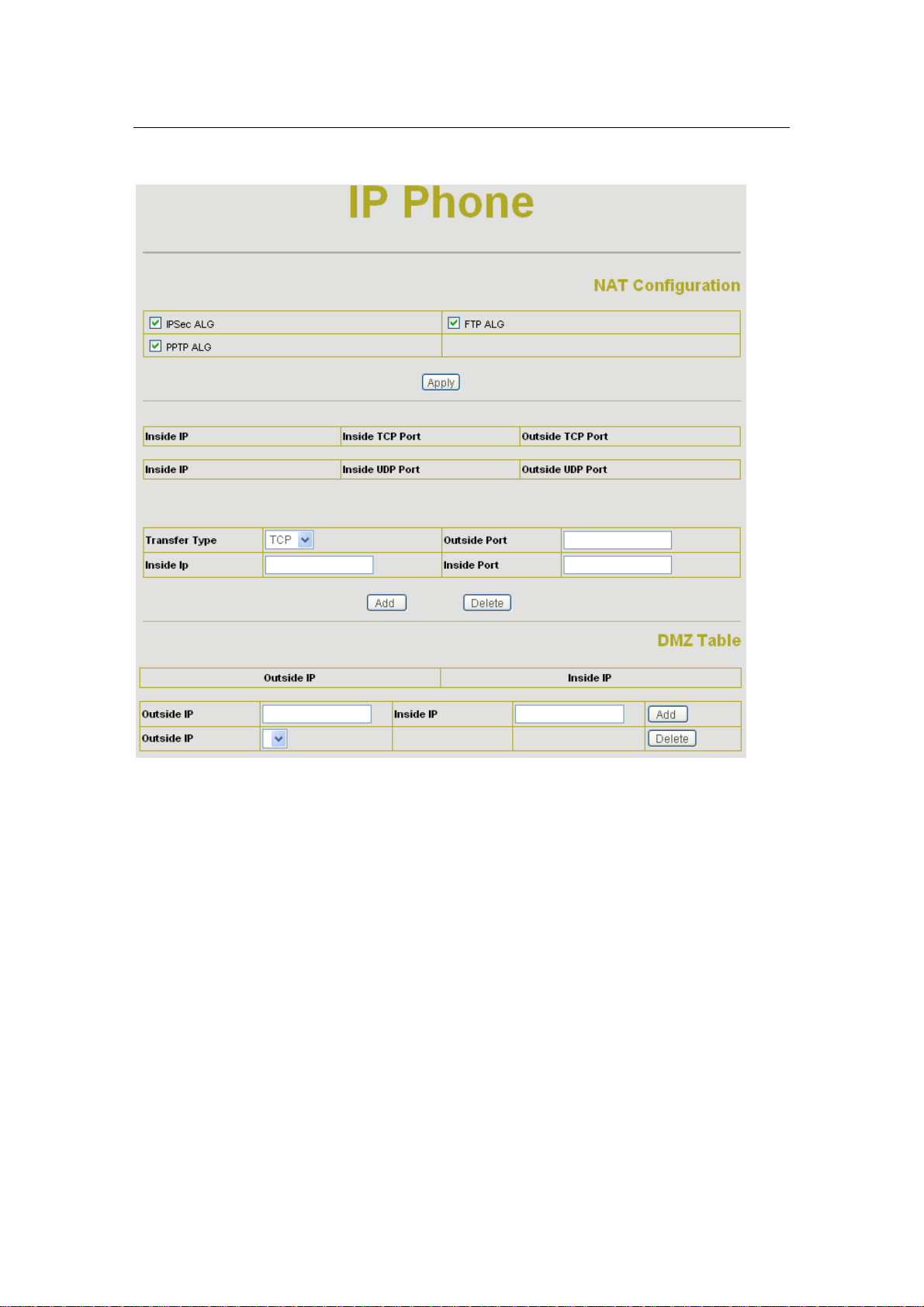

2.5.2 NAT
DYNAMIX IP PHONE 530. User Manual
Advance NAT setting. Maximum 10 items for TCP and UDP port mapping.
IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. Inside IP: LAN device IP for port mapping. Inside Port: LAN device port for port mapping. Outside Port: WAN port for port mapping.
Click Add to add new port mapping item and Delete to delete current port mapping item.
13/49
2.5.3 Net Service
DYNAMIX IP PHONE 530. User Manual
HTTP Port: configure HTTP transfer port, default is 80.User may change this port to enhance system’s security. When this port is changed, please use http://xxx.xxx.xxx.xxx:xxxx/ to reconnect.
Telnet Port: configure telnet transfer port, default is 23. RTP Initial Port: RTP initial port. RTP Port Quantity: Maximum RTP port quantity, default is 200
Notice:
Settings in this page won’t take effect unless save and reboot the device.
If you need to change telnet port or HTTP port, please use the port greater than 1024, because ports under 1024 is system remain ports.
HTTP service if HTTP is set to 0.
14/49

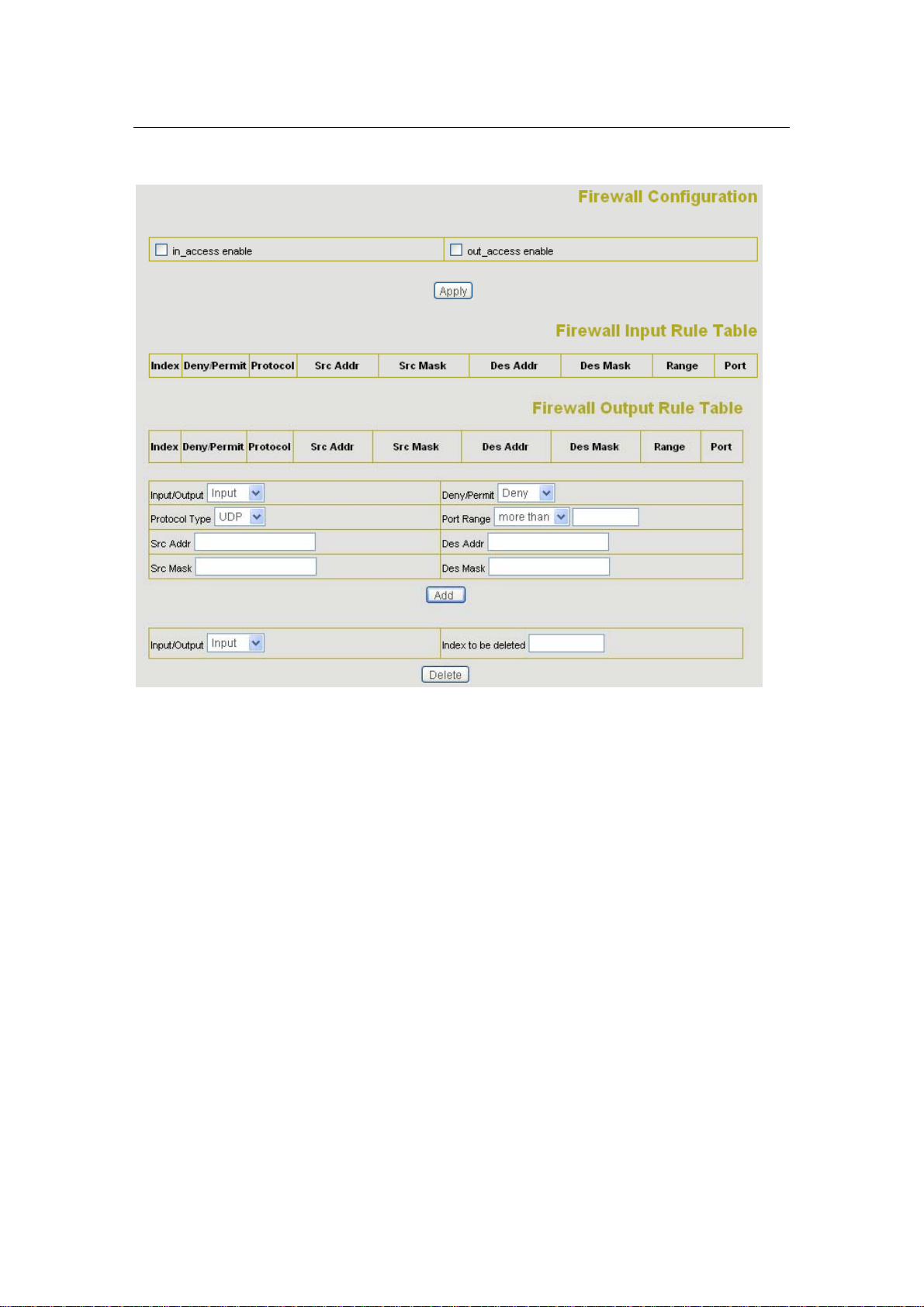

2.5.4 Firewall settings
DYNAMIX IP PHONE 530. User Manual
Firewall setting page. User may set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized private network devices to access the internet. Access list suppor t two type limits: inpu t_access limit or output _access limit. Each ty pe support 10 items maximu m . DYNAMIX IP PHONE 530 firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:
in_access enable enable in_access rule out_access enable enable out_access rule Input/Output: specify current adding rule is input rule or output rule. Deny/Permit: specify current adding rule is deny rule or permit rule. Protocol Type: protocol using in this rule: TCP/IP/ICMP/UDP. Port Range: port range if this rule Src Addr: source address. Can be single IP address or network address. Dest Addr: destination address. Can be IP addr ess or network address. Src Mask: source address mask. Indicate the source is dedicate IP if set to 255.255.255.255.
Otherwise is network ID Des Mask: Destination address mask. Indicate the source is dedicate IP if set to
255.255.255.255. Otherwise is network ID
15/49
DYNAMIX IP PHONE 530. User Manual

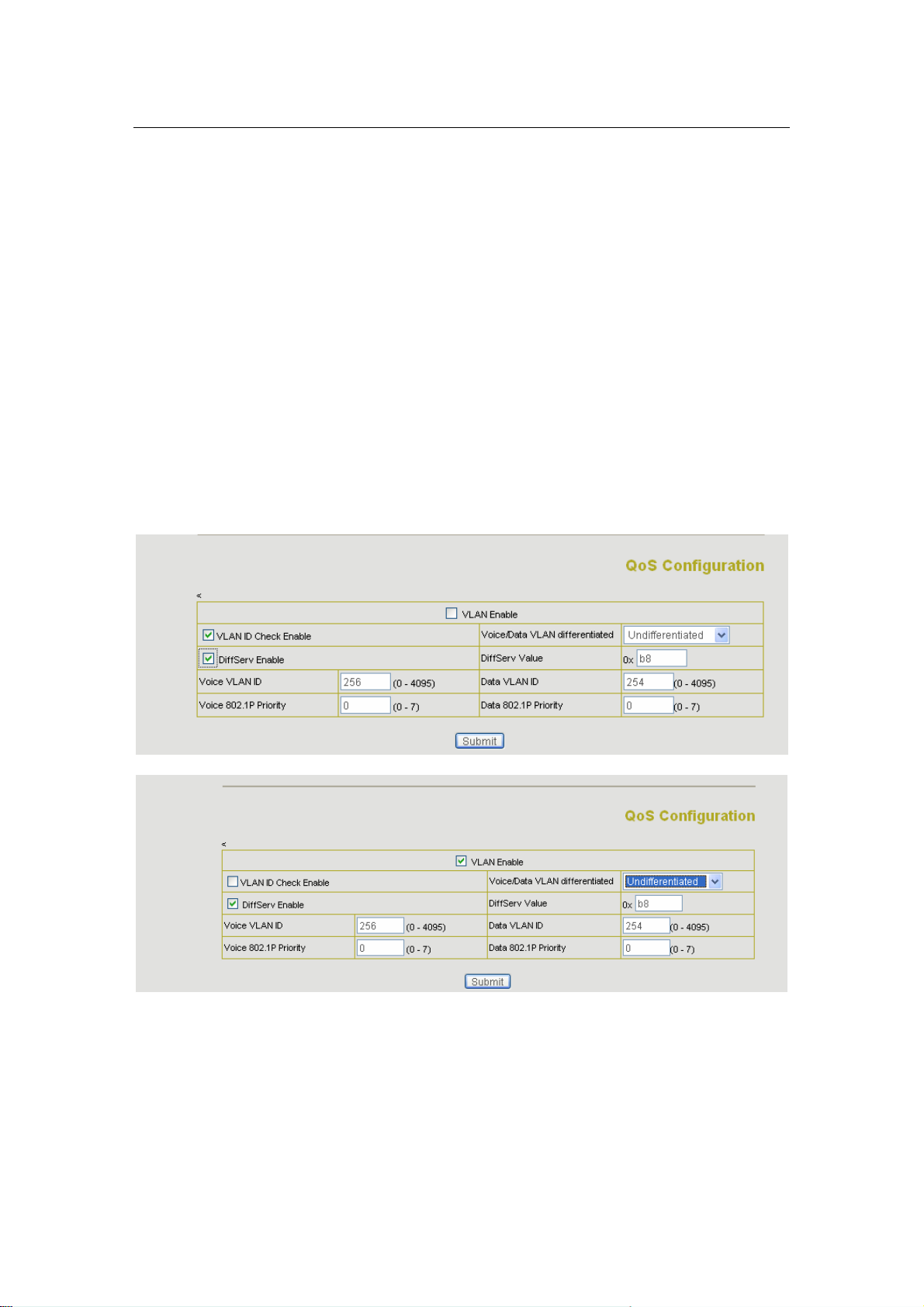

2.5.5 QoS settings
DYNAMIX IP PHONE 530 IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. DYNAMIX IP PHONE 530 will sorted the packets using the QoS and sends it to the destination.
1. Voice 802.1p Priority --- Configure the priority of the voice packets in 802.1p protocol.
2. VLAN Enable --- Disable/Enable VLAN function
3. Voice VLAN ID --- configure t he Voice/signaling VLAN ID
4. DiffServ Enable --- Disable/Enable Diffserv service
5. DiffServ Value --- Configure Diffserv parameter. The value range : value range：
0x28,0x30,0x38,0x48,0x50,0x58,0x68,0x70,0x78,0x88,0x90,0x98,0xb8.default is 0xb8 ,oxb8 stands for best fast transmission; 28-30 is guaThrantee for the transmission priority for the 1st rank , 48-58 is guarantee for the transmission priority for the 2nd rank, 68-78 is guarantee for the transmission priority for the 3rd rank, 88-98 is guaran tee for the transmission priority for the 4th rank.
6. Data VLAN ID--- Assign VLAN id for data stream.
7. Data 802.1P Priority --- Configure the priority of the data packets (non-voice/signaling data) in
802.1p protocol.
8. Data/Voice DiffServ differentiated --- undifferentiated for Date and voice VLAN is not
distinction VLAN tag, Tag differentiated for Date and Voice VLAN is distinction VLAN tag,
Date untagged for Date VLAN is distinction VLAN tag Please refer to
VLAN implement for detail
16/49
2.5.6 Advance SIP settings
DYNAMIX IP PHONE 530. User Manual
This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting:
STUN Server Addr: configure stun server addres s; STUN Server Port: configure stun server port default 3478 STUN Effect Time: stun detect NAT type circle, unit: minute. Enable SIP STUN: enable/disable stun. Enable PRACK: Whether to make gateway or IP phone support Prack function in SIP , we suggest
you keeping default setting Enable Keep Authentication: registering signal together with the authentication information. If enable it, the server will confirm the registering and send back the confirmation massage directly instead of requesting the terminals to send authentication information if needed. Auto Detect Server: Whether to enable the function of auto detecting the server. With this function your ATA and IP phone will send informat ion to auto detect the serve r at every period of time. If find the server is not available it will try to register the ser v er again.
Enable Session Timer：Whether to enable te RF C4028 Signal Encode: Wherther to enable the signal encrypt
Rtp Encode: Whether to enable the voice encrypt Enable Private Register: Whether to enable the second SIP Server to register
Please refer to SIP_Config
for the setting for how to set the public alter server. User can register two sip servers: public sip server and private sip server.these two sip servers are independent from each other and running in the same time.
For how to configure private sip server. Please refer to SIP_Config
Enable URI Convert: transfer the # into %23 when sending URI Enable Strict Proxy: compatible with special server ( when the message is returned , they use
17/49
DYNAMIX IP PHONE 530. User Manual
original address but not the address in via field Enable Quote Name: To work with the server , config here to use quotation mark to include the displayname Enable Subscibe: subscribe the message such as other side's status or the voice mail after successful registration

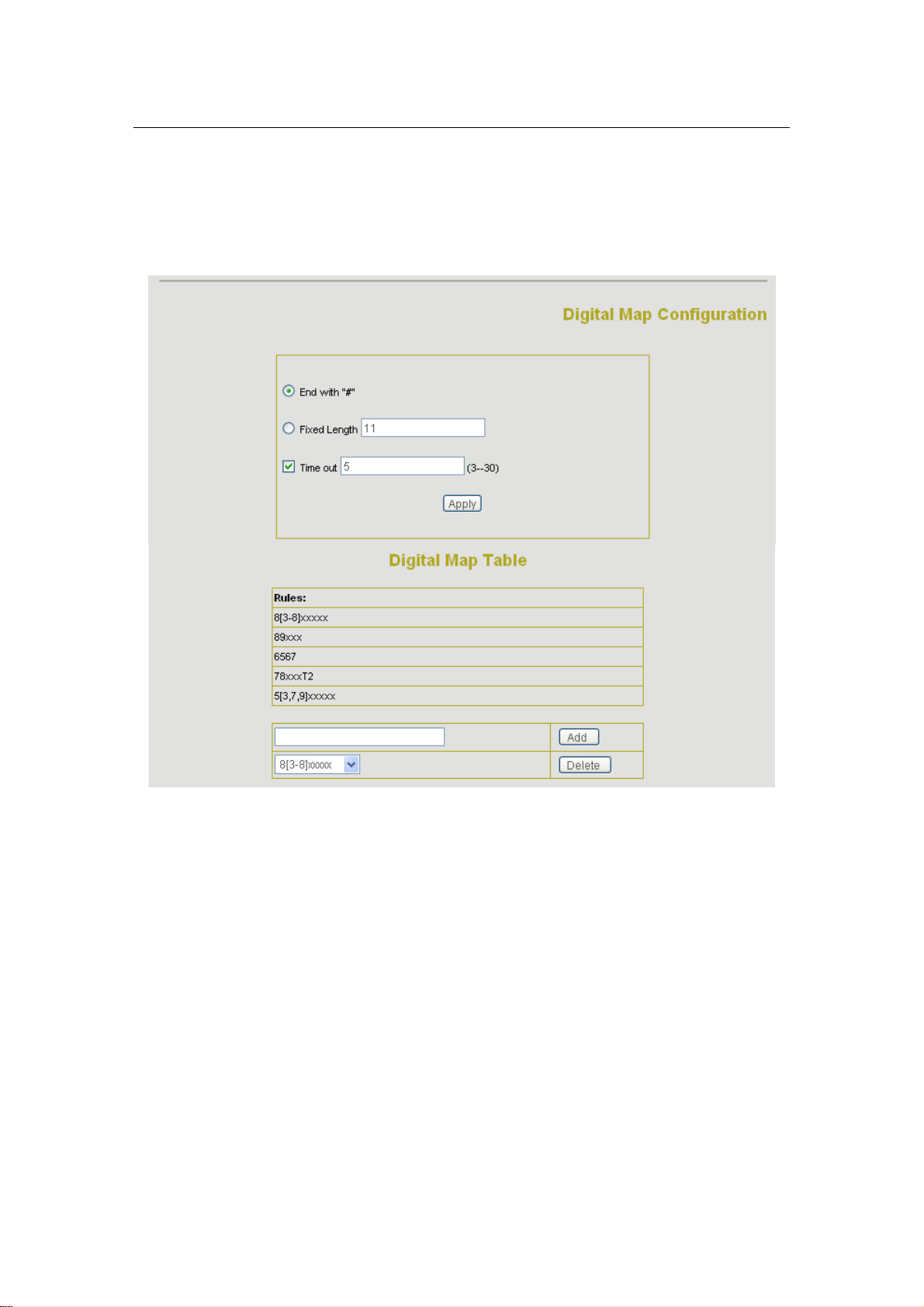

2.5.7 Digital Map
Digit map is a set of rules to determine when the user has finished dialing. DYNAMIX IP PHONE 530 support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server. DYNAMIX IP PHONE 530 sup por t following digital map:
----End With “#”: Use # as the end of dialing.
----Fixed Length: When the length of the dialing mat ch, t he call will be sent.
----Timeout: Specify the timeout of the last dial digit. The call will be sent after timeout
----Prefix: User define digital map:
[ ] represe nts the range of dig it, can be a range such as [1-4], or use comma such as [1, 3,5], or
use a list such as [234]
x r e presents any one digit b etween 0~9
Tn repr esents the last digit timeout. n represents the time from 0~9 second, it is necessary. Tn must be the last two digit in the entry. If Tn is not included in the entry, we use T0 as default, it means system will sent the number immediately if the number matches the entr y.
Example:
[1-8]xxx All number from 1000 to 89999 will be sent immediately. 9xxxxxxx 8 digits numbers begin with 9 will be sent immediately. 911 Number 911 will be sent will be immediately 99xT4 3 digits numbers begin with 99 with be sent after four seconds.
18/49
DYNAMIX IP PHONE 530. User Manual
19/49

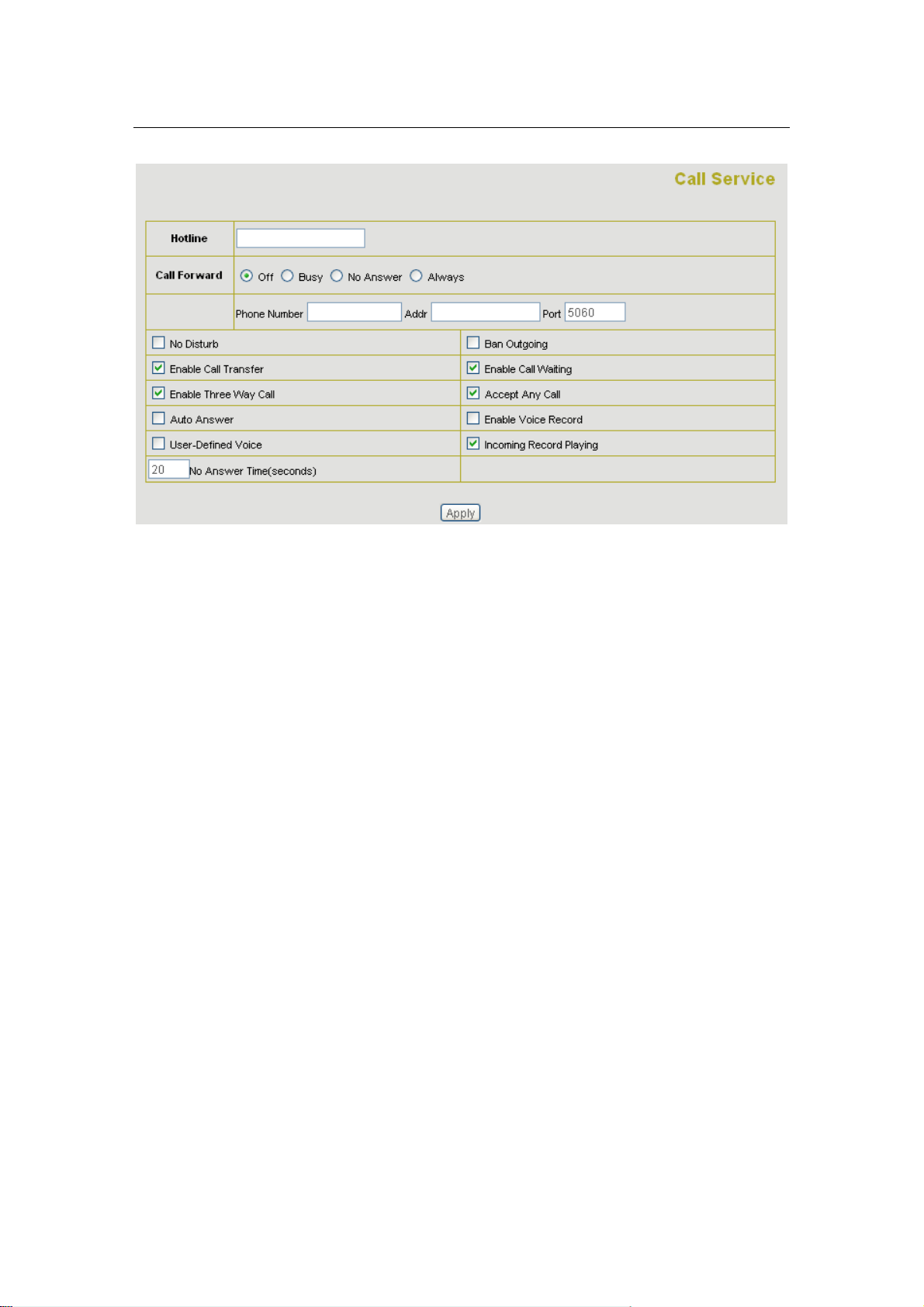

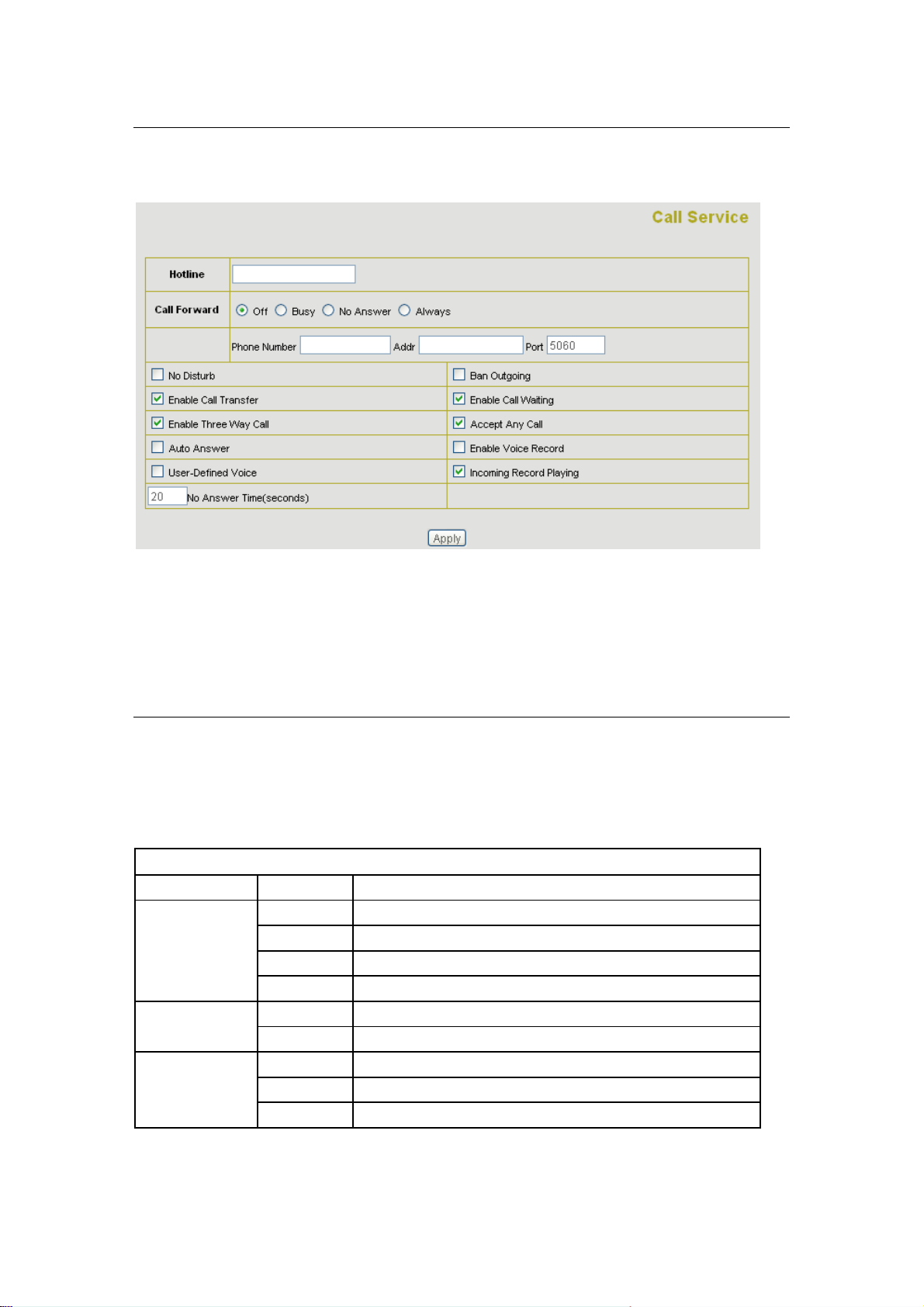

2.5.8 Call Service Settings
DYNAMIX IP PHONE 530. User Manual
User configure the value add service such as hotline, call forward, call transfer, 3-way conference call .etc in this page Hotline: configure hotline number. DYNAMIX IP PHONE 530 immediately dials this number after hook-off if it is set. Call Forward: Please refer to Value_add_service
for detail.
No Disturb: DND, do not disturb, enable this option to refuse any calls. Ban Outgoing: Enable this to ban outgoing calls. Enable Call Transfer: Please refer to Value_add_service
for detail.
Enable Three Way Call: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Accept Any Call: If this option is disable, DYNAMIX IP PHONE 530 refuse the incoming call
when the called number is different fro m DYNAMIX IP PHONE 530’s phone number.
No Answer Time: no answer call forward time setting. Auto Answer: Enable/disable auto answer function. Enable Voice Record: Enable/disable answering machine function. P lease refer to Record Function
for detail.
User-defined V oice: Use customized greeting message. Incoming Record Playing: simultaneously play the message when recording. P2P IP Prefix: Config the point to point calling. For example , if you want to call IP 192.168.1.119
Just defin 192.168.1. here and you can dial #119 to make the point to point call with the IP phone of
192.168.1.119 Use Record Server: Config the supporting of server recording , transfer all the recording to server.
20/49
DYNAMIX IP PHONE 530. User Manual
Remote Record No: Config the recording number , if you upload your recording to this account , you can login this account to get your voice recording
Black List: incoming call in these phone numbers will be refused. Limit List: outgoing calls with these phone numbers will be refused
21/49
2.5.9 MMI Filter
DYNAMIX IP PHONE 530. User Manual
MMI filter is used to make access limit to DYNAMIX I P PHONE 530 IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access DYNAMI X IP PHONE 530 IP phone.
2.5.10 Audio Settings
CODEC: select the prefer CODEC; support ulaw, alaw,G729 and G7231 5.3/6.3 Signal Standard: Signal stand ar d for different area. Input Volume: Handset in volume. Output Volume: Handset out volume. Handfree Volume: Hand free volume Handdown Time: hand down detect time. G729 Payload Length: G729 payload length VAD: Enable/disable Voice Activity Detection, but G.711 not supports VAD Handdown Time: The minimum response time of the flash hook , default is 200ms. if you press the
hook for a shorter time than this setting, there will be no effect for your pressing Disable Handfree: Disable the handsfree function , mainly used in call center where the telephonis t use the RJ-9 headset and press the handsfree to hang up and pick up th e phone
22/49
2.5.11 VPN
DYNAMIX IP PHONE 530. User Manual
this page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The paramete rs is as below
VPN IP： After VP N registered successfully, VPN server will give an IP aggress to the terminal . If there is a IP address shown on terminal (except for 0.0.0.0) ,it means your VPN has registered
UDP T unnel
VPN Server Addr： register to the address of VPN server 。 VPN Server Port： Register to the port of VPN server Server Group ID： the group ID of UDP VPN Server Area Code： the are cod e of VPN server
L2TP
VPN Server Addr： register to the address of VPN server VPN User Name： L2TP VPN username VPN Password： L2TP VPN password
UDPTunnel: use the UDP to visit VPN L2TP: use the L2TP to visit VPN Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in advance
23/49
2.5.12 Memory Key
DYNAMIX IP PHONE 530. User Manual
the configuration of 9 speed call buttons
2.6 Dial-Peer
Please refer to How to use dial rule
for detail.
24/49
DYNAMIX IP PHONE 530. User Manual
2.7 Config Manage
Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse-Æ save target as….-Æwill
pop a save window, then type the config file name in the File name(the file type is text file) Notice: clear config in admin mode, all settings restores to factory default; clear config in guest modem, all settings except sip, advance sip restore to factory default.
2.8 Update
2.8.1 Web Update:
Update IP phone’s settings or firmware. Firmware file is .z extension when configure file is .cfg extension, DYNAMIX IP PHONE 530 will auto select configure update or firmware update according the extension.
2.8.2 TFTP/FTP Update:
upload/download the configure file with FTP or TFTP server. or download firmware from FTP or TFTP server
Back up configure file to your FTP/TFTP server.
configure use .cfg extension. The Type includes two parts of config file export and config file import Config file export:export the config file Config file import:import the config file

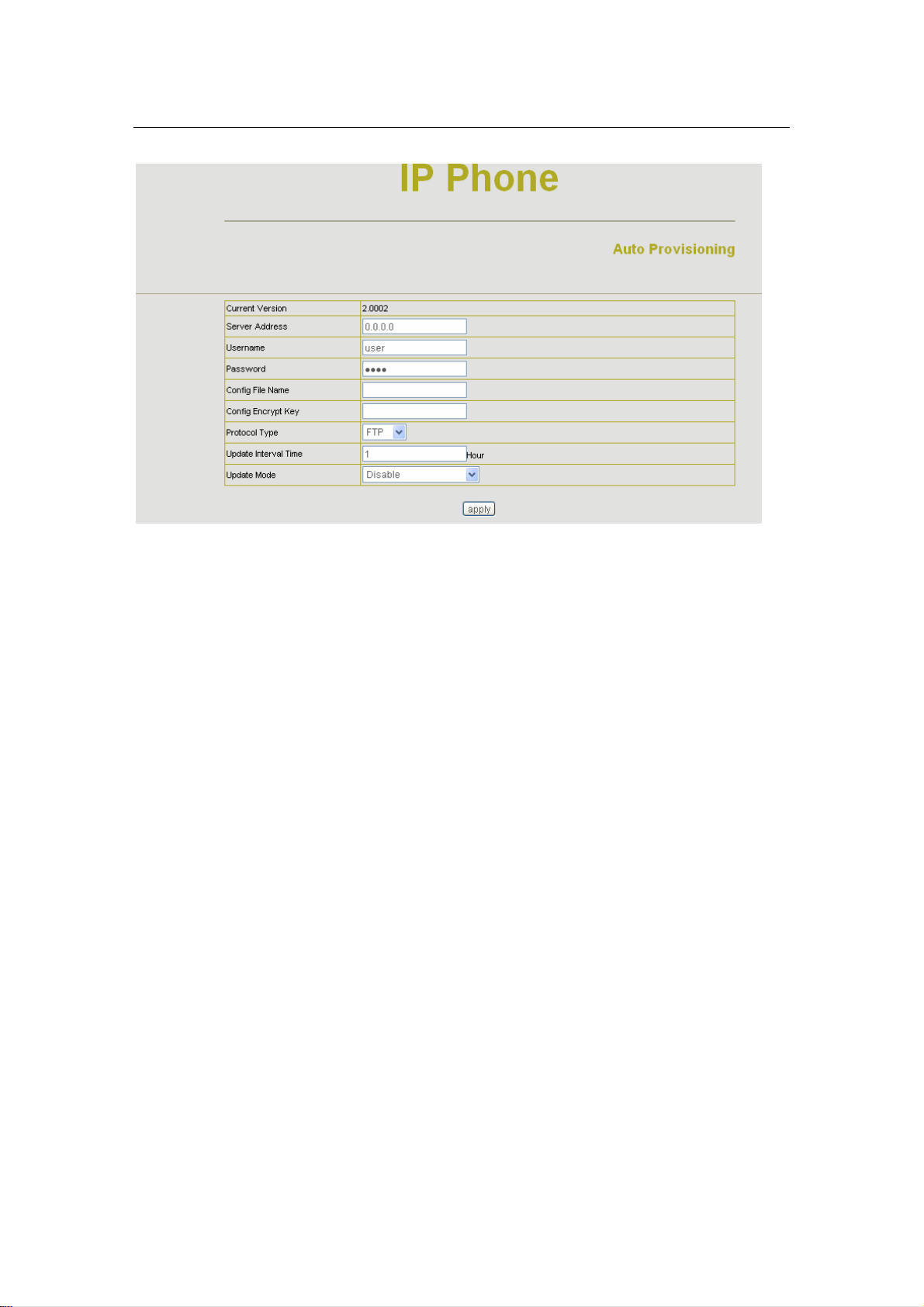

2.8.3 Auto Provisioning:
DYNAMIX IP PHONE 530 IP phone support FTP and TFTP auto update. The gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe abov e. Configure file using module structure, user may remain the concerned modules and remove other modules. Put the configure file in the root directory of update serve when finish editing.
25/49
DYNAMIX IP PHONE 530. User Manual
Current V ersion: the system will display the current version number 。 Server Address: FTP/TFTP server address
Username: FTP server user name Password: FTP server password Config File Name: The name of configur ation file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.
Update Mode: auto provision mode; Disable: not auto update，Update after reboot:auto update after
reboot，Update at time interval:auto update after a certain time Configure file version was in the <<VOIP CONFIG FILE>> and <GLOBLE CONFIG MODULE>
ConfFile Version For instance: Gateway original version is: <<VOIP CONFIG FILE>>Version:1.0000
<GLOBLE CONFIG MODULE> ConfFile Version：6 User may edit the configure file v ersion to:
<<VOIP CONFIG FILE>>Version:1.0007 <GLOBLE CONFIG MODULE> ConfFile Version：7
26/49
2.9 System Manage
2.9.1 Account Manage
DYNAMIX IP PHONE 530. User Manual
Set web access account or keypad password of DYNAMIX IP PHONE 530.
2.9.2 Phone Book:
User may set contacts in this page, and the contacts will be saved in the memory. Then using the Pbook, Vol+,Vol-,Menu/OK and Exit key s to choose your friend in the contacts and then press # to call out.
2.9.3 Syslog Config:
Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level
Please click “apply” after setting
27/49
2.9.4 Time Set:
DYNAMIX IP PHONE 530. User Manual
Server:type the ip addres s of time server Timezone:select correct time zone in list box Timeout: longest response time for SNTP Manual Timeset:The time setting Daylight:Daylight saving time
2.9.5 Reboot:
Reboot IP phone, some setting needs to reboot to make it works. Please always save config before reboot, otherwise the setting will return to previous setting.
28/49
DYNAMIX IP PHONE 530. User Manual
3 Use keypad configure DYNAMIX IP PHONE 530
3.1 Keypad function
User can configure DYNAMIX IP PHONE 530 through its keypad. List below is the keypad function
Keypad Mode Function/Display
Idle mode ---- show current time Sysinfo Idle mode circularly show phone number,wan ip, gateway info
Idle mode enter config mode, default password 123 Menu/OK config mode confirm or enter sub-menu
Exit config mode exit
Calling mode volume up (Max:9) Up config mode Page up
Calling mode volume down (Min:1) Down config mode Page down
Calling mode Delete digits Del config mode Delete digits
Mute Calling mode Mute
Out call Idle mode Outgoing call menu
In call Idle mode Incoming call menu
Record Idle mode Enter record menu, usage refer FAQ
Pbook Idle mode Enter Phone book set up
Handfree Calling mode Handfree
0－9
# Calling mode Use as end key of dialing or the dial number Hold Calling mode Hold, detail refer value add service FWD Calling mode Transfer, detail refer value add service Redial Calling mode Redial key Send Calling mode call key No.1~No.9 Idle mode Speed dial key
Calling mode Digits 0~9 config mode Hit quickly to switch between numeric or alphabetic
Calling mode Use in 3-way conference call. * config mode Use as “.” In the ip address setting
29/49
DYNAMIX IP PHONE 530. User Manual
3.2 Keypad Menu
User may use SET, Menu/ok, Exit, Vol+, Vol- to config DYNAMIX IP PHONE 530 detail setting. Press Menu/ok to enter config mode, and the default password is 123.
Below list the keypad menu of DYNAMIX IP PHONE 530
DYNAMIX IP PHONE 530 Keypad Menu
Level 1 Level 2 Level 3 Level 4 Network
LAN
WAN
Bridge Mode IP
Netmask DHCP Server NAT
Status Static Net
PPPoE
Switch FTPalg IPSec alg PPTPalg
1. IP
2. NetMask
3. Gateway
4. DNS
5. DNS2 User name Password
Call Feature
VLAN
Phone-number
Limit-List
Black-List
FastCall Three Call
QoS Enable
Date Vlan ID Voice Vlan ID
Public SIP Private SIP Current ADD DEL Current ADD DEL
30/49
Call-Transfer Call-Waiting
Call-Forward
DYNAMIX IP PHONE 530. User Manual
Condition
Dial-Rule
SIP
Reg Status
Detect-server Dtmf-mode
Interval-time Swap-server RFC-version Signal-Port
Stun
DSP
Codec Handdown-time Dtmf-Volume Input-volume Output-Volume
Other Setting Syslog
4. System
1. Save
2. Reboot
3. Set Default
SIP
End With # Fixed Length
Public Reg Private Reg
Switch Addr Port
Expire Time
Switch Server-IP Server-Port
Transfer Num Transfer IP Port
Switch Length
31/49
DYNAMIX IP PHONE 530. User Manual
4 Telnet Console
4.1 Introduce
4.1.1 Basic structure
User may use telnet command to access and ma nage IP phone.
DYNAMIX IP PHONE 530 adopts tree structure for telnet. Every node contains its sub-nodes or local command. User can type “help” or “?” whenever to see sub-nodes and all local command under current node. Besides local command, there are some global commands can be used in each node.
4.1.2 Basic command
Logout: exit telnet mode.
Write: save current settings.
Type sub-nodes name in current node to switch to sub-node. Type “!” or “exit” in current node to r eturn to parent-node.
Type “help” or “?” can see al l sub-nodes and all lo cal command under current no de, every help item has comments such as <command> or <node> to distinguish sub-nodes and local command. Type “help” or “?” in command can see a ll parameters using in this command.
When typing node name or command, user no need to key the full name, use TAB button will mak e it more efficient.
There are two types in command para meters: optional and required. “required” parameter use “-” as prefix and “optional” use “_” as prefix. User may type “-” or “_” then press TAB button for complementarily.
32/49
DYNAMIX IP PHONE 530. User Manual
4.2 Global Command
Global command is available under all nodes, DYNAMIX IP PHONE 530 support following commands:
Command Function Example chinese Set to Chinese UI #chinese clear Clear telnet screen #clear english Set to English UI #english exit Return to parent-node #exit help Show help info
Show sub-nodes and local command
history Show command history #history logout Exit #logout ping Ping command, use to chec k n e twork, #ping www.google.com tree Print tree structure of current command #tree who Show current user #who write Save setting to flash #write
1．#help ping 2．#help
33/49
DYNAMIX IP PHONE 530. User Manual
5 Tree Structure
5.1.1 account
path: <account># [stop]start Syslog ---syslog [no] start Configure Syslog server address and port ---syslog server –ip x.x.x.x _port xxx Example: #<config-account-syslog>#server –ip 202.112.20.10 Show syslog settings ---syslog show Show all account settings ---show
5.1.2 config
¾ accesslist firewall config
path: <config-accesslist># add firewall rule ---entry –I/O xxx –P/D xxx –proto xxx –srcaddr x.x.x.x –srcmask x.x.x.x–desaddr x.x.x.x –desmask x.x.x.x –portrange xxx –portnum xxx Example:<config-accesslist>#entry –I/O input –P/D deny –proto udp –straddr 202.112.10.1 –srcmask
255.255.255.0 –desaddr 210.25.132.1 –desmask 255.255.255.0 –portrange neq –portnum 5060 delete firewall rule ---no entry –I/O xxx –index xxx Example :<config-accesslist>#no entry –I/O input –index 1 Show firewall settings ---show [disable] enable input filter ---[no]in-access [disable] enable output filter ---[no]out-access
¾ DHCP
path:<config-dhcp># add DHCP rule ---entry –name xxx –startip x.x.x.x –endip x.x.x.x –netmask x.x.x.x –gateway x.x.x.x –dnsserver x.x.x.x _time xxx Example:<config-dhcp>#entry –name lan2004 –startip 192.168.1.2 –endip 192.168.1.254 –netmask
255.255.255.0 –gateway 192.168.1.1 –dnsserver 192.168.10.18 delete DHCP rule ---no entry –name xxx Example: <config-dhcp>#no entry –name lan2004 Show DHCP settings ---show [disable]enable DNS-relay ---[no]dns-relay
¾ dialrule
path:<config-dialrule># [disable] enable End with # ---[no]endchar Set end with fix length ---fixlen xxx Disable end with fix length ---no fixlen Set timeout to send ---timeout-send xxx Disable timeout to send ---no timeout-send Add digital map ---entry –prefix xxx –length xxx Example: <config-dialrule>#entry –prefix 010 –length 11 Delete digital map rule ---no entry –prefix xxx Example: <config-dialrule>#no entry –prefix 010 Show current digital map ---show
¾ LAN interface settings
path:<config-interface-fastethernet-lan># [disable]enable bridge mode ---[no]bridgemode [disable]enable DHCP service ---[no]dhcp-server [disable]enable NAT ---[no]nat Show current DHCP rules ---dhcpshow
34/49
DYNAMIX IP PHONE 530. User Manual
Show LAN port IP address ---ipshow Show NAT info ---natshow Change LAN port IP address ---ip –addr x.x.x.x –mask x.x.x.x Example:<config-interface-fastethernet-lan>#ip –addr 192.168.1.10 –mask 255.255.255.0
¾ WAN interface settings
path:<config-interface-fastethernet-wan># [disable]enable dhcp client ---[no]dhcp [disable]enable pppoe ---[no]pppoe [disable]enable QOS ---[no]qos Set default gateway IP ---gateway x.x.x.x Clear default gateway IP ---no gateway Set WAN port IP address ---ip –address x.x.x.x -mask x.x.x.x Example:<config-interface-fastethernet-wan>#ip –addr 202.112.241.100 –mask 255.255.255.0 You need to reconnect if the WAN port has been changed. Show WAN port settings ---show
¾ MMI Filter
path:<config-mmifilter># add filter rule ---entry –start x.x.x.x –end x.x.x.x Example:<config-mmifilter>#entry –start 202.112.20.1 –end 202.112.20.255 Delete filter rule ---no entry –start x.x.x.x Example:<config-mmifilter>#no entry –start 202.112.20.1 Show filter rule ---show [disable]enable MMI filter ---[no]start-filter
¾ NAT settings
path:<config-nat># [disable]enable ftp alg ---[no]ftpalg [disable]enable ipsec alg ---[no]ipsecalg [disable]enable pptp alg ---[no]pptpalg Add TCP mapping rule ---tcp-entry –ip x.x.x.x –lanport xxx –wanport xxx Example:<config-nat>#tcp-entry –ip 192.168.1.5 –lanport 1720 –wanport 1000 Delete TCP mapping rule ---no entry –ip x.x.x.x –lanport xxx –wanport xxx Example:<config-nat>#no tcp-entry –ip 192.168.1.5 –lanport 5060 –wanport 1000 Add UDP mapping rule ---udp-entry –ip x.x.x.x –lanport xxx –wanport xxx Delete UDP mapping rule ---no udp-entry –ip x.x.x.x –lanport xxx –wanport xxx Show NAT info ---show
¾ Netservice
path:<config-netservice># Set DNS address ---dns -ip x.x.x.x _domain xxx Example:<config-netservice>#dns –ip 202.112.10.36 _domain voip.com Set alternate DNS address ---alterdns -ip x.x.x.x _domain xxx Set hostname ---hostname xxx Set http access port ---http-port xxx Show http access setting ---http-port Set telnet access port ---telnet-port xxx Show telnet access port ---telnet-port Set RTP initial port and quantity ---media-port –startport xxx –number xxxx Example:<config-netservice>#media-port –startport 10000 –number 200 Add route rule ---route –gateway x.x.x.x –addr x.x.x.x –mask x.x.x.x Example:Arcihfone<config-netservice>#route –gateway 202.112.10.1 –addr 202.112.210.1 –mask
255.255.255.0 Delete route rule ---no route –gateway x.x.x.x –addr x.x.x.x –mask x.x.x.x Show route info ---route Show netservice info ---show
35/49
DYNAMIX IP PHONE 530. User Manual
¾ Dial-peer settings path:<config-pbook># [disable]enable calling through GK and proxy ---[no]enableGKandProxy Add number-IP bond entry ---entry –number xxx –ip x.x.x.x –protocol xxx Example:<config-pbook>#entry –number 100 –ip 202.112.20.100 –protocol sip Add number-IP bond and add prefix to the dial number
---entry –number xxx –ip x.x.x.x –protocol xxx _add xxx Example:<config-pbook>#entry –number 100 –ip 202.112.20.100 –protocol sip _add 123(dial 100 and will send 123100 according this rule) Add number-IP bond and replace the destination with another number
---entry –number xxx –ip x.x.x.x –protocol xxx _all xxx Example:<config-pbook>#entry –number 100 –ip 202.112.20.100 –protocol sip _all 123( user dial 100 and gateway will sent 100 ins t ead) Add number-IP bond and delete the prefix of the destination number
---entry –number xxx –ip x.x.x.x –protocol xxx _del xxx Example:<config-pbook>#entry –number 1234 –ip 202.112.20.100 –protocol sip _del 2 (dial 1234 will send 34 instead) Add number-IP bond and replace the prefix with another number
---entry –number xxx –ip x.x.x.x –protocol xxx _rep xxx _length xxx Example:<config-pbook>#entry –number 1234 –ip 202.112.20.100 –protocol sip _rep 567 _length 2(dial 1234 will send 56734) Delete dial-peer entry ---no entry –number xxx Show current dial-peer rules ---show Set default voip protocol ---default-protocol xxx
¾ Port settings
path:<config-port># 或<config-port X># set accecp relay mode ---accept-relay xxx
set callerid mode ---callerid xxx disable callerid ---no callerid config call forward ---callforward –conditon xxx –number xxx –ip xxx –port xxx –protocol xxx Example:<config-port 0>#callforward –condition busy –number 100 –ip 202.112.10.100 -port 5060 –protocol sip Disable call forward ---no callforward [disable]enable call transfer ---[no]calltransfer [disable]enable call waiting ---[no]callwaiting Set prefer codec ---codec xxx Set DTMF gain ---dtmfvolume xxx Set black list ---in-limit xxx Show black list ---in-limit Set input volume ---input xxx Set outgoing limit list ---out-limit xxx Show outgoing limit list ---out-limit Set output volume ---output xxx [disable]enable outgoing limit ---[no]shutdown out [disable]enable black list ---[no]shutdown in [disable]enable outgoing limit and black list ---[no]shutdown [disable]enable 3-way conference ---[no]threetalk Show port settings ---show
¾ PPPoE settings
path:<config-pppoe># PPPoE account settings ---auth –user xxx -password xxx
36/49
DYNAMIX IP PHONE 530. User Manual
Example:<config-pppo e>#auth –user aaa –p assword 123456 [disable]enable service settings ---[no]service xxx Show pppoe settings ---show
¾ QOS settings
path:<config-qos># [delete]add QoS table entry --- [no]entry –addr x.x.x.x –mask x.x.x.x Example:<config-qos>#entry –addr 202.112.10.1 –mask 255.255.255.0 [disable]enable include QOS table ---[no]include Show QoS settings ---show
¾
path:<config-sip># [disable]enable registration ---[no] register [disable]enable auto detect server ---[no] detect-server Set sip domain ---default-domain xxx Set DTMF mode ---dtmf-mode xxx Set auto detect interval time ---interval-time xxx Set RFC edition ---rfc-version xxx [disable]enable auto swap server --- [no]swap-server Set sip account ---number-password –number xxx –password xxx Set local SIP signal port --- signalport xxx Set proxy server ---server proxy -ip x.x.x.x _port xxx _user xxx _password xxx Example:<config-sip-server># proxy ip 210.25.23.22 _port 5060 _user aaa _password 123456 Set register server info ---server register -ip x.x.x.x _port xxx –user xxx _password xxx Set alter proxy info ---alter-server proxy –ip x.x.x.x _port xxx _user xxx _password xxx Set alter server info ---alter-server register –ip x.x.x.x _port xxx _user xxx _password xxx [disable]enable stun server ---stun [no]enable Set stun detecting interval time ---stun interval-time xxx Set stun server ip and port ---stun –ip x.x.x.x –port xxx Show current sip info ---show
SIP settings
¾ User management
path:<config-user># Change user right. ---access –user xxx –access xxx Example:<config-user>#access –user aa a –access 7 Change user password ---password –user xxx Add new user ---entry –user xxx –access xxx Example:<config-user>#entry –user abc –access 7 Delete user entry ---no entry –user xxx Show current sip info ---show
37/49
DYNAMIX IP PHONE 530. User Manual
5.1.3 Debug (Level 0~7)
path:<debug># show debug setting ---show [disable]enable debug all modules ---[no] all xxx [disable]enable debug app module ---[no] app xxx [disable]enable debug cdr module ---[no] cdr xxx [disable]enable debug sip module ---[no] sip xxx [disable]enable debug tel module ---[no] tel xxx [disable]enable debug dsp module ---[no] dsp xxx
5.1.4 download configure to flash
usage: #download tftp –ip x.x.x.x –file xxx #download ftp –user xxx –password xxx –ip x.x.x.x –file xxx Example: #download ftp –user abc –password 123 –i p 202.112.20.15 –file DYNAMIX IP PHONE
530.cfg
5.1.5 password
usage: #password Enter new password:xxx
Confirm new password :xxx
5.1.6 reload
usage: #reload Reboot system
5.1.7 show system running info
¾ accesslist path:<show># show: accesslist (firewall) settings Example: #<show>#accesslist ¾ basic path:<show># show network status Example: #<show>#basic ¾ call path:<show># show current call info Example: #<show>#call active ¾ capability path:<show># show CODEC capabili ty Example: #<show>#capability ¾ debugging path:<show># show debug info Example:#<show>#debugging ¾ dhcp-server path:<show># show LAN status and DHCP server info Example:#<show># dhcp-server ¾ dial-rule path:<show># show digital-map info Example:#<show># dial-rule ¾ interface path:<show>#
38/49
show LAN info Example:#<show>#interface fastethernet lan show WAN info Example:#<show>#interface fastethernet wan ¾ ip path:<show># show arp table info Example:#<show>#ip arp Show DNS server info Example:#<show>#ip dns Show netstate info Example:#<show>#ip netstat Show route info Example:#<show>#ip rout e Show icmp packets Stat. Example:#<show>#ip icmp Show igmp packets Stat. Example:#<show>#ip igmp Show ip packets Stat. Example:#<show>#ip ip Show RTP packets Stat. Example:#<show>#ip rtp Show TCP packets Stat. Example:#<show>#ip tcp Show UDP packets Stat. Example:#<show>#ip ud p ¾ memory path:<show># show IP phone memory Example:#<show>#memory ¾ nat path:<show># show NAT information Example:#<show>#nat ¾ port path:<show># show caller-ID info Example:#<show>#port callerID show dsp info Example:#<show>#port dsp show hotline info Example:#<show>#port hotline show black list info Example:#<show>#port in-limit show outgoing limit info Example:#<show>#port out-limit show current phone number Example:#<show>#port number show current port status Example:#<show>#port status ¾ PPPoE path:<show># show PPPoE info
DYNAMIX IP PHONE 530. User Manual
39/49
DYNAMIX IP PHONE 530. User Manual
Example:#<show># pppoe ¾ qos path:<show># show QoS table info Example:#<show>#qos ¾ sip path:<show># show sip info Example:#<show>#sip ¾ udptunnel path:<show># show UDP tunnel info Example:#<show># udptunnel ¾ uptime path:<show># show running t ime Example:#<show># uptime ¾ version path:<show># show IP phone version Example:#<show># version
5.1.8 telnet and logout
Usage: #telnet –target -port Login:xxx Password:xxx # #logout
5.1.9 timesettings
path:<time>#
---manualset –year xxx –month xxx –day xxx –hour xxx –minute xxx –second xxx Example:<time>#manulset –year 2004 –month 10 –day 1 –hour 8 –minitute 30 –second 0 [disable]enable SNTP server ---sntp [no] start Set SNTP IP address ---sntp server x.x.x.x Set SNTP server timeout ---sntp timeout xxx Set timezone (-12~+12)
---sntp zone xxx Show SNTP info ---sntp show Show current time ---print
5.1.10 tracert trace network path info
usage: #tracert –host Example:#tracert  HYPERLINK "http://www.google.com" www.google.com
5.1.11 update IP phone
usage: # update ftp –user xxx –password xxx –ip x.x.x.x –file xxx # update tftp –ip x.x.x.x –file xxx Example:# update ftp –user abc –password 123 –ip 202.112.20.15 –file DYNAMIX IP PHONE
530.dlf
5.1.12 upload configure file
usage: # upload ftp –user xxx –password xxx –ip x.x.x.x –file xxx
# upload tftp –ip x.x.x.x –file xxx
6 Network Diagnosis
There are some telnet commands for check ing your network. Now Listing below for your information
40/49
DYNAMIX IP PHONE 530. User Manual
Command Function Example ping Check if the destination is accessible #ping www.goog le.com tracert Show network path info #tracert www.google.com show basic Show network settings #show basic show ip route Show route table #show ip route show ip arp Show arp table #show ip arp show ip netstat Netstat programe #show ip netstat telnet Telnet to another device #telnet 192.168.1.2
7 Restore to factory default
#setdefault clear IP phone se ttings expect network part #setdefault all clear all settings.
41/49
8 POST Mode(safe mode)
DYNAMIX IP PHONE 530. User Manual
DYNAMIX IP PHONE 530 provide safe mode. When there is booting problem because of setting problem or firmware problem. User can restore the factory setting or upgrade t o a new firmware to solve this problem.
How to enter safe mode?

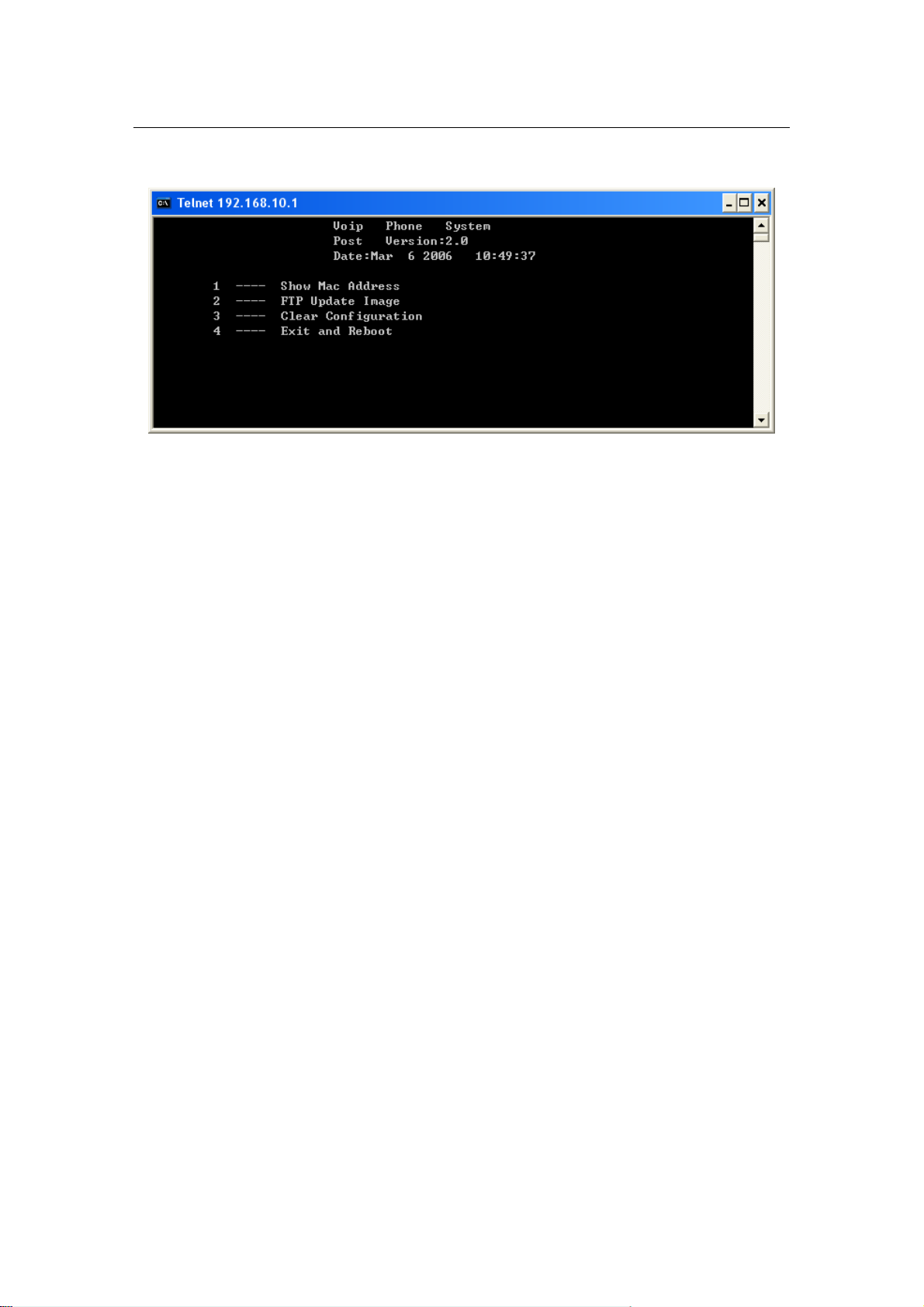

There will be a schedule bar in the DYNAMIX IP PHONE 530 booting procedure, press # key within the first 5 seconds, then the phone will go to POST mode. It has a default ip 192.168.10.1 in POST mode. User may change the P C’s IP address to 192.168.10.xx and telnet to 192.168. 10.1 to acces s the IP phone in POST mode. User can accord the guide in post mode to clear the settings or upgrade the firmware.
42/49
DYNAMIX IP PHONE 530. User Manual
9 FAQ
9.1.1 How many servers may DYNAMIX IP PHONE 530 register
simultaneously?
DYNAMIX IP PHONE 530 is able to register two SIP servers simultaneously, and redundancy servers. User can configure the dial peer to route calls between thes e servers. Please ref er “How to us e the dial rule?” for detail.
9.1.2 Why the settings vanish after reboot?
Please go to Config ManageÆSave Config to save your setting always.
9.1.3 How to use the dial rule?
DYNAMIX IP PHONE 530 provide flexible dial rule, with different dial-rule configure, user can easily implement the following functio n:
----Replace, delete or add prefix of the dial number.
----Make direct IP to IP call
----Place the call to different servers acc ording the prefix. You can cli ck “Add” to add a new dial rule. Below is th e d etail setting of the dial-rule: Phone Number: The Number suit for this dial rule, can be set as full match or prefix match. Full match means that if the number user dialed is completely the same as this nu mber, the call will use this dial-rule. Prefix match means that if prefix of the number that the user dials is the same as the prefix, the call will use this dial-rule, to distinguish from the full match case, you need to add “T” after the prefix number in the phone number setting.
Call Mode: support SIP.. Destination (optional): call destination, can be IP or domain. Default is 0.0.0.0, in this case the call
will be routed to the Public SIP server. If you set the destination to 255.255.255.255 , then the call will be routed to the private SIP server. Also you can key other address here to make direct IP calls
Port (optional): Configure the port of the destination, default is 5060 in SIP Alias (optional):Set up the Alias. We support four Alias as below. Alias need to co-work with the Del
Length:
¾ add:xxx, add prefix to the phone number, can set to redu ce the dial length. ¾ all: xxx, replace the phone number with the xxx, can use as speed dial function. ¾ del, delete the first N numbers. N is set in the Del Length
¾ rep:xxx，replace the first N numbers. N is set in the Del Length. For Example: Use wants to place
a call 8610-62281493, then you can se t the phone number in the dial rule as 010T, and set the Alias as rep:8610, and set the Del Length to 3. Then all calls begin with 010 will be changed to 8610 xxxxxxxx. Suffix (optional):Configure suffix, show no suffix if not set Instance:
43/49
DYNAMIX IP PHONE 530. User Manual
2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server.
123 rule: Dial 123 and will send 8675583018049 to your server. Used as speed dial function. 0T rule: If the calls is begin with 0, the first 0 will be replace by 86. Means that if you dial
075583018049 and DYNAMIX IP PHONE 530 will send 8675583018049 to your server. 179 rule: when you dial 179 , the call with send to 192.168.1.179, suit for LAN application without set up a sip server.
9.1.4 How to use speed dial function?
There are 9 speed dial keys in the DYNAMIX IP PHONE 530 panel, Usage: Set speed dial number: press the speed key and enter the speed d ial number and then press Menu/OK key to save the setting. Pick up the handset and press th e speed dial key to dial the pre-define number.
9.1.5 How to configure digital map?
Please refer the digit_map.
9.1.6 How to use Cal l Forwa rd, Call Transfer and 3-way Conference calls?
User may set up the configuration in the Call Service page to use these value add service.
44/49
DYNAMIX IP PHONE 530. User Manual
¾ Call Forward:
----Forward when busy: select Busy in the Call Forward Field, and Key in the destination phone number in the Forward Number. If some one calls you when you having a call, the caller will be forwarded to the destination number.
----Forward no answer: Select No Answer in the Call Forward Field, and Key in the destination phone number in the Forward Number, fill the time in the No Answer Time. If some one calls you and no one answer the caller during the No Answer Time, the call will be forward to the destination number.
----Forward Always: Select Always in the Call Forward Field, and Key in the destination phone number in the Forward Number, then any one call this gateway will be forward to the destination number.
¾ Call Transfer: Check the Enable Call Transfer.
Unattended transfer: If A is the DYNAMIX IP PHONE 530 user, and B calls and talking with A through VoI P. A can press FWD button to hold the call with B, and then enter C’s number. B will be transferred to C and can
talk with C.
Attended transfer:
Only SIP protocol support this function .If A is the DYNAMIX IP PHONE 530 user, and B calls and talking with A through Vo IP. A can press Hold button to hold the call with B, and then enter C’s number to talk w ill C. and press Hold to switch back to A, and then press FWD key , B will be transferred to C and can talk with C.
¾ 3-Way Conference Calls Check Enable Three Way Call Assume A is the DYNAMIX IP PHONE 530 user, and B calls and talking with A through VoIP. A can
press hold button to hold the call with B, then enter C’s number to talk with C, and then press * button again to make 3-way conference calls.
45/49
DYNAMIX IP PHONE 530. User Manual
9.1.7 How to use the record function?
DYNAMIX IP PHONE 530 provides record function. With this function, user may record three VoIP message and one local message.
Active answering machine:
Select “Enable Vo ice Record ” to active answering ma chine, and config No Answer Time. If there is an incoming call and no one answer the call. After timeout, DYNAMIX IP PHONE 530 will auto answer this call and ask the caller to leave message.
Incoming Record Playing: play the message when r ecording. User-Defined V oice: Use customizes greeting voice for answering machine.
Notice: DYNAMIX IP PHONE 530 supports three message maximum, each message can be 90 seconds. Answering will be deactivated if the message numbers is 3.
Record local message:
User may use local message to leave messa ge to other local users. Please refer the Record button f unction as below:
Record Function
Level1 Level2 Description Received
Local
User define
New New message info Old Old message info Record Enable/disable answering machine Playing Enable/disable Incoming Record Playing Play Play local message Rec Record local message Switch Enable/disable customize greeting message Play Play customize greeting message Rec Record customize greeting message
46/49
DYNAMIX IP PHONE 530. User Manual
9.1.8 How to use set the IP type via keyp ad?
In the idle mode, user may us the keypad to set the IP type as the below procedure: Keep pressing the button 1 for changing to static mode. Keep pressing the button 2 for changing to DHCP mode. Keep pressing the button 3 for changing to PPPoE mode.
9.1.9 VLAN implement
DYNAMIX IP PHONE 530 support rich 802.1Q/P protocol and Diffserv configuration. Through its flexible VLAN function, you can se t the voice/signaling and data packets in different VLAN via different VLAN id.
Different implement of VLAN function:
1: if “Data/Voice VLAN differentiated” is undifferentiated. Device will set the same vlan ID for voice and data. As show below
Or
2. i f “Data/Voic e VLAN differentiated” is Tag differentiated but the DiffServ is disable. Device won’t distinguish the voice, si gnaling and data stream. It will add th e same data vlan id to them. As below:
47/49
Or
DYNAMIX IP PHONE 530. User Manual
3. if “Data/Voice VLAN differentiated” is Tag differentiated and diffServ are both enable. Then device will distinguish the voice, signaling and data stream to VLAN ID setting. As below:
Or
48/49
DYNAMIX IP PHONE 530. User Manual
4.if “Data/Voice VLAN differentiated” is Date untaged and diffServ are both enable. Then device will undistinguis h the date to VLAN ID setting. As below:
5. if VLAN is disable. Device won’t add any vlan ID to the stream. In this case, if the Diffserv is enable, the DiffServ value response to the voice/signaling stream.
6. When VLAN function is enable. If “VLAN ID check” is enable, DYNAMIX IP PHONE 530 will have strict requirement on the VLAN, it won’t handle any packets with different VLAN ID. If “VLAN ID check” is disable, DYNAMIX IP PHONE 530 will handle the packets even from different vlan ID. Please notice that VLAN ID check is enable in default.
49/49
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
