Dynamic Sauna DYN622502 User Manual

DYN6225 / DYN6235 / DYN6445 / DYN9235

2 ‐ 4 Person Corner Sauna

OWNER’S MANUAL

FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP (2-PERSON MODELS) DEDICATED CIRCUIT

120VAC 20 AMP (3 & 4 PERSON MODELS) DEDICATED CIRCUIT

Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

*PLEASE READ INSTRUCTIONS BEFORE

ASSEMBLY*

DYN-6225

GDI-6235

*The above assembly

models

are not shown. Sauna models, parts, and accessories may

diagrams

are quick reference visual guides only. All sauna

vary.

1

WHAT ARE INFRARED RAYS?

Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we
can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared
segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process
is called conversion.

The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5
microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only
far infrared penetrates organic substances such as the human body two to three inches so that the
warming effect is very uniform.

X Rays

Infrared Rays

Cosmic Rays

UV Rays

Near

Wavelength

( in

microns )

Ir

M

iddle

Ir

Far Infrared Rays

Gamma Rays

ARE INFRARED RAYS SAFE?

0.76 1.5 5.6 1000

Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint

problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.

2

HOW IT WORKS

Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.

Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.

Traditional Infrared

BENEFITS

Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.

Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.

Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.

3

Benefits include, but are not limited to:

- Pain relief from Rheumatoid Arthritis

- Relaxing muscle spasms

- Increases blood circulation

- Cardiovascular conditioning

- Clears rashes, acne

- Reduces cellulite

- Removes toxins and mineral waste

- Reduces stress and fatigue

- Enhances skin tone

SAUNA MAINTENANCE

Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning

chemicals as they can be absorbed into the wood and be released into your sauna during use.

DISCLAIMER

The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.

CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.

4

TABLE OF CONTENTS

Product Introduction 4
Parts Description 5

Assembly Instructions 10
Operating the Sauna 17
Tips for Using Your Sauna 19
Safety Instructions 20
Safeguards for Your Sauna 21
Troubleshooting Guide 21
Warranty 23
Warranty Card 25

WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any
excessive vibrations during transport could cause damage to the heating elements. DO NOT START
the sauna if damage is detected! Contact your dealer or manufacturer for troubleshooting and
replacement parts.

1. Product Introduction

The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FRONT PANEL, LEFT REAR PANEL, RIGHT REAR PANEL, LEFT SIDE PANEL,
RIGHT SIDE PANEL, BENCH PANEL, BENCH EMITTER PANEL, FLOOR PANEL, ROOF PANEL, and
ROOF COVER. The infrared sauna comes with control panels on the FRONT PANEL, a back protection
grid on the LEFT and RIGHT REAR PANELS, a drink shelf, a reading lamp, and infrared heat emitters.

NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary.

5

PARTS DESCRIPTION

A. FRONT OF SAUNA (see Figure 1)
B. INSIDE OF SAUNA (see Figure 2)

Figure 1 Figure 2

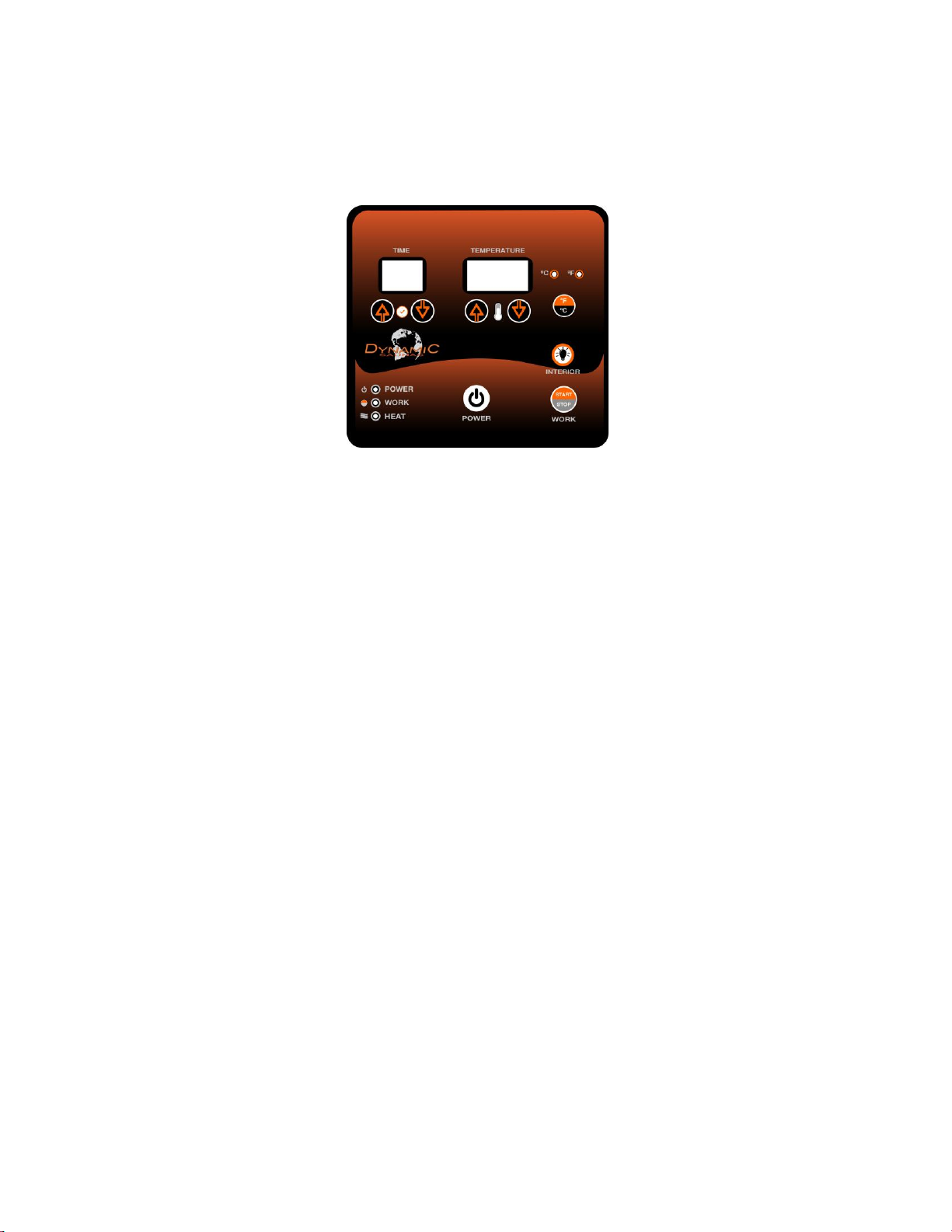

1) Control Panel

2) Door Handle

3) Tempered Glass Door

4) Glass Window Panel

5) Bench Panel

6) Bench Emitter Panel

7) Back Protection Grid (Ceramic Model Saunas Only)

8) Speaker

9) Ventilation Grid

10) Reading Lamp

11) Temperature Sensor

12) Radio w/CD Player (optional)

6

I. Power Supply
The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and

has input/outputs connected to it as seen below. (see Figure 3)

Figure 3

MAIN POWER
HT1, HT2, HT3, HT4
LIGHT reading lamp power output cord
ROOF LAMP roof lamp power output cord (optional)
CTRL control panel connection
CD/SIG signal cable group

main power of the sauna room
emitter power output cords

II. CD/Radio (optional)
The multifunction stereo features an AM/FM receiver, CD player, colorful and wide LCD screen, volume /tone/

and balance controls, and an AUX input. (see Figure 4)

Figure 4 (Model Radio May Vary)

7

III. Component Labeling

POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
ROOF LAMP Roof lamp connector (optional)
COLOR LAMP Color lamp connector (optional)
CTRL Control panel connector
CD/SIG For CD/temperature sensor/buzzer/etc. connectors

CD-POWER CD/radio power connector FAN­POWER CD/radio fan power connector
ANALOG AUDIO
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector

BUZZER Buzzer connector

TEMP SENSOR Temperature sensor

IV. Buckles

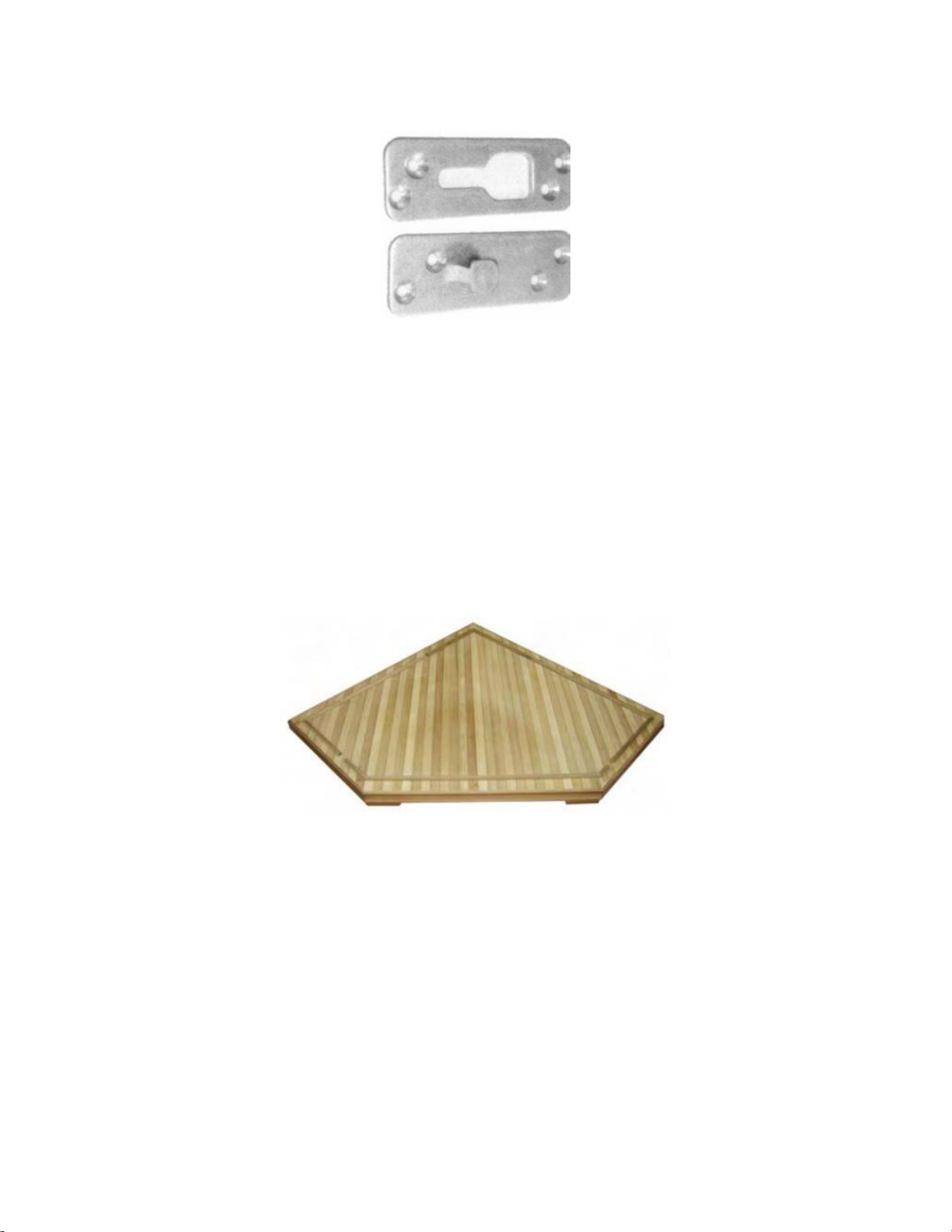

A. External Buckles

The external buckles are used to connect the REAR PANELS to each other. Also, they are used

to connect the RIGHT REAR PANEL to the RIGHT SIDE PANEL and the LEFT REAR PANEL to
the LEFT SIDE PANEL. (see Figure 5)

Audio frequency signal connector

Figure 5

B. Guide and Guide Inserts

The guide and guide inserts are used to connect the LEFT SIDE PANEL and the RIGHT SIDE

PANEL to the FRONT PANEL. (see Figure 6)
