Dynamics PRIME4 5 User Manual

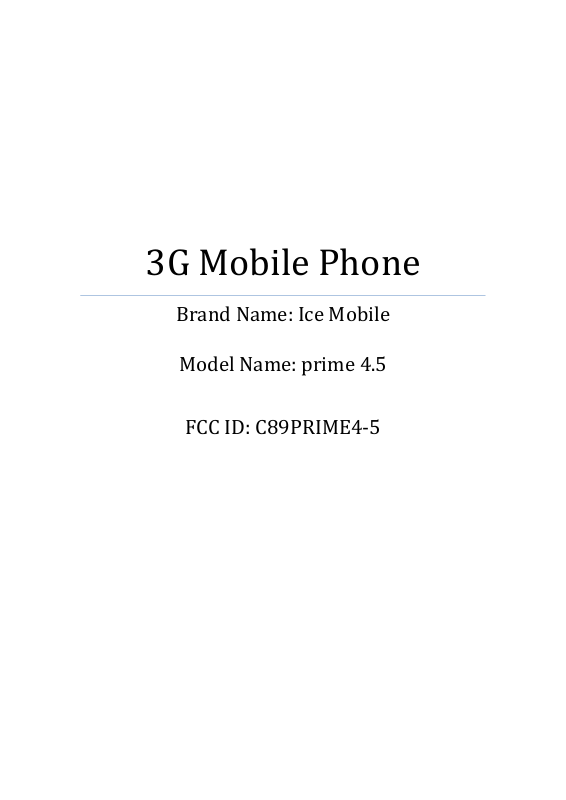

3G Mobile Phone
Brand Name: Ice Mobile
Model Name: prime 4.5
FCC ID: C89PRIME4-5
User Manual
This Manual is correct in the contents when it is published.
However we reserve the right to modify the technical specifications without other notification.
Some contents in the Manual are possibly distinguished from the real phone and will be different
according to the included software, SIM cards and service provider.
Disclaimer on Phone Application Service
All phone application services are supplied by various service providers. Our company will not undertake
any dispute or legal responsibility rising from the illegal or unhealthful contents because our company
saves, controls or modifies no built-in or Updated instructions of a third party or webpage information
Please consult or lodge the complaints to the service provider or the operator for any concerns.
Table of Contents
Safety Attentions ............................................................................................................................. 2
Understand You Phone ................................................................................................................... 2
Basic Specification .................................................................................................................... 2
Key Instruction .......................................................................................................................... 3
Begin to Use ..................................................................................................................................... 3
Install SIM Card and Battery .................................................................................................... 3
Charge Battery .......................................................................................................................... 3
Gestures ..................................................................................................................................... 3
Basic Function ................................................................................................................................. 4
Calling ....................................................................................................................................... 4
Messaging ................................................................................................................................. 4
People ........................................................................................................................................ 5
Camera ...................................................................................................................................... 5
Music ......................................................................................................................................... 6
Browser ..................................................................................................................................... 7
Settings ...................................................................................................................................... 7
Calendar .................................................................................................................................... 7
File Manager ............................................................................................................................. 7
Calculator .................................................................................................................................. 7
Email ......................................................................................................................................... 7
Search ........................................................................................................................................ 8
SIM Toolkit ............................................................................................................................... 8
FM Radio .................................................................................................................................. 8
Sound Recorder ......................................................................................................................... 8
FAQs and Solutions ......................................................................................................................... 9
Important Safety Information ....................................................................................................... 9
Key
Description(Under Standby Mode)
Power/Lock
Turn on/off the device (press and hold);
Lock the screen or turn it on.
Option
Open the list of options available on the current screen.
Home
Return to the Home screen; Open the list of recent applications (press and hold).
Back
Return to the previous screen.
Volume
Adjust the device’s volume.
Safety Attentions
Please read the following information carefully in order for you to use the phone safely and effectively.
Power the phone safely
Please do not power the phone on at the locations where the phone is prohibited using or the phone may
cause the disturbance or risks.
Traffic safety is first
Please do not use the phone when driving in order not to hinder the safety of the driving.
Power the phone off at the limited area
Please abide by pertinent regulations or rules. You should power the phone off on the plane or near the
flammable articles, chemicals or medical apparatus.
Interference
The mobile communication device may be subject to the radio interference, thus affecting their
performance.
Waterproof
Please keep the phone dry because the phone is not waterproofed.
Keep the phone out of stretch of the kids
The phone and its accessories (including fittings) should be kept out of the stretch of the kids.
Accessories and batteries
Please use the batteries and adapter designated by our company, or otherwise causing explosion
possibly.
Specialized service
Please do not bold to dismantle the phone and its accessories. Only can authorized agencies maintain the
phone.
Understand You Phone
Key Instruction
2
Begin to Use
Install SIM Card and Battery
Please be sure to disconnect the phone with the adapter before disassembling the battery.
This version is a dual-card dual-standby over-time phone which can be inserted with 2 SIM cards.
SIM card is included in the socket generally. The SIM card is inserted in the Socket. You should be careful
to use, insert and disassemble the SIM card because of the SIM card damage owing that the contact of the
SIM card is easy to be scraped or bent or damaged
Charge Battery
The phone will release the warning tone displaying the insufficient battery capacity with the indication of
the empty battery icon when the battery capacity is lower. Under this case, the phone may not be used in
partial functions.
The phone will power off automatically when the battery capacity is too lower. Please charge the battery.
The battery icon on the screen will flash when the phone is being charged. After completion of charging,
the full battery icon will display on the screen. The charging animation will be displayed on the screen
when the phone is being charged under the power-off state. After completion of charging, the screen will
display the prompt system of finishing charging.
Gestures
Tap: Touch once to select or launch a menu, option, or application.
Tap and hold: Tap an item and hold it for more than 2 seconds.
Drag: Tap an item and move it to a new location.
Flick: Briskly scroll up, down, left, or right to move through lists or screens.
Pinch: Place two of your fingers far apart, and then pinch them together.
Basic Function
Calling
Learn to use calling functions, such as making and answering calls, using options available during a call,
or customising and using call-related features.
Make a call
Tap the Dialer icon, and then enter an input interface and press a phone number.
To access the call log and redial numbers you have called recently.
To access the contact list and select one to dial.
Answer a call
3
