Dynamics G8 Users manual

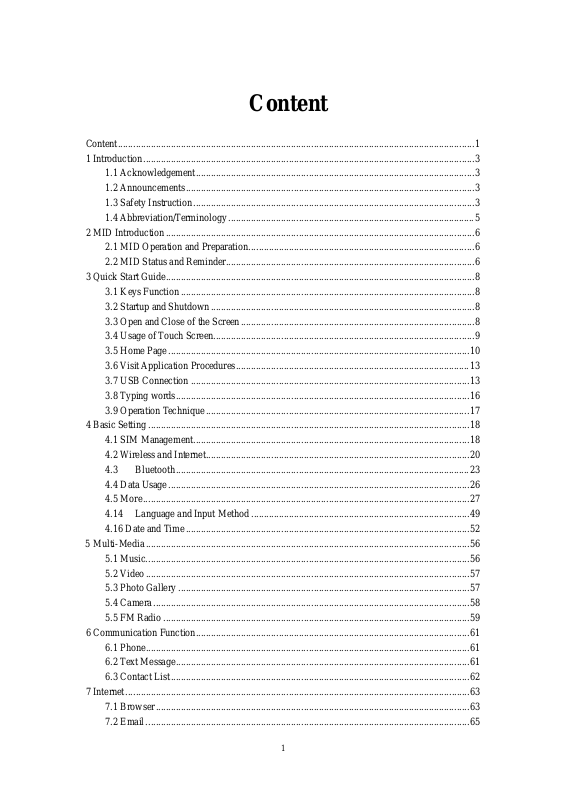

Content

Content .............................................................................................................................................. 1

1 Introduction .................................................................................................................................... 3

1.1 Acknowledgement ............................................................................................................... 3

1.2 Announcements ................................................................................................................... 3

1.3 Safety Instruction ................................................................................................................ 3

1.4 Abbreviation/T erminology .................................................................................................. 5 

2 MID Introduction ........................................................................................................................... 6

2.1 MID Operation and Preparation .......................................................................................... 6

2.2MID Status and Reminder ................................................................................................... 6

3 Quick Start Guide ........................................................................................................................... 8

3.1 Keys Function ..................................................................................................................... 8

3.2 Startup and Shutdown ......................................................................................................... 8

3.3 Open and Close of the Screen ............................................................................................. 8

3.4 Usage of Touch Screen ........................................................................................................ 9

3.5 Home Page ........................................................................................................................ 10

3.6 V isit Application Procedures ............................................................................................. 13

3.7 USB Connection ............................................................................................................... 13

3.8 T yping words ..................................................................................................................... 16

3.9 Operation T echnique ......................................................................................................... 17

4 Basic Setting ................................................................................................................................ 18

4.1 SIM Management .............................................................................................................. 18

4.2 Wireless and Internet ......................................................................................................... 20

4.3 Bluetooth ..................................................................................................................... 23

4.4 Data Usage ........................................................................................................................ 26

4.5 More .................................................................................................................................. 27

4.14 Language and Input Method ....................................................................................... 49

4.16 Date and Time ................................................................................................................. 52

5 Multi-Media ................................................................................................................................. 56

5.1 Music ................................................................................................................................. 56

5.2 V ideo ................................................................................................................................. 57

5.3 Photo Gallery .................................................................................................................... 57

5.4 Camera .............................................................................................................................. 58

5.5 FM Radio .......................................................................................................................... 59

6 Communication Function ............................................................................................................. 61

6.1 Phone ................................................................................................................................. 61

6.2 T ext Message ..................................................................................................................... 61

6.3 Contact List ....................................................................................................................... 62

7 Internet ......................................................................................................................................... 63

7.1 Browser ............................................................................................................................. 63

7.2 Email ................................................................................................................................. 65

8 GPS Function ............................................................................................................................ 67

2. Enter into setting interface, click

icon, enter into below picture 8.1 ........................ 67

9 Other Application Procedures ...................................................................................................... 69

9.1 Clock ................................................................................................................................. 69

9.2 Calculator .......................................................................................................................... 69

9.3 File Manager ..................................................................................................................... 70

9.4 Recorder ............................................................................................................................ 73

10 Installation of Procedures ........................................................................................................... 74

10.1 Installation ....................................................................................................................... 74

10.2 Uninstall .......................................................................................................................... 74

11 T roubles Shooting ...................................................................................................................... 75

12 FCC Warning ............................................................................................................................. 76

1 Introduction

1.1 Acknowledgement

Thanks for your purchase of our product. G8 is high definition tablet PC. Its CPU is MT6572, which apply the Cortex-A7*2, dominant frequency is 1.2 GHz, it is based on Android 4.2.2 operation system, and easy to expand the third application procedure.

The product is designed with various functions, including WCDMA, WIFI, BT, OTG,GPS,FM, ATV,DTVvoice call and so on. It is easy to achieve wireless communication and internet, you have access to surf the internet anytime and anywhere; it is also built with high accuracy GPS module, so that it can be used for navigating through installing map software. There are many sensors which offer you brand-new operation and entertainment; besides, it has camera shooting, which leads electronic consumption to enter into a fresh palm internet entertainment time.

The manual systemically introduces the functions, use techniques and announcements, please read this manual carefully before your operation.

1.2 Announcements

Preventive maintainance

z Please always keep the MID dry. To avoid the device short trouble, corrosion fault and

electric short, please prevent the device, battery and charger from water and moisture, and don’t operate the device or charger by wet hand.

z To avoid failure of device, battery and charger, please prevent the device, battery,

charger from violent shock or shake.

z To avoid failure of device, battery and charger, please prevent the device, battery,

charger of all over heating or too cold circumstance

z Never shock, throw, prod the MID, or drop, extrude, bend the MID.

z Never disassemble the device and accessories arbitrarily, otherwise the device and

accessories are not in our company warranty scope.

1.3 Safety Instruction

Before the operation of the MID, please read this chapter and teach your kids about these

information. For further details, please refer to the safety instructions and announcement.

z Never use the MID when driving car, in order to ensure safe driving.

z In the medical area, please abide by related rules and regulations. Please shut

down the MID when it is near to the medical area.

z To avoid the wireless signal to interrupt the plane- controlled signal, please shut

down the MID or using airplane mode when you are boarding a flight,

z To avoid electronic equipment failure, please shut down the MID in the vicinage

of high-accuracy electronic equipments.

z Please don’t disassemble the MID and accessories. Only authorized agent has

access to service the MID.

z Please keep the MID far away from magnetic equipments, the radiation of MID

may erase the data stored in the magnetic equipments.

z Never use the MID in the vicinage of high temperature, inflammable gas ( gas

station).

z Protect the MID and accessories from kids reach scope, and avoid the kids to use

the MID without parents’ supervision.

z Please comply with related rules and regulations, and respect others’ privacy and

legal rights while using the MID.

z Please strictly adhere to related instructions in the manual when using USB cable

to ensure the safety of the MID or PC.

z Never use the MID in bathroom or other humid environment, and please protect

the MID from liquid wash or wet.

1.4 Abbreviation/Terminology

Abbreviation/Terminology Full Name Description

MID

WIFI

T F

Mobile Internet Device Mobile Internet Terminal Wireless Fidelity

TransFlash

Base on IEEE 802.11b standard wireless LAN

Alternative name Micro SD,super miniature memory card

2 MID Introduction

2.1 MID Operation and Preparation

Battery Charging

If this navigator is first used, please use AV adaptor to fully charge it.

1. Apply the power adptor to charge for MID.

2.2 MID Status and Reminder

Reminder icons

When some remind message appears in your reminder window, please click column and slip the screen to open the reminder list. Choose the menu you need, and confirm the information. Then you can close the reminder window through clicking the column to slide up. Please refer to below status icons:

New email

USB connected

Return button

Setting button & Display

recently-used application

Current electric

volume.

Airplane Mode on

USB debugging connected

Downloading

Home button

WIFI connected, internet is

available

Reminder board

Reminder icons will work while receiving emails, WIFI is open, you can open the reminder

board to view the detailed information.

Open the reminder board

When the reminder column shows new reminder icon, please hold the column and slip down

your finger, then the reminder board is opened.

3 Quick Start Guide

3.1 Keys Function

Keys Funcction Description：

Power button Short press to sleep/wake up, long press to startup and

Volume +（up） increase the volume Volume -（down） decrease the volume

HOME button （home）

shutdown.

Click it in any interface will return to main interface.

Back button（back）

Menu button

Setting button

click it in any interface will return to previous menu

This button will display in menu interface.

Can set the system and other menus &display recently browsed history

3.2 Startup and Shutdown

Startup

Long press POWER key for three seconds, you can enter into startup picture. The system enters into screen lock status, please unlock it.

Shutdown

1． Long press POWER, it will popoup shutdown window. 2． Shutdowm window contains mute mode, airplane mode,reboot mode and shutdown

four options.

3． Click Shutdown is the last step.

3.3 Open and Close of the Screen

Screen will be closed on its own when no operation happens.

1. Screen will be closed on its own if no operation happens for some time to save battery

power

2. When screen is open, press POWER key, the screen will be closed immediately.

Open the screen when it is closed.

If the screen is closed, short press POWER to open the screen. The screen will be locked open it, it will show the picture as below picture, left slide to unlock and enter into camera, right slide the unlock icon to unlock the screen.

Picture 3.1

3.4 Usage of Touch Screen

MID operating methods

There are below methods to view the main screen, menu and application procedure in your MID.

Click

When you want to use the screen keyboard typing or choo se applicatio n in the main int erface, you only need to touch it by your finger.

Press on

If you want to open some item( textbox or the link in the webpage), or shortcut and main procedure move, you can press on this item.

Quickly slide or slide

Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.

Pull

Before you pull, you need to hold the it with strenghth until you pull it into the position you want.

Rotate

For most pictures, you only need to retate the MID sidewise to change the screen directio n from horizoncial to vertical. For instance, when you are typing wods, and watching movies.

3.5 Home Page

Main interface as below picture 3.2, long press the blank and it will popup windows to set wallpaper, folder, widgets, and shortcut.

Notice column

Batty volume

time

Set the system and other menus . & display recently

Picture 3.2

The extended home page

The home page can be extended beyond the wideness of screen to provide more space,

which you can put new-added shortcuts and widgets. Click the blank space in home page then slide right or left to exten d to the right o r left of the screen. In the home page, there are two extended pictures, as Picture 3.3.

Home

return

Picture 3.3

The shortcut icons management in desktop application. Create folder icon in desktop

1. Drag the icons need to be put together on one icon(can also overlay several

icons)as Picture 3.4.

2. Then click the overlayed icons, the applications can be folded, as Picture 3.5.

Click the unnamed folder in the black box, it will popup the hidden keyboard, the folder name can be renamed (this is similiar with Apple IOS system), the icons position can be changed through long press.

Picture 3.4

Remove the icons in desktop

1. Long press the icons need to be remove, then on the right above of the screen, it

will appear

2. Drag the icon to the above of the remove icon, till the icon become red, then move

your finger to delete the icon.

Change the wallpaper of desktop

1． In home page, long press any blank space in main screen, it will popup a window

to change the wallpaper.

2． Click the gallery or wallpaper gallery to select the wallpaper.

Picture 3.5

icons.

3.6 Visit Application Procedures

Click in right top of Picture 3.2, enter into main interface as Picture 3.6,

choose the application procedure you want to visit.

Return to home page

Picture 3.6

3.7 USB Connection

3.7.1 MID storage configuration

Before transmitting documents, you have to conduct storage configuration for your MID:

1. Connect the MID and computer by USB cable, the reminder column will show the remind information.

2. Open the reminder board; please view the MID status and reminder to learn how to

open the board.

3. In the reminder board, click the “USB Connected”, it will as below Picture 3.4, then

click “open USB storage configuration”.

4. Now the USB is connected successfully.

Picture 3.7

Copy the document into memory card

1. Connect the MID to computer with USB cable.

2. As MID storage configuration, it is connected with computer successfully.

3. Open the “My computer” in your computer, check the items in “removable disc”.

4. Copy the documents you need into “removable disc”.

5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.

Notice: When the MID is connected with USB cable, and you open the USB storage configuration, you can’t view the memory card through the MID. Only after you detach the USB cable, you can view the memory card in the MID.

3.7.2 MID OTG

1.U function operation. Picture 3.5

Picture 3.5

2. Mouse function operation. Picture 3.6

Picture 3.6

3. Keyboard function operation. Picture 3.7

Picture 3.7

3.8 Typing words

Use the screen keyboard

When you start the procedure or choose the words or numbers edition, it will show the screen

keyboard. The keyboard contains below typing options:

1. Android keyboard

2. Google Pinyin

Choose the typing method you want

1. Click Setting pocedure application.

2. Click Language and Keyboard.

3. In the text setting area will reveal all the installed words-typing methods in your MID.

4. Tick the typing method you want.

①

Use and switch of input method

⑤

② ③

Picture 3.8

④

1 switch the capital and small letter

2 switch the mode of words input

3 click to insert the spa ce

4 click input to exec ute

delete the character in the left of cursor, click and hold to delete all the characters in the left og the cursor.

3.9 Operation Technique

Enter widgets interface

In the application interface,click widgets on the above of screen, or slide the screen, it will swtich into widgets interface. Long press any widget to create its shortcut, then you can enter into the application through the shortcut ic on.

Create application shortcut icons in the desktop In the application interface or widgets interface, long press any icon to switch into

desktop automatically, drag and hold the icon, you can move to any position in the desktop.

Remind: If the target position has no space, the widget won’t be add in the main

screen.

4 Basic Setting

4.1 SIM Management

4.1-1 Voice call Click settings in main menu, choose SIM Management, as Picture 4.1

Picture 4.1

Click voice call, choose defaulted SIM card, as Picture 4.2

Picture 4.2

4.1-2 V ideo Call Click settings in main menu, choose SIM Management, and click video call, choose defaulted SIM card when makes video call, as Picture 4.3

Picture 4.3

4.1-3 Message Click settings in main menu, choose SIM Management, click message, choose the defaulted SIM card when sends message, as Picture 4.4

Picture 4.4

4.1-4 Data Connection Click setting application in main menu, choose SIM management, click data connection, choose the defaulted SIM card, as Picture 4.5

4.2 Wireless and Internet

1. Connect Wi-Fi

1) In the main menu or interface, choose setting application procedure.

2) Click WLAN, open wifi, MID will automatically search the available Wifi wireless internet. As Picture 4.6

3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the

password window, enter password, click connect.

Picture 4.5

2. Add Network

1) Click

Picture 4.6

icon in right top, as Picture 4.7

Picture 4.7

2) Input network SSID, the wireless network name, click save.

3) Click user name already saved, click connect to use network, as Picture 4.8

3. Network Notice

If you open Network Notice, when WIFI signal appears, the right bottom will remind you available WLAN network, as Picture 4.6

4. Keep WI-FI on during sleep..

Picture 4.8

1. Click icon in right top of Picture 4.8, select advanced.

2. Click Keep WI-FI on during sleep, as Picture 4.9

Picture 4.9

4.3 Bluetooth

Bluetooth function operation

1. Click setting application in main menu interface

2. Click bluetooth and open it.

3. If somebody open bluetooth in your surroudings, click search device in right above,

then MID will automatically search the bluetooth device nearby . As picture 4.10

Picture 4.10

4. Click the available Bluetooth device, it will popup request window, enter into related

password, and match the device to connect.

5. After match successfully, choose the operation you want to, click to enter into

Picture 4.11.

Picture 4.11

Bluetooth setting

1. Rename tablet

Click

icon in right top of Picture 4.10, as Picture 4.12, select rename tablet, you

can rename it as you want

2. Check visibility timeout

Select visibility timeout setting in Picture 4.12, choose the time you want to set, as Picture 4.13(Note: check overtime setting is the time setting when Bluetooth is checked)

Picture 4.12

+ 53 hidden pages
