Dynamics FUEGO User Manual

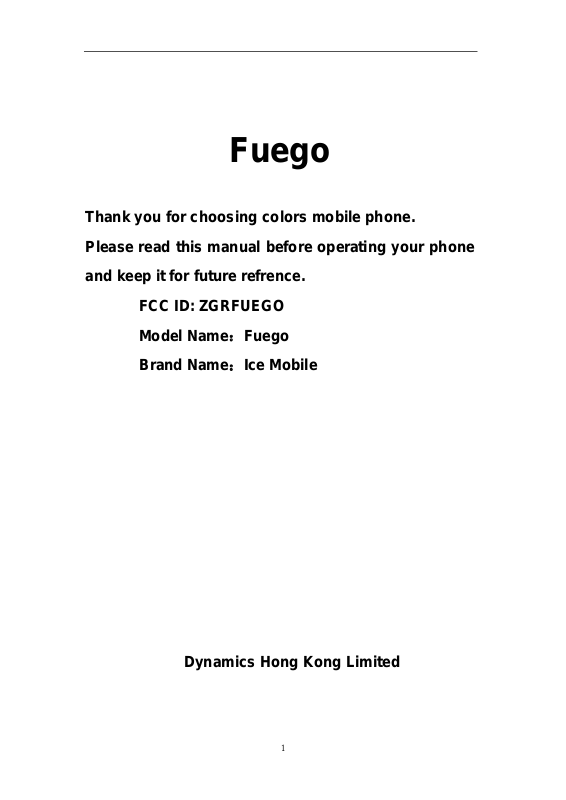

Fuego

Thank you for choosing colors mobile phone. Please read this manual before operating your phone and keep it for future refrence. FCC ID: ZGRFUEGO Model Name：Fuego Brand Name：Ice Mobile

Dynamics Hong Kong Limited

Contents

User Manual ...................................................................................................................................... 4

1. Safety and Precaution ................................................................................................................. 4

2. Understand Your Phone .............................................................................................................. 5

2.1 Instruction to Accessories ................................................................................................ 5

2.2 Key Instruction ................................................................................................................. 6

2.3 Icon Instruction ................................................................................................................ 7

3. Begin to Use ............................................................................................................................... 8

3.1 Install SIM Card and Battery ........................................................................................... 8

3.2 Charge the Battery ............................................................................................................ 8

3.3 Power the phone on/off .................................................................................................... 9

3.4 Memory Card ................................................................................................................... 9

3.5 USB Data Cables.............................................................................................................. 9

4. Basic Function .......................................................................................................................... 10

4.1 Call ................................................................................................................................. 10

4.1.1 Dial ...................................................................................................................... 10

4.1.2 Answer Incoming Call ........................................................................................ 10

4.1.3 View Missed Incoming Call ................................................................................ 10

4.1.4 Function During Call ........................................................................................... 10

4.2 Text Input ....................................................................................................................... 11

Use Keypad ..................................................................................................................... 11

Function of Functional List ............................................................................................................. 11

1. File manager ........................................................................................................................ 11

2. Phonebook ........................................................................................................................... 12

3. Call center ........................................................................................................................ 12

3.1 Call history ................................................................................................................ 12

3.2 Call settings ............................................................................................................... 13

4. Services ............................................................................................................................... 13

4.1 STK ........................................................................................................................ 14

4.2 Internet service ....................................................................................................... 14

5. Messaging ........................................................................................................................ 14

5.1 Write message ........................................................................................................ 14

5.2 Inbox ...................................................................................................................... 14

5.3 Drafts ...................................................................................................................... 15

5.4 Outbox .................................................................................................................... 15

5.5 MMS ...................................................................................................................... 15

5.6 Broadcast message ................................................................................................. 16

5.7 Templates ............................................................................................................... 17

5.8 Message settings ..................................................................................................... 17

6. Multimedia ....................................................................................................................... 17

6.1 Imichat ................................................................................................................... 17

6.2 TV .......................................................................................................................... 17

6.3 Camera ................................................................................................................... 17

6.4 Image viewer .......................................................................................................... 18

6.5 Video recorder ........................................................................................................ 18

6.6 Video player ........................................................................................................... 18

6.7 Audio player ........................................................................................................... 19

6.8 Sound recorder ....................................................................................................... 19

6.9 FM radio ................................................................................................................. 19

7. Fun&Games ..................................................................................................................... 20

7.1 Dynamic Menu .......................................................................................................... 20

7.2 MSN .......................................................................................................................... 20

7.3 Game Center ............................................................................................................. 20

7.4 Yahoo ......................................................................................................................... 20

7.5 Skype ......................................................................................................................... 20

7.6 Facebook ................................................................................................................... 20

7.7 Google ....................................................................................................................... 21

7.8 EBuddy ...................................................................................................................... 21

7.9 Java ............................................................................................................................ 21

7.10 Java settings ............................................................................................................ 21

7.11 Java default security ................................................................................................ 21

8. Extra .................................................................................................................................... 21

8.1 Calculator ............................................................................................................... 21

8.2 Ebook reader .......................................................................................................... 21

9. Organizer ............................................................................................................................. 21

9.1 Calendar ................................................................................................................. 21

9.2 Tasks ....................................................................................................................... 22

9.3 Alarm ..................................................................................................................... 22

9.4 Wor ldC lock ............................................................................................................ 23

10. Settings ........................................................................................................................... 23

10.1 Dual SIM settings ................................................................................................. 23

10.2 Phone Settings ...................................................................................................... 23

10.3 Network Settings .................................................................................................. 23

10.4 Security Settings ................................................................................................... 23

10.5 Connectivity ......................................................................................................... 24

10.6 Restore factory settings ........................................................................................ 24

11. User profiles ...................................................................................................................... 24

12. Bluetooth ........................................................................................................................... 25

Important Security Information ....................................................................................................... 28

User Manual

1. Safety and Precaution

You should read the following information carefully before using the phone in order for you to use it safely and effectively.

1.1 Power the phone on safely

Do not use the phone at the location where the phone is prohibited using or the phone can cause the disturbance or risks.

1.2 Traffic safety is first

Do not use the phone when driving in hindrance of safe drive.

1.3 Power the phone off at the limited regions

Please abide by all the pertinent regulations or provisions. You should power the phone off near to the flammable articles, chemicals or medical equipment.

1.4 Disturbance

The mobile communication can be subject to the radio disturbance, thus affecting its performance.

1.5 Waterproof

Please keep it dry because the phone is not a waterproof device.

1.6 Place the phone beyond stretch of kids

The phone and its total accessories (including attachments) shall be placed beyond the stretch of the kids.

1.7 Accessories and batteries

Please use the batteries and adapter designed by our company, or otherwise resulting in explosion.

1.8 Specialized service

Do not bold to disassemble the phone and its accessories. The phone can only be maintained by the authorized institutes.

2. Understand Your Phone

2.1 Instruction to Accessories

Please confirm the intact articles as follows after unpacking the package of the phone. Please contact

with the local distributer in case of the missed parts.

z A Phone z An adapter z Batteries

z USB data cable z Earphone z User’s manual

2.2 Key Instruction

Key

Left soft key Enter in functional list (Main menu). Right soft key Enter in the contact list in phonebook.

SIM1 Dial key

SIM2 Dial key

End key

Arrow keys

0,2~9

1.Enter in SIM1 calls history.

2.dial-up.

1.Enter in SIM2 calls history.

2.dial-up. Press to terminate a call or refuse a call. Press and hold to power the phone off (or power the phone on under power-off mode).

1. OK:Enter in menu

2. Up : Enter in camera (default)

3. Down: Enter in Alarm(default).

4. Left/ Right: Enter in Focus menu. Press to enter in dialing window and input number 1. Press and hold to dial the voice mailbox number.

Long press:

1. In quick dialing set to open, direct and rapid dialing the number of corresponding locations

2. In quick dialing set to close, with short according to settle into dial-up input interface

Description(Under Standby Mode)

2.3 Icon Instruction

Icon Description

Indicate the network signal strength for SIM card 1. Indicate the network signal strength for SIM card 2. Indicate the current battery capacity for battery Indicate that there is an unread SMS in SIM card 1. Indicate that there is an unread SMS in SIM card 2. Indicate that there is a missed call in SIM card 1. Indicate that there is a missed call in SIM card 2. Indicate that the current profile mode is the General mode. Indicate that there is an unread MMS in SIM card 1. Indicate that there is an unread MMS in SIM card 2. Indicate that the current ear is set as activated. Indicate that the current alarm clock is set as activated. Indicate the current keypad-locked state.

3. Begin to Use

3.1 Install SIM Card and Battery

Please be sure to disconnect the phone with the adapter before disassembling the battery. This version is a dual-card dual-standby phone which can be inserted with 2 SIM cards. Both SIM cards can register onto an identical network. Each SIM card is included in the socket generally. The SIM card 1 is inserted in the Socket 1 and SIM card 2 in Socket 2. You should be careful to use, insert and disassemble the SIM card because the contact of the SIM card is easy to be scraped or bent to damage. 1 Disassemble the battery cover. 2 Disassemble the battery. 3 Slide the SIM card into the socket. 4 Insert the battery. 5 Cover the battery.

3.2 Charge the Battery

The phone will release the warning tone displaying the insufficient battery capacity with the indication of the empty battery icon when the battery capacity is lower. Under this case, the phone may not be used in partial functions. The phone will power off automatically when the battery capacity is too lower. Please charge the battery. The battery icon on the screen will flash when the phone is being charged. Af ter completion of charging, the full battery icon will when the phone is being charged under the power-off state. After completion of charging, the screen will display the prompt system of finishing charging. Under the standby mode, it takes 2-3 hours to charge the battery. Unpack the rubber protective cover on the charging interface and connect the adapter with the phone.

1. Insert the adapter in AC electric outlet.2. Open the rubber protective cover of the charging interface of the phone and connect the adapter to the phone.

3. The symbol indication of charging the battery appears on the screen. (the symbol indication of charging the battery can appear after waiting for a few minutes if the battery capacity is exhausted).

4. Pull the adapter apart from the power supply socket and then pull the adapter out of the phone after completion of the charge.

This is the principle of the battery.

z Not charging: If the phone power is supplied by the battery 1 in default, the battery 2 will be

display on the screen. The charging animation will be displayed on the screen

automatically switched to till the battery 1 is used up (i.e. the battery 1 is a main power supply).

z Charging: Firstly the battery that is supplying is charged, after charged fully, the other battery is

switched to for charging and supplies.(after the adapter is taken out, return to a state of no charging, namely, the battery 1 supplies in default).

Note the following cases: I Switch to the other battery and charge it after the battery being charged is pulled out. II Conditions that the phone is powered off and charged (requires understanding furthermore). III Automatically switch to the other battery for power after the battery at supply is taken out. IV Automatically switch to the other battery when the battery at supply is used up. V Automatically switch to the battery 1 for power supply when the batter y 1 is inserted if merely battery

2 presents.

3.3 Power the phone on/off

z Press and hold [End] to power the phone on under the power-off state z Press and hold [End] to power the phone off under the power-on state.

3.4 Memory Card

The phone supports the T-Flash card (otherwise purchased), which is a multimedia memory card used to multiple the memory of the phone. The T-flash card is small and should be pulled out and installed carefully and prudently in order to avoid in damaging. 1 Open the external cover of the T-Flash card socket. 2 Slide the T-Flash card into its socket. 3 Cover the T-Flash card socket.

3.5 USB Data Cables

This version supports the USB interface. You can connect your phone with the PC via the USB&data cable, copying or moving the files amid the phone and PC, or bro wsing the images, record files and

video files saved in the phone via the PC. 1 Insert the USB data cable connector into the USB interface of the phone. 2 Connect the other terminal of the USB data cable with the USB interface of the PC. 3 The phone pops up window with 3 modes at your choice: Mass storage.

4. Basic Function

4.1 Call

The phone will select the main network automatically after powered on if it is located within the coverage of the main network. The phone can use other network, called as roaming, if the phone is not located within the coverage of the main network when the network operator protocol permits. You can dial or answer a call when the symbol of the network operator appears on the screen.

4.1.1 Dial

You can dial with several ways as follows:

z Input the phone number (should affix the international/national/regional code or district code if

necessary) and then press [Dial Key] under the standby mode.

z Press [Dial Key] to dial a phone number listed in the recent call log under the standby mode. z Press and hold numeric keys [2]-[9] to dial the shortcut phone number set on the numeric keys

under the standby mode.

z Dial with the contact name or phone number in the phone book.

The phone supports dialing the international emergenc y phone number, such as 112 and 911 etc. With the phone, you can dial an emergenc y call at any country or region under the normal situation regardless of SIM card inserted when the phone is located within the coverage of the GSM network. Input the emergency phone number and press [[Dial Key] to dial out.

4.1.2 Answer Incoming Call

You can perform as follows when there is an incoming call:

z Press [Dial Key] to receive the incoming call. You can use the earphone to answer the call when

the generic earphone or Bluetooth earphone is inserted in the phone.

z Press [End] to decline an incoming call.

4.1.3 View Missed Incoming Call

The quantity of missed incoming calls will displa y on the screen under the standby mode if there are

missed incoming calls. You can press <View > to view the information of missed incoming calls.

4.1.4 Function During Call

You can use many functions during the call process.

4.1.5 Option During call

Press <Option> to use the following options:

z Hold single call: temporarily hold the current call. z End single call: end the current call. z New Call: call the opposite party to build a Call to Many. z Phonebook: enter in the phonebook menu. z Call history: view the information of the missed, dialed or answered calls in SIM card 1 or 2. z Messaging: enter in the SMS menu. z Sound recorder: record the current call. z Mute: open or close the mute mode. z DTMF: open or close the DTMF function during the call.

4.1.6 Launch or Close Hand-free Function

Press <H-free>/<H-Held> to open or close the hand free function.
