Dynamics CLIMA User Manual

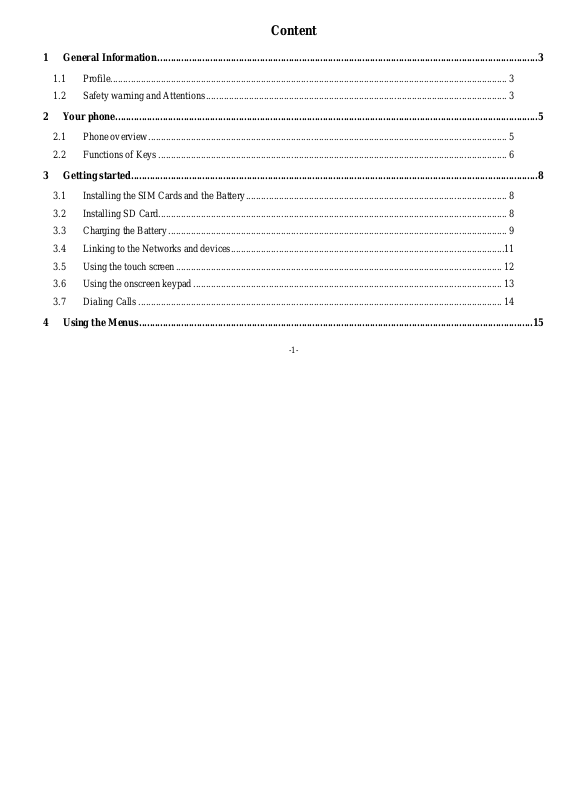

Content

1 General Information ................................................................................................................................................. 3

1.1 Profile .............................................................................................................................................................. 3

1.2 Safety warning and Attentions ........................................................................................................................ 3

2 Your phone ................................................................................................................................................................. 5

2.1 Phone overview ............................................................................................................................................... 5

2.2 Functions of Keys ........................................................................................................................................... 6

3 Getting started ........................................................................................................................................................... 8

3.1 Installing the SIM Cards and the Battery ........................................................................................................ 8

3.2 Installing SD Card ........................................................................................................................................... 8

3.3 Charging the Battery ....................................................................................................................................... 9

3.4 Linking to the Networks and devices ............................................................................................................. 11

3.5 Using the touch screen .................................................................................................................................. 12

3.6 Using the onscreen keypad ........................................................................................................................... 13

3.7 Dialing Calls ................................................................................................................................................. 14

4 Using the Menus ...................................................................................................................................................... 15

-1-

4.1 Browser ......................................................................................................................................................... 15

4.2 Calculator ...................................................................................................................................................... 18

4.3 Calendar ........................................................................................................................................................ 18

4.4 Camera .......................................................................................................................................................... 20

4.5 Clock ............................................................................................................................................................. 21

4.6 Contacts ........................................................................................................................................................ 21

4.7 Email ............................................................................................................................................................. 23

4.8 ES File Explorer ............................................................................................................................................ 26

4.9 Messaging ..................................................................................................................................................... 26

4.10 Mobile TV ..................................................................................................................................................... 27

4.11 Music ............................................................................................................................................................ 28

4.12 Settings .......................................................................................................................................................... 29

5 Appendix .................................................................................................................................................................. 33

-2-

General Information

1.1 Profile

Please read this pamphlet carefully in order to make your phone in perfect condition.
Our company may change this mobile phone without prior written notice and reserves the final right to
interpret the performance of this mobile phone.
Due to different software and network operators, display on your phone may be different, refer to your
phone for details.

1.2 Safety warning and Attentions

Safety warning

¾ ROAD SAFETY COMES FIRST

Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while

driving. In some countries, dialing or receiving calls while driving is illegal!

¾ SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky.

Please make sure that your mobile phone is powered off in flight.

¾ SWITCH OFF BEFORE ENTERING RISKY AREAS

Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas.
Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank,
chemical plant or a place where a blasting process is under way.

-3-

¾ OBSERVE ALL SPECIAL REGULATIONS

Follow any special regulations in force in any area such as hospitals and always switch off your phone
whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile
phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices,
as it may cause interference to such apparatuses.

¾ INTERFERENCE

The conversation quality of any mobile phone may be affected by radio interference. An antenna is built
inside the mobile phone and located below the microphone. Do not touch the antenna area during a
conversation, lest that the conversation quality deteriorate.

¾ QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone
on your own may bring great danger and violates the warranty rules.

¾ ACCESSORIES AND BATTERIES

Use only approved accessories and batteries.

¾ USE SENSIBLY

Use only in a normal and proper manner.

¾ EMERGENCY CALLS

Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the
Dial key. Give your location and state your situation briefly. Do not end the call until told to do so.

Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features
described in this manual due to network or radio transmission problems. Some networks even do not support
the emergency call service. Therefore, do not rely solely on the mobile phone for critical communications

-4-

such as first aid. Please consult the local network operator.

Precautions

This mobile phone is well designed with fine art. Please exercise special care when using it. The
following suggestions will help your mobile phone survive the warranty period and extend its service life:

¾ Keep the mobile phone and all its fittings beyond children's reach.
¾ Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances that may corrode

electronic circuits.

¾ Do not use or store the mobile phone in dusty places, lest that active parts of the mobile phone be damaged.
¾ Do not store the mobile phone in a high-temperature place. High temperature will shorten the life of

electronic circuits and damage the battery and some plastic parts.

¾ Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside the mobile

phone to damage electronic circuits when the mobile phone is moved to a constant temperature place.

¾ Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and high-precision

components of the mobile phone.

Your phone

1.3 Phone overview

-5-

1.4 Functions of Keys

The mobile phone provides the following keys:
 Dial key

In standby interface, press it can access dial interface, there, you can input a phone number and press this
key to originate a call; or press it to receive an incoming call.

 End key

Press it to end a call being dialed or end an ongoing call.

 OK key

Press it to confirm a selection.

 Power key

Power key situates at the top of the phone. While using the phone, you can press this key to lock screen;
if you press and hold this key, a phone-options dialog would pop out. Here, you can select to adjust the
phone to silent mode/airplane mode or to power off it.

 Home, Option, Back and search key

They are four keys which situate just below the screen.

¾ Home key: press it to open home screen. If you’re viewing the left or right extended Home screen, press

it can enter the central screen; press and hold this key can open the most recently used applications
screen;

¾ Menu key: press this key to access options of a selected functions;
¾ Back key: press this key to return to the previous screen;
¾ Search key: On the Home screen, press it can open Google search for searching your phone and the web.

In many applications, press it can open a search box for searching within the application.

-6-

 Direction key

Press them to scroll the options when browsing a function list. In edit state, press direction keys to

navigate.

 Delete key

Press it to delete a character before cursor.

 Enter key

In the edit interface, you can press this key to switch to another line.

 Space key

Press it in the edit interface to get a blank.

 Alt. key

In edit interface, press it to input an alternative symbol or number.

 Caps key

In edit interface, press it can switch between upper case and lower case.

 Shift key
In edit interface, you can press it to switch between input methods;

 Number keys and letters

Press number keys 0 through 9 in input or edit state to input numbers and characters; Press letter keys A
through Z in input or edit state to input letters and characters;

-7-

Getting started

1.5 Installing the SIM Cards and the Battery

An SIM card carries useful information, including your mobile phone number, PIN (Personal
Identification Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI
(International Mobile Subscriber Identity), network information, contacts data, and short messages data.

Note:

After powering off your mobile phone, wait for a few seconds before removing or inserting an SIM card.

Exercise caution when operating an SIM card, as friction or bending will damage the SIM card.

Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach.

Installation

 Hold the power key for a while to power off the mobile phone
 Push the back cover above the battery and remove it.
 Pull the left battery buckle outward and then lift the battery away.
 Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the

notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further
pushed in.

 With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the

battery down until it locks into place.

1.6 Installing SD Card

The SD card is a pluggable mobile storage card inside the mobile phone.

-8-

To install the SD card, open its latch, place its indented side downward, insert the card into the card slot,

and then close the latch.

To remove the SD card, open its latch and slightly take the card out. And then close the latch.

Note:

1. The mobile phone cannot automatically identify the SD card being inserted when the mobile phone is
powered on. You must power off the mobile phone and then power it on, so that the phone can identify the SD
card.

2. The SD card is a miniature object. Keep it out of the reach of children for fear that children swallow
it!

1.7 Charging the Battery

 Your mobile phone can monitor and display the battery state.
 Normally the remaining energy of the battery is indicated by the battery level icon at the upper right

corner of the display screen.

 When the battery energy is insufficient, the mobile phone prompts "Battery low".

Using a travel adapter:

 Install the battery into the mobile phone before charging the battery.
 Connect the adapter of the travel charger with the charging slot in the mobile phone. Ensure that the

adapter is fully inserted.

 Insert the plug of the travel charger to an appropriate power outlet.
 During the charging, the battery level grids in the battery icon keep flickering till the battery is fully

charged.

-9-

 The battery icon does no longer flicker when the charging process ends.

Note:

Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted
in the right direction. Inserting them in a wrong dir ection may cause charging failure or other problems.
Before the charging, ensure that the standard voltage and frequency of the local mains supply match the
rated voltage and power of the travel charger.

Optimizing battery life

You can extend your battery’s life between charges by turning off features that you don’t need. You can
also monitor how applications and system resources consume battery power.

To guarantee the optimal performance of your battery, please stick to the following rules:

 Turn off radios that you aren’t using. If you aren’t using Wi-Fi, Bluetooth, or GPRS, use the Setting

application to turn them off.

 Turn down screen brightness and set a shorter screen timeout.
 If you don’t need them, turn off automatic syncing for Gmail, Calendar, Contacts, and other

applications.

Note: On the Home screen, press Menu icon and touch Settings > About phone > Battery use. The
Battery Use screen lists the applications that have been using the battery, from greatest to least battery use.
The top of the screen displays the time since you were last co nnected to a charger or, if you’re currently
connected to one, how long you were running on battery power before you connected to a charger. Then each
application or service that used battery power during that time is displayed, in order of the amount of power
they used. Touch an application in the Battery Use screen to learn details about its power consumption.
Different applications offer different kinds of information.

-10-

1.8 Linking to the Networks and devices

Your phone can connect to a variety of networks and devices, including mobile networks for voice and
data transmission, Wi-Fi data networks, and Bluetooth devices, such as headsets. You can also connect your
phone to a computer, to transfer files from your phone’s SD card and share your phone’s mobile data
connection via USB.

Connecting to mobile networks

When you assemble your phone with a SIM card, your phone is configured to use your provider’s
mobile networks for voice calls and for transmitting data.
Connecting to Wi-Fi networks

Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100
meters, depending on the Wi-Fi router and your surroundings.

Touch Settings>Wireless & networks > Wi-Fi settings. Check Wi-Fi to turn it on. The phone scans for
available Wi-Fi networks and displays the names of those it finds. Secured networks are indicated with a
Lock icon.

Note: If the phone finds a network that you connected to previously, it connects to it.

Touch a network to connect to it. If the network is open, you are prompted to confirm that you want to
connect to that network by touching Connect. If the network is secured, you’re prompted to enter a password
or other credentials.
Connecting to Bluetooth devices

Bluetooth is a short-range wireless communications technology that devices can use to exchange

-11-

information over a distance of about 8 meters. The most common Bluetooth devices are headphones for
making calls or listening to music, hands-free kits for cars, and other portable devices, including laptops and
cell phones.
Touch Settings>Wireless & networks > Bluetooth. Check Bluetooth to turn it on.
You must pair your phone with a device before you can connect to it. Once you pair your phone with a
device, they stay paired unless you unpair them.
Your phone scans for and displays the IDs of all available Bluetooth devices in range. If the device you
want to pair with isn’t in the list, make it discoverable.
Connecting to a computer via USB

You can connect your phone to a computer with a USB cable, to transfer music, pictures, and other files
between your phone’s SD card and the computer.

1.9 Using the touch screen

Slide your finger left or right across the Home screen. These extensions to the Home screen provide
more space for widgets, shortcuts, and other items. Small dots at the lower left and right indicate which
screen you’re viewing.

The main way to control Android features is by using your finger to manipulate icons, buttons, menu
items, the onscreen keyboard, and other items on the touch screen. You can also change the screen’s
orientation.

Touch

To act on items on the screen, such as application and settings icons, to type letters and symbols using

-12-

the onscreen keyboard, or to press onscreen buttons, you simply touch them with your finger.

Touch & hold

Touch & hold an item on the screen by touching it and not lifting your finger until an action occurs. For
example, to open a menu for customizing the Home screen, you touch an empty area on the Home screen
until the menu opens.

Drag

Touch & hold an item for a moment and then, without lifting your finger, move your finger on the
screen until you reach the target position.

Swipe or slide

To swipe or slide, you quickly move your finger across the surface of the screen, without pausing when
you first touch it (so you don’t drag an item instead). For example, you slide the screen up or down to scroll a
list.

1.10 Using the onscreen keypad

You enter text using the onscreen keyboard. Some applications open the keyboard automatically. In others,
you touch a text field where you want to enter text to open the keyboard. You can also enter text by speaking
instead of by typing.

To enter text

Touch a text field, and the onscreen keyboard opens. Some applications open the keyboard automatically.

In others, you touch a text field where you want to enter text to open the keyboard.

Touch the keys on the keyboard to type.

The characters you’ve entered appear in a strip above the keyboard, with suggestions for the word you

-13-
