Dynamic Model Design V003 Users Manual

Dynamic Model Design Limited

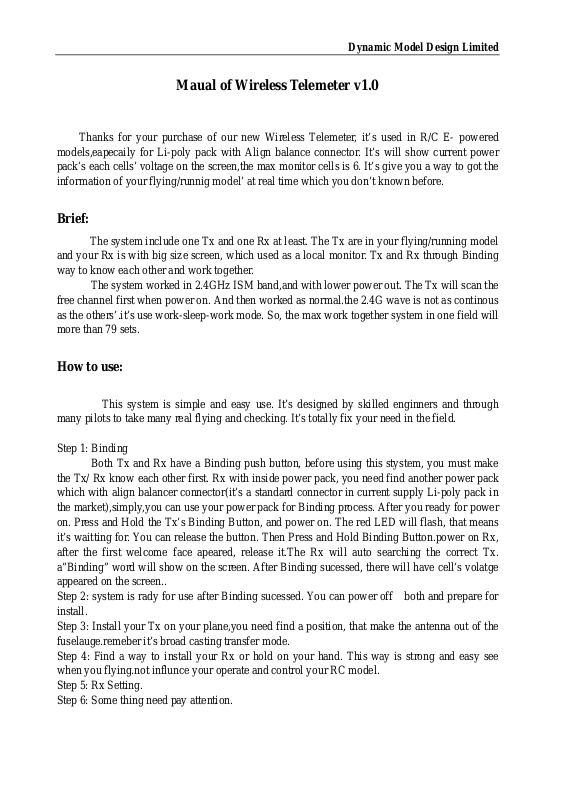

Maual of Wireless Telemeter v1.0

Thanks for your purchase of our new Wireless Telemeter, it’s used in R/C E- powered
models,eapecaily for Li-poly pack with Align balance connector. It’s will show current power
pack’s each cells’ voltage on the screen,the max monitor cells is 6. It’s give you a way to got the
information of your flying/runnig model’ at real time which you don’t known before.

Brief:

and your Rx is with big size screen, which used as a local monitor. Tx and Rx through Binding
way to know each other and work together.
The system worked in 2.4GHz ISM band,and with lower power out. The Tx will scan the
free channel first when power on. And then worked as normal.the 2.4G wave is not as continous
as the others’.it’s use work-sleep-work mode. So, the max work together system in one field will
more than 79 sets.

The system include one Tx and one Rx at least. The Tx are in your flying/running model

How to use:

This system is simple and easy use. It’s designed by skilled enginners and through
many pilots to take many real flying and checking. It’s totally fix your need in the field.

Step 1: Binding
Both Tx and Rx have a Binding push button, before using this stystem, you must make
the Tx/ Rx know each other first. Rx with inside power pack, you need find another power pack
which with align balancer connector(it’s a standard connector in current supply Li-poly pack in
the market),simply,you can use your power pack for Binding process. After you ready for power
on. Press and Hold the Tx’s Binding Button, and power on. The red LED will flash, that means
it’s waitting for. You can release the button. Then Press and Hold Binding Button.power on Rx,
after the first welcome face apeared, release it.The Rx will auto searching the correct Tx.
a”Binding” word will show on the screen. After Binding sucessed, there will have cell’s volatge
appeared on the screen..
Step 2: system is rady for use after Binding sucessed. You can power off both and prepare for
install.
Step 3: Install your Tx on your plane,you need find a position, that make the antenna out of the
fuselauge.remeber it’s broad casting transfer mode.
Step 4: Find a way to install your Rx or hold on your hand. This way is strong and easy see
when you flying.not influnce your operate and control your RC model.
Step 5: Rx Setting.
Step 6: Some thing need pay attention.

Dynamic Model Design Limited

FCC NOTE:

THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA
TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Exterior FCC ID Label Sample for FCC ID: XR9V003

Contains 2.4 GHz TX Module FCC ID: XR9V003

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
